ISUZU KB P190 2007 Workshop Repair Manual

3C-2 FRONT SUSPENSION
MAIN DATA AND SPECIFICATIONS
4×
××
×
2 (Except High Ride Suspension) Model
Front suspension Type Independent wishbone arms, coil spring
with stabilizer bar.
Coil spring Spring Rate 9.62 kg/mm (94.3 N/mm)
Type Gas-sealed, twin tube
Stroke 116.5 mm (4.59 in)
Compressed length 284.0 mm (11.18 in)
Front shock absorber
Extended length 400.5 mm (15.77 in)
Stabilizer bar Diameter 25.0 mm (0.98 in)

4×
××
×
2 (High Ride Suspension) Model
Front suspension Type Independent wishbone arms, torsion bar spring
with stabilizer bar.
Length 1,142 mm (44.96 in) Torsion bar spring
Diameter 29.0 mm (1.14 in)
Type Gas-sealed, twin tube
Stroke 121.0 mm (4.76 in)
Compressed length 257.0 mm (10.12 in)
Front shock absorber
Extended length 378.0 mm (14.88 in)
Stabilizer bar Diameter 26.0 mm (1.02 in)

4×
××
×
4 Model
Front suspension Type Independent wishbone arms, torsion bar spring
with stabilizer bar.
Length 1,142 mm (44.96 in) Torsion bar spring
Diameter 29.0 mm (1.14 in)
Type Gas-sealed, twin tube
Stroke 121.0 mm (4.76 in)
Compressed length 257.0 mm (10.12 in)
Front shock absorber
Extended length 378.0 mm (14.88 in)
Stabilizer bar Diameter 26.0 mm (1.02 in)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

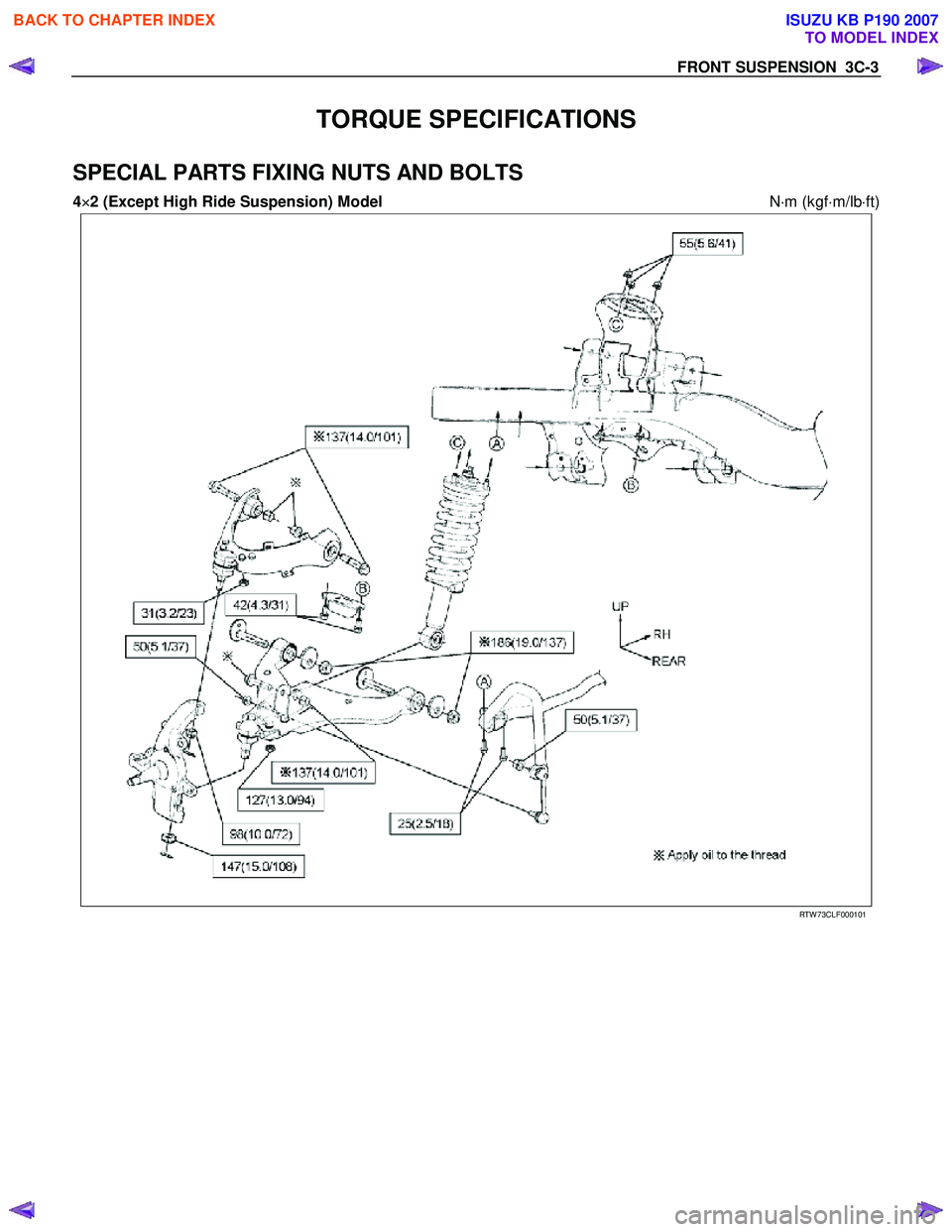

FRONT SUSPENSION 3C-3
TORQUE SPECIFICATIONS
SPECIAL PARTS FIXING NUTS AND BOLTS
4×
××
×
2 (Except High Ride Suspension) Model N⋅m (kgf ⋅m/lb ⋅ft)


RTW 73CLF000101





BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

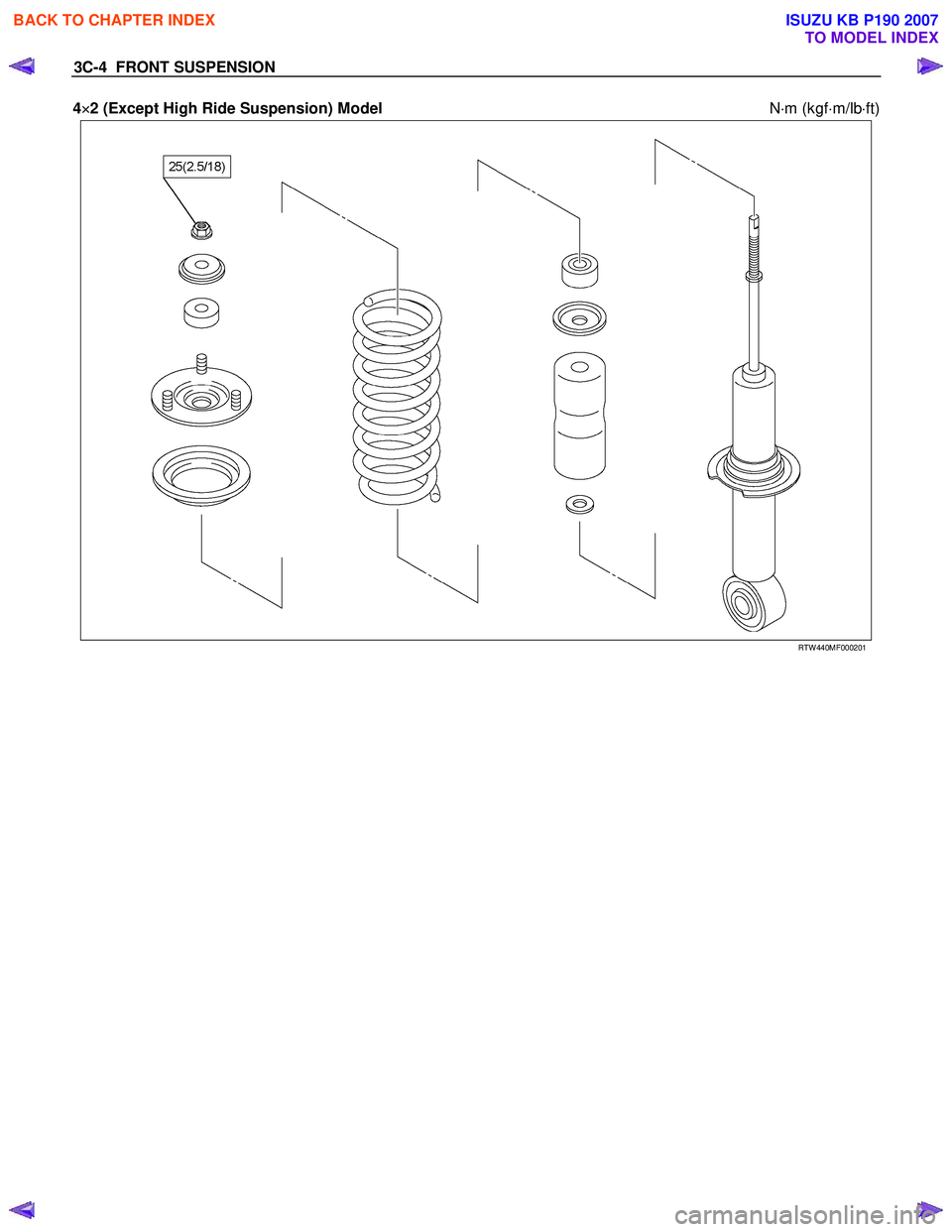

3C-4 FRONT SUSPENSION
4×
××
×
2 (Except High Ride Suspension) Model N⋅m (kgf ⋅m/lb ⋅ft)

RTW 440MF000201



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

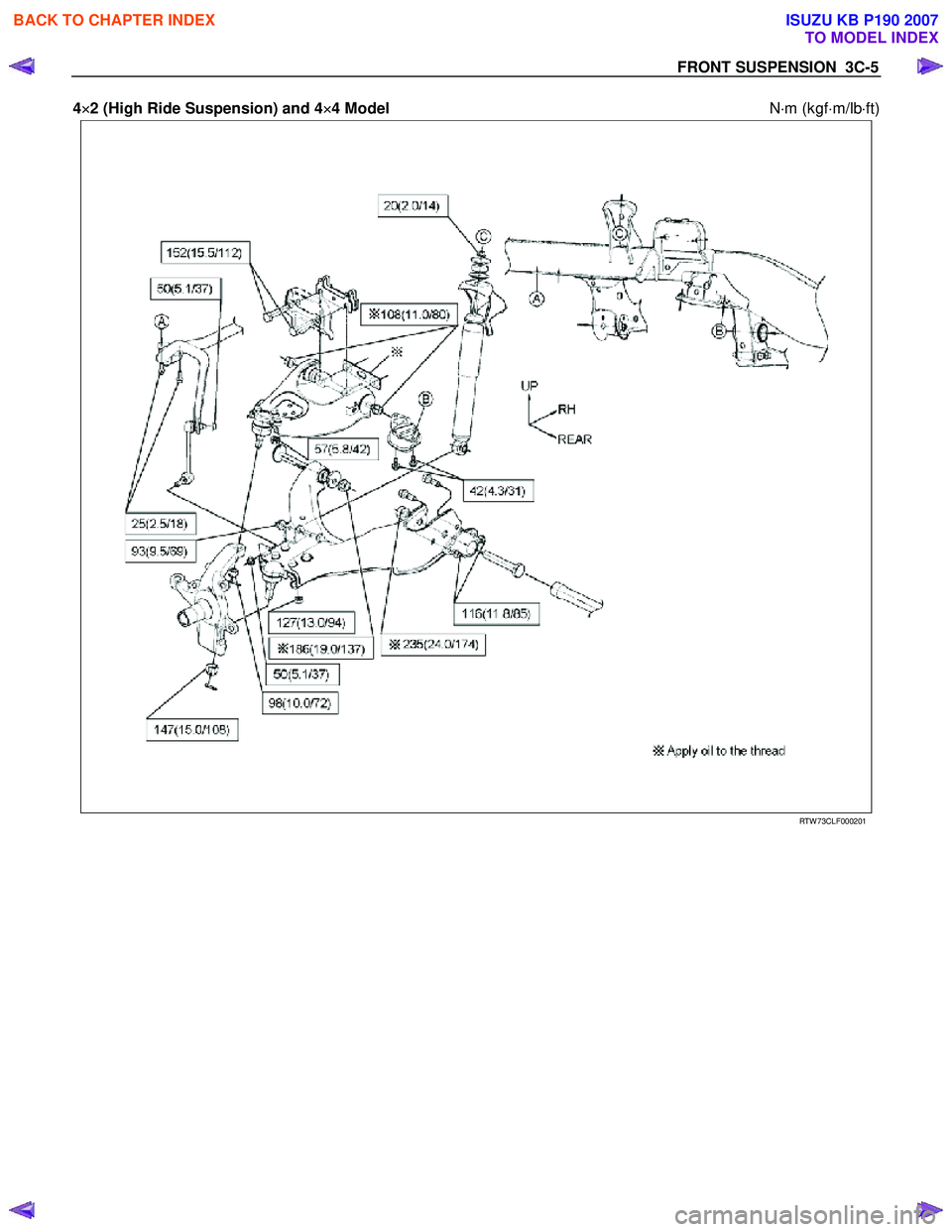

FRONT SUSPENSION 3C-5
4×
××
×
2 (High Ride Suspension) and 4 ×
××
×
4 Model N⋅m (kgf ⋅m/lb ⋅ft)





RTW 73CLF000201


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

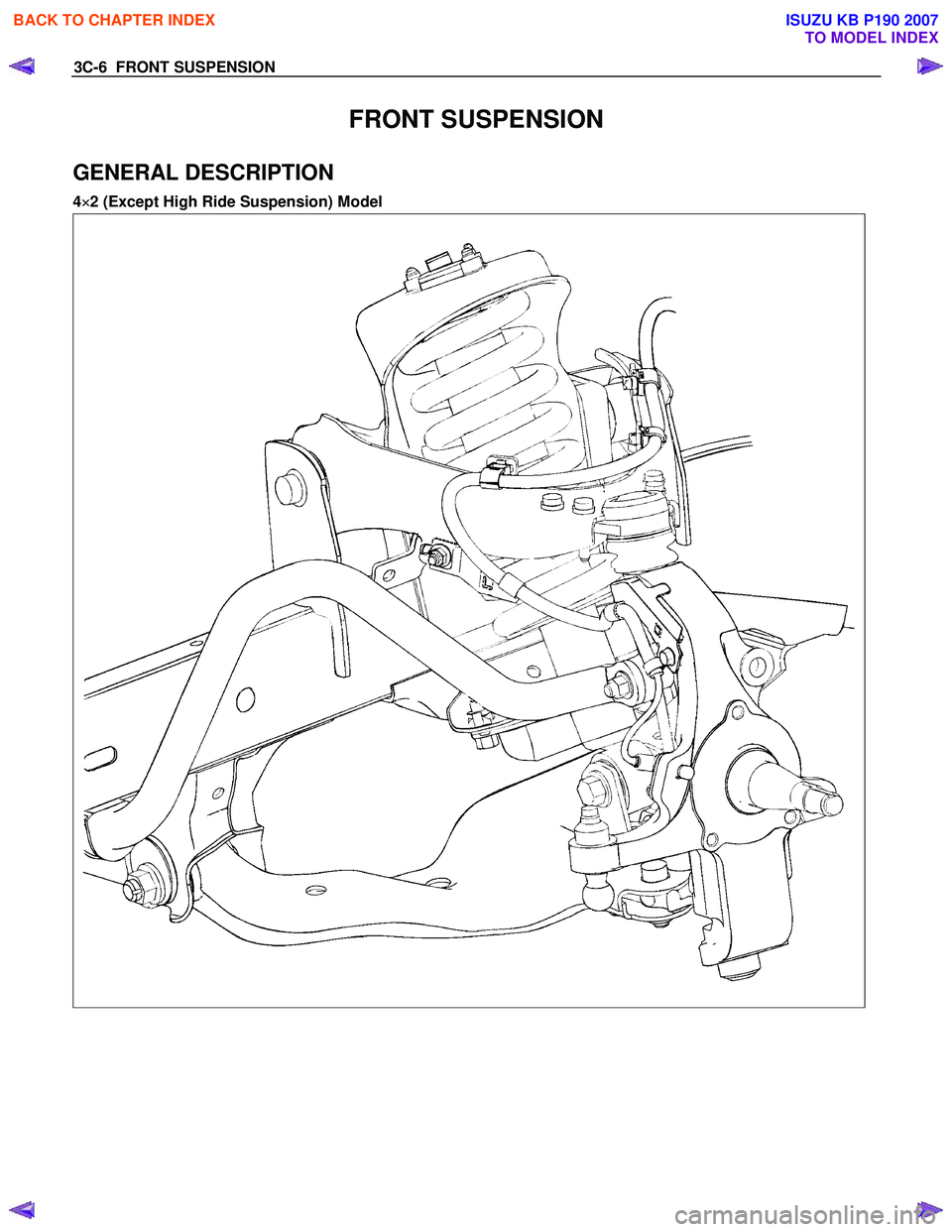

3C-6 FRONT SUSPENSION
FRONT SUSPENSION
GENERAL DESCRIPTION
4×
××
×
2 (Except High Ride Suspension) Model





BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

FRONT SUSPENSION 3C-7
4×
××
×
2 (High Ride Suspension) and 4 ×
××
×
4 Model
RTW 340LF000801
The links attach to the vehicle with bolts and bushings
at their inner pivot points and to the steering knuckle,
which is part of the front wheel spindle, at their outer
points.
The knuckle is mounted to the upper and lower links
each of which has a ball joint to permit pivoting of the
knuckle for steering operations. The hub is supported
in position on the knuckle spindle by means of the two
bearings and the rotor is mounted on the hub.
The front suspension is an independent type utilizing
torsion bar springs (4 ×4, 4 ×2 (High ride suspension))
and coil springs (4 ×2 (except High ride suspension)).
The torsion bar spring has splines on each end. Height
control is provided on the third crossmember. Both the
upper and lower links are pressed steel and the torsion
bar is supported at the ends by lower link in front and by
height control arm in rear.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

SECTION 3C
FRONT SUSPENSION
(4 ×
××
×
2 Except High Ride Suspension)
TABLE OF CONTENTS

Service Precaution ............................................. 3C-8
Shock Absorber .................................................. 3C-9 Shock Absorber and Associated Parts............ 3C-9
Removal .......................................................... 3C-10
Installation ....................................................... 3C-11
Shock Absorber with Coil Spring..................... 3C-13
Stabilizer Bar ...................................................... 3C-16 Stabilizer Bar and Associated Parts ................ 3C-16
Removal .......................................................... 3C-16
Inspection and Repair ..................................... 3C-17
Installation ....................................................... 3C-17
Knuckle............................................................... 3C-18 Knuckle and Associated Parts ........................ 3C-18
Removal .......................................................... 3C-18
Inspection and Repair ..................................... 3C-19
Installation ....................................................... 3C-19
Upper Control Arm ............................................. 3C-20 Upper Control Arm and Associated Parts ....... 3C-20
Removal .......................................................... 3C-20
Inspection and Repair ..................................... 3C-21
Installation ....................................................... 3C-21

Lower Control Arm ............................................. 3C-22
Lower Control Arm and Associated Parts ....... 3C-22
Removal .......................................................... 3C-22
Inspection and Repair ..................................... 3C-23
Installation ....................................................... 3C-23
Upper Ball Joint .................................................. 3C-24 Upper Ball Joint and Associated Parts ............ 3C-24
Removal .......................................................... 3C-24
Inspection and Repair ..................................... 3C-25
Installation ....................................................... 3C-25
Lower Ball Joint .................................................. 3C-26 Lower Ball Joint and Associated Parts ............ 3C-26
Removal .......................................................... 3C-26
Inspection and Repair ..................................... 3C-27
Installation ....................................................... 3C-27
Bump Rubber ..................................................... 3C-28 Bump Rubber Joint and Associated Parts ...... 3C-28
Removal .......................................................... 3C-28
Inspection and Repair ..................................... 3C-28
Installation ....................................................... 3C-28
Special Tools................................................... 3C-29


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

3C-8 FRONT SUSPENSION

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.


CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU/GM will indicate those fasteners that require
replacement after removal. ISUZU/GM will also
indicate the fasteners that require thread lockers o
r
thread sealant. UNLESS OTHERWISE SPECIFIED,
do not use supplemental coatings (paints, greases,
or other corrosion inhibitors) on threaded fasteners
or fastener joint interfaces. Generally, such
coatings adversely affect the fastener torque and
the joint clamping force, and may damage the
fastener. When you install fasteners, use the
correct tightening sequence and specifications.
Following these instructions can help you avoid
damage to parts and systems.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

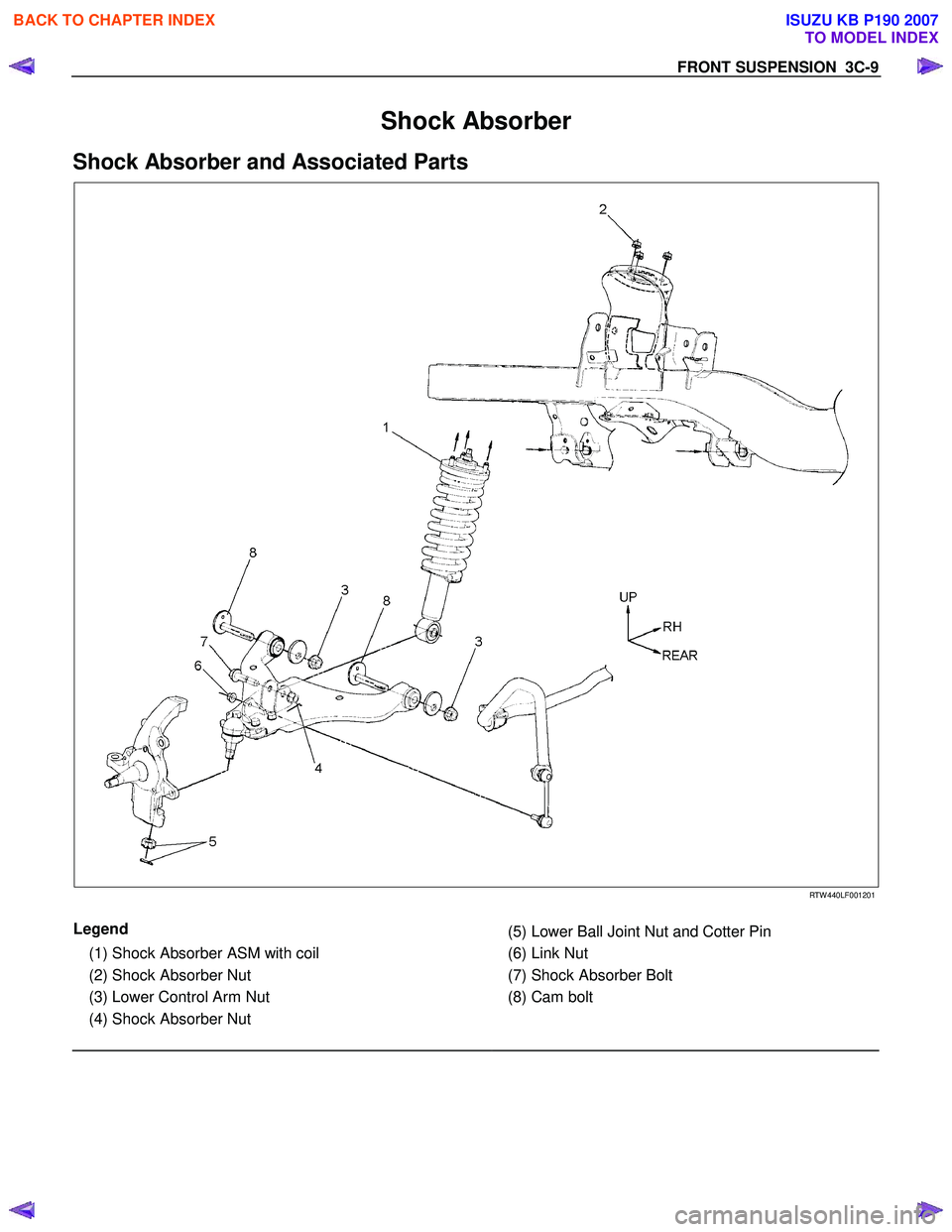

FRONT SUSPENSION 3C-9
Shock Absorber
Shock Absorber and Associated Parts



RTW 440LF001201

Legend
(1) Shock Absorber ASM with coil
(2) Shock Absorber Nut
(3) Lower Control Arm Nut
(4) Shock Absorber Nut

(5) Lower Ball Joint Nut and Cotter Pin
(6) Link Nut
(7) Shock Absorber Bolt
(8) Cam bolt



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

3C-10 FRONT SUSPENSION
Removal
1. Raise the vehicle and support it with suitable
safety stands.
2. Remove wheel and tire assembly. Refer to W heel Replacement in this section.
3. Remove link nut.

CAUTION: Be careful not to damage the ball joint
boot.
4. Support lower control arm with a jack.
5. Remove the shock absorber bolt and nut.
6. Remove lower ball joint nut and cotter pin, then use remover 5-8840-2017-0 to remove the lowe
r
ball joint from the knuckle.

P1010003
7. Apply the setting marks to the front and rear cam
bolt and crossmember, then loosen nut, and cam
bolt.
8. Remove the shock absorber nut.
9. Remove the shock absorber asm.
