Page 4991 of 6020

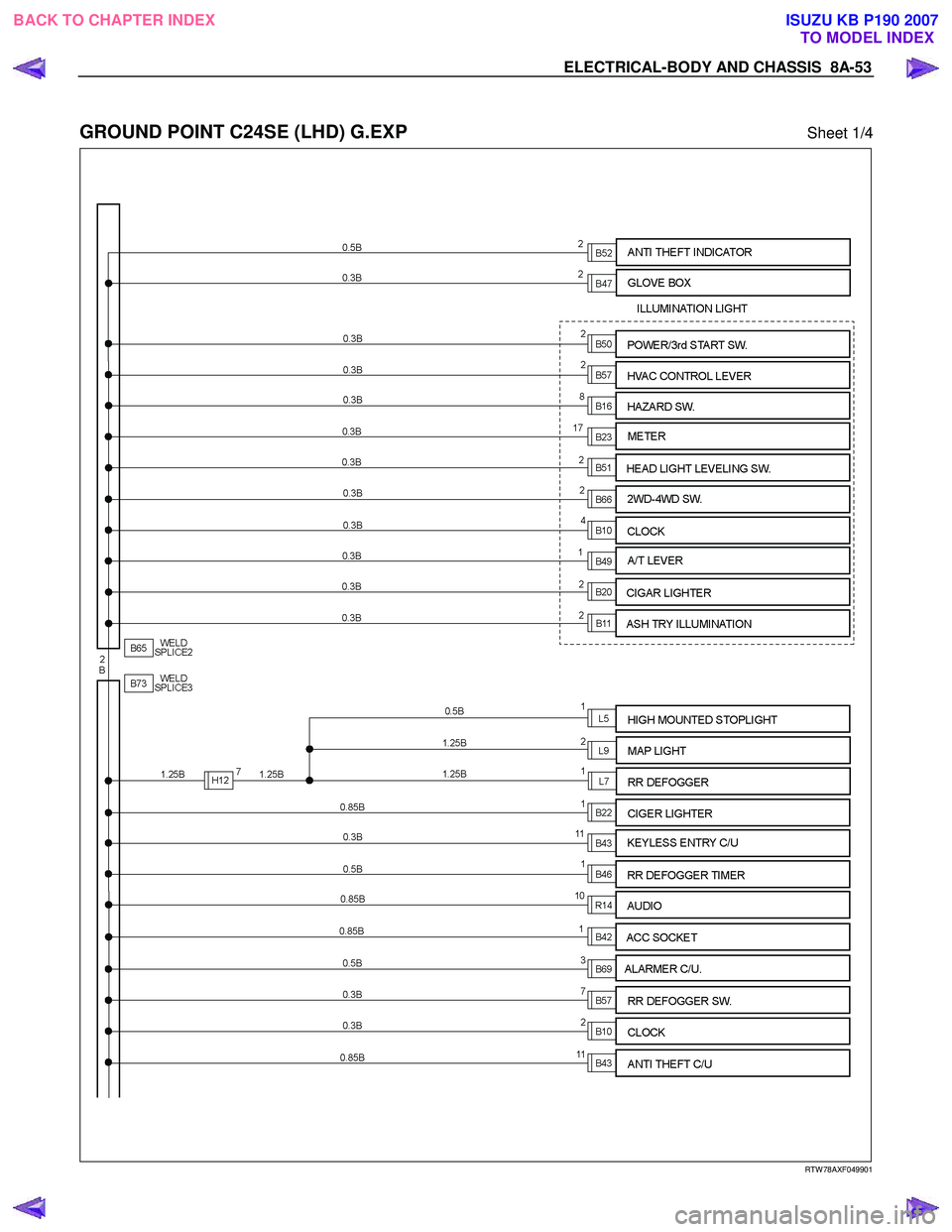

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-53 GROUND POINT C24SE (LHD) G.EXP Sheet 1/4 RTW 78AXF049901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4992 of 6020

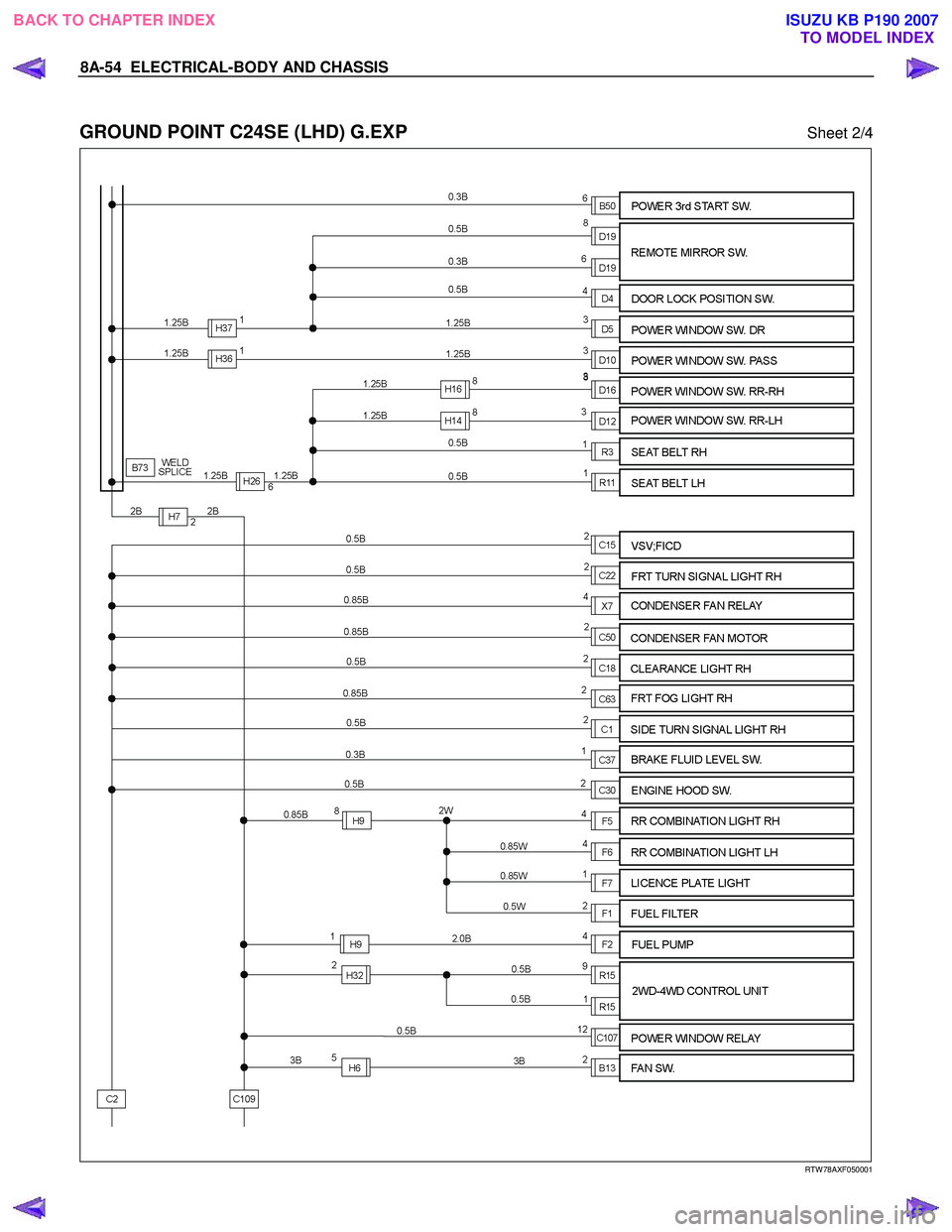

ISUZU KB P190 2007 Workshop Repair Manual 8A-54 ELECTRICAL-BODY AND CHASSIS GROUND POINT C24SE (LHD) G.EXP Sheet 2/4 RTW 78AXF050001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4993 of 6020

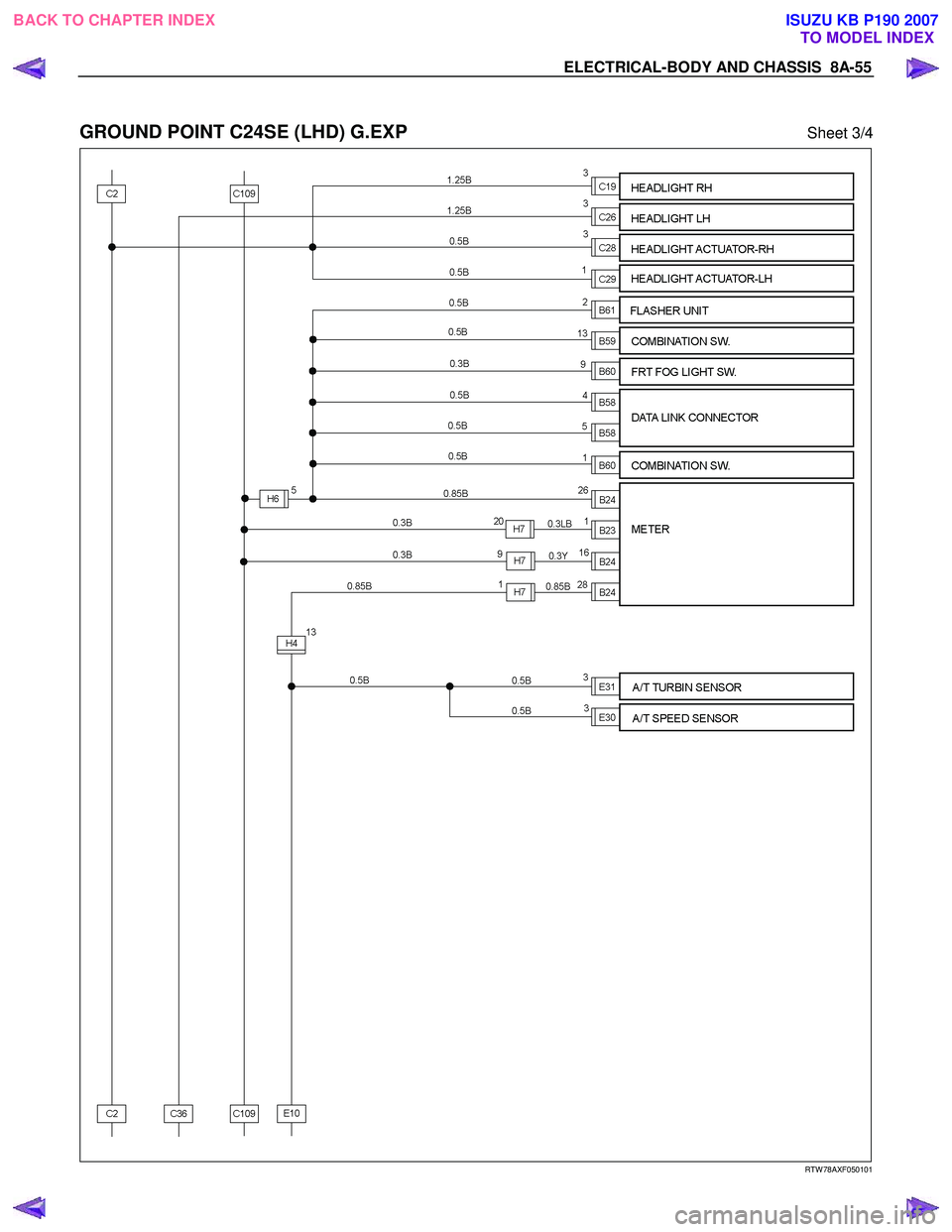

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-55 GROUND POINT C24SE (LHD) G.EXP Sheet 3/4 RTW 78AXF050101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4994 of 6020

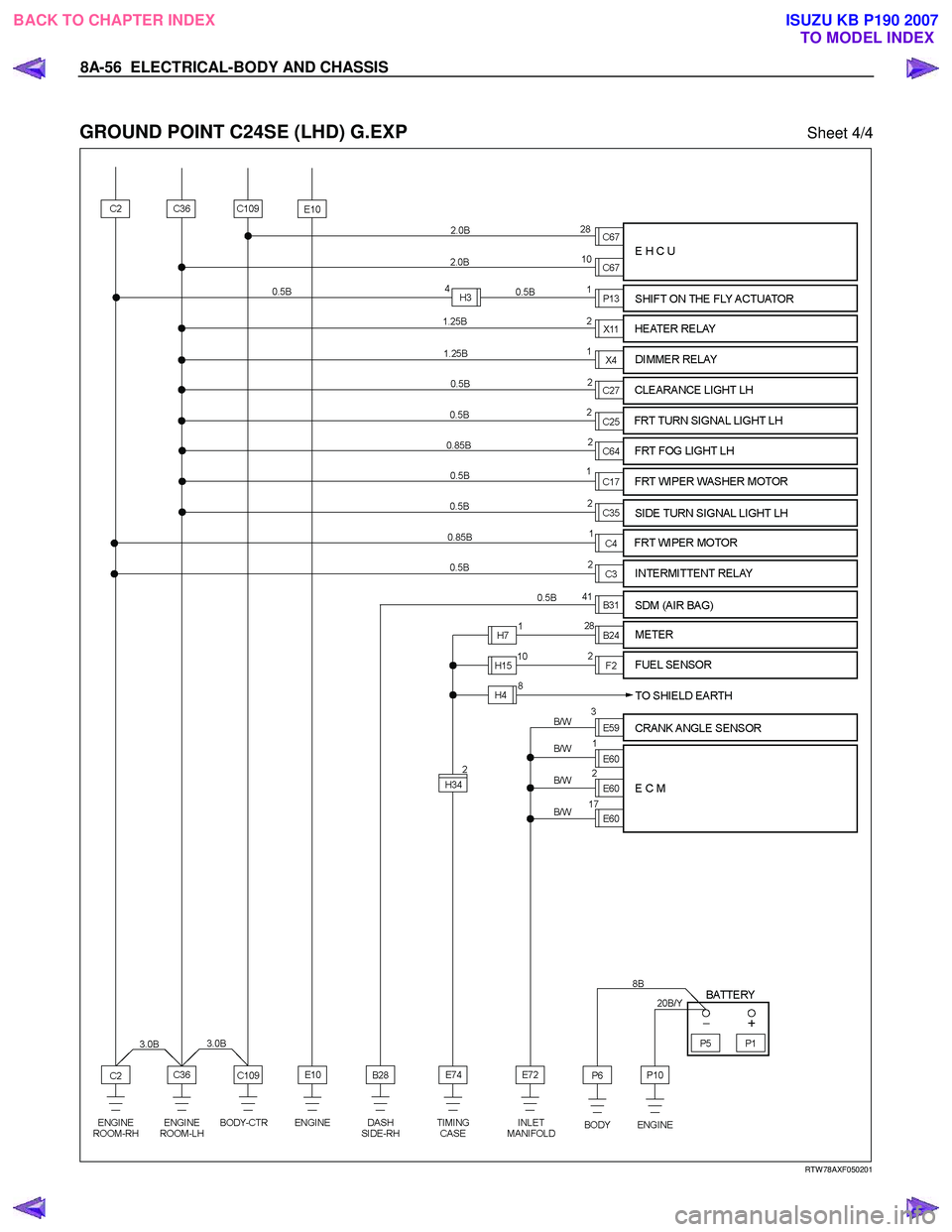

ISUZU KB P190 2007 Workshop Repair Manual 8A-56 ELECTRICAL-BODY AND CHASSIS GROUND POINT C24SE (LHD) G.EXP Sheet 4/4 RTW 78AXF050201 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4995 of 6020

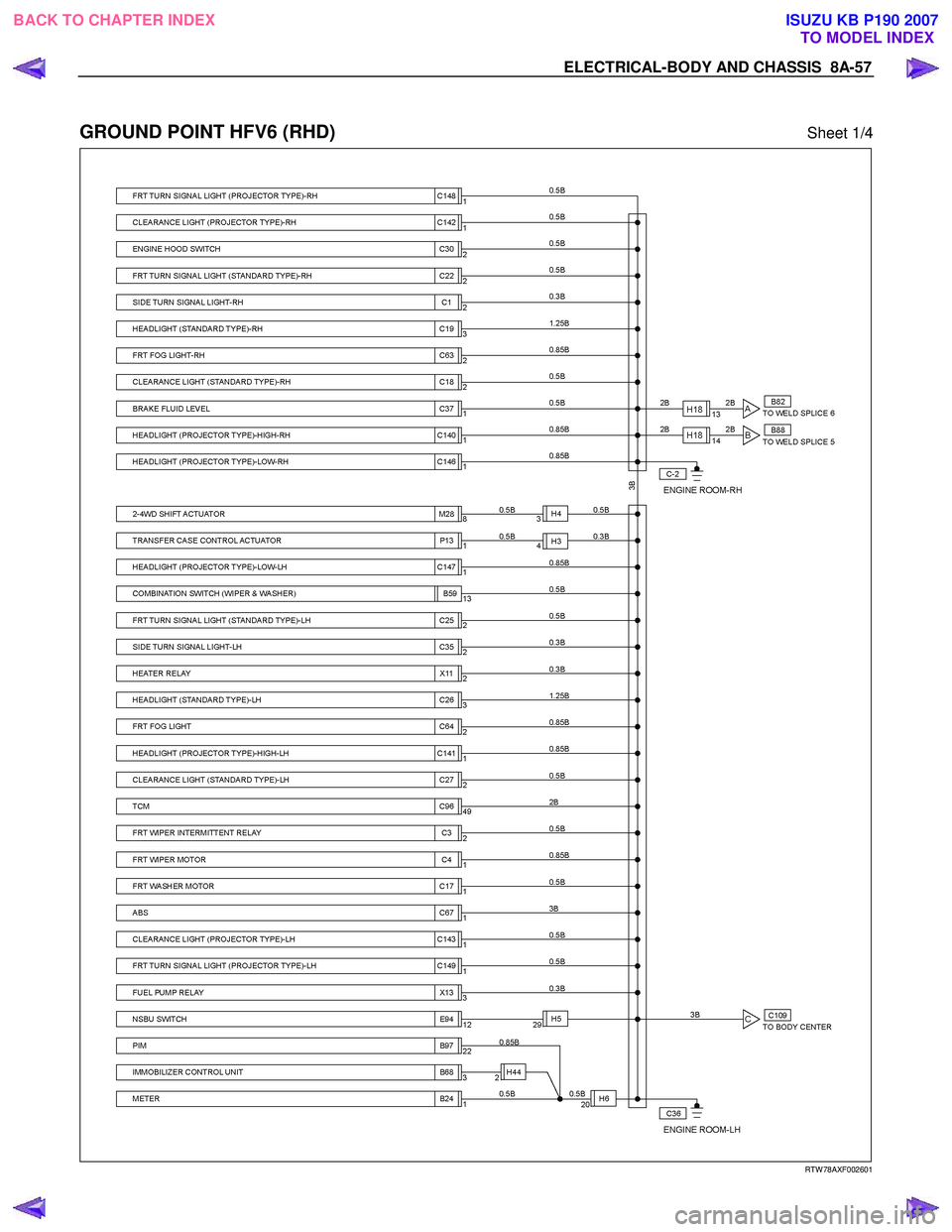

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-57 GROUND POINT HFV6 (RHD) Sheet 1/4 RTW 78AXF002601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4996 of 6020

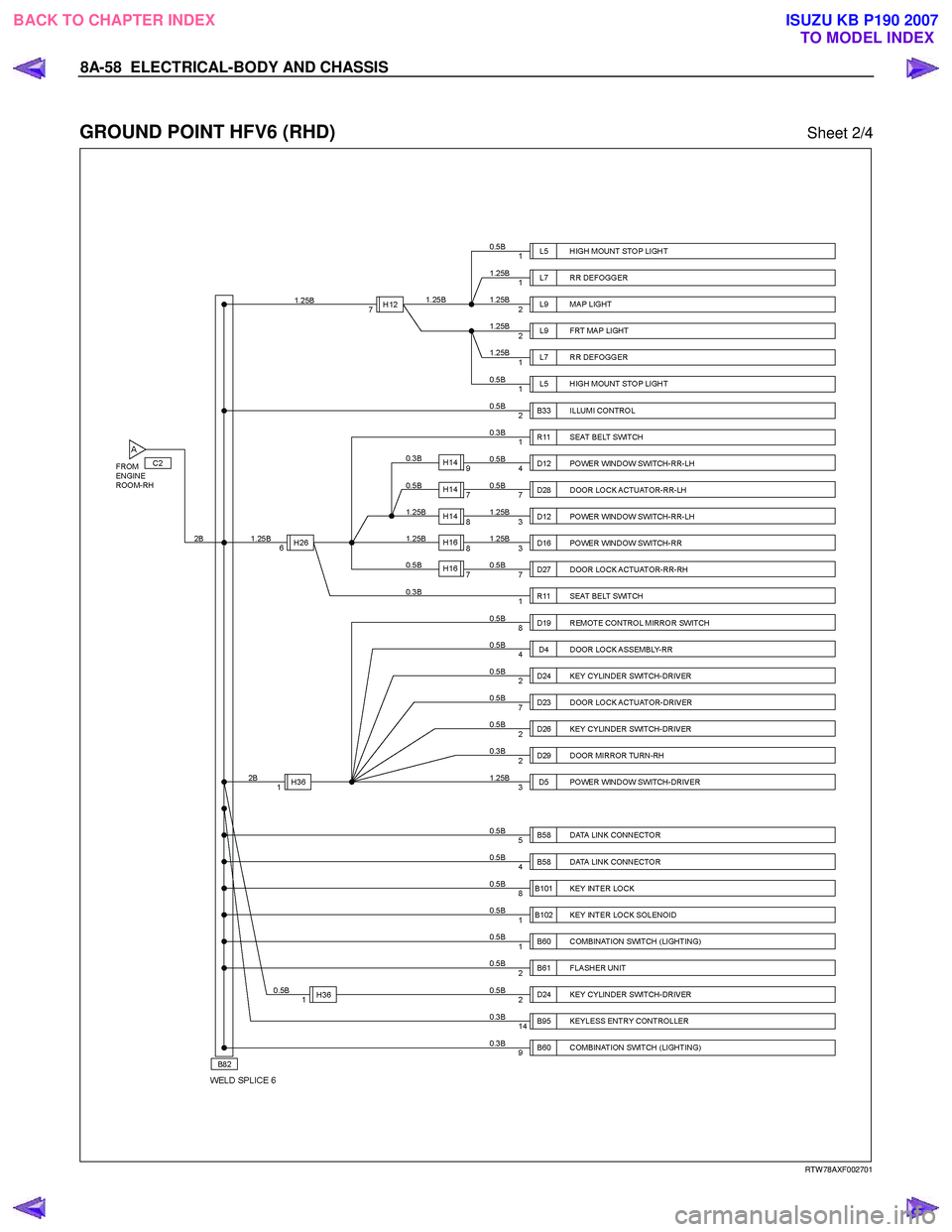

ISUZU KB P190 2007 Workshop Repair Manual 8A-58 ELECTRICAL-BODY AND CHASSIS GROUND POINT HFV6 (RHD) Sheet 2/4 RTW 78AXF002701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4997 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-59 GROUND POINT HFV6 (RHD) Sheet 3/4 RTW 78AXF002801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4998 of 6020

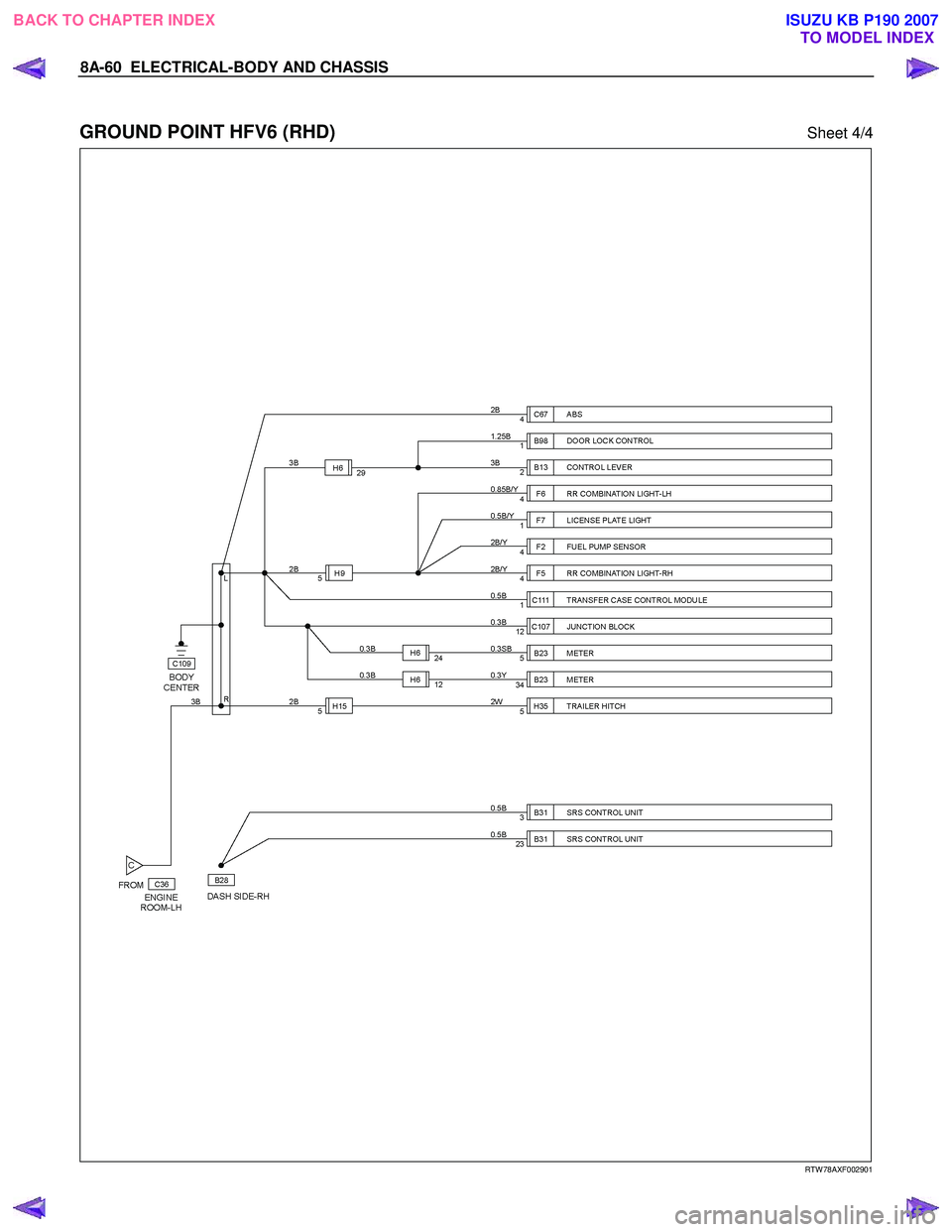

ISUZU KB P190 2007 Workshop Repair Manual 8A-60 ELECTRICAL-BODY AND CHASSIS GROUND POINT HFV6 (RHD) Sheet 4/4 RTW 78AXF002901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4999 of 6020

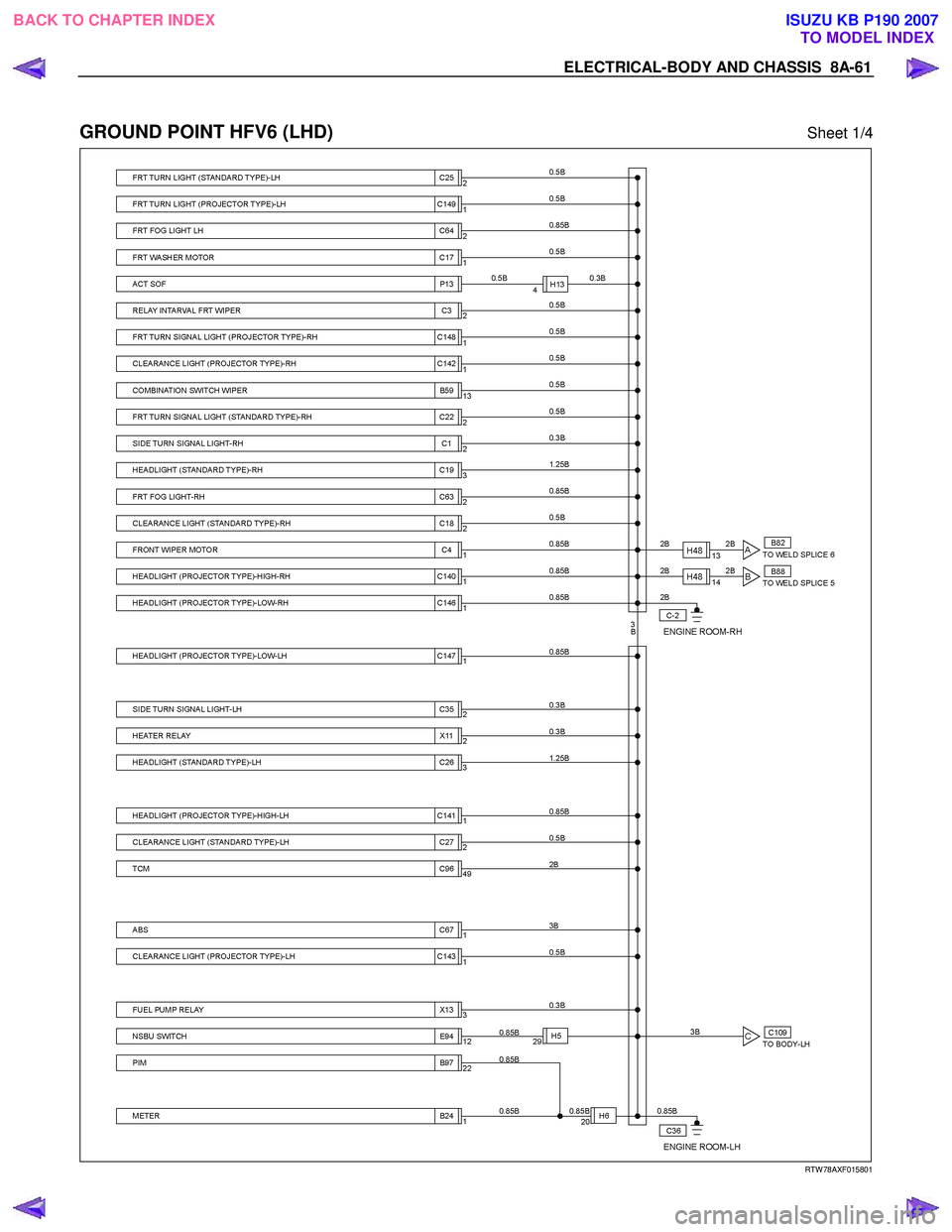

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-61 GROUND POINT HFV6 (LHD) Sheet 1/4 RTW 78AXF015801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5000 of 6020

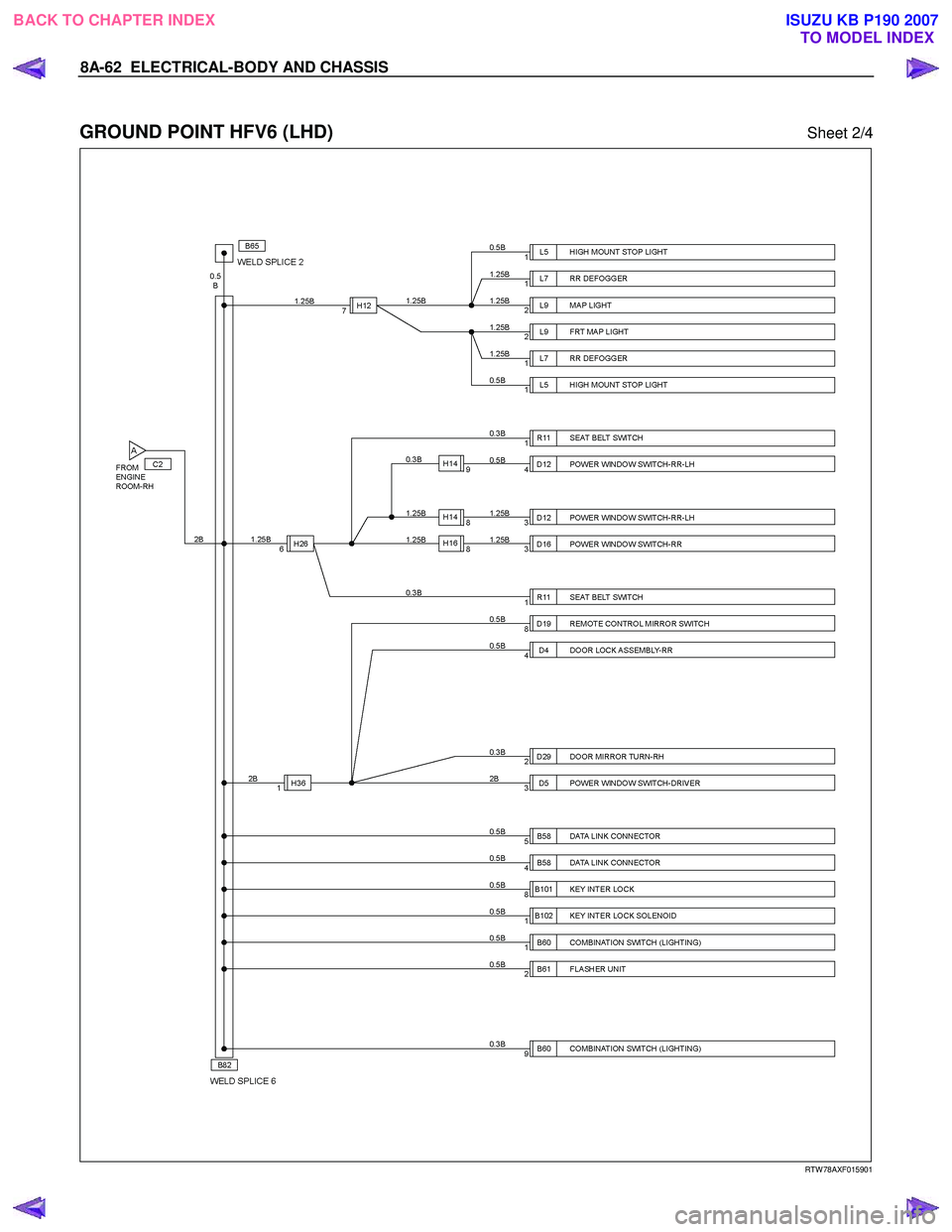

ISUZU KB P190 2007 Workshop Repair Manual 8A-62 ELECTRICAL-BODY AND CHASSIS GROUND POINT HFV6 (LHD) Sheet 2/4 RTW 78AXF015901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
