ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-43 FUSE BLOCK CIRCUIT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 1/2 RTW 78AXF029901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4982 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-44 ELECTRICAL-BODY AND CHASSIS FUSE BLOCK CIRCUIT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 2/2 RTW 78AXF030001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4983 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-45 FUSE BLOCK CIRCUIT 4JH1-TC (LHD) Sheet 1/2 RTW 78AXF005201 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4984 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-46 ELECTRICAL-BODY AND CHASSIS FUSE BLOCK CIRCUIT 4JH1-TC (LHD) Sheet 2/2 RTW 78AXF005301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4985 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-47 FUSE BLOCK CIRCUIT 4JA1T (L) Sheet 1/2 RTW 78AXF020801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4986 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-48 ELECTRICAL-BODY AND CHASSIS FUSE BLOCK CIRCUIT 4JA1T (L) Sheet 2/2 RTW 78AXF020901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4987 of 6020

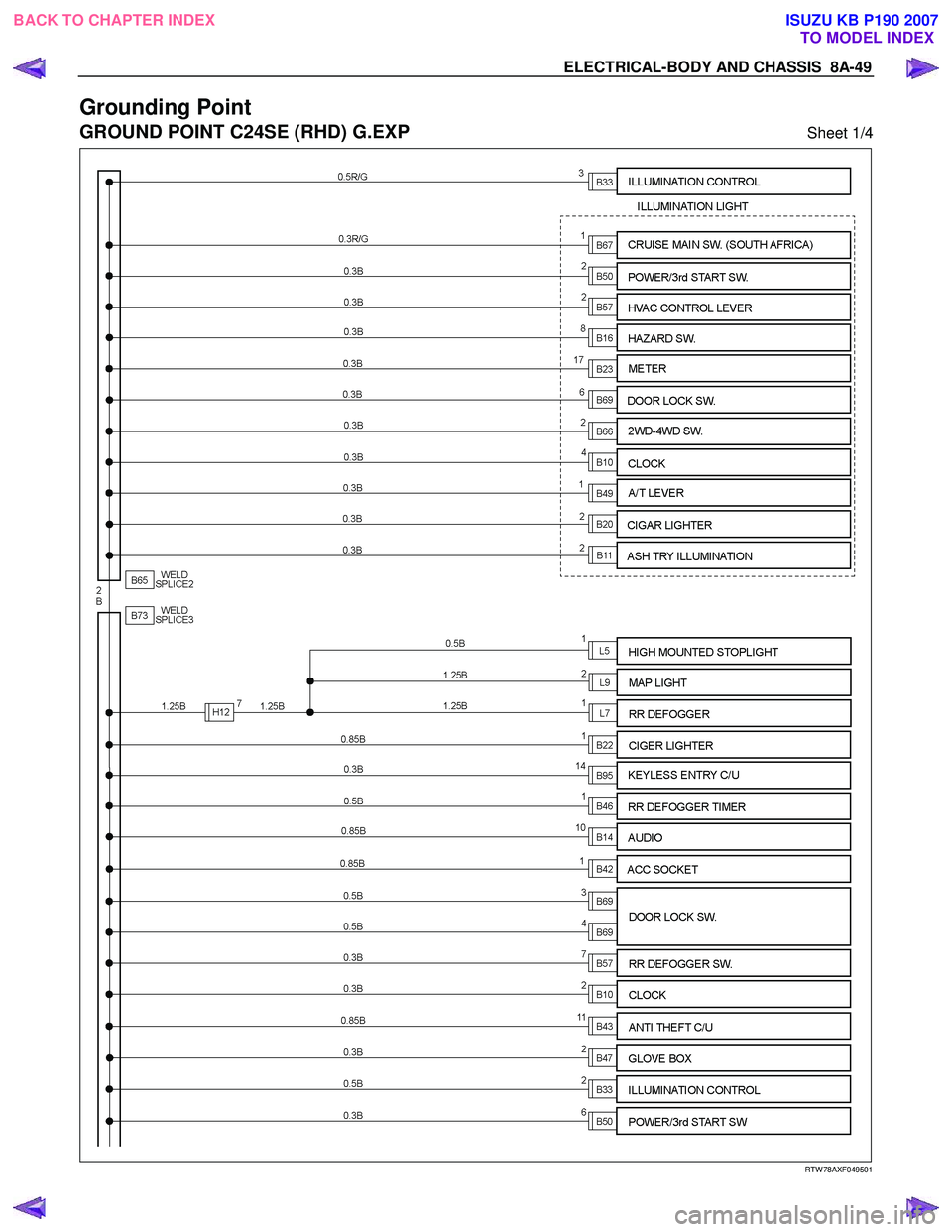

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-49 Grounding Point GROUND POINT C24SE (RHD) G.EXP Sheet 1/4 RTW 78AXF049501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4988 of 6020

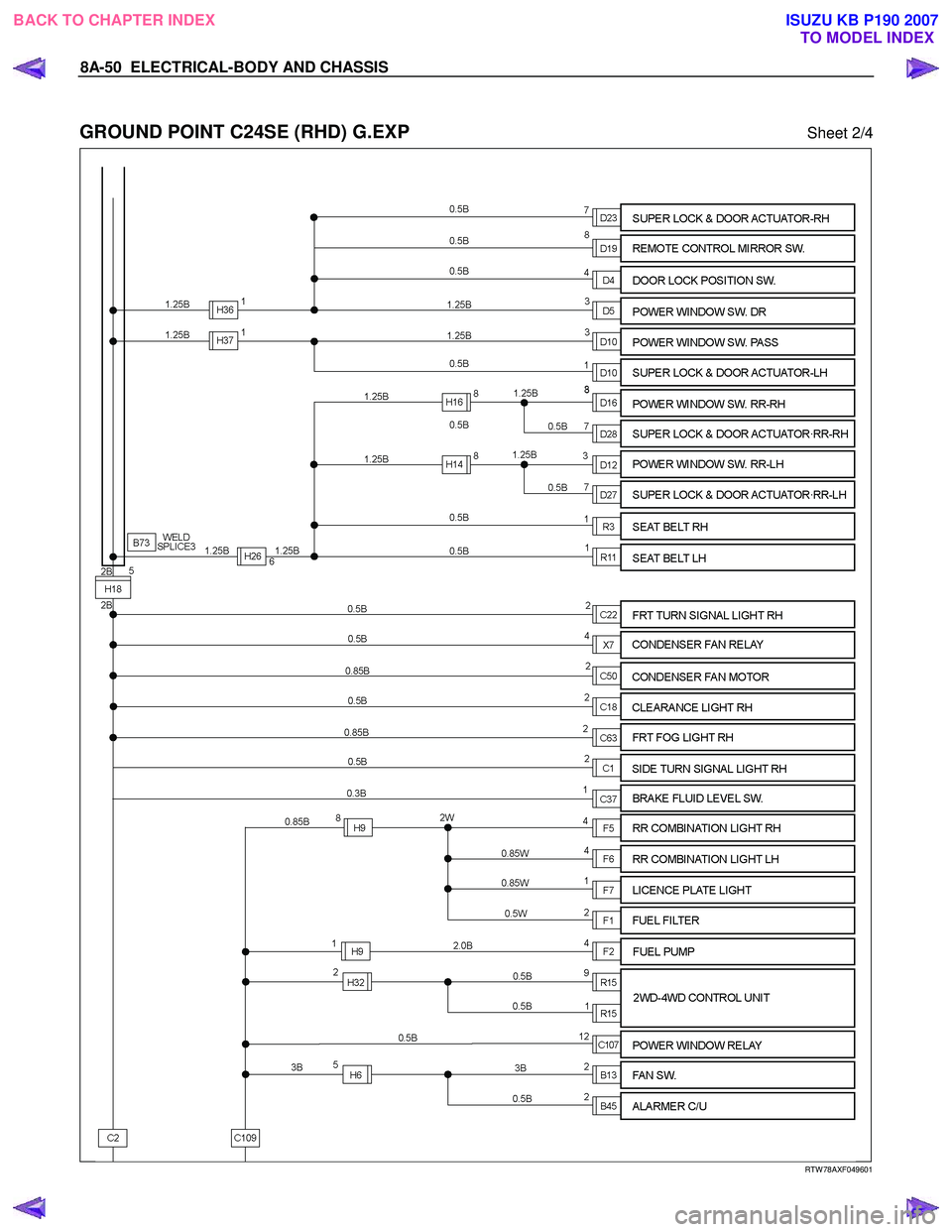

ISUZU KB P190 2007 Workshop Repair Manual 8A-50 ELECTRICAL-BODY AND CHASSIS GROUND POINT C24SE (RHD) G.EXP Sheet 2/4 RTW 78AXF049601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4989 of 6020

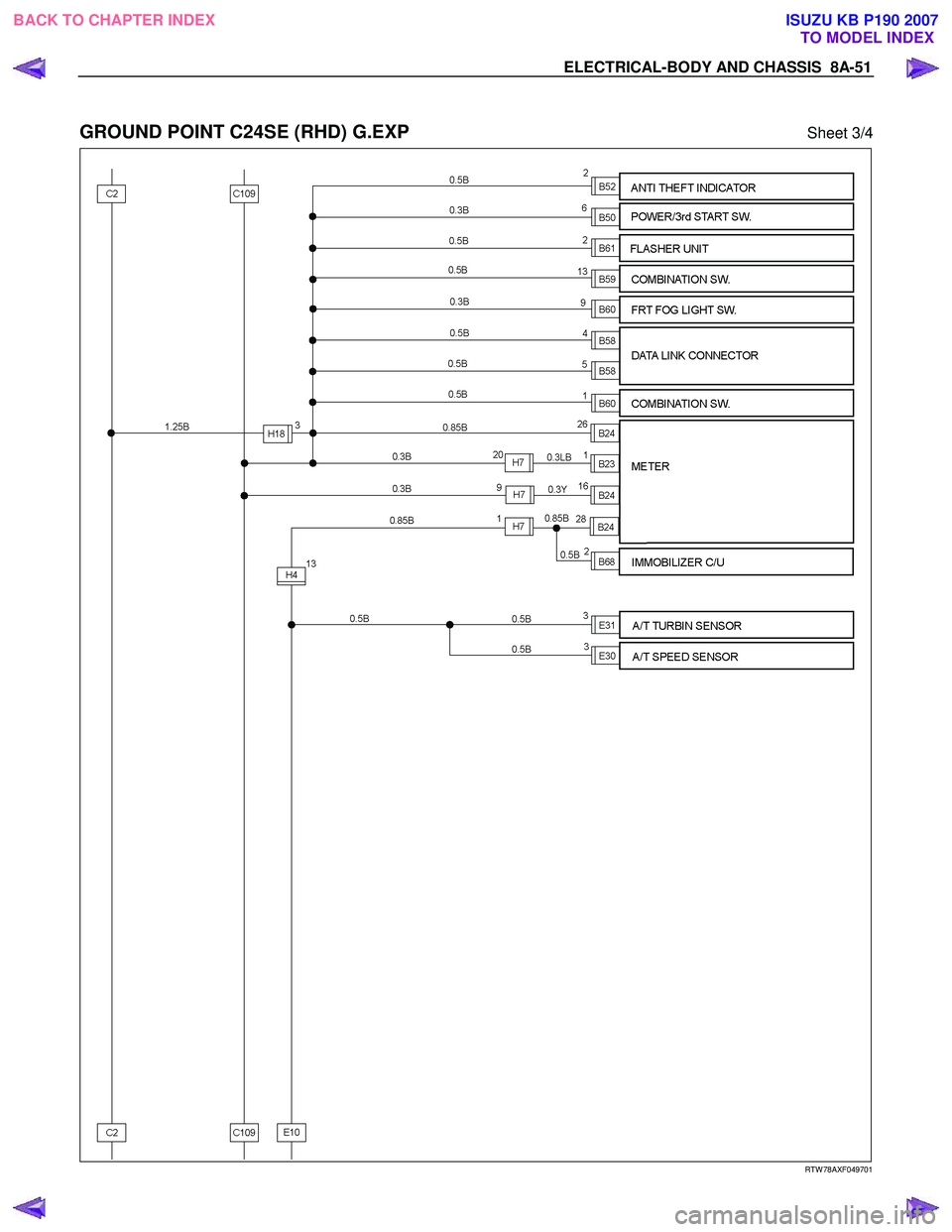

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-51 GROUND POINT C24SE (RHD) G.EXP Sheet 3/4 RTW 78AXF049701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 4990 of 6020

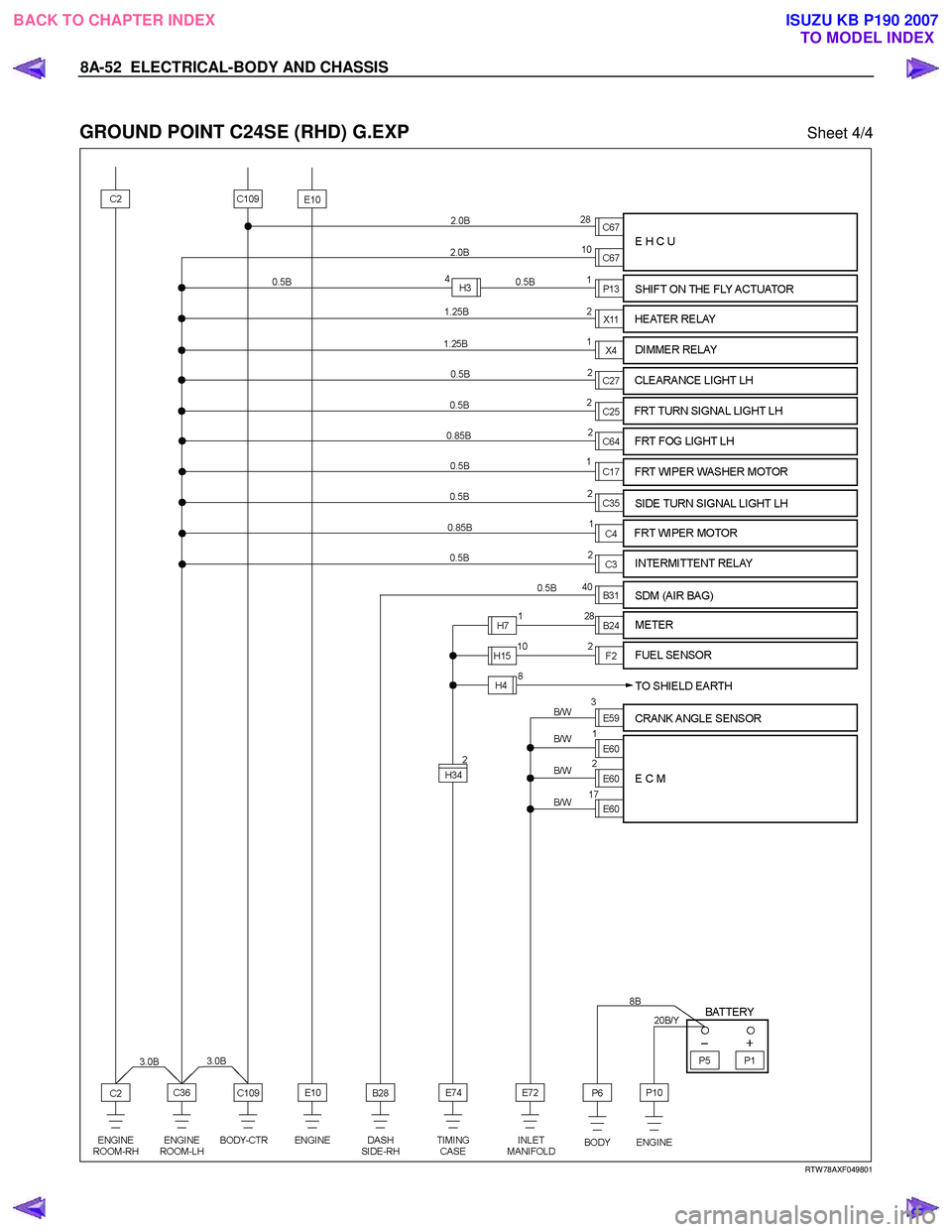

ISUZU KB P190 2007 Workshop Repair Manual 8A-52 ELECTRICAL-BODY AND CHASSIS GROUND POINT C24SE (RHD) G.EXP Sheet 4/4 RTW 78AXF049801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
