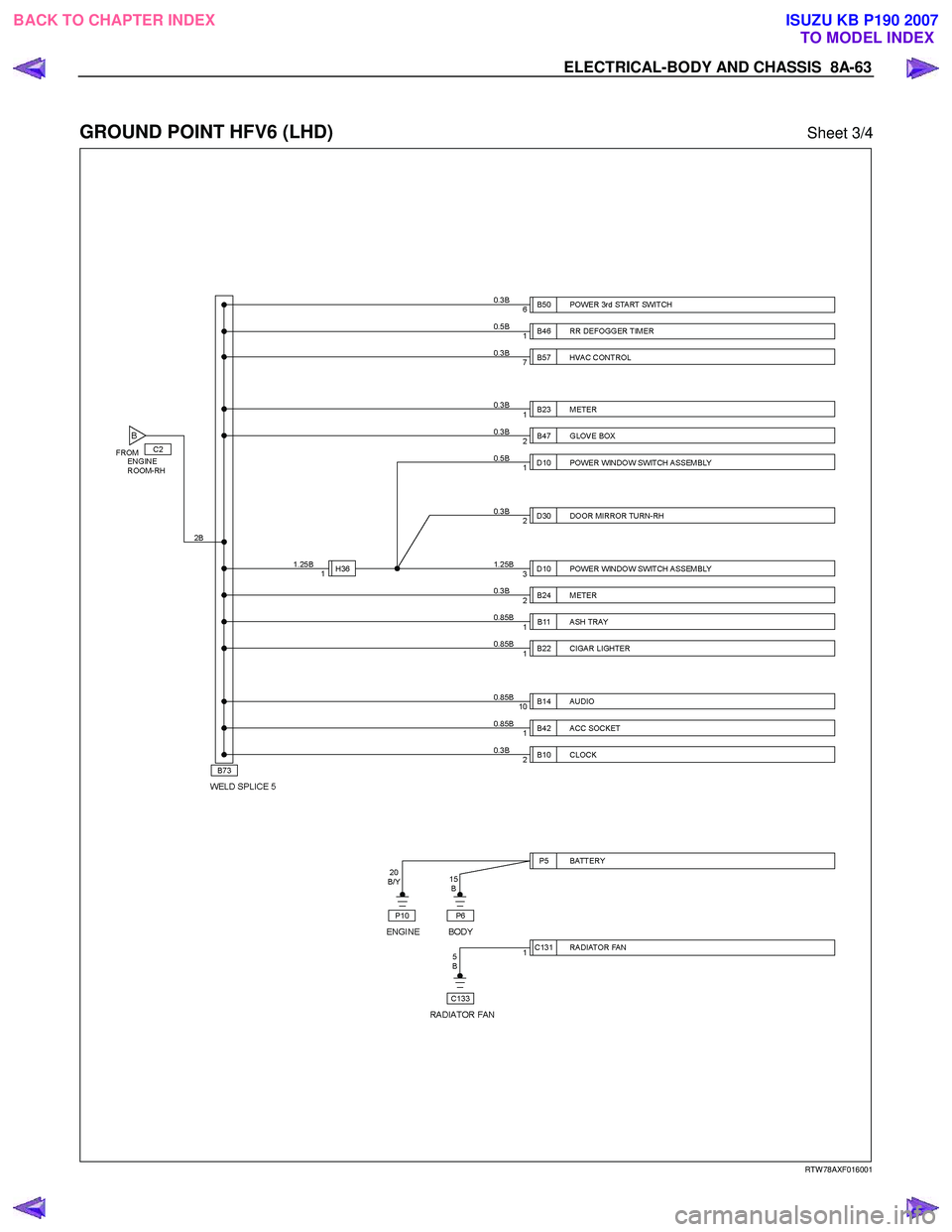

Page 5001 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-63 GROUND POINT HFV6 (LHD) Sheet 3/4 RTW 78AXF016001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

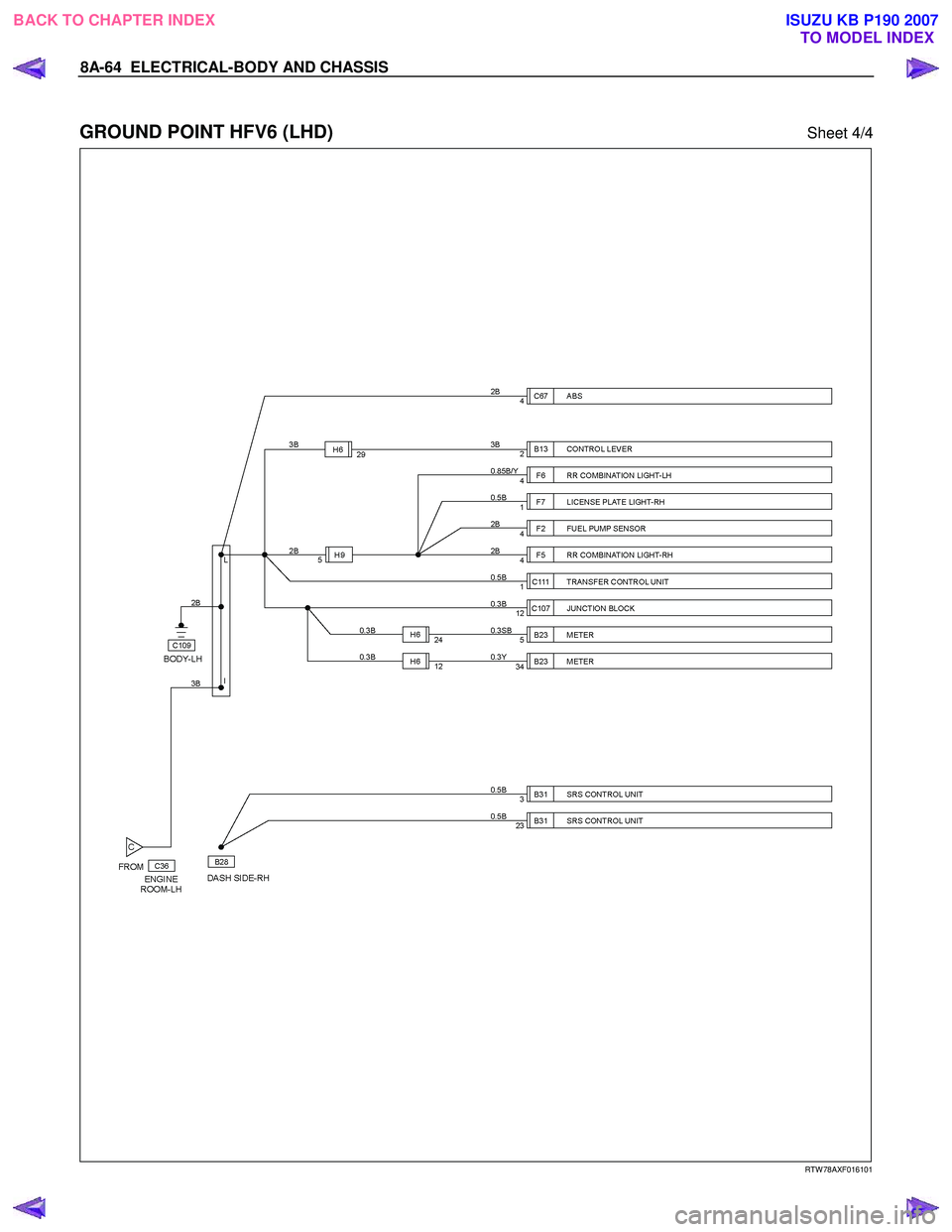

Page 5002 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-64 ELECTRICAL-BODY AND CHASSIS GROUND POINT HFV6 (LHD) Sheet 4/4 RTW 78AXF016101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

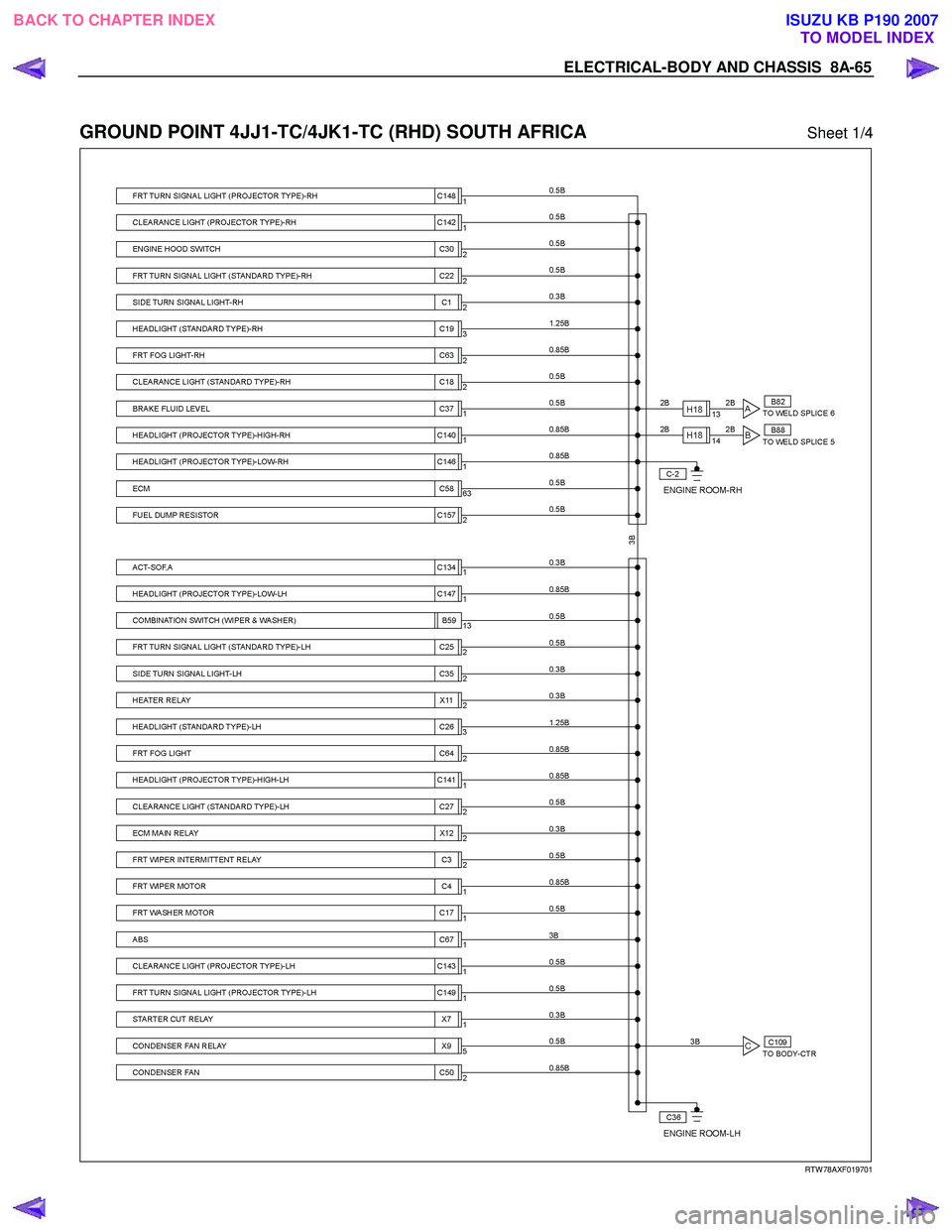

Page 5003 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-65 GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 1/4 RTW 78AXF019701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

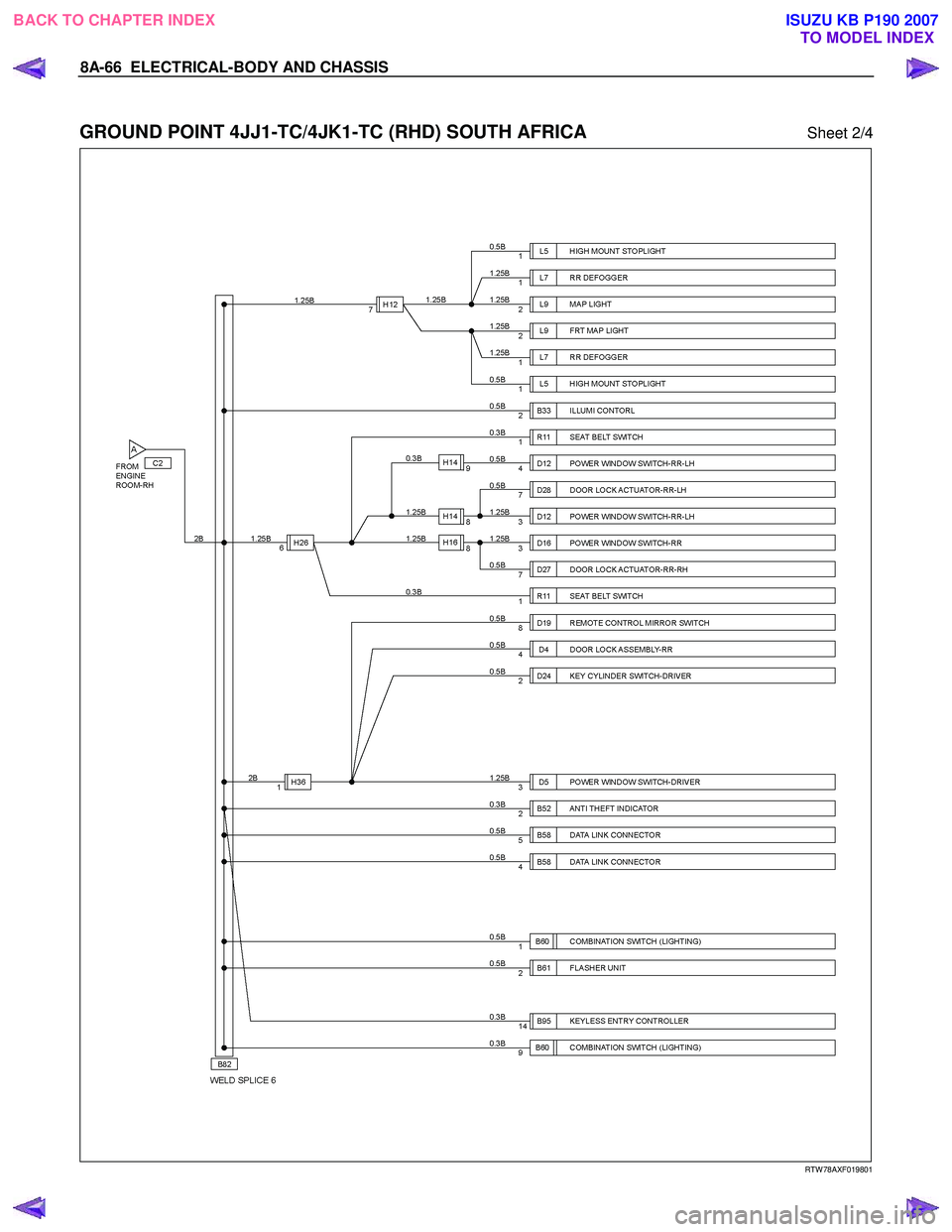

Page 5004 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-66 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 2/4 RTW 78AXF019801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5005 of 6020

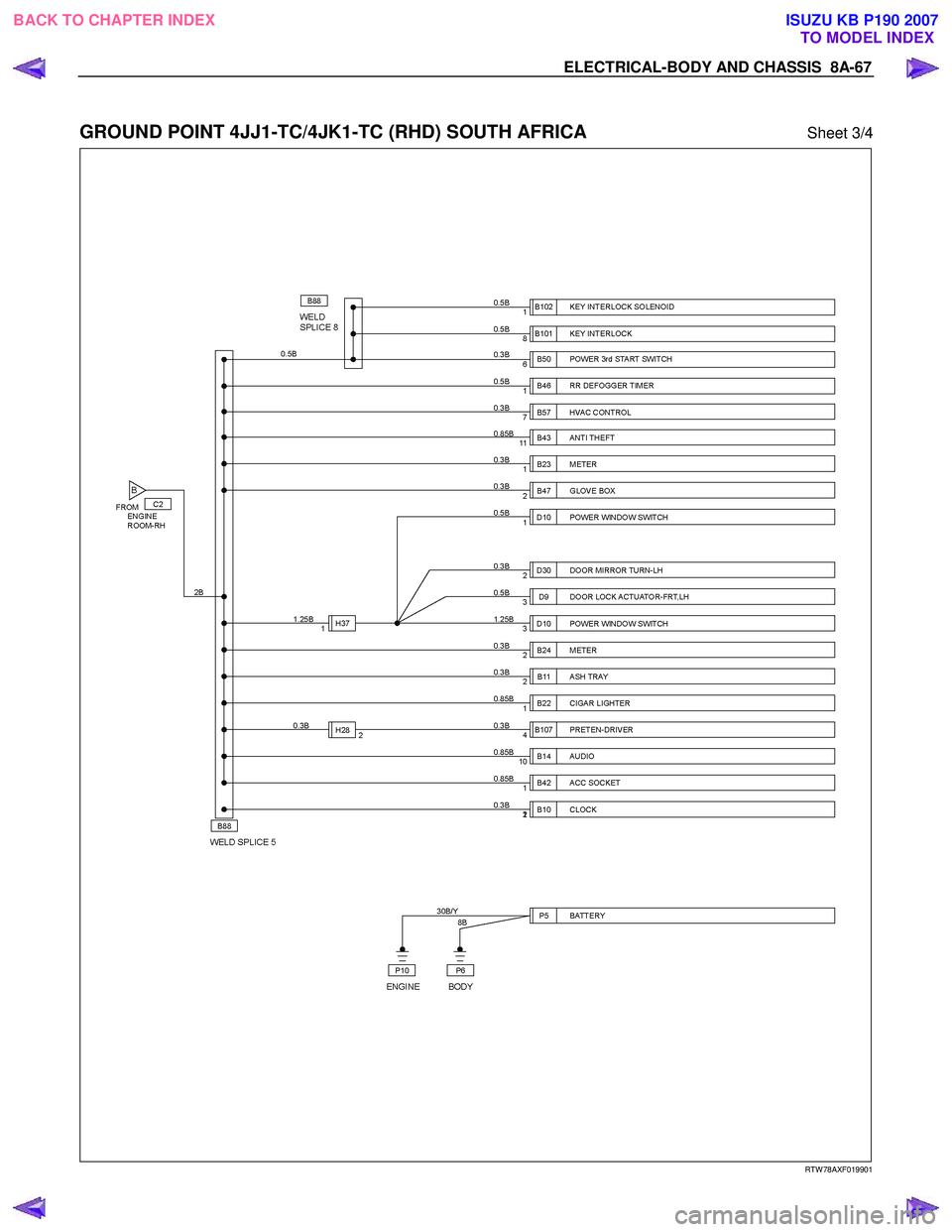

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-67 GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 3/4 RTW 78AXF019901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5006 of 6020

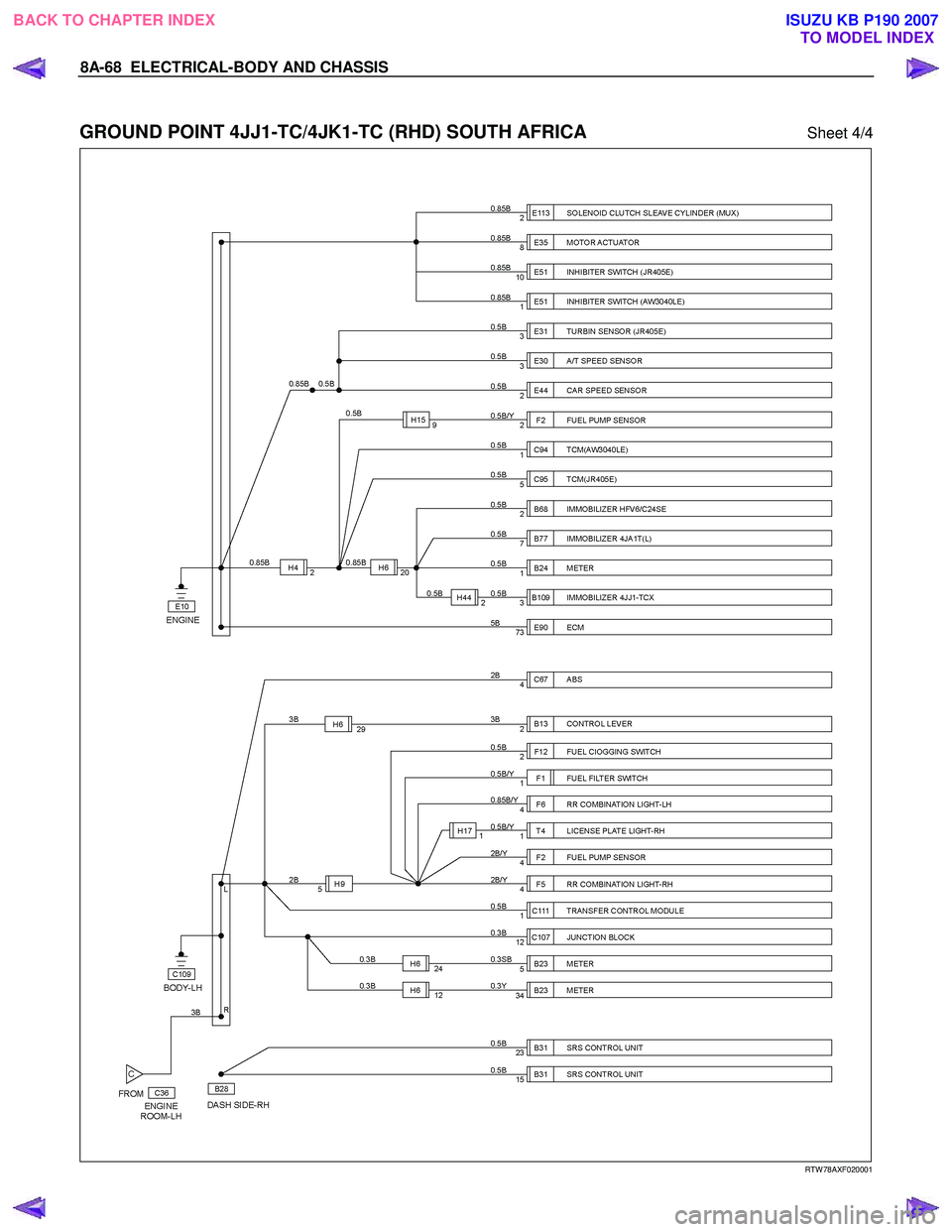

ISUZU KB P190 2007 Workshop Repair Manual 8A-68 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 4/4 RTW 78AXF020001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

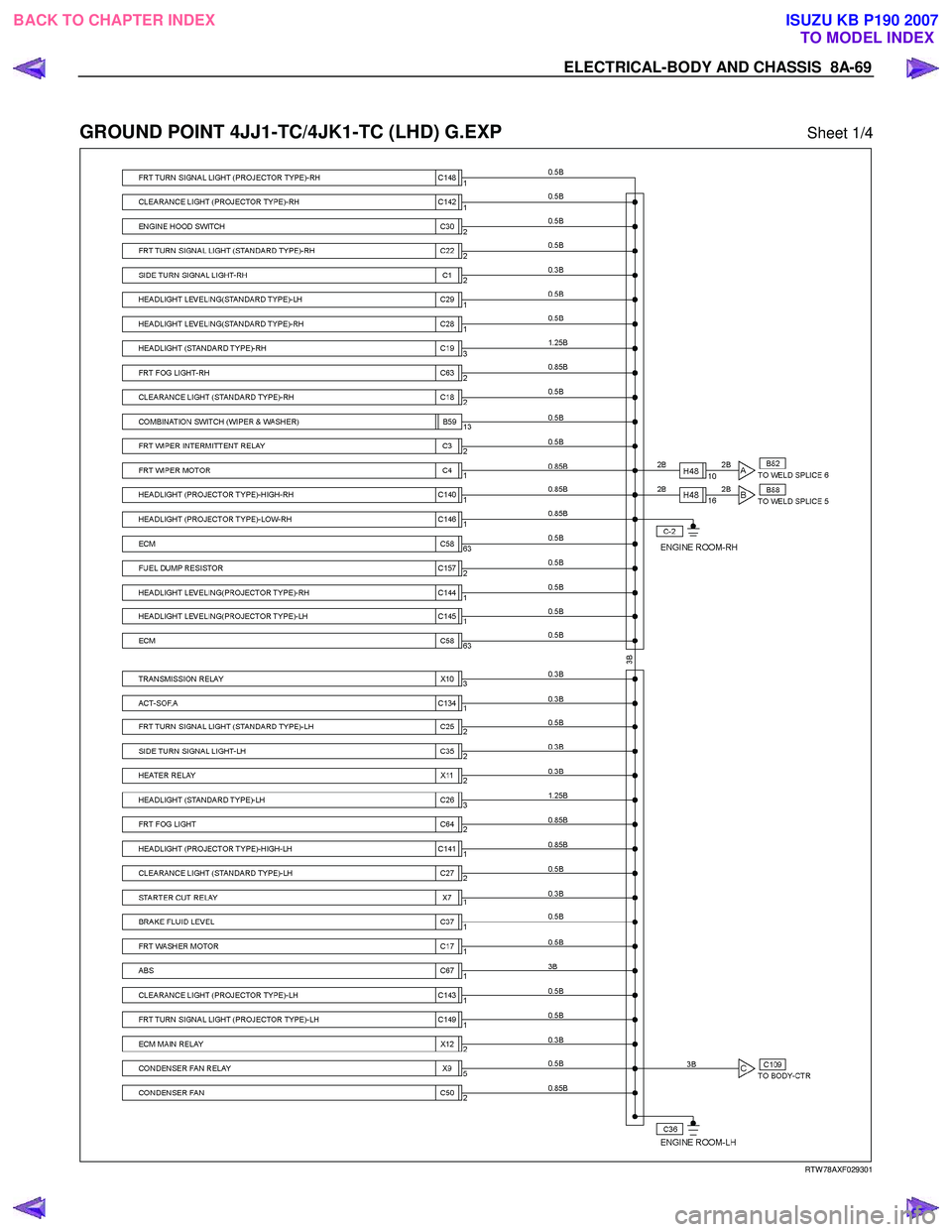

Page 5007 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-69 GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 1/4 RTW 78AXF029301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

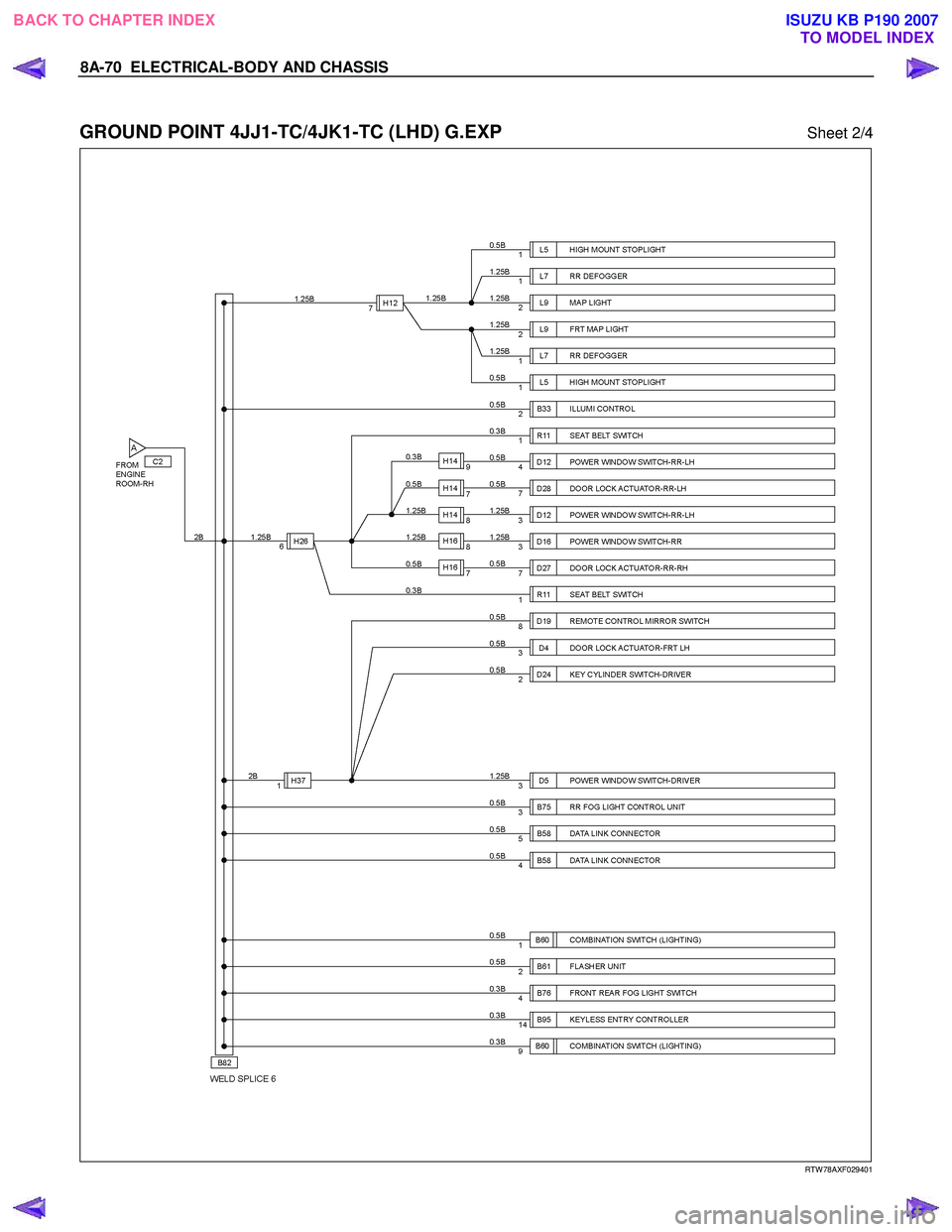

Page 5008 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-70 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 2/4 RTW 78AXF029401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

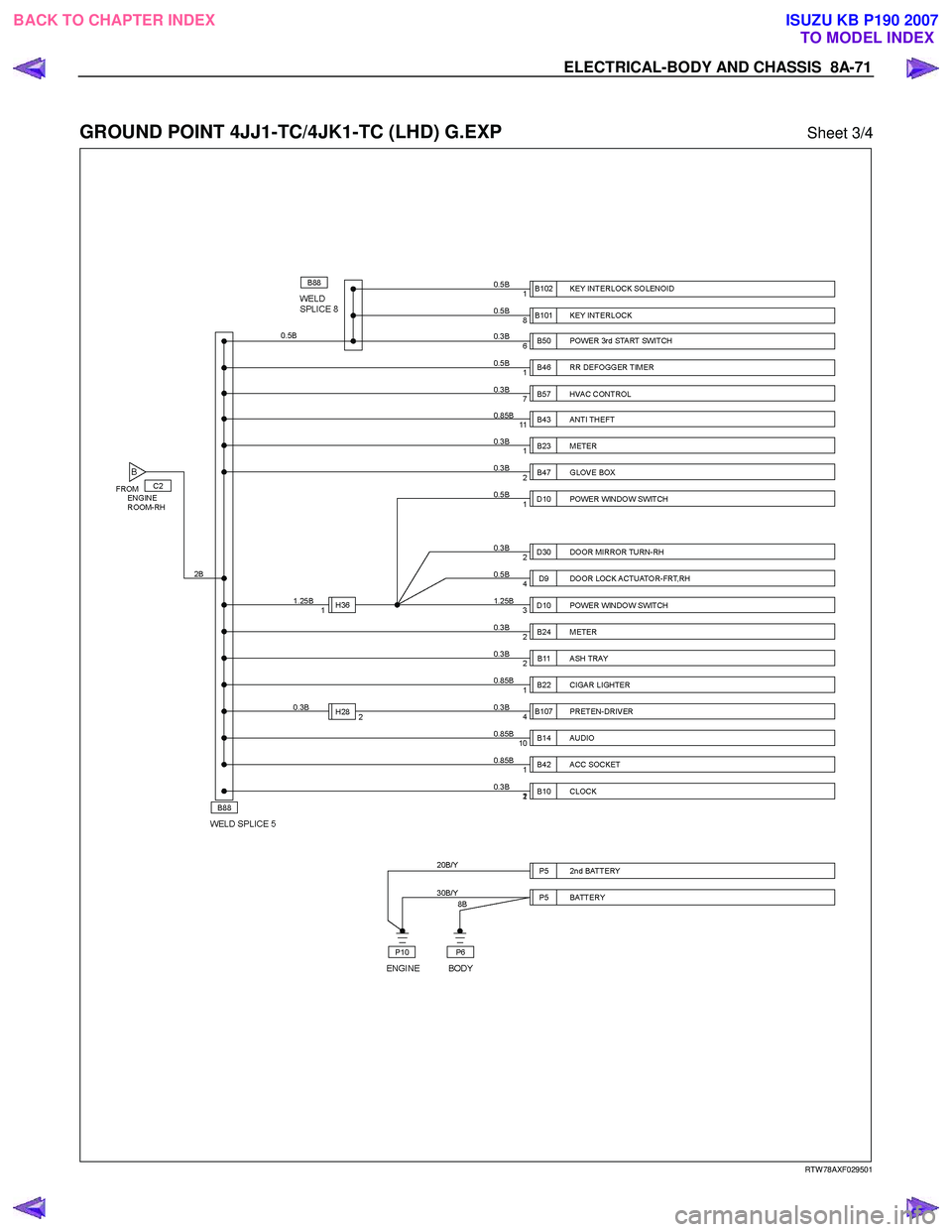

Page 5009 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-71 GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 3/4 RTW 78AXF029501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

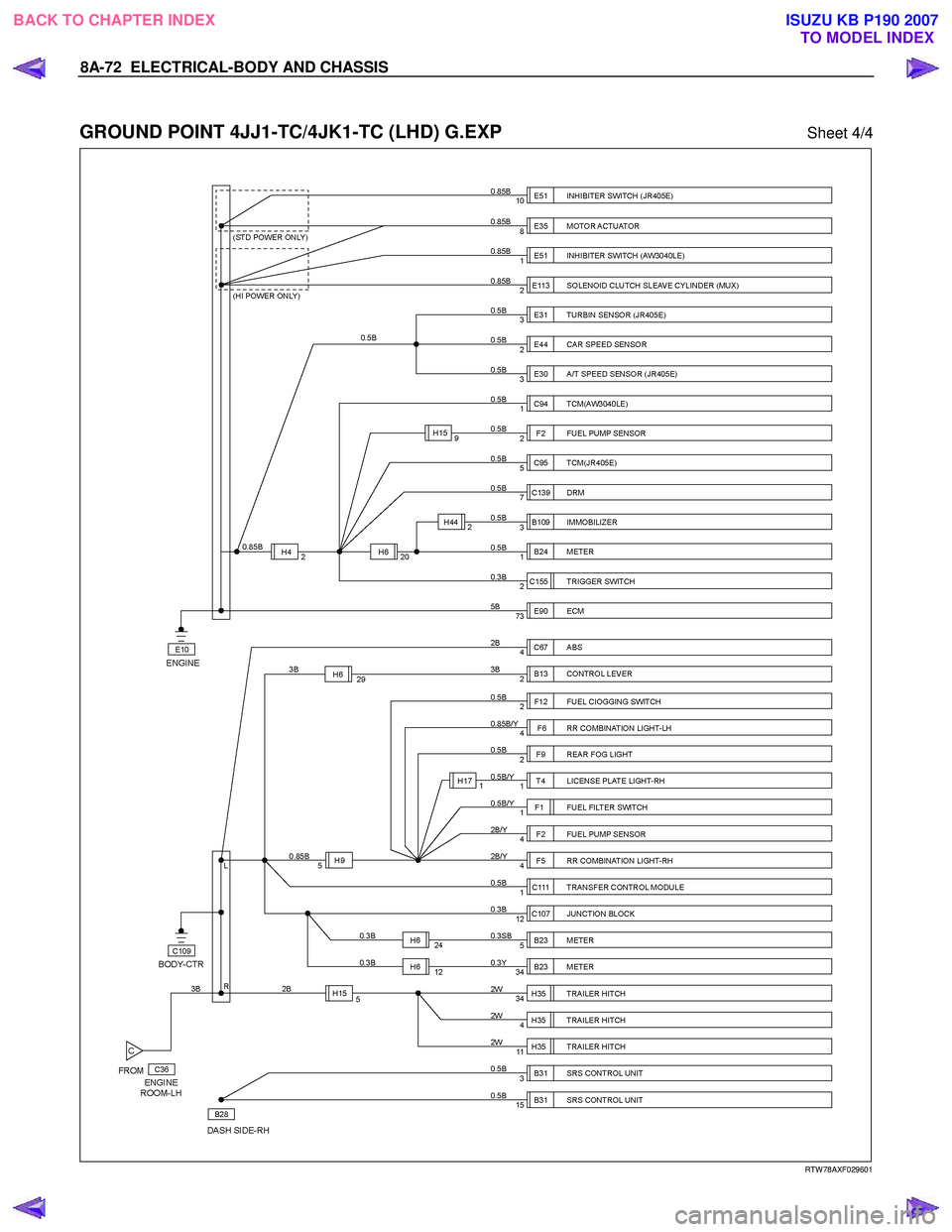

Page 5010 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-72 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 4/4 RTW 78AXF029601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
