ISUZU KB P190 2007 Workshop Repair Manual
Manufacturer: ISUZU, Model Year: 2007, Model line: KB P190, Model: ISUZU KB P190 2007Pages: 6020, PDF Size: 70.23 MB
Page 5851 of 6020

Immobilizer Control System(4jk1/4jj1/hfv6)...................................................................5962 PAGE
Immobilizer System(C24se,4ja1-t)..................................................................................6010
S ection 11B Antitheft System.........................................................................................6066

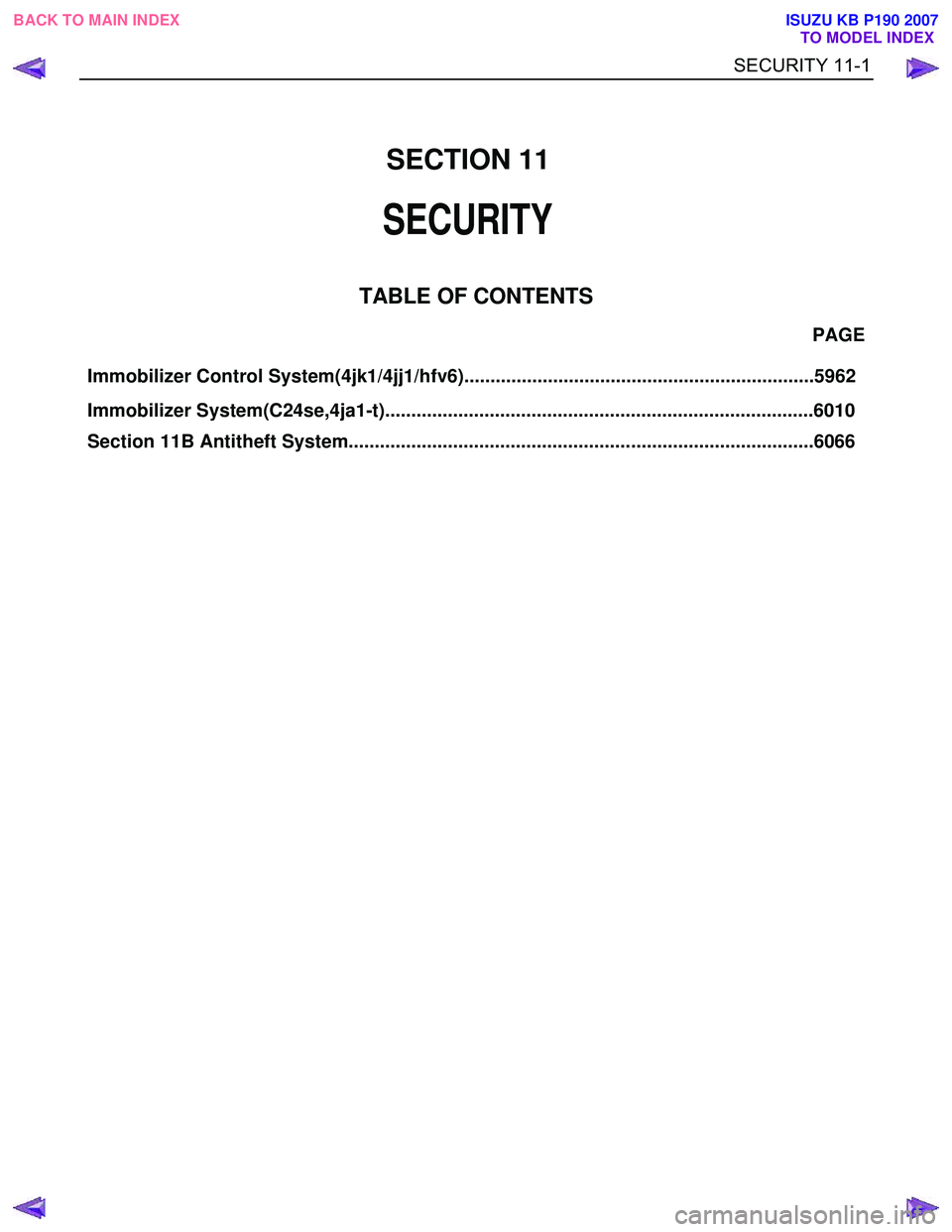

SECTION 11
TA BLE OF CONTENTS
SECURITY
SECURITY 11-1
TO MODEL INDEX
BACK TO MAIN INDEX
ISUZU KB P190 2007
Page 5852 of 6020

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)TABLE OF CONTENTS
Schematic and Routing Diagrams. . . . . . . . . . . . 11A-2Immobilizer Controls Schematics . . . . . . . . . . . 11A-2
Component Locator. . . . . . . . . . . . . . . . . . . . . . . 11A-6 Immobilizer Controls Component View . . . . . . 11A-6
Immobilizer Control Unit (ICU) Connector End View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-7
Diagnostic Information and Procedures . . . . . . . 11A-8 Diagnostic Starting Point - Immobilizer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-8
Diagnostic System Check - Immobilizer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-8
Scan Tool Data List . . . . . . . . . . . . . . . . . . . . 11A-10
Scan Tool Data Definitions . . . . . . . . . . . . . . . 11A-10
Scan Tool Does Not Power Up. . . . . . . . . . . . 11A-12
Scan Tool Does Not Communicate with CAN Device. . . . . . . . . . . . . . . . . . . . . . . . . . 11A-13
Lost Communication with The Immobilizer Control Unit (ICU) . . . . . . . . . . . . . . . . . . . . . 11A-19
Diagnostic Trouble Code (DTC) List . . . . . . . 11A-21
DTC B0001 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-22
DTC B0002 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-23
DTC B0003 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-24
DTC B0004 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-26
DTC B0007 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-27
DTC B0008 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-28
DTC B0009 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-29
DTC B0010 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-30
DTC B0012 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-32
DTC B0013 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-33
DTC B0014 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-34
DTC U0100 . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-35
Resetting and Programming . . . . . . . . . . . . . . . 11A-36 Resetting and Programming Guidelines . . . . 11A-36
Transponder Key Erasing Procedure . . . . . . . 11A-38
Transponder Key Programming Procedure . . 11A-38
ICU Resetting Procedure . . . . . . . . . . . . . . . . 11A-39
ICU Programming Procedure . . . . . . . . . . . . . 11A-39
ECM Resetting Procedure . . . . . . . . . . . . . . . 11A-39
ECM Programming Procedure . . . . . . . . . . . . 11A-40
PIM Resetting Procedure . . . . . . . . . . . . . . . . 11A-40
PIM Programming Procedure. . . . . . . . . . . . . 11A-40
ICU & PIM Programming Procedure . . . . . . . 11A-41
ECM & PIM Programming Procedure . . . . . . 11A-41
ICU & ECM Programming Procedure . . . . . . 11A-42
ICU, ECM & PIM Programming Procedure . . 11A-42
Repair Instructions . . . . . . . . . . . . . . . . . . . . . . 11A-44 Immobilizer Control Unit (ICU) Replacement . . . . . . . . . . . . . . . . . . . . . . . . . 11A-44
Description and Operation . . . . . . . . . . . . . . . . 11A-45 Immobilizer System Description . . . . . . . . . . . 11A-45
Immobilizer System Componenet Description . . . . . . . . . . . . . . . . . . . . . . . . . . 11A-45 Special Tools and Equipment . . . . . . . . . . . . . . 11A-47
Special Tools and Equipment . . . . . . . . . . . . . 11A-47
IM MOBI LIZER CONTR OL SY STEM (4JK 1/4 JJ1/ HFV 6) 1 1A- 1
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 5853 of 6020

11A-2 IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)
Schematic and Routing Diagrams
Immobilizer Controls Schematics
Power Distribution (4JK1/4JJ1)
BACK TO CHAPTER INDEXTO MODEL INDEX
ISUZU KB P190 2007
Page 5854 of 6020

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6) 11A-3

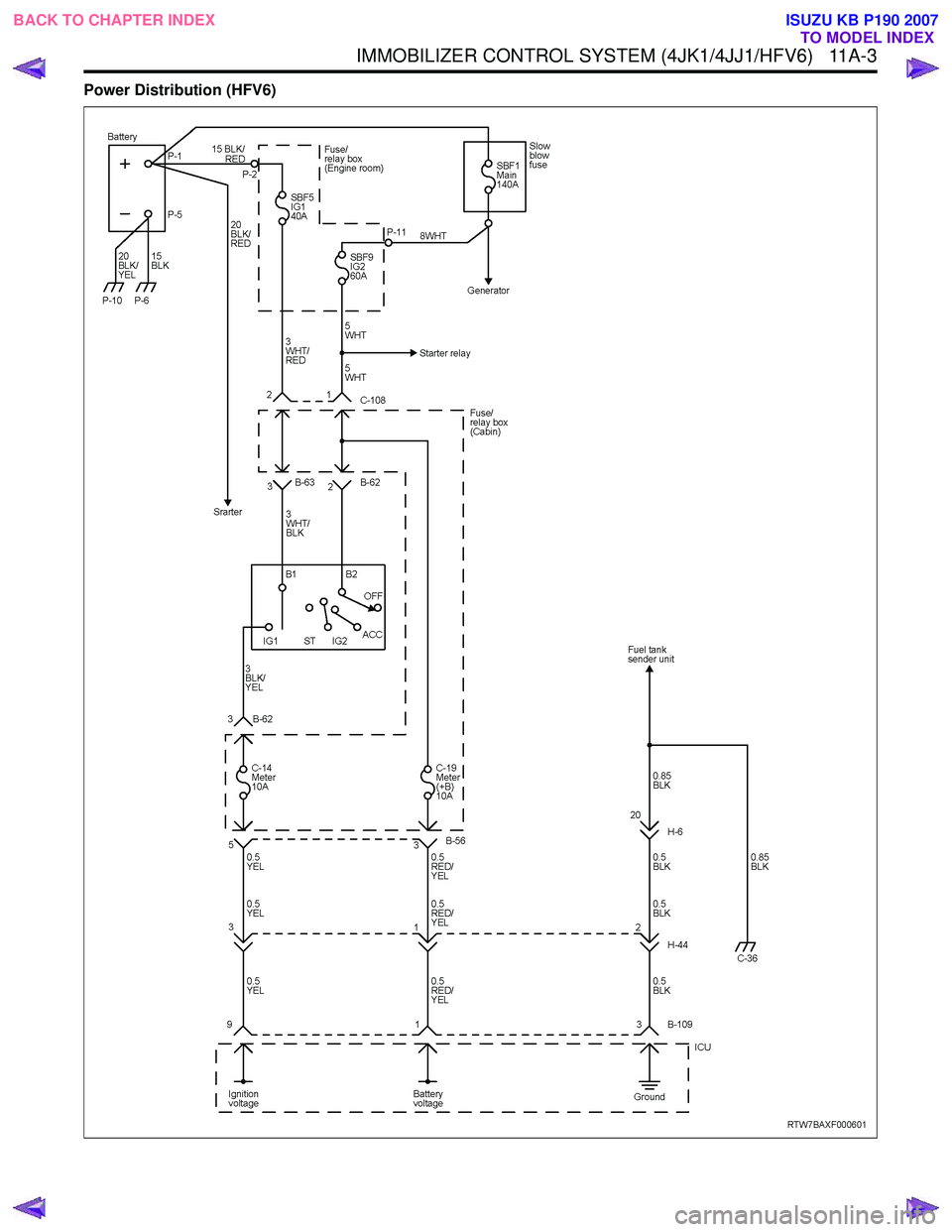

Power Distribution (HFV6)
BACK TO CHAPTER INDEXTO MODEL INDEX
ISUZU KB P190 2007
Page 5855 of 6020

11A-4 IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)
ICU Communication (4JK1/ 4JJ1)
BACK TO CHAPTER INDEXTO MODEL INDEX
ISUZU KB P190 2007
Page 5856 of 6020

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6) 11A-5

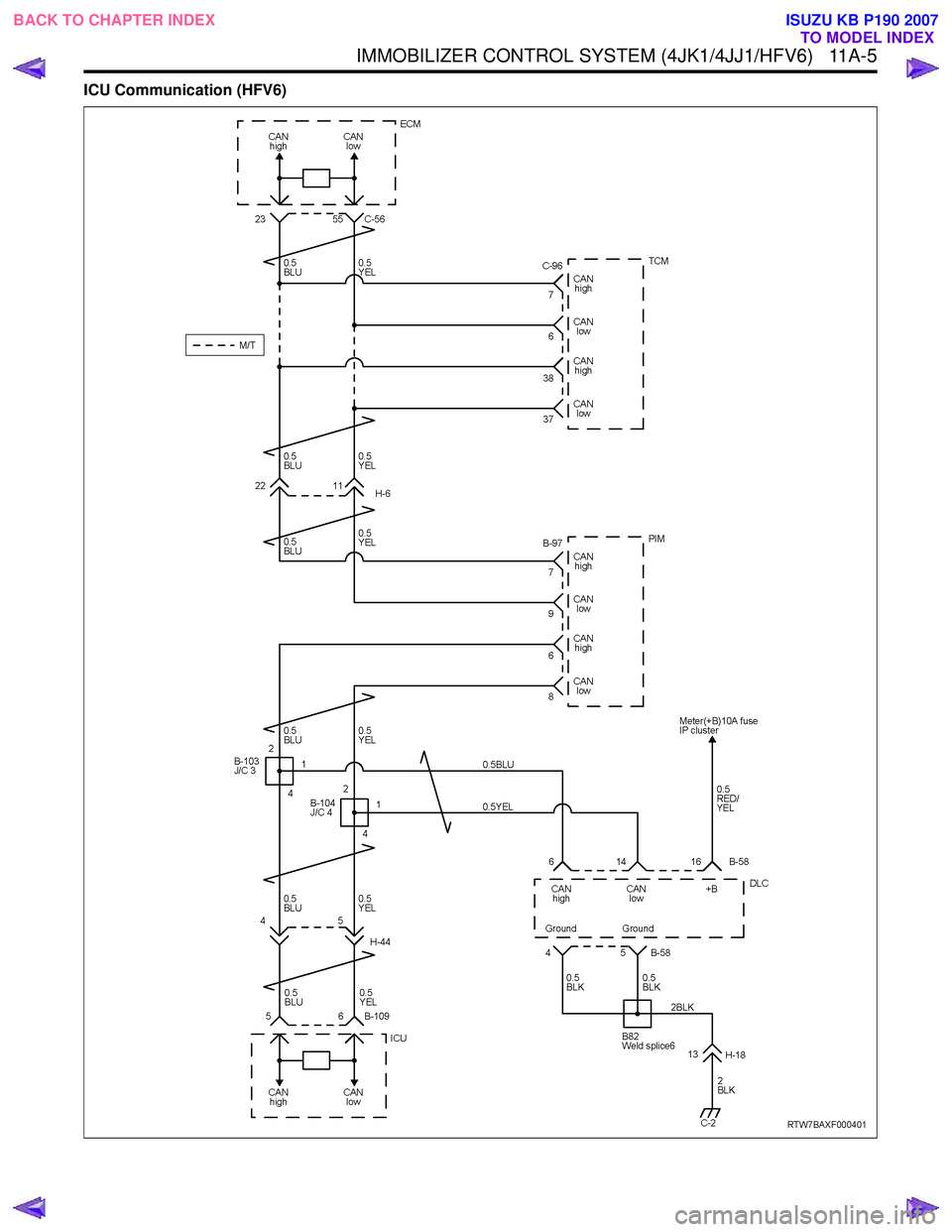

ICU Communication (HFV6)
BACK TO CHAPTER INDEXTO MODEL INDEX
ISUZU KB P190 2007
Page 5857 of 6020

11A-6 IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)

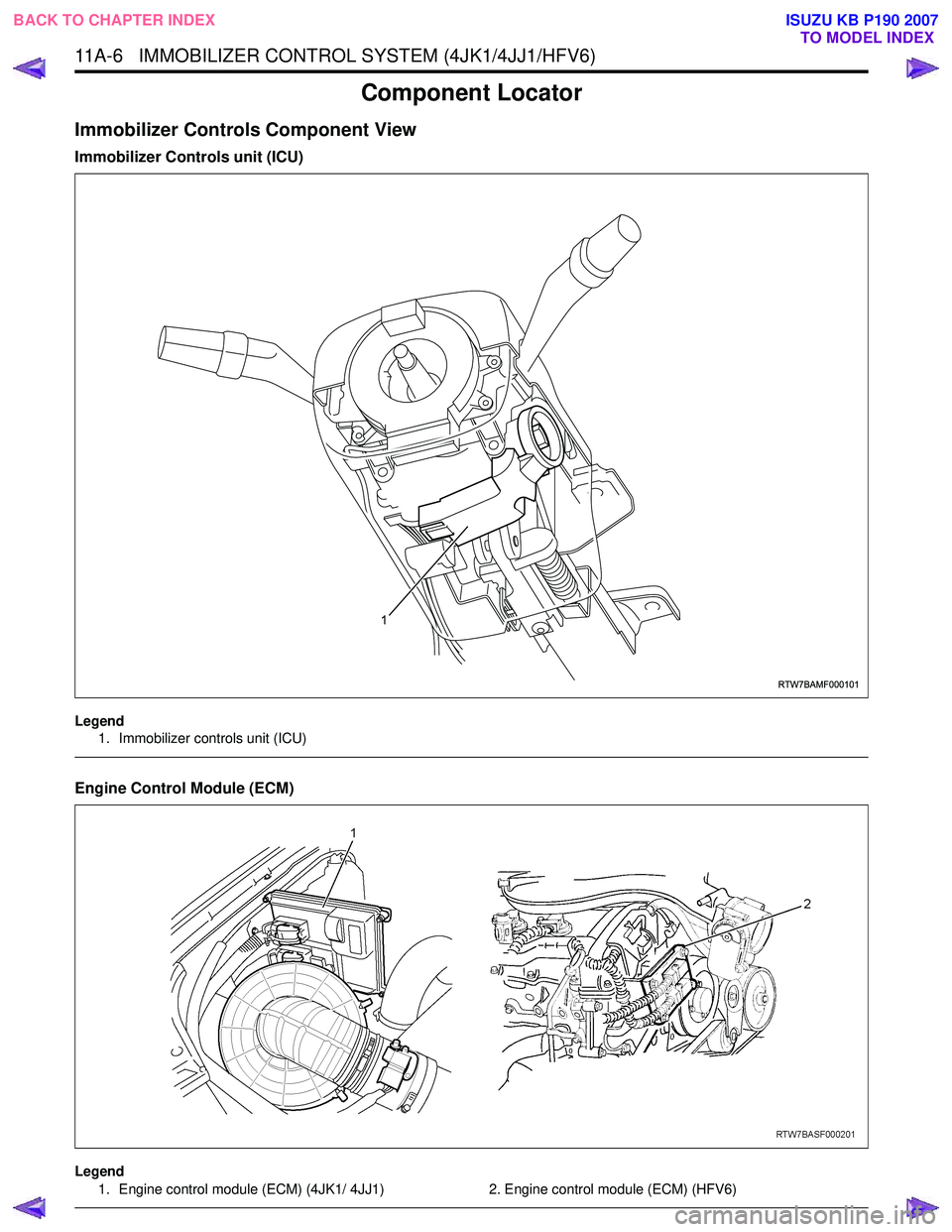

Component Locator
Immobilizer Controls Component View
Immobilizer Controls unit (ICU)
Legend1. Immobilizer controls unit (ICU)
Engine Control Module (ECM)
Legend
1. Engine control module (ECM) (4JK1/ 4JJ1) 2. Engine control module (ECM) (HFV6)
RTW7BAMF000101
1
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5858 of 6020

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6) 11A-7
Powertrain Interface Module (PIM)
Legend1. Powertrain interface module (PIM)
Immobilizer Control Unit (ICU) Connector
End View
Connector No. B-109
Connector Color White
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function
1 RED/YEL Battery voltage
2-N ot u se d
3 BLK Ground
4-N ot u se d
5 BLU CAN high
6 YEL CAN low
7-N ot u se d
8 VIO Alarm cancel (disarm) signal output (with anti-theft system)
9 YEL Ignition voltage
10 - Not used 11 - Not used
12 - Not used
RTW7BASH000501
123456
789101112
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5859 of 6020

11A-8 IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)
Diagnostic Information and Procedures
Diagnostic Starting Point - Immobilizer
Controls
Begin the system diagnosis with Diagnostic System
Check - Immobilizer Controls. The Diagnostic System
Check - Immobilizer Controls will provide the following
information:
• The identification of the control modules which command the system.
• The ability of the control modules to communicate through the serial data circuit.
• The identification of any stored diagnostic trouble codes (DTCs) and the their statuses.
The use of the Diagnostic System Check - Immobilizer
Controls will identify the correct procedure for
diagnosing the system and where the procedure is
located.
Diagnostic System Check - Immobilizer
Controls
Description
The Diagnostic System Check - Immobilizer Controls is
an organized approach to identifying a condition that is
created by a malfunction in the electronic immobilizer
control system. The Diagnostic System Check must be
the starting point for any immobilizer system concern.
The Diagnostic System Check directs the service
technician to the next logical step in order to diagnose
the concern. Understanding and correctly using the
diagnostic table reduces diagnostic time, and prevents
the replacement of good parts. Test Description
The numbers below refer to the step numbers on the
diagnostic table.
2. Lack of communication may be because of a partial
or a total malfunction of the serial data circuit.
6. The presence of DTCs which begin with U, indicate
that some other module is not communicating.
9. If there are other modules with DTCs set, refer to the
DTC list. The DTC list directs you to the appropriate
diagnostic procedure.
Important: • DO NOT perform this diagnostic if there is not an immobilizer system concern, unless another
procedure directs you to this diagnostic.
• Before you proceed with diagnosis, search for applicable service bulletins.
• Unless a diagnostic procedure instructs you, DO NOT clear the DTCs.
• Ensure the battery has a full charge.
• Ensure the battery cables (+) (-) are clean and tight.
• Ensure the ICU ground is clean, tight, and in the correct location.
• Ensure the ICU harness connector is clean and correctly connected.
• Ensure the ICU terminals are clean and correctly mating.
• Ensure the immobilizer security information is correctly programmed into the ICU, ECM and PIM.
• Ensure the ICU is correctly installed to the steering lock.
• Ensure objects does not block transponder key in the steering lock.
• Ensure another transponder key is not attached to the key ring.
Diagnostic System Check - Immobilizer Controls
Step Action Value(s)Yes No
1 Install a scan tool.
Does the scan tool turn ON? —
Go to Step 2 Go to Scan Tool
Does Not Power Up
2 1. Turn ON the ignition, with the engine OFF.
2. Attempt to establish communication with the listed control modules.
•ICU
• Engine control module (ECM)
• Powertrain interface module (PIM)
• Transmission control module (TCM) (AISIN A/T or 4L-60E)
Does the scan tool communicate with all the listed
control modules? —
Go to Step 3 Go to Scan Tool
Does Not
Communicate with CAN Device
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
Page 5860 of 6020

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6) 11A-9
3Observe the Ignition Status parameter on the
immobilizer data display function.
Does the scan tool indicate ON and OFF with each
ignition switch transition? —
Go to Step 5 Go to Step 4
4 Repair the open circuit or high resistance between
the Meter (10A) fuse and the ICU (pin 9 of B-109).
Check Meter (10A) fuse first.
Did you complete the repair? —
Go to Step 5
—
5Select the DTC display function for the following
control modules:
•ICU
•ECM
•PIM
• TCM (AISIN A/T or 4L-60E)
Does the scan tool display any DTCs? —
Go to Step 6 Go to Step 12
6 Does the scan tool display DTCs which begin with
a U or other control module communication fault
DTCs? —
Go to Applicable
DTC Go to Step 7
7 Does the scan tool displays ICU DTC B0001?
—Go to Applicable
DTC Go to Step 8
8 Does the scan tool displays ICU DTCs B0002 or
B0012? —Go to Applicable
DTC Go to Step 9
9 Is there any other code in any controller that has
not been diagnosed? —Go to Applicable
DTC Go to Step 10
10 Is the customer's concern with the engine?
—Go to Diagnostic
System Check -
Engine Controls Go to Step 11
11 Is the customer's concern with the transmission?
—Go to Diagnostic
System Check - Transmission
Controls Go to Step 12
12 Attempt to crank the engine.
Does the engine crank? —
Go to Step 13 Problem is relating
to starting system. Refer to the
applicable
diagnostic chart in starting system
section
13 Attempt to start the engine.
Does the engine start and idle? —
System OK Go to Engine
Cranks but Does
Not Run in engine
control section
Step
Action Value(s)Yes No
