ISUZU KB P190 2007 Workshop Repair Manual

CAB 10-73


Important Operations - Removal
1. Front Cover • W hile pushing the cover downward, pull it.
4. Seat Assembly • Disconnect the seat belt warning harness connecto
r
(Driver’s side only).

RUW 7A0SH000201
5. Buckle Side Seat Belt/Center Seat Belt
• Remove the seat belt fixing screw and the warning
harness connector clip (Bucket seat model).

• Remove the seat belt fixing screws and the warning
harness connector clip (Bench seat model).


Important Operations – Installation
5. Buckle Side Seat Belt/Center Seat Belt • Tighten the seat belt fixing screws to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)


3. Bolt: Seat Assembly to Floor Panel
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

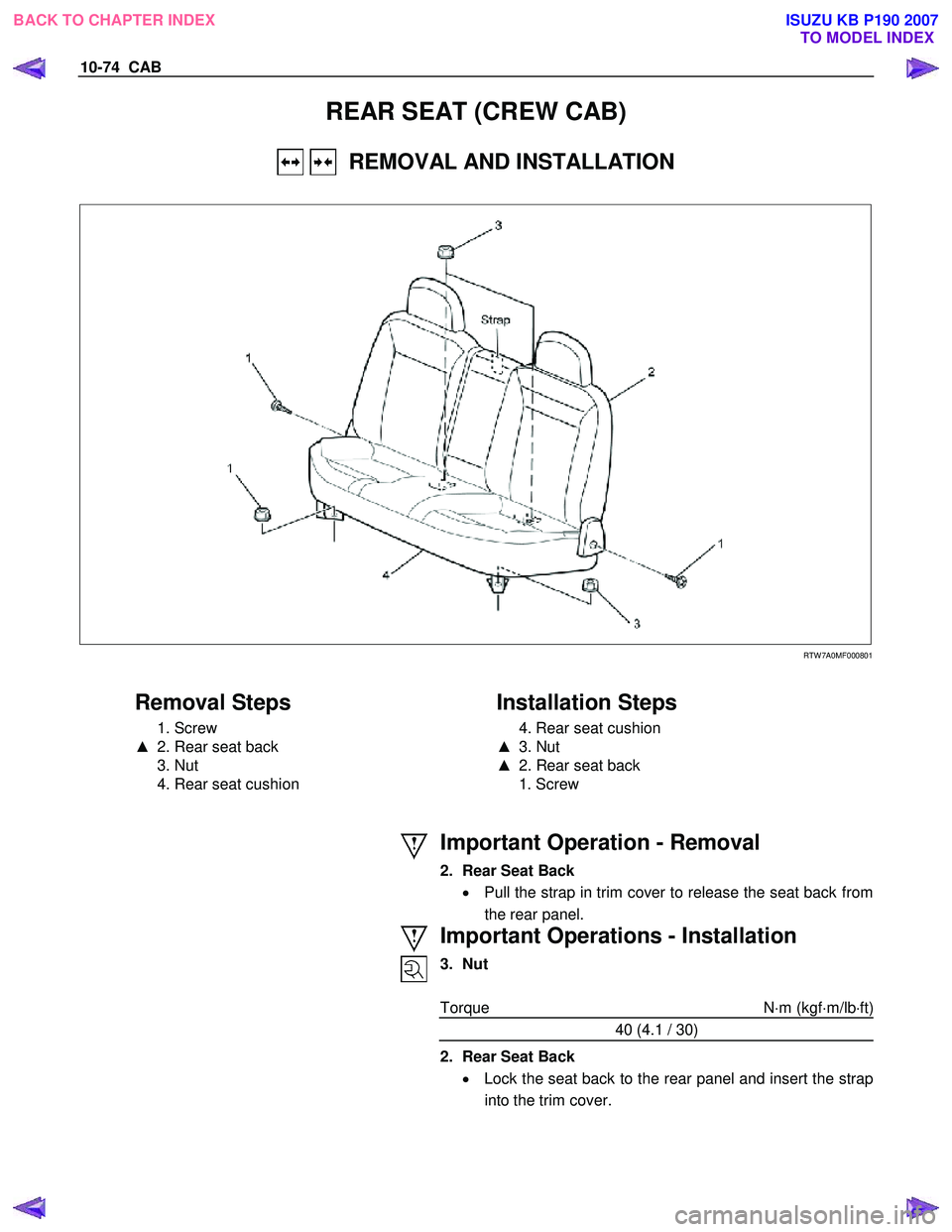

10-74 CAB
REAR SEAT (CREW CAB)
REMOVAL AND INSTALLATION



RTW 7A0MF000801


Removal Steps
1. Screw
▲ 2. Rear seat back
3. Nut
4. Rear seat cushion

Installation Steps
4. Rear seat cushion
▲ 3. Nut
▲ 2. Rear seat back
1. Screw





Important Operation - Removal
2. Rear Seat Back • Pull the strap in trim cover to release the seat back from
the rear panel.
Important Operations - Installation
3. Nut

Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
2. Rear Seat Back • Lock the seat back to the rear panel and insert the strap
into the trim cover.



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

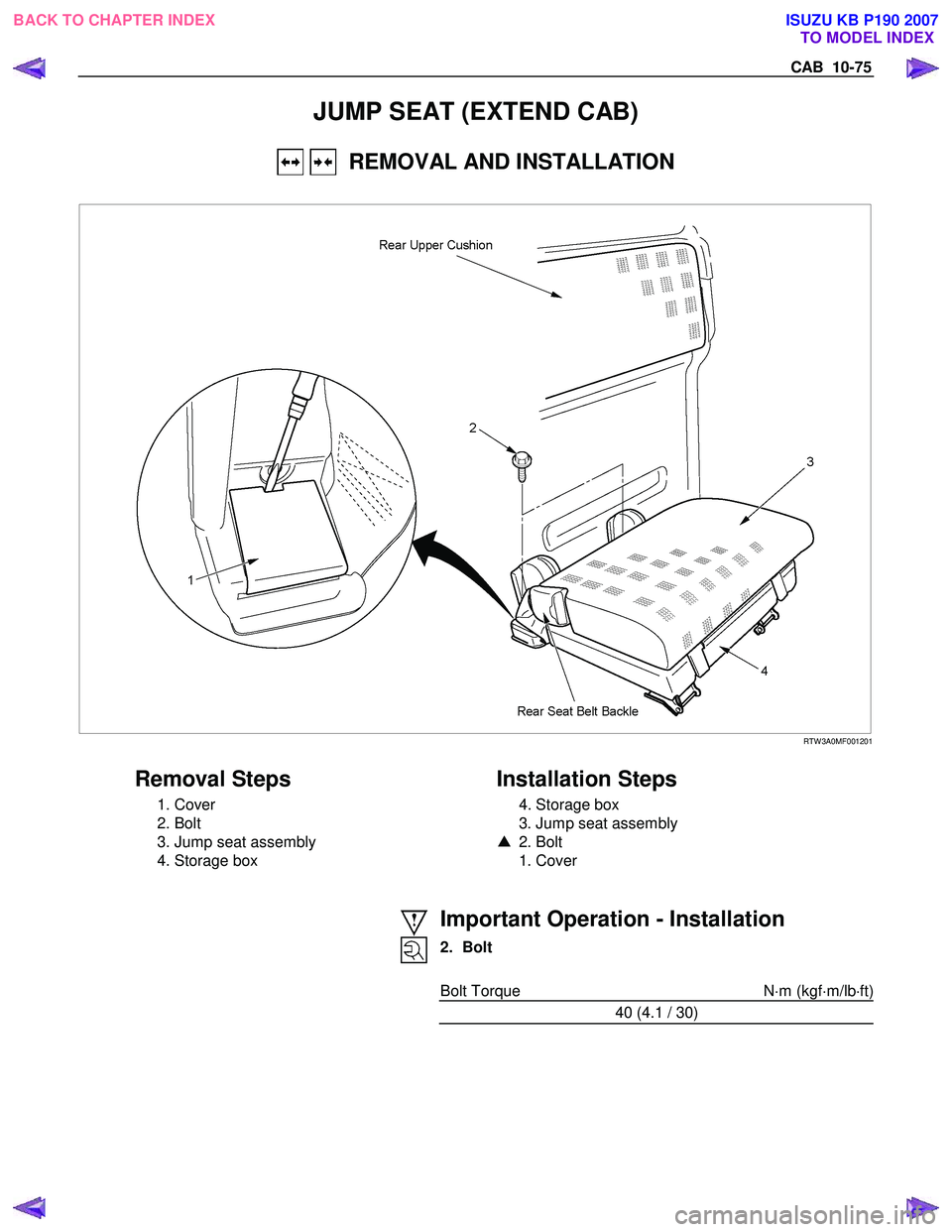

CAB 10-75
JUMP SEAT (EXTEND CAB)
REMOVAL AND INSTALLATION

RTW 3A0MF001201

Removal Steps
1. Cover
2. Bolt
3. Jump seat assembly
4. Storage box

Installation Steps
4. Storage box
3. Jump seat assembly
▲ 2. Bolt
1. Cover





Important Operation - Installation
2. Bolt

Bolt Torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

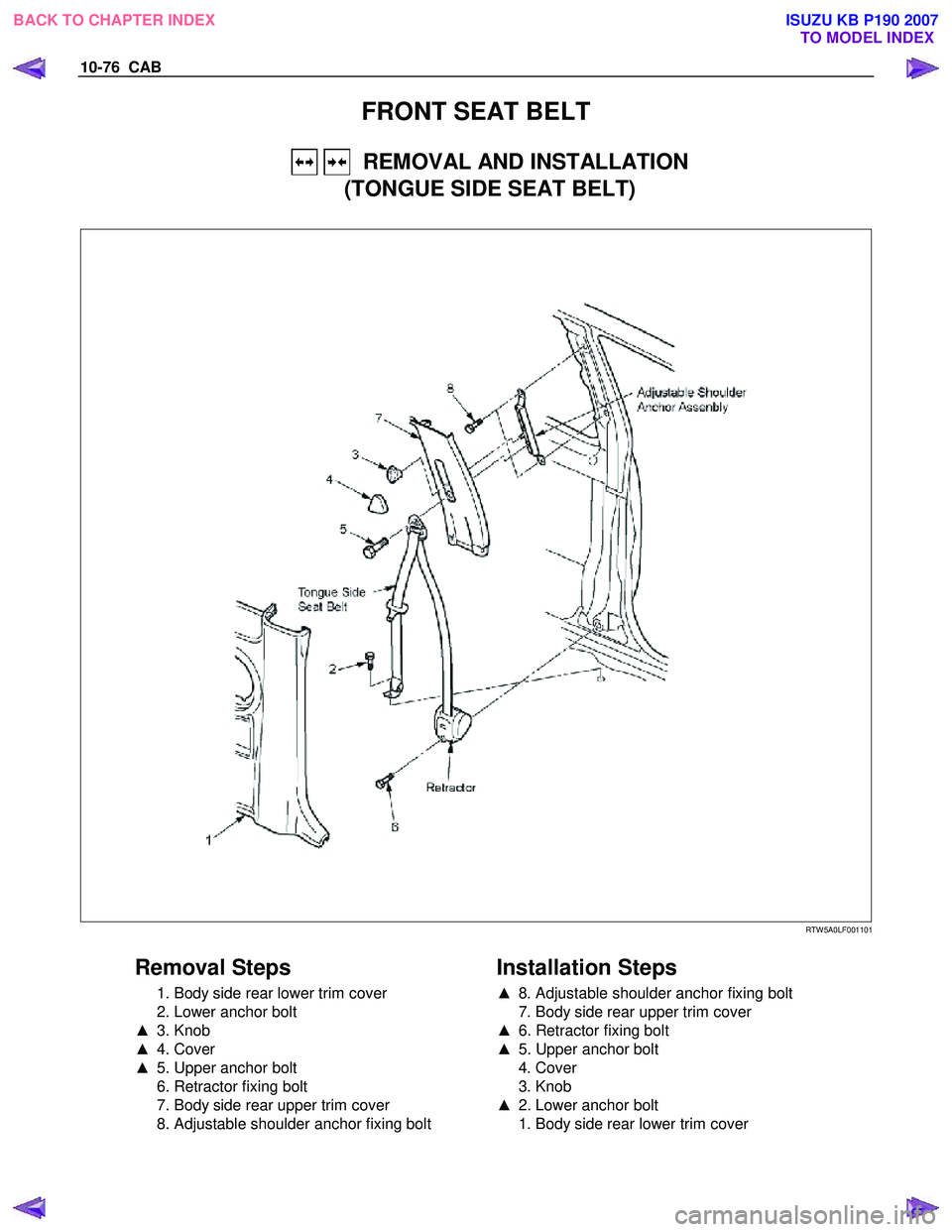

10-76 CAB
FRONT SEAT BELT
REMOVAL AND INSTALLATION
(TONGUE SIDE SEAT BELT)










RTW 5A0LF001101

Removal Steps
1. Body side rear lower trim cover
2. Lower anchor bolt
▲ 3. Knob
▲ 4. Cover
▲ 5. Upper anchor bolt
6. Retractor fixing bolt
7. Body side rear upper trim cover
8. Adjustable shoulder anchor fixing bolt
Installation Steps
▲
8. Adjustable shoulder anchor fixing bolt
7. Body side rear upper trim cover
▲ 6. Retractor fixing bolt
▲ 5. Upper anchor bolt
4. Cover
3. Knob
▲ 2. Lower anchor bolt
1. Body side rear lower trim cover



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

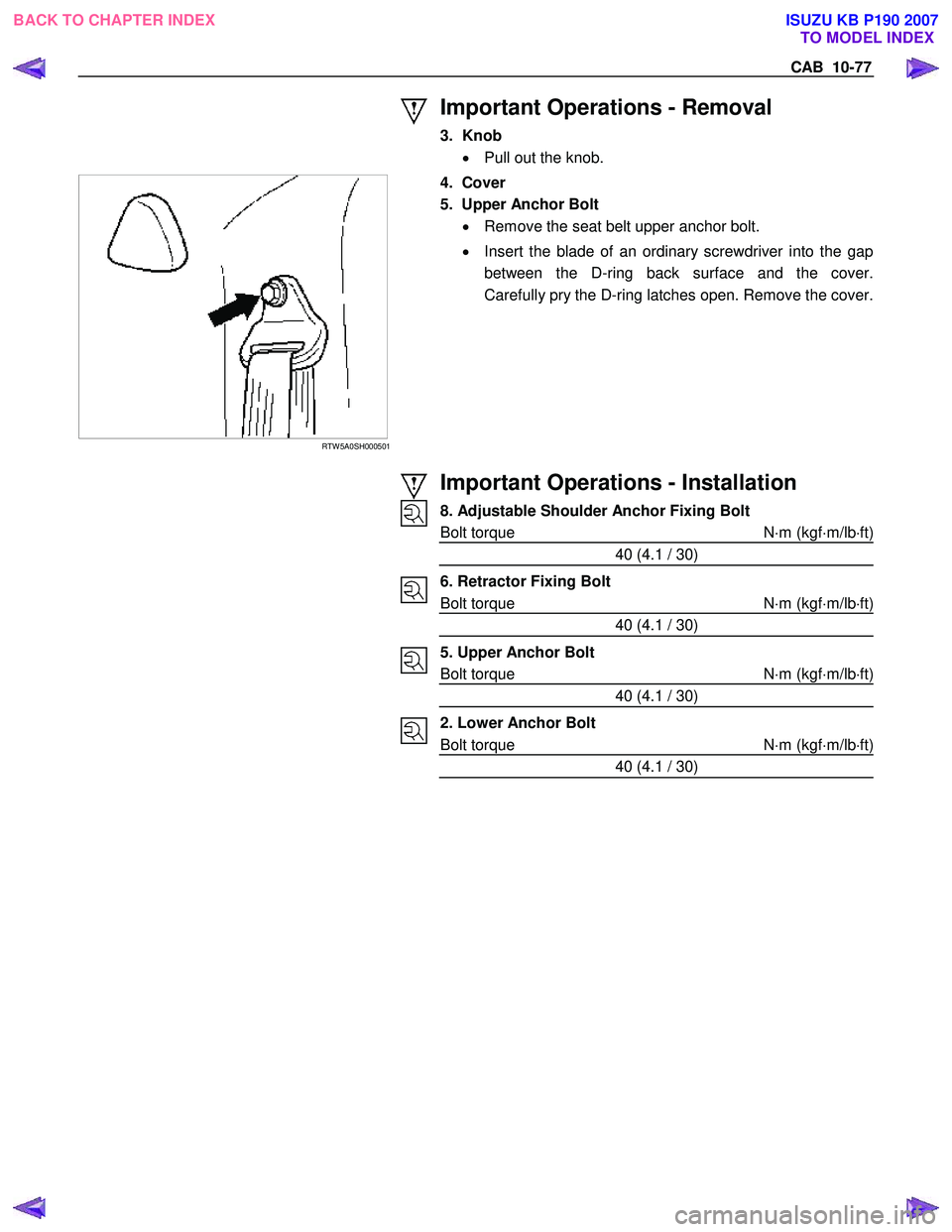

CAB 10-77


Important Operations - Removal
3. Knob • Pull out the knob.

RTW 5A0SH000501
4. Cover
5. Upper Anchor Bolt • Remove the seat belt upper anchor bolt.
• Insert the blade of an ordinary screwdriver into the gap
between the D-ring back surface and the cover.
Carefully pry the D-ring latches open. Remove the cover.











Important Operations - Installation
8. Adjustable Shoulder Anchor Fixing Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
6. Retractor Fixing Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
5. Upper Anchor Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
2. Lower Anchor Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

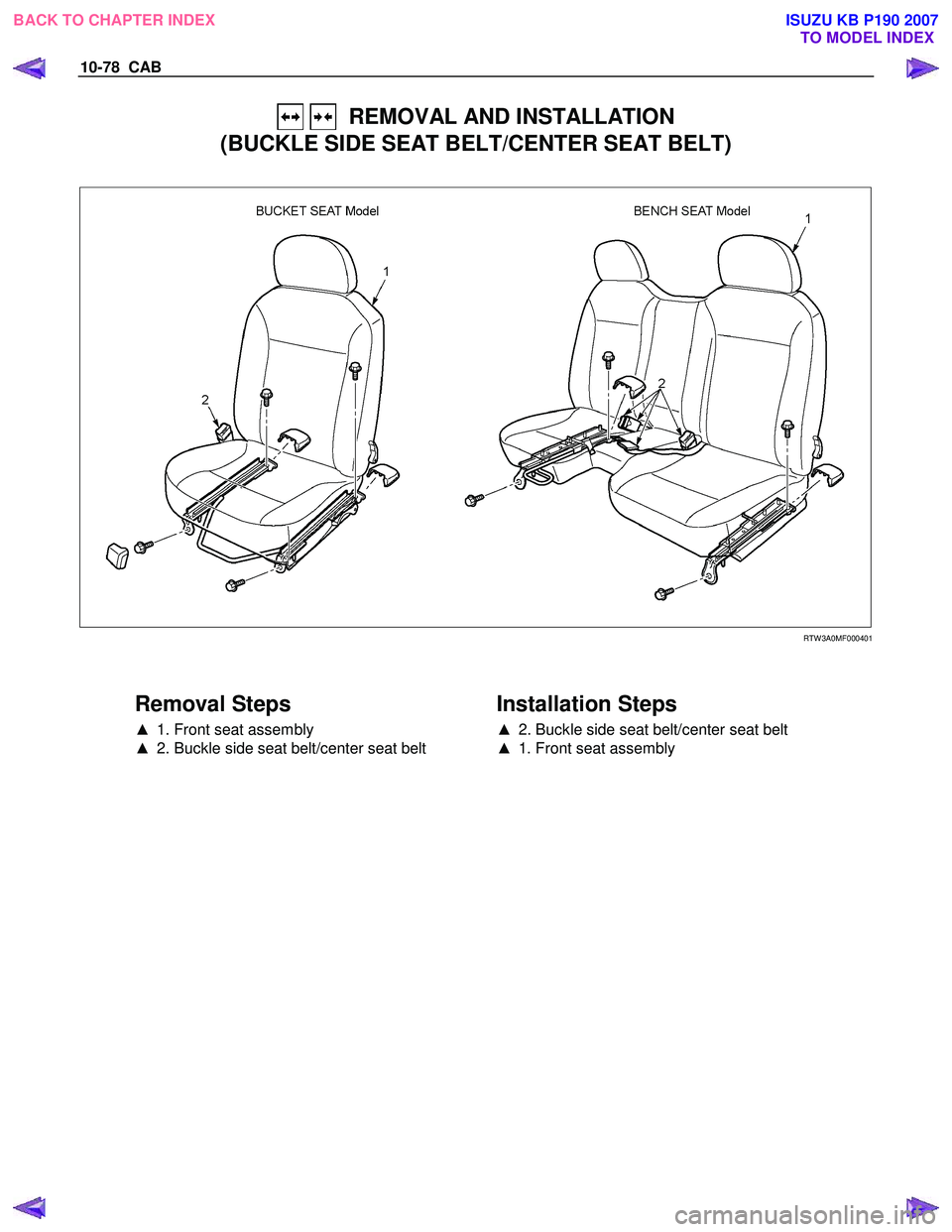

10-78 CAB
REMOVAL AND INSTALLATION
(BUCKLE SIDE SEAT BELT/CENTER SEAT BELT)




RTW 3A0MF000401



Removal Steps
▲ 1. Front seat assembly
▲ 2. Buckle side seat belt/center seat belt

Installation Steps
▲
2. Buckle side seat belt/center seat belt
▲ 1. Front seat assembly



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

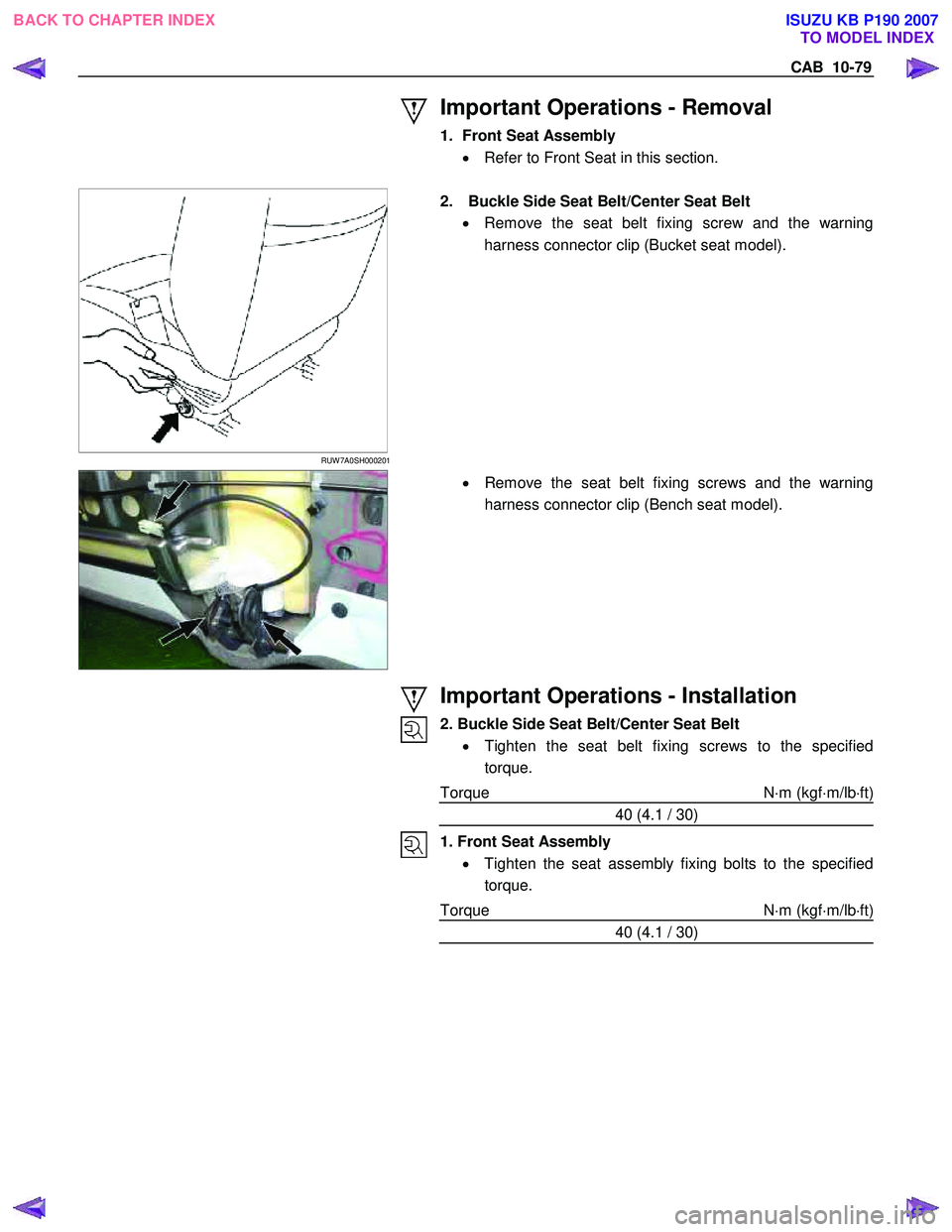

CAB 10-79


Important Operations - Removal
1. Front Seat Assembly • Refer to Front Seat in this section.


RUW 7A0SH000201
2. Buckle Side Seat Belt/Center Seat Belt
• Remove the seat belt fixing screw and the warning
harness connector clip (Bucket seat model).
• Remove the seat belt fixing screws and the warning
harness connector clip (Bench seat model).







Important Operations - Installation
2. Buckle Side Seat Belt/Center Seat Belt • Tighten the seat belt fixing screws to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
1. Front Seat Assembly • Tighten the seat assembly fixing bolts to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

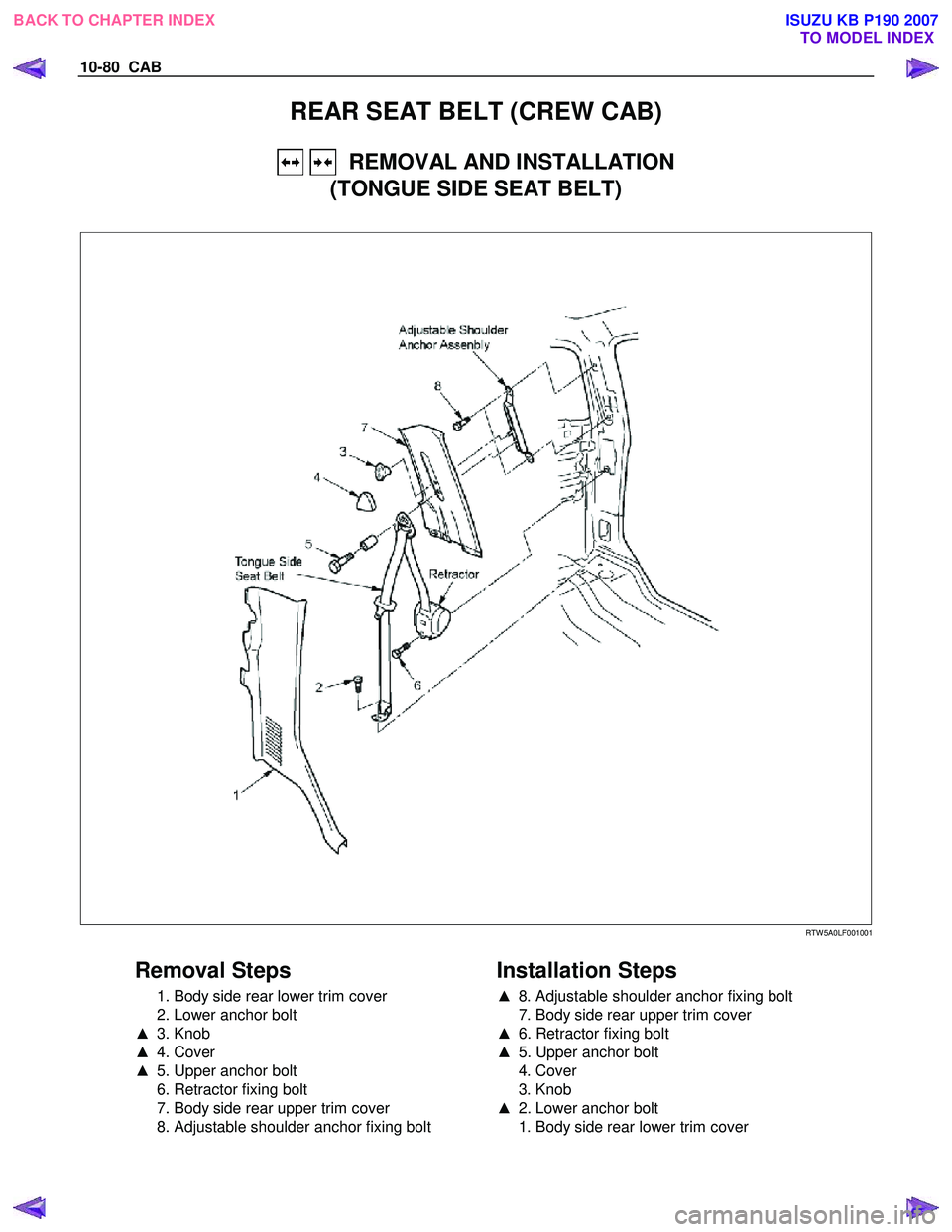

10-80 CAB
REAR SEAT BELT (CREW CAB)
REMOVAL AND INSTALLATION
(TONGUE SIDE SEAT BELT)










RTW 5A0LF001001

Removal Steps
1. Body side rear lower trim cover
2. Lower anchor bolt
▲ 3. Knob
▲ 4. Cover
▲ 5. Upper anchor bolt
6. Retractor fixing bolt
7. Body side rear upper trim cover
8. Adjustable shoulder anchor fixing bolt
Installation Steps
▲
8. Adjustable shoulder anchor fixing bolt
7. Body side rear upper trim cover
▲ 6. Retractor fixing bolt
▲ 5. Upper anchor bolt
4. Cover
3. Knob
▲ 2. Lower anchor bolt
1. Body side rear lower trim cover



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

CAB 10-81


Important Operations - Removal
3. Knob • Pull out the knob.

RTW 5A0SH000501
4. Cover
5. Upper Anchor Bolt • Remove the seat belt upper anchor bolt.
• Insert the blade of an ordinary screwdriver into the gap
between the D-ring back surface and the cover.
Carefully pry the D-ring latches open. Remove the cover.










Important Operations - Installation
8. Adjustable Shoulder Anchor Fixing Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
6. Retractor Fixing Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
5. Upper Anchor Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
2. Lower Anchor Bolt
Bolt torque N⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

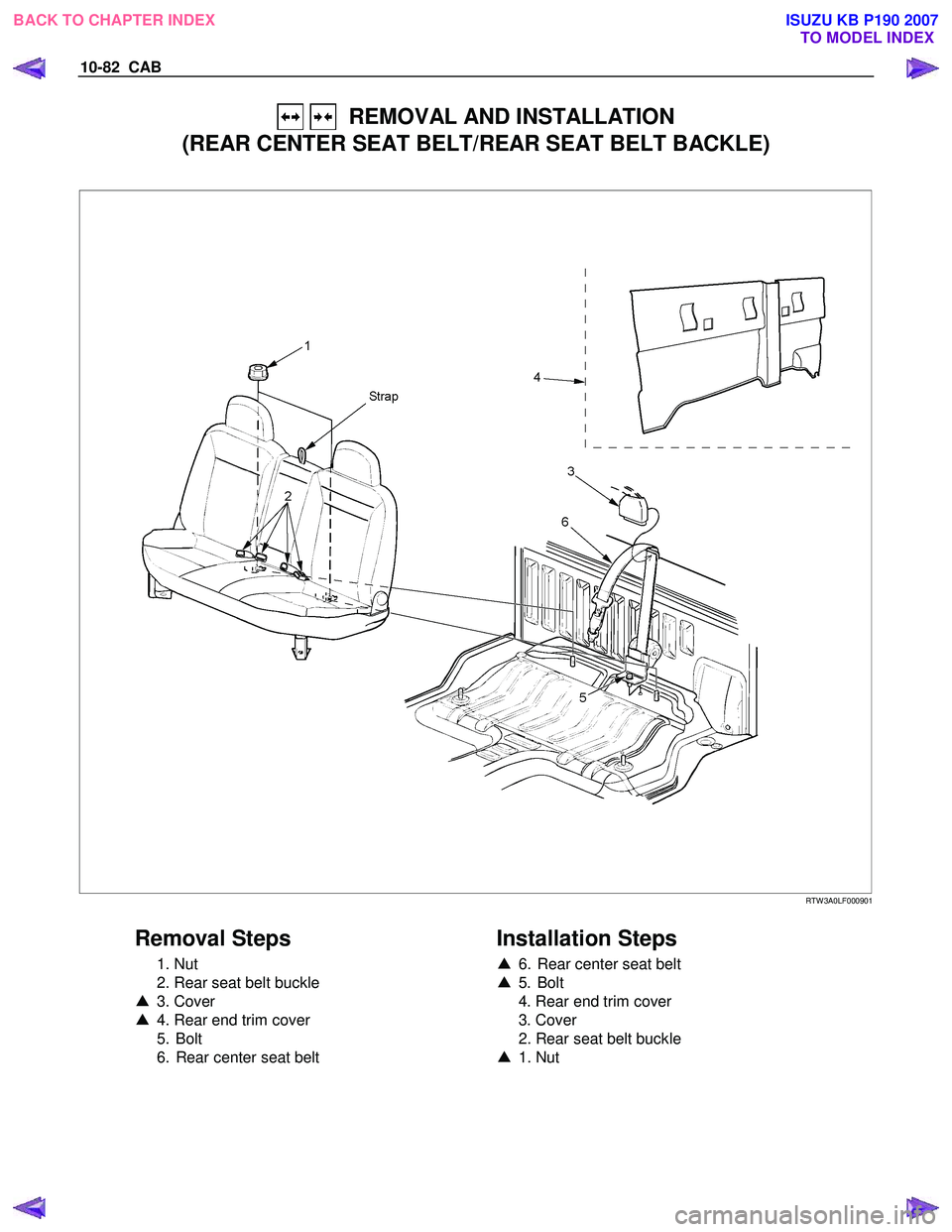

10-82 CAB
REMOVAL AND INSTALLATION
(REAR CENTER SEAT BELT/REAR SEAT BELT BACKLE)


RTW 3A0LF000901

Removal Steps
1. Nut
2. Rear seat belt buckle
▲ 3. Cover
▲ 4. Rear end trim cover
5. Bolt
6. Rear center seat belt

Installation Steps
▲
6. Rear center seat belt
▲ 5. Bolt
4. Rear end trim cover
3. Cover
2. Rear seat belt buckle
▲ 1. Nut
