ISUZU KB P190 2007 Workshop Repair Manual

CAB 10-53

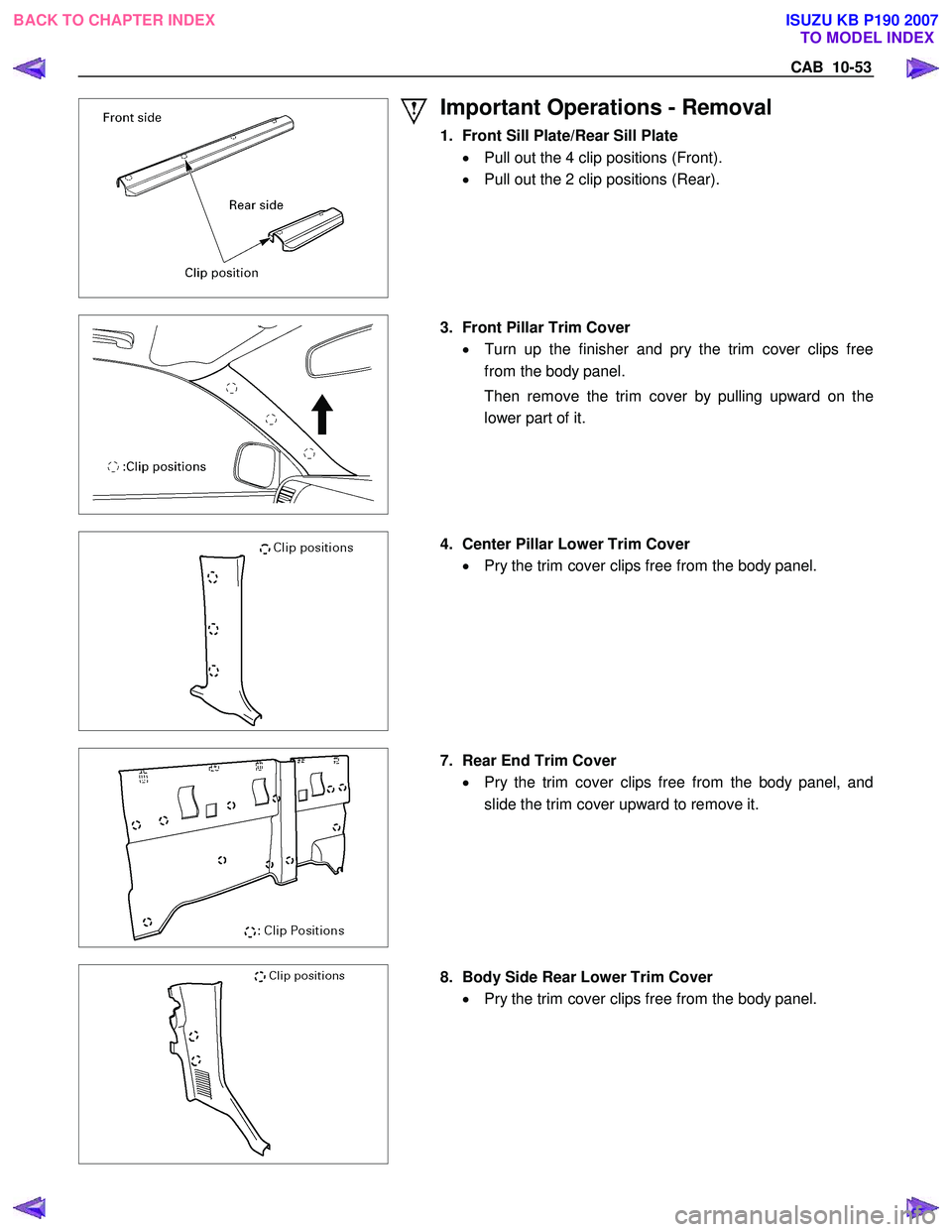

Important Operations - Removal
1. Front Sill Plate/Rear Sill Plate
• Pull out the 4 clip positions (Front).
• Pull out the 2 clip positions (Rear).

3. Front Pillar Trim Cover
• Turn up the finisher and pry the trim cover clips free
from the body panel.
Then remove the trim cover by pulling upward on the lower part of it.
4. Center Pillar Lower Trim Cover
• Pry the trim cover clips free from the body panel.

7. Rear End Trim Cover
• Pry the trim cover clips free from the body panel, and
slide the trim cover upward to remove it.
8. Body Side Rear Lower Trim Cover
• Pry the trim cover clips free from the body panel.

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

10-54 CAB

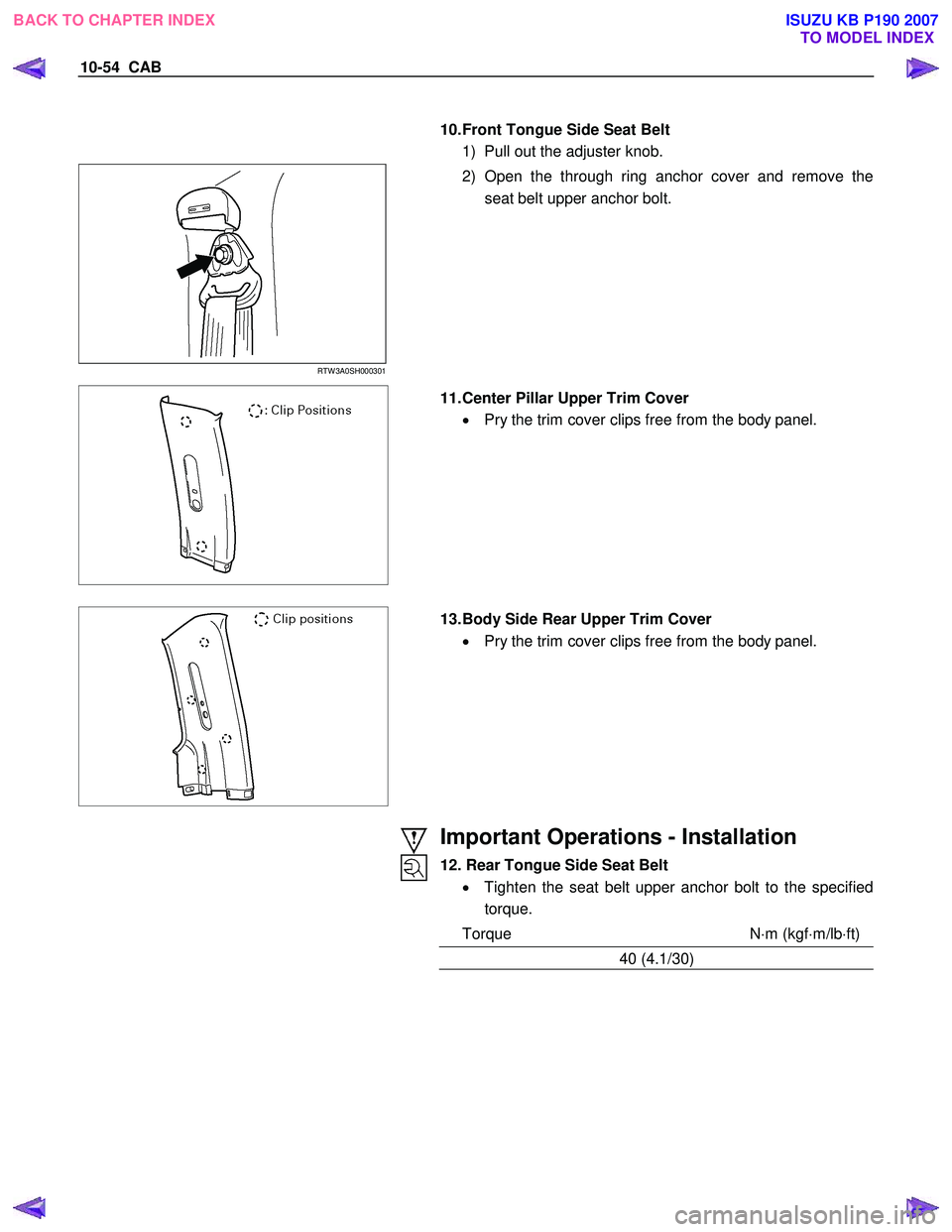

10. Front Tongue Side Seat Belt
1) Pull out the adjuster knob.
RTW 3A0SH000301
2) Open the through ring anchor cover and remove the
seat belt upper anchor bolt.
11. Center Pillar Upper Trim Cover
• Pry the trim cover clips free from the body panel.

13. Body Side Rear Upper Trim Cover
• Pry the trim cover clips free from the body panel.



Important Operations - Installation
12. Rear Tongue Side Seat Belt • Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1/30)


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

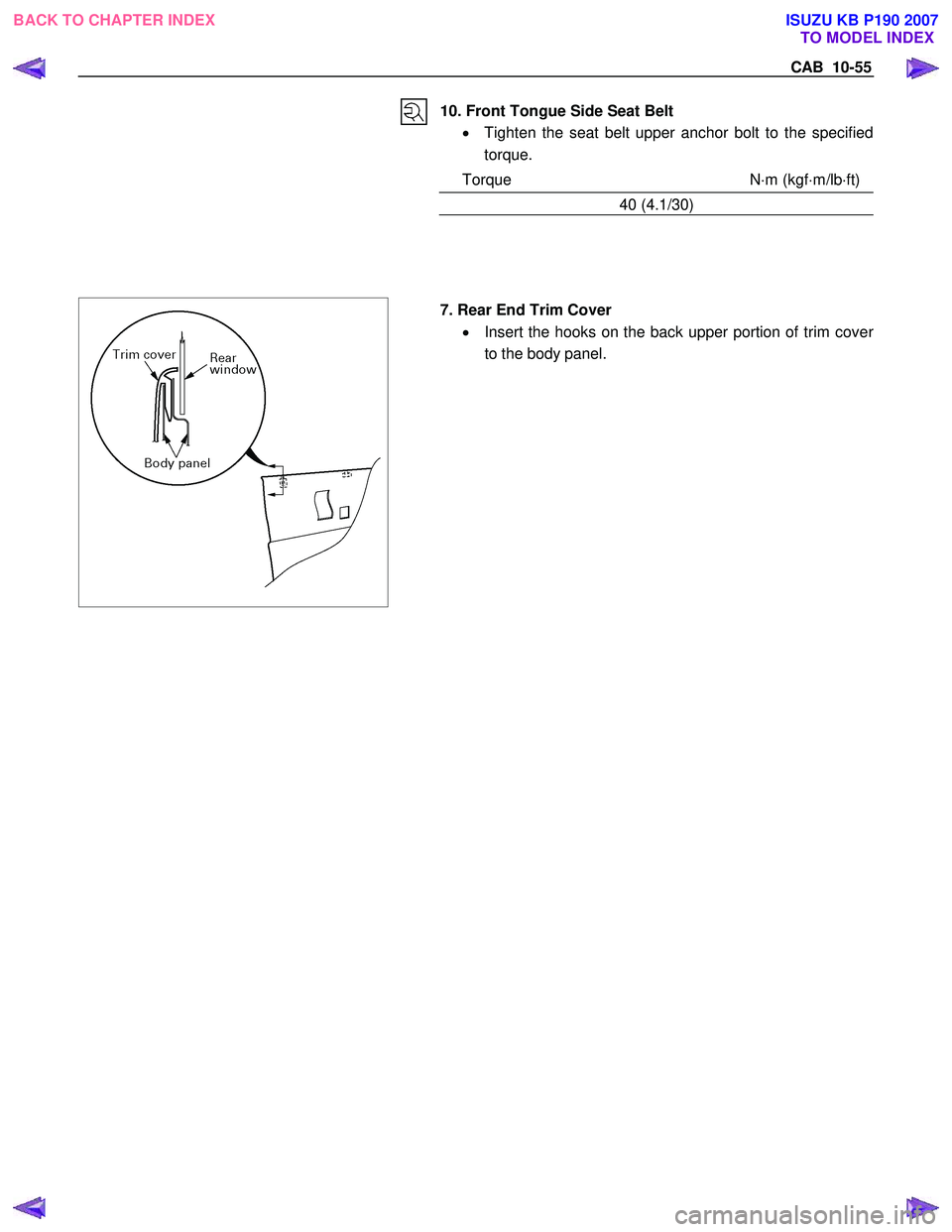

CAB 10-55


10. Front Tongue Side Seat Belt
• Tighten the seat belt upper anchor bolt to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1/30)

7. Rear End Trim Cover
• Insert the hooks on the back upper portion of trim cove
r
to the body panel.




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

10-56 CAB

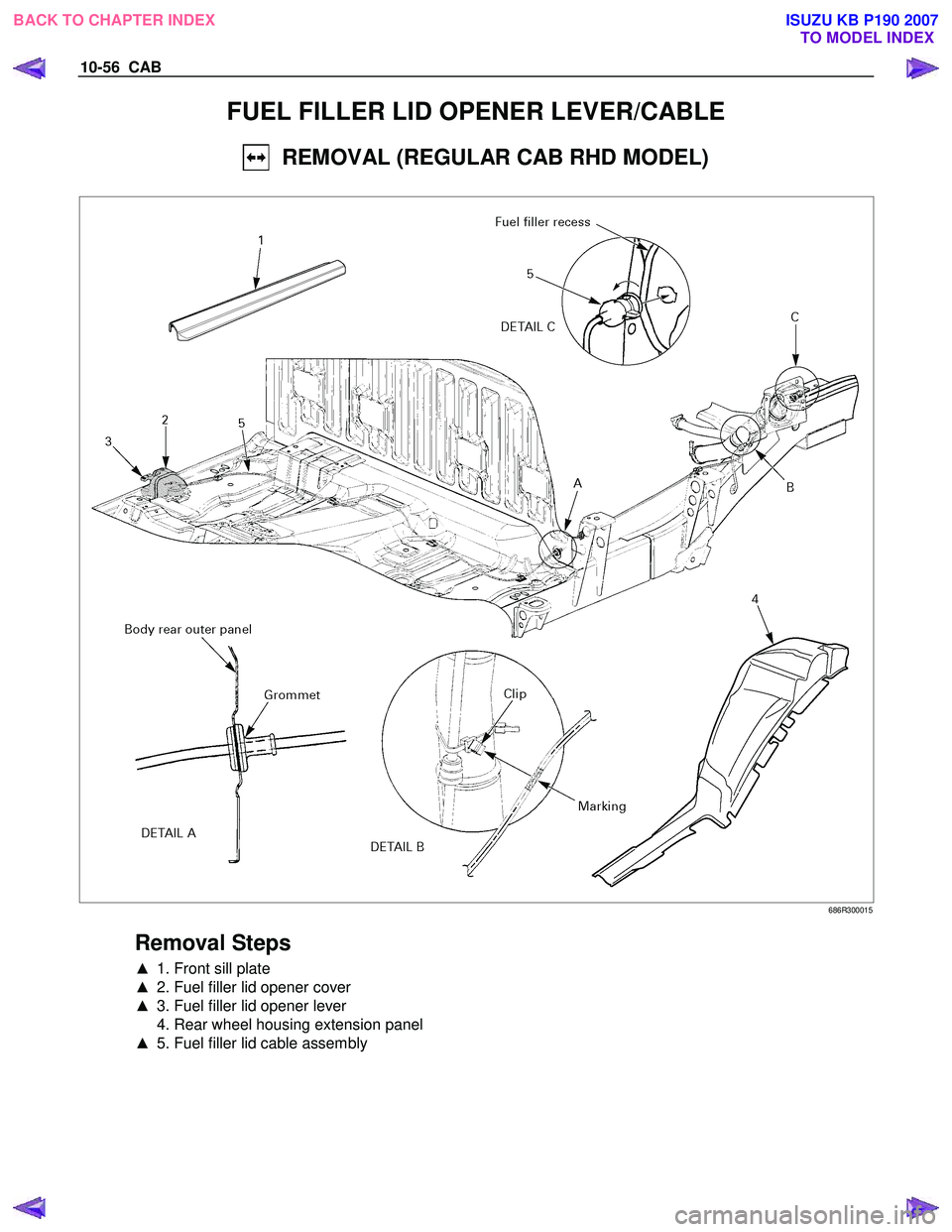

FUEL FILLER LID OPENER LEVER/CABLE
REMOVAL (REGULAR CAB RHD MODEL)

686R300015

Removal Steps
▲ 1. Front sill plate
▲ 2. Fuel filler lid opener cover
▲ 3. Fuel filler lid opener lever
4. Rear wheel housing extension panel
▲ 5. Fuel filler lid cable assembly


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

CAB 10-57

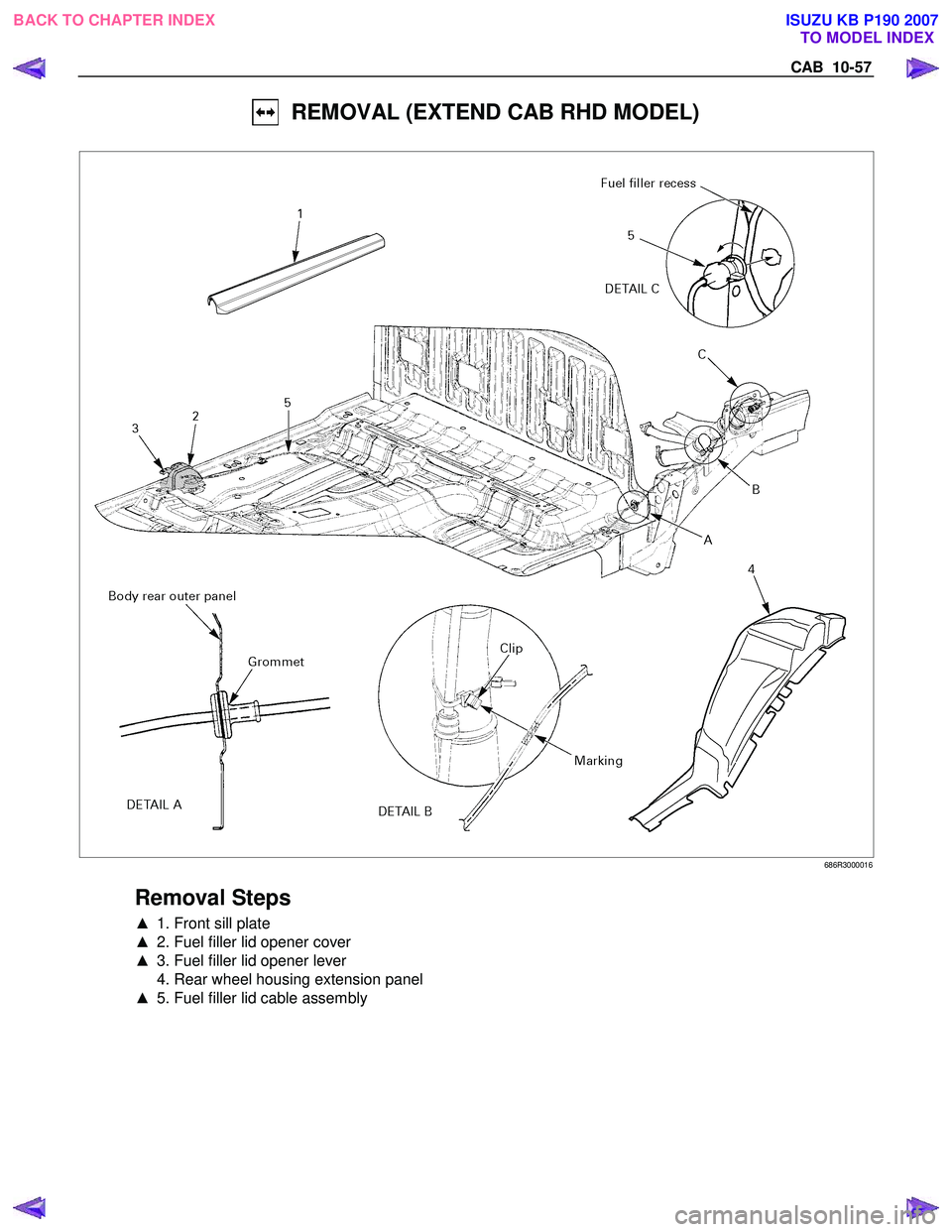

REMOVAL (EXTEND CAB RHD MODEL)

686R3000016

Removal Steps
▲ 1. Front sill plate
▲ 2. Fuel filler lid opener cover
▲ 3. Fuel filler lid opener lever
4. Rear wheel housing extension panel
▲ 5. Fuel filler lid cable assembly






BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

10-58 CAB

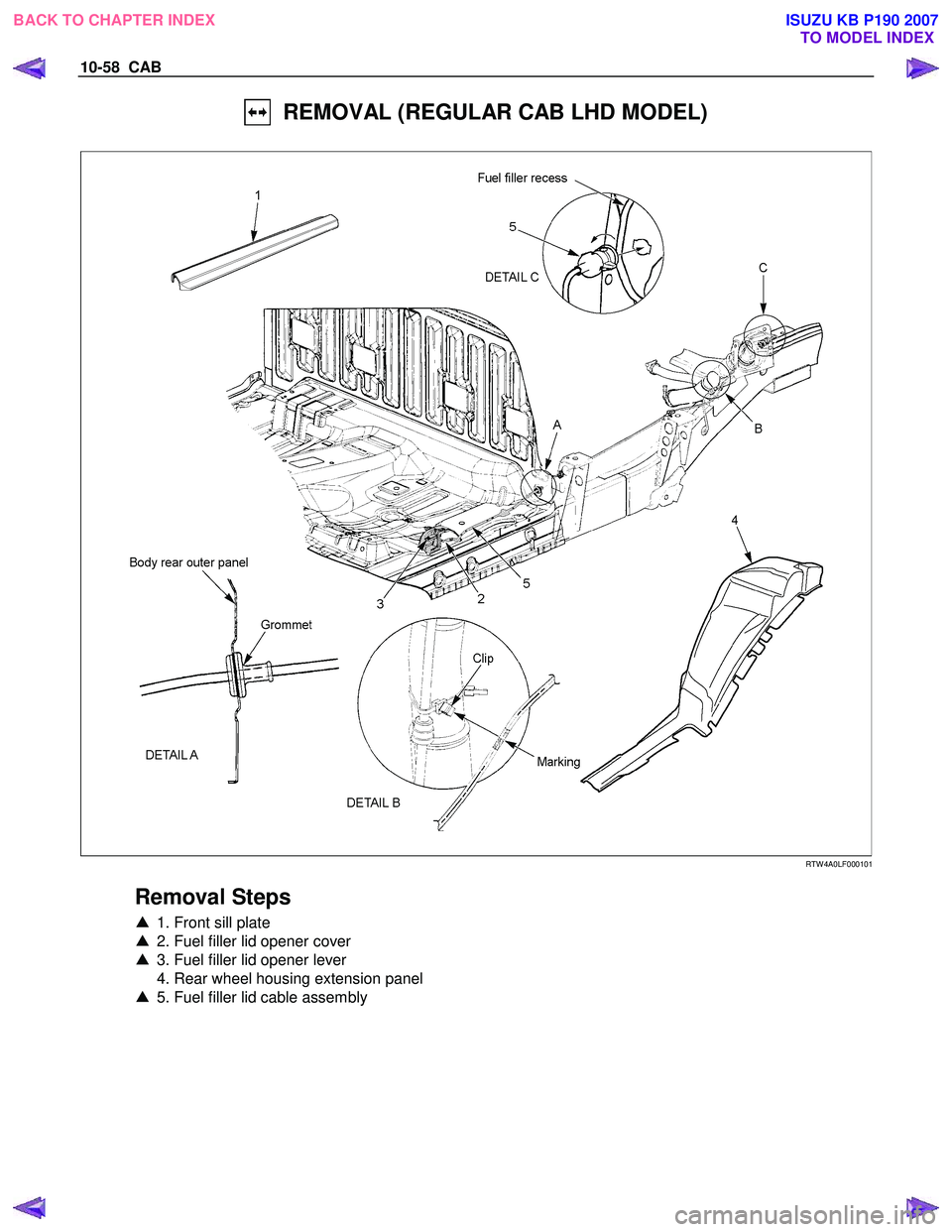

REMOVAL (REGULAR CAB LHD MODEL)





RTW 4A0LF000101

Removal Steps
▲ 1. Front sill plate
▲ 2. Fuel filler lid opener cover
▲ 3. Fuel filler lid opener lever
4. Rear wheel housing extension panel
▲ 5. Fuel filler lid cable assembly


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

CAB 10-59

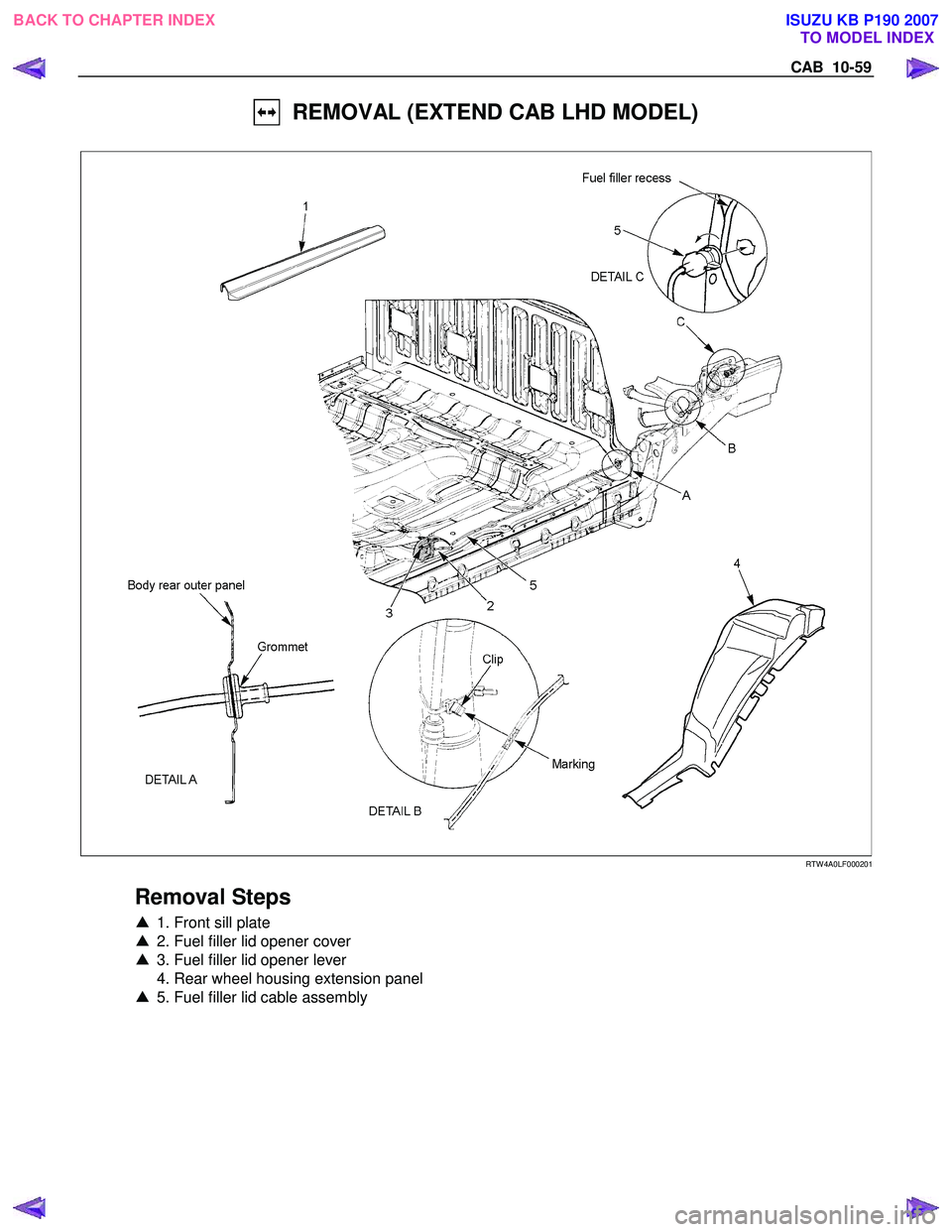

REMOVAL (EXTEND CAB LHD MODEL)





RTW 4A0LF000201

Removal Steps
▲ 1. Front sill plate
▲ 2. Fuel filler lid opener cover
▲ 3. Fuel filler lid opener lever
4. Rear wheel housing extension panel
▲ 5. Fuel filler lid cable assembly








BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

10-60 CAB

Important Operations - Removal
1. Front Sill Plate
• Pull out the 4 clip positions.


2. Fuel Filler Lid Opener Cover
• Pull out the 3 clip positions.


3. Fuel Filler Lid Opener Lever
• Remove the 2 opener fixing bolts and disconnect the
cable.


5. Fuel Filler Lid Cable Assembly
• Remove some fixing clips, turn the cable holder on the
side of the recess at 90 °counterclockwise and remove it
from the recess. Pull out the grommet in the direction o
f
the front of the vehicle and remove the cable assembly.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

CAB 10-61

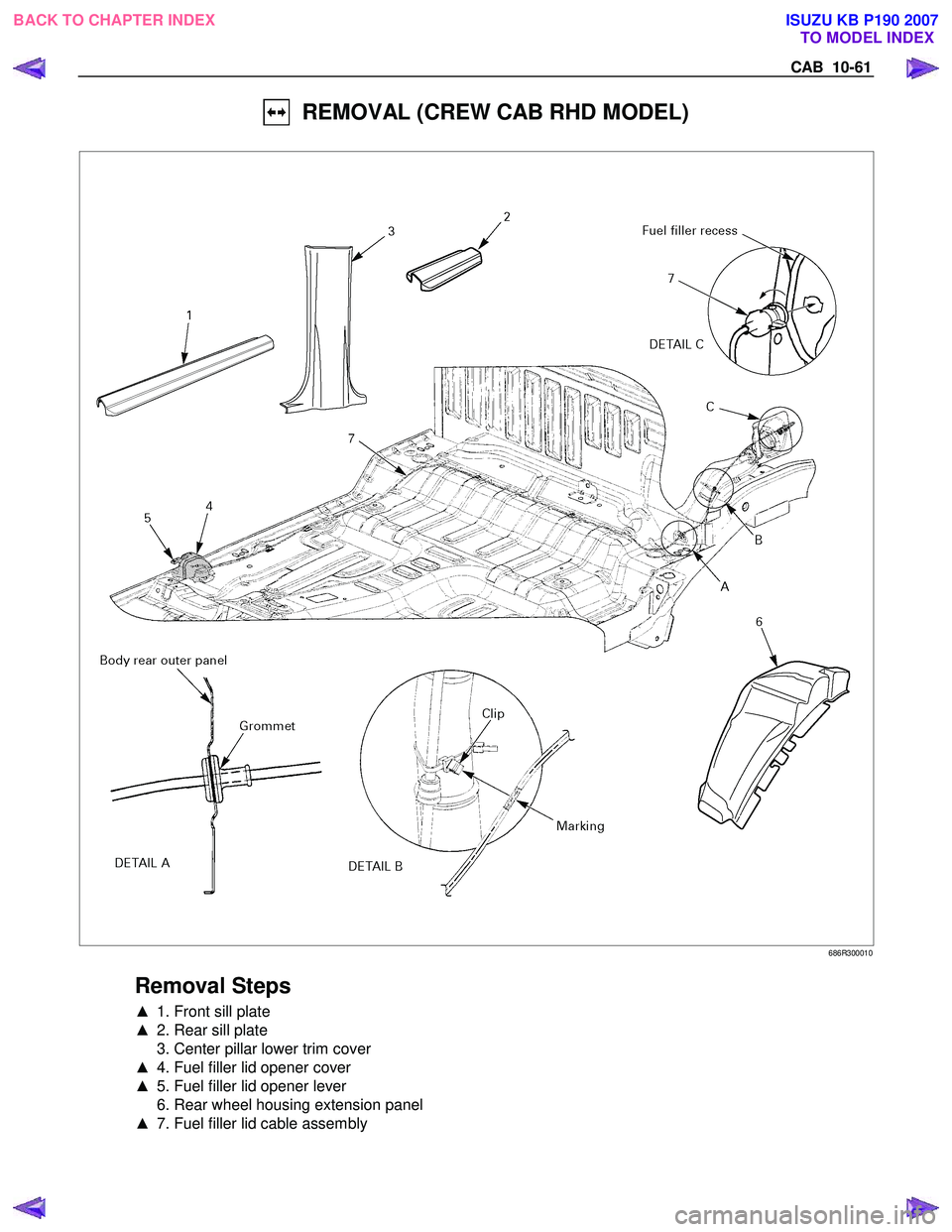

REMOVAL (CREW CAB RHD MODEL)

686R300010

Removal Steps
▲ 1. Front sill plate
▲ 2. Rear sill plate
3. Center pillar lower trim cover
▲ 4. Fuel filler lid opener cover
▲ 5. Fuel filler lid opener lever
6. Rear wheel housing extension panel
▲ 7. Fuel filler lid cable assembly



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

10-62 CAB

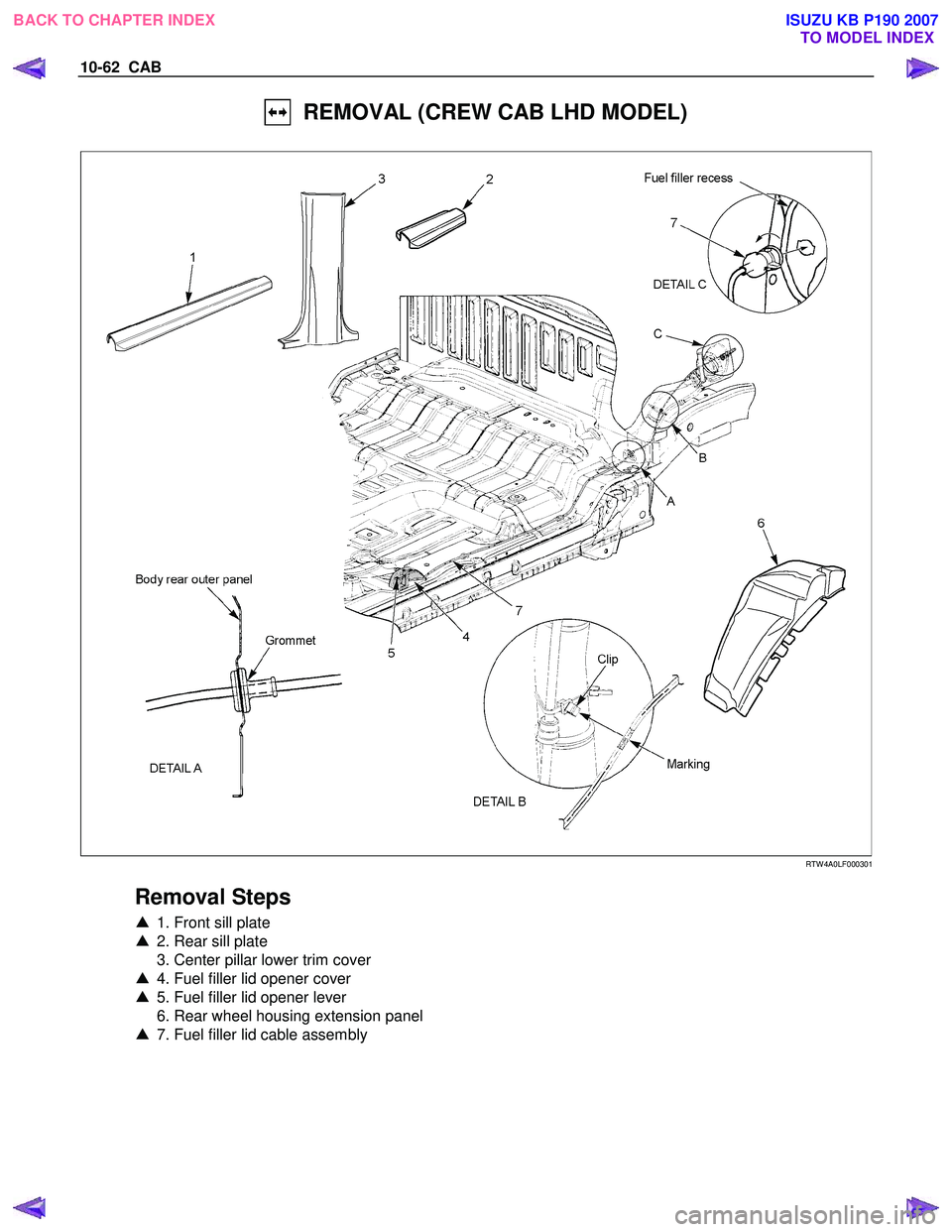

REMOVAL (CREW CAB LHD MODEL)





RTW 4A0LF000301

Removal Steps
▲ 1. Front sill plate
▲ 2. Rear sill plate
3. Center pillar lower trim cover
▲ 4. Fuel filler lid opener cover
▲ 5. Fuel filler lid opener lever
6. Rear wheel housing extension panel
▲ 7. Fuel filler lid cable assembly






BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
