ISUZU KB P190 2007 Workshop Repair Manual

6A – 6 ENGINE MECHANICAL
MAIN DATA AND SPECIFICATIONS
Engine model
Item 4JH1TC
Engine type
Four-cycle, overhead valve, water cooled
Combustion chamber type Direct injection
Cylinder liner type
Timing gear train system Dry type, chrome plated
Gear drive
No. of cylinders-bore × stroke mm (in) 4 – 95.4 × 104.9 (3.76 × 4.13)
No. of piston rings Compression ring: 2 / Oil ring: 1
Total piston displacement liter
Compression ratio (to 1) 2,999
18.3
Compression pressure MPa (kg/cm2/psi) 3.0 (31.0/441) – 200 rpm
Engine weight (dry) kg (lb)MT: Approximately 249 (549)
AT: Approximately 236 (520)
Fuel injection order 1 – 3 – 4 - 2
Specified fuel type JIS No.2, DIN/EN590, GB252-1944 Diesel fuel
Idling speed rpm
700 ± 25 (A/C OFF)
800 ± 25 (A/C ON)
Valve clearances (At cold): Intake mm (in)
Exhaust mm (in)
Intake valves Open at (BTDC) deg
Close at (ABDC) deg
Exhaust valves Open at (BBDC) deg
Close at (ATDC) deg
Fuel system
Injection pump type 0.4 (0.016)
0.4 (0.016) 24.5
55.5
54.0
26.0
BOSCH distributor VP44 type
Injection nozzle type
Injection nozzle opening pressure
MPa (kg/cm
2/psi) Hole with 5 orifices

1st 19.5 (199/2,828)
2nd (Reference) 34.3 ∼35.8 (350 ∼365/4,980 ∼5,197)
Main fuel filter type
Lubricating system
Lubricating method Cartridge paper element and water separator

Pressure circulation
Specified engine oil (API grade) ISUZU genuine 10W – 30 (API CD of ACEA B2/B3)
Oil pump type
Oil filter type Gear
Cartridge paper element
Oil capacity lit (US/UK gal)
6.2 (1.64/1.36) (For 4
× 2)
7.0 (1.85/1.54) (For 4 × 4)
Oil cooler type W ater cooled

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

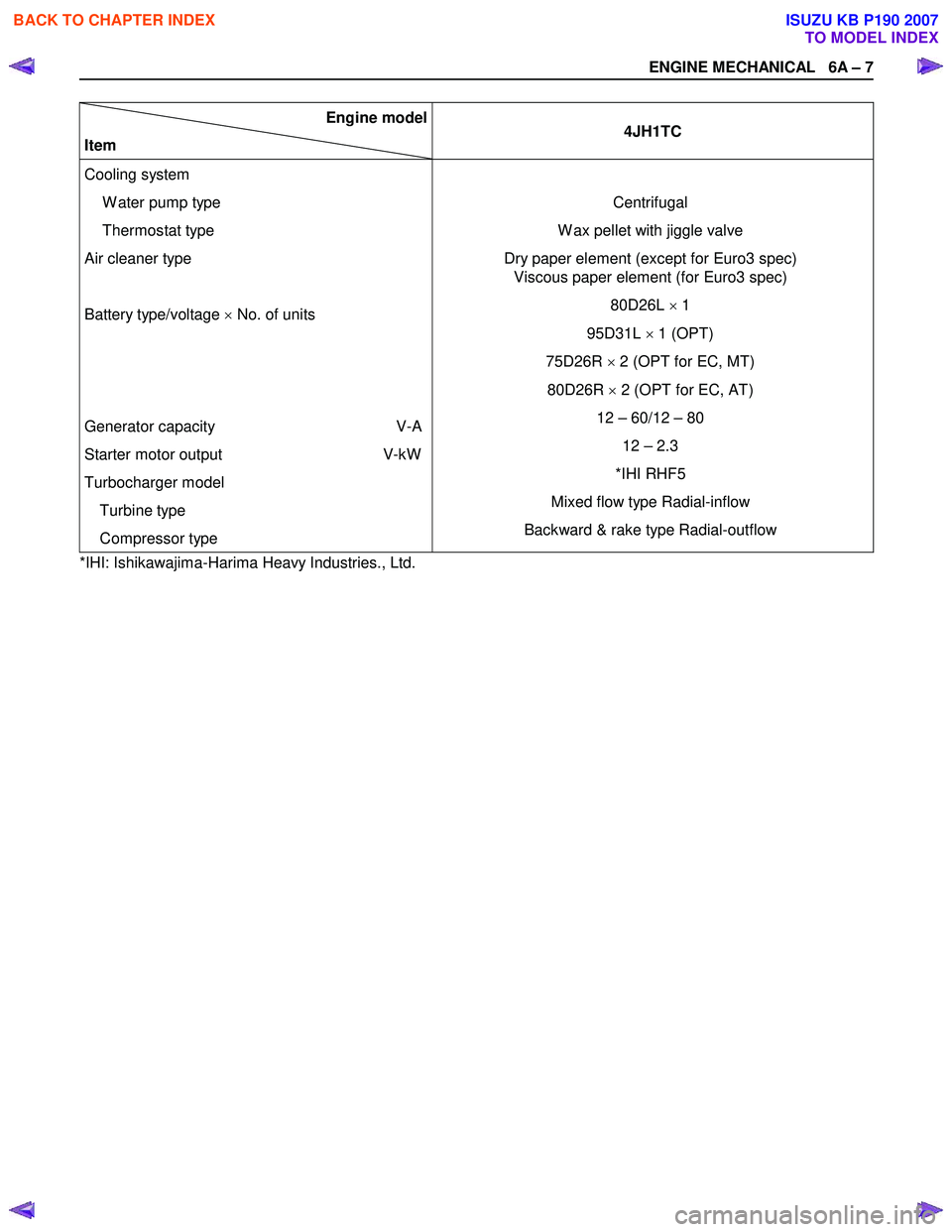

ENGINE MECHANICAL 6A – 7

Engine model
Item 4JH1TC
Cooling system
W ater pump type
Thermostat type
Air cleaner type

Battery type/voltage × No. of units



Generator capacity V-A
Starter motor output V-kW
Turbocharger model Turbine type
Compressor type
Centrifugal
W ax pellet with jiggle valve
Dry paper element (except for Euro3 spec) Viscous paper element (for Euro3 spec)
80D26L × 1
95D31L × 1 (OPT)
75D26R × 2 (OPT for EC, MT)
80D26R × 2 (OPT for EC, AT)
12 – 60/12 – 80 12 – 2.3
*IHI RHF5
Mixed flow type Radial-inflow
Backward & rake type Radial-outflow
*IHI: Ishikawajima-Harima Heavy Industries., Ltd.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 8 ENGINE MECHANICAL

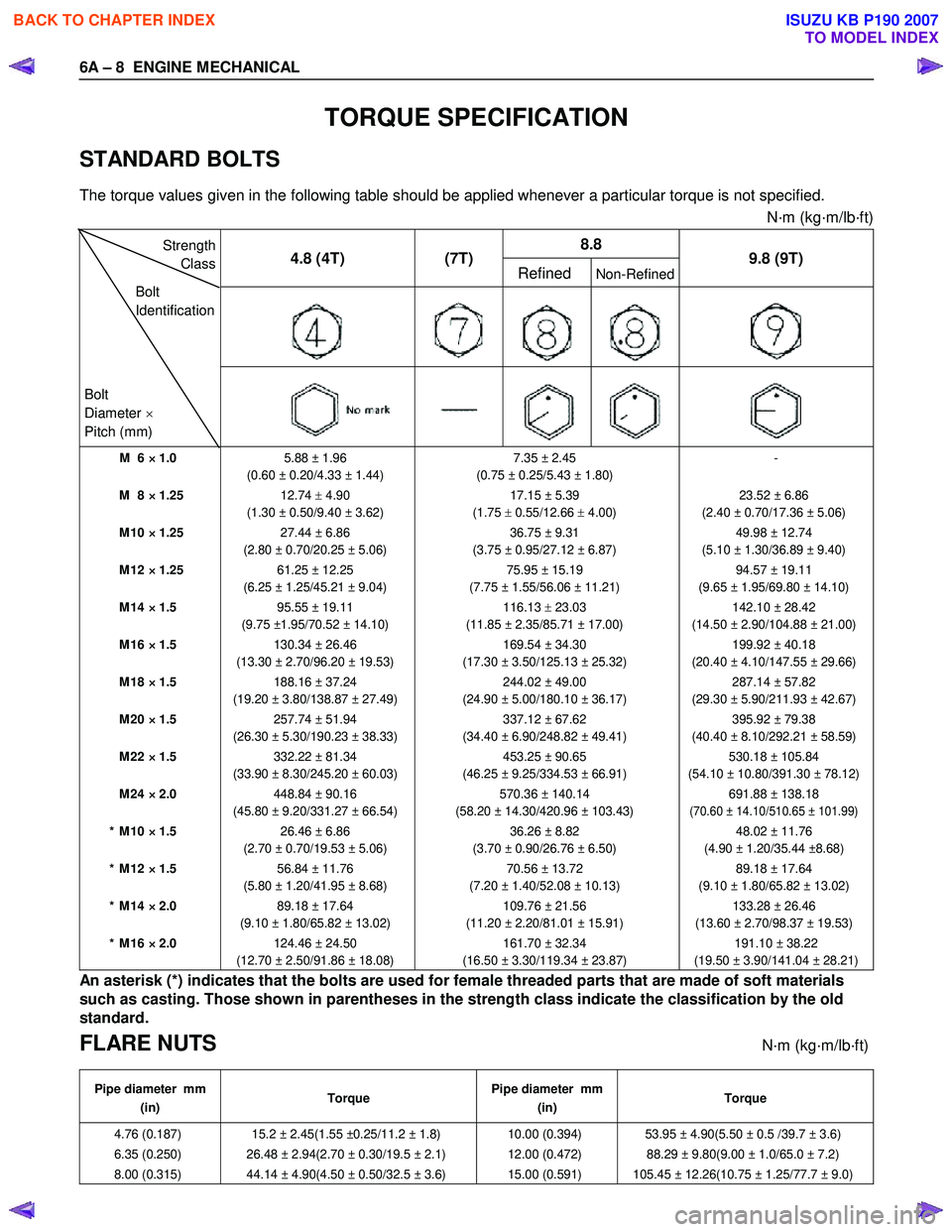

TORQUE SPECIFICATION
STANDARD BOLTS
The torque values given in the following table should be applied whenever a particular torque is not specified.
N·m (kg·m/lb·ft)
8.8
4.8 (4T) (7T)
Refined Non-Refined 9.8 (9T) Strength
Class
Bolt
Identification


Bolt
Diameter ×
Pitch (mm)
M 6 ×
××
×
1.0

M 8 ×
××
×
1.25

M 10 ×
××
×
1.25

M 12 ×
××
×
1.25

M 14 ×
××
×
1.5

M 16 ×
××
×
1.5

M 18 ×
××
×
1.5

M 20 ×
××
×
1.5

M 22 ×
××
×
1.5

M 24 ×
××
×
2.0

* M 10 ×
××
×
1.5

* M 12 ×
××
×
1.5

* M 14 ×
××
×
2.0

* M 16 ×
××
×
2.0
5.88 ± 1.96
(0.60 ± 0.20/4.33 ± 1.44)
12.74 ± 4.90
(1.30 ± 0.50/9.40 ± 3.62)
27.44 ± 6.86
(2.80 ± 0.70/20.25 ± 5.06)
61.25 ± 12.25
(6.25 ± 1.25/45.21 ± 9.04)
95.55 ± 19.11
(9.75 ±1.95/70.52 ± 14.10)
130.34 ± 26.46
(13.30 ± 2.70/96.20 ± 19.53)
188.16 ± 37.24
(19.20 ± 3.80/138.87 ± 27.49)
257.74 ± 51.94
(26.30 ± 5.30/190.23 ± 38.33)
332.22 ± 81.34
(33.90 ± 8.30/245.20 ± 60.03)
448.84 ± 90.16
(45.80 ± 9.20/331.27 ± 66.54)
26.46 ± 6.86
(2.70 ± 0.70/19.53 ± 5.06)
56.84 ± 11.76
(5.80 ± 1.20/41.95 ± 8.68)
89.18 ± 17.64
(9.10 ± 1.80/65.82 ± 13.02)
124.46 ± 24.50
(12.70 ± 2.50/91.86 ± 18.08) 7.35 ± 2.45
(0.75 ± 0.25/5.43 ± 1.80)
17.15 ± 5.39
(1.75 ± 0.55/12.66 ± 4.00)
36.75 ± 9.31
(3.75 ± 0.95/27.12 ± 6.87)
75.95 ± 15.19
(7.75 ± 1.55/56.06 ± 11.21)
116.13 ± 23.03
(11.85 ± 2.35/85.71 ± 17.00)
169.54 ± 34.30
(17.30 ± 3.50/125.13 ± 25.32)
244.02 ± 49.00
(24.90 ± 5.00/180.10 ± 36.17)
337.12 ± 67.62
(34.40 ± 6.90/248.82 ± 49.41)
453.25 ± 90.65
(46.25 ± 9.25/334.53 ± 66.91)
570.36 ± 140.14
(58.20 ± 14.30/420.96 ± 103.43)
36.26 ± 8.82
(3.70 ± 0.90/26.76 ± 6.50)
70.56 ± 13.72
(7.20 ± 1.40/52.08 ± 10.13)
109.76 ± 21.56
(11.20 ± 2.20/81.01 ± 15.91)
161.70 ± 32.34
(16.50 ± 3.30/119.34 ± 23.87) -

23.52 ± 6.86
(2.40 ± 0.70/17.36 ± 5.06)
49.98 ± 12.74
(5.10 ± 1.30/36.89 ± 9.40)
94.57 ± 19.11
(9.65 ± 1.95/69.80 ± 14.10)
142.10 ± 28.42
(14.50 ± 2.90/104.88 ± 21.00)
199.92 ± 40.18
(20.40 ± 4.10/147.55 ± 29.66)
287.14 ± 57.82
(29.30 ± 5.90/211.93 ± 42.67)
395.92 ± 79.38
(40.40 ± 8.10/292.21 ± 58.59)
530.18 ± 105.84
(54.10 ± 10.80/391.30 ± 78.12)
691.88 ± 138.18
(70.60 ± 14.10/510.65 ± 101.99)
48.02 ± 11.76
(4.90 ± 1.20/35.44 ±8.68)
89.18 ± 17.64
(9.10 ± 1.80/65.82 ± 13.02)
133.28 ± 26.46
(13.60 ± 2.70/98.37 ± 19.53)
191.10 ± 38.22
(19.50 ± 3.90/141.04 ± 28.21)
An asterisk (*) indicates that the bolts are used for female threaded parts that are made of soft materials
such as casting. Those shown in parentheses in the strength class indicate the classification by the old
standard.
FLARE NUTS N·m (kg·m/lb·ft)
Pipe diameter mm
(in) Torque Pipe diameter mm
(in) Torque
4.76 (0.187)
6.35 (0.250)
8.00 (0.315) 15.2 ± 2.45(1.55 ±0.25/11.2 ± 1.8)
26.48 ± 2.94(2.70 ± 0.30/19.5 ± 2.1)
44.14 ± 4.90(4.50 ± 0.50/32.5 ± 3.6) 10.00 (0.394)
12.00 (0.472)
15.00 (0.591) 53.95 ± 4.90(5.50 ± 0.5 /39.7 ± 3.6)
88.29 ± 9.80(9.00 ± 1.0/65.0 ± 7.2)
105.45 ± 12.26(10.75 ± 1.25/77.7 ± 9.0)

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL 6A – 9

SPECIAL PARTS FIXING NUTS AND BOLTS
Cylinder Head Cover, Cylinder Head, and Rocker Arm Shaft Bracket
N·m (kg·m/lb·ft)



RTW 46AXF000501

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 10 ENGINE MECHANICAL

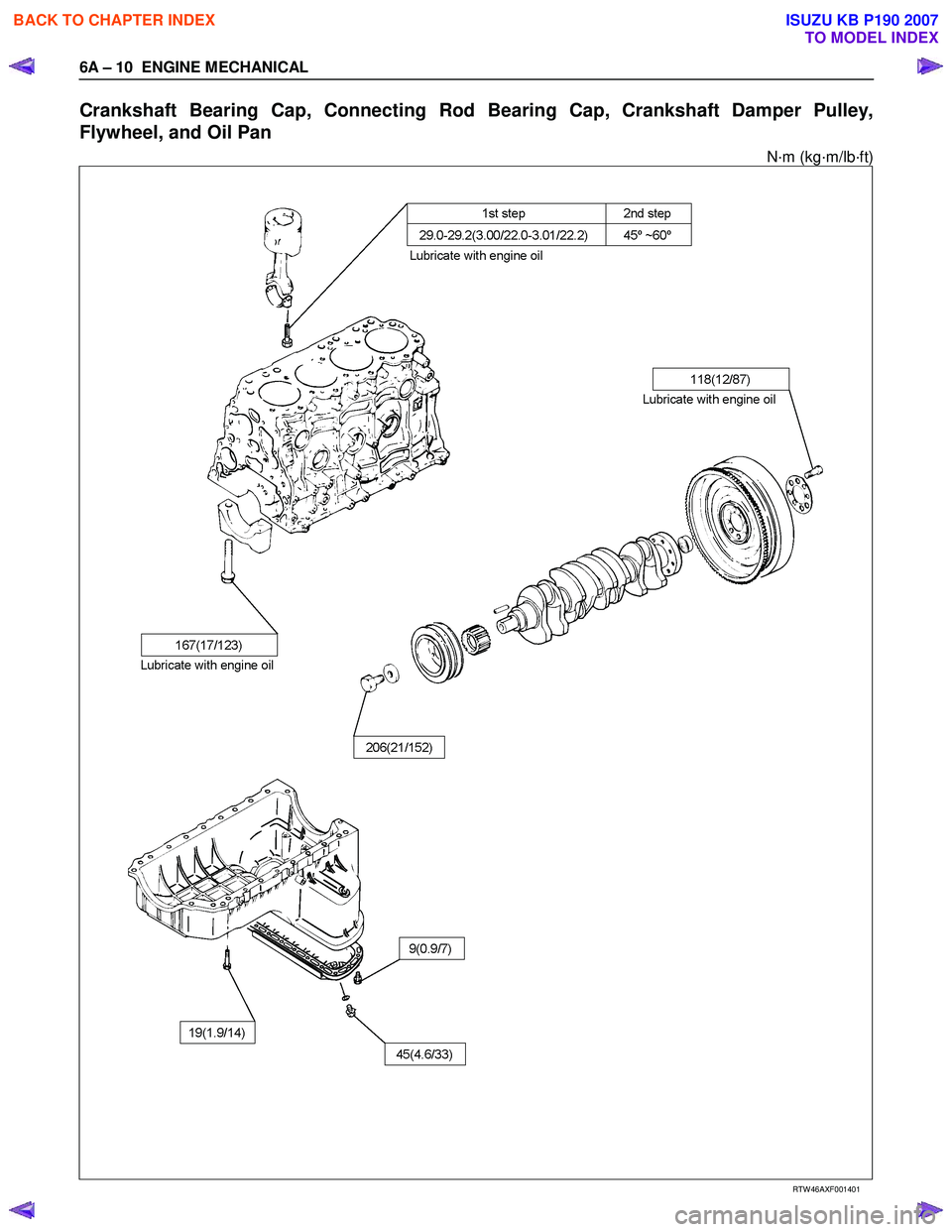

Crankshaft Bearing Cap, Connecting Rod Bearing Cap, Crankshaft Damper Pulley,
Flywheel, and Oil Pan
N·m (kg·m/lb·ft)





RTW 46AXF001401

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL 6A – 11

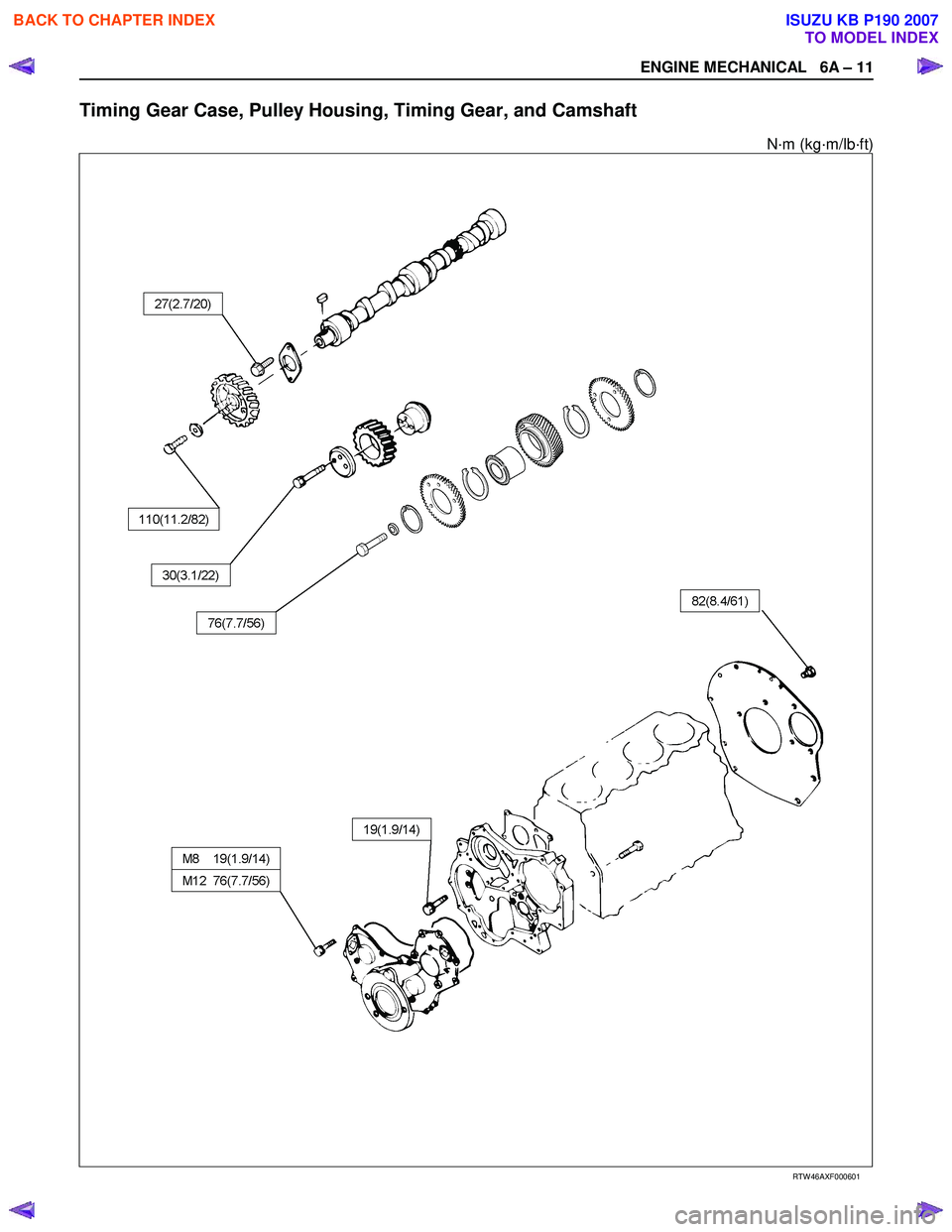

Timing Gear Case, Pulley Housing, Timing Gear, and Camshaft
N·m (kg·m/lb·ft)





RTW 46AXF000601

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 12 ENGINE MECHANICAL

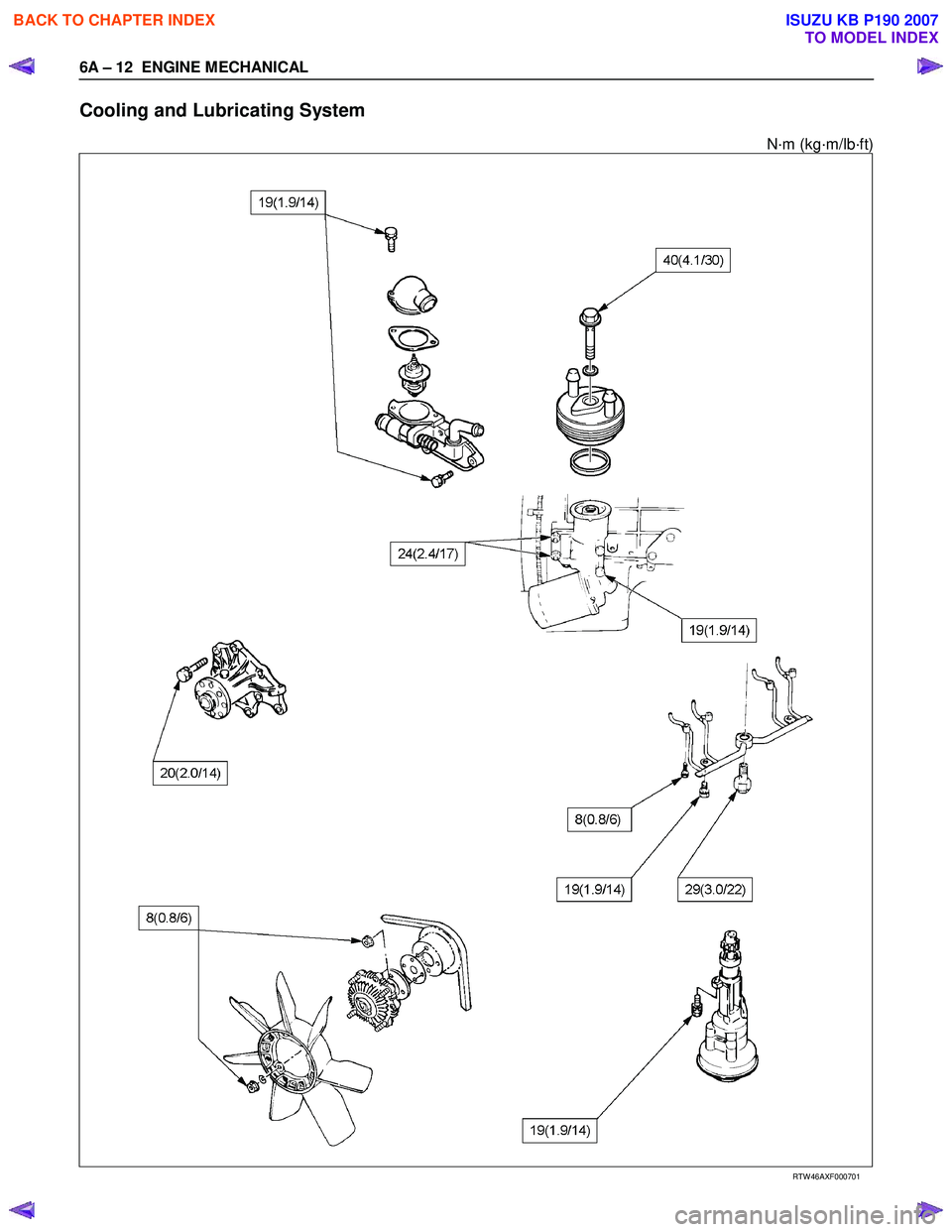

Cooling and Lubricating System
N·m (kg·m/lb·ft)





RTW 46AXF000701

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL 6A – 13

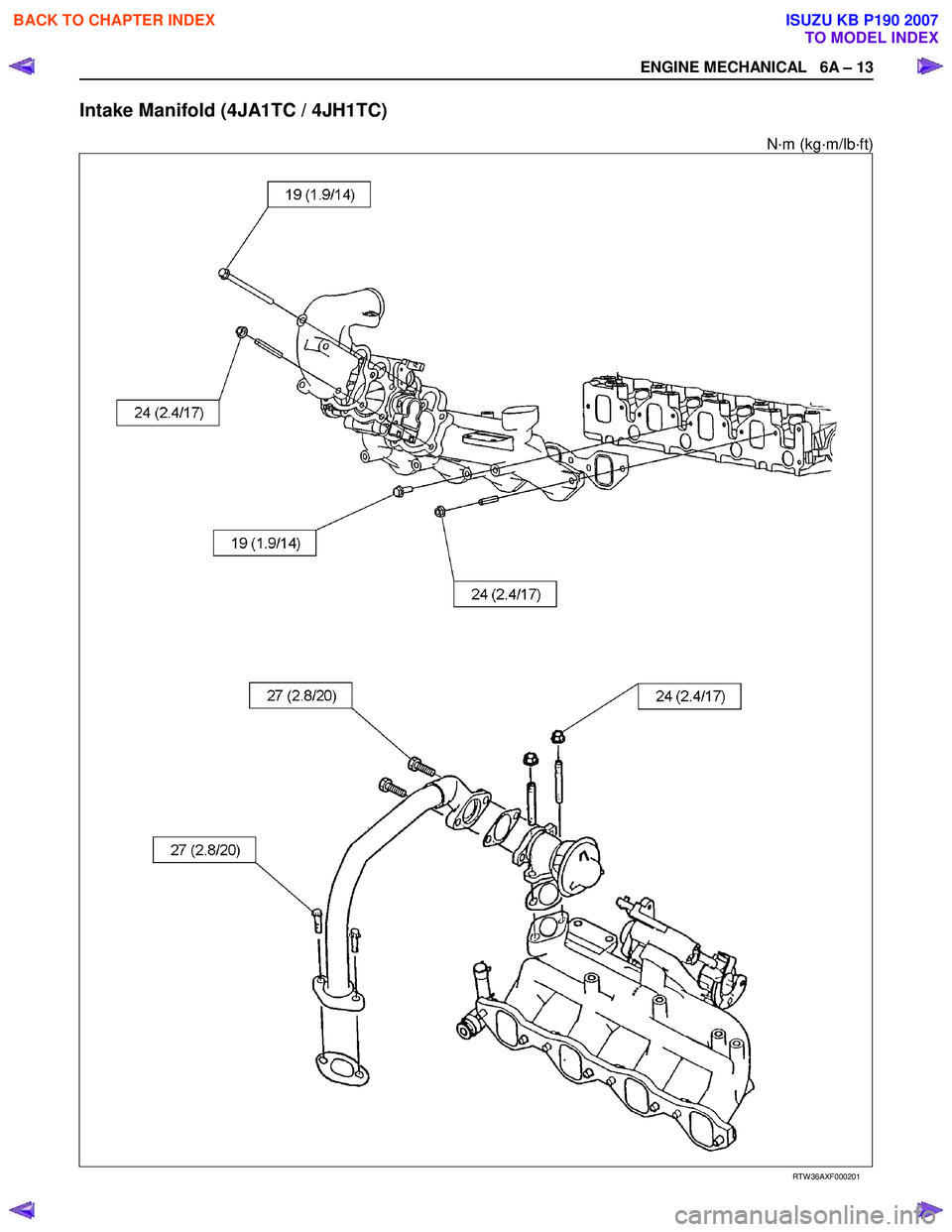

Intake Manifold (4JA1TC / 4JH1TC)
N·m (kg·m/lb·ft)



RTW 36AXF000201

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 14 ENGINE MECHANICAL

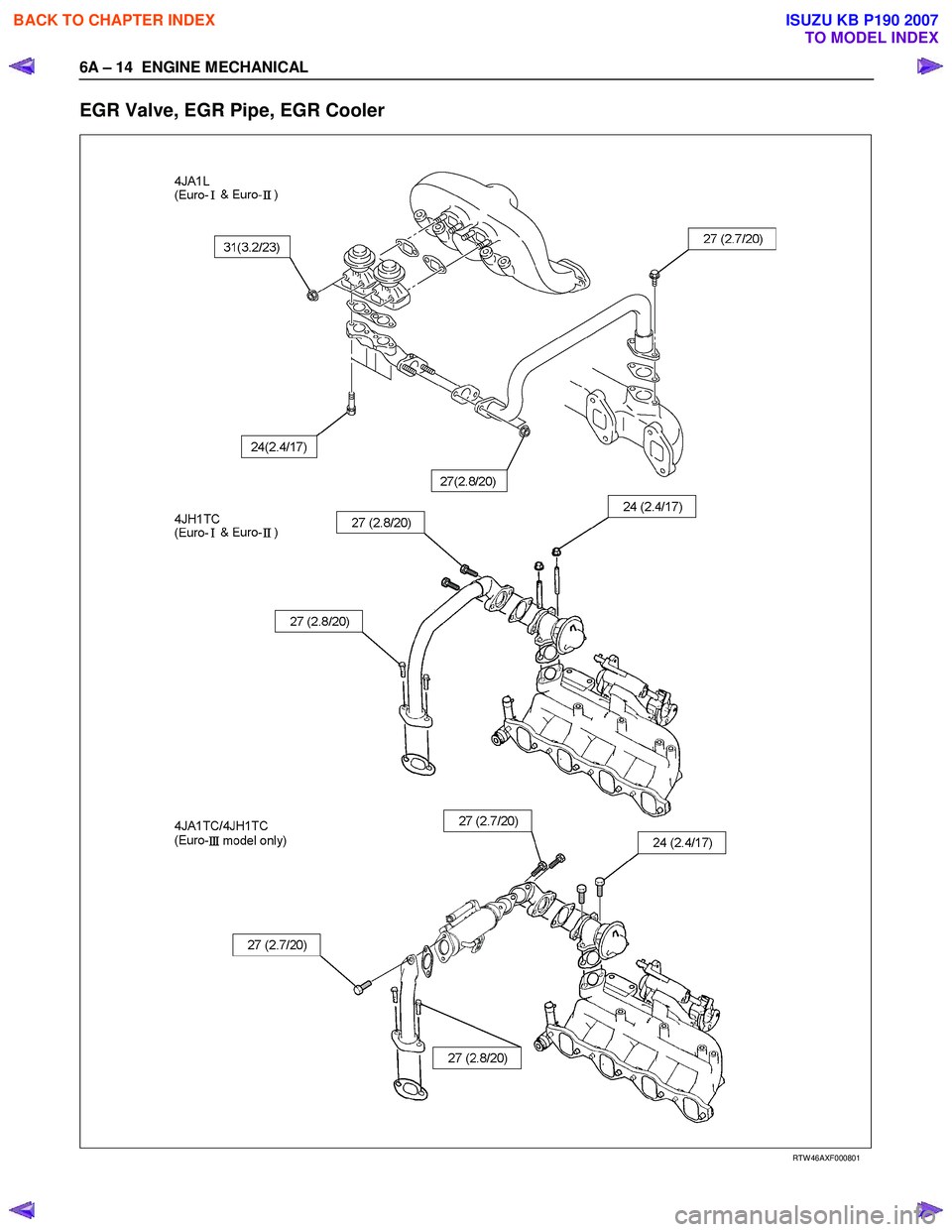

EGR Valve, EGR Pipe, EGR Cooler




RTW 46AXF000801


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL 6A – 15
Exhaust Manifold, and Turbocharger (4JA1L)



RTW 46AXF000901
