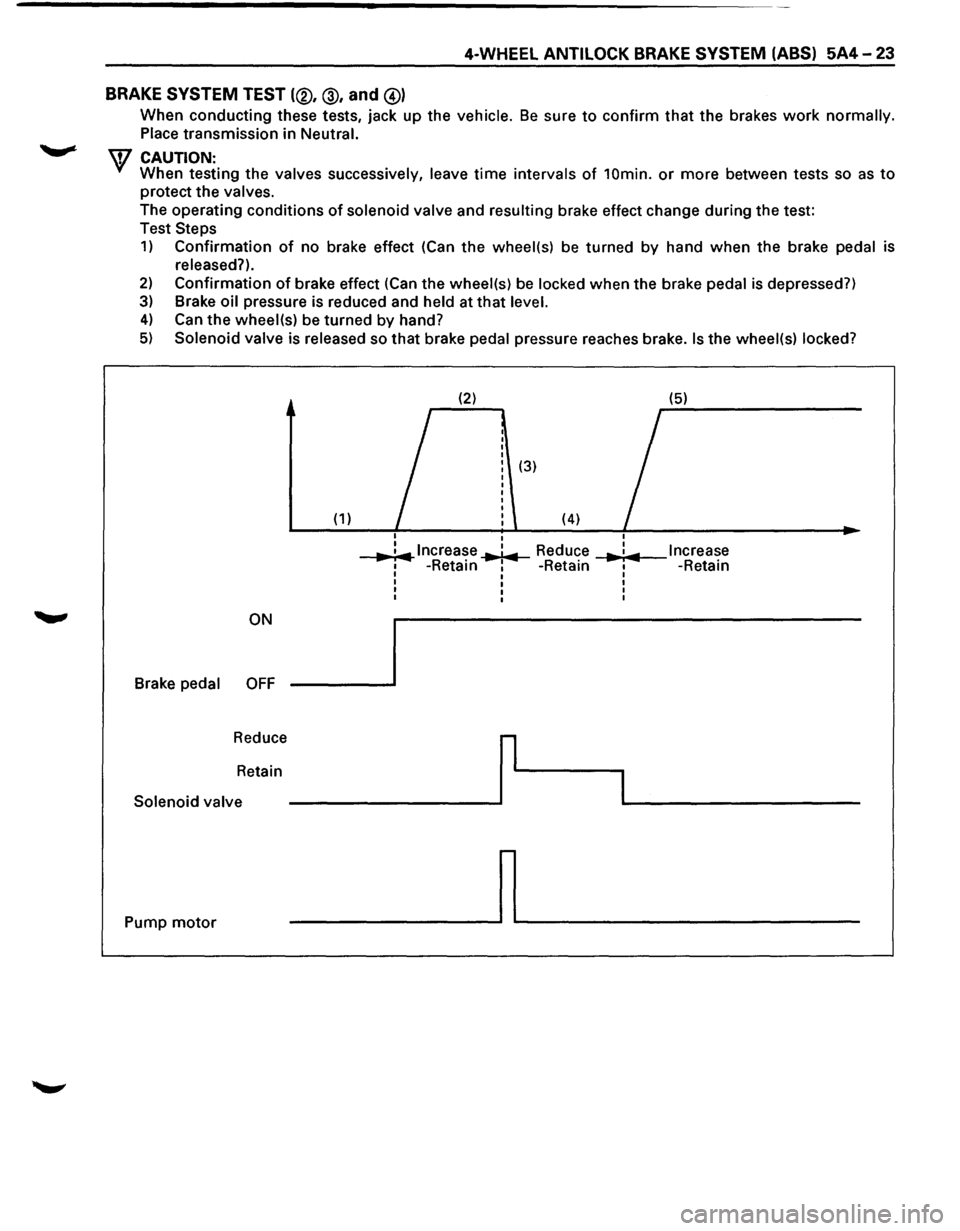

4-WHEEL ANTILOCK BRAKE SYSTEM (ABS) 5A4-23
BRAKE
SYSTEM TEST (®, @, and @)
When conducting these tests, jack up the vehicle. Be sure to confirm that the brakes work normally.
Place transmission
in Neutral.
\V CAUTION: When testing the valves successively, leave time intervals of 10min. or more between tests so as to
protect the valves.
The operating conditions
of solenoid valve and resulting brake effect change during the test:
Test
Steps
1) Confirmation of no brake effect (Can the wheel(s) be turned by hand when the brake pedal is
released?).
2) Confirmation of brake effect (Can the wheel(s) be locked when the brake pedal is depressed?)
3) Brake oil pressure is reduced and held at that level.
4) Can the wheel(s) be turned by hand?
5) Solenoid valve is released so that brake pedal pressure reaches brake. Is the wheel(s) locked?
(2) (5)
I
(3)
(1) (4) I
I
..,. ;.,.. lncrea~e ..,.1.,.. Reduce I Increase ... : ... 1 -Retam 1 -Retain I -Retain I I I
I I I
I I I
I I I
ON
Brake
pedal OFF
Reduce
r
Retain
I Solenoid valve
Pump
motor ~

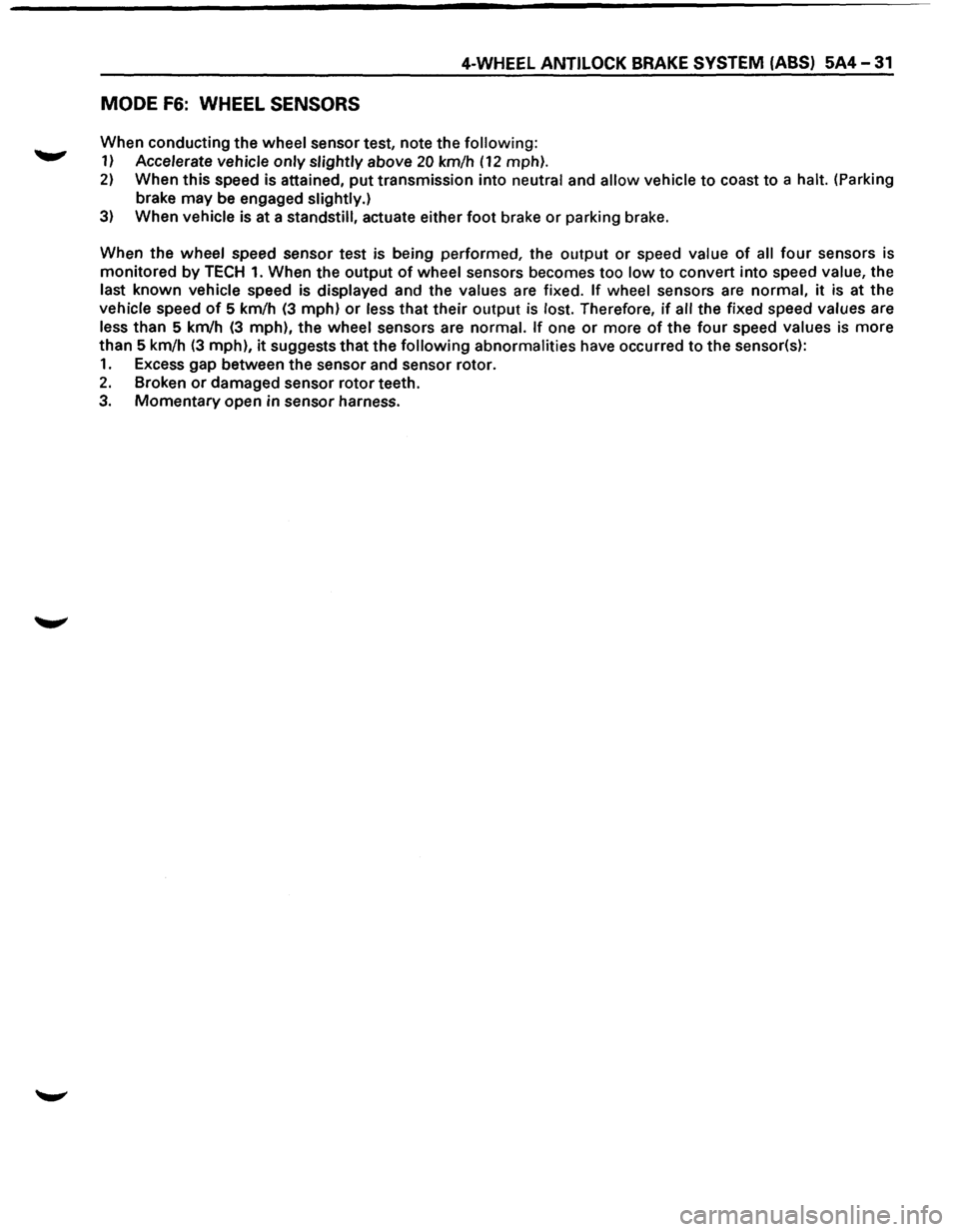

4-WHEEL ANTILOCK BRAKE SYSTEM (ABS) 5A4-31
MODE F6: WHEEL SENSORS
When conducting the wheel sensor test, note the following:
1) Accelerate vehicle only slightly above 20 km/h (12 mph).
2) When this speed is attained, put transmission into neutral and allow vehicle to coast to a halt. (Parking
brake may be engaged slightly.)
3) When vehicle is at a standstill, actuate either foot brake or parking brake.
When the
wheel speed sensor test is being performed, the output or speed value of all four sensors is
monitored
by TECH 1. When the output of wheel sensors becomes too low to convert into speed value, the
last known vehicle speed is displayed and the values are fixed. If wheel sensors are normal, it is at the
vehicle speed
of 5 km/h (3 mph) or less that their output is lost. Therefore, if all the fixed speed values are
less than 5 km/h (3 mph), the wheel sensors are normal. If one or more of the four speed values is more
than 5 km/h
(3 mph), it suggests that the following abnormalities have occurred to the sensor(s):
1. Excess gap between the sensor and sensor rotor.
2. Broken or damaged sensor rotor teeth.
3. Momentary open in sensor harness.

5A4-32 4-WHEEL ANTI LOCK BRAKE SYSTEM (ABS)

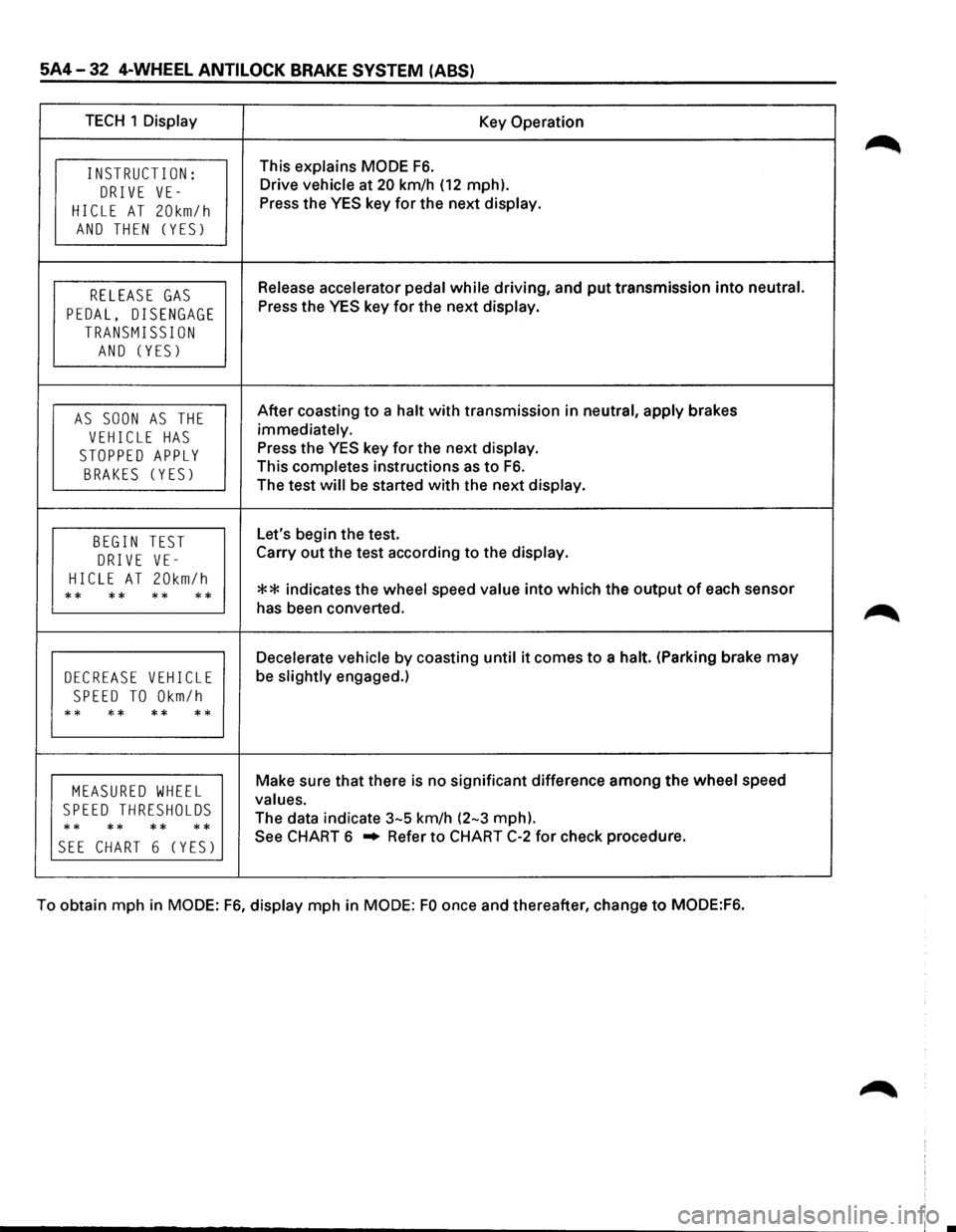

TECH 1 Display Key Operation
INSTRUCT I ON: This explains MODE F6.
DRIVE VE-Drive vehicle at 20 km/h (12 mph).
HICLE AT 20km/h Press the YES key for the next display.
AND THEN (YES)
RELEASE GAS Release accelerator pedal while driving, and put transmission into neutral.
PEDAL, DISENGAGE Press the YES key for the next display.
TRANSMISSION
AND (YES)
AS SOON AS THE After coasting to a halt with transmission in neutral, apply brakes
VEHICLE HAS immediately.
STOPPED APPLY Press the YES key for the next display.
BRAKES (YES) This completes instructions as to F6.
The test will be started with the next display.
BEGIN TEST Let's begin the test.
DRIVE VE-Carry out the test according to the display.
HICLE AT 20km/h ** indicates the wheel speed value into which the output of each sensor ** ** ** ** has been converted.
Decelerate vehicle by coasting until it comes to a halt. (Parking brake may
DECREASE VEHICLE be slightly engaged.)
SPEED TO Okm/h
** ** ** **
MEASURED WHEEL Make sure that there is no significant difference among the wheel speed
SPEED THRESHOLDS values.
** **
** ** The
data indicate 3-5 km/h (2-3 mph).
SEE CHART 6 (YES) See CHART 6 .. Refer to CHART C-2 for check procedure.
To obtain mph in
MODE: F6, display mph in MODE: FO once and thereafter, change to MODE:F6.

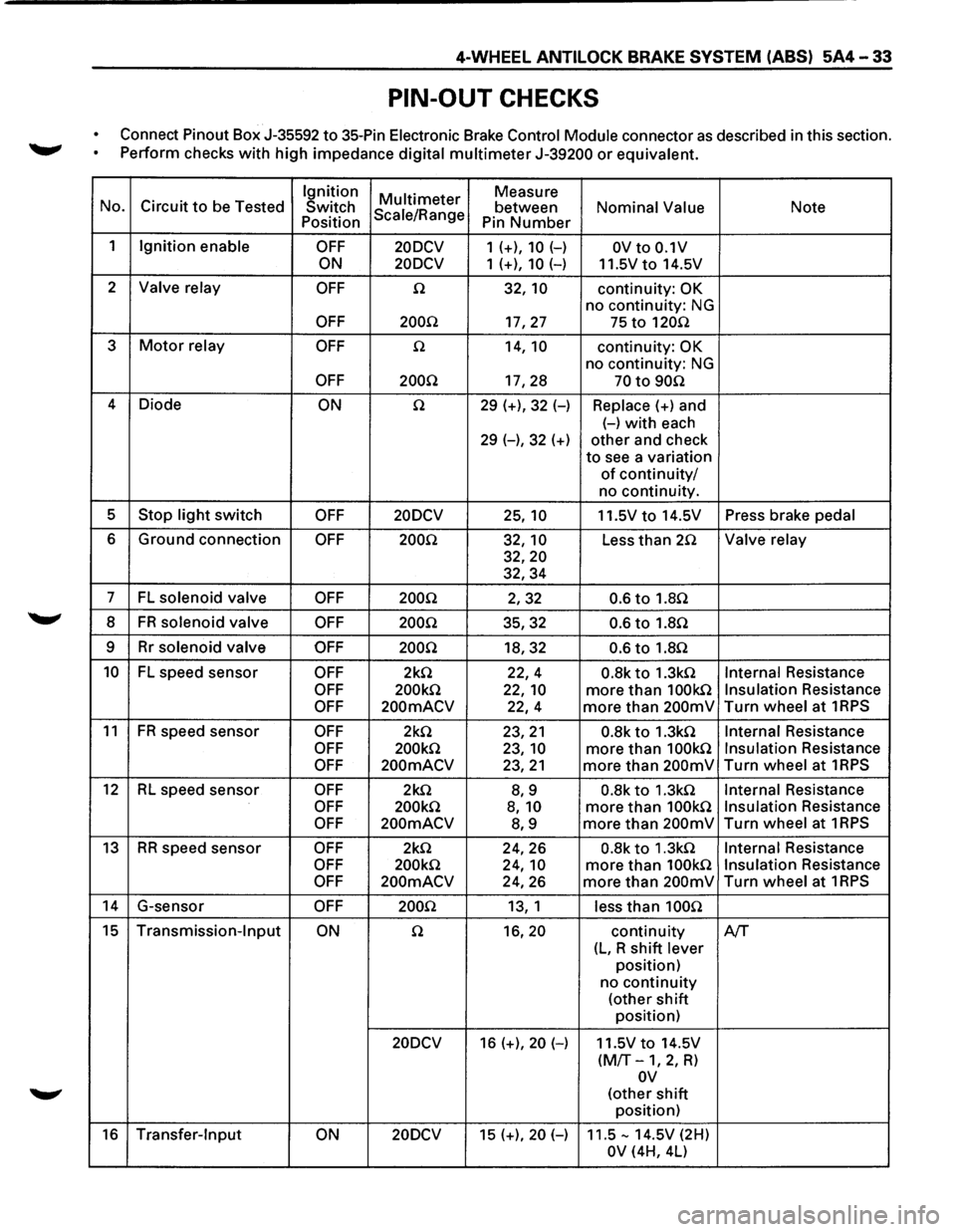

4-WHEEL ANTILOCK BRAKE SYSTEM (ABS) 5A4-33
PIN-OUT CHECKS
Connect Pinout Box J-35592 to 35-Pin Electronic Brake Control Module connector as described in this section.
~ Perform checks with high impedance digital multimeter J-39200 or equivalent.
Ignition
Multi meter Measure
No. Circuit to be Tested
Switch Scale/Range between Nominal Value Note Position
Pin Number
1 Ignition enable OFF 20DCV 1 (+), 10 (-) OV to 0.1V
ON 20DCV
1 (+), 10 (-) 11.5Vto 14.5V
2
Valve relay OFF n 32, 10 continuity: OK
no continuity: NG
OFF 200.Q 17,27 75 to 120n
3 Motor relay OFF n 14, 10 continuity: OK
no continuity: NG
OFF 200Q 17,28 70 to 90n
4
Diode ON n 29 (+), 32 (-) Replace(+) and
(-)with each
29 (-), 32 (+) other and check
to see a variation
of continuity/
no continuity.
5
Stop light switch OFF 20DCV 25, 10 11.5V to 14.5V Press brake pedal
6 Ground connection OFF 200Q 32, 10 Less than 2.Q Valve relay
32,20
32,34
7 FL solenoid valve OFF 200Q 2,32 0.6 to 1.8Q
8 FR solenoid valve OFF 200Q 35,32 0.6 to 1.8n
9 Rr solenoid valve OFF 200Q 18,32 0.6 to 1.8n
10 FL speed sensor OFF 2k.Q 22,4 0.8k to 1.3kn Internal Resistance
OFF 200k.Q 22, 10 more than 100kn Insulation Resistance
OFF 200mACV 22,4 more than 200mV Turn wheel at 1RPS
11 FR speed
sensor OFF 2k.Q 23,21 0.8k to 1.3k.Q Internal Resistance
OFF 200k.Q 23, 10 more than 100k.Q Insulation Resistance
OFF 200mACV 23,21 more than 200mV Turn wheel at 1RPS
12 RL speed sensor OFF 2k.Q 8,9 0.8k to 1.3k.Q Internal Resistance
OFF 200k.Q 8, 10 more than 100k.Q Insulation Resistance
OFF 200mACV 8,9 more than 200mV Turn wheel at 1RPS
13 RR speed sensor OFF 2k.Q 24,26 0.8k to 1.3k.Q Internal Resistance
OFF 200k.Q 24, 10 more than 100k.Q Insulation Resistance
OFF 200mACV 24,26 more than 200mV Turn wheel at 1RPS
14 G-sensor OFF 200.Q 13, 1 less than 100n
15 Transmission-Input ON n 16,20 continuity A/T
(L, R shift lever
position)
no
continuity
(other shift
position)
20DCV 16 (+), 20 (-) 11.5V to 14.5V
(M/T-1, 2, R)
ov
(other shift
position)
16 Transfer-Input ON 20DCV 15 (+), 20 (-) 11.5-14.5V (2H)
OV (4H, 4L)

!! co U1 )> "" I .... w
(
EBCM
RR
ABS SPEED SENSOR
(RHl
.
RELAY:
UPSHIFT-2
""·,'-....."
M-11_
. ·r·---
..
C-39
M-12"-~.·
··..
> .. , ,·
~'
...
,
~~~~~
~.-· RELAY
& FUSE
BOX
· ••.
(FL-1,
FL-2, FL-6,
F-9~
'•
BATTERY HYDRAULIC
--+1--.-.
UNIT
C-33
--~----
C-34.
H-41
H-42
TRANSMISSION
(


~·~ rl r
( STARTER
SW
RR
ABS SPEED SENSOR
(LH)
\~· \'
-.
.
B-46
' G SENSOR
\
FUSE
BOX (C-3, C-4, C-10, C-14)
BRAKE
SW
(W/CRUISE CONTROL)
STOPLIGHT SW
(W/0
CRUISE CONTROL)
BRAKE PEDAL FRT
ABS
SPEED SENSOR
(LH)
(
"V )> ~ r-0 s 5 2
.... :e ::I: m
m r-l> 2 ~ r-0 0 ~ CCI ~ ~ m ~ Cl) -t m s: ~ ~ c.n t I w .....

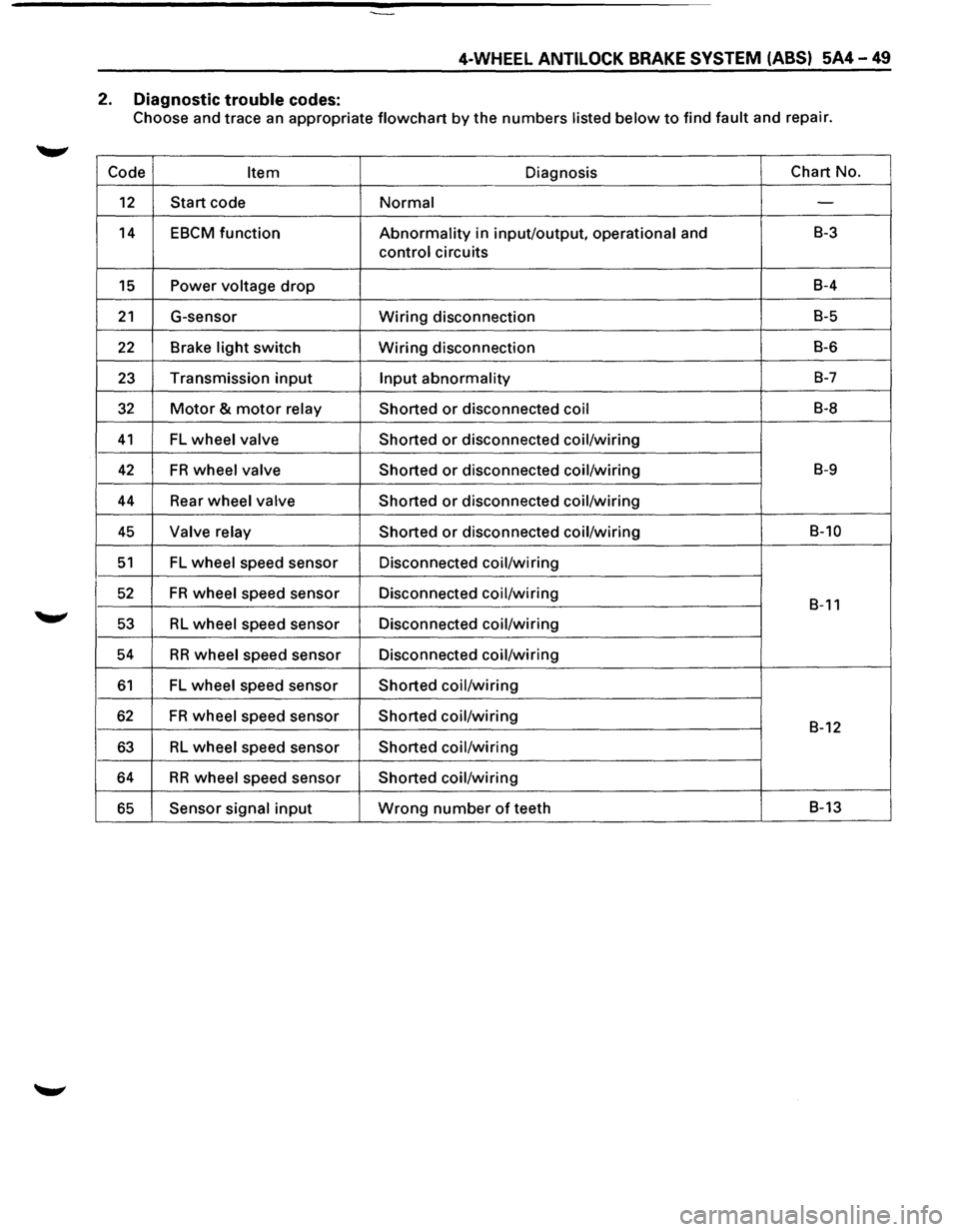

4-WHEEL ANTILOCK BRAKE SYSTEM (ABS) 5A4-49
2. Diagnostic trouble codes:
Choose and trace an appropriate flowchart by the numbers listed below to find fault and repair.
Code
Item Diagnosis Chart
No.
12 Start code Normal -
14 EBCM function Abnormality in input/output, operational and B-3
control circuits
15 Power voltage drop B-4
21 G-sensor Wiring disconnection B-5
22 Brake light switch Wiring disconnection B-6
23 Transmission input Input abnormality B-7
32 Motor & motor relay
Shorted or disconnected coil B-8
41 FL wheel valve
Shorted or disconnected coil/wiring
42 FR wheel valve
Shorted or disconnected coil/wiring B-9
44 Rear wheel valve Shorted or disconnected coil/wiring
45 Valve relay Shorted or disconnected coil/wiring B-10
51 FL wheel speed sensor Disconnected coil/wiring
52 FR wheel speed sensor Disconnected coil/wiring B-11
53 RL wheel speed sensor Disconnected coil/wiring
54
RR wheel speed sensor Disconnected coil/wiring
61 FL wheel speed sensor Shorted coil/wiring
62 FR wheel speed sensor Shorted coil/wiring B-12
63 RL wheel speed sensor Shorted coil/wiring
64 RR wheel speed sensor Shorted coil/wiring
65 Sensor signal input Wrong number of teeth B-13

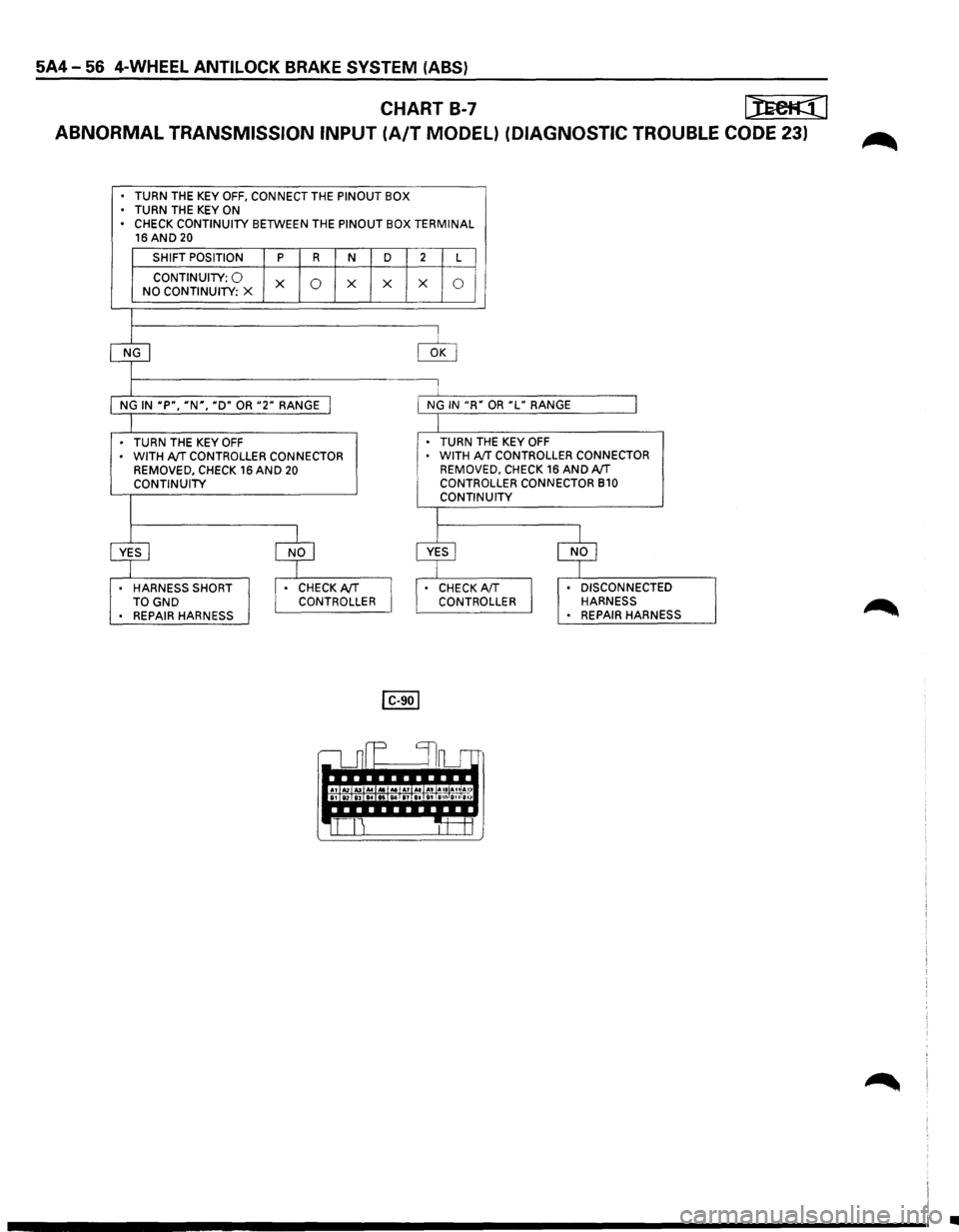

5A4-56 4-WHEEL ANTILOCK BRAKE SYSTEM (ABS)
CHART B-7 [)reM:{!
ABNORMAL TRANSMISSION INPUT (A/T MODEL) (DIAGNOSTIC TROUBLE CODE 23)
. TURN THE KEY OFF, CONNECT THE PINOUT BOX
• TURN THE KEY ON
• CHECK CONTINUITY BETWEEN THE PINOUT BOX TERMINAL 16 AND 20
SHIFT POSITION
p R N D
CONTINUITY: 0 X 0 X X NO
CONTINUITY: X
NG
NG
IN "P", "N", "D" OR "2" RANGE I
• TURN THE KEY OFF • WITH AfT CONTROLLER CONNECTOR REMOVED, CHECK 16 AND 20
CONTINUITY
~ $
. HARNESS SHORT 1· CHECK AfT I TOGND CONTROLLER
• REPAIR HARNESS
~ p ('
• , A2 .... .... ., 12 83 14 ....
2
L
X 0
!
0
-,
NG IN "R" OR "L" RANGE
I . TURN TH E KEY OFF WITH AfT CONTROLLER CONNECTOR
D, CHECK 16 AND AfT REMOVE CONTRO LLER CONNECTOR B10
CONTIN UITY
l
$
. CHECK A fT DISCONNECTED
CONTRO LLER HARNESS REPAIR HARNESS
5lrL Jl
.. .. :~~f~ IJ II
"tH-
•

• WITH THE KEY TURNED OFF, CONNECT PINOUT BOX
• CHECK CONTINUITY BETWEEN PINOUT BOX TERMINAL 16 AND 10 (GEAR POSITION-N)
I
l I NO CONTINUITY I
I CONTINUITY I
I I TURN THE KEY ON AND MEASURE THE VOLTAGE BETWEEN I . SHORTED SWITCH/HARNESS I PINOUT BOX TERMINAL 16 AND 20 WITH REFERENCE TO
• REPAIR SWITCH OR HARNESS
THE TABLE BELOW:
I SHIFT POSITION I 1, 2, R OTHER THAN 1, 2, R I
I
VOLTAGE I 11.5-14.5V ov I
I
I
I NOT AS SPECIFIED I AS SPECIFIED I
l I • TRANSMISSION SW . SUSPECTED HARNESS/CONNECTOR
TROUBLE SHORT TO POWER SOURCE/GND . DISCONNECTED HARNESS • SUSPECTED SHORTED TRANSMISSION SW • REPAIR SW AND HARNESS • FAULT FOUND: REPAIR, AND PERFORM SYSTEM
SELF-CHECK
• NO FAULT FOUND: REPLACE EBCM

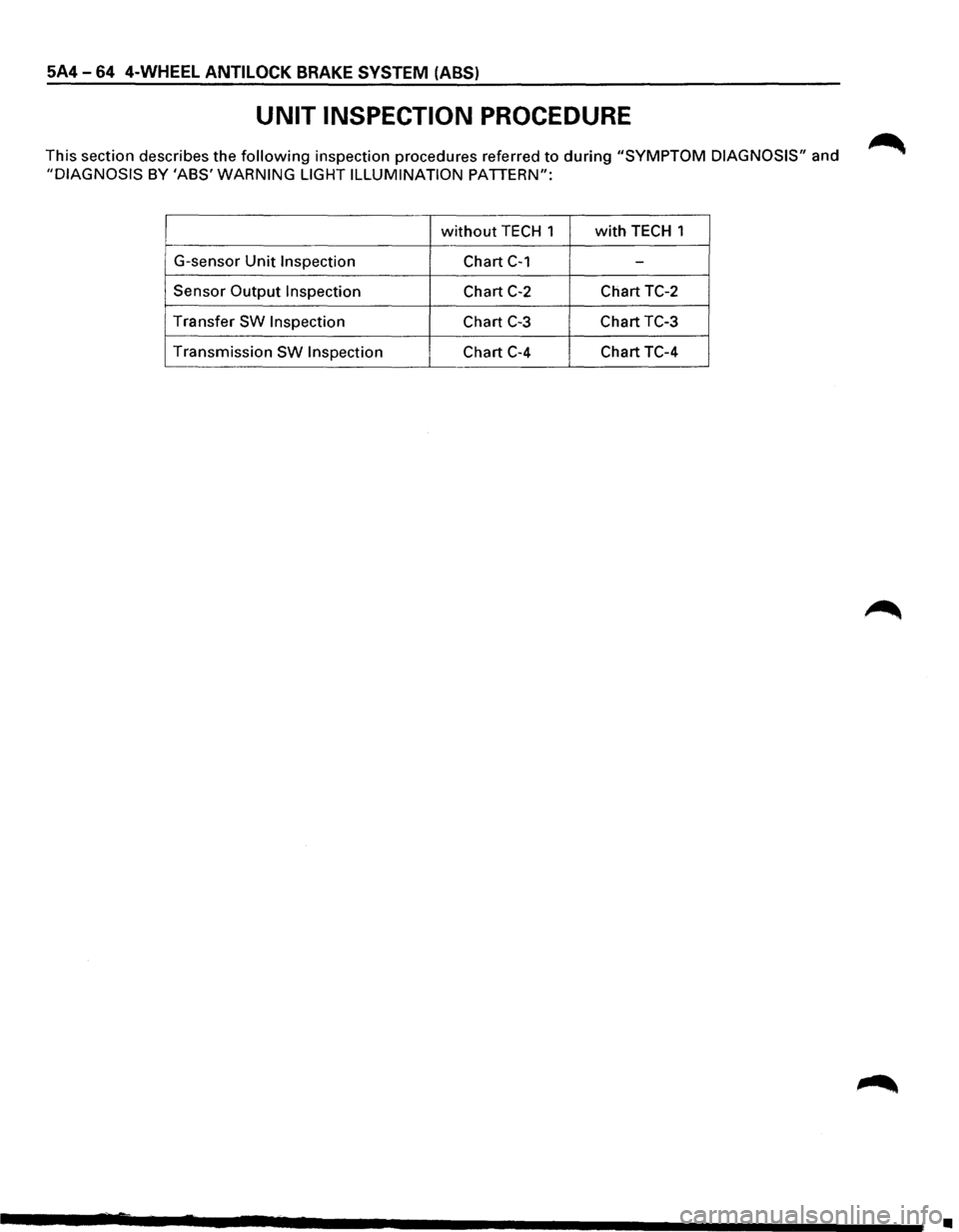

5A4 -64 4-WHEEL ANTILOCK BRAKE SYSTEM (ABS)
UNIT INSPECTION PROCEDURE
This section describes the following inspection procedures referred to during "SYMPTOM DIAGNOSIS" and
"DIAGNOSIS BY 'ABS' WARNING LIGHT ILLUMINATION PATTERN":
without TECH 1 with TECH 1
G-sensor
Unit Inspection Chart C-1 -
Sensor Output Inspection Chart C-2 Chart TC-2
Transfer
SW Inspection Chart C-3 Chart TC-3
Transmission
SW Inspection Chart C-4 Chart TC-4
•

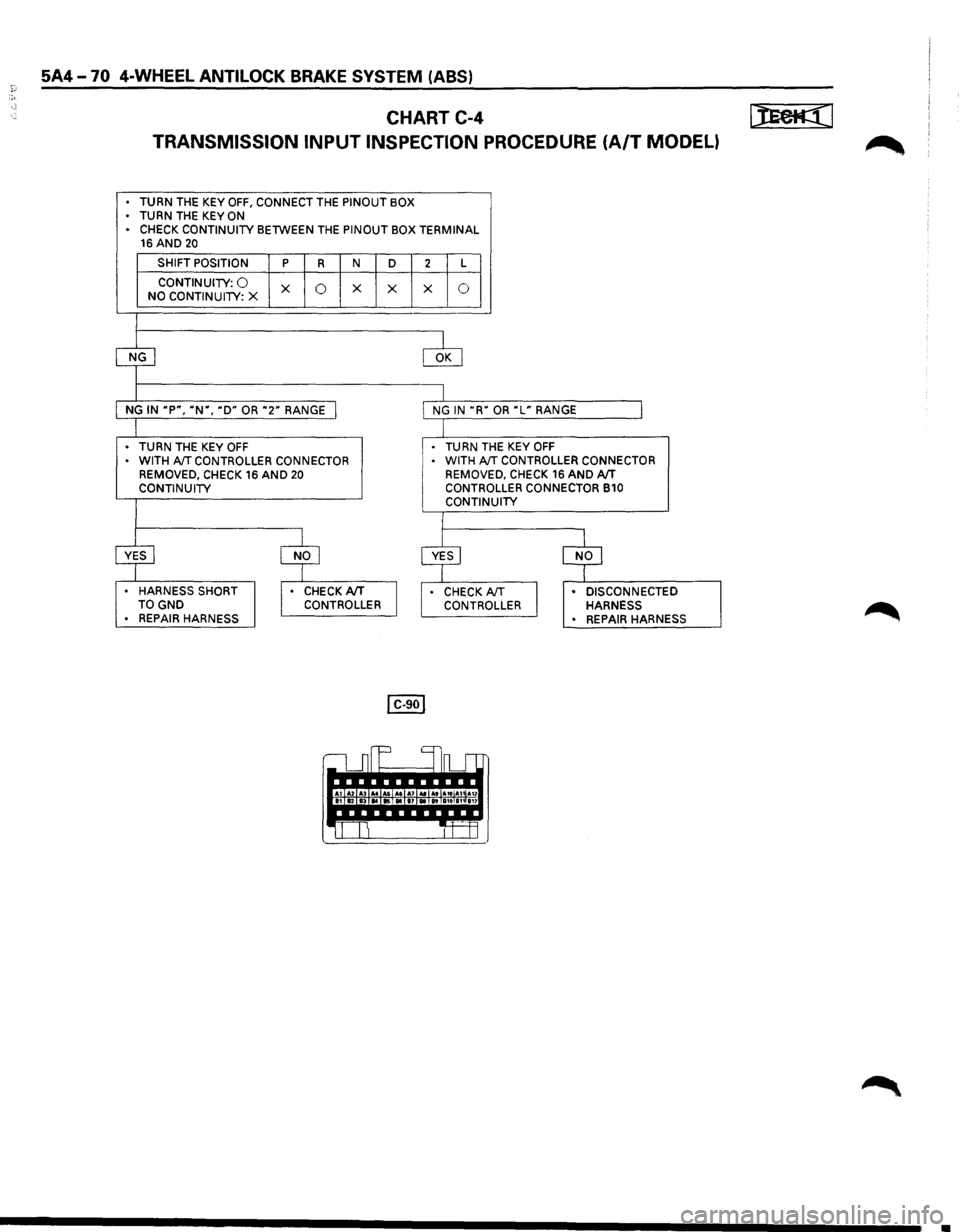

5A4-70 4-WHEEL ANTILOCK BRAKE SYSTEM (ABS)
CHART C-4
TRANSMISSION INPUT INSPECTION
PROCEDURE (A/T MODEL)
. TURN THE KEY OFF, CONNECT THE PINOUT BOX . TURN THE KEY ON
• CHECK CONTINUITY BETWEEN THE PINOUT BOX TERMINAL 16 AND 20
SHIFT POSITION
p R N
D 2 L
CONTINUITY: 0 X 0 X
X X 0 NO CONTINUITY: X
$
@
I NG IN ·p·, ·w, "D" OR ·2· RANGE j I NG IN "R" OR "L" RANGE I
I • TURN
THE KEY OFF ! • TURN THE KEY OFF . WITH A!T CONTROLLER CONNECTOR
1.
WITH AfT CONTROLLER
CONNECTOR
REMOVED, CHECK 16 AND 20 REMOVED,
CHECK 16 AND A!T CONTINUITY CONTROLLER CONNECTOR B10 I CONTINUITY
I
~ $ $ $
. HARNESS SHORT I" CHECKA/T I I" CHECK AfT I
•
DISCONNECTED TOGND CONTROLLER
CONTROLLER HARNESS
• REPAIR HARNESS
• REPAIR HARNESS
r--I
p I In_ -,
A1 A2 .... .... ., .. .. ... A11 A12 81 12 13 .... .,. 19 810 111817
...:....:.r-,..,
•
