Page 1801 of 2490

JAGUAR X308 1998 2.G Workshop Manual Condenser:
Multi-pass fin-over-tube type, mounted in front of the engine cooling pack and directly to the radiator.
Pressure (Bitron) switch:
Located in the discharge pipe.  Provides a si

Page 1802 of 2490

JAGUAR X308 1998 2.G Workshop Manual
Parts List
The air conditioning unit houses the evap orator, heater matrix and their temperatur e sensors. The unit also incorporates
two servo motor operated air distribution flaps which regulate

Page 1803 of 2490

JAGUAR X308 1998 2.G Workshop Manual
Refrigeration Cycle

The Compressor draws low pressure, lo
 w te
mperature, refrigerant from the evaporat or and, by compression, raises the
refrigerant temperature and pressure. High pressure, ho

Page 1804 of 2490

JAGUAR X308 1998 2.G Workshop Manual Air Conditioning - Air Conditioning (A/C) Compressor
Removal and Installation
Removal
1. Disconnect battery ground cable (IMPORTANT, see SRO
86.15.19 for further information).
2.  Recover refrige

Page 1805 of 2490

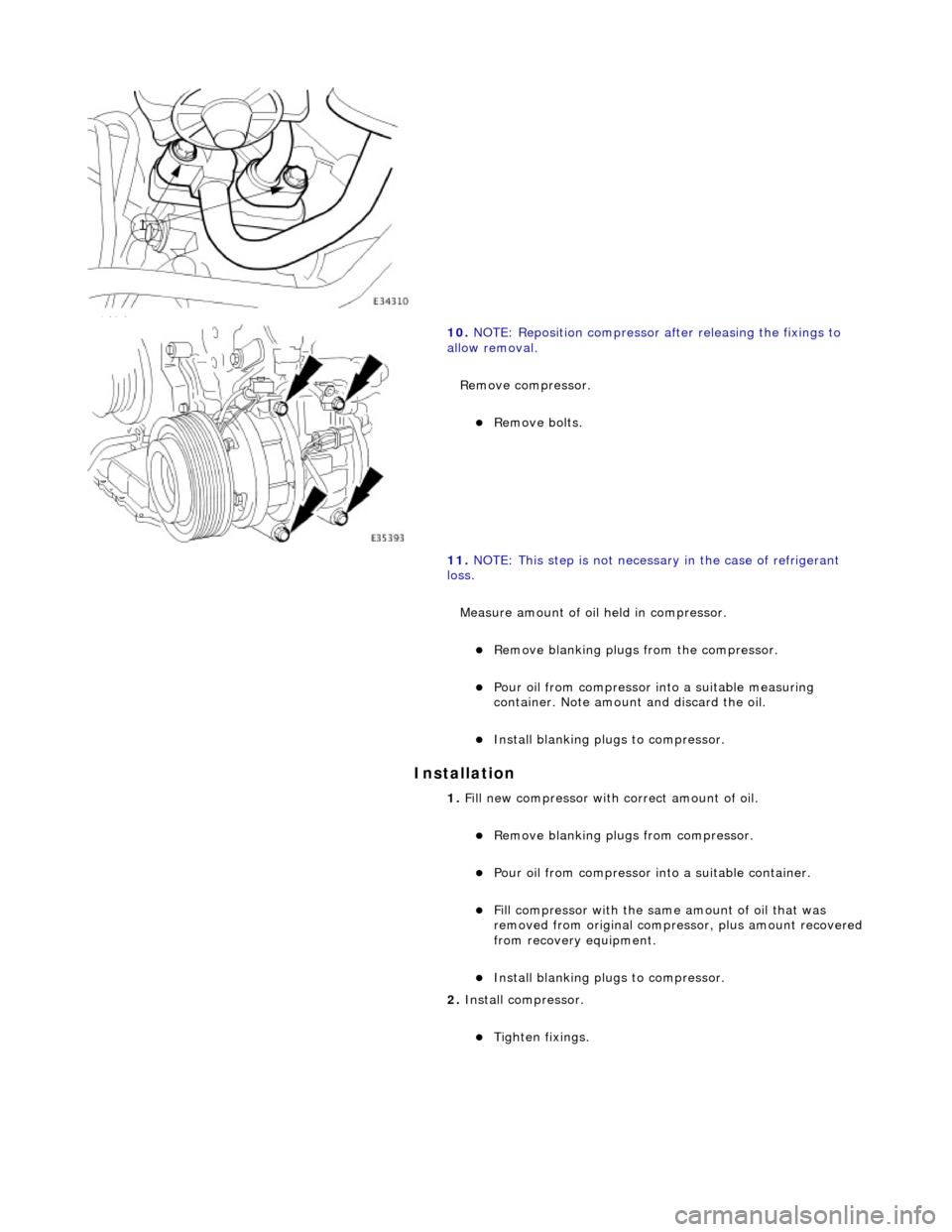

JAGUAR X308 1998 2.G Workshop Manual Installation


10. NOTE: Reposition compressor after releasing the fixings to
allow removal.
Remove compressor.
Remove bolts.
11.  NOTE: This step is not necessar y in the case of refrigera

Page 1806 of 2490

JAGUAR X308 1998 2.G Workshop Manual

3. Install lines to compressor.
Install new O-ring seal  and lubricate with clean
compressor oil.

4.  Connect clutch harness connector to compressor.
1. Connect clutch connector.

5. C

Page 1807 of 2490

JAGUAR X308 1998 2.G Workshop Manual


8. Install front end accessory drive  belt; refer to 12.10.40 or (SC)
12.10.40.
9.  Install supercharger drive belt  (where fitted); refer to
18.50.08.
10.  Reconnect battery ground  cable (

Page 1808 of 2490

JAGUAR X308 1998 2.G Workshop Manual Air Conditioning - Condenser Core
Removal and Installation
Removal
1. Disconnect battery ground cable (IMPORTANT, see SRO
86.15.19 for further information).
2.  Drain radiator coolant only; refer

Page 1809 of 2490

JAGUAR X308 1998 2.G Workshop Manual

10. Disconnect radiator bottom hose.
1. Release hose retaining clip.
2. Disconnect hose.

11. Disconnect radiator top hose.
1. Release hose retaining clip.
2. Disconnect hose.

12. Disconn

Page 1810 of 2490

JAGUAR X308 1998 2.G Workshop Manual

14. Disconnect compressor to condenser discharge line from
condenser.
1. Remove bolt.
2. Discard O-ring seal.
3. Install suitable blanking plugs.

15. Disconnect condenser to receiver  / dri
