JAGUAR XFR 2010 1.G Workshop Manual

Engine - V8 S/C 5.0L Petrol - Oil Pan
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Engine Oil Level Sensor (303-14D Electronic Engine Controls - V8 S/C 5.0L Petrol, Removal and Installation).

4. www.JagDocs.com

Installation
1. CAUTIONS:


Use only a plastic scraper when removing the sealing
material.


Use lint free cloth.


Make sure that the mating faces are clean and free of
corrosion and foreign material.

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G)
to the areas shown, and tighten the bolts within 7
minutes.
Apply a bead of sealant, 2.5 mm diameter, to the
area indicated.








2. NOTE: Tighten the bolts in the sequence shown.
Torque: 12 Nm
















3. Refer to: Engine Oil Level Sensor (303-14D Electronic Engine Controls - V8 S/C 5.0L Petrol, Removal and Installation).

303-1442
Rear Crankshaft Seal Installer
303-1443
Rear Crankshaft Cover Alignment Tool Removal

NOTES:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct. Published: 03-Dec-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack. Always
support the vehicle on safety stands.

Raise and support the vehicle.

3. Refer to: Crankshaft Pulley (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

4. Refer to: Engine (303-01D Engine - V8 S/C 5.0L Petrol, Installation).

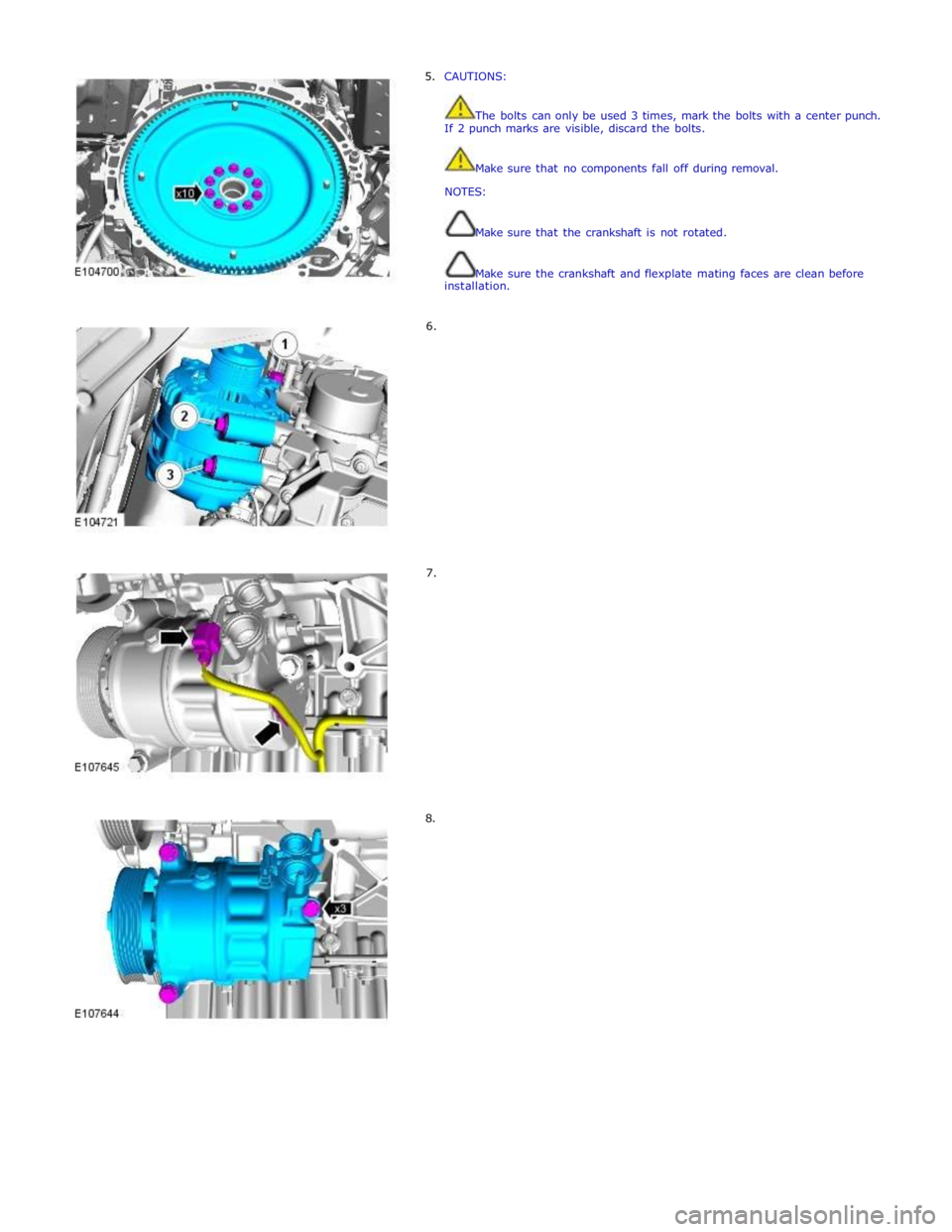

5. CAUTIONS:


The bolts can only be used 3 times, mark the bolts with a center punch.
If 2 punch marks are visible, discard the bolts.


Make sure that no components fall off during removal.

NOTES:


Make sure that the crankshaft is not rotated.


Make sure the crankshaft and flexplate mating faces are clean before
installation.


6.
7.
8.

13.
14.
15.

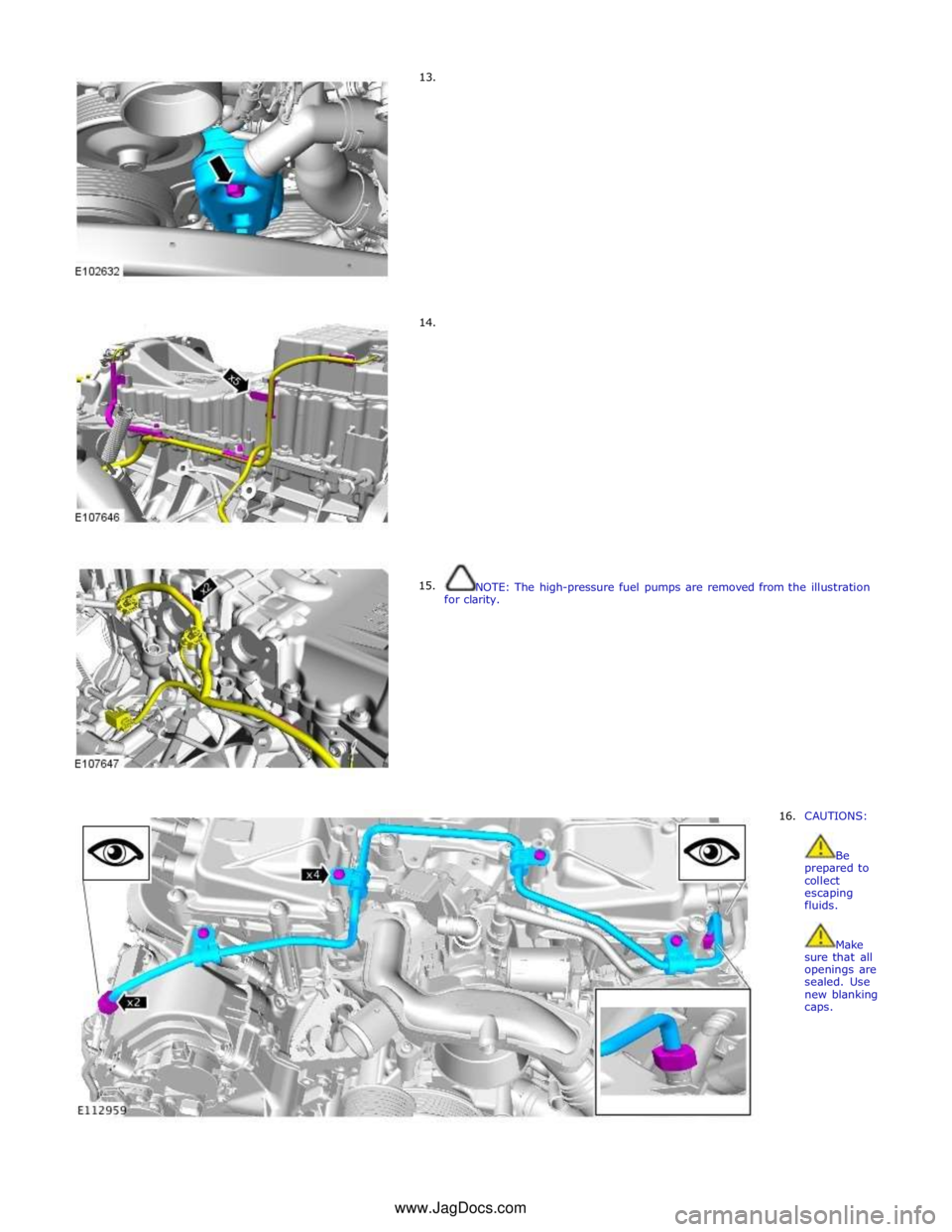

NOTE: The high-pressure fuel pumps are removed from the illustration
for clarity.

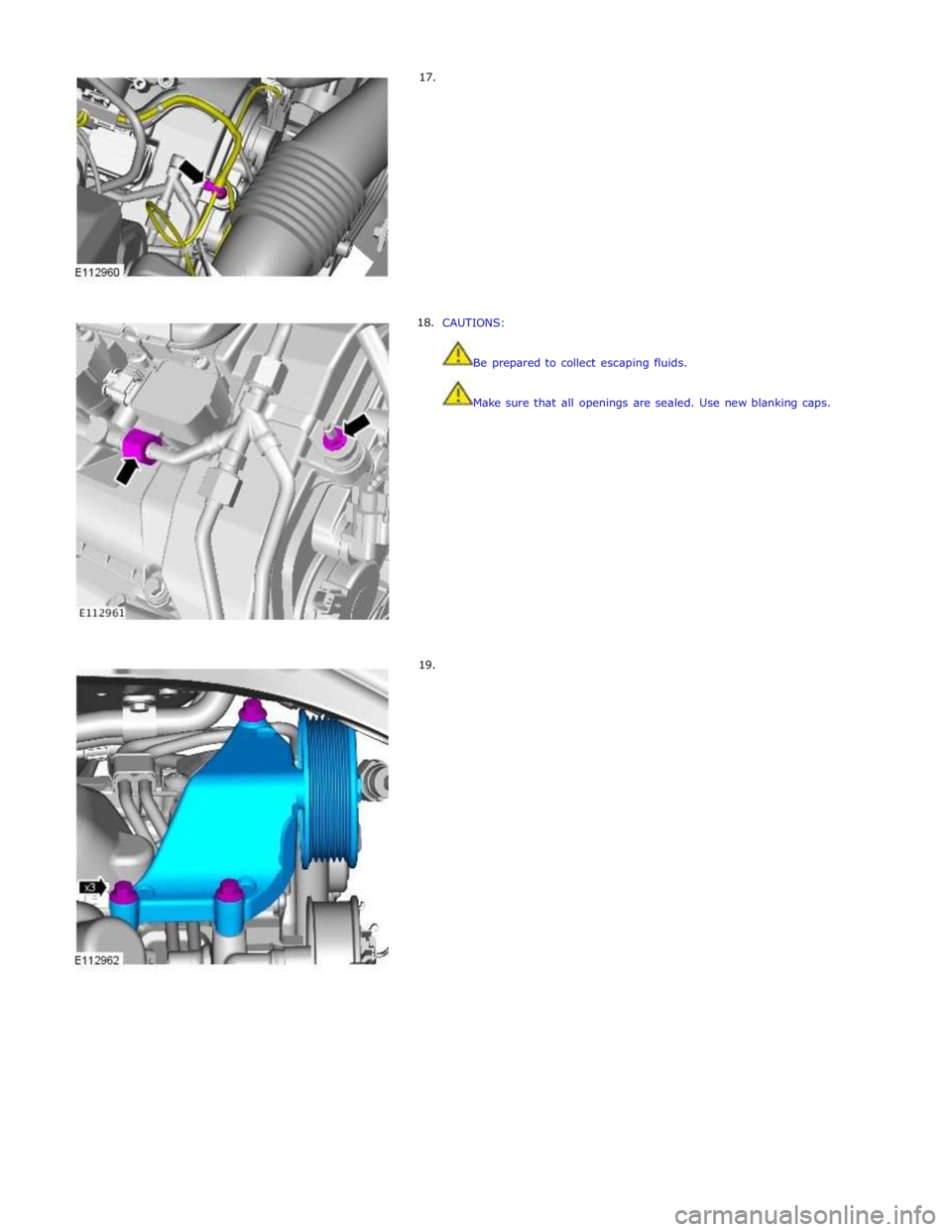

16. CAUTIONS:


Be
prepared to
collect
escaping
fluids.


Make
sure that all
openings are
sealed. Use
new blanking
caps. www.JagDocs.com

17.
18.
19.

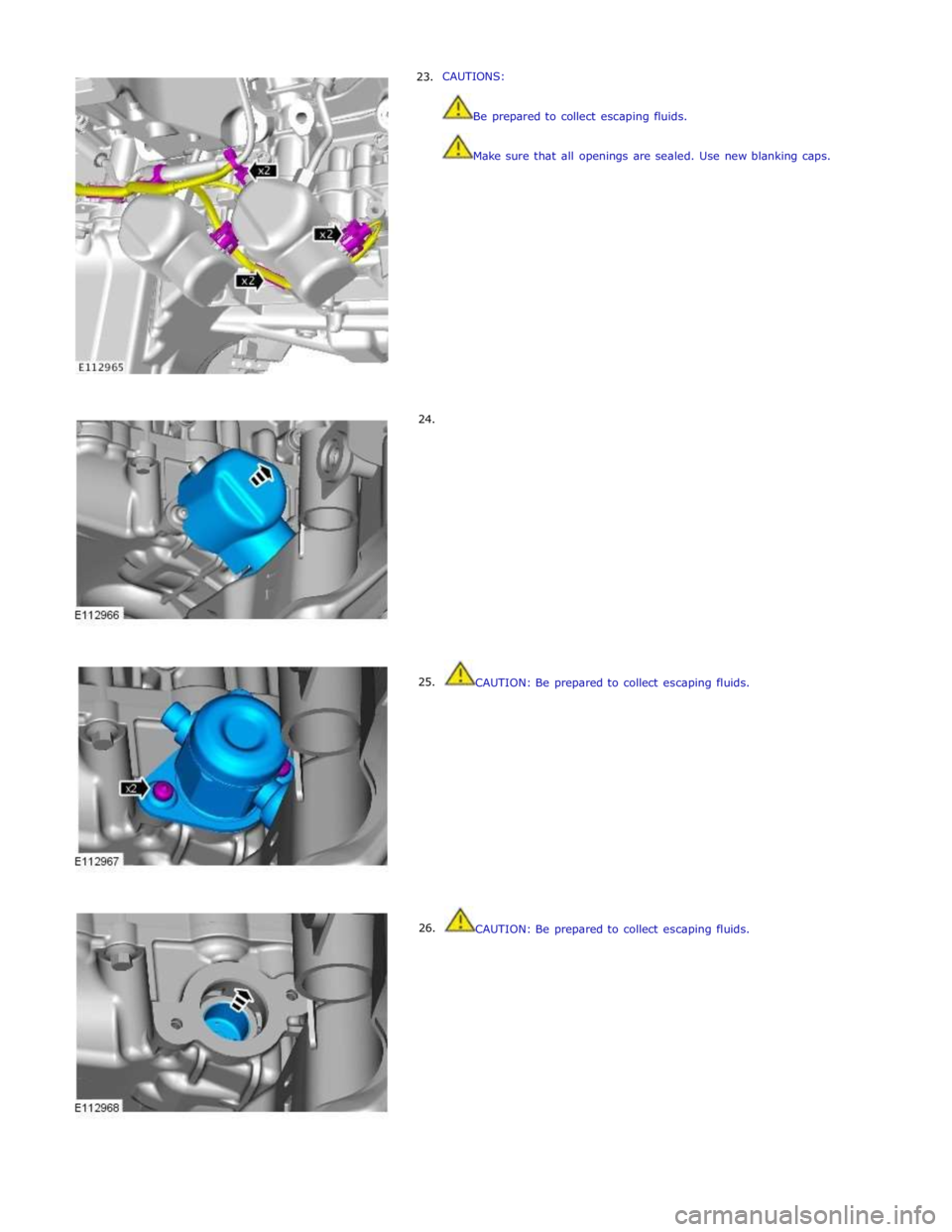

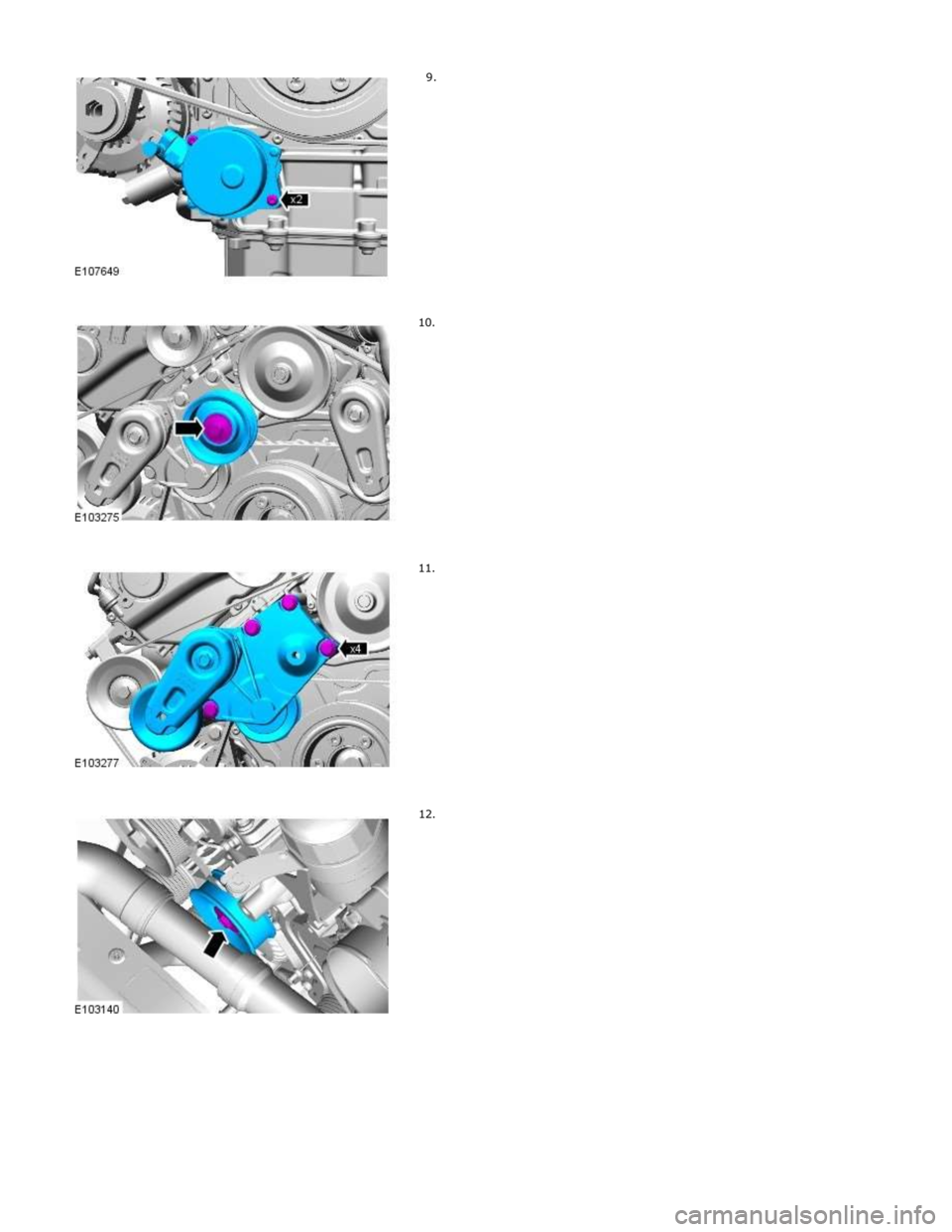

CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new blanking caps.

20.
21.
22.

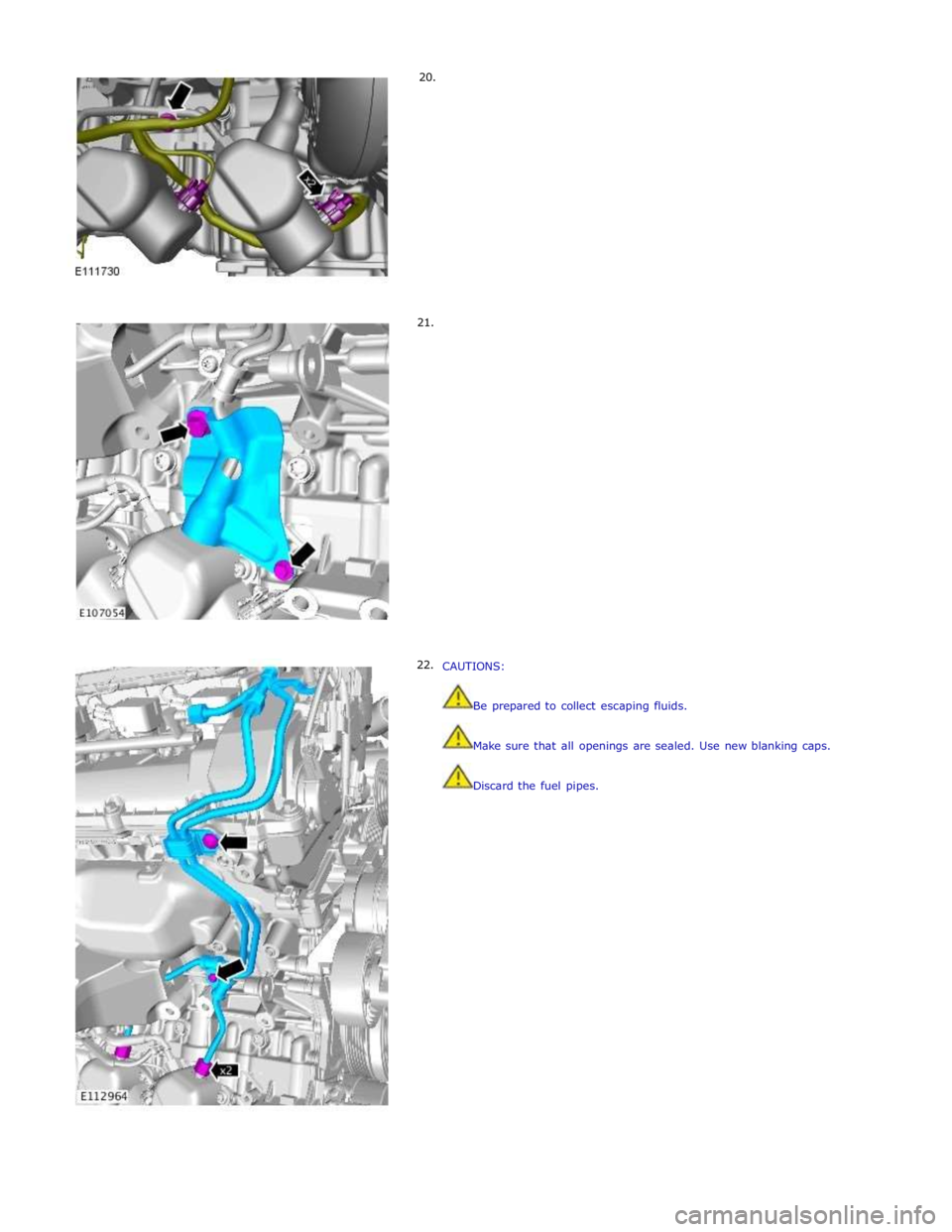

CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new blanking caps.


Discard the fuel pipes.

23.
24.
25.

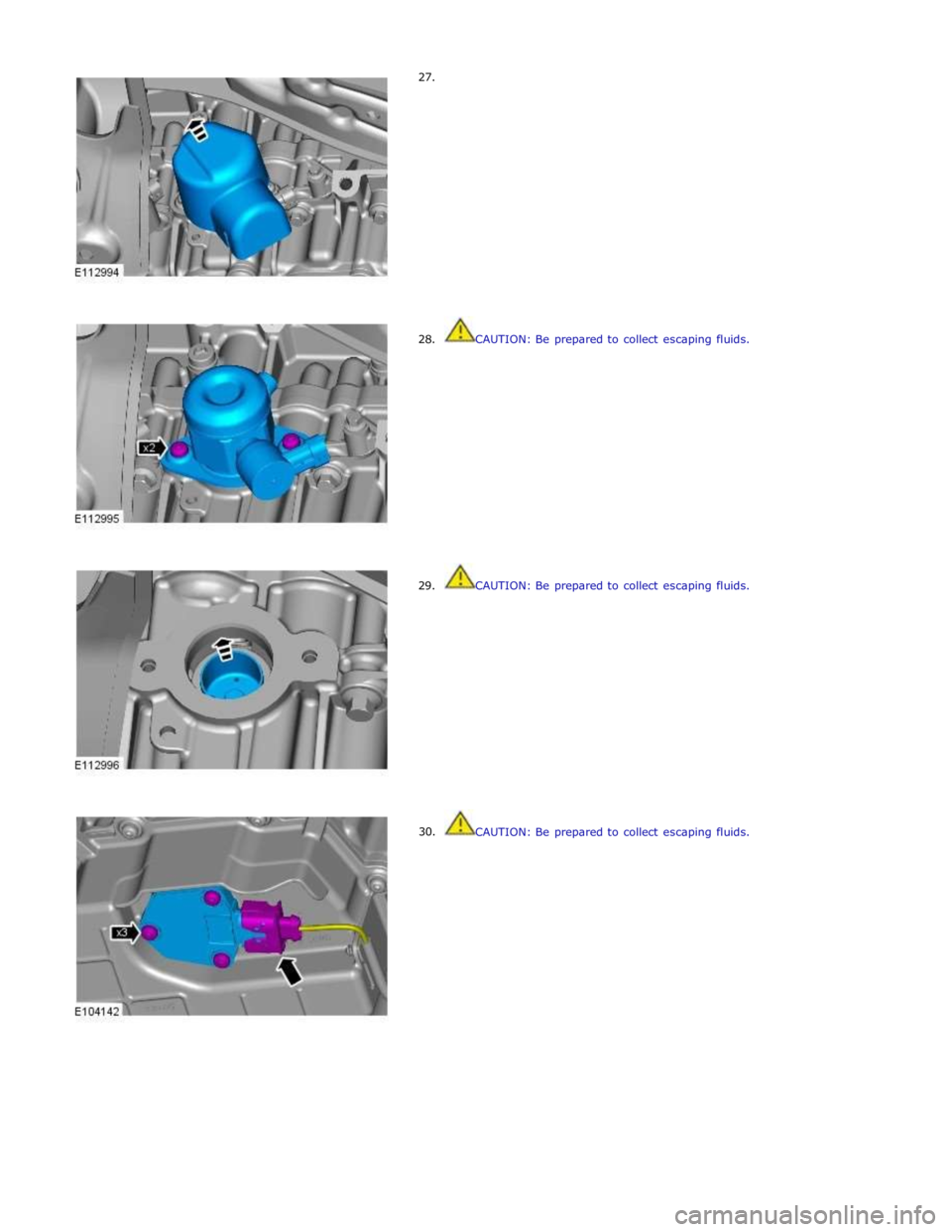

26. CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new blanking caps.







































CAUTION: Be prepared to collect escaping fluids.

















CAUTION: Be prepared to collect escaping fluids.

27.
28.
29.
30.



















CAUTION: Be prepared to collect escaping fluids.

















CAUTION: Be prepared to collect escaping fluids.

















CAUTION: Be prepared to collect escaping fluids.
