JAGUAR XFR 2010 1.G Workshop Manual

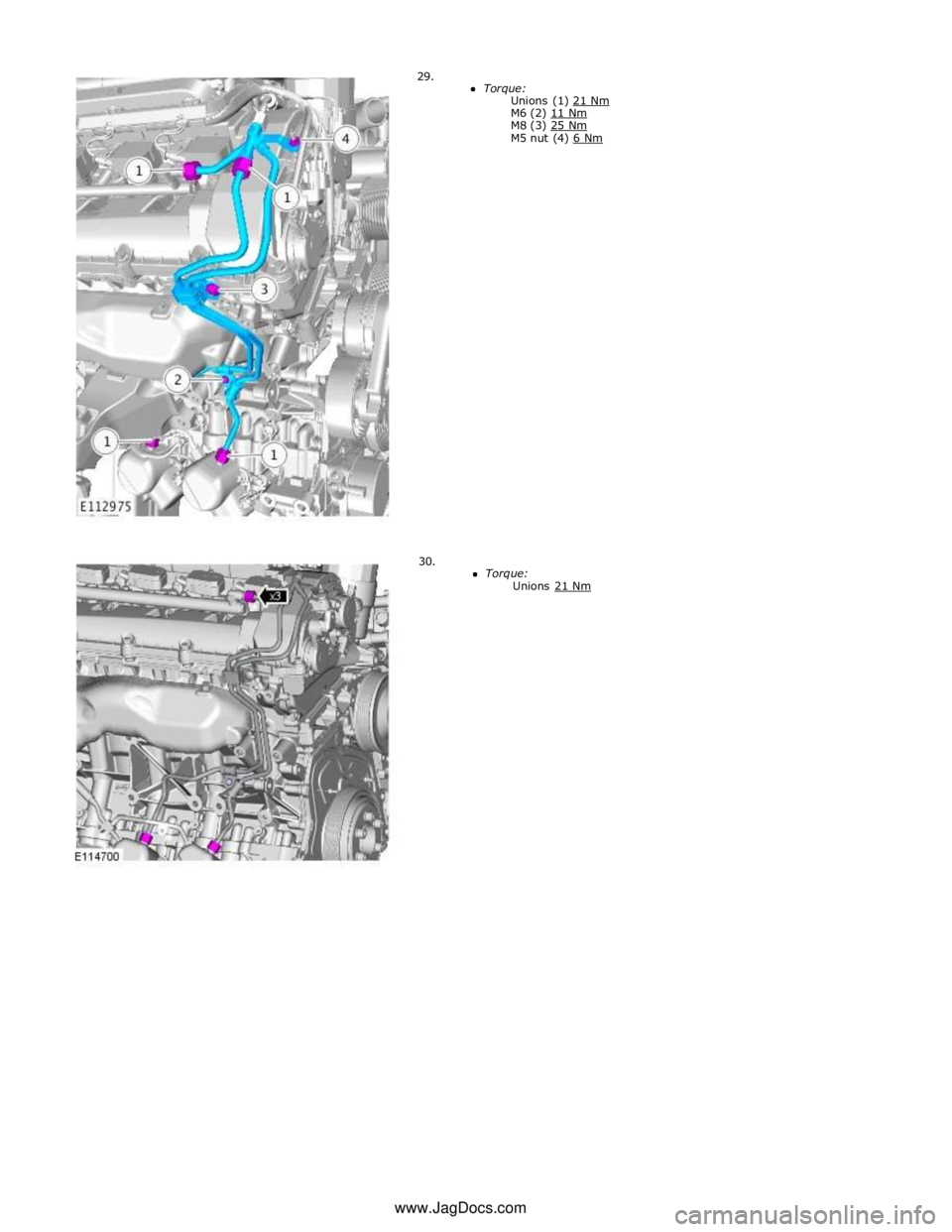

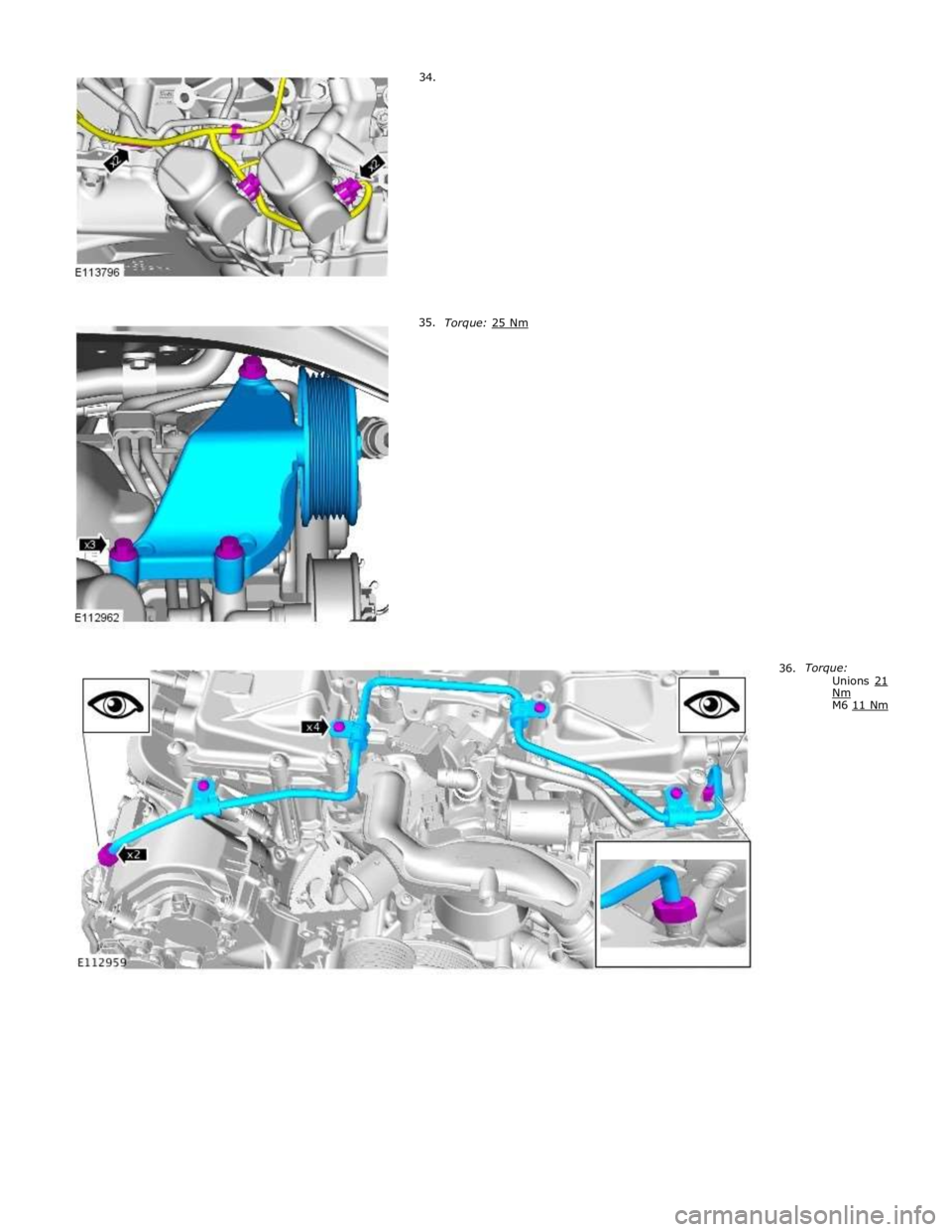

M6 (2) 11 Nm M8 (3) 25 Nm M5 nut (4) 6 Nm































Torque:
Unions 21 Nm www.JagDocs.com

31.
32.

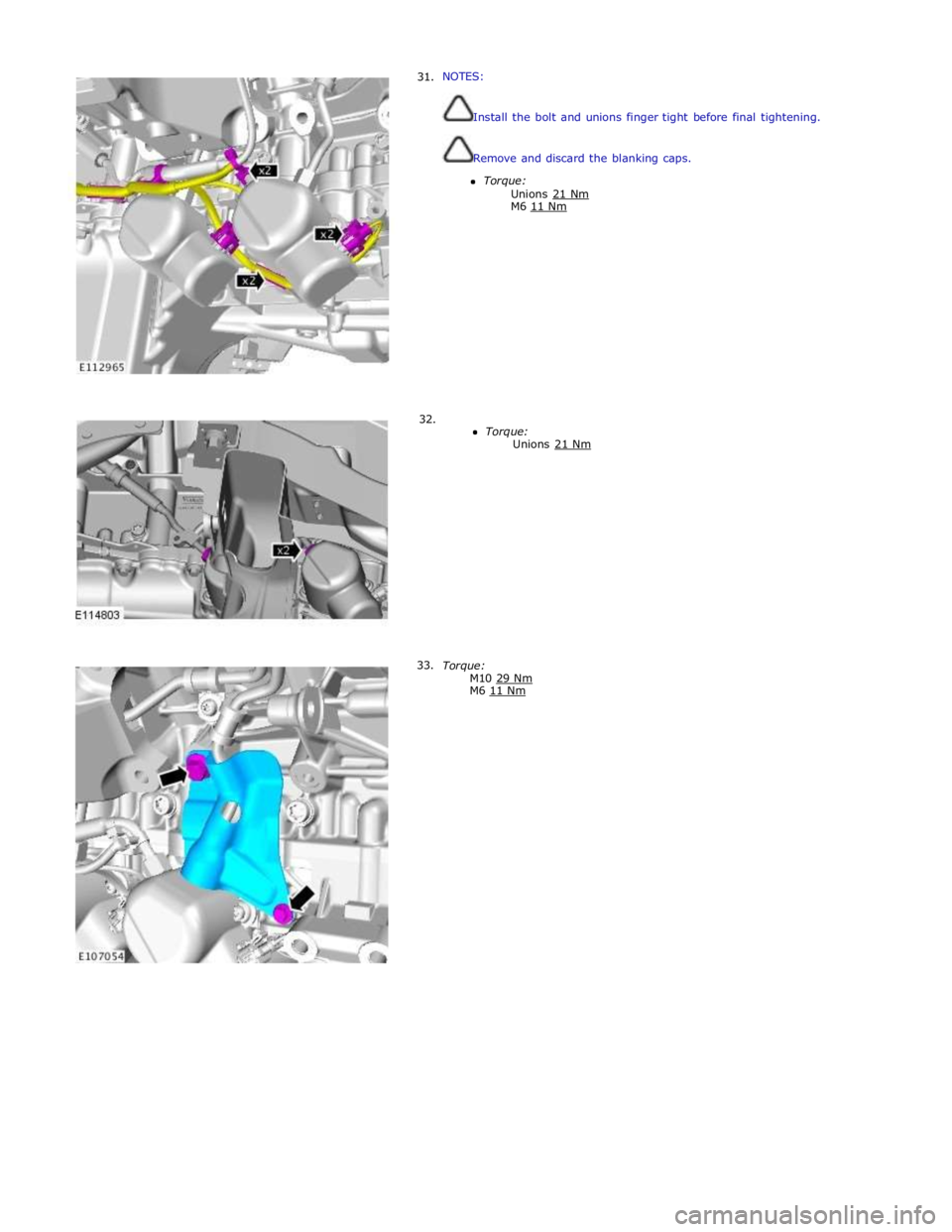

33. NOTES:


Install the bolt and unions finger tight before final tightening.


Remove and discard the blanking caps.

Torque:
Unions 21 Nm M6 11 Nm















Torque:
Unions 21 Nm















Torque:
M10 29 Nm M6 11 Nm

36.












































Torque:
Unions 21 Nm M6 11 Nm

37.
38.
39.
40.


















Torque:
Unions 21 Nm

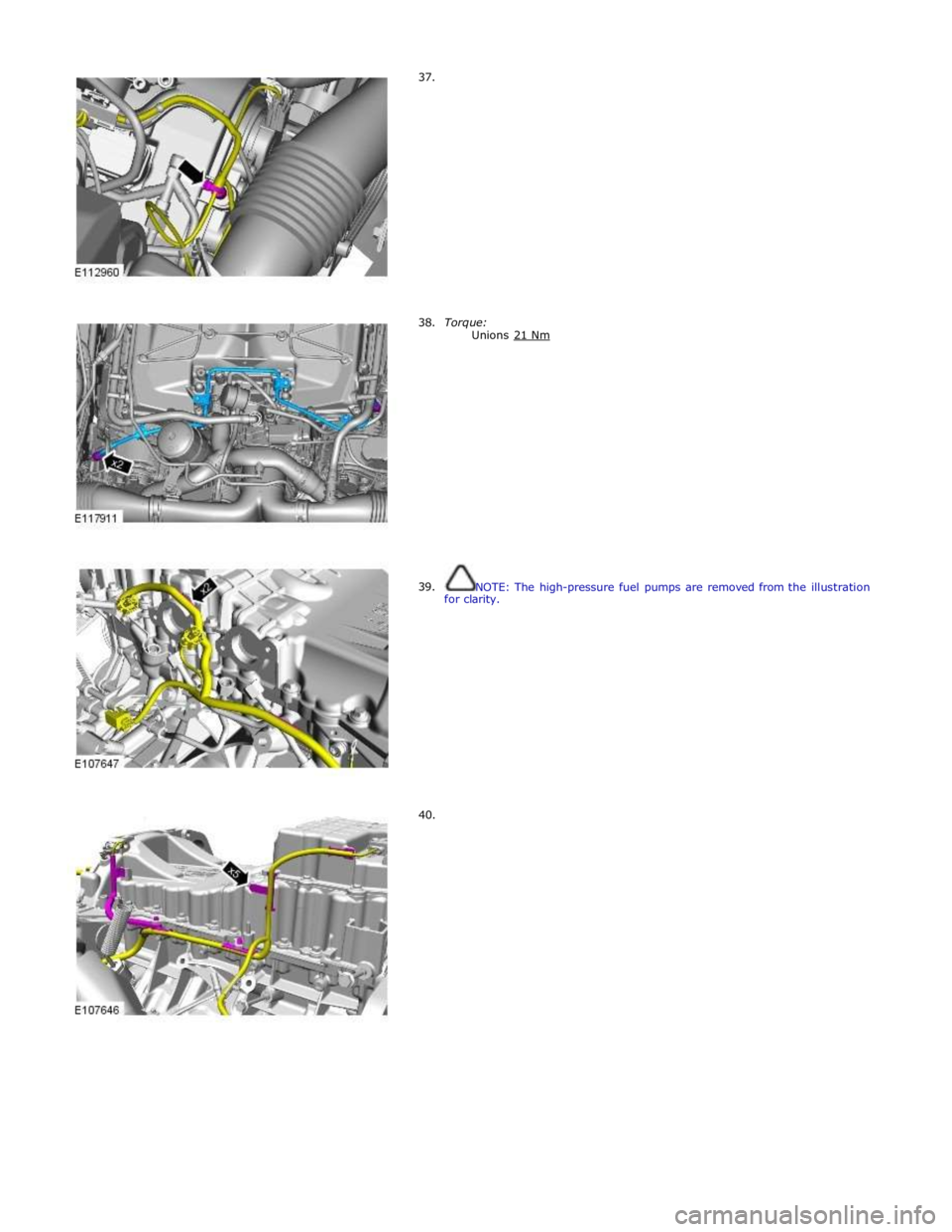

NOTE: The high-pressure fuel pumps are removed from the illustration
for clarity.

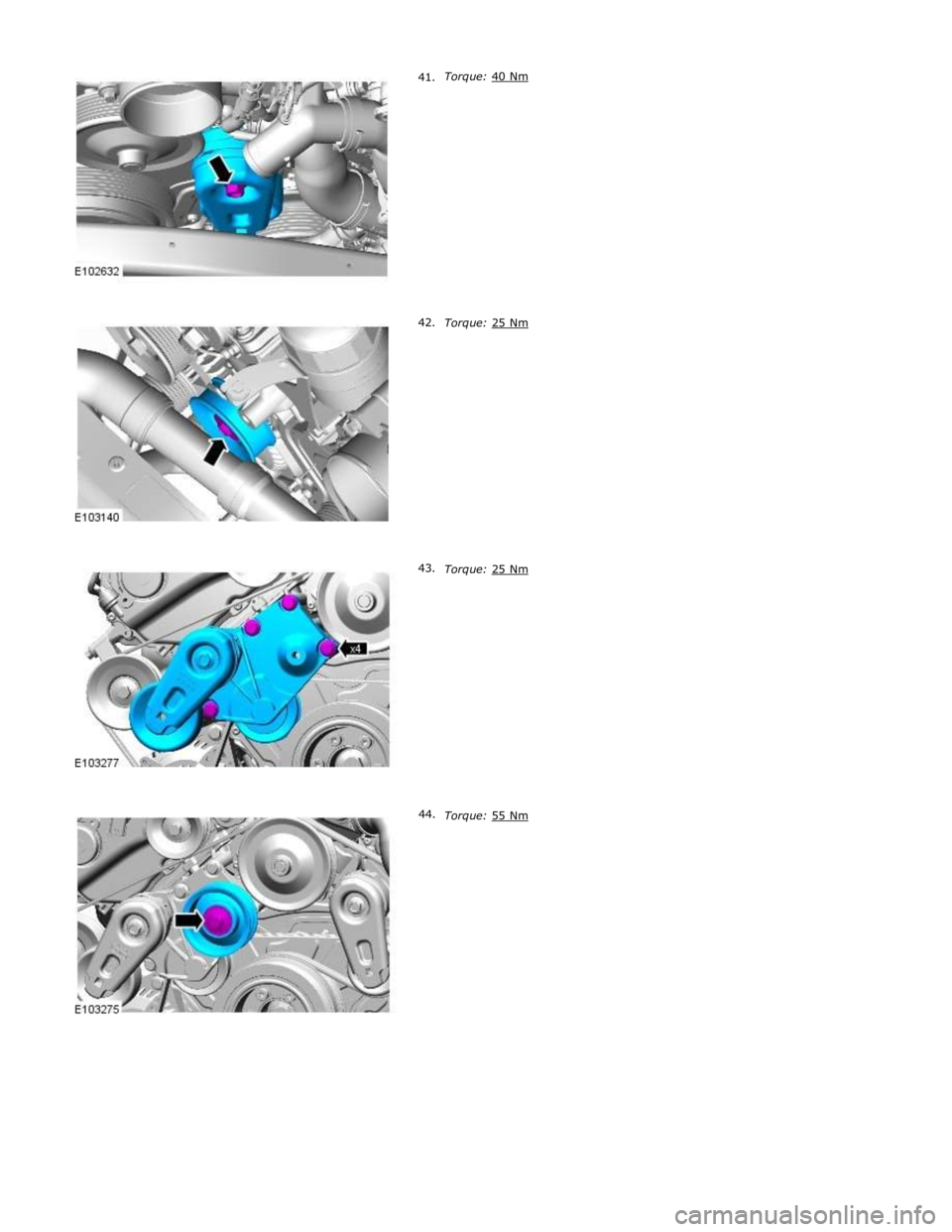

Torque: 25 Nm
















Torque: 25 Nm
















Torque: 55 Nm

45.
46.
47.
48. Torque: 12 Nm


















CAUTION: Install all the bolts finger tight before final tightening.

Torque: 25 Nm

































CAUTION: Install all the bolts finger tight before final tightening.


NOTE: Tighten the bolts in the indicated sequence.

Torque: 48 Nm www.JagDocs.com

49. CAUTIONS:


Install all the bolts finger tight before final tightening.


The bolts can only be used 3 times, mark the bolts with a center punch.
If 2 punch marks are visible, discard the bolts.


Install the bolts in the noted position.

NOTES:


Make sure that the crankshaft is not rotated.


Make sure the crankshaft and flexplate mating faces are clean before
installation.


Tighten the retaining bolts working diagonally.

Torque:
Stage 1:45 Nm Stage 2:90°
50. Refer to: Engine (303-01D Engine - V8 S/C 5.0L Petrol, Installation).
51. Refer to: Crankshaft Pulley (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

52. Lower the vehicle.

53. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Engine - V8 S/C 5.0L Petrol - Oil Pump
Removal and Installation

Removal Published: 07-Oct-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Oil Pan Extension (303-01C Engine - V8 5.0L Petrol, Removal and Installation).

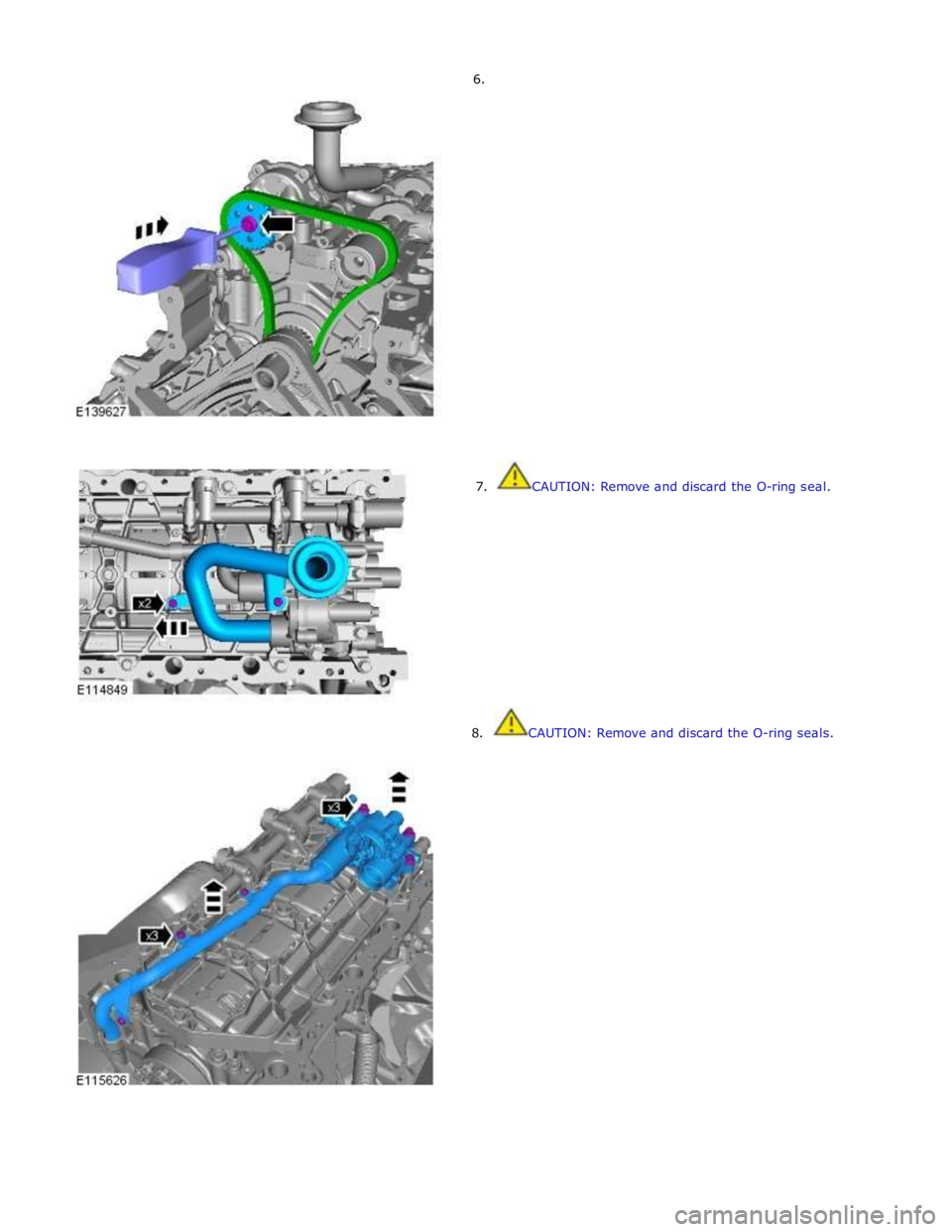

4. NOTE: Tsubaki timing drive only.
















5. NOTE: INA timing drive only.

6.
7. CAUTION: Remove and discard the O-ring seal. 8. CAUTION: Remove and discard the O-ring seals.

Installation 9. CAUTION: Remove and discard the O-ring seal.


1. NOTE: Lubricate and install the new O-ring seals.
