18. NOTE: Vehicles without Diesel engine shown, vehicles
with Diesel engine similar.
Remove the special tool.






















CAUTION: Make sure the new fuel tank drain port
sealing cap is correctly installed. Failure to follow this
instruction may result in damage to the vehicle.


NOTE: Vehicles without Diesel engine shown, vehicles
with Diesel engine similar.
Install a new fuel tank drain port sealing cap.













19.
Install the floor aperture cover.

Removal and Installation). www.JagDocs.com

Fuel System - General Information - Spring Lock Couplings
General Procedures Published: 11-May-2011



Disconnect

1. WARNINGS:


Place the vehicle in a quarantined area and arrange "No
Smoking/Petrol Fumes" signs about the vehicle.


Before any work is carried out on the fuel system, ground the
vehicle to earth and maintain the ground connection until the work is
complete.


Do not smoke or carry lighted tobacco or open flame of any type
when working on or near any fuel related components. Highly flammable
vapors are always present and may ignite. Failure to follow these
instructions may result in personal injury.


The fuel system remains pressurized for a long time after the
ignition is switched off. The fuel pressure must be relieved before
attempting any repairs. Failure to follow these instructions may result in
personal injury.


After carrying out repairs, the fuel system must be checked visually
for leaks. Failure to follow these instructions may result in personal
injury.


This procedure involves fuel handling. Be prepared for fuel spillage
at all times and always observe fuel handling precautions. Failure to
follow these instructions may result in personal injury.


If taken internally do not induce vomiting, seek immediate medical
attention. Failure to follow these instructions may result in personal
injury.


If fuel contacts the eyes, flush the eyes with cold water or
eyewash solution and seek medical attention.


Wash hands thoroughly after handling, as prolonged contact may
cause irritation. Should irritation develop, seek medical attention.

Relieve the fuel system pressure. For additional information, refer to the

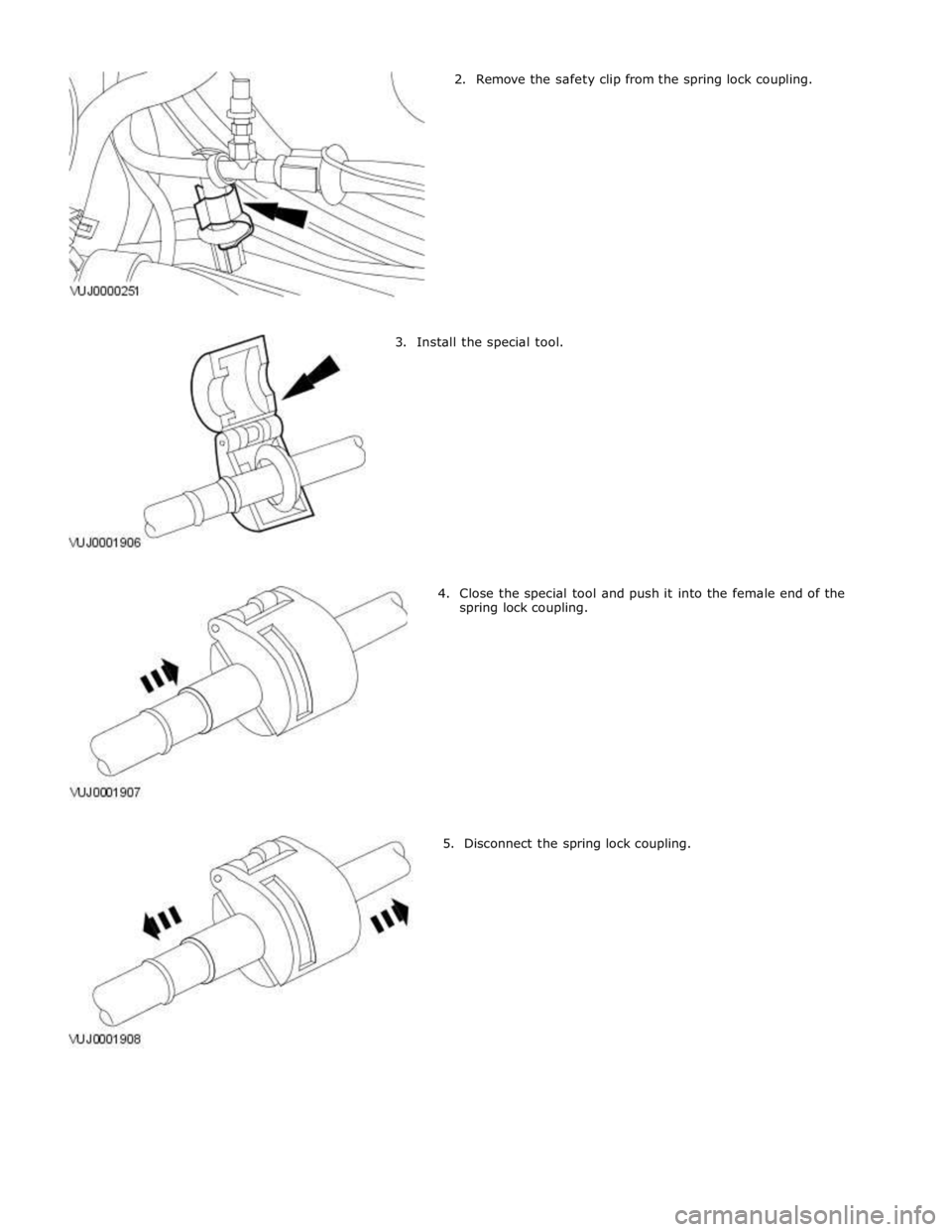

procedure in this section: Pressure Relief. Spring Lock Coupling Tool or Equivalent
310-D005 (23-040) Special Tool(s)

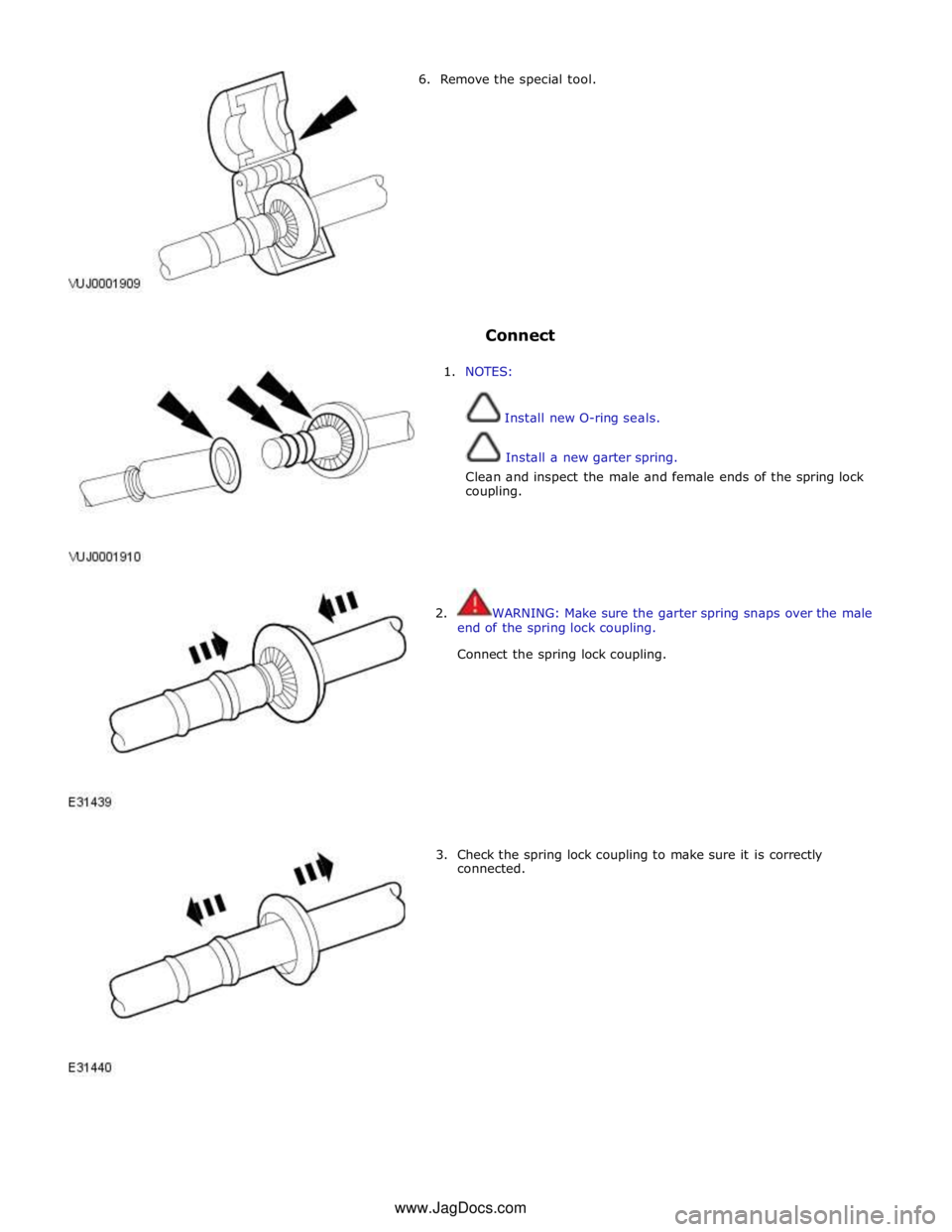

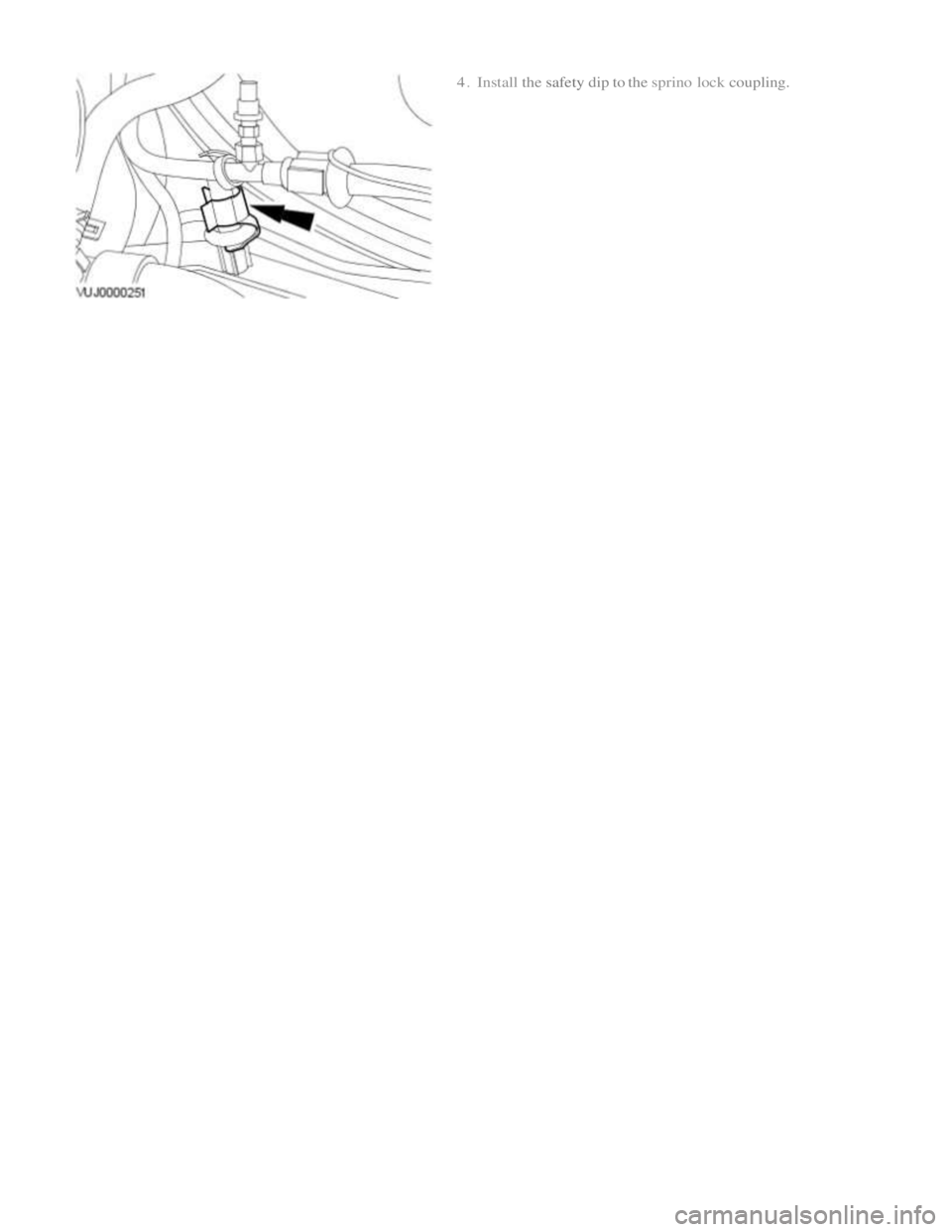

www.JagDocs.com

Fuel System - General Information - Quick Release Coupling
General Procedures

Disconnect Published: 11-May-2011

1. WARNINGS:


Place the vehicle in a quarantined area and arrange "No
Smoking/Petrol Fumes" signs about the vehicle.


Before any work is carried out on the fuel system, ground the
vehicle to earth and maintain the ground connection until the work is
complete.


Do not smoke or carry lighted tobacco or open flame of any type
when working on or near any fuel related components. Highly flammable
vapors are always present and may ignite. Failure to follow these
instructions may result in personal injury.


The fuel system remains pressurized for a long time after the
ignition is switched off. The fuel pressure must be relieved before
attempting any repairs. Failure to follow these instructions may result in
personal injury.


After carrying out repairs, the fuel system must be checked visually
for leaks. Failure to follow these instructions may result in personal
injury.


This procedure involves fuel handling. Be prepared for fuel spillage
at all times and always observe fuel handling precautions. Failure to
follow these instructions may result in personal injury.


If taken internally do not induce vomiting, seek immediate medical
attention. Failure to follow these instructions may result in personal
injury.


If fuel contacts the eyes, flush the eyes with cold water or
eyewash solution and seek medical attention.


Wash hands thoroughly after handling, as prolonged contact may
cause irritation. Should irritation develop, seek medical attention.

Relieve the fuel system pressure. For additional information, refer to the
procedure in this section: Pressure Relief.
2. Disconnect the quick release fitting.
1. Release the retaining clip.
2. Disconnect the quick release fitting.









Connect

1. To connect, reverse the disconnect procedure.

Published: 11-May-2011
Fuel System - General Information - Quick Release Coupling - Push Connect
General Procedures

Disconnect

1. WARNINGS:


Place the vehicle in a quarantined area and arrange "No
Smoking/Petrol Fumes" signs about the vehicle.


Before any work is carried out on the fuel system, ground the
vehicle to earth and maintain the ground connection until the work is
complete.


Do not smoke or carry lighted tobacco or open flame of any type
when working on or near any fuel related components. Highly flammable
vapors are always present and may ignite. Failure to follow these
instructions may result in personal injury.


The fuel system remains pressurized for a long time after the
ignition is switched off. The fuel pressure must be relieved before
attempting any repairs. Failure to follow these instructions may result in
personal injury.


After carrying out repairs, the fuel system must be checked visually
for leaks. Failure to follow these instructions may result in personal
injury.


This procedure involves fuel handling. Be prepared for fuel spillage
at all times and always observe fuel handling precautions. Failure to
follow these instructions may result in personal injury.


If taken internally do not induce vomiting, seek immediate medical
attention. Failure to follow these instructions may result in personal
injury.


If fuel contacts the eyes, flush the eyes with cold water or
eyewash solution and seek medical attention.


Wash hands thoroughly after handling, as prolonged contact may
cause irritation. Should irritation develop, seek medical attention.

Relieve the fuel system pressure. For additional information, refer to the
procedure in this section:
For additional information, refer to: Fuel System Pressure Release
(310-00 Fuel System - General Information, General Procedures).

2. Disconnect the push connect fitting.
1. Press the tang.
2. Disconnect the push connect fitting.

Fuel system Electronic returnless fuel system (ERFS) Fuel tank Multi layer plastic Fuel tank sender unit Mounted on the body of the fuel pump Fuel filter Located in the fuel tank Fuel pump Electric,located in the fuel tank System pressure 4.5 bar - 65 lbf/in2 Capacities Liters Fuel tank capacity 71.1 (total) / 69.5 (useable) Torque Specifications
Item Nm lb-ft lb-in Fuel tank filler pipe bracket retaining nut 9 - 80 Fuel tank filler pipe bracket retaining bolt 9 - 80 Fuel tank support strap retaining bolts 35 26 - Fuel / vapor tube bracket retaining bolt in engine compartment 5 - 44 Fuel / vapor tube bracket to underbody retaining bolts 7 - 62 Fuel pump and sender unit locking ring 250 184 -
