JAGUAR XFR 2010 1.G Workshop Manual

www.JagDocs.com

9.
10. NOTES:


Note the position of the locating tang.


Remove and discard the O-ring seal.






























CAUTION: Take extra care not to damage the fuel tank
level sensor float and arm.

Installation

1. CAUTIONS:


arm. Take extra care not to damage the fuel tank level sensor float and

Make sure the fuel pump and sender unit is correctly installed in to
the retaining bracket in the fuel tank.


NOTE: Make sure the locating tang is installed in the correct
position.
To install, reverse the removal procedure.

Published: 11-May-2011
Fuel Tank and Lines - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Fuel Tank
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Refer to: Fuel Tank Draining (310-00 Fuel System - General Information, General Procedures).


4. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

5. Refer to: Driveshaft - V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-01 Driveshaft, Removal and Installation).

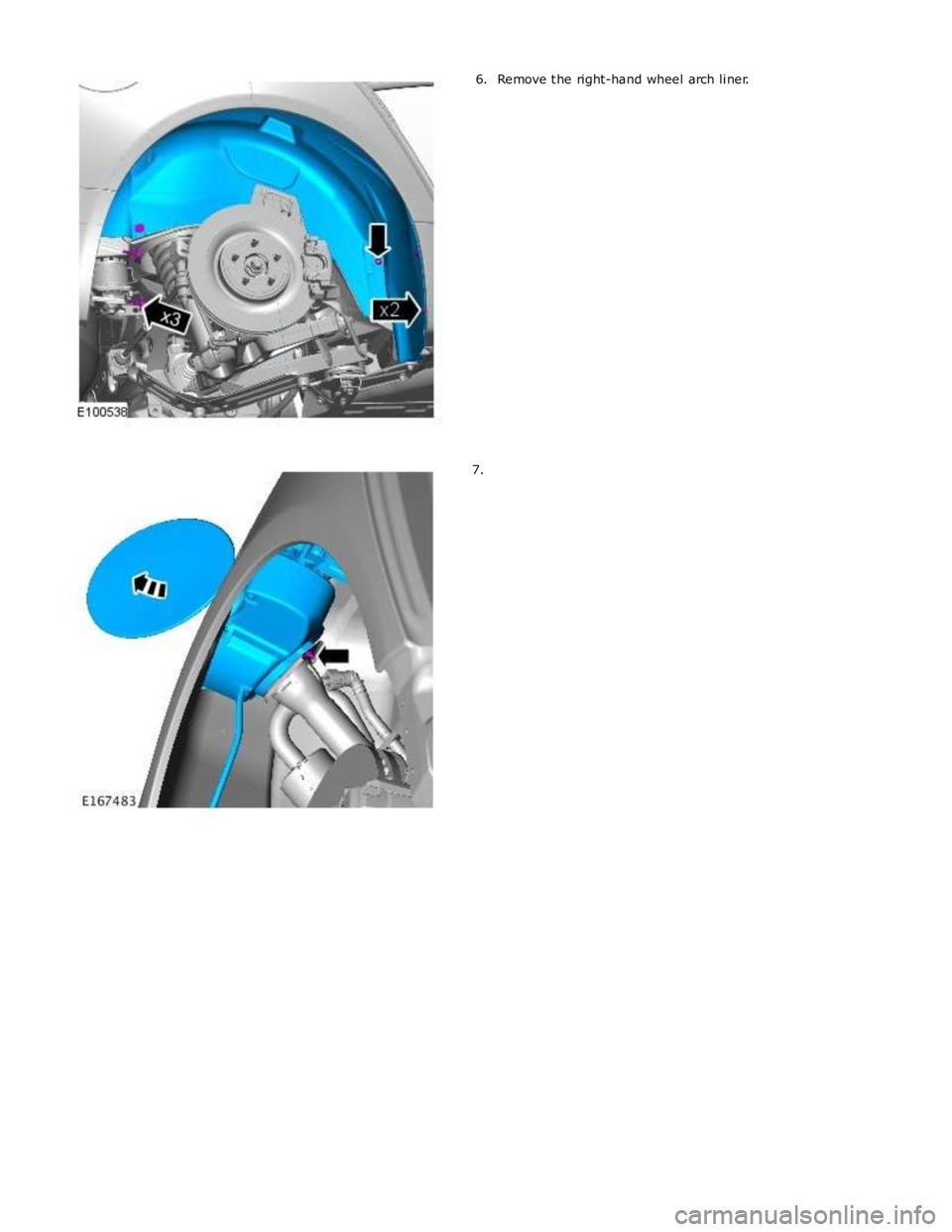

6. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct.
Torque: 10 Nm












7. Torque: 4.8 Nm

8.























9.

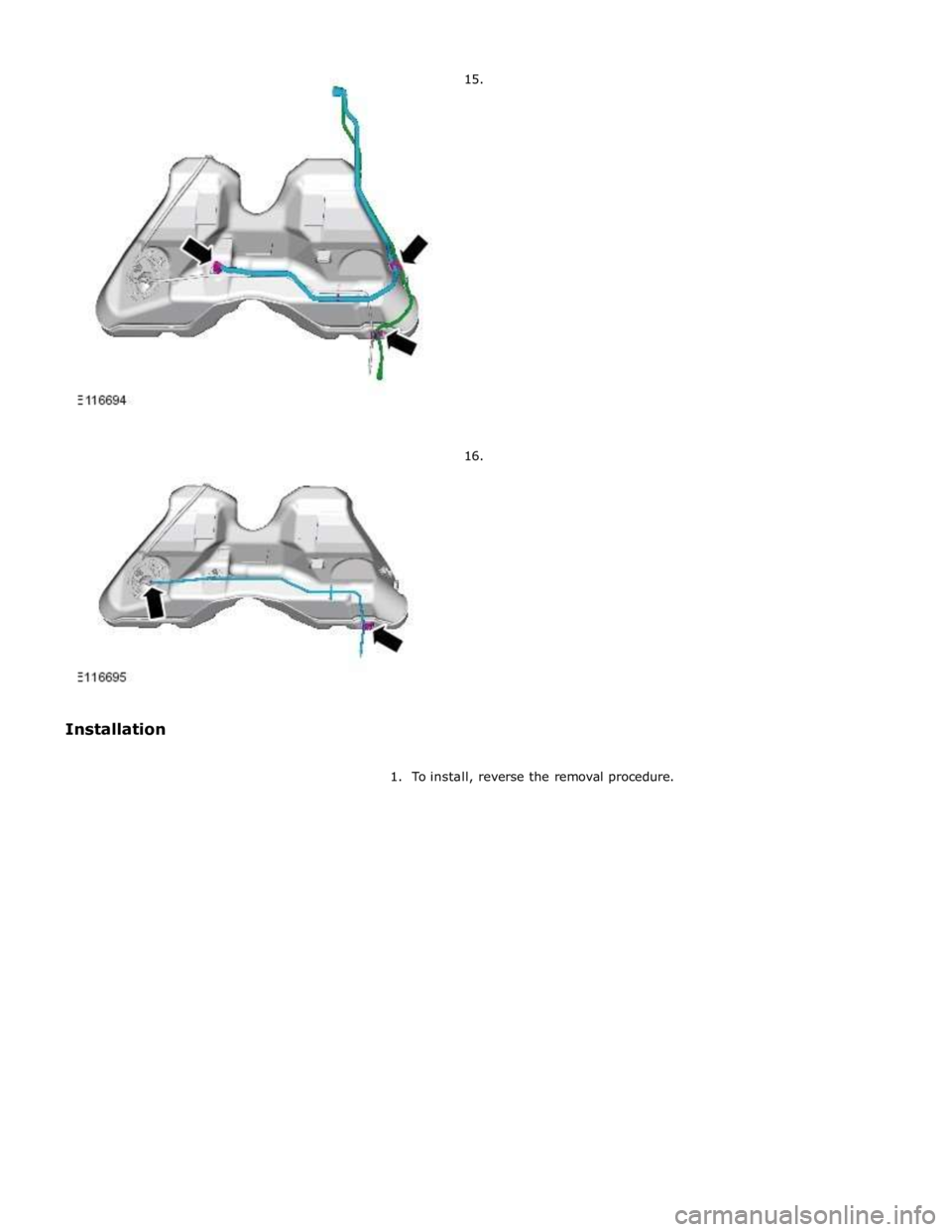

10. WARNING: The spilling of fuel is unavoidable during
this operation. Make sure that all necessary precautions are
taken to prevent fire and explosion.























NOTE: Non federal market vehicles only.

















NOTE: Federal market vehicles only. www.JagDocs.com

11.
















12. NOTE: On vehicles with supercharger, detach the lower
electric connector from the retaining bracket as well as the
electrical connector indicated.















13.

jack.
WARNING: Secure the component to the transmission

CAUTION: Use suitable packing material to prevent
damage to the component.
Torque: 35 Nm







14. NOTE: Do not disassemble further if the component is
removed for access only.

Published: 18-Jun-2014
Fuel Tank and Lines - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Fuel Tank Filler
Pipe
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Diesel Fuel System Health and Safety Precautions (100-00 General Information, Description and Operation).
Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
2. Open the fuel filler door and remove the cap.














3. WARNING: Do not work on or under a vehicle supported only by a
jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

4. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

5. Remove the right-hand wheel and tire.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).
