JAGUAR XFR 2010 1.G Workshop Manual

8. NOTE: If equipped.

Torque: 9 Nm
















9. Refer to: Rear Muffler (309-00A Exhaust System - TDV6 3.0L Diesel, Removal and Installation).
Refer to: Rear Muffler (309-00A Exhaust System - TDV6 3.0L Diesel, Removal and Installation).
Refer to: Rear Muffler (309-00D, Removal and Installation).
Refer to: Rear Muffler (309-00E, Removal and Installation).

10. www.JagDocs.com

11.
12.


























NOTE: If equipped.

Torque: Bolt: 9 Nm
1. To install, reverse the removal procedure.

Published: 31-Oct-2013
Fuel Tank and Lines - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Fuel Rail High-Pressure Fuel Pump Supply Line
Removal and Installation

Removal

NOTES:


Some variation in the illustrations may occur, but the essential information is always correct.


Some illustrations may show the engine removed for clarity.

1. Depressurize the fuel system.

Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol (310-00 Fuel System - General Information, General Procedures).
2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


3. WARNING: Do not smoke or carry lighted tobacco or open
flame of any type when working on or near any fuel related
components. Highly flammable mixtures are always
present and may ignite. Failure to follow these instructions
may result in personal injury.
CAUTIONS:


Be prepared to collect escaping fuel.


Make sure that all openings are sealed. Use new
blanking caps.

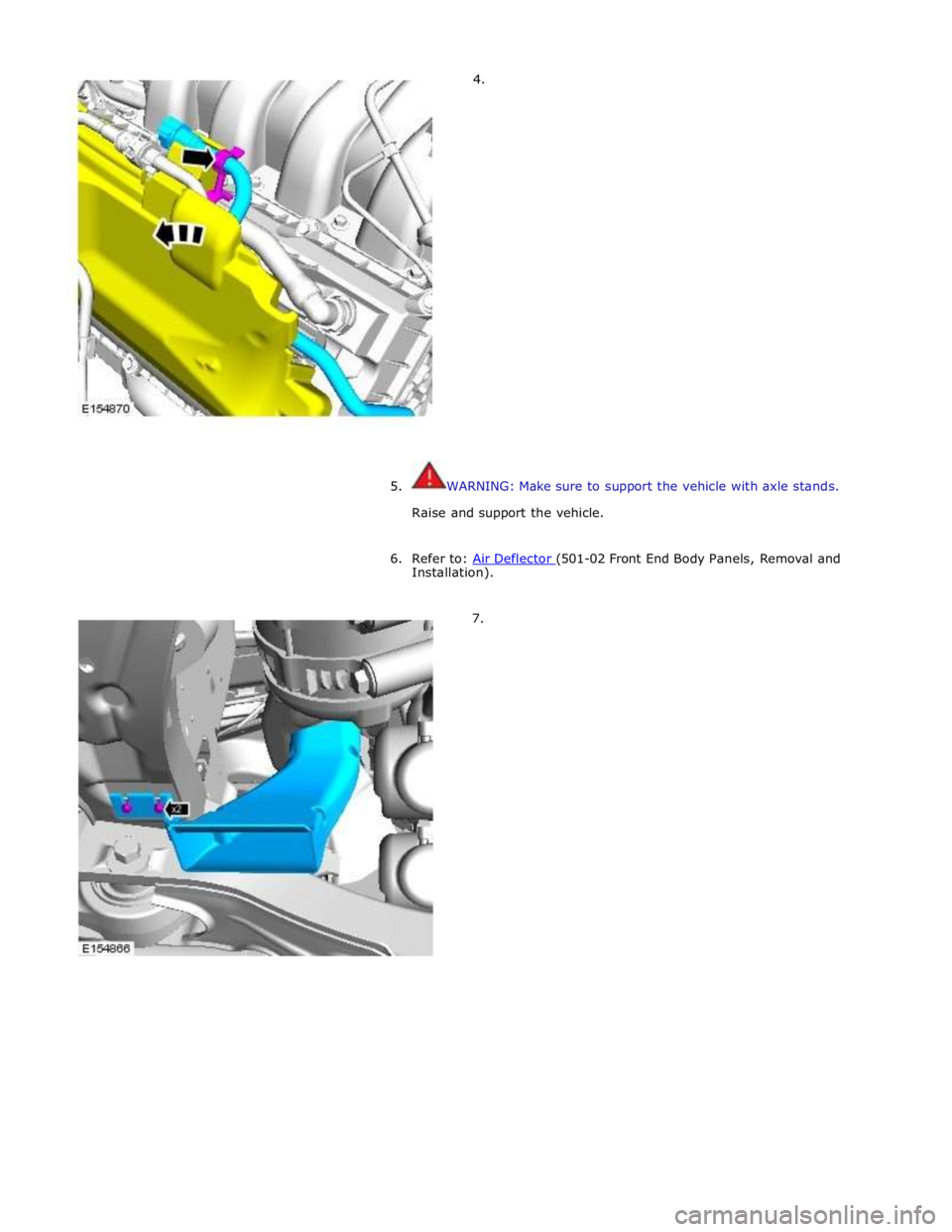

Installation).

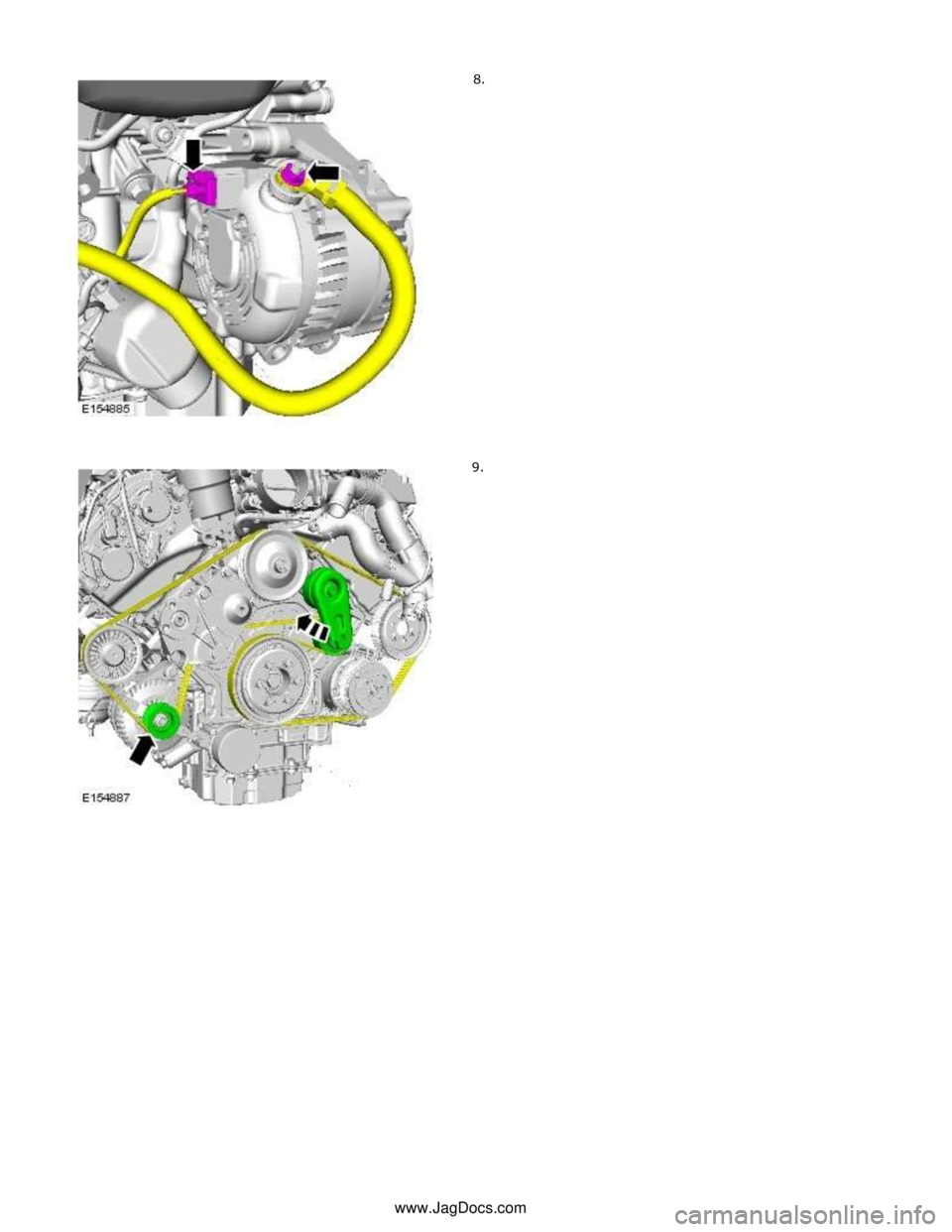

7.

www.JagDocs.com

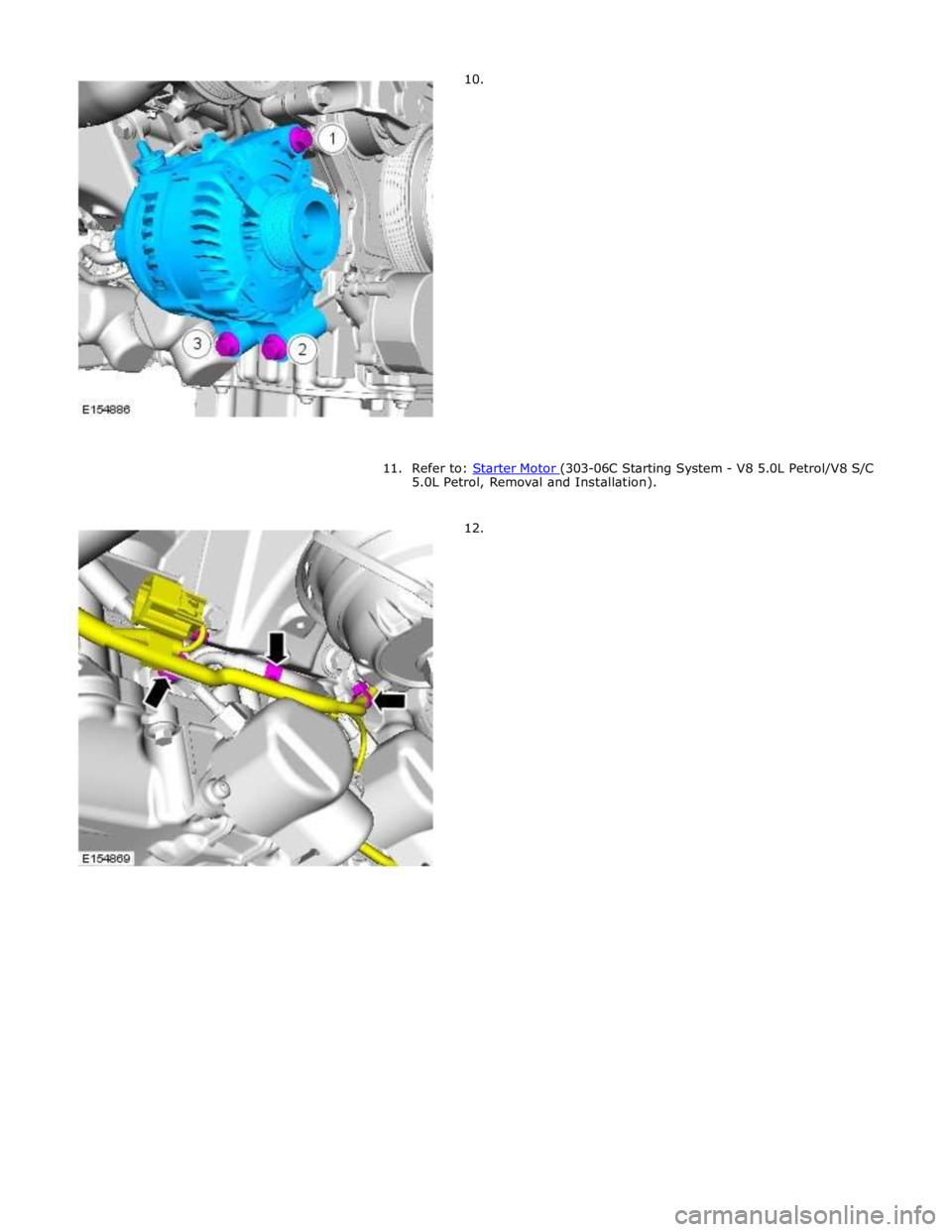

5.0L Petrol, Removal and Installation).

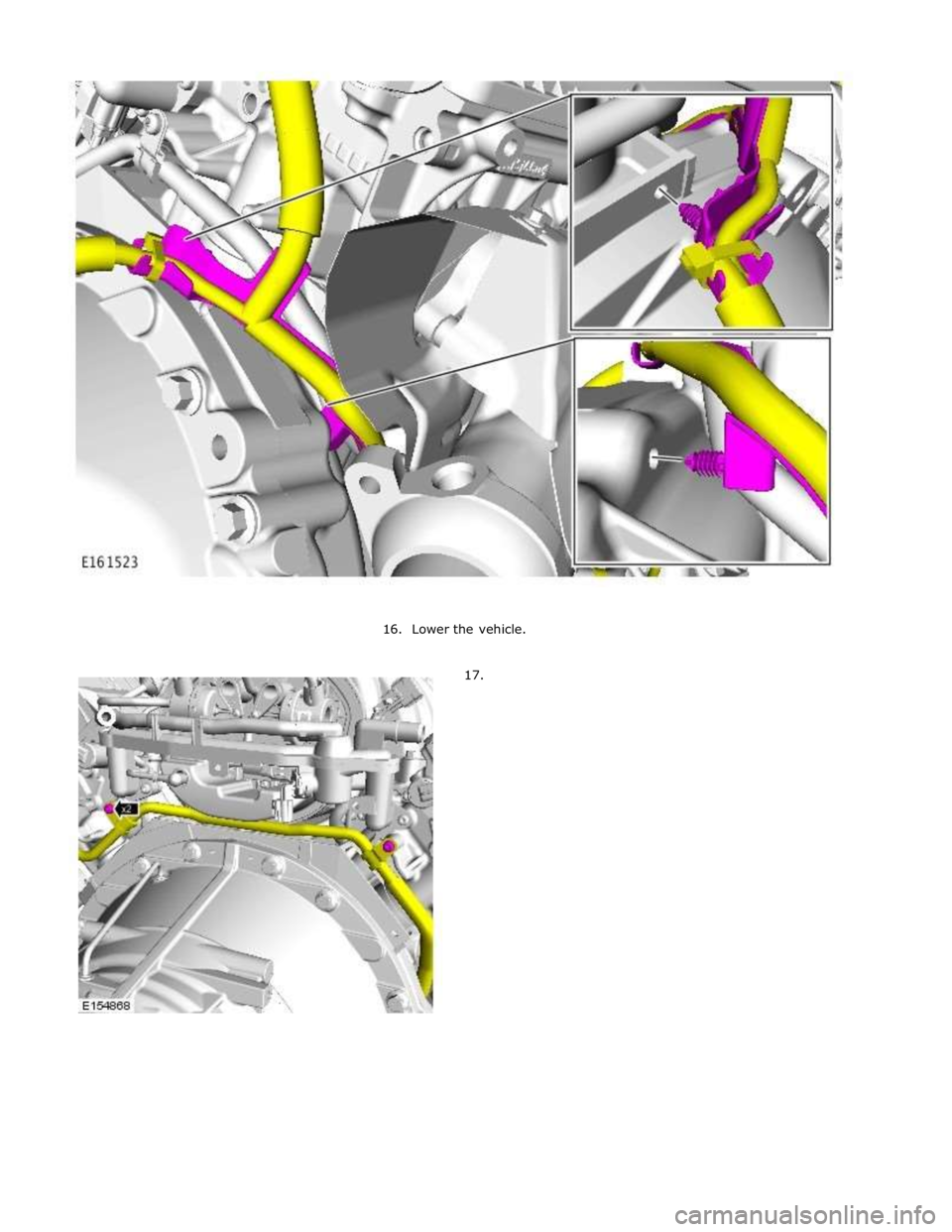

12.

15.
13.























14.
WARNING: Do not smoke or carry lighted tobacco or
open flame of any type when working on or near any fuel
related components. Highly flammable mixtures are always
present and may ignite. Failure to follow these instructions
may result in personal injury.
CAUTIONS:


Be prepared to collect escaping fuel.


Make sure that all openings are sealed. Use new
blanking caps.

18.
19.

























Install the special tool.




















20. CAUTION: Discard the fuel pipe.


NOTE: This step requires the aid of another technician.

With the aid of another technician remove the low pressure fuel pipe as
indicated.
