6. CAUTION: Take extra care not to damage the
component.

Torque: 1.3 Nm















Right-hand drive vehicles

www.JagDocs.com

Climate Control - Heater Core and Evaporator Core Housing
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Climate Control Assembly (412-01 Climate Control, Removal and Installation).

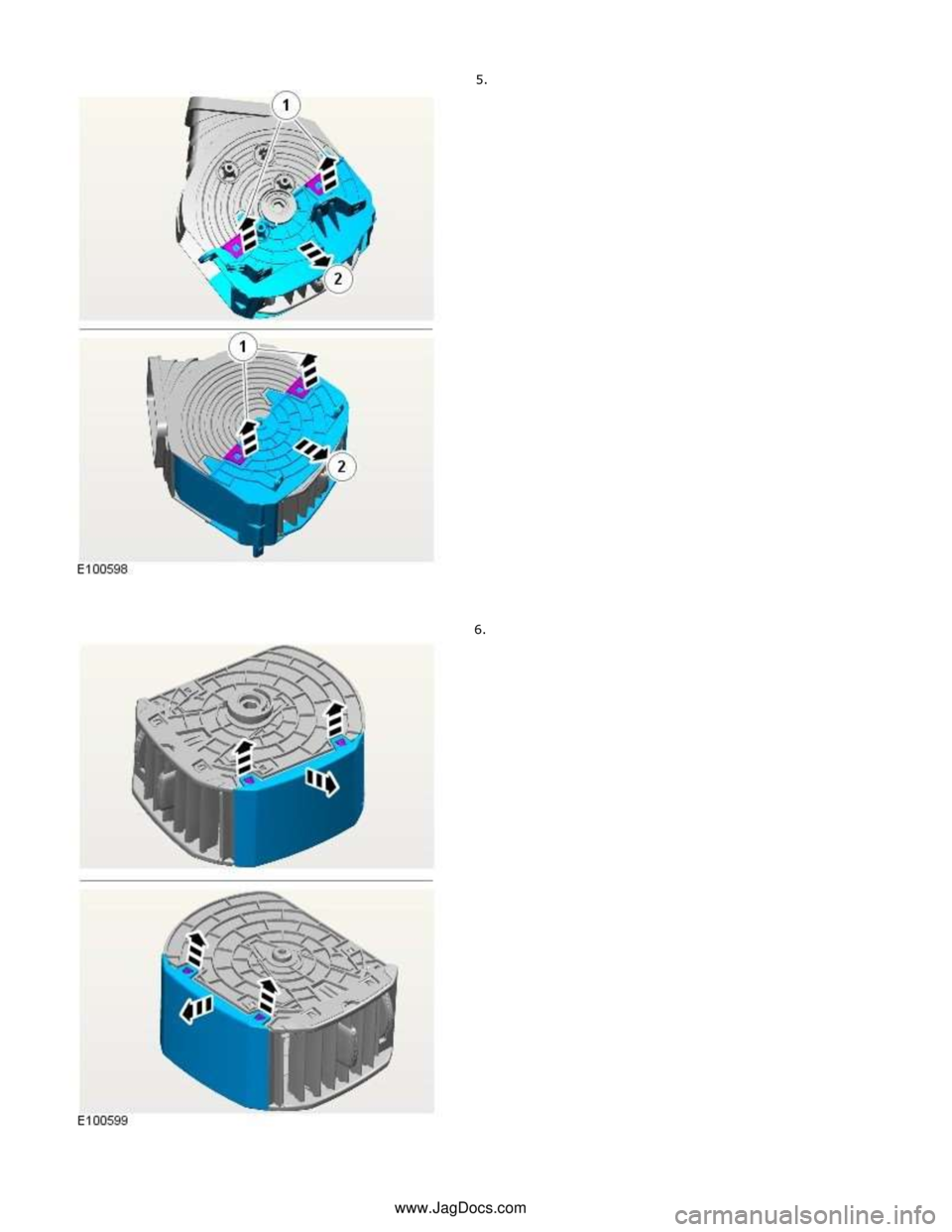

Right-hand drive vehicles

4. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.

Torque: 1.3 Nm









Left-hand drive vehicles

5. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.

Torque: 1.3 Nm

6. CAUTION: Make sure that the wiring harnesses are
correctly located.


NOTE: Note the position of the wiring harnesses to
aid installation.









Left-hand drive vehicles

7. CAUTION: Make sure that the wiring harnesses are
correctly located.


NOTE: Note the position of the wiring harnesses to
aid installation.















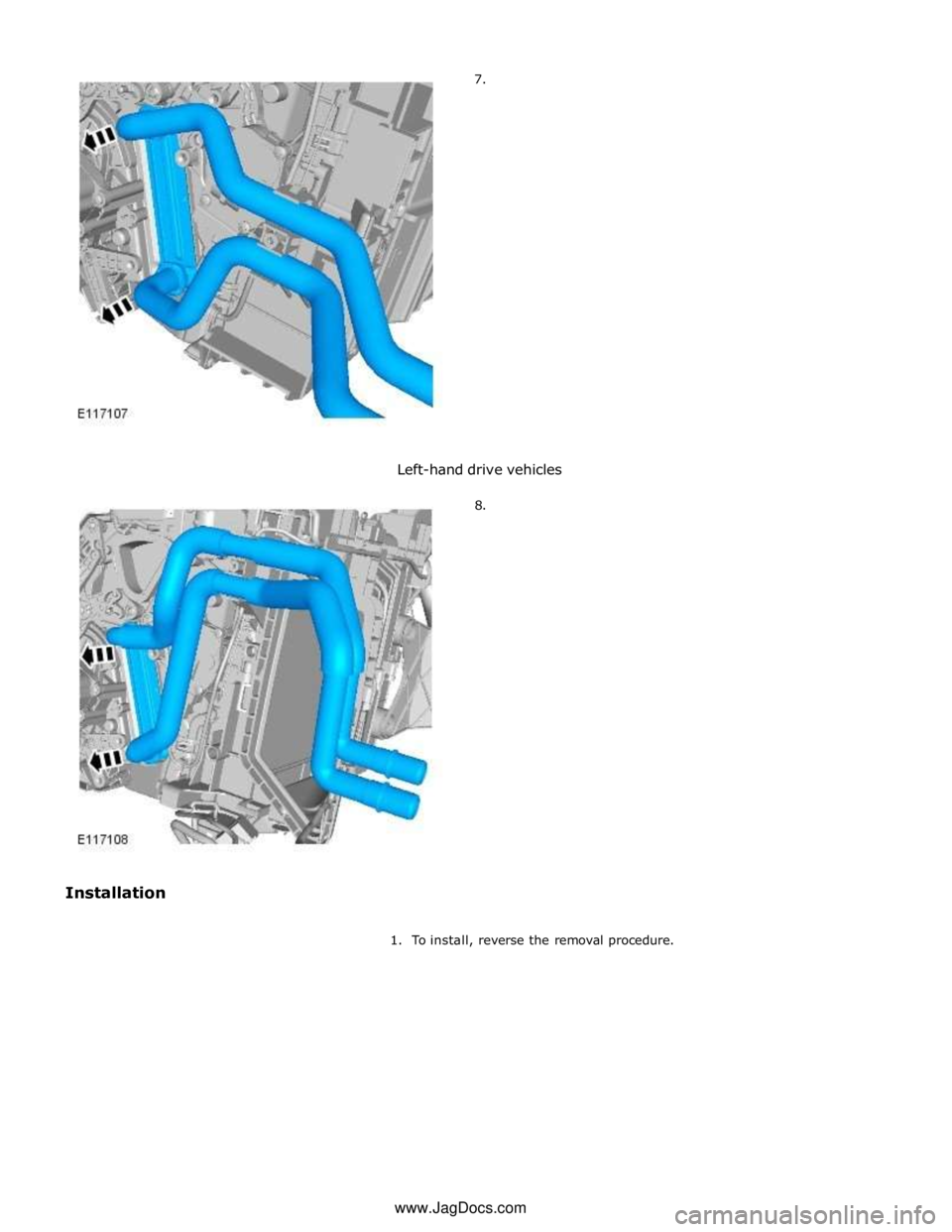

Right-hand drive vehicles

8. Torque: 2.4 Nm













Right-handdrivevehicles

1. To install, reverse the removal procedure. Left-handdrivevehicles

Climate Control - Instrument Panel Register Trim Panel
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Center Registers (412-01 Climate Control, Removal and Installation).

3.
4.

www.JagDocs.com

Installation


1. CAUTION: Make sure that the clutch rib is located
between the two ribs on the car rearward (front half), of
the register housing to avoid damage on installation.
To install, reverse the removal procedure.

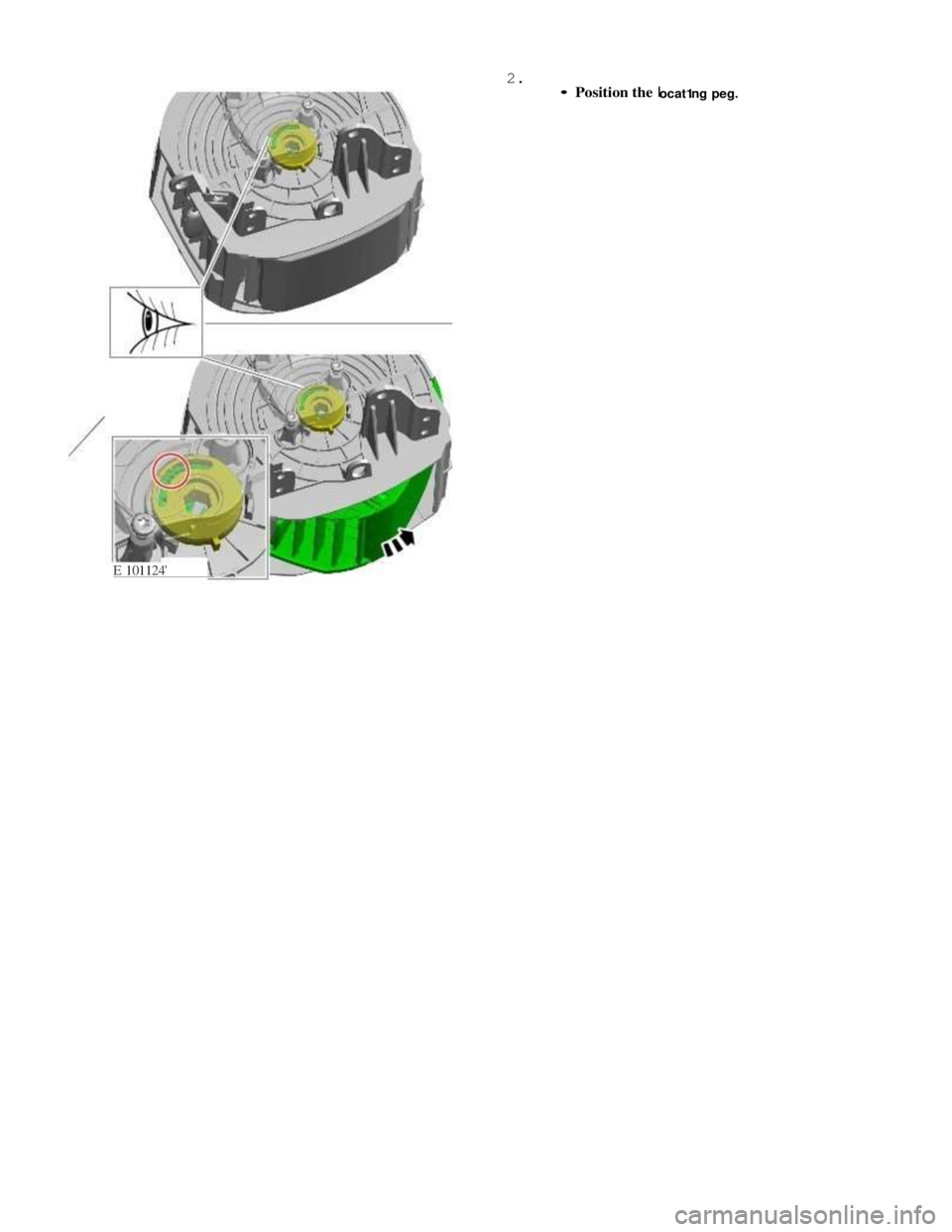

E 101124'

Climate Control - In-Vehicle Temperature Sensor
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
2.
Installation

1. To install, reverse the removal procedure.
