JAGUAR XFR 2010 1.G Workshop Manual

Climate Control - Passenger Side Register
Removal and Installation

Removal Published: 11-May-2011

CAUTION: Do not manually open the registers. Failure to follow this instruction may result in damage to the internal
components.
NOTES:


If the registers are set to 'Automatic' mode and one or more are disconnected during an ignition cycle, a vehicle battery
reset may be required to reconnect the affected registers to the LIN BUS.

Removal steps in this procedure may contain installation details.

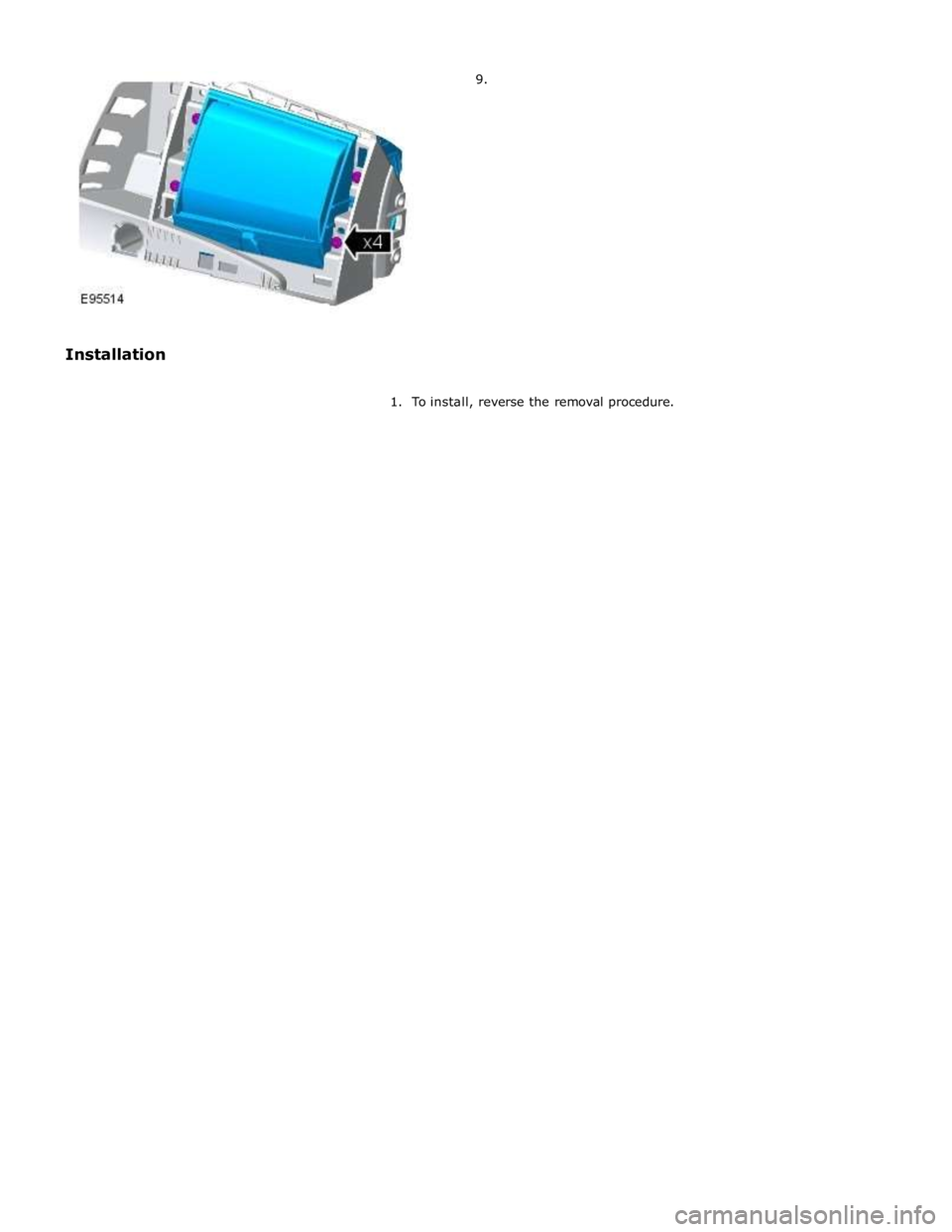

1.

www.JagDocs.com

Climate Control - Pollen Filter
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.


1.
2. Published: 11-May-2011

Climate Control - Recirculation Blend Door Actuator
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).




Installation

3. NOTE: Make sure that the actuator is correctly aligned
to the recirculation blend door arm.

1. To install, reverse the removal procedure. www.JagDocs.com

Climate Control - Sunload Sensor
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. CAUTIONS:


Protect the surrounding trim to avoid damage.
Make sure that the clips are correctly located.









3.
4. CAUTION: Make sure that the component is correctly
located on the locating dowels.

Torque: 2 Nm

Climate Control - Thermostatic Expansion Valve
Removal and Installation

Removal

NOTES:


Removal steps in this procedure may contain installation details.


Some variation in the illustrations may occur, but the essential information is always correct. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Climate Control Assembly (412-01 Climate Control, Removal and Installation).

Right-hand drive vehicles

3. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.

Torque: 1.3 Nm









Left-hand drive vehicles

4. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.

Torque: 1.3 Nm
