JAGUAR XFR 2010 1.G Workshop Manual

All vehicles






Installation

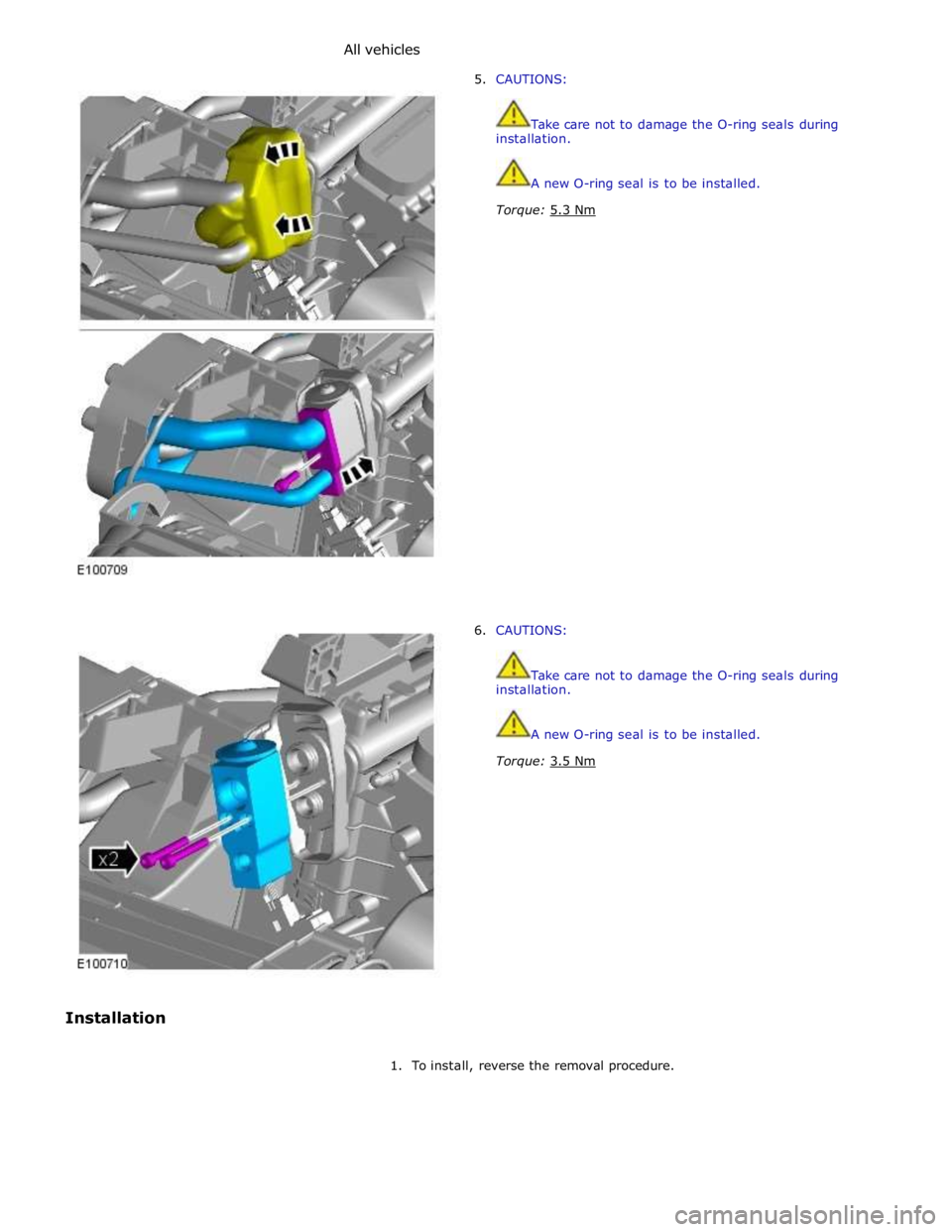

5. CAUTIONS:


Take care not to damage the O-ring seals during
installation.


A new O-ring seal is to be installed.

Torque: 5.3 Nm


























6. CAUTIONS:


Take care not to damage the O-ring seals during
installation.


A new O-ring seal is to be installed.

Torque: 3.5 Nm
1. To install, reverse the removal procedure.

Published: 11-May-2011
Climate Control - Desiccant Bag V6 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L
Petrol
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

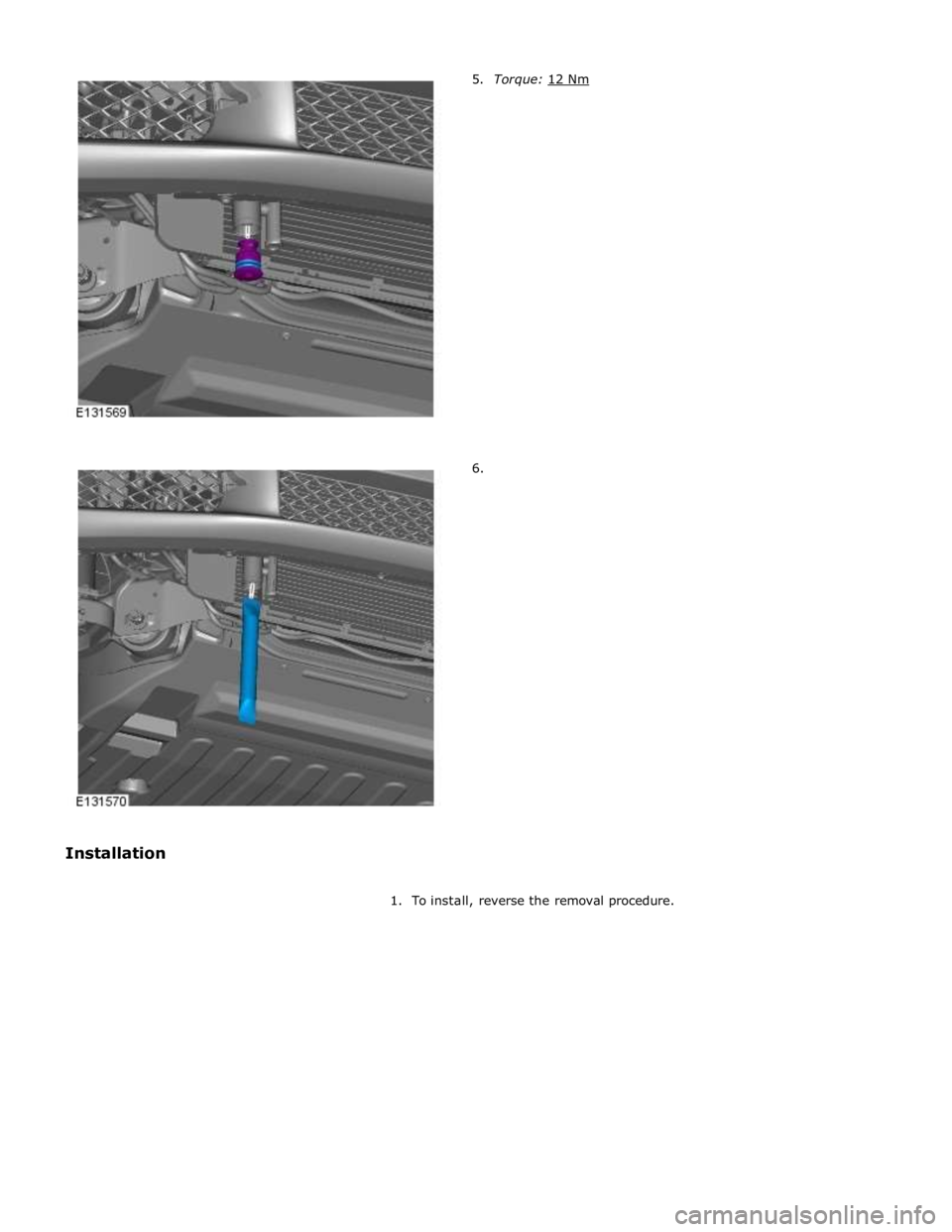

1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

3. Refer to: Radiator Splash Shield (501-02 Front End Body Panels, Removal and Installation).

4. www.JagDocs.com

6.

1. To install, reverse the removal procedure.

Electric booster heater retaining screws 1.3 - 11

Published: 11-May-2011
Auxiliary Climate Control - Electric Booster Heater - Component Location
Description and Operation


NOTE: LHD (left-hand drive) vehicle shown, RHD (right-hand drive) vehicle similar.

Component Location



Item Description 1 Evaporator 2 Heater core 3 Electric booster heater 4 Heater assembly 5 150 A megafuse

Published: 11-May-2011
Auxiliary Climate Control - Electric Booster Heater - System Operation and
Component Description
Description and Operation

Control Diagram

NOTE: A = Hardwired; D = High speed CAN (controller area network) bus; N = Medium speed CAN bus; O = LIN (local interconnect network) bus.



Item Description 1 Battery 2 BJB (battery junction box) 3 CJB (central junction box) 4 Integrated control panel 5 Instrument cluster www.JagDocs.com

7 ECT (engine coolant temperature) sensor 8 Ambient temperature sensor 9 Electric booster heater 10 Face/Feet distribution stepper motor 11 RH (right-hand) temperature blend stepper motor 12 LH (left-hand) temperature blend stepper motor 13 Windshield (defrost) distribution stepper motor 14 ATC (automatic temperature control) module 15 150 A megafuse

General System Operation

Operation of the electric booster heater is controlled by the ATC module, which communicates with the micro-controller in the booster heater using the LIN bus. The temperature requested by the ATC module is based on:
The ambient air temperature.
The engine coolant temperature.
The temperatures selected on the integrated control panel.

The blower must be running for the electric booster heater to operate.
If electrical load management is in force, electric booster heater performance is reduced. For additional information, refer to:
Electronic Engine Controls (303-14A, Description and Operation),
Electronic Engine Controls (303-14B Electronic Engine Controls - V6 3.0L Petrol, Description and Operation), Electronic Engine Controls (303-14C, Description and Operation).



Electric Booster Heater Component Description



The electric booster heater is installed in the heater assembly, on the downstream side of the heater core. It consists of
ceramic coated thermistor elements, rated at 1.25 kW, and a micro-controller. Electrical power for the booster heater is
supplied by the BJB via a 150 A megafuse installed under the RH front seat.

Auxiliary Climate Control - Auxiliary Coolant Flow Pump
Removal and Installation

Removal Published: 11-May-2011


1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

2. Refer to: Air Deflector (501-02, Removal and Installation).

3.















4.
lose.
















5.
lose.

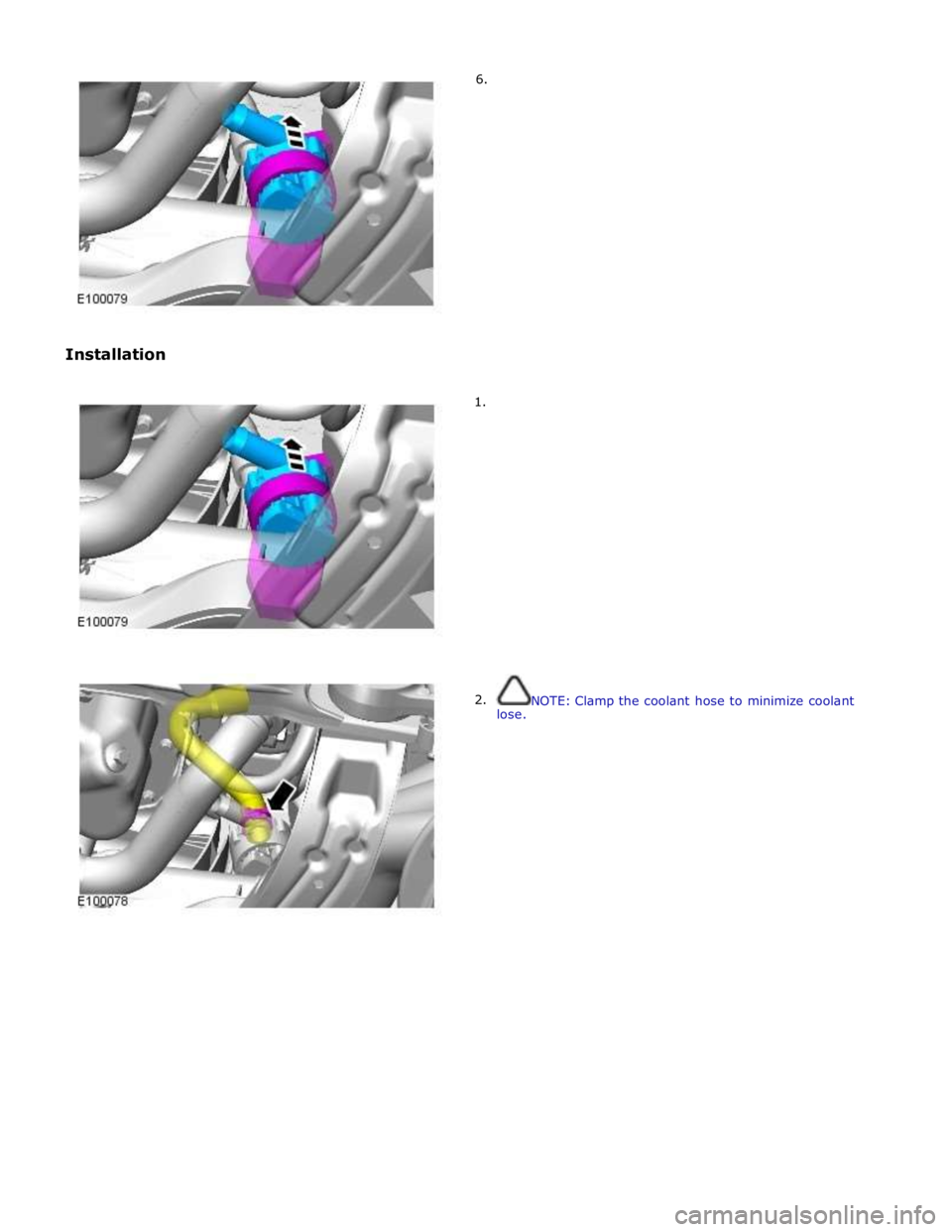

NOTE: Clamp the coolant hose to minimize coolant

















NOTE: Clamp the coolant hose to minimize coolant

6.
Installation

1.















2.
lose.
NOTE: Clamp the coolant hose to minimize coolant

3.
lose.















4. NOTE: Clamp the coolant hose to minimize coolant














5. Lower the vehicle.

6. Remove the coolant expansion tank pressure cap.

7. Fill the cooling system up to the MAX mark on the coolant expansion
tank using a fifty percent mixture of Jaguar Premium Cooling System
Fluid or equivalent, meeting Jaguar specification WSS M97B44-D and
fifty percent water.

8. Install the coolant expansion tank pressure cap.

9. Start and run the engine.

10. Set the heating system to MAX heat, the blower motor to MAX speed
and the air distribution to the instrument panel registers.


11. CAUTION: Observe the engine temperature gauge. If the engine
starts to over-heat switch off immediately and allow to cool. Failure to
follow this instruction may cause damage to the vehicle

Allow the engine to run until hot air is emitted from the instrument
panel registers, while observing the engine temperature gauge.

12. Switch the engine off.

13. Allow the engine to cool.
