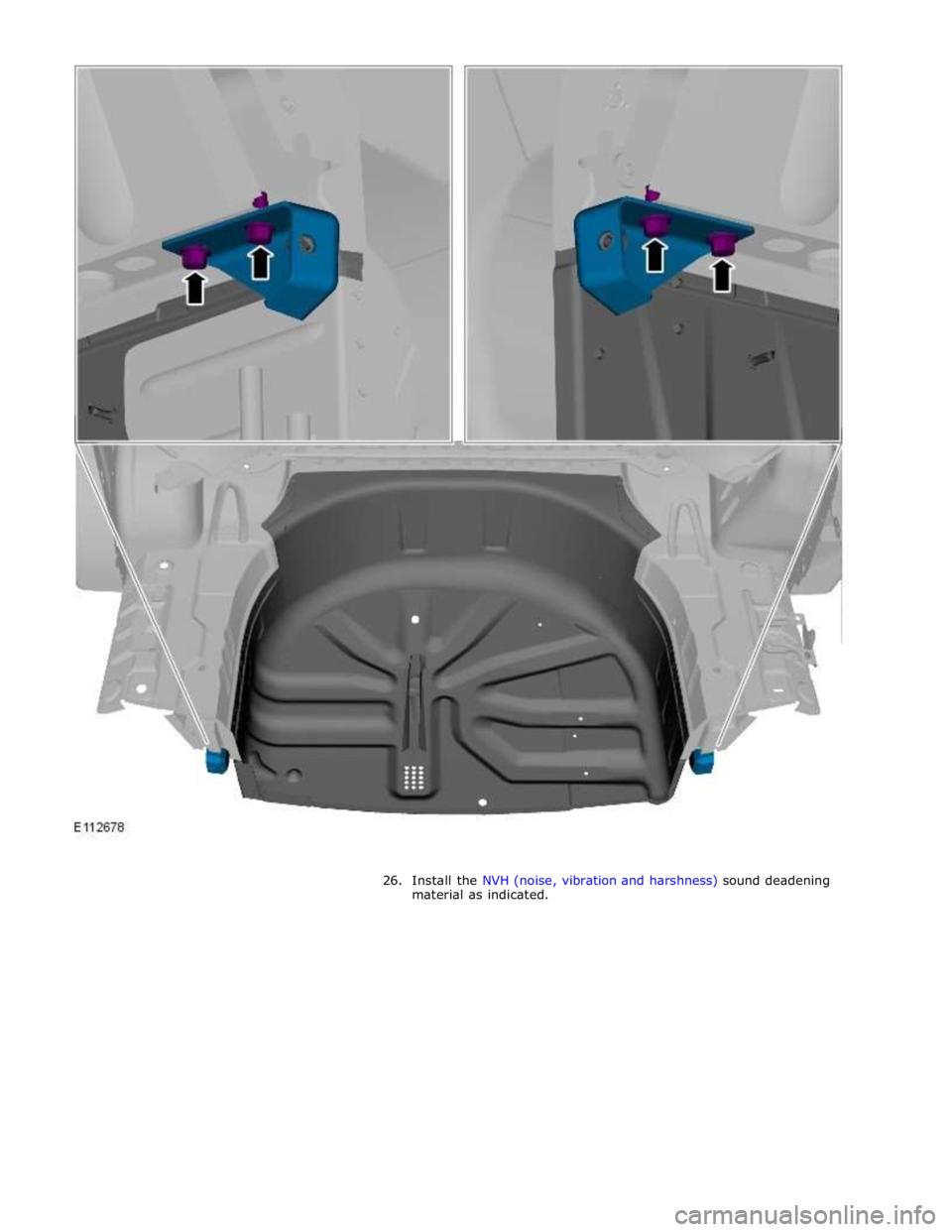

27. NOTE: Make sure all underbody joints are fully sealed following this
repair procedure.

The installation of associated panels and components is the reversal of
removal procedure.

Front lower arm to front subframe retaining nut and bolt 175 129 - Rear lower arm to front subframe retaining nut and bolt 175 129 - Engine mount lower retaining nut 63 46 - Steering gear retaining bolts 100 74 - Front Shock absorber and spring assembly retaining bolt 175 129 - Front subframe to body front retaining bolt Stage 1 100 73 - Stage 2 270° 270° - Front subframe to body rear retaining bolt Stage 1 80 59 - Stage 2 240° 240° - Front Stabilizer bar link retaining nuts 43 31 - Front Stabilizer bar link retaining bolts 55 41 - Rear Shock absorber and spring assembly retaining bolt 133 98 - Rear subframe reinforcement plate retaining bolts 47 35 - Rear subframe to body retaining bolts Stage 1 80 59 - Stage 2 240° 240° -

Published: 31-Jul-2013
Uni-Body, Subframe and Mounting System - Front Subframe V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

Special Tool(s)

303-021
Engine support bracket
303-1436
Engine Lifting Bracket Front
502-005
Alignment Bolts, Subframe General Equipment
Removal


NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
3. Refer to: Radiator Splash Shield (501-02 Front End Body Panels, Removal and Installation). 4. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation). 5. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation). Powertrain Jack

6. Secure the radiator assembly.











7.
Special Tool(s): 303-1436 Torque: 40 Nm
























8. CAUTIONS:


Support the engine on a jack. The angle may need to be adjusted during this procedure.


Make sure to protect the paintwork.

Special Tool(s): 303-021 Special Tool(s): 303-1436

www.JagDocs.com

14.

























15.

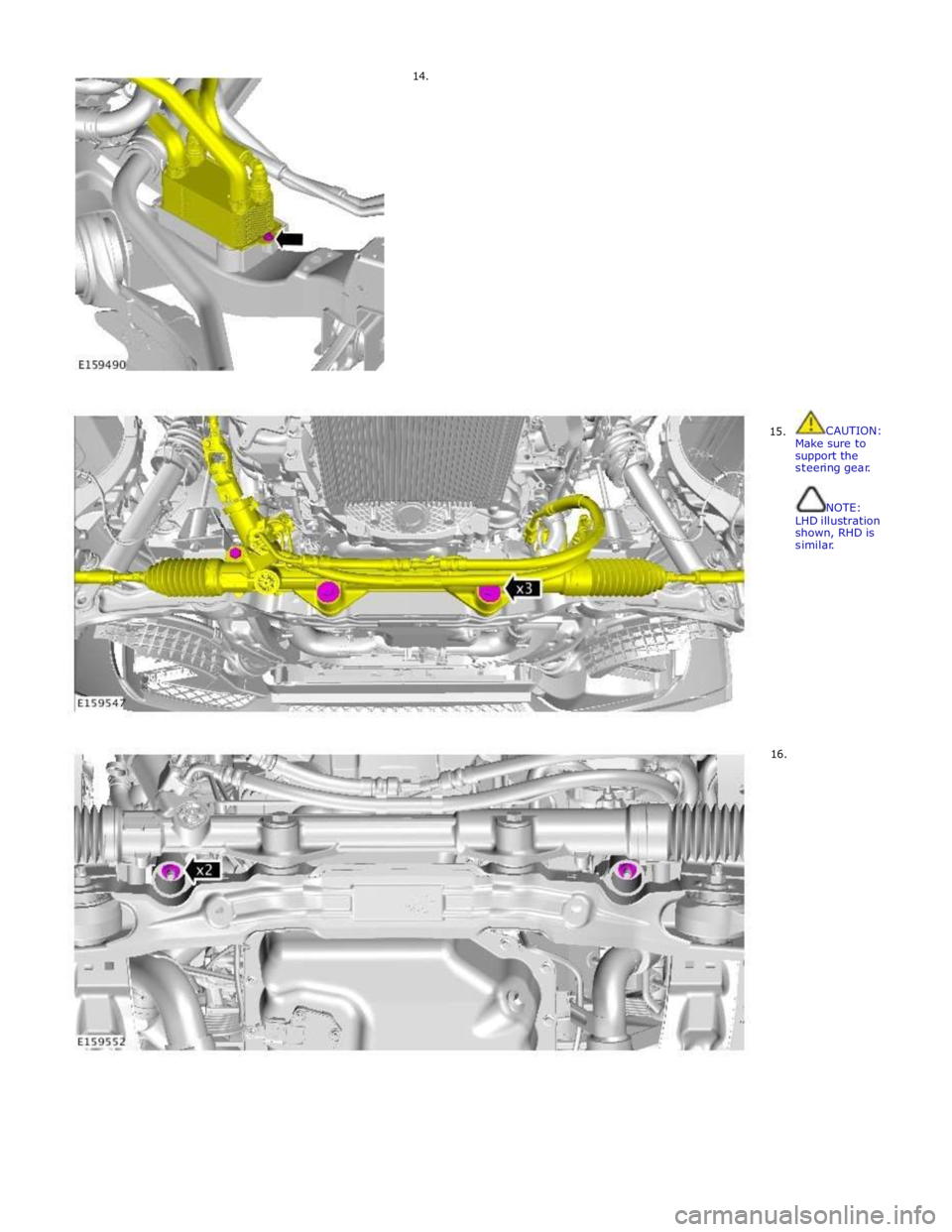

CAUTION:
Make sure to support the steering gear.


NOTE:
LHD illustration shown, RHD is similar.









16.

17.

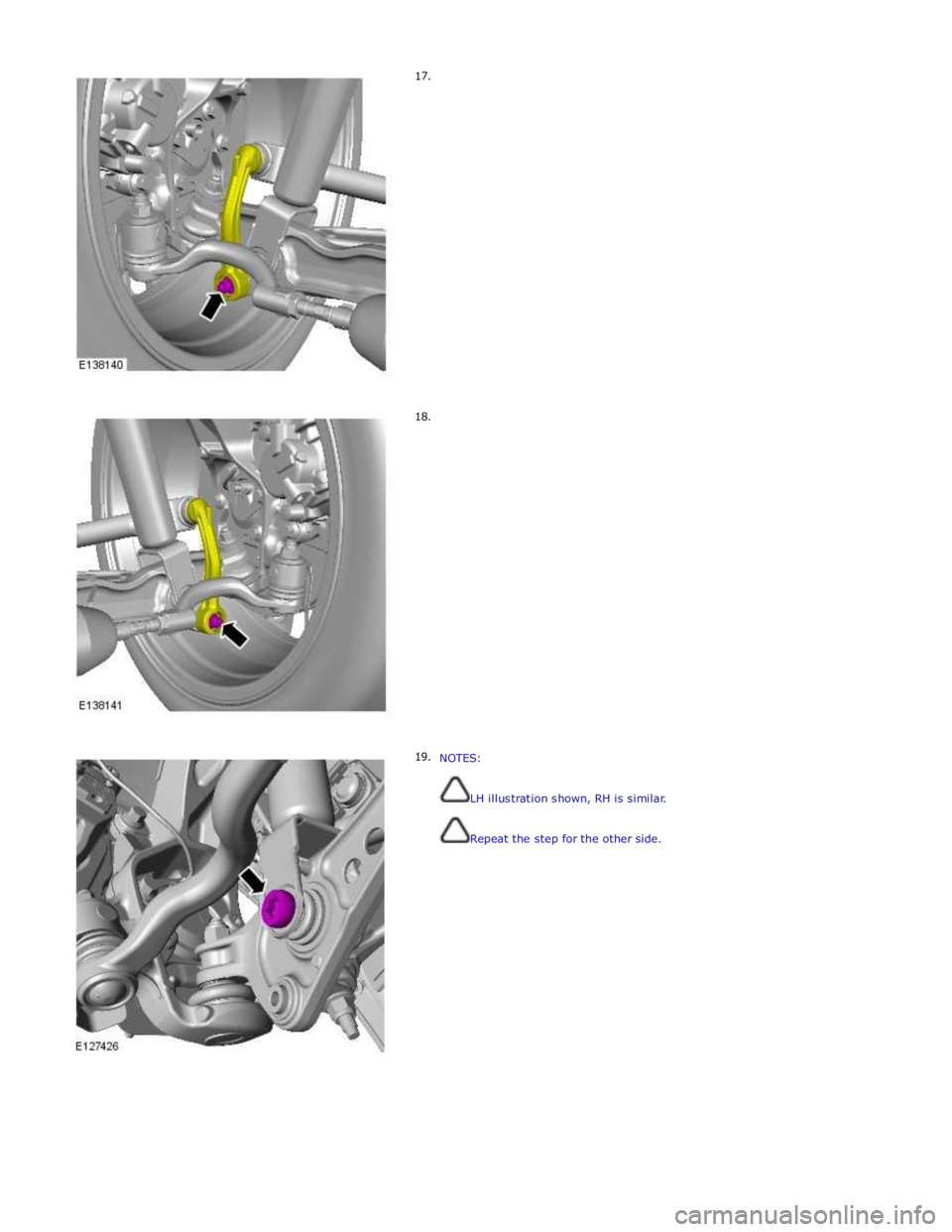

18. 19.



















































NOTES:


LH illustration shown, RH is similar.


Repeat the step for the other side.

20.

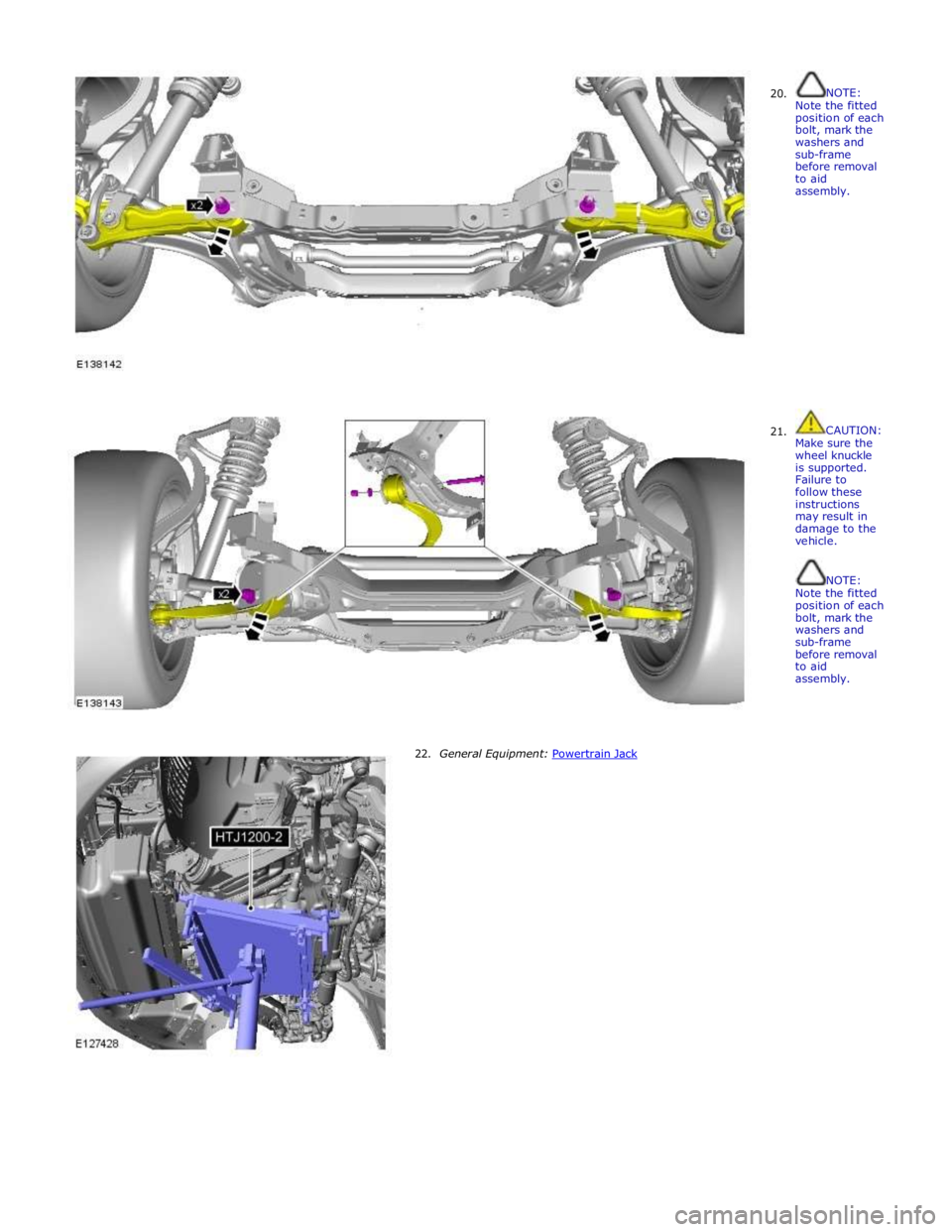

21. NOTE:
Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.

















CAUTION:
Make sure the wheel knuckle is supported. Failure to follow these instructions may result in damage to the vehicle.


NOTE:
Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.


22. General Equipment: Powertrain Jack
