JAGUAR XFR 2010 1.G Service Manual
Page 918 of 3039
Install the special tool.
Special Tool(s): 303-1439
Page 929 of 3039
5.0L Petrol, Removal and Installation).
23. Refer to: Cooling Fan Motor and Shroud - Vehicles With: Supercharger (303-03C Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal
and Installation).
24. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
Page 930 of 3039
Engine - V8 S/C 5.0L Petrol - Crankshaft Rear Seal
Removal and Installation
Special Tool(s)
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 12-May-2014
1. Refer to: Flexplate (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).
2. 303-1442
Rear Crankshaft Seal Installer JLR-303-1622
Alignment Tool, Engine Rear Oil Seal

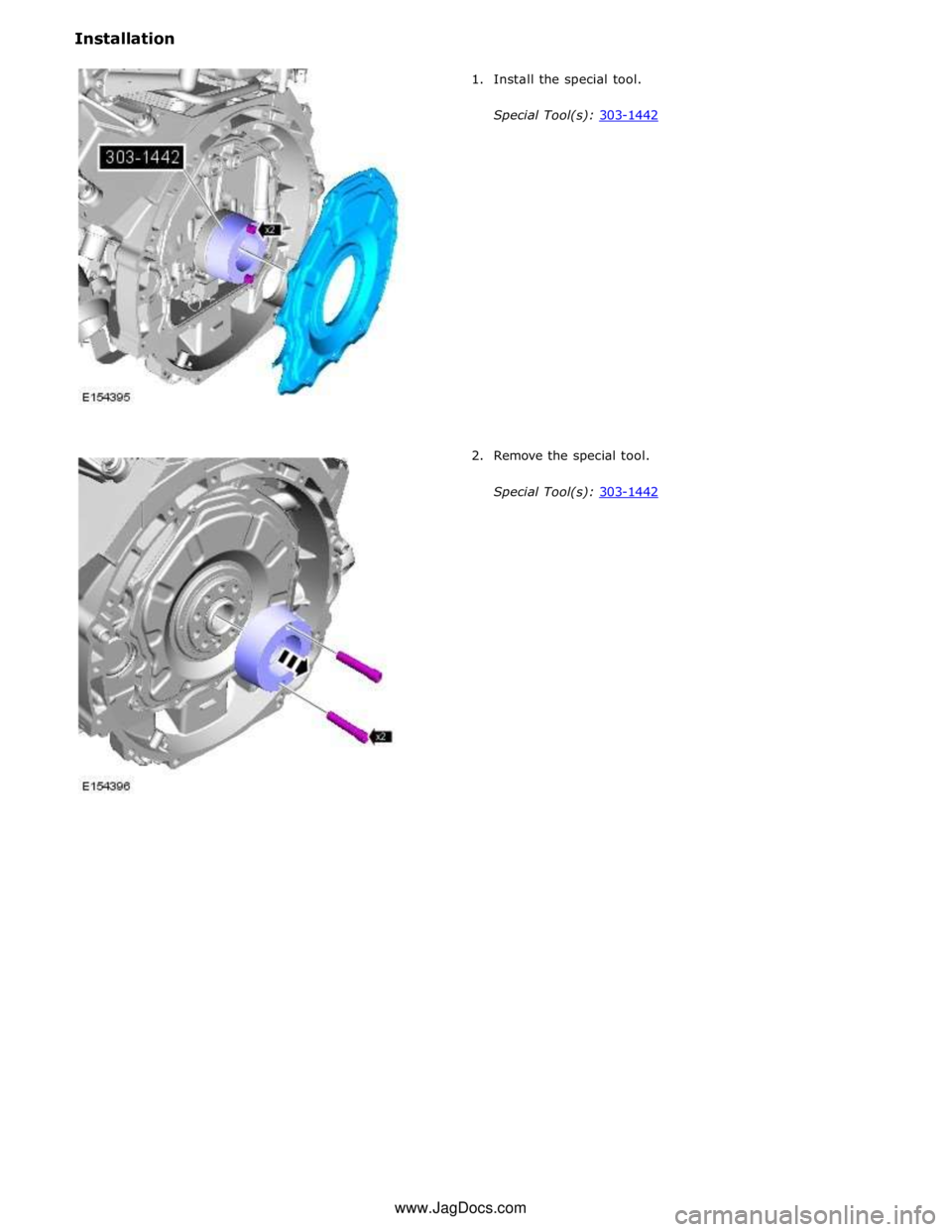

Page 931 of 3039
2. Remove the special tool.
Special Tool(s): 303-1442 www.JagDocs.com

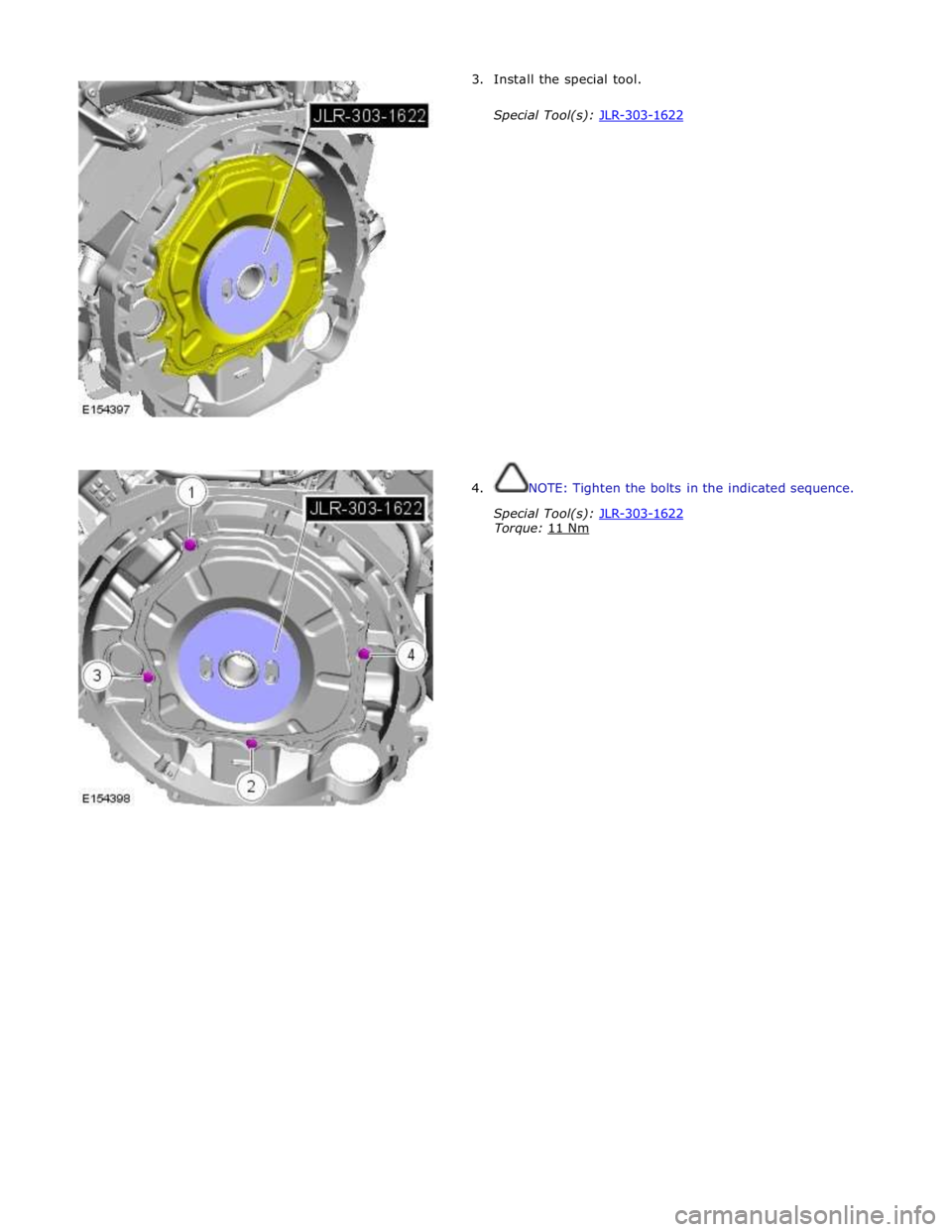

Page 932 of 3039
4. NOTE: Tighten the bolts in the indicated sequence.
Special Tool(s): JLR-303-1622 Torque: 11 Nm
Page 933 of 3039
Torque: 11 Nm
6. Refer to: Flexplate (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).
Page 934 of 3039
Engine - V8 S/C 5.0L Petrol - Cylinder Head LH
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 18-May-2012
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
3. Refer to: Camshaft LH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).
4. Refer to: Exhaust Manifold LH (303-01C Engine - V8 5.0L Petrol, Removal and Installation).
5.
6.
Page 946 of 3039
Torque: 12 Nm
22.
Refer to: Exhaust Manifold LH (303-01C Engine - V8 5.0L Petrol, Removal and Installation).
23. Refer to: Camshaft LH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).
24. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). www.JagDocs.com
Page 947 of 3039
Engine - V8 S/C 5.0L Petrol - Cylinder Head RH
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Raise and support the vehicle.
3. Refer to: Supercharger (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).
4. Refer to: Camshaft RH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).
5. Refer to: Exhaust Manifold (303-01A, Removal and Installation).
6.
Page 962 of 3039
Torque: 25 Nm
23.
Refer to: Exhaust Manifold (303-01A, Removal and Installation).
24. Refer to: Camshaft RH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).
25. Refer to: Supercharger (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).
26. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
