50KNOWING YOUR CAR
HEADREST
FRONT HEAD RESTRAINTS fig. 19
Head restraints are height adjustable; operate as follows.
❍Upwards adjustment: lift the head restraint until it
locks.
❍Downward adjustment, press the button A and lower
the head restraint.
fig. 19L0E0011m
Height-adjustable head restraints:
❍Upwards adjustment: press the button C and lift the
head restraint until it locks.
❍Downward adjustment, press the button C and lower
the head restraint.
IMPORTANT If the rear seats are used, always set the
head restraints in the “completely raised” position.
All adjustments must be carried out only
with the vehicle stationary and engine off.
Head restraints must be adjusted so that the
head, rather than the neck, rests on them. Only in
this case they can protect your head correctly. To
make the best use of the head restraint protection,
adjust the seat back to keep a straight back, with
the head as close as possible to its restraint.
REAR HEAD RESTRAINTS fig. 19
(for versions/markets where provided)
Depending on the versions, rear head restraints can be
“fixed” or height adjustable type.

1

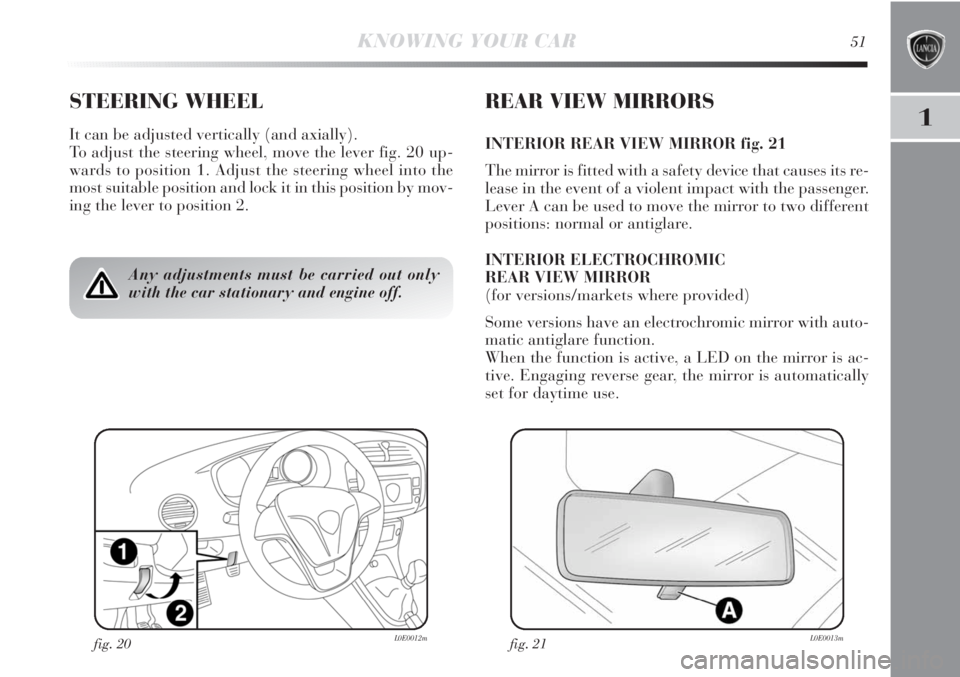

KNOWING YOUR CAR51
STEERING WHEEL
It can be adjusted vertically (and axially).
To adjust the steering wheel, move the lever fig. 20 up-
wards to position 1. Adjust the steering wheel into the
most suitable position and lock it in this position by mov-
ing the lever to position 2.
REAR VIEW MIRRORS
INTERIOR REAR VIEW MIRROR fig. 21
The mirror is fitted with a safety device that causes its re-
lease in the event of a violent impact with the passenger.
Lever A can be used to move the mirror to two different
positions: normal or antiglare.
INTERIOR ELECTROCHROMIC
REAR VIEW MIRROR
(for versions/markets where provided)
Some versions have an electrochromic mirror with auto-
matic antiglare function.
When the function is active, a LED on the mirror is ac-
tive. Engaging reverse gear, the mirror is automatically
set for daytime use.
Any adjustments must be carried out only
with the car stationary and engine off.
fig. 21L0E0013mfig. 20L0E0012m

52KNOWING YOUR CAR
DOOR MIRRORS fig. 22
Proceed as follows to adjust the position of the door mir-
rors:
❍select the mirror using selector B;
❍adjust the mirror using the controls A, in all four di-
rections.Folding door mirrors fig. 23
When required (for example when the mirror causes dif-
ficulty in narrow spaces) it is possible to fold the mirror
by moving it from position 1 (open), to position 2 (closed).
On some versions the door mirrors can be folded back
electrically by operating a dedicated control.
fig. 22L0E0014mfig. 23L0E0015m
When driving, the mirrors should always
be in position 1. As the door mirrors are
curved, they may slightly alter the percep-
tion of distance.

1
KNOWING YOUR CAR53
CLIMATIC COMFORT
VENTS fig. 24
1. Windscreen defrosting/demisting vents. – 2. Adjustable central vents – 3. Adjustable side vents – 4. Fixed vents for
side windows – 5. Lower vents – 6. Rear adjustable vent.
L0E0016mfig. 24

54KNOWING YOUR CAR
MANUAL CLIMATE CONTROL SYSTEM
L0E0017mfig. 25
CONTROLS fig. 25
A. Air temperature knob (red = hot/blue = cold)
B. Fan speed knob.
C. Air distribution knob
μtoward the body and the side windows
∑toward the body, the side windows and the feet∂toward the feet only
∏toward the feet and the windscreen
-toward the windshield only.

1

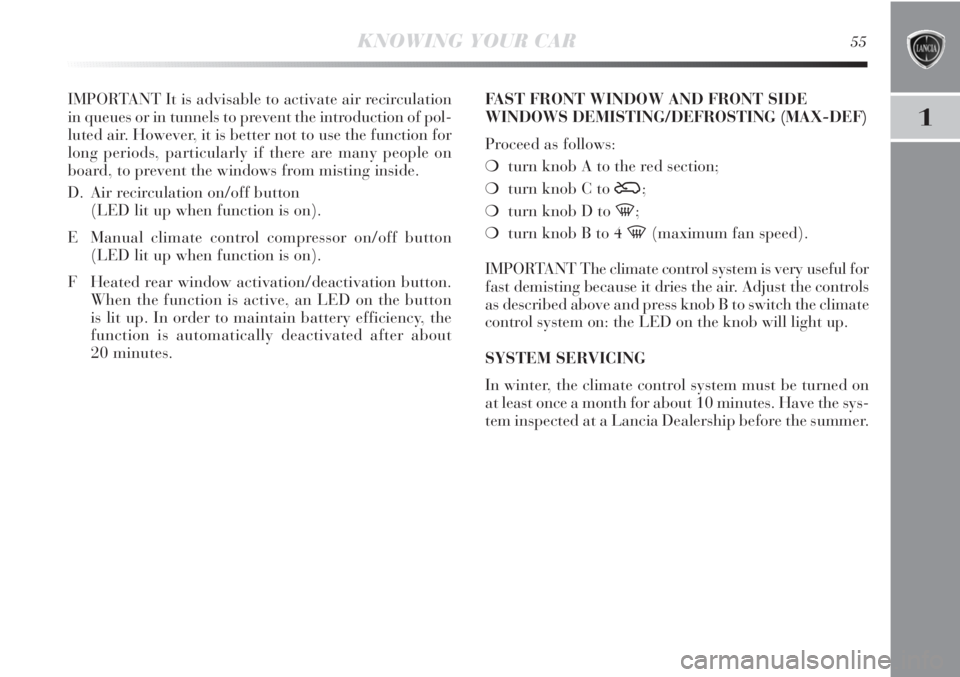

KNOWING YOUR CAR55
IMPORTANT It is advisable to activate air recirculation
in queues or in tunnels to prevent the introduction of pol-
luted air. However, it is better not to use the function for
long periods, particularly if there are many people on
board, to prevent the windows from misting inside.
D. Air recirculation on/off button
(LED lit up when function is on).
E Manual climate control compressor on/off button
(LED lit up when function is on).
F Heated rear window activation/deactivation button.
When the function is active, an LED on the button
is lit up. In order to maintain battery efficiency, the
function is automatically deactivated after about
20 minutes.FAST FRONT WINDOW AND FRONT SIDE
WINDOWS DEMISTING/DEFROSTING (MAX-DEF)
Proceed as follows:
❍turn knob A to the red section;
❍turn knob C to
Ú;
❍turn knob D to -;
❍turn knob B to 4 -(maximum fan speed).
IMPORTANT The climate control system is very useful for
fast demisting because it dries the air. Adjust the controls
as described above and press knob B to switch the climate
control system on: the LED on the knob will light up.
SYSTEM SERVICING
In winter, the climate control system must be turned on
at least once a month for about 10 minutes. Have the sys-
tem inspected at a Lancia Dealership before the summer.

56KNOWING YOUR CAR
AUTOMATIC DUAL-ZONE CLIMATE CONTROL SYSTEM
(for versions/markets, where provided)
L0E0018mfig. 26
The vehicle may be equipped with a dual zone automatic
climate control system, fig. 26, which regulates the pas-
senger side air temperature separately from the driver’s
side.The system is equipped with an AQS (Air Quality
System) function, which automatically switches on the
air recirculation system if the outside air is polluted (e.g.
in traffic queues and tunnels).

1
KNOWING YOUR CAR57
SWITCHING ON THE CLIMATE
CONTROL SYSTEM
The system can be activated by pressing any of the but-
tons; it is, however, advisable to set the desired temper-
atures on the display, then press the AUTO button.
The climate control system allows you to customise the
temperatures (driver side and passenger side) with a max-
imum difference of 7 °C.
The climate control system compressor works only with
the engine running and with an outside temperature of
above 4 °C.
It is advisable not to use the air recircula-
tion function when the outside temperature
is low to prevent the windows from rapidly
misting up.
Automatic climate control operation
(AUTO function) A-fig. 26
Press the AUTO button; the system will automatically
adjust:
❍the amount of air introduced into the passenger com-
partment;
❍the distribution of air inside the passenger compart-
ment;
cancelling any previous manual settings.
During climate control system automatic operation, the
words FULL AUTO appear on the display.
During automatic operation it is still possible to adjust
the set temperature and carry out the following opera-
tions manually:
❍adjust fan speed;
❍select air distribution;
❍switch internal air recirculation and AQS function
on/off;
❍switch on the climate control system compressor.

58KNOWING YOUR CAR
Selecting air distribution B-fig. 26
Press one or more of buttons
//˙to manually select
one of the 7 possible air distribution settings for the pas-
senger compartment:
Air flow to the windscreen and front side window
vents to demist/defrost them.
Air flow to the front and rear footwell vents. This
air distribution allows the passenger compartment
to be warmed up quickly.
Air flow distribution between the
˙front and rear vents, centre/side dashboard vents,
rear vent and windscreen and front side window
demisting/defrosting vents.

Air flow distribution between the footwell vents
and the windscreen and front side window
demisting/defrosting vents. This distribution set-
ting allows the passenger compartment to be
heated well and prevents the windows from mist-
ing up.
˙
Air flow distribution between footwell vents (hot-
ter air) and centre/side dashboard vents and rear
vent (cooler air).
˙Air flow distribution between centre/side dash-
board vents, rear vent and windscreen and front
side window demisting/defrosting vents. This dis-
tribution setting ventilates the passenger compart-
ment and prevents the windows from misting up.IMPORTANT For the climate control system to function,
at least one of the following buttons must be on:
//˙.
The system does not allow all the buttons //˙to be
switched off.
IMPORTANT Push the OFF button to turn the climate
control system back on: in this way, all previously saved
operating conditions are restored before switching off.
To restore automatic control of the air distribution after
a manual selection, press the AUTO button.

1
KNOWING YOUR CAR59
Adjusting the fan speed fig. 26
Operate buttons C
pto increase/decrease the speed of the
fan.
The 12 possible speeds are indicated by bars lighting up
on the display:
❍max fan speed = all bars lit
❍min. fan speed = one bar lit.
The fan can be disabled (no bars lit) only if the climate
control compressor has been switched off by pressing
button
❄.
To restore automatic fan speed control after a manual ad-
justment, press AUTO.Aligning the set temperatures (MONO function)
fig. 26
Press button D (MONO) to align the temperature between
the driver side and passenger side.
Then turn the AUTO or MONO knob to increase/decrease
the temperature between the two areas by the same
amount.
Press MONO again to deactivate the function.
Switching off the climate control system fig. 26
Press button E (OFF).
The following information is shown on the display:
❍the word OFF;
❍outside temperature reading;
❍indication that air recirculation is switched on (LED
on button
Tis lit).
