LAND ROVER DISCOVERY 2002 Workshop Manual

TRANSFER BOX - LT230SE
41-18 DESCRIPTION AND OPERATION
On vehicle fitted with a differential lock, the high/low range selector lever as fitted on previous models also
incorporates the differential lock selector on vehicles from 03 model year.
The lever can be moved forwards or backwards to select high, neutral or low range or sideways to select differential
lock engaged or disengaged, on vehicles with differential lock fitted.
The selector lever assembly comprises an aluminium casting with bosses for location of the two cables, the selector
lever mechanism and a housing for the interlock solenoid (if fitted). The upper face of the casting has threaded holes
which allow for the attachment of the casting to the mounting plate which is attached to the transmission tunnel.
A boss at the front provides location for the differential lock cable. The cable is attached to a lever which in turn is
attached to the selector lever. Movement of the selector lever is passed via the lever to the cable which moves the
differential lock selector shaft.
A second boss provides for the location of the high/low range cable. The cable is attached to a plate which moves in
a forward or rearward direction with the selector lever. On North American and Japanese specification models, plate
movement is prevented by an interlock solenoid when the ignition key is not in the ignition.
When fitted, the interlock solenoid is located on the right hand side of the selector lever casting. The solenoid is fitted
into a cast housing in the casting and retained with a circlip. Sealant is applied over the circlip to seal the solenoid in
the housing to prevent the ingress of dirt and moisture. The solenoid performs the same function as on previous
models, preventing the selection of neutral on the transfer box when the ignition key is not in the ignition.
A setting procedure is required for both the differential lock cable and the high/low range cable.

TRANSFER BOX - LT230SE
DESCRIPTION AND OPERATION 41-19
Operation

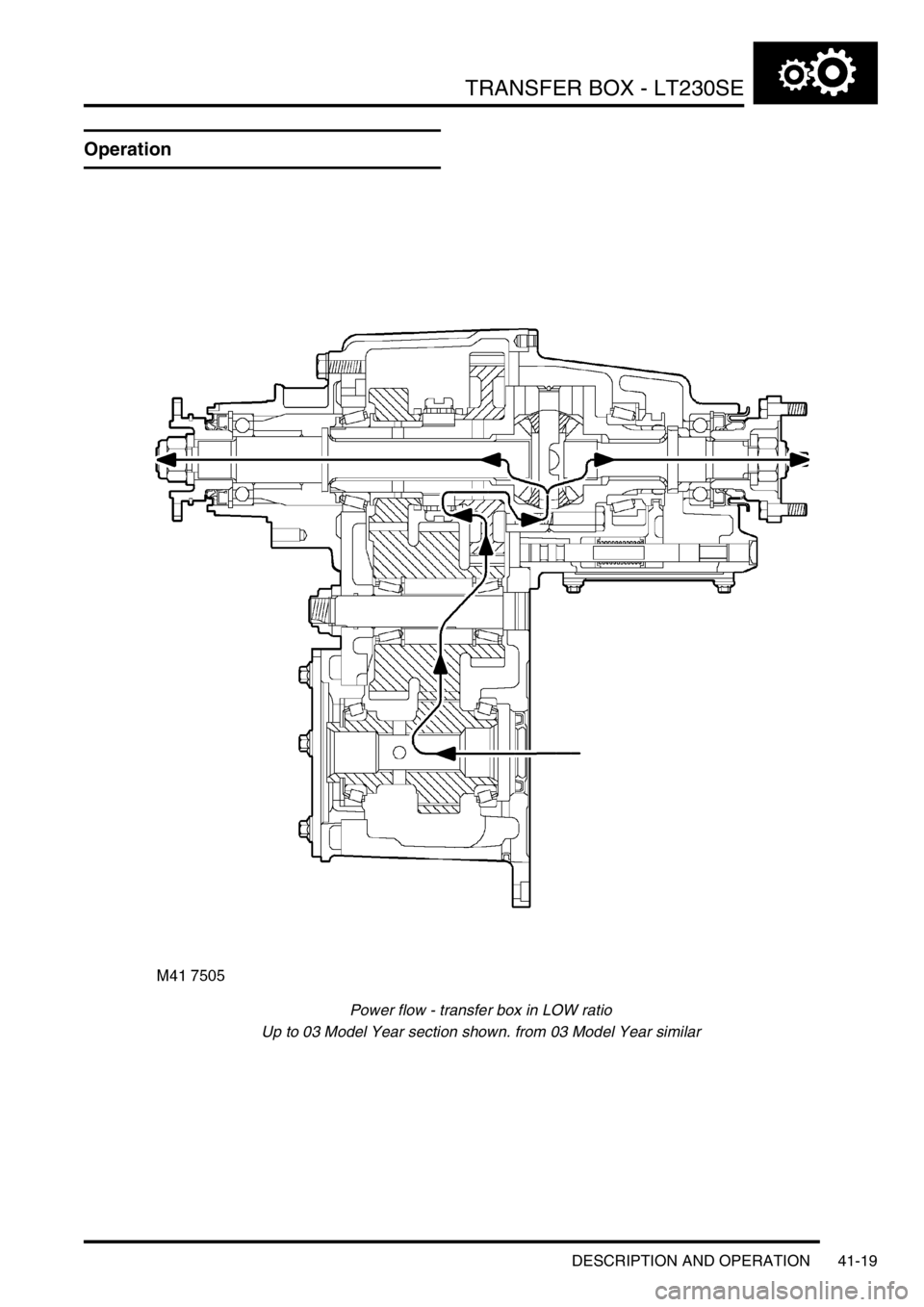

Power flow - transfer box in LOW ratio
Up to 03 Model Year section shown. from 03 Model Year similar

TRANSFER BOX - LT230SE
41-20 DESCRIPTION AND OPERATION
Power flow - transfer box in HIGH ratio
Up to 03 Model Year section shown, from 03MY similar
The gearbox output shaft transmits power to the mainshaft input gear which is in constant mesh with one of the
intermediate gears. The intermediate gears are in constant mesh with the high and low range output gears running
on the differential rear shaft.
Power is transmitted to the output shafts via the differential assembly by locking either the high or low range gears to
the differential rear shaft. This is achieved by means of the high/low selector fork, sleeve and splined hub.

TRANSFER BOX - LT230SE
ADJUSTMENTS 41-21
ADJUST ME NTS
Cable - high/low selector
$% 41.20.46
Adjust
1.Raise vehicle on ramp.
2.Using a suitable crows foot spanner, loosen
lock nuts securing outer cable to abutment
bracket.
3.Select high range by moving lever on transfer
gearbox fully forward.
4.Insert tool LRT-41-016 through hole in selector
lever and housing. This ensures selector
lever is in the high range position.
5.Lightly tighten outer cable lock nuts.
6.Remove tool LRT-41-016 from gear selector
lever and housing.
7.Simultaneously tighten high/low selector cable
lock nuts either side of abutment bracket to 30
Nm (22 lbf.ft) .
8.Lower vehicle on ramp.

TRANSFER BOX - LT230SE
41-22 ADJUSTMENTS

TRANSFER BOX - LT230SE
REPAIRS 41-23
REPAIRS
Bottom cover - transfer box
$% 41.20.06
Remove
1.Raise vehicle on ramp.
2.Drain transfer box oil.

+ MAINTENANCE, PROCEDURES,
Transfer box.
3.Remove 8 bolts securing cross member to
chassis and remove cross member.
4.Remove 10 bolts securing bottom cover to
transfer box and remove cover. Refit
1.Clean bottom plate and mating face on transfer
box.
2.Clean bolt threads.
3.Apply sealant, Part No. STC 3254 to bottom
plate sealing face.
4.Apply Loctite 290 to bolt threads.
5.Position bottom plate and tighten bolts to 25
Nm (18 lbf.ft).
6.Position cross member to chassis and tighten
bolts to 26 Nm (19 lbf.ft).
7.Fill transfer box with oil.

+ MAINTENANCE, PROCEDURES,
Transfer box.
8.Lower vehicle on ramp.

TRANSFER BOX - LT230SE
41-24 REPAIRS
Transfer box - Diesel
$% 41.20.25.99
Remove
1.Remove front exhaust pipe.

+ MANIFOLDS AND EXHAUST
SYSTEMS - Td5, REPAIRS, Pipe - front.
2.Raise vehicle on ramp.
3.Drain transfer box oil.

+ MAINTENANCE, PROCEDURES,
Transfer box.
4.Remove 3 nuts securing intermediate silencer
to tail pipe.
5.Release silencer from mounting rubbers.
6.Remove silencer and discard gasket.
7.Remove front propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - front.
8.Remove rear propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - rear.9.Remove handbrake drum retaining screw and
remove drum.
10.Remove 4 bolts from handbrake back plate,
release back plate and tie aside.
11.Remove clevis pin securing high/low ratio
selector cable to selector lever, remove 'C' clip
and release outer cable from abutment bracket.

TRANSFER BOX - LT230SE
REPAIRS 41-25
12. If fitted: Disconnect 2 Lucars from differential
lock switch and disconnect multiplug from
reverse light switch.
13.Remove cable tie and multi plug from bracket
on transfer box.
14.Release transfer box breather pipe from
bulkhead clip.
15.Remove 4 bolts from transfer box bottom plate,
position support plate LRT-99-010 to transfer
box and tighten bolts.
16.Position gearbox support jack and secure
support plate to jack using 4 bolts. 17.Remove 3 bolts securing transfer box to
gearbox.
18.Fit 3 guide studs LRT-41-009 through
transfer box bolt holes to support it during
removal.
19.Remove 2 bolts and nut securing transfer box
to gearbox. CAUTION: If securing stud is
removed during this operation, it must be
discarded and a new stud fitted.
20.Position a jack to support gearbox and engine.
21.Remove 4 bolts and nut, remove gearbox RH
mounting.
22.With assistance, remove transfer box from
gearbox.
23.Remove input shaft oil seal.

+ TRANSFER BOX - LT230SE,
REPAIRS, Oil seal - input shaft.

TRANSFER BOX - LT230SE
41-26 REPAIRS
Refit
1.Fit new input shaft oil seal.

+ TRANSFER BOX - LT230SE,
REPAIRS, Oil seal - input shaft.
2.Clean transfer box to gearbox mating faces.
3.Raise transfer box on jack and align to guide
studs LRT-41-009.
4.Clean transfer box to gearbox bolt threads.
5.Apply Loctite 290 to bolt and stud threads.
6.Fit and lightly tighten 2 bolts and nut securing
transfer box to gearbox. If new stud is to be
fitted, apply Loctite 290 to stud threads and
tighten to 45 Nm (33 lbf.ft).
7.Remove guide studs, fit and lightly tighten
remaining 3 bolts.
8.Tighten bolts and nut by diagonal selection to
45 Nm (33 lbf.ft).
9.Position gearbox RH mounting and tighten
bolts to 85 Nm (63 lbf.ft).
10.Tighten gearbox RH mounting nut to 48 Nm
(35 lbf.ft).
11.Remove 4 bolts securing support plate to
gearbox jack.
12.Remove 4 bolts securing support plate LRT-99-
010 to transfer box and remove plate.
13.Clean bottom plate bolt threads.
14.Apply Loctite 290 to threads of 4 bottom plate
bolts.
15.Fit 4 bolts securing bottom plate to transfer box
and tighten to 25 Nm (18 lbf.ft).
16.Position breather pipe and secure to bulkhead
clip.
17.Connect multiplug to reverse light switch.
18. If fitted - Connect Lucars to differential lock
switch.
19.Fit multiplug and cable tie to transfer gearbox
bracket. 20.Position high/low ratio selector cable and
secure with clevis pin.
21.Clean handbrake and mating face.
22.Position handbrake back plate and tighten
bolts to 75 Nm (55 lbf.ft).
23.Clean handbrake drum.
24.Fit handbrake drum and tighten retaining
screw.
25.Fit front propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - front.
26.Fit rear propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - rear.
27.Clean exhaust silencer and mating face.
28.Position silencer, fit new gasket , connect
mounting rubbers and tighten nuts to 40 Nm
(30 lbf.ft).
29.Refill transfer box with oil.

+ MAINTENANCE, PROCEDURES,
Transfer box.
30.Fit front exhaust pipe.

+ MANIFOLDS AND EXHAUST
SYSTEMS - Td5, REPAIRS, Pipe - front.

TRANSFER BOX - LT230SE
REPAIRS 41-27
Transfer box - V8
$% 41.20.25.99
Remove
1.Remove front exhaust pipe.

+ MANIFOLDS AND EXHAUST
SYSTEMS - V8, REPAIRS, Front pipe.
2.Drain transfer box oil.

+ MAINTENANCE, PROCEDURES,
Transfer box.
3.Remove 8 bolts securing rear cross member
and remove cross member.
4.Remove 3 nuts securing intermediate silencer
to tail pipe.
5.Release silencer from mounting rubbers,
remove silencer and discard gasket.
6.Remove front propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - front.
7.Remove rear propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - rear.8.Remove handbrake drum retaining screw and
remove handbrake drum.
9.Remove 4 bolts from handbrake back plate,
release back plate and tie aside.
10.Remove clevis pin and 'C' washer securing
high/low ratio selector cable to selector lever
and release cable from abutment bracket.
