SEATS

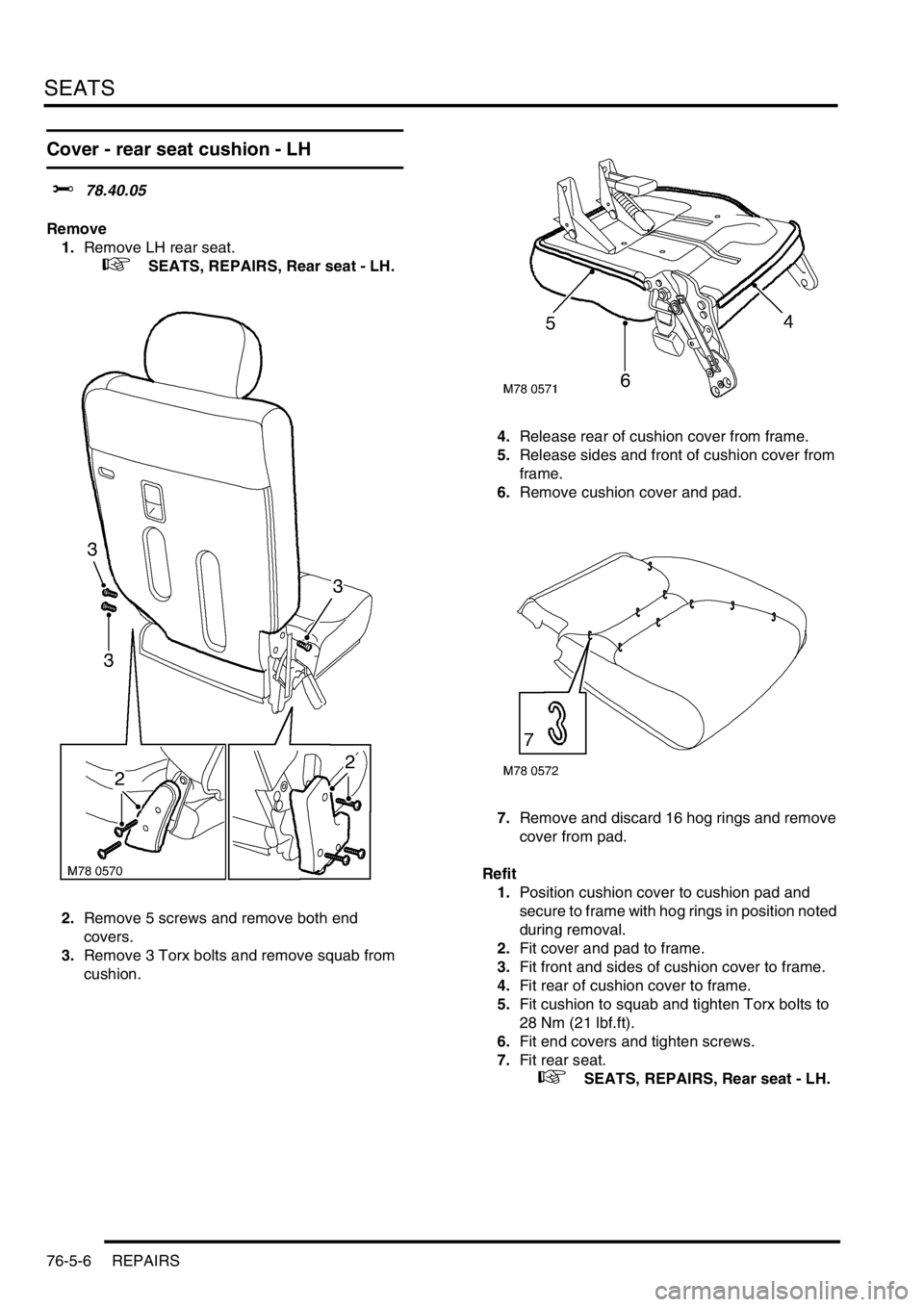

76-5-6 REPAIRS
Cover - rear seat cushion - LH
$% 78.40.05
Remove
1.Remove LH rear seat.

+ SEATS, REPAIRS, Rear seat - LH.
2.Remove 5 screws and remove both end
covers.
3.Remove 3 Torx bolts and remove squab from
cushion.4.Release rear of cushion cover from frame.
5.Release sides and front of cushion cover from
frame.
6.Remove cushion cover and pad.
7.Remove and discard 16 hog rings and remove
cover from pad.
Refit
1.Position cushion cover to cushion pad and
secure to frame with hog rings in position noted
during removal.
2.Fit cover and pad to frame.
3.Fit front and sides of cushion cover to frame.
4.Fit rear of cushion cover to frame.
5.Fit cushion to squab and tighten Torx bolts to
28 Nm (21 lbf.ft).
6.Fit end covers and tighten screws.
7.Fit rear seat.

+ SEATS, REPAIRS, Rear seat - LH.

SEATS
REPAIRS 76-5-7
Cover - cushion - rear single seat - 3 door
$% 78.40.08
Remove
1.Remove rear seat assembly.

+ SEATS, REPAIRS, Cushion & squab
- rear seat - bench type - 3 door.

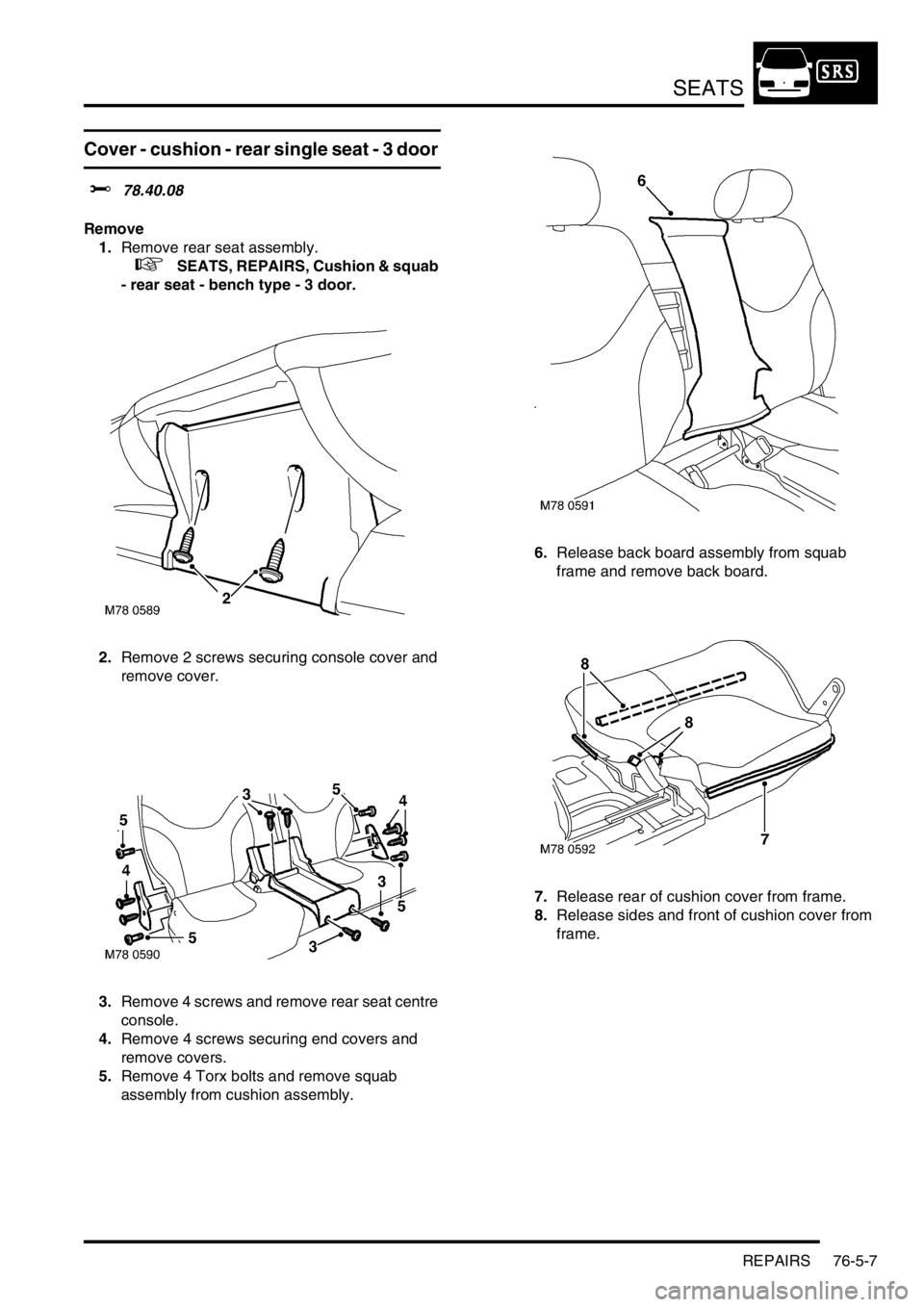

2.Remove 2 screws securing console cover and
remove cover.
3.Remove 4 screws and remove rear seat centre
console.
4.Remove 4 screws securing end covers and
remove covers.
5.Remove 4 Torx bolts and remove squab
assembly from cushion assembly.6.Release back board assembly from squab
frame and remove back board.
7.Release rear of cushion cover from frame.
8.Release sides and front of cushion cover from
frame.

SEATS
76-5-8 REPAIRS
9.Remove cover and pad from frame.
10.Remove and discard 13 hog rings and remove
cover from pad.
Refit
1.Position cushion cover to pad and secure with
hog rings.
2.Fit cover to pad.
3.Position and secure cushion cover and pad to
frame.
4.Fit cushion to squab and tighten Torx bolts to
28 Nm (21 lbf.ft).
5.Position back board and secure to frame.
6.Fit end covers and tighten screws.
7.Position rear seat console and secure with
screws.
8.Position console cover and secure with screws.
9.Fit rear seat.

+ SEATS, REPAIRS, Cushion & squab
- rear seat - bench type - 3 door.

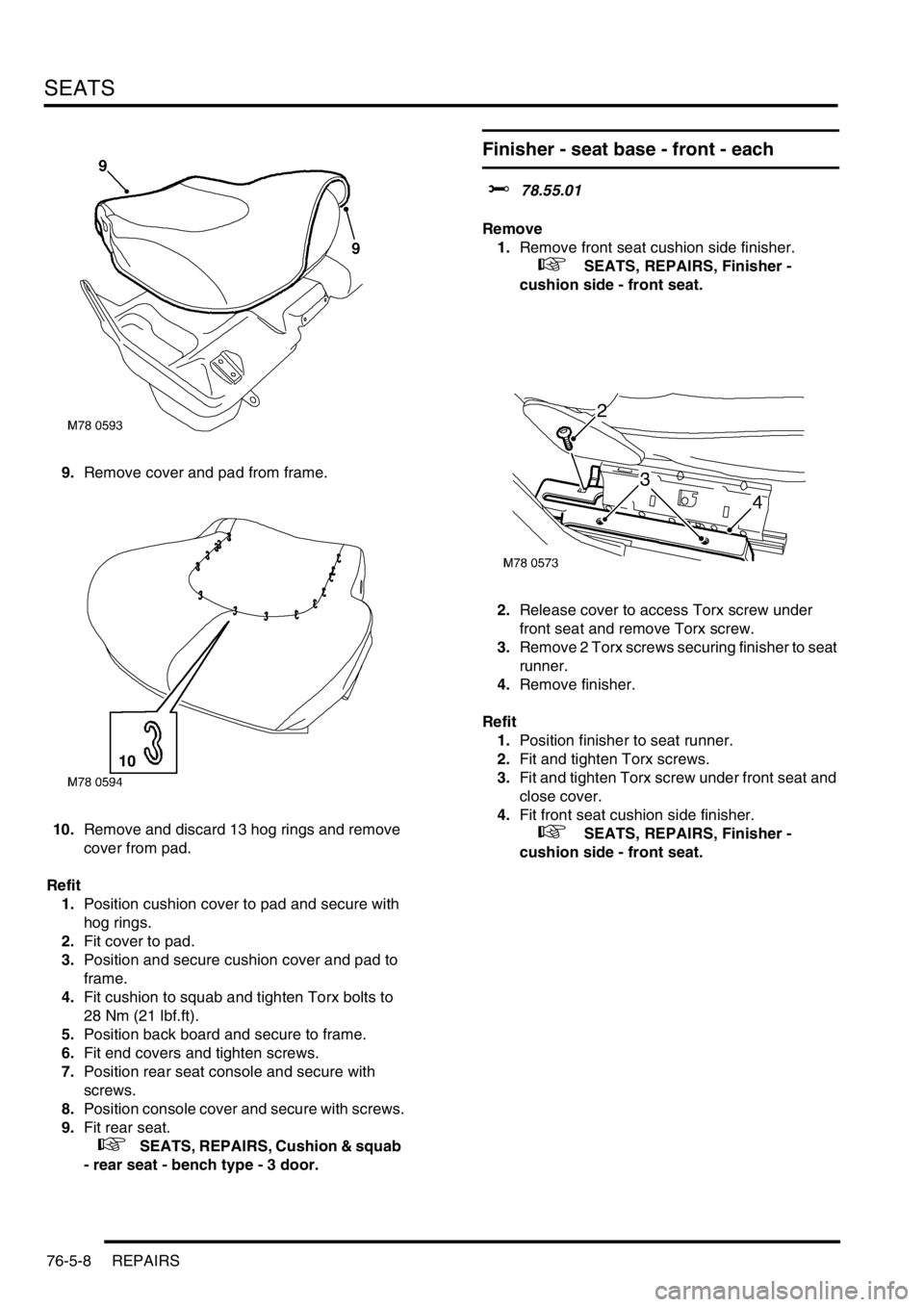

Finisher - seat base - front - each
$% 78.55.01
Remove
1.Remove front seat cushion side finisher.

+ SEATS, REPAIRS, Finisher -
cushion side - front seat.

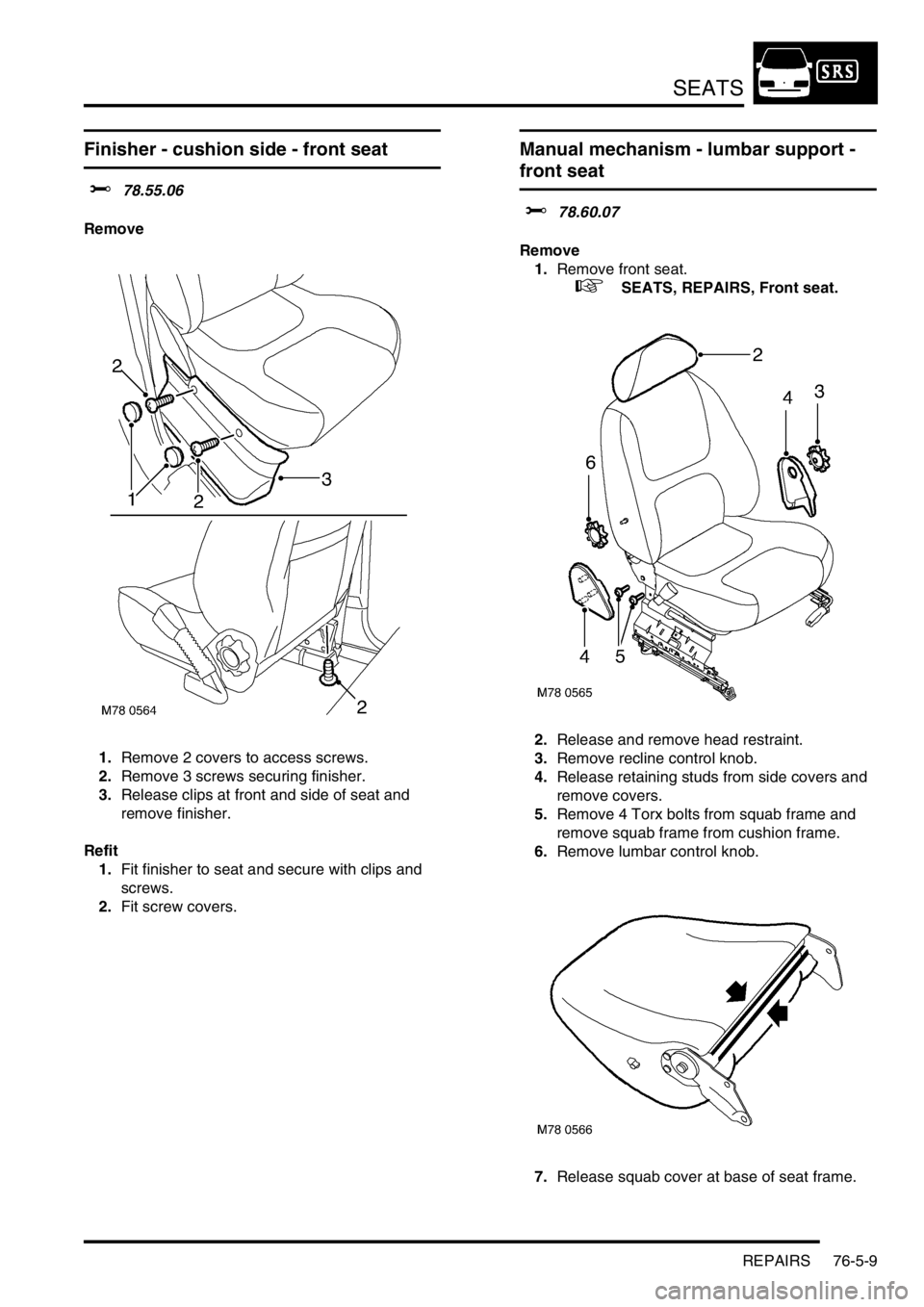

2.Release cover to access Torx screw under
front seat and remove Torx screw.
3.Remove 2 Torx screws securing finisher to seat
runner.
4.Remove finisher.
Refit
1.Position finisher to seat runner.
2.Fit and tighten Torx screws.
3.Fit and tighten Torx screw under front seat and
close cover.
4.Fit front seat cushion side finisher.

+ SEATS, REPAIRS, Finisher -
cushion side - front seat.

SEATS
REPAIRS 76-5-9
Finisher - cushion side - front seat
$% 78.55.06
Remove
1.Remove 2 covers to access screws.
2.Remove 3 screws securing finisher.
3.Release clips at front and side of seat and
remove finisher.
Refit
1.Fit finisher to seat and secure with clips and
screws.
2.Fit screw covers.
Manual mechanism - lumbar support -
front seat
$% 78.60.07
Remove
1.Remove front seat.

+ SEATS, REPAIRS, Front seat.

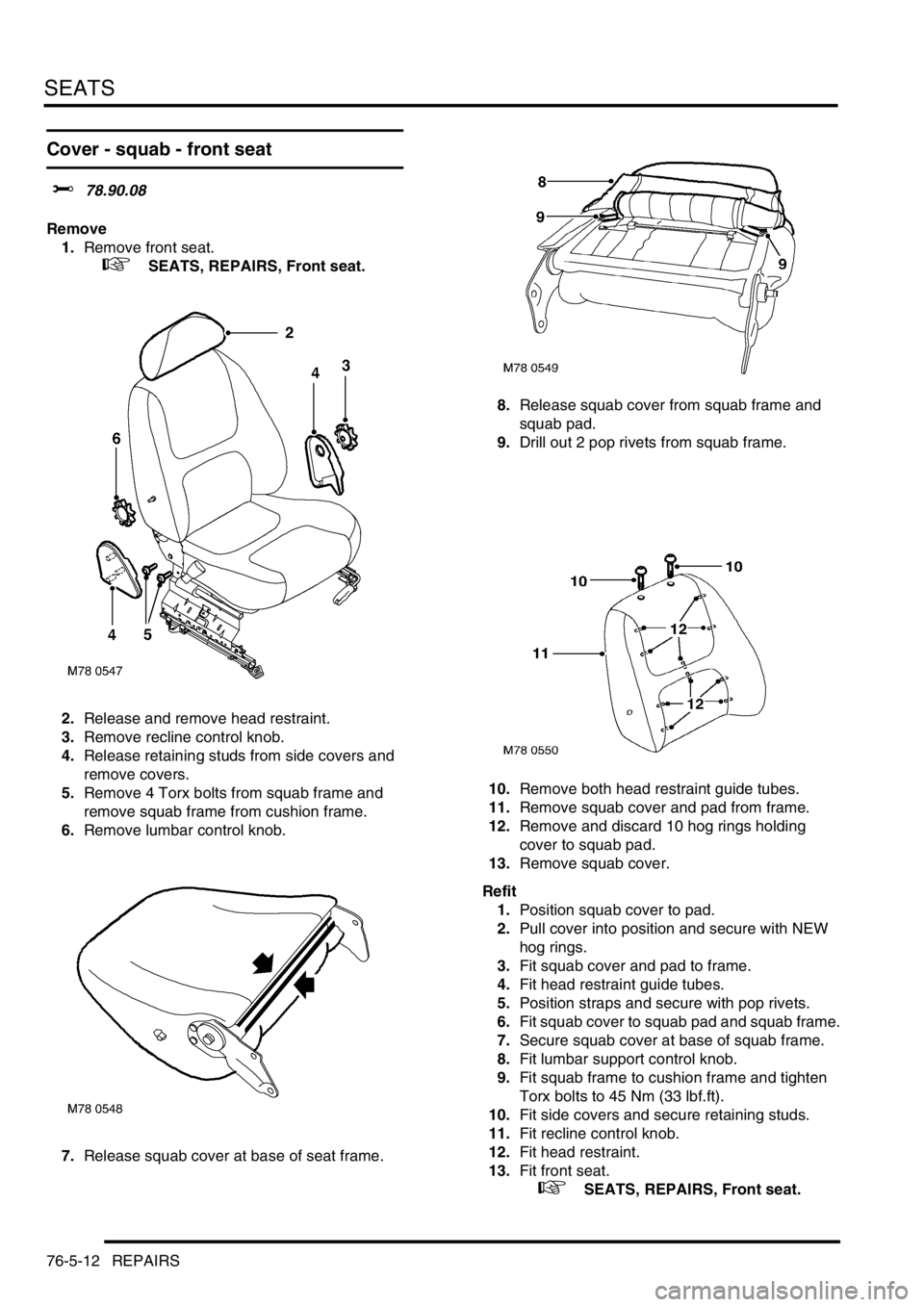

2.Release and remove head restraint.
3.Remove recline control knob.
4.Release retaining studs from side covers and
remove covers.
5.Remove 4 Torx bolts from squab frame and
remove squab frame from cushion frame.
6.Remove lumbar control knob.
7.Release squab cover at base of seat frame.

SEATS
76-5-10 REPAIRS

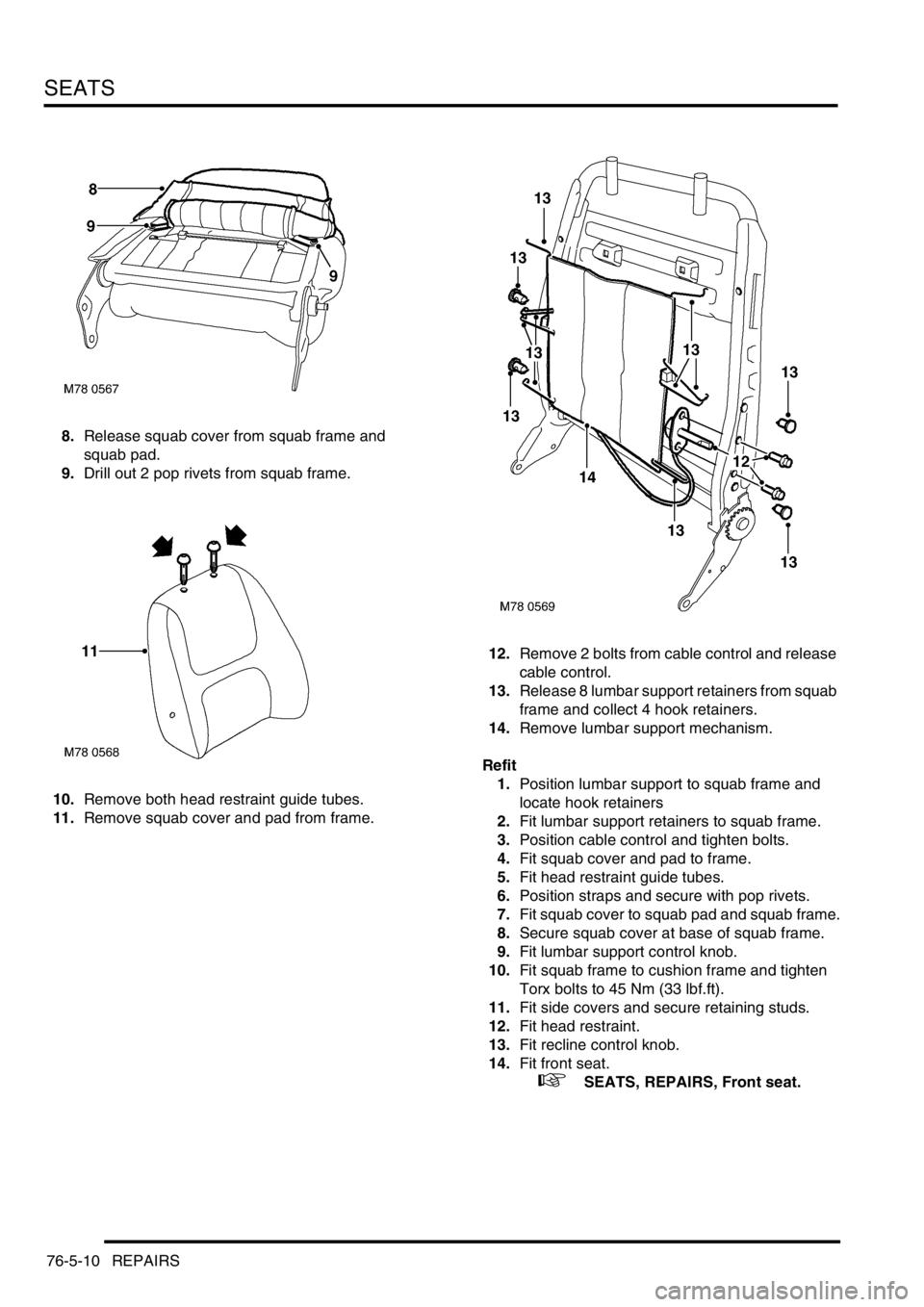

8.Release squab cover from squab frame and
squab pad.
9.Drill out 2 pop rivets from squab frame.
10.Remove both head restraint guide tubes.
11.Remove squab cover and pad from frame.12.Remove 2 bolts from cable control and release
cable control.
13.Release 8 lumbar support retainers from squab
frame and collect 4 hook retainers.
14.Remove lumbar support mechanism.
Refit
1.Position lumbar support to squab frame and
locate hook retainers
2.Fit lumbar support retainers to squab frame.
3.Position cable control and tighten bolts.
4.Fit squab cover and pad to frame.
5.Fit head restraint guide tubes.
6.Position straps and secure with pop rivets.
7.Fit squab cover to squab pad and squab frame.
8.Secure squab cover at base of squab frame.
9.Fit lumbar support control knob.
10.Fit squab frame to cushion frame and tighten
Torx bolts to 45 Nm (33 lbf.ft).
11.Fit side covers and secure retaining studs.
12.Fit head restraint.
13.Fit recline control knob.
14.Fit front seat.

+ SEATS, REPAIRS, Front seat.

SEATS
REPAIRS 76-5-11
Latch - rear squab - RH
$% 78.80.05
Remove
1.Remove rear seat squab cover.

+ SEATS, REPAIRS, Cover - squab -
rear seat - RH.
2.Remove 2 Torx screws from squab lock.
3.Remove 3 screws from lock button.
4.Release cable from lever abutment and remove
latch assembly.
Refit
1.Position latch assembly to frame and locate
cable in abutment.
2.Fit Torx screws to squab lock and tighten to 20
Nm (15 lbf.ft).
3.Fit screws to lock button.
4.Fit squab cover.

+ SEATS, REPAIRS, Cover - squab -
rear seat - RH.
Latch - rear squab - LH
$% 78.80.16
Remove
1.Remove rear seat squab cover.

+ SEATS, REPAIRS, Cover - squab -
rear seat - side - LH.
2.Remove 2 Torx screws from squab lock.
3.Release cable from lever abutment.
4.Remove lock and cable from frame.
Refit
1.Position lock and cable to frame.
2.Fit and tighten Torx screws to lock.
3.Fit cable to lever abutment.
4.Fit squab cover.

+ SEATS, REPAIRS, Cover - squab -
rear seat - side - LH.

SEATS
76-5-12 REPAIRS
Cover - squab - front seat
$% 78.90.08
Remove
1.Remove front seat.

+ SEATS, REPAIRS, Front seat.
2.Release and remove head restraint.
3.Remove recline control knob.
4.Release retaining studs from side covers and
remove covers.
5.Remove 4 Torx bolts from squab frame and
remove squab frame from cushion frame.
6.Remove lumbar control knob.
7.Release squab cover at base of seat frame.8.Release squab cover from squab frame and
squab pad.
9.Drill out 2 pop rivets from squab frame.
10.Remove both head restraint guide tubes.
11.Remove squab cover and pad from frame.
12.Remove and discard 10 hog rings holding
cover to squab pad.
13.Remove squab cover.
Refit
1.Position squab cover to pad.
2.Pull cover into position and secure with NEW
hog rings.
3.Fit squab cover and pad to frame.
4.Fit head restraint guide tubes.
5.Position straps and secure with pop rivets.
6.Fit squab cover to squab pad and squab frame.
7.Secure squab cover at base of squab frame.
8.Fit lumbar support control knob.
9.Fit squab frame to cushion frame and tighten
Torx bolts to 45 Nm (33 lbf.ft).
10.Fit side covers and secure retaining studs.
11.Fit recline control knob.
12.Fit head restraint.
13.Fit front seat.

+ SEATS, REPAIRS, Front seat.

SEATS
REPAIRS 76-5-13

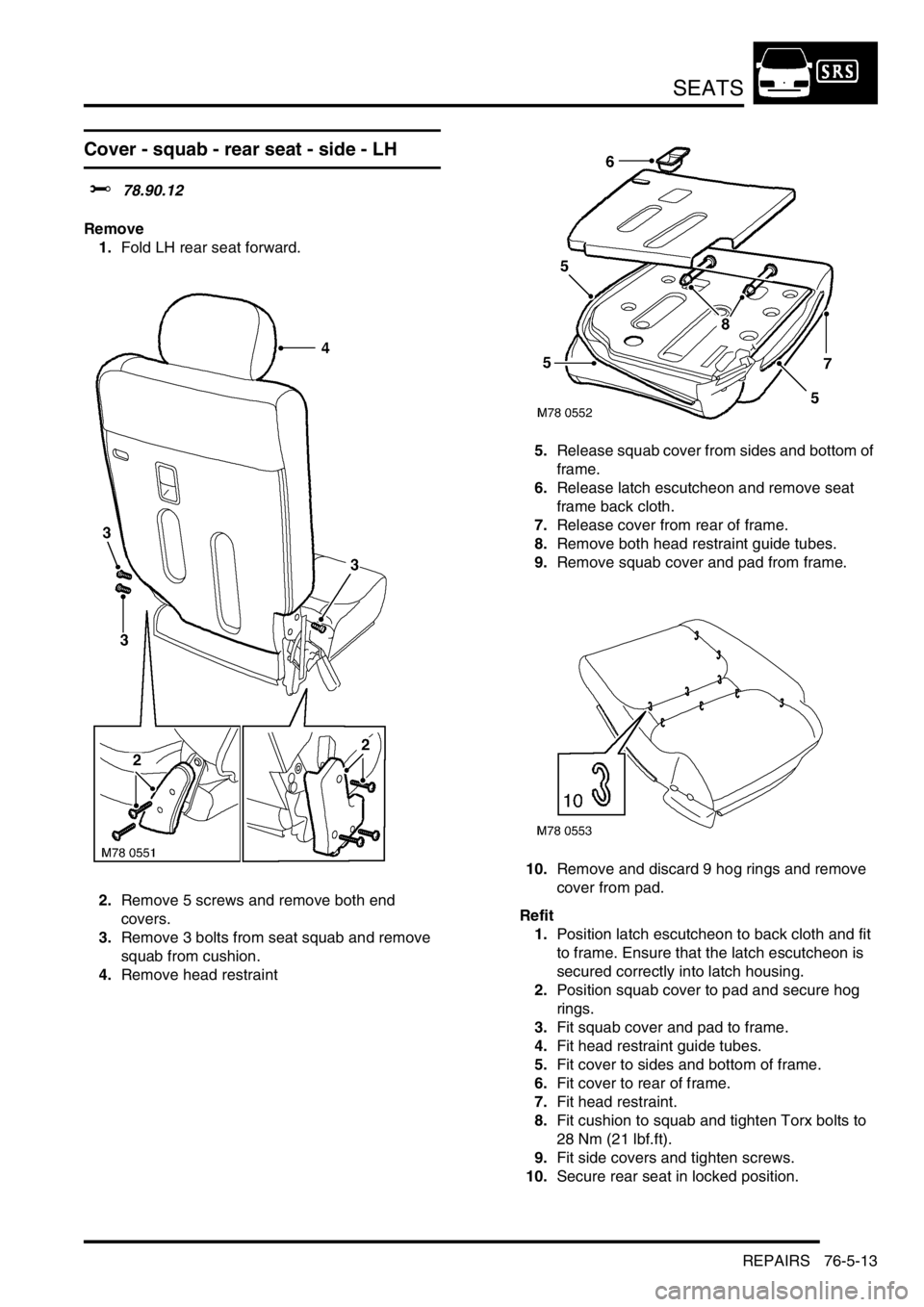

Cover - squab - rear seat - side - LH
$% 78.90.12
Remove
1.Fold LH rear seat forward.
2.Remove 5 screws and remove both end
covers.
3.Remove 3 bolts from seat squab and remove
squab from cushion.
4.Remove head restraint5.Release squab cover from sides and bottom of
frame.
6.Release latch escutcheon and remove seat
frame back cloth.
7.Release cover from rear of frame.
8.Remove both head restraint guide tubes.
9.Remove squab cover and pad from frame.
10.Remove and discard 9 hog rings and remove
cover from pad.
Refit
1.Position latch escutcheon to back cloth and fit
to frame. Ensure that the latch escutcheon is
secured correctly into latch housing.
2.Position squab cover to pad and secure hog
rings.
3.Fit squab cover and pad to frame.
4.Fit head restraint guide tubes.
5.Fit cover to sides and bottom of frame.
6.Fit cover to rear of frame.
7.Fit head restraint.
8.Fit cushion to squab and tighten Torx bolts to
28 Nm (21 lbf.ft).
9.Fit side covers and tighten screws.
10.Secure rear seat in locked position.

SEATS
76-5-14 REPAIRS
Cover - squab - rear seat - RH
$% 78.90.13
Remove
1.Fold RH rear seat forward.

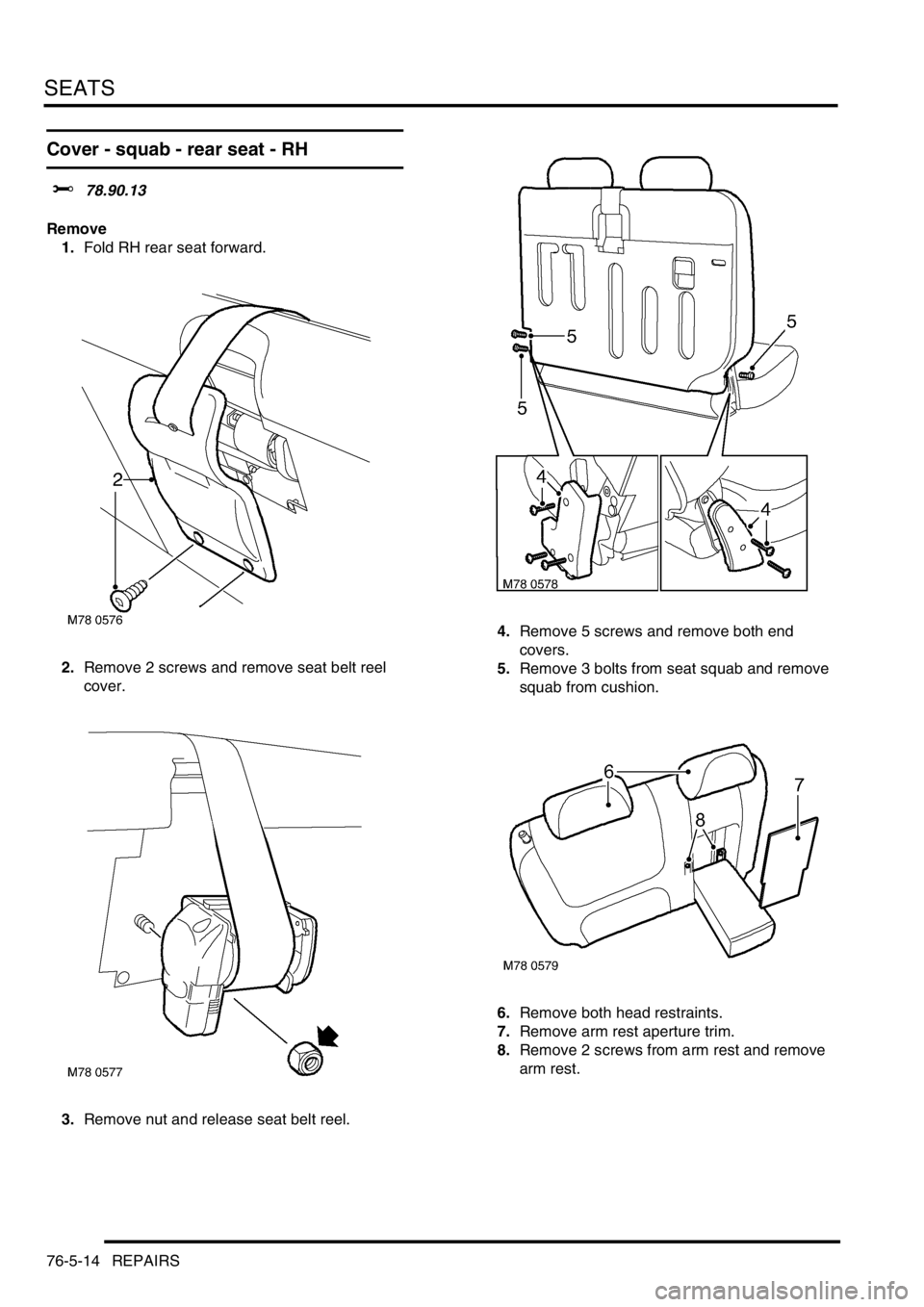

2.Remove 2 screws and remove seat belt reel
cover.
3.Remove nut and release seat belt reel.4.Remove 5 screws and remove both end
covers.
5.Remove 3 bolts from seat squab and remove
squab from cushion.
6.Remove both head restraints.
7.Remove arm rest aperture trim.
8.Remove 2 screws from arm rest and remove
arm rest.

SEATS
REPAIRS 76-5-15
9.Release squab from arm rest aperture.
10.Release squab from seat belt aperture and rear
of frame.
11.Release squab from sides and bottom of frame.
Release latch escutcheon and remove back
cloth.12.Release and remove 4 head restraint guide
tubes.
13.Release squab lock warning button
escutcheon.
14.Remove squab cover and pad from frame.
