LAND ROVER FRELANDER 2 2006 Repair Manual

Publi s hed: 11-May-2011

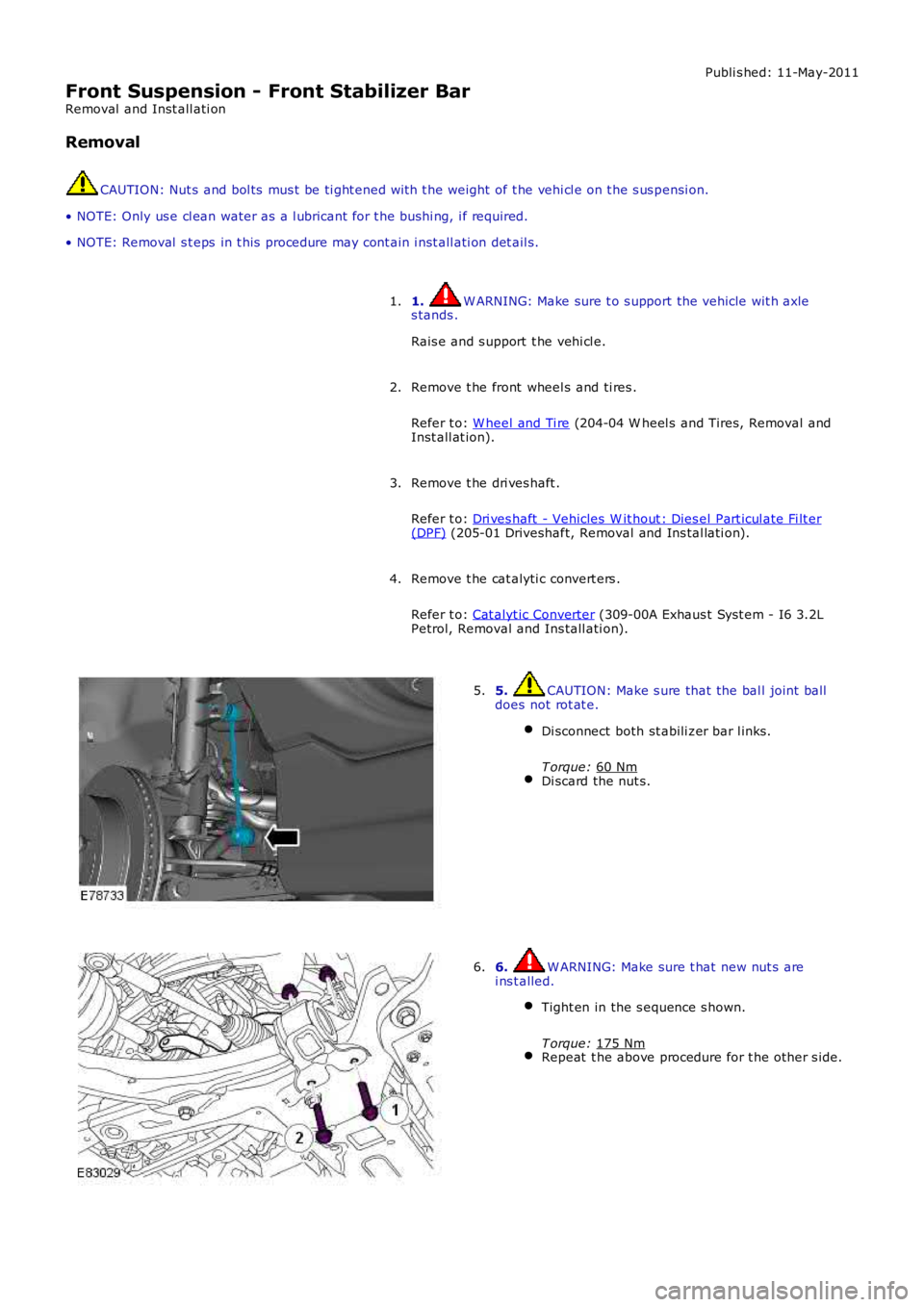

Front Suspension - Front Stabilizer Bar
Removal and Inst all ati on
Removal CAUTION: Nut s and bol ts mus t be ti ght ened wit h t he weight of t he vehi cl e on t he s us p
ensi on.
• NOTE: Only us e cl ean water as a l ubricant for t he bushi ng, i f required.
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2.
Remove t he dri ves haft .
Refer t o: Dri ves haft - Vehicles W it hout : Dies el Part icul ate Fi lt er (DPF) (205-01 Driveshaft, Removal and Ins tal lati on).
3.
Remove t he cat alyti c convert ers .
Refer t o: Cat alyt ic Converter (309-00A Exhaus t Syst em - I6 3.2L
Petrol, Removal and Ins tall ati on).
4. 5. CAUTION: Make s ure that the bal l joint ball
does not rot at e.
Di sconnect both st abili zer bar l inks.
T orque: 60 Nm Di scard the nut s.5.
6. W ARNING: Make sure t hat new nut s are
i ns t alled.
Tight en in the s equence s hown.
T orque: 175 Nm Repeat t he above procedure for t he other s ide.6.

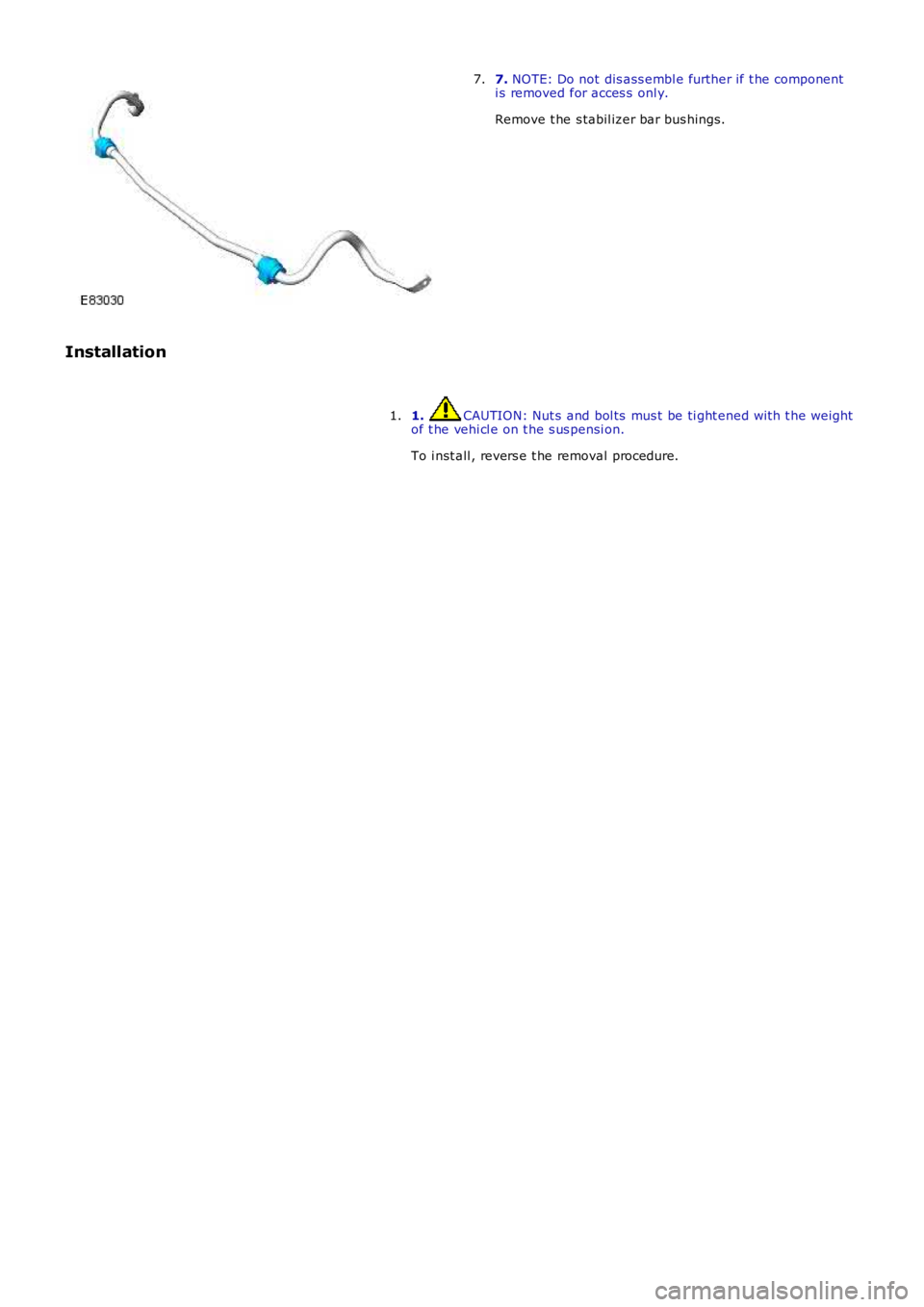

7. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.
Remove t he s tabil izer bar bus hings.
7.
Installation
1. CAUTION: Nut s and bol ts mus t be ti ght ened wit h t he weightof t he vehi cl e on t he s us pensi on.
To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

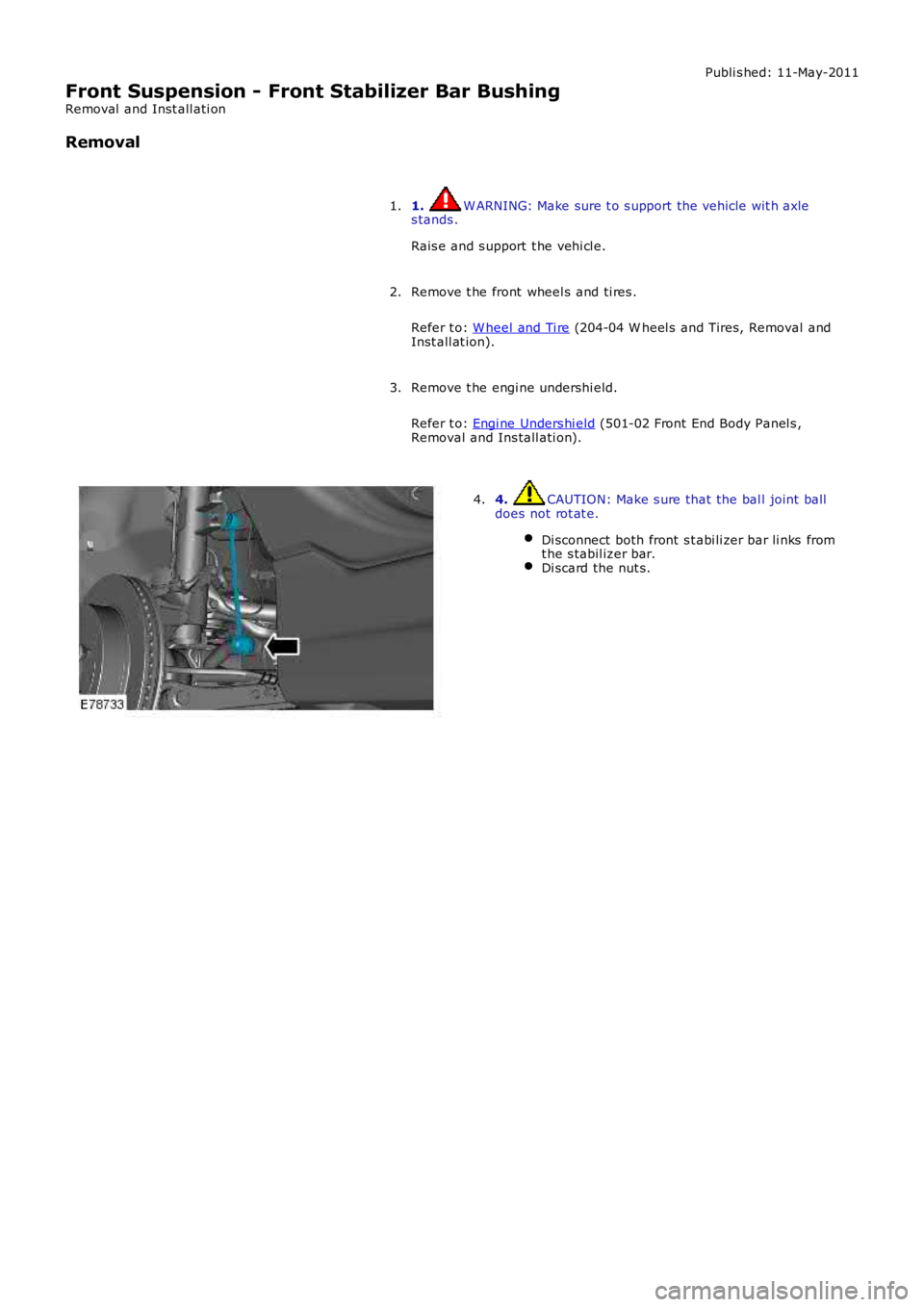

Front Suspension - Front Stabilizer Bar Bushing
Removal and Inst all ati on
Removal
1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
2.
Remove t he engi ne undershi eld.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,Removal and Ins tall ati on).
3.
4. CAUTION: Make s ure that the bal l joint balldoes not rot at e.
Di sconnect both front s t abi li zer bar li nks fromt he s tabil izer bar.Di scard the nut s.
4.

5. W ARNING: Make sure t hat new nut s are
i ns t alled.

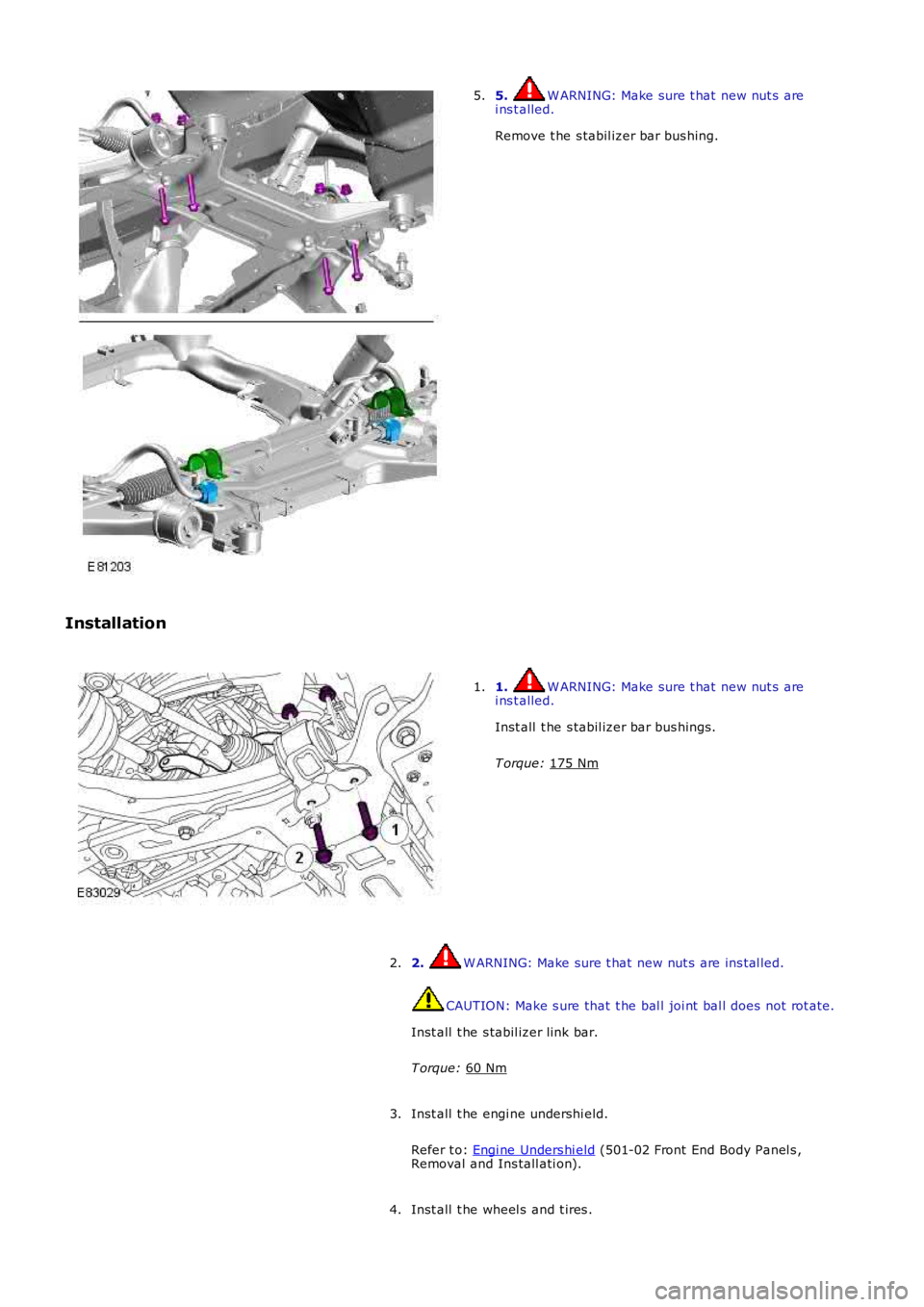

Remove t he s tabil izer bar bus hing.
5.
Installation 1. W ARNING: Make sure t hat new nut s are
i ns t alled.
Inst all t he s tabil izer bar bus hings.
T orque: 175 Nm 1.
2. W ARNING: Make sure t hat new nut s are ins tal led.
CAUTION: Make s ure that t he bal l joi nt bal l does not rot ate.
Inst all t he s tabil izer link bar.
T orque: 60 Nm 2.
Inst all t he engi ne undershi eld.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
3.
Inst all t he wheel s and t ires .
4.

Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).

Publi s hed: 11-May-2011

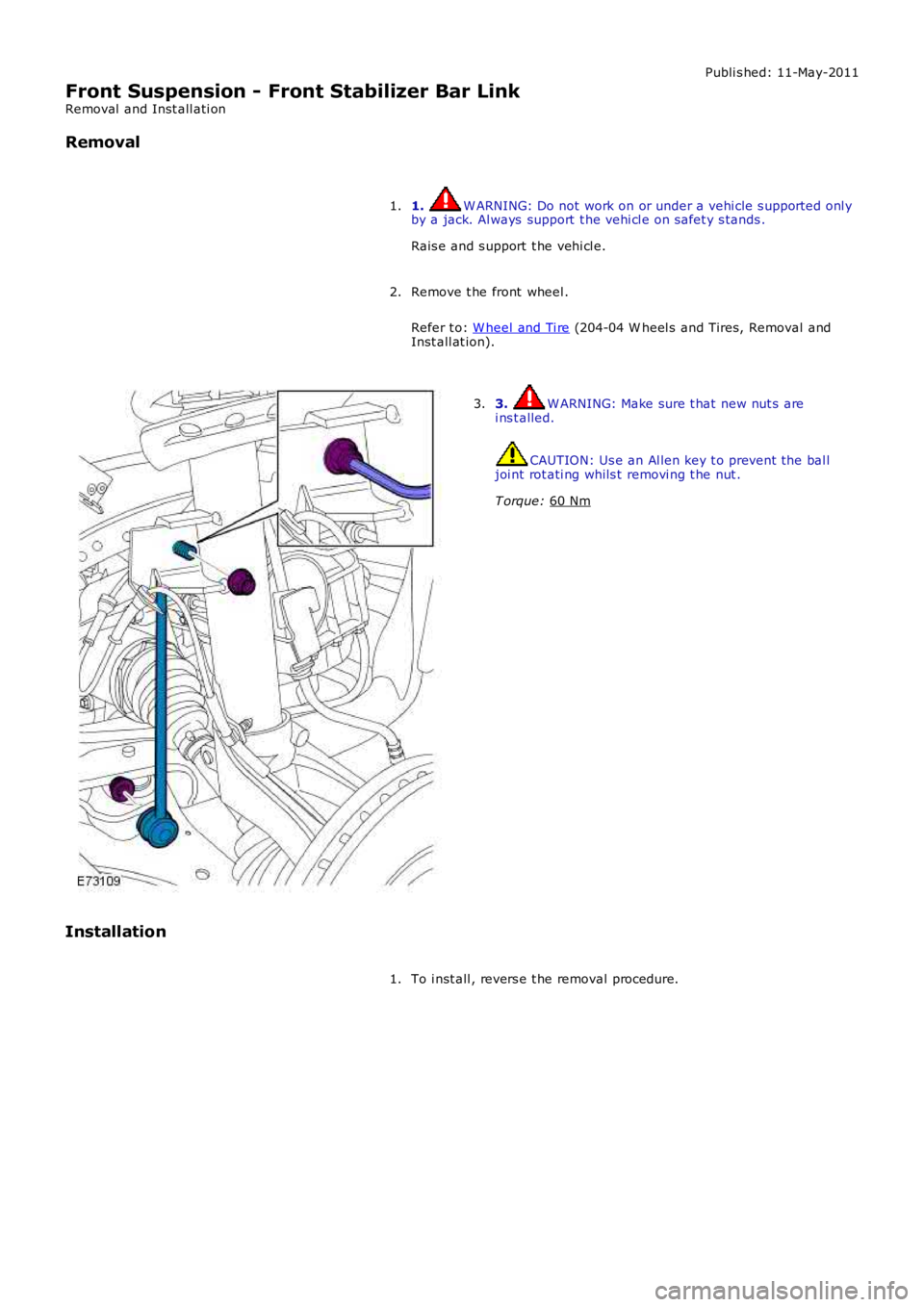

Front Suspension - Front Stabilizer Bar Link
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2. 3. W ARNING: Make sure t hat new nut s are
i ns t alled. CAUTION: Us e an Al len key t o prevent the bal l
joi nt rot ati ng whils t removi ng t he nut .
T orque: 60 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

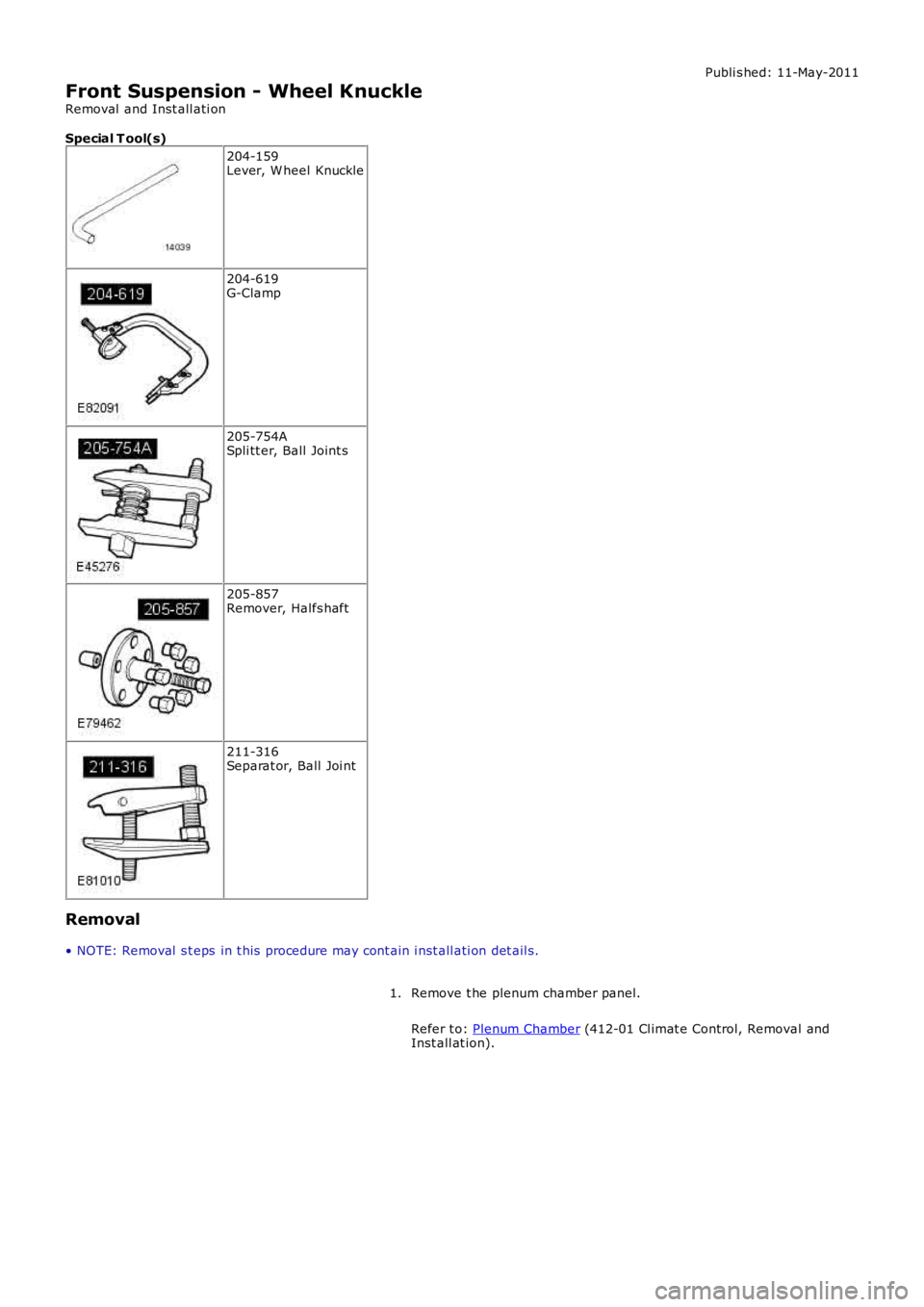

Front Suspension - Wheel Knuckle
Removal and Inst all ati on
Special T ool(s)
204-159Lever, W heel Knuckle
204-619G-Clamp
205-754ASpli tt er, Ball Joint s
205-857Remover, Halfs haft
211-316Separat or, Ball Joi nt
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he plenum chamber panel.
Refer t o: Plenum Chamber (412-01 Cl imat e Control, Removal andInst all at ion).
1.

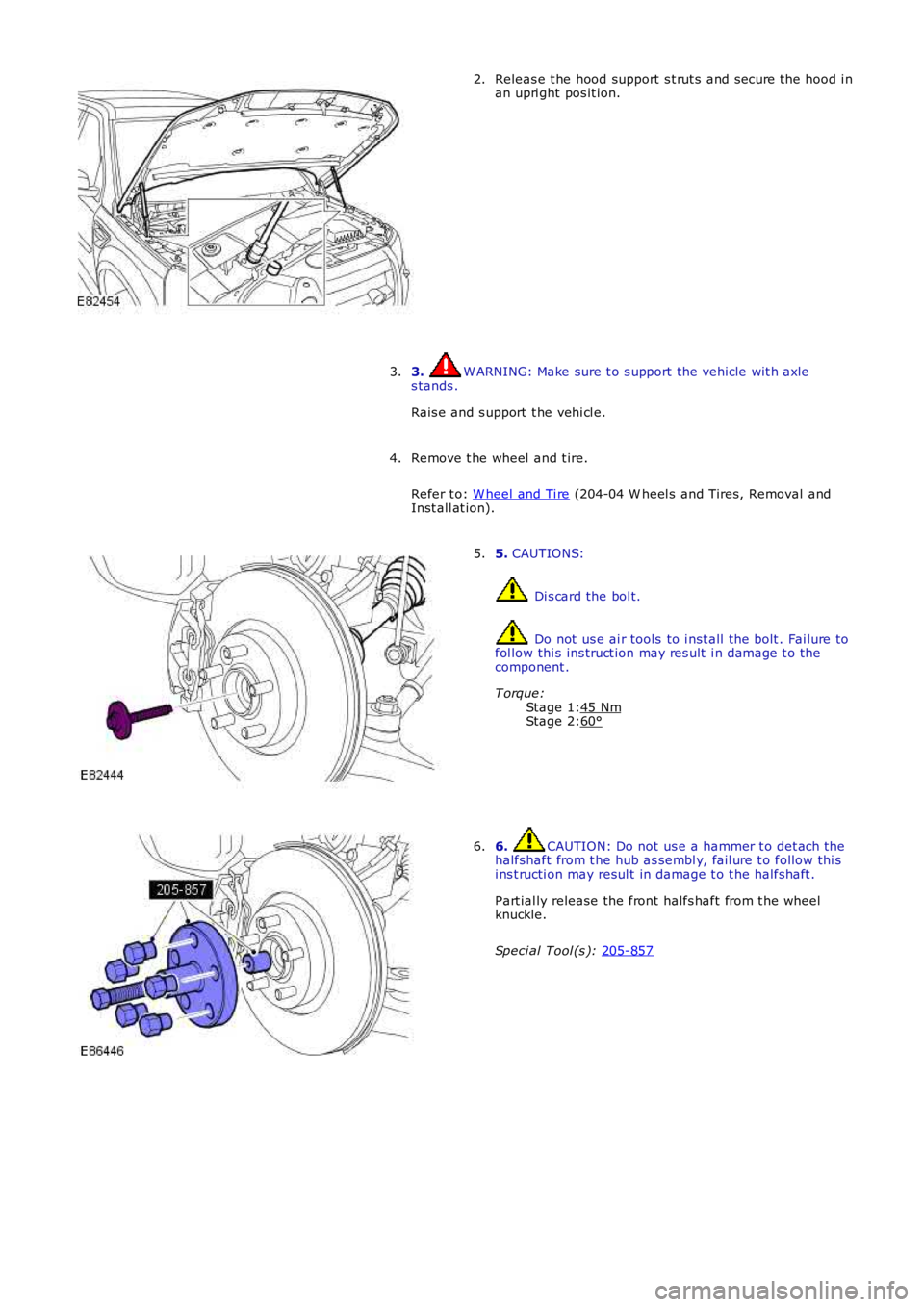

Stage 1:
Stage 2: Releas e t he hood support s t rut s and s ecure the hood i n
an upri ght pos it ion.
2.
3. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
3.
Remove t he wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
4. 5.
CAUTIONS: Di s card the bol t.
Do not us e ai r tools to i nst all t he bolt . Fai lure to
fol low thi s ins truct ion may res ult i n damage t o the
component .
T orque: 45 Nm 60°5.
6. CAUTION: Do not us e a hammer t o det ach t he
halfshaft from t he hub as sembl y, fail ure t o follow thi s
i ns t ructi on may resul t in damage t o t he halfshaft .
Part ial ly release the front halfs haft from t he wheel
knuckle.
Speci al Tool (s ): 205-857 6.

7. W ARNING: Make sure t hat a new nut is
i ns t alled. CAUTION: Make s ure that t he bal l joi nt bal l does
not rot ate.
T orque: 60 Nm 7.
T orque:
5 Nm 8.
9. W ARNING: Make sure t hat a new t ie-rod end
nut is ins tall ed. CAUTION: Make s ure that t he bal l joi nt bal l does
not rot ate.
T orque: 80 Nm 9.
Speci al Tool (s ):
211-316 10.

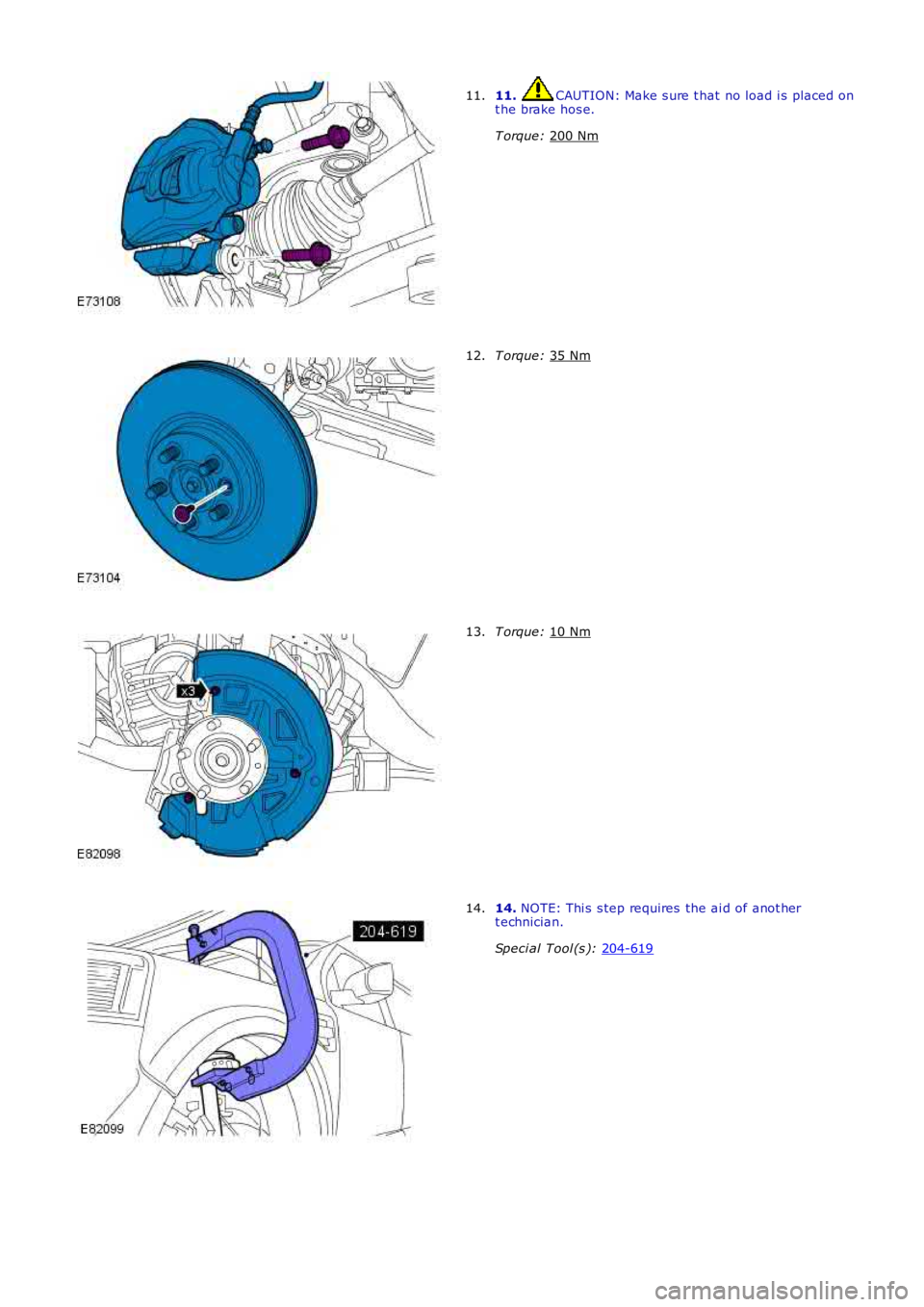

11. CAUTION: Make s ure t hat no load i s placed on
t he brake hos e.
T orque: 200 Nm 11.
T orque:
35 Nm 12.
T orque:
10 Nm 13.
14.
NOTE: Thi s s tep requires the ai d of anot her
t echnician.
Speci al Tool (s ): 204-619 14.
