LAND ROVER FRELANDER 2 2006 Repair Manual

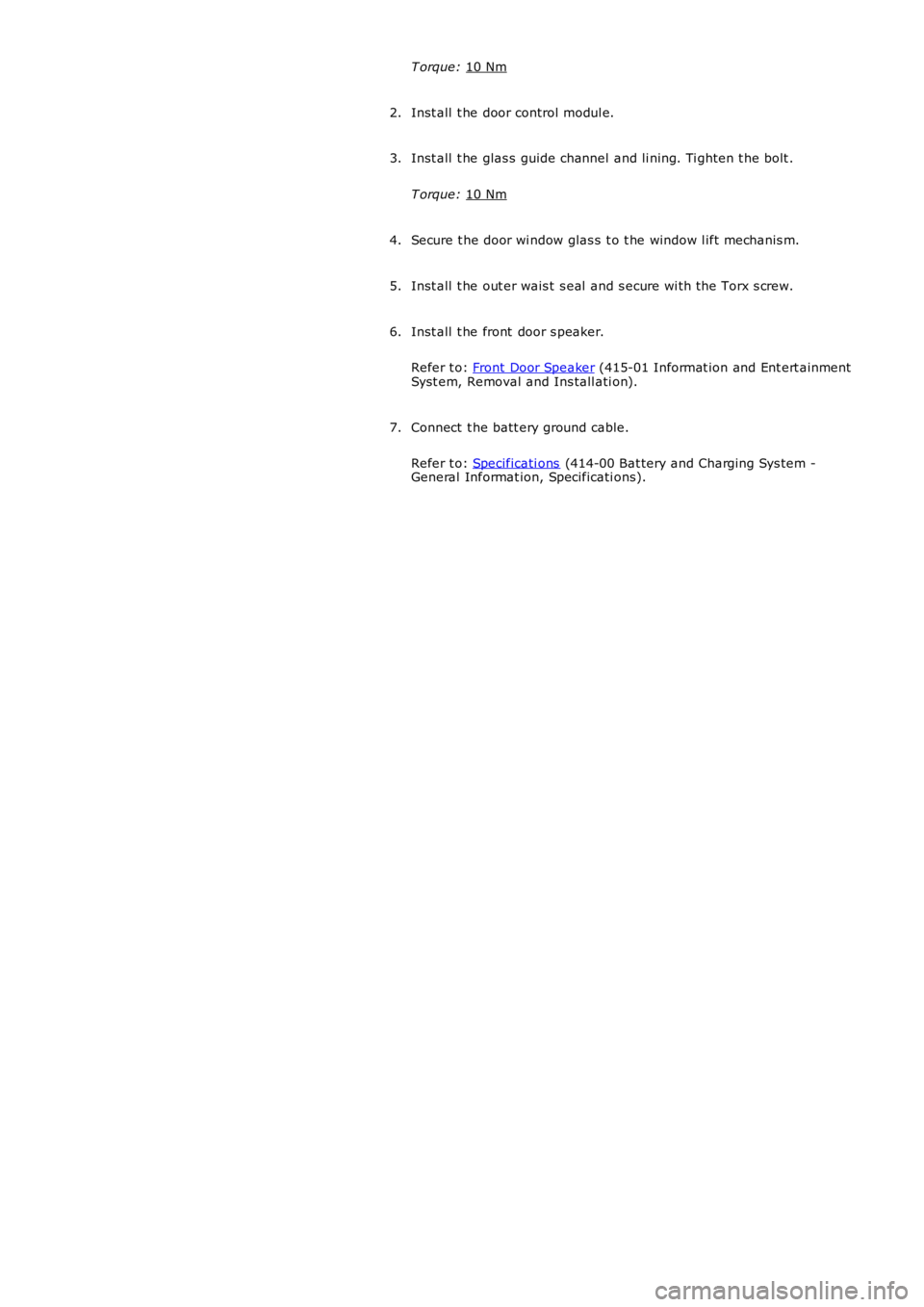

T orque:
10 Nm Inst all t he door control modul e.
2.
Inst all t he glas s guide channel and li ning. Ti ghten t he bolt .
T orque: 10 Nm 3.
Secure t he door wi ndow glas s t o t he window l ift mechanis m.
4.
Inst all t he out er wais t s eal and s ecure wi th the Torx s crew.
5.
Inst all t he front door s peaker.
Refer t o: Front Door Speaker (415-01 Informat ion and Ent ert ainment
Syst em, Removal and Ins tall ati on).
6.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
7.

Publi s hed: 11-May-2011

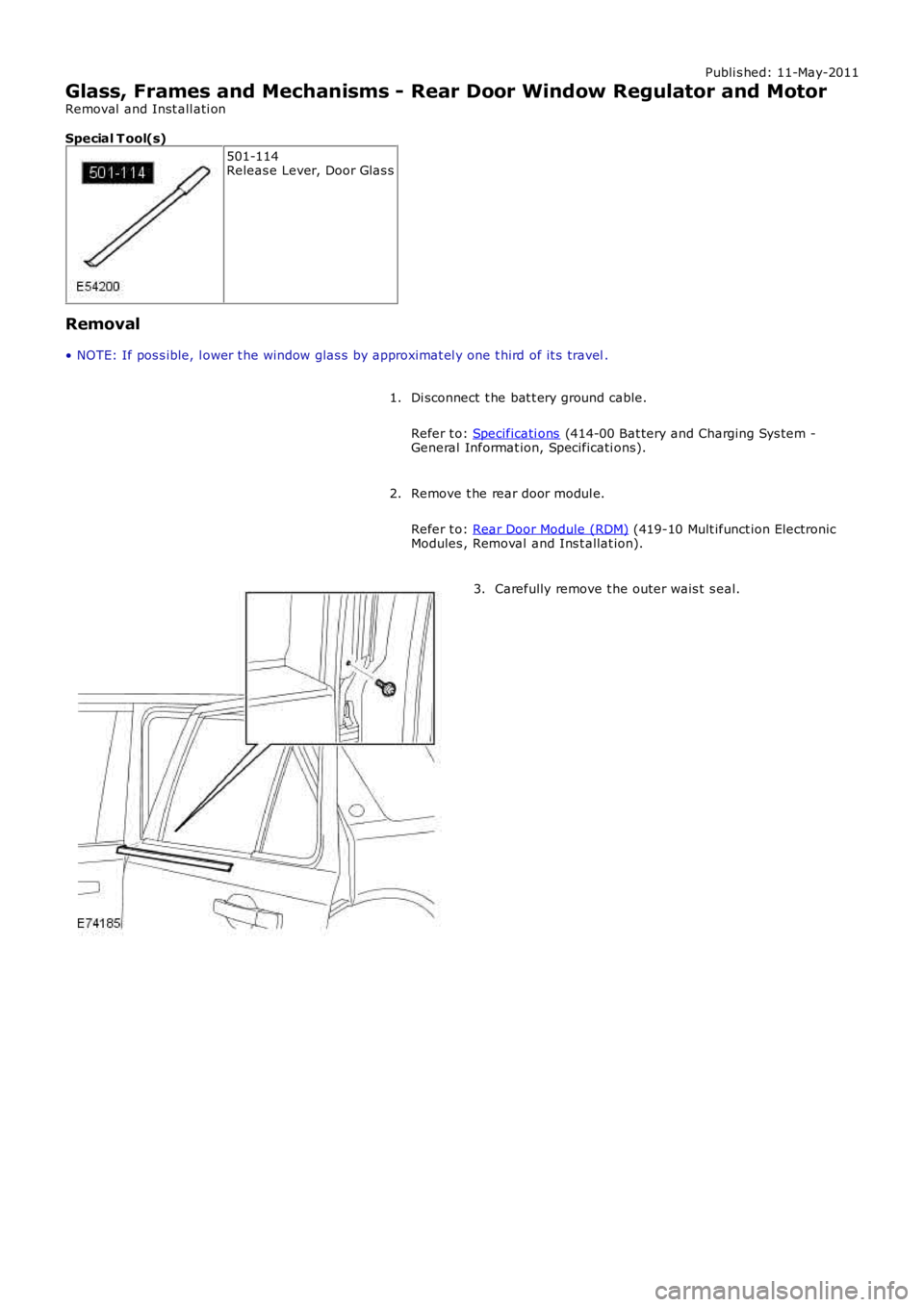

Glass, Frames and Mechanisms - Rear Door Window Regulator and Motor
Removal and Inst all ati on
Special T ool(s) 501-114
Releas e Lever, Door Glas s
Removal
• NOTE: If pos s ible, l ower t he wi ndow glas s by approximat el y one t hird of it s travel .
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Remove t he rear door modul e.
Refer t o: Rear Door Module (RDM) (419-10 Mult ifunct ion Electronic
Modules , Removal and Ins t allat ion).
2. Carefully remove t he outer wais t s eal.
3.

Releas e t he door wi ndow glas s from the wi ndow
l ift mechanis m. Rais e t he glas s and s ecure i t to
t he top of t he door frame.
Speci al Tool (s ): 501-114 4.
Secure t he glas s t o the top of t he frame.
5.

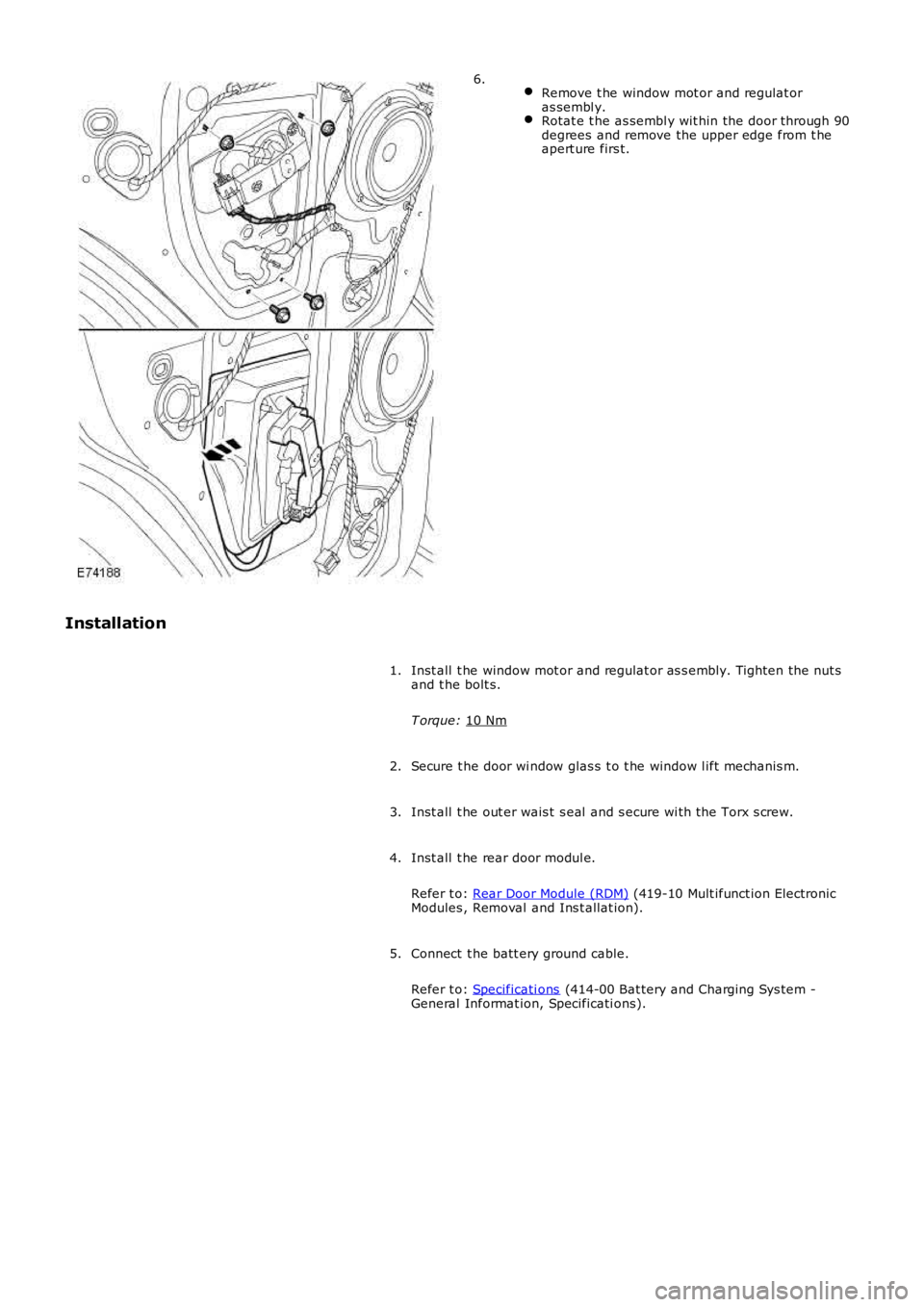

Remove t he window mot or and regulat or
as sembl y. Rotat e t he as sembl y wit hin the door through 90
degrees and remove the upper edge from t he
apert ure firs t. 6.
Installation Inst all t he window mot or and regulat or as s embly. Tighten the nut s
and t he bolt s.
T orque: 10 Nm 1.
Secure t he door wi ndow glas s t o t he window l ift mechanis m.
2.
Inst all t he out er wais t s eal and s ecure wi th the Torx s crew.
3.
Inst all t he rear door modul e.
Refer t o: Rear Door Module (RDM) (419-10 Mult ifunct ion Electronic
Modules , Removal and Ins t allat ion).
4.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
5.

Publi s hed: 11-May-2011

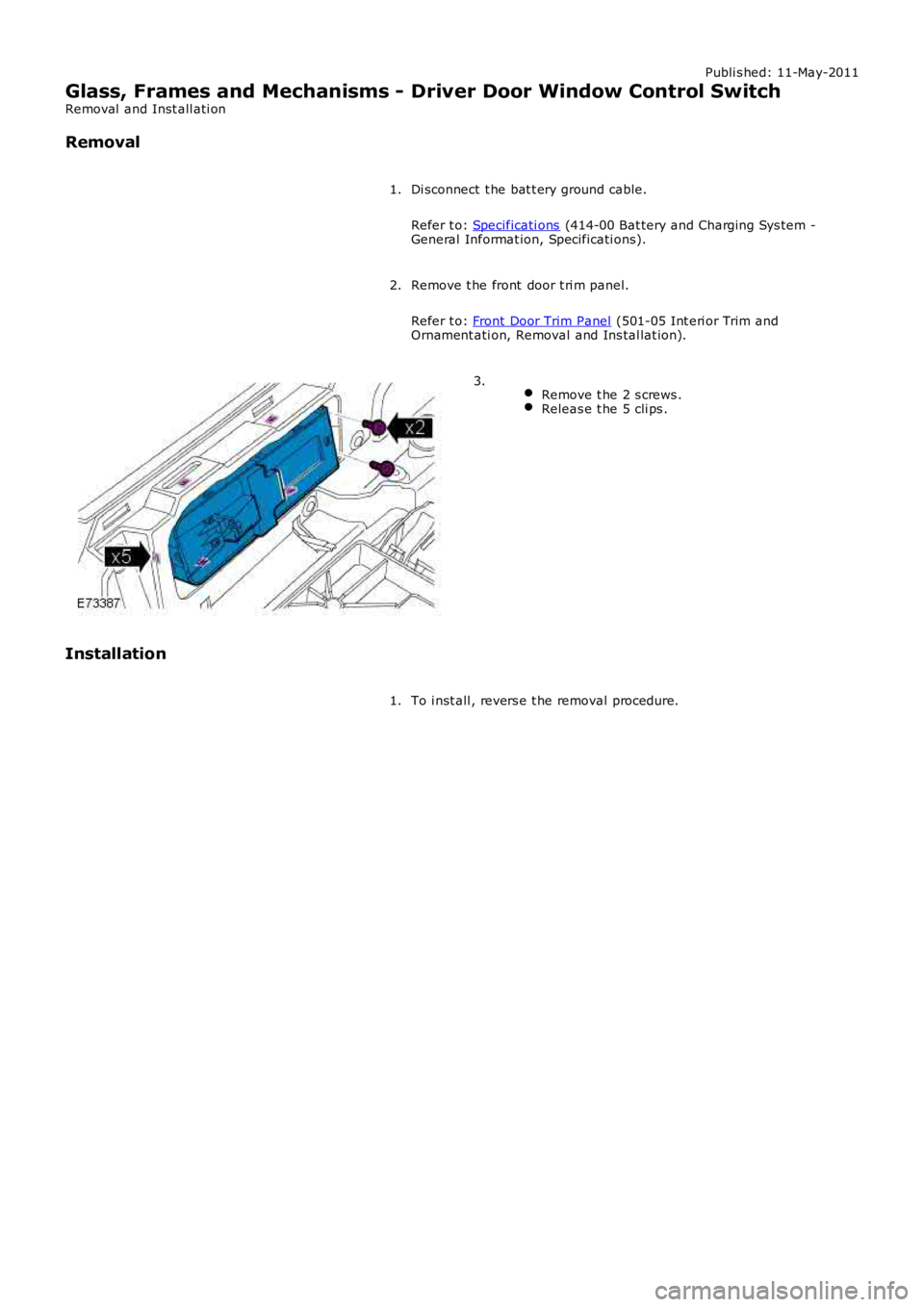

Glass, Frames and Mechanisms - Driver Door Window Control Switch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he front door t ri m panel.
Refer t o: Front Door Trim Panel (501-05 Int eri or Trim andOrnament ati on, Removal and Ins tal lat ion).
2.
Remove t he 2 s crews .Releas e t he 5 cli ps .
3.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011
Glass, Frames and Mechanisms - Passenger Door Window Control Switch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he rear door t rim panel.
Refer t o: Rear Door Tri m Panel (501-05 Int erior Tri m andOrnament ati on, Removal and Ins tal lat ion).
2.
3.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011

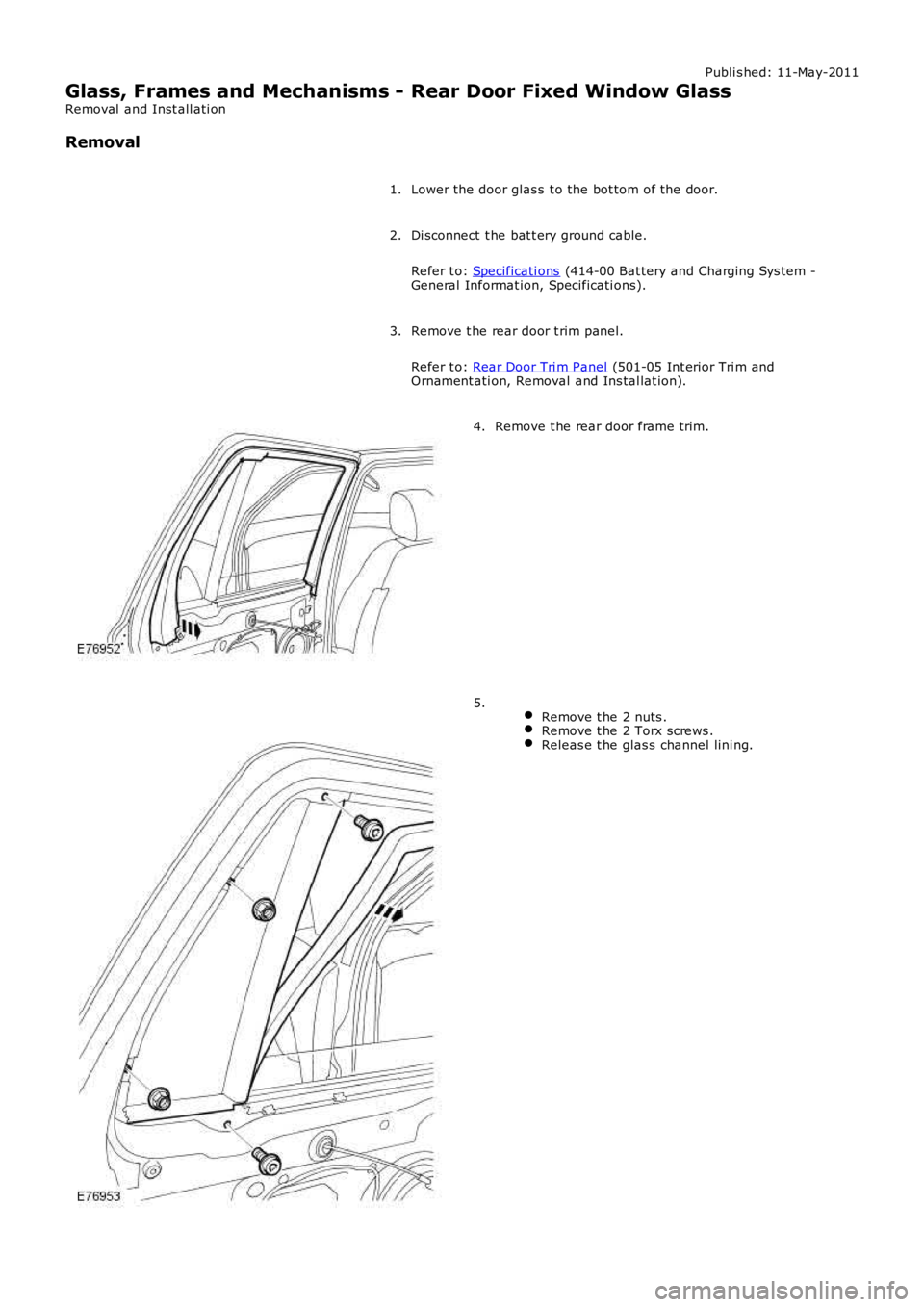

Glass, Frames and Mechanisms - Rear Door Fixed Window Glass
Removal and Inst all ati on
Removal
Lower the door glas s t o the bot tom of the door.1.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
2.
Remove t he rear door t rim panel.
Refer t o: Rear Door Tri m Panel (501-05 Int erior Tri m andOrnament ati on, Removal and Ins tal lat ion).
3.
Remove t he rear door frame trim.4.
Remove t he 2 nuts .Remove t he 2 Torx screws .Releas e t he glas s channel lini ng.
5.

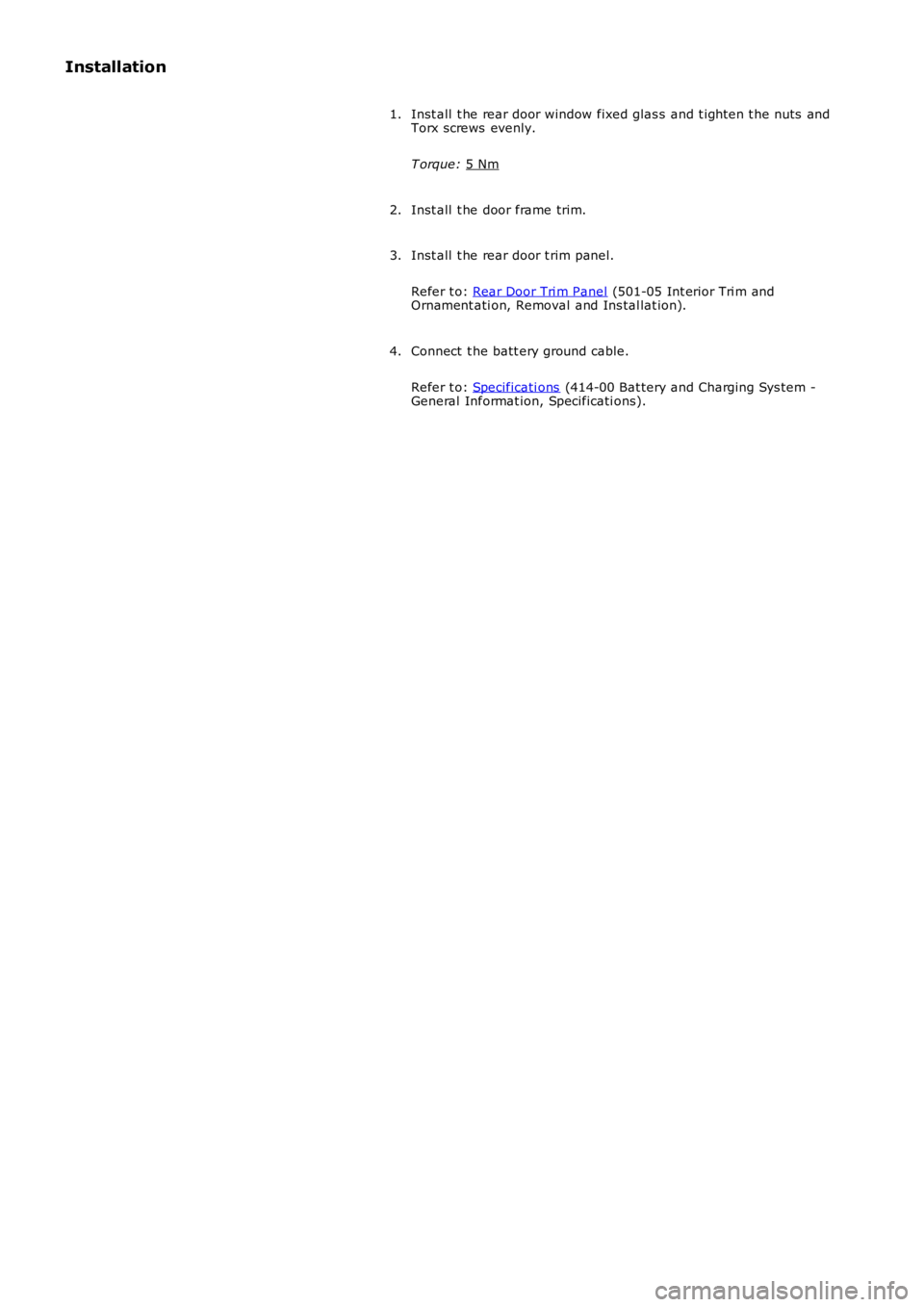

Installation
Inst all t he rear door window fixed glas s and t ighten t he nuts and
Torx screws evenly.
T orque: 5 Nm 1.
Inst all t he door frame trim.
2.
Inst all t he rear door t rim panel.
Refer t o: Rear Door Tri m Panel (501-05 Int erior Tri m and
Ornament ati on, Removal and Ins tal lat ion).
3.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
4.

Publi s hed: 11-May-2011

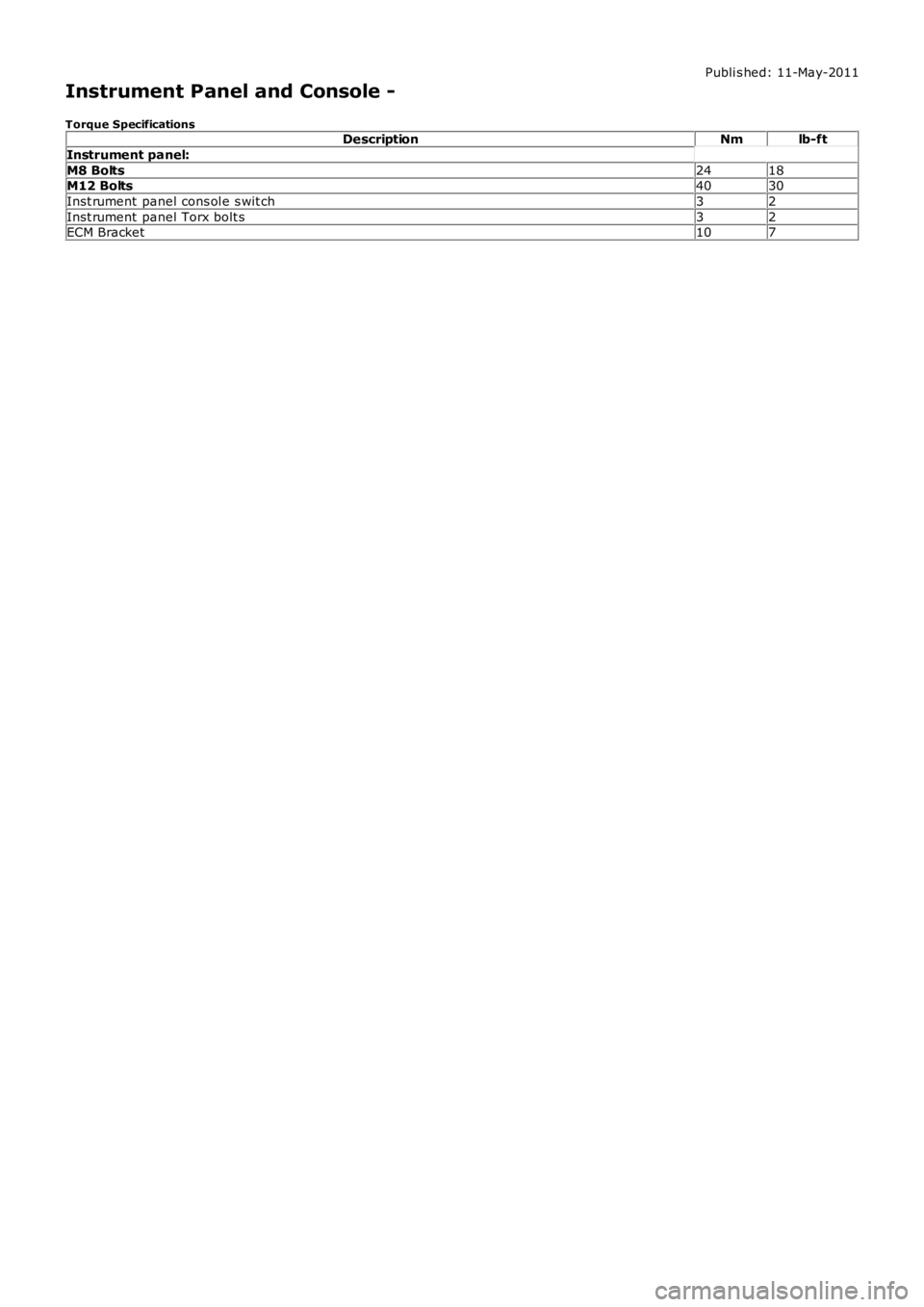

Instrument Panel and Console -
Torque SpecificationsDescriptionNmlb-ft
Instrument panel:
M8 Bolts2418M12 Bolts4030
Inst rument panel cons ol e s wit ch32
Inst rument panel Torx bolt s32ECM Bracket107

Publi s hed: 11-May-2011

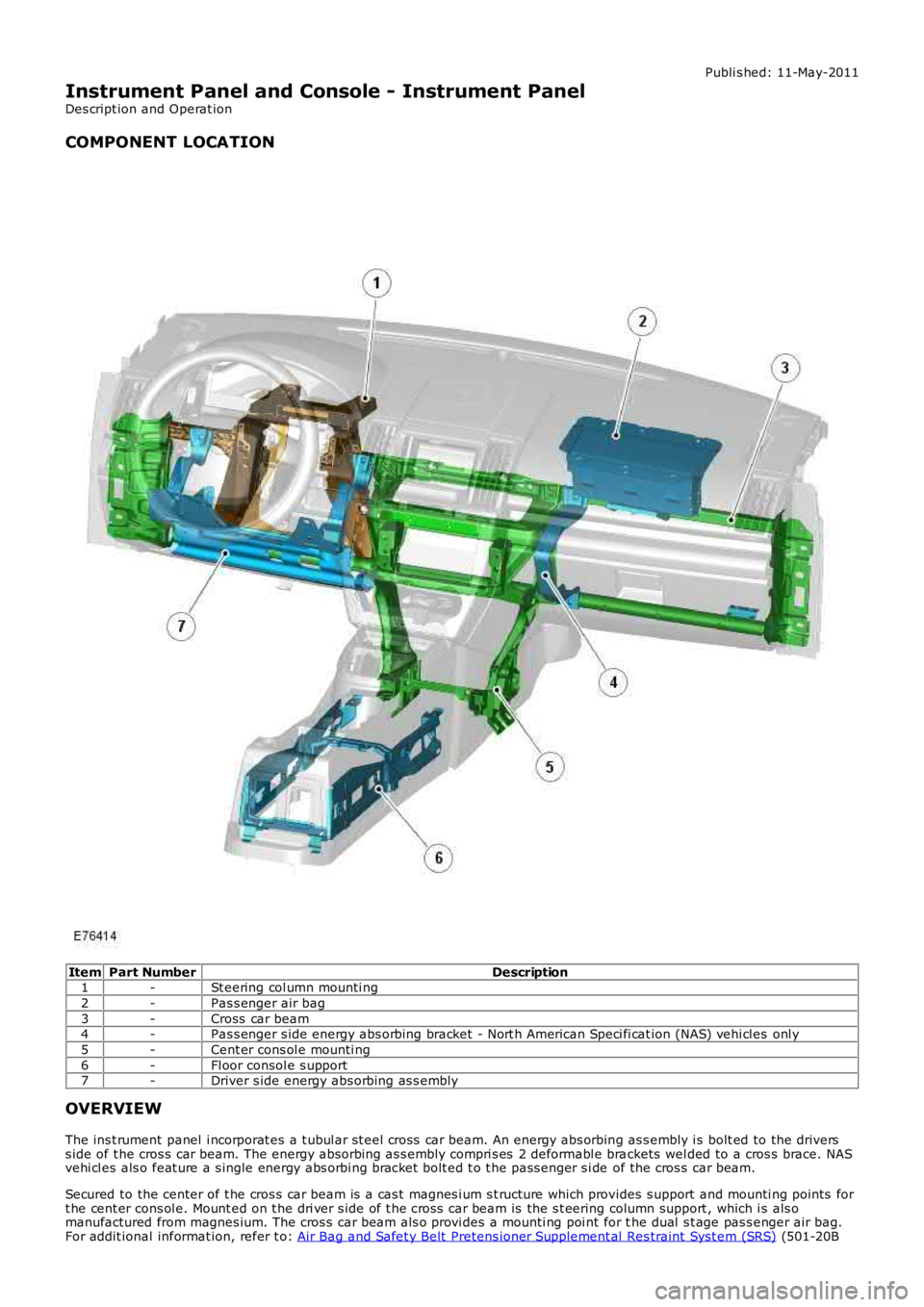

Instrument Panel and Console - Instrument Panel
Des cript ion and Operat ion
COMPONENT LOCATION
ItemPart NumberDescription1-St eering col umn mounti ng
2-Pas s enger air bag
3-Cross car beam4-Pas s enger s ide energy abs orbing bracket - Nort h American Speci fi cat ion (NAS) vehi cl es onl y
5-Cent er cons ol e mounti ng
6-Fl oor consol e s upport7-Driver s ide energy abs orbing as s embly
OVERVIEW
The ins t rument panel i ncorporat es a t ubul ar st eel cross car beam. An energy abs orbing as s embly i s bolt ed to the driverss ide of t he cros s car beam. The energy abs orbing as s embly compri s es 2 deformabl e brackets wel ded to a cros s brace. NASvehi cl es als o feat ure a s ingle energy abs orbi ng bracket bolt ed t o t he pass enger s i de of the cros s car beam.
