LAND ROVER FRELANDER 2 2006 Repair Manual

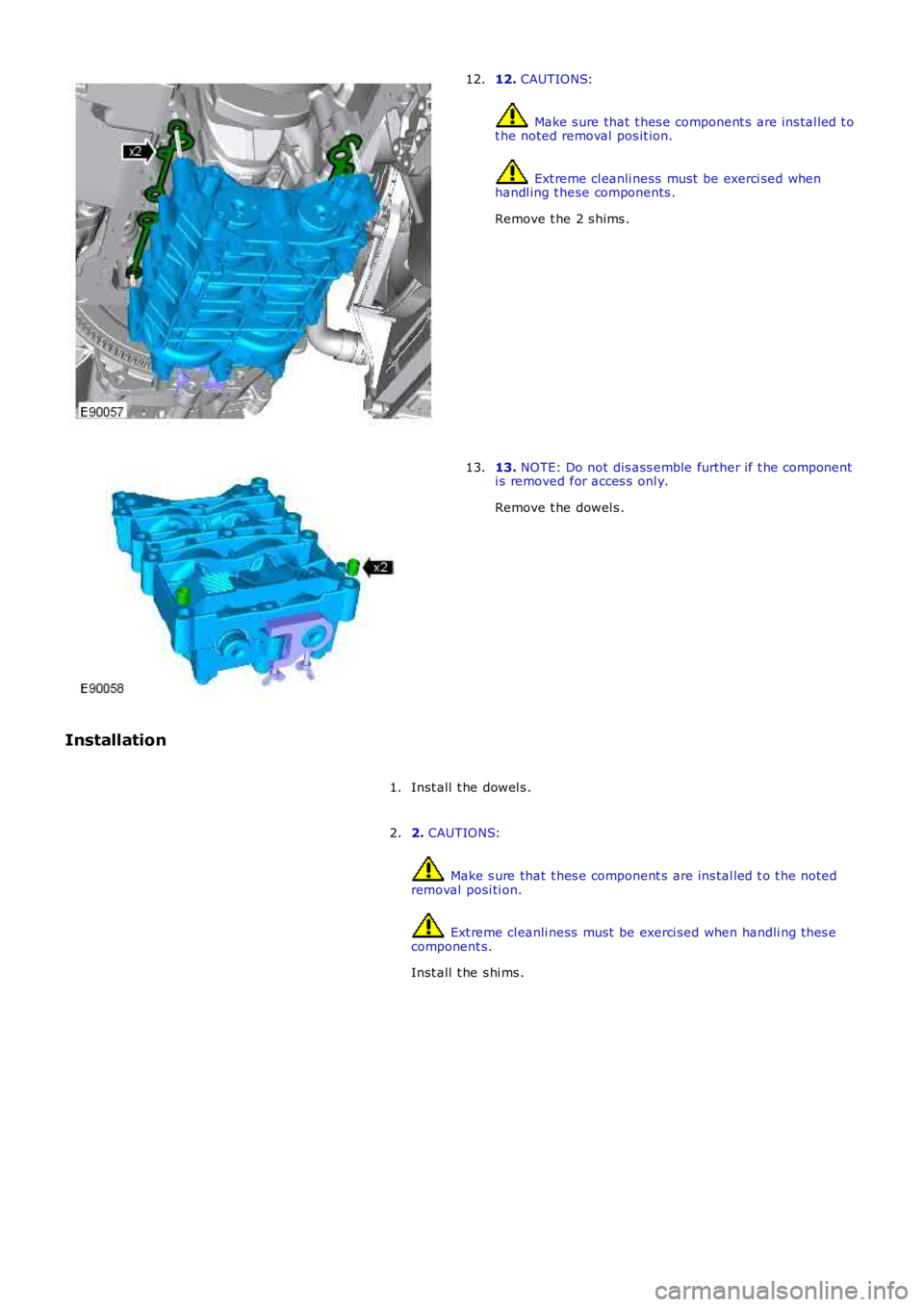

12. CAUTIONS:
Make s ure that t hes e component s are ins tal led t ot he noted removal pos it ion.
Ext reme cl eanli ness must be exerci sed whenhandl ing t hese components .
Remove t he 2 s hims .
12.
13. NOTE: Do not dis ass emble further if t he componenti s removed for acces s onl y.
Remove t he dowel s .
13.
Installation
Inst all t he dowel s .1.
2. CAUTIONS:
Make s ure that t hes e component s are ins tal led t o t he notedremoval posi ti on.
Ext reme cl eanli ness must be exerci sed when handli ng t hes ecomponent s.
Inst all t he s hi ms .
2.

Stage 1:
Stage 2:
Stage 1:
Stage 2: 3. CAUTION: Make s ure that the mati ng faces are
clean and free of corrosi on and foreign mat eri al .
• NOTE: Make s ure that t hi s component is ins tal led t o
t he noted removal pos it ion.
Tight en the bol ts evenly i n 2 s t ages to t he s equence
s hown.
T orque: 5 Nm 22 Nm3.
Remove t he bal ance shaft ti ming and l ocking tools .
4. 5.
CAUTIONS: Make s ure that t he mat ing faces are clean and
free of foreign mat eri al. Make s ure that t hes e component s are ins tal led t o
t he noted removal pos it ion.
Tight en the bol ts evenly i n 2 s t ages to t he s equence
s hown.
T orque: 7 Nm 9 Nm5.
Remove t he cranks haft t iming t ool .
Speci al Tool (s ): 303-1270 6.
Inst all t he oil pan extens ion.
Refer t o: Oil Pan Extens ion (303-01B Engine - TD4 2.2L Dies el,
Removal and Ins tall ati on).
7.
Inst all t he fender spl as h shi el d extens ion panel.
8.
Inst all t he s tart er mot or.
Refer t o: Start er Motor (303-06B Starti ng Sys t em - TD4 2.2L Dies el,
Removal and Ins tall ati on).
9.
Inst all t he front wheel and t ire.
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
10.
Connect t he batt ery ground cable and ins tall t he cover.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
11.

Publi s hed: 11-May-2011
Engine - TD4 2.2L Diesel - Engine
Removal
Special T ool(s)
205-857Remover, Halfs haft
General Equipment
Powert rai n Jack
• NOTE: In t hi s procedure t he engi ne is removed wi th t he t rans mis s ion.
1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
2.
Remove t he engi ne cover.
Refer t o: Engi ne Cover - TD4 2.2L Dies el (501-05 Interior Tri m andOrnament ati on, Removal and Ins tal lat ion).
3.
Remove t he plenum box acces s panel.
Refer t o: Plenum Chamber (412-01 Cl imat e Control, Removal andInst all at ion).
4.
Remove t he bat t ery t ray.
Refer t o: Bat t ery Tray (414-01 Bat tery, Mount ing and Cables ,Removal and Ins tall ati on).
5.
Remove t he air cleaner as s embly.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -I6 3.2L Pet rol, Removal and Ins t al lat ion).
6.
Drai n t he cool ant .
Refer t o: Cool ing Sys tem Drai ni ng, Fi lli ng and Bleeding (303-03BEngine Cooli ng - TD4 2.2L Di esel , General Procedures ).
7.
Remove t he cat alyti c convert er.
Refer t o: Cat alyt ic Converter - Vehicles W it hout : Di es el Part iculateFil ter (DPF) (309-00B Exhaus t Syst em - TD4 2.2L Di es el, Removaland Inst all at ion).
8.
Recover t he A/C refrigerant .
Refer t o: Air Condi ti oning (A/C) Sys tem Recovery, Evacuati on and
9.

Charging (412-00 Cl imat e Control Sys t em - General Informat ion,General Procedures).
Remove t he lower engi ne s tabil izer bar.
Refer t o: Engi ne Lower Support Ins ulat or (303-01A Engine - I6 3.2LPetrol, Removal and Ins tall ati on).
10.
Remove t he front subframe as s embly.
Refer t o: Front Subframe (502-00 Uni -Body, Subframe and Mount ingSyst em, Removal and Ins tall ati on).
11.
Siphon t he fl uid from t he power s t eering res ervoi r.12.
Di sconnect t he engi ne cont rol module (ECM).13.
14.

15.
Releas e t he LH and RH hal fs haft s.
Speci al Tool (s ): 205-857 16.
Remove t he LH halfshaft.
17.

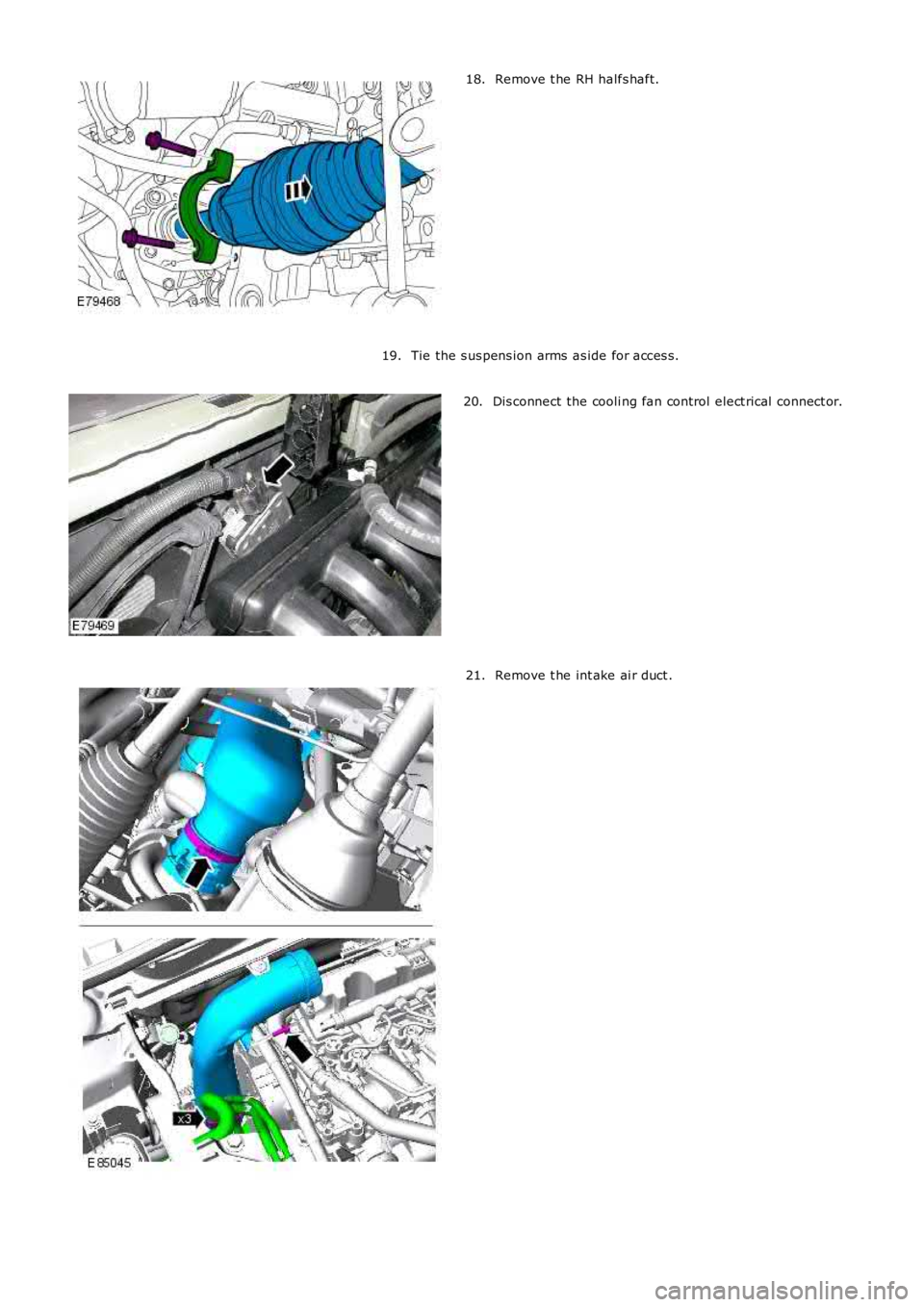

Remove t he RH halfs haft.18.
Tie the s us pens ion arms as ide for acces s.19.
Dis connect the cooli ng fan control elect rical connect or.20.
Remove t he int ake ai r duct .21.

22. CAUTION: Be prepared to col lect es capingfluids .
Di sconnect t he low pres sure li ne from the powers teering pump.
22.
Releas e t he power s t eering hi gh-pres s ure pi pe.23.
24. CAUTIONS:
Di s card the seal.
Make s ure that all openings are sealed.
24.

25. CAUTIONS:
Di s card the seal.
Make s ure that all openings are sealed.
Di sconnect t he A/C compress or low-pres s ure refrigerantl ine.
25.
Remove t he top hos e.26.
27. CAUTION: Be prepared to col lect es caping fuel .
Di sconnect t he 2 fuel l ines.
27.
Releas e t he 2 fuel l ines.28.

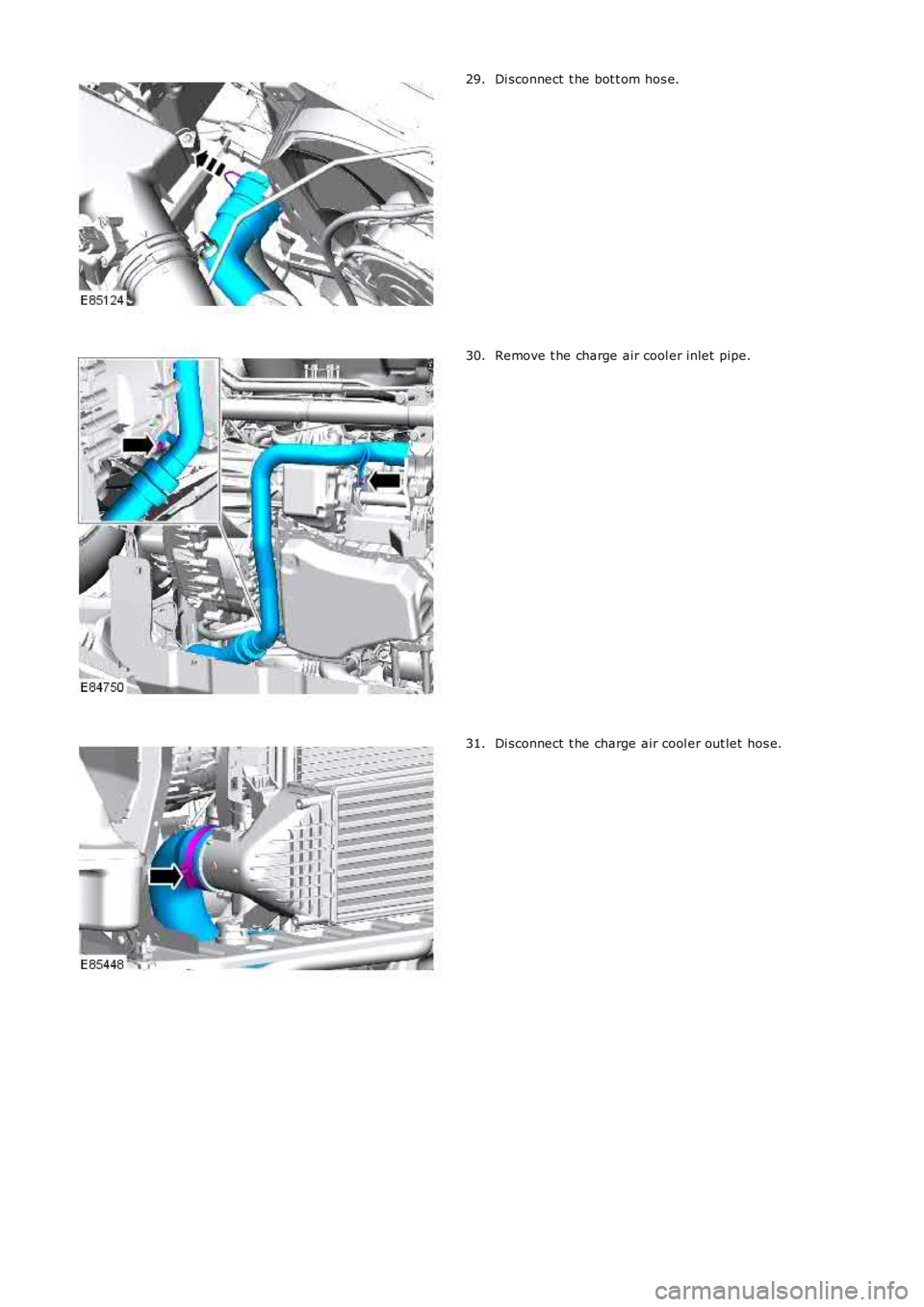

Di sconnect t he bot t om hos e.29.
Remove t he charge air cool er inlet pipe.30.
Di sconnect t he charge air cool er out let hos e.31.

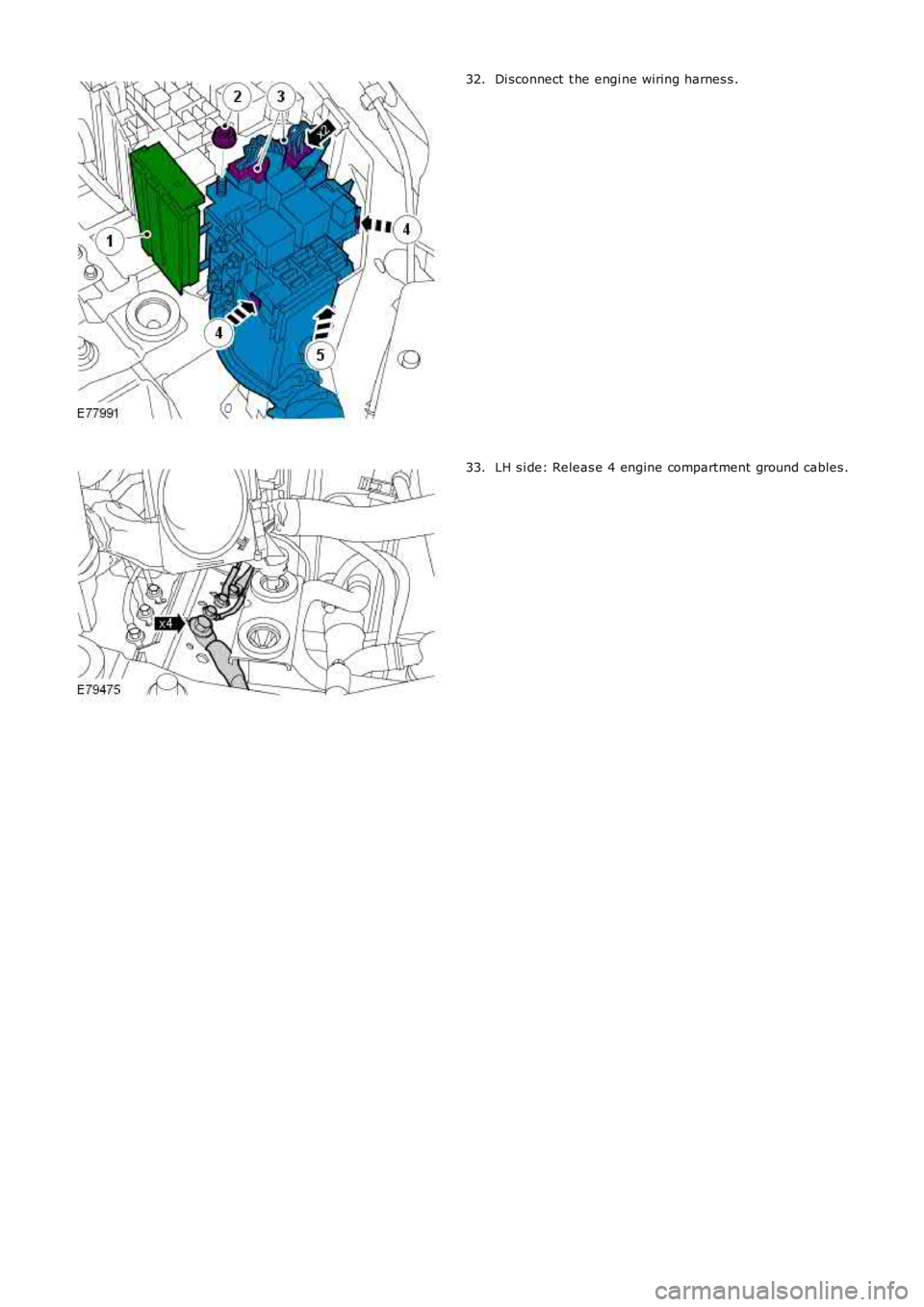

Di sconnect t he engi ne wiring harnes s .32.
LH s i de: Releas e 4 engine compartment ground cables .33.
