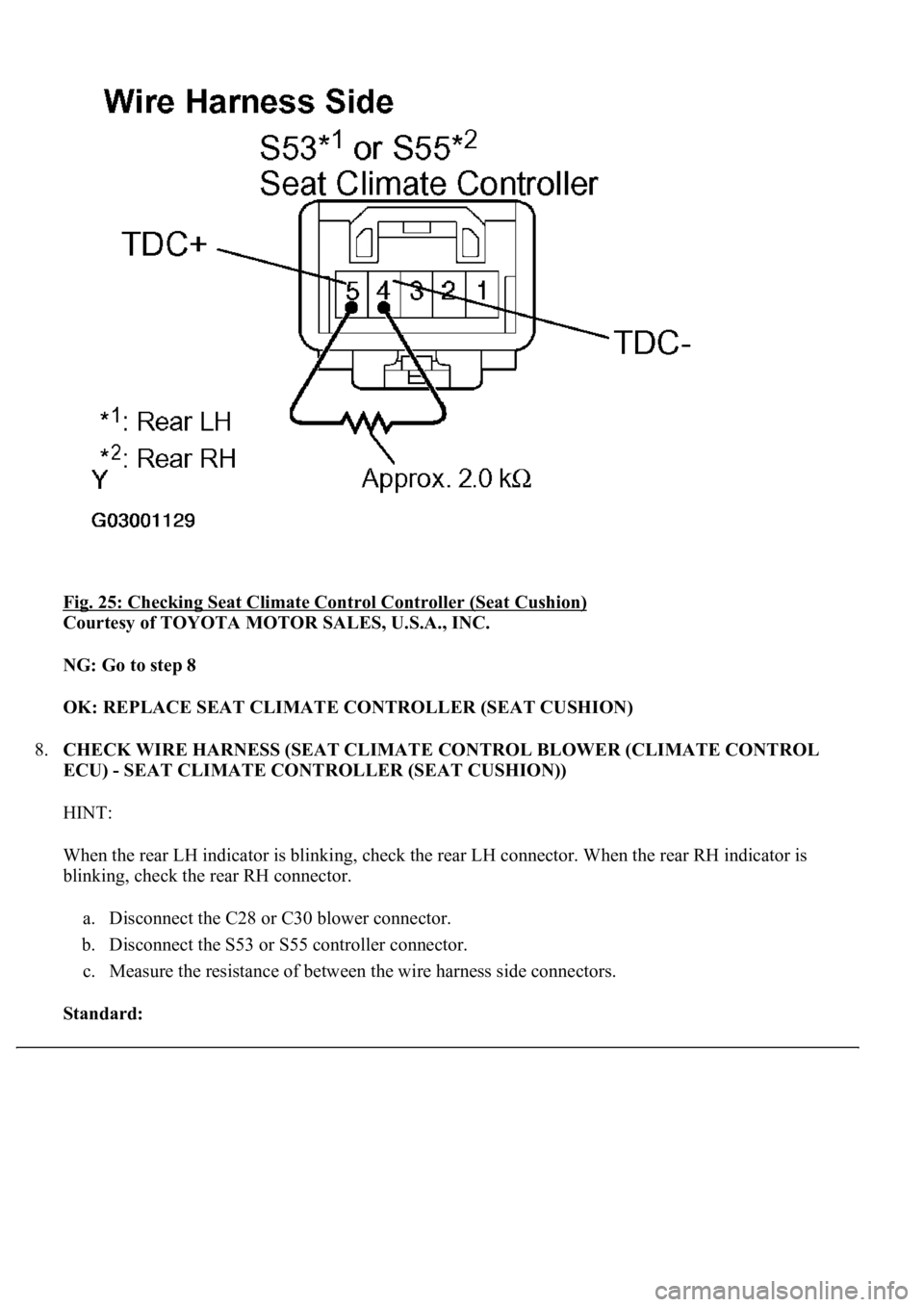

NG: Go to step 8
OK: REPLACE SEAT CLIMATE CONTROLLER (SEAT CUSHION)
8.CHECK WIRE HARNESS (SEAT CLIMATE CONTROL BLOWER (CLIMATE CONTROL
ECU) - SEAT CLIMATE CONTROLLER (SEAT CUSHION))
HINT:
When the rear LH indicator is blinking, check the rear LH connector. When the rear RH indicator is
blinking, check the rear RH connector.
a. Disconnect the C28 or C30 blower connector.
b. Disconnect the S53 or S55 controller connector.
c. Measure the resistance of between the wire harness side connectors.
Standard:

Rear LH

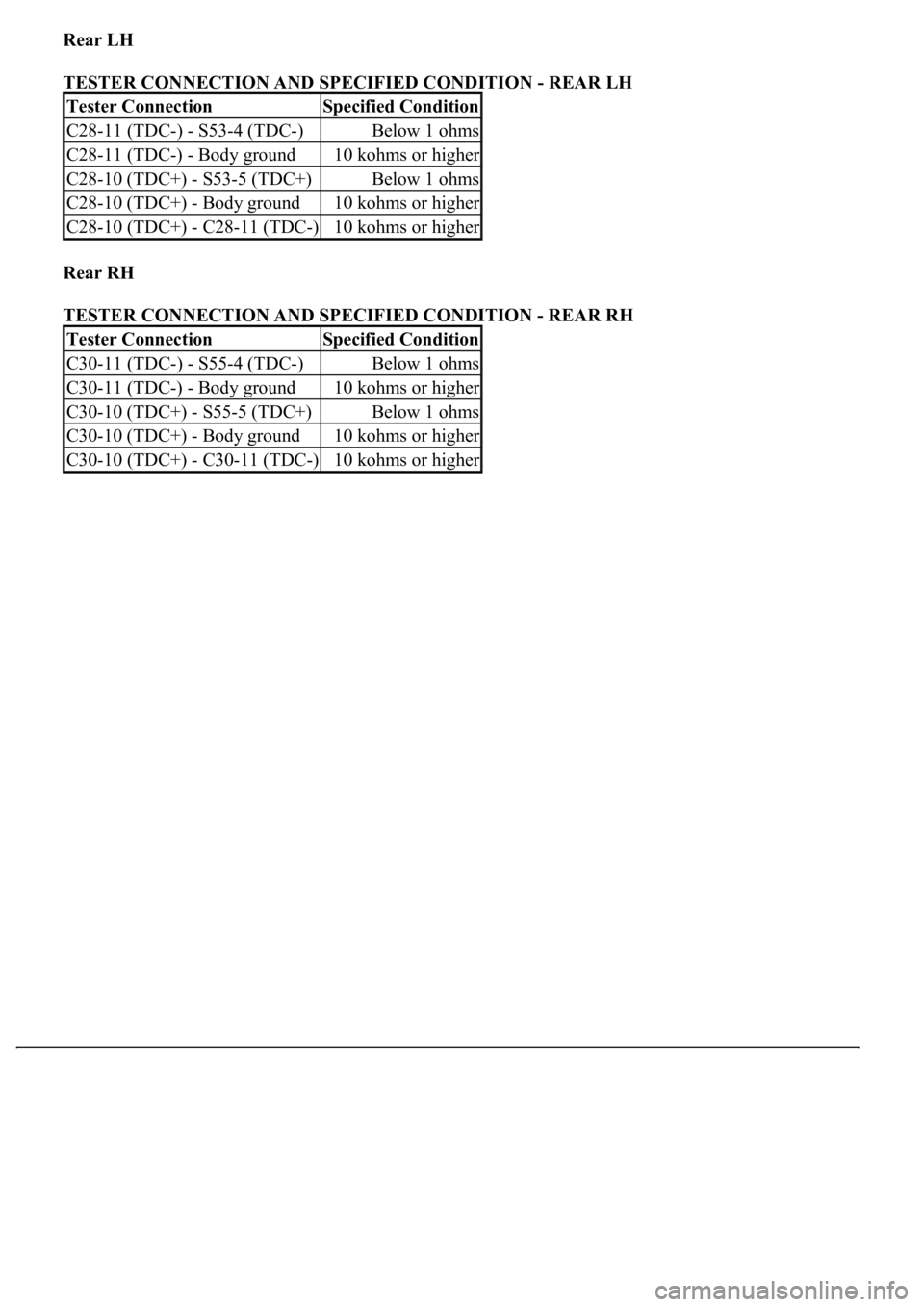

TESTER CONNECTION AND SPECIFIED CONDITION - REAR LH
Rear RH
TESTER CONNECTION AND SPECIFIED CONDITION - REAR RH
Tester ConnectionSpecified Condition
C28-11 (TDC-) - S53-4 (TDC-)Below 1 ohms
C28-11 (TDC-) - Body ground10 kohms or higher
C28-10 (TDC+) - S53-5 (TDC+)Below 1 ohms
C28-10 (TDC+) - Body ground10 kohms or higher
C28-10 (TDC+) - C28-11 (TDC-)10 kohms or higher
Tester ConnectionSpecified Condition
C30-11 (TDC-) - S55-4 (TDC-)Below 1 ohms
C30-11 (TDC-) - Body ground10 kohms or higher
C30-10 (TDC+) - S55-5 (TDC+)Below 1 ohms
C30-10 (TDC+) - Body ground10 kohms or higher
C30-10 (TDC+) - C30-11 (TDC-)10 kohms or higher

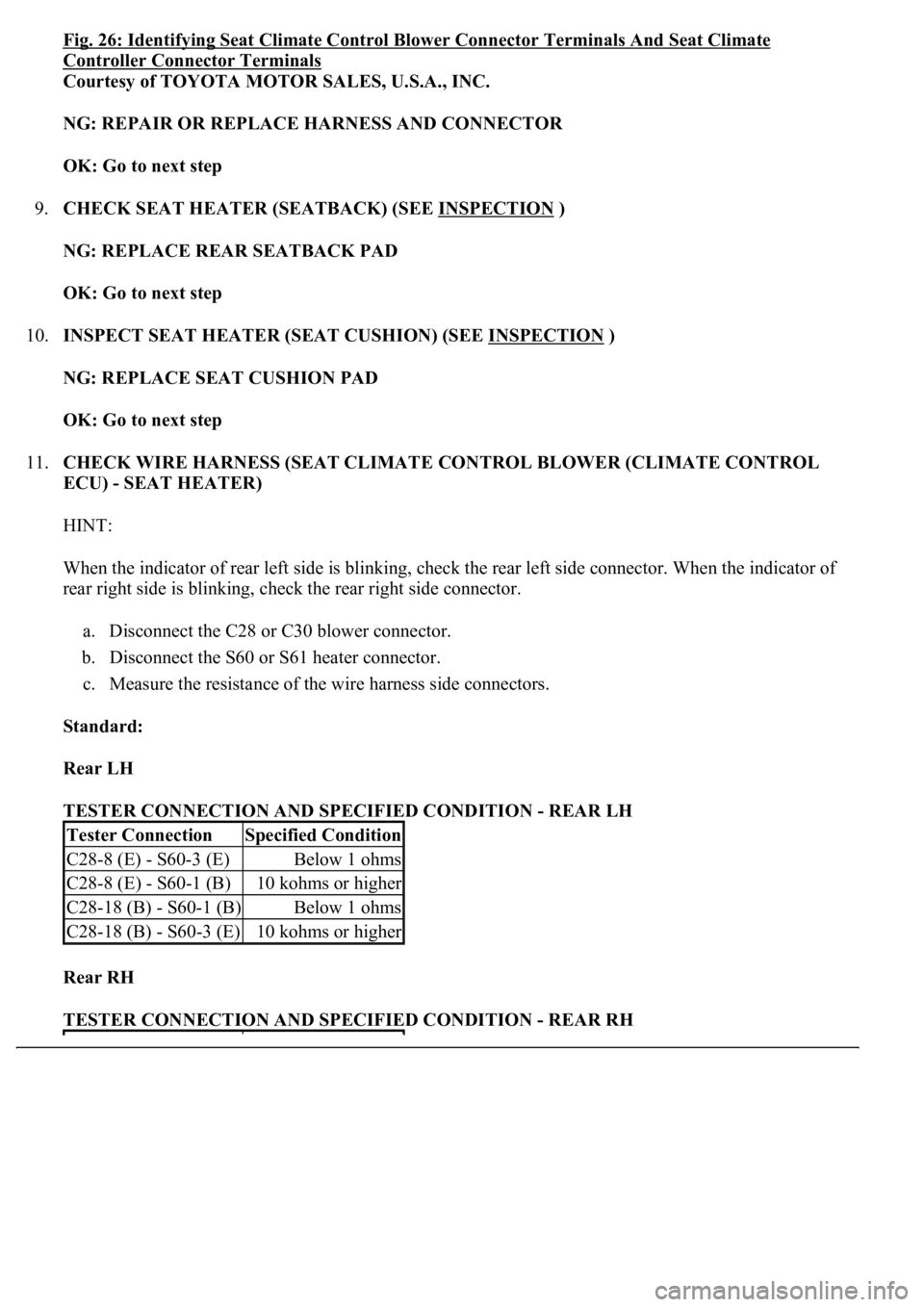

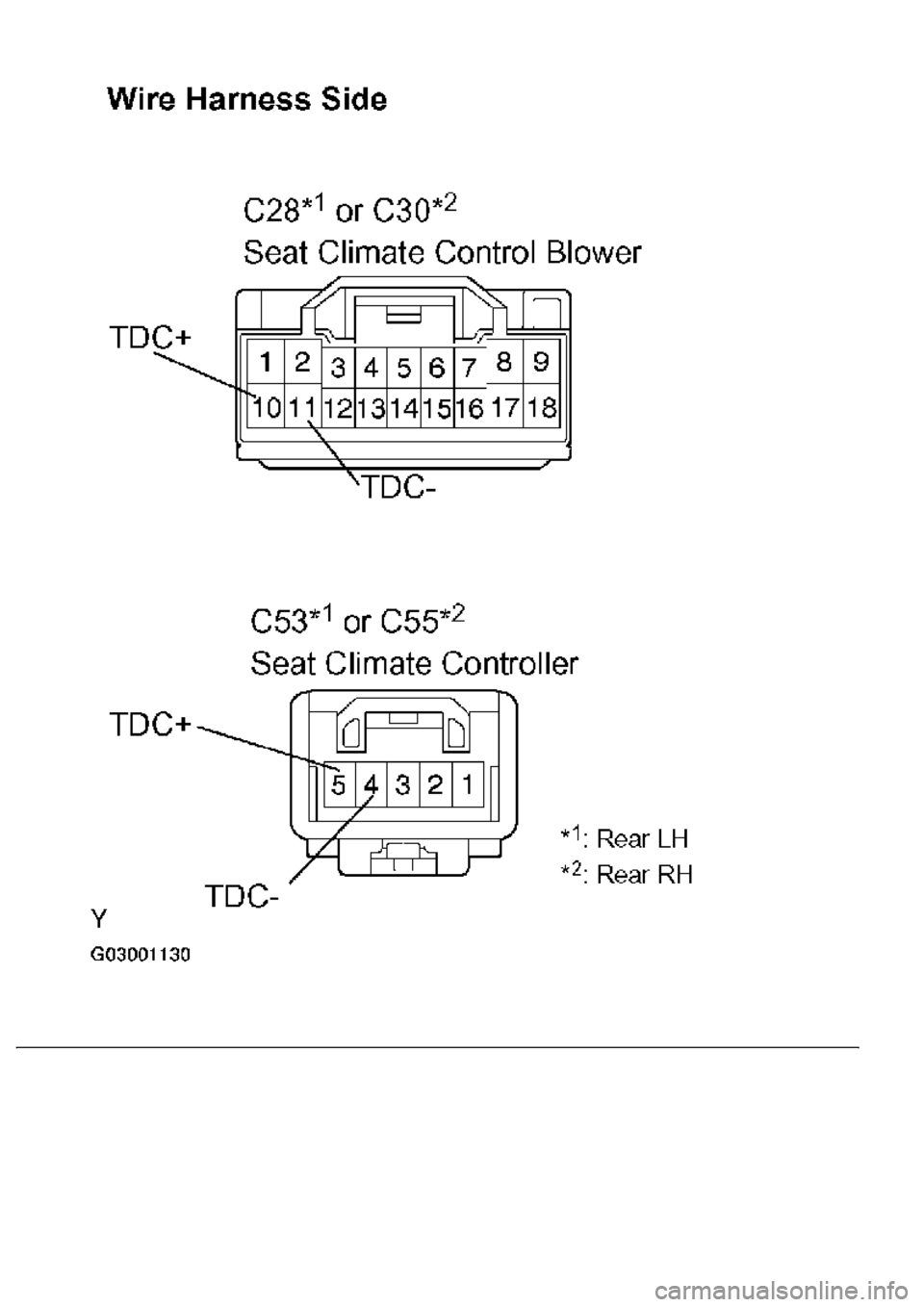

Fig. 26: Identifying Seat Climate Control Blower Connector Terminals And Seat Climate
Controller Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step
9.CHECK SEAT HEATER (SEATBACK) (SEE INSPECTION
)
NG: REPLACE REAR SEATBACK PAD
OK: Go to next step
10.INSPECT SEAT HEATER (SEAT CUSHION) (SEE INSPECTION
)
NG: REPLACE SEAT CUSHION PAD
OK: Go to next step
11.CHECK WIRE HARNESS (SEAT CLIMATE CONTROL BLOWER (CLIMATE CONTROL
ECU) - SEAT HEATER)
HINT:
When the indicator of rear left side is blinking, check the rear left side connector. When the indicator of
rear right side is blinking, check the rear right side connector.
a. Disconnect the C28 or C30 blower connector.
b. Disconnect the S60 or S61 heater connector.
c. Measure the resistance of the wire harness side connectors.
Standard:
Rear LH
TESTER CONNECTION AND SPECIFIED CONDITION - REAR LH
Rear RH
TESTER CONNECTION AND SPECIFIED CONDITION - REAR RH
Tester ConnectionSpecified Condition
C28-8 (E) - S60-3 (E)Below 1 ohms
C28-8 (E) - S60-1 (B)10 kohms or higher
C28-18 (B) - S60-1 (B)Below 1 ohms
C28-18 (B) - S60-3 (E)10 kohms or higher

Tester ConnectionSpecified Condition
C30-8 (E) - S61-3 (E)Below 1 ohms
C30-8 (E) - S61-1 (B)10 kohms or higher
C30-18 (B) - S61-1 (B)Below 1 ohms
C30-18 (B) - S61-3 (E)10 kohms or higher

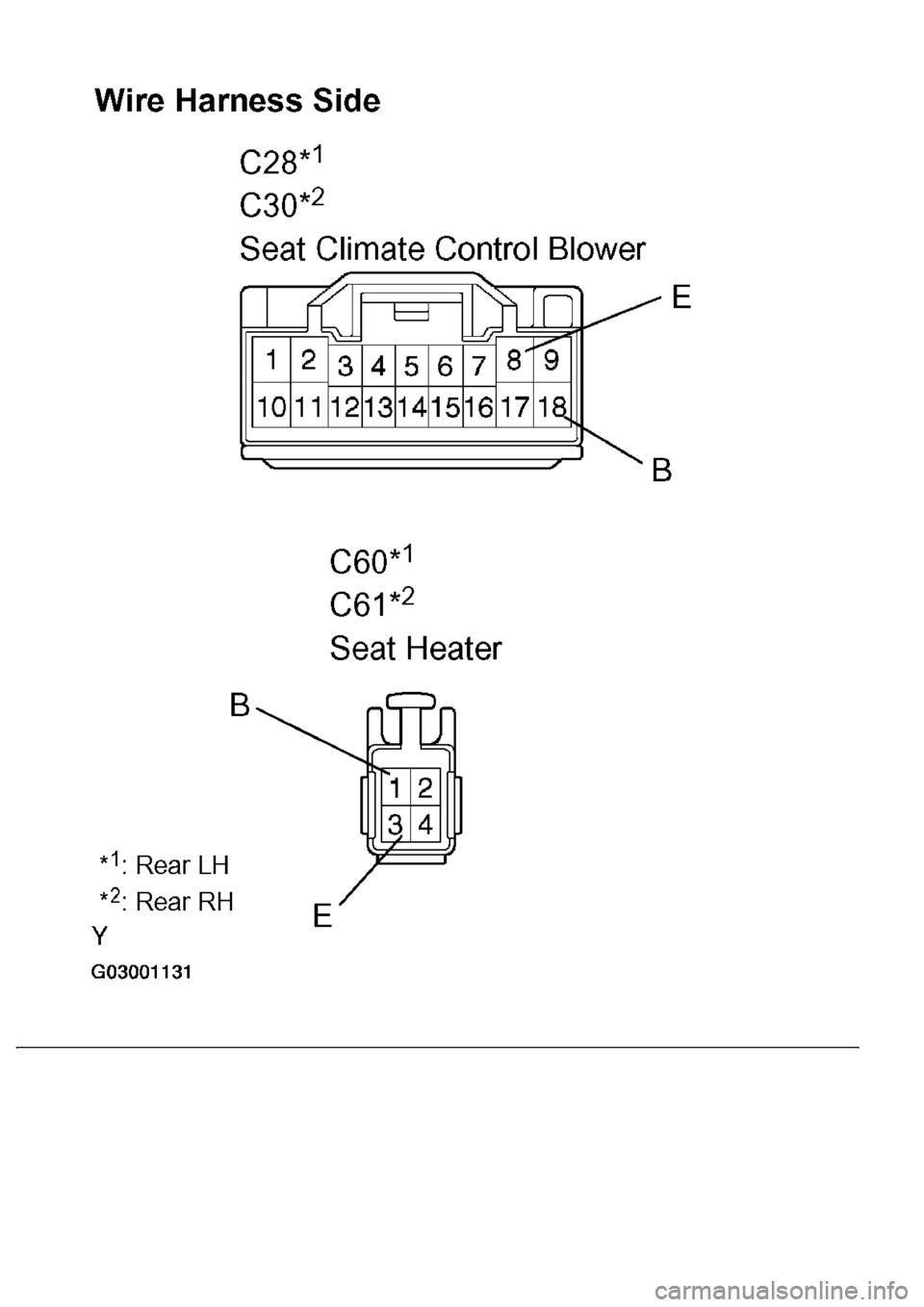

Fig. 27: Identifying Seat Climate Control Blower Connector Terminals And Seat Heater Connector
Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

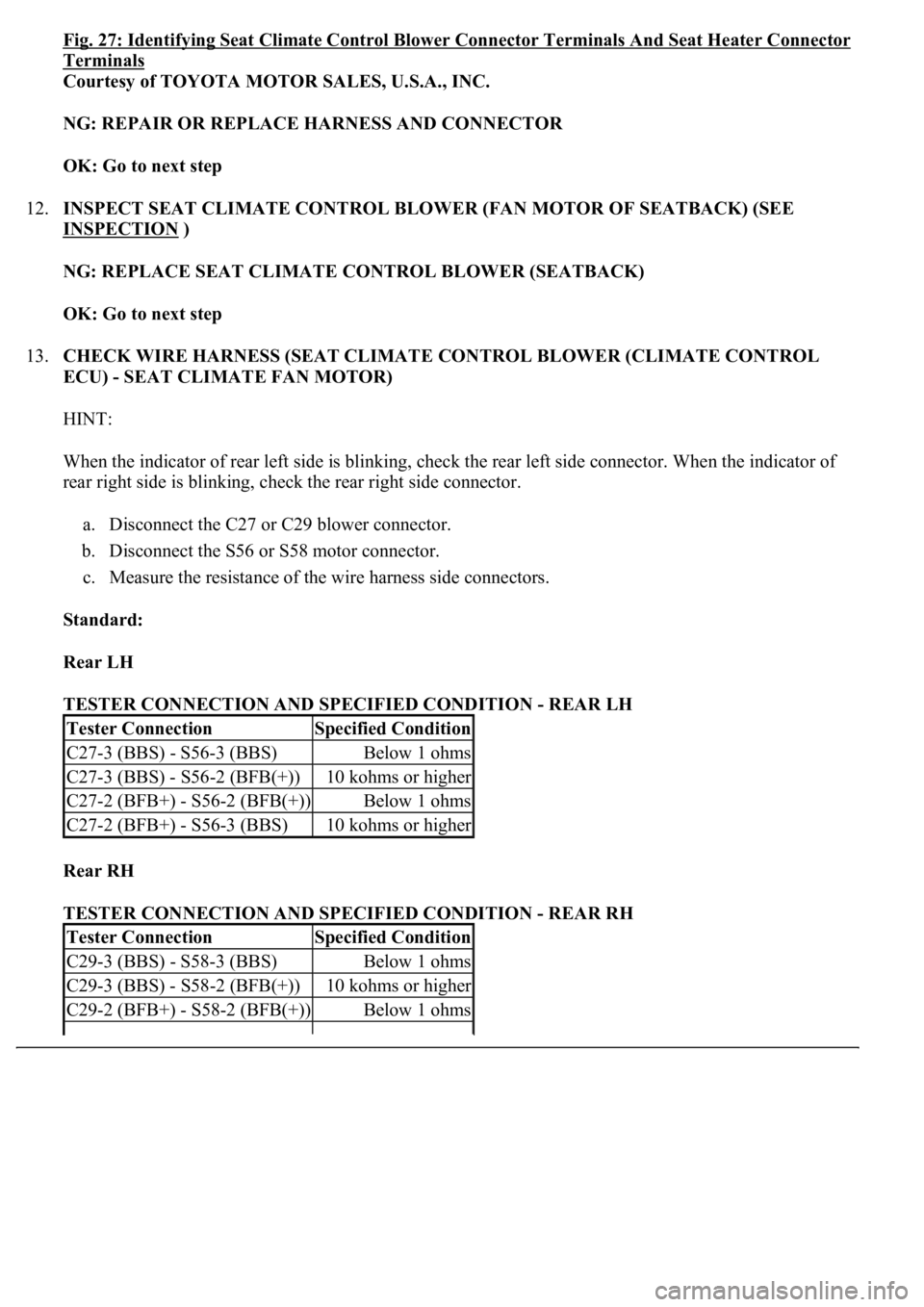

12.INSPECT SEAT CLIMATE CONTROL BLOWER (FAN MOTOR OF SEATBACK) (SEE
INSPECTION
)
NG: REPLACE SEAT CLIMATE CONTROL BLOWER (SEATBACK)
OK: Go to next step
13.CHECK WIRE HARNESS (SEAT CLIMATE CONTROL BLOWER (CLIMATE CONTROL
ECU) - SEAT CLIMATE FAN MOTOR)
HINT:
When the indicator of rear left side is blinking, check the rear left side connector. When the indicator of
rear right side is blinking, check the rear right side connector.
a. Disconnect the C27 or C29 blower connector.
b. Disconnect the S56 or S58 motor connector.
c. Measure the resistance of the wire harness side connectors.
Standard:
Rear LH
TESTER CONNECTION AND SPECIFIED CONDITION - REAR LH
Rear RH
TESTER CONNECTION AND SPECIFIED CONDITION - REAR RH
Tester ConnectionSpecified Condition
C27-3 (BBS) - S56-3 (BBS)Below 1 ohms
C27-3 (BBS) - S56-2 (BFB(+))10 kohms or higher
C27-2 (BFB+) - S56-2 (BFB(+))Below 1 ohms
C27-2 (BFB+) - S56-3 (BBS)10 kohms or higher
Tester ConnectionSpecified Condition
C29-3 (BBS) - S58-3 (BBS)Below 1 ohms
C29-3 (BBS) - S58-2 (BFB(+))10 kohms or higher
C29-2 (BFB+) - S58-2 (BFB(+))Below 1 ohms

<0029004c004a001100030015001b001d0003002c0047004800510057004c0049005c004c0051004a0003003600480044005700030026004f004c00500044005700480003002600520051005700550052004f00030025004f0052005a004800550003002600
52005100510048004600570052005500030037004800550050[inals And Seat Climate Fan
Motor Connector Terminals
C29-2 (BFB+) - S58-3 (BBS)10 kohms or higher

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE SEAT CLIMATE CONTROL BLOWER (CLIMATE CONTROL ECU)

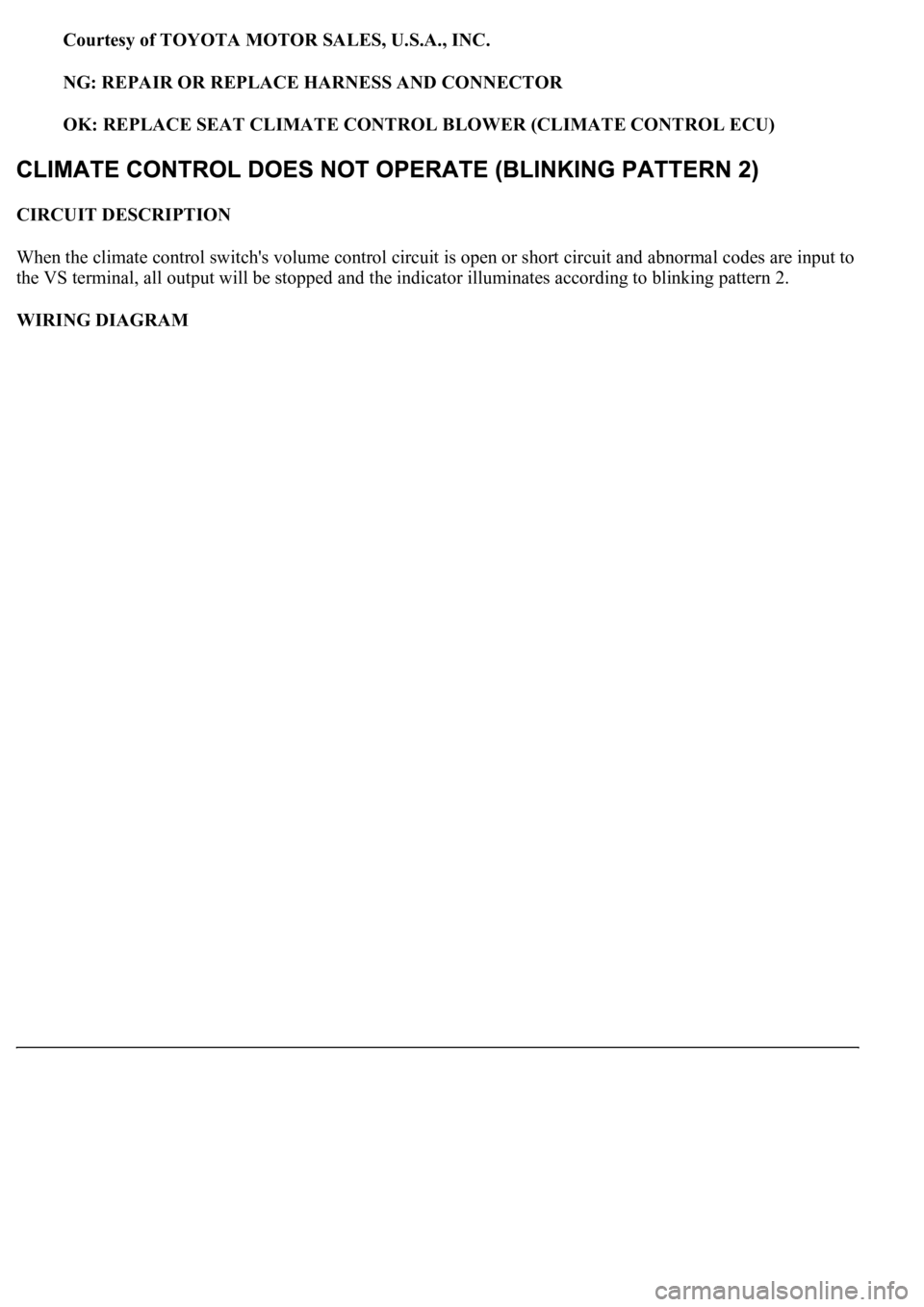

CIRCUIT DESCRIPTION
When the climate control switch's volume control circuit is open or short circuit and abnormal codes are input to
the VS terminal, all output will be stopped and the indicator illuminates according to blinking pattern 2.
WIRING DIAGRAM

Fig. 29: Climate Control Does Not Operate (Blinking Pattern 2) Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT FRONT SEAT HEATER SWITCH (INDICATOR)
a. Check that the climate control indicator is blinkin
g.
