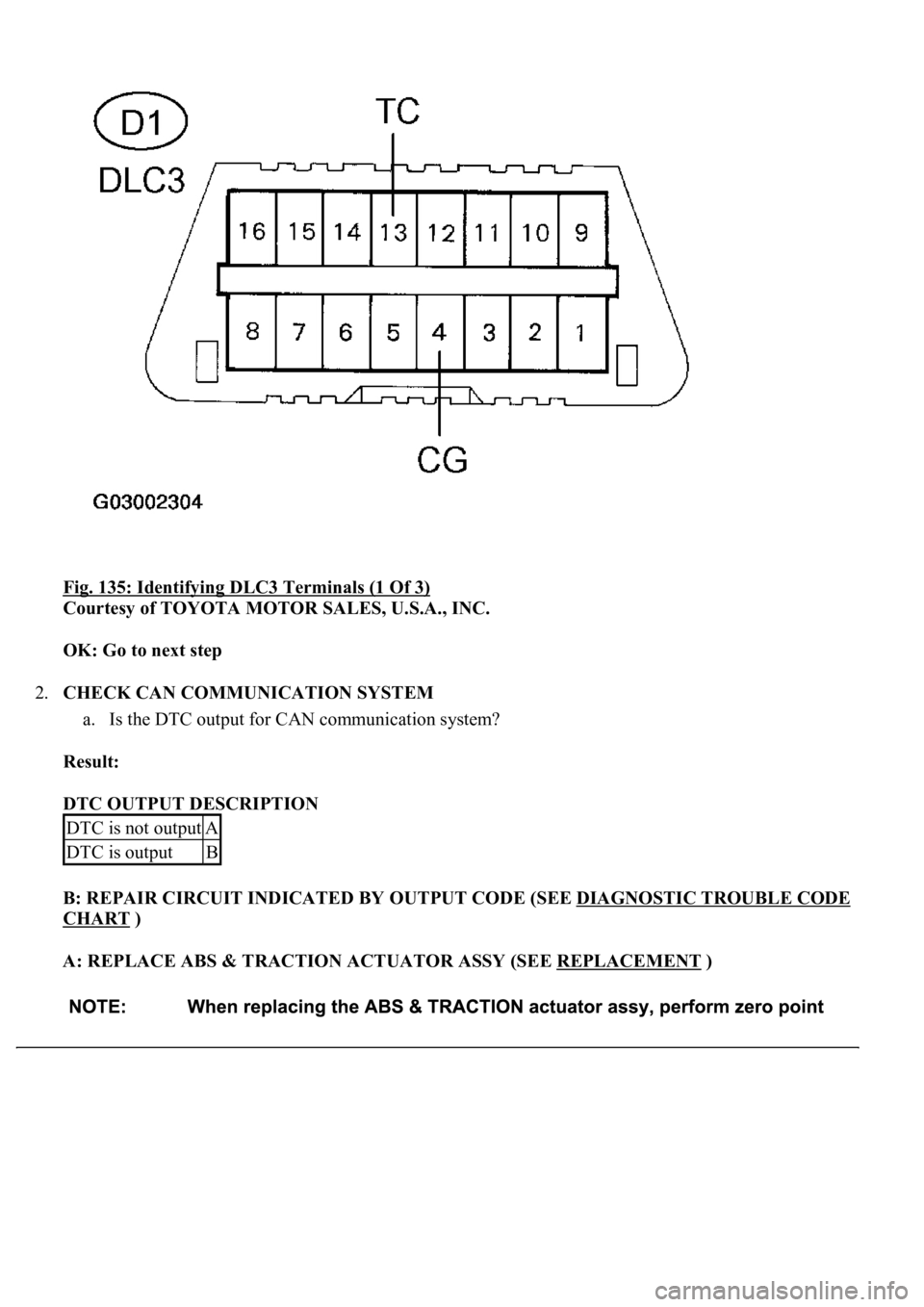

Fig. 135: Identifying DLC3 Terminals (1 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
2.CHECK CAN COMMUNICATION SYSTEM
a. Is the DTC output for CAN communication system?
Result:
DTC OUTPUT DESCRIPTION
B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE (SEE DIAGNOSTIC TROUBLE CODE
CHART )
A: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
)
DTC is not outputA
DTC is outputB

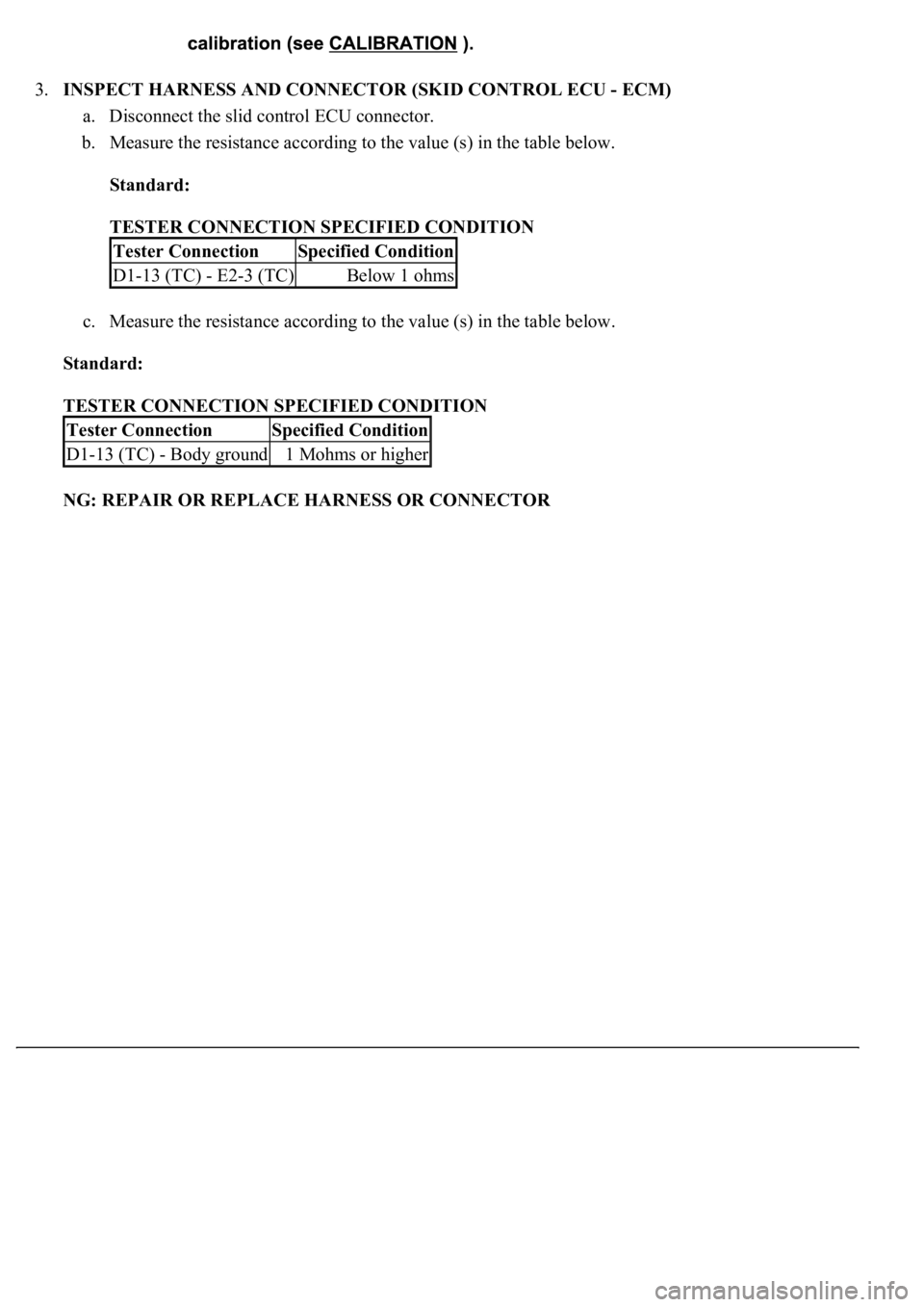

3.INSPECT HARNESS AND CONNECTOR (SKID CONTROL ECU - ECM)
a. Disconnect the slid control ECU connector.
b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
c. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Tester ConnectionSpecified Condition
D1-13 (TC) - E2-3 (TC)Below 1 ohms
Tester ConnectionSpecified Condition
D1-13 (TC) - Body ground1 Mohms or higher

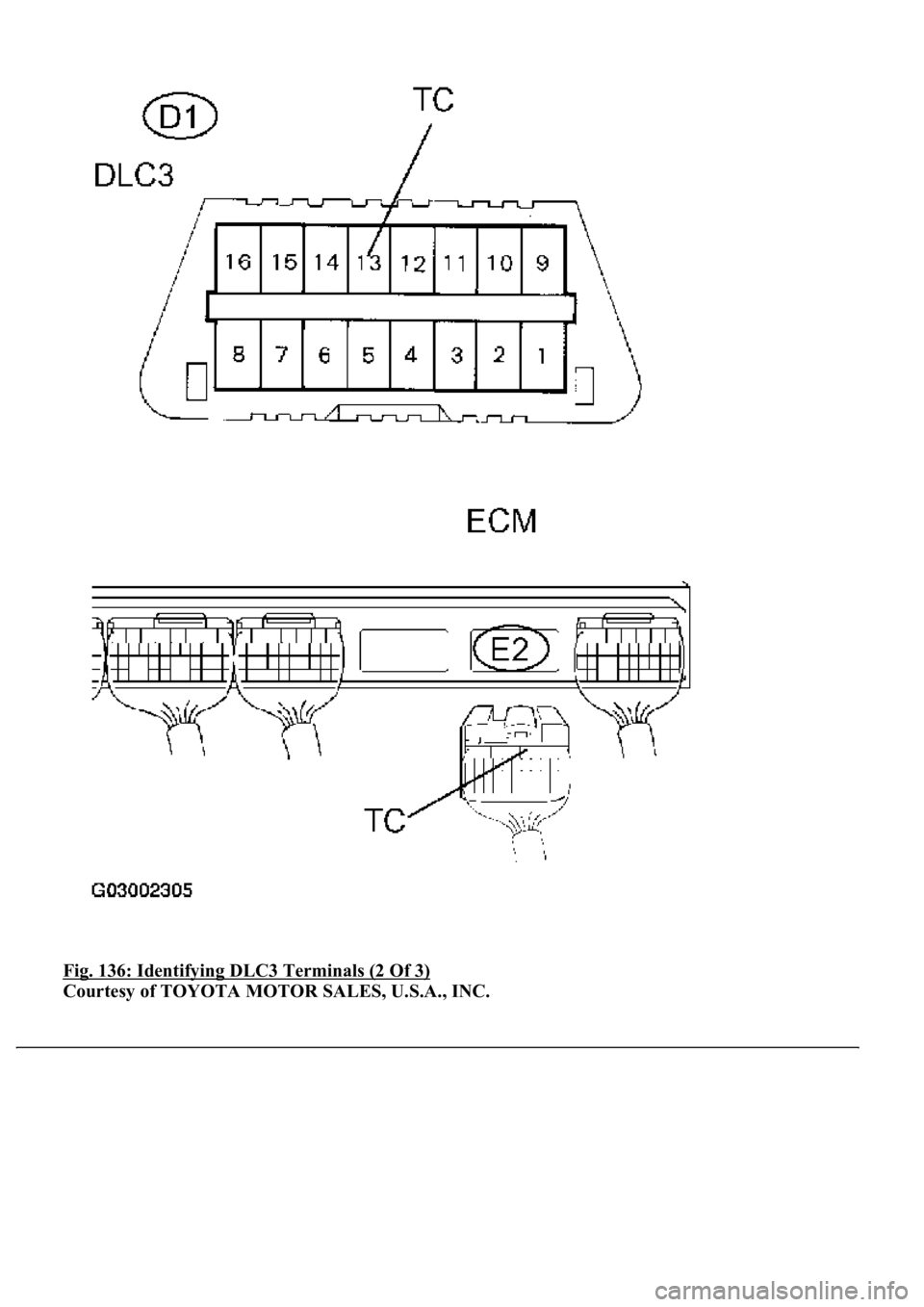

Fig. 136: Identifying DLC3 Terminals (2 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OK: Go to next step
4.INSPECT HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
a. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

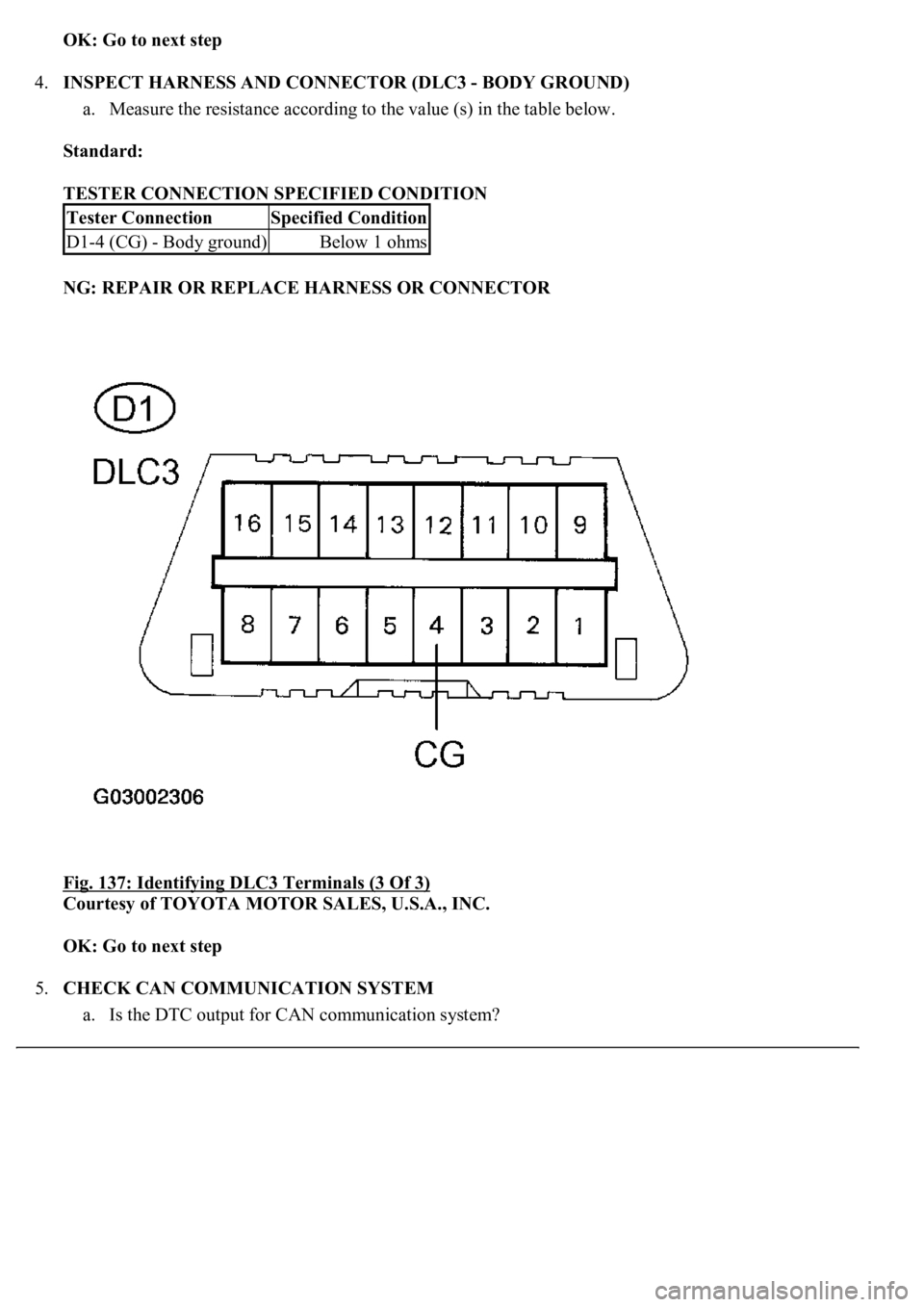

Fig. 137: Identifying DLC3 Terminals (3 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
5.CHECK CAN COMMUNICATION SYSTEM
a. Is the DTC output for CAN communication s
ystem?
Tester ConnectionSpecified Condition
D1-4 (CG) - Body ground)Below 1 ohms

Result:
DTC OUTPUT DESCRIPTION
B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE (SEE DIAGNOSTIC TROUBLE CODE
CHART )
A: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
In the sensor check mode, a malfunction of the speed sensor that cannot be detected when the vehicle is stopped
is detected while driving.
Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and
turning the ignition switch from off to the ON position.
WIRING DIAGRAM
DTC is not outputA
DTC is outputB

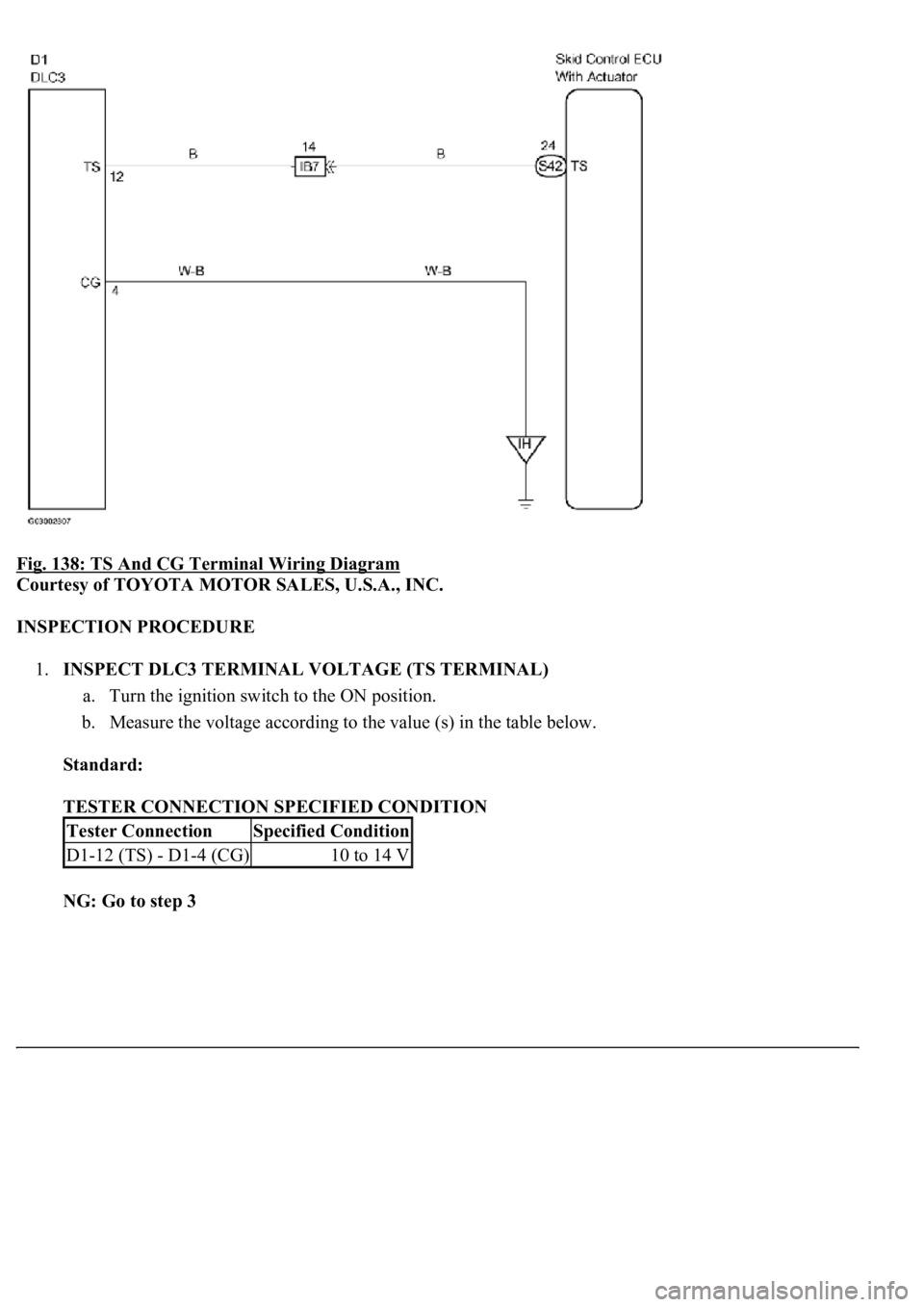

Fig. 138: TS And CG Terminal Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT DLC3 TERMINAL VOLTAGE (TS TERMINAL)
a. Turn the ignition switch to the ON position.
b. Measure the voltage according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
NG: Go to step 3
Tester ConnectionSpecified Condition
D1-12 (TS) - D1-4 (CG)10 to 14 V

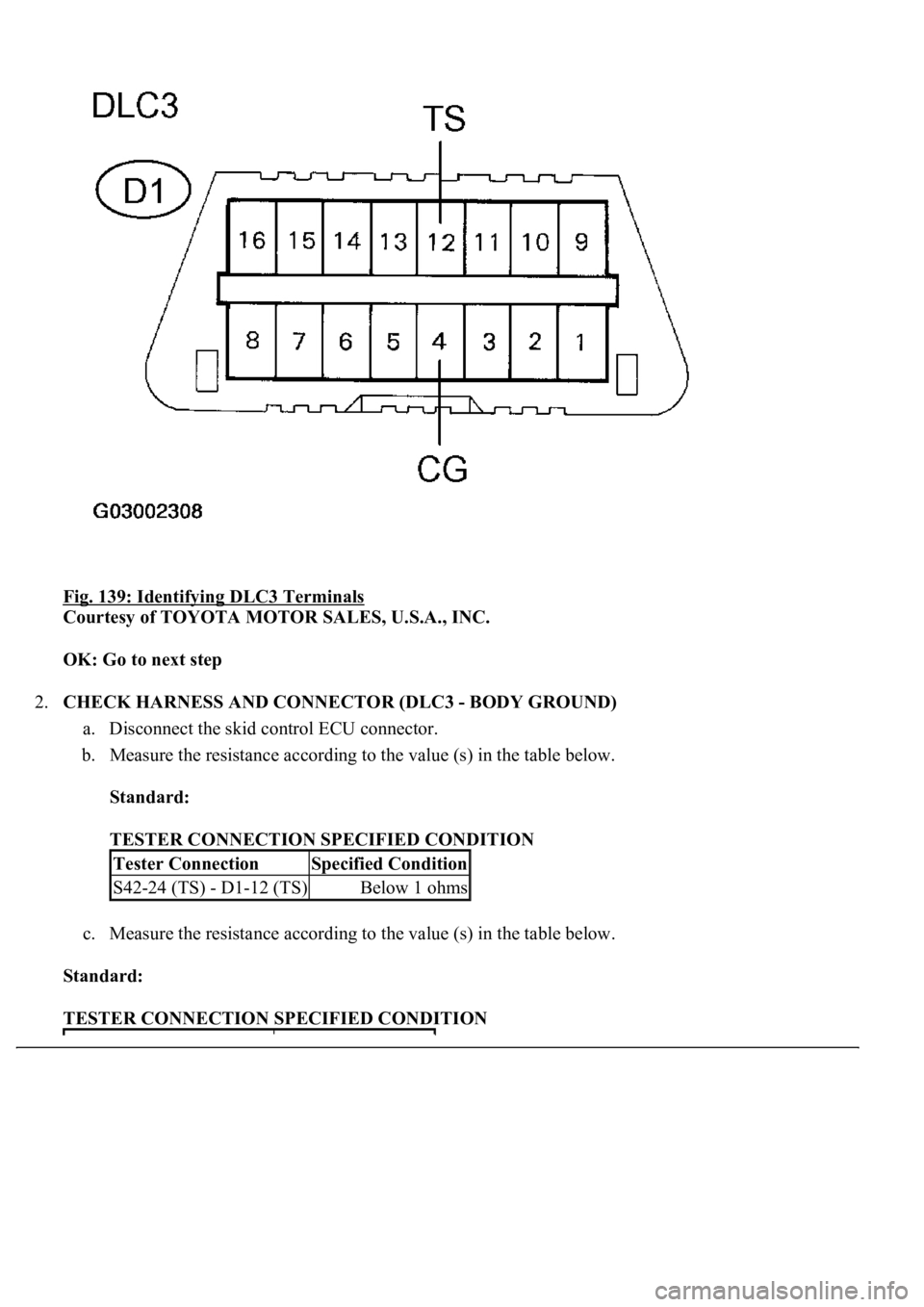

Fig. 139: Identifying DLC3 Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
2.CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
a. Disconnect the skid control ECU connector.
b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
c. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
Tester ConnectionSpecified Condition
S42-24 (TS) - D1-12 (TS)Below 1 ohms

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Tester ConnectionSpecified Condition
S42-24 (TS) - Body ground1 Mohms or higher

Fig. 140: Identifying Skid Control ECU Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
)

3.CHECK HARNESS AND CONNECTOR (BODY GROUND - DLC3)
a. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

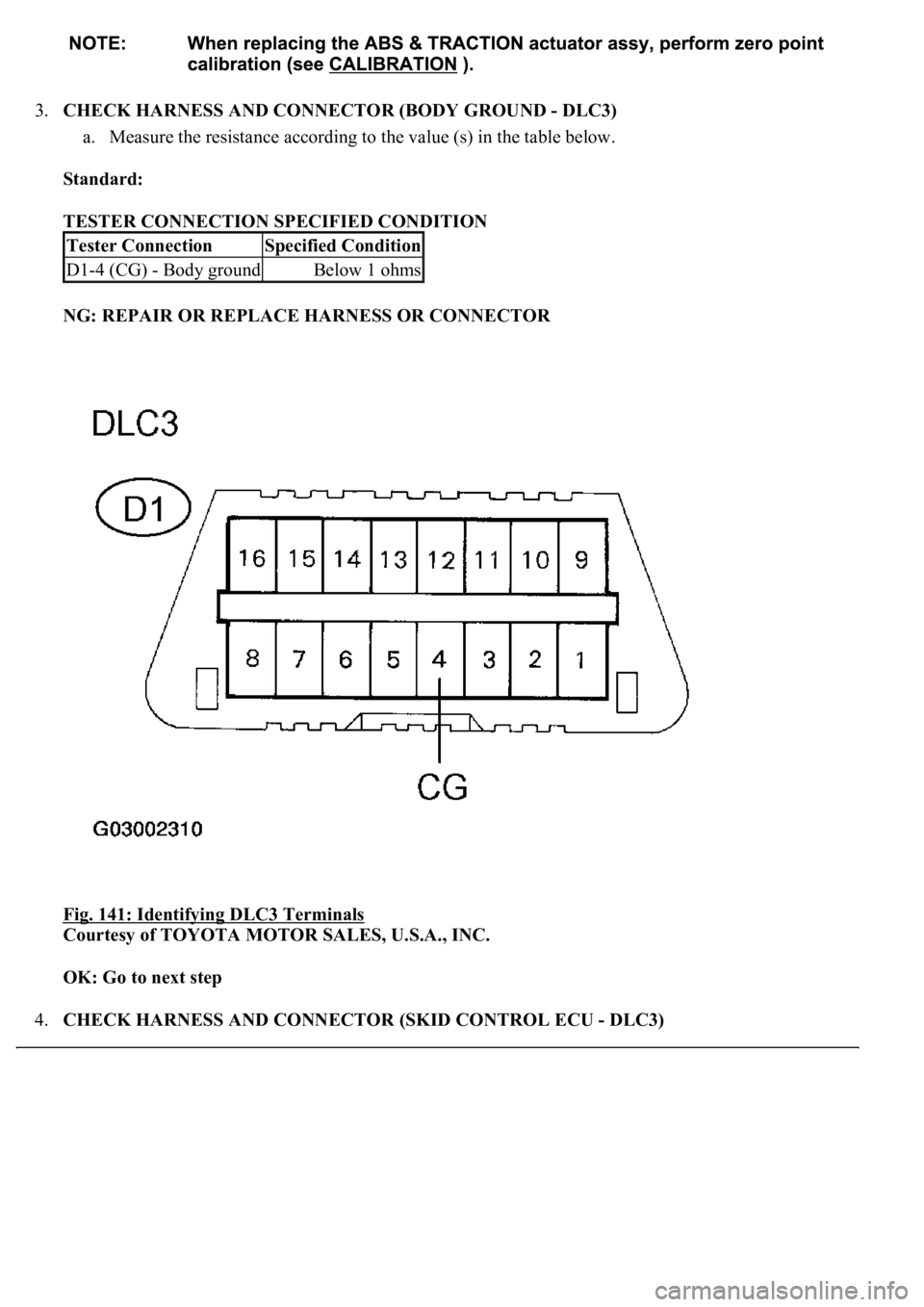

Fig. 141: Identifying DLC3 Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
4.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
Tester ConnectionSpecified Condition
D1-4 (CG) - Body groundBelow 1 ohms
