Fig. 80: Removing Check Ball Body And Spring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the bolt, lock plate and lock up control solenoid (SLU) and clutch control solenoid (SL2).
d. Remove the bolt and automatic transmission 3-way solenoid assy (S3).
e. Remove the bolt and automatic transmission 3-way solenoid (S2) and automatic transmission 3-
way solenoid (S4).
f. Remove the bolt and automatic transmission 3-way solenoid (S1).
g. Remove the bolt and automatic transmission 3-way solenoid (SR).
h. Remove the bolt, lock plate and clutch control solenoid No.1 (SL1) and line pressure control
solenoid (SLT).

Fig. 81: Removing Bolt And Automatic Transmission 3-Way Solenoid Assy (S3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7.INSTALL TRANSMISSION VALVE BODY ASSY
a. Install the clutch control solenoid No.1 (SL1) and line pressure control solenoid (SLT) with the
lock plate and bolt.
Torque: 6.4 N.m (65 kgf.cm, 56 in..lbf)
b. Install the automatic transmission 3-way solenoid (SR) with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
c. Install the automatic transmission 3-way solenoid (S1) with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
d. Install the automatic transmission 3-way solenoid (S2) and automatic transmission 3-way solenoid
(S4) with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
e. Install the automatic transmission 3-way solenoid (S3) with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
f. Install the lock up control solenoid (SLU) and clutch control solenoid (SL2) with the lock plate and
bolt.
Torque: 6.4 N.m (65 kgf.cm, 56 in..lbf)

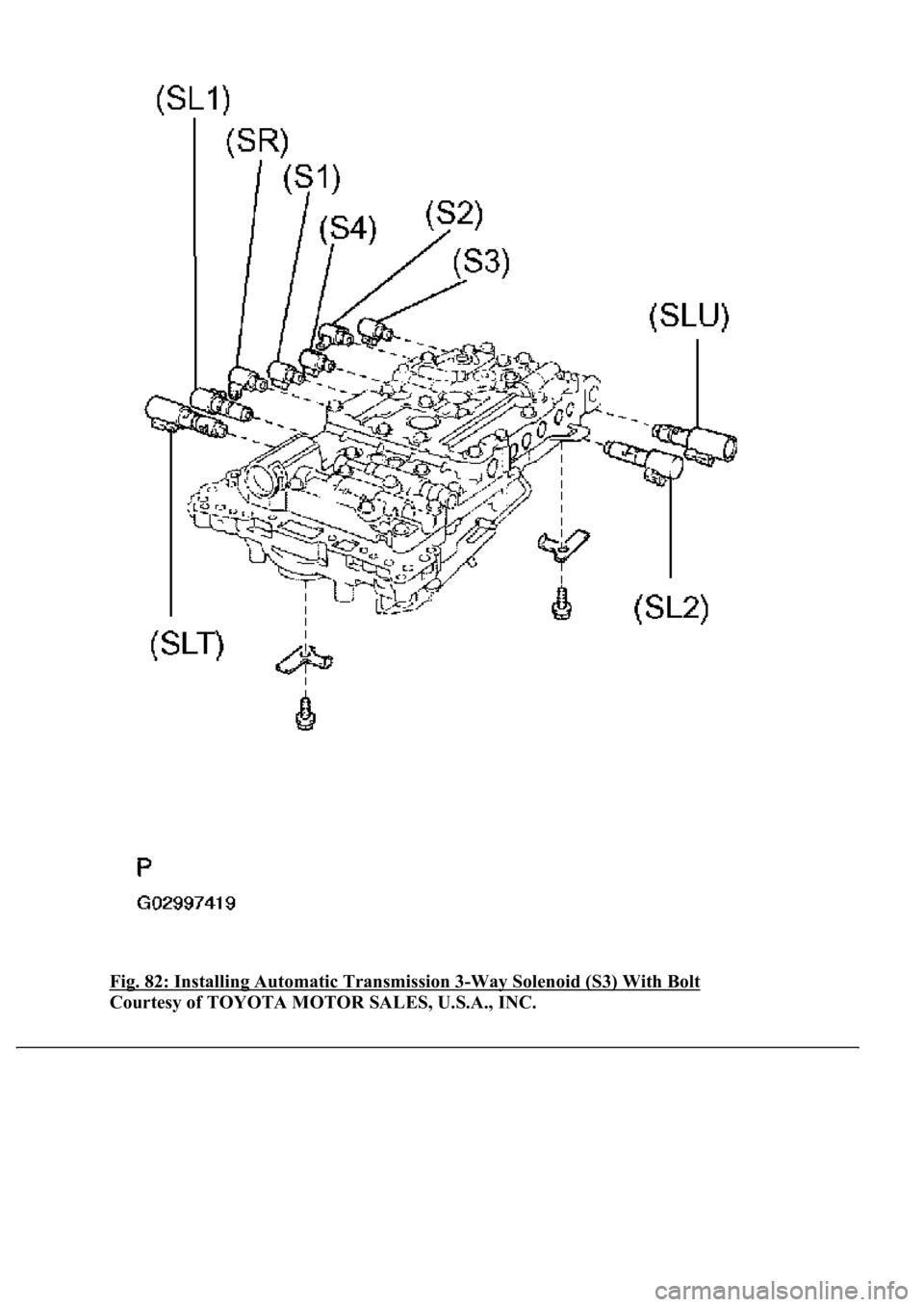

Fig. 82: Installing Automatic Transmission 3-Way Solenoid (S3) With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

g. Install the check ball body and spring.

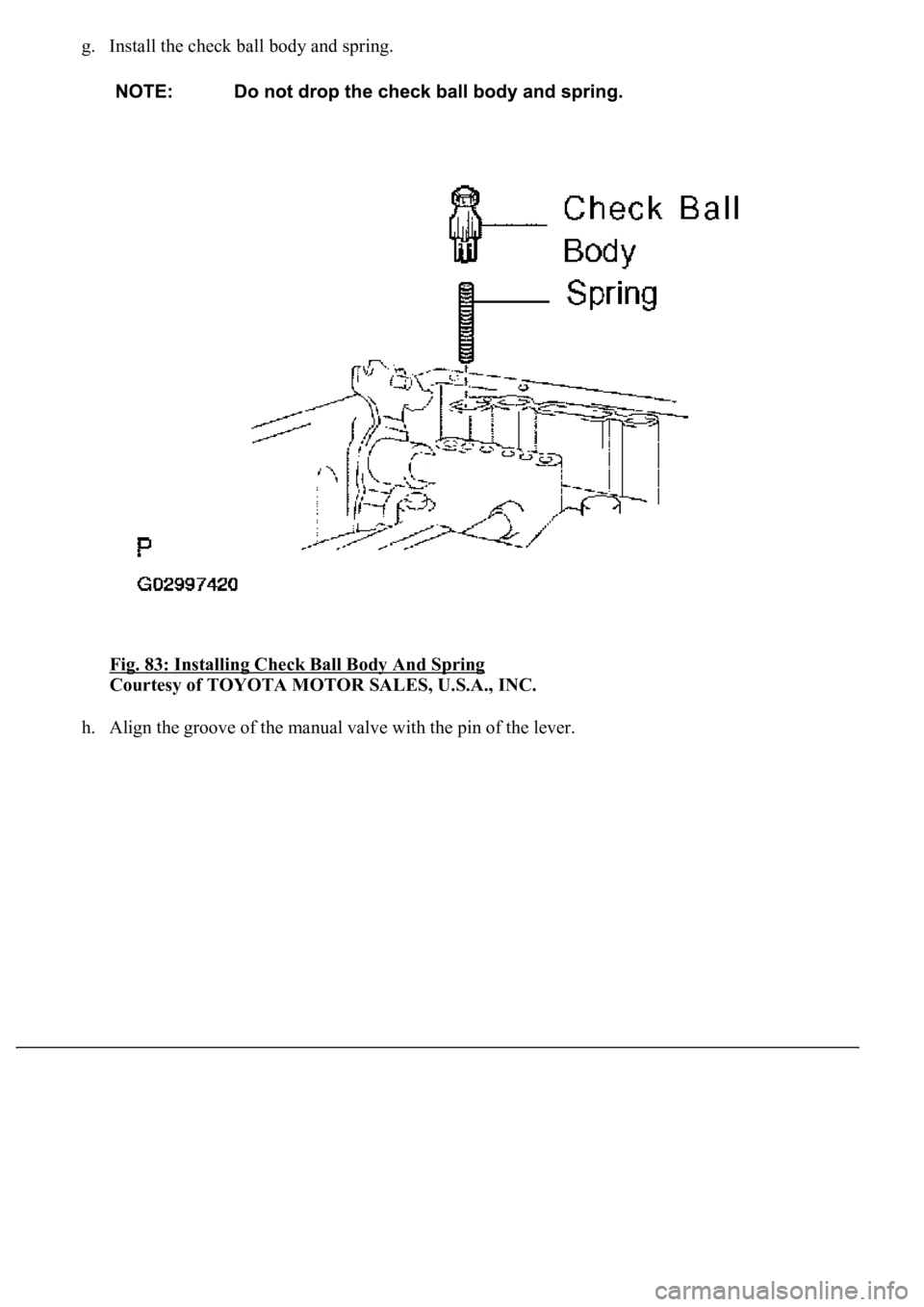

Fig. 83: Installing Check Ball Body And Spring

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
h. Align the groove of the manual valve with the pin of the lever.

Fig. 84: Aligning Groove Of Manual Valve With Pin Of Lever
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
i. Install the 20 bolts.
Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)
Bolt length:
Bolt A: 36 mm (1.42 in.)
Bolt B: 25 mm (0.98 in.)
Bolt C: 45 mm (1.77 in.)
Bolt D: 50 mm (1.97 in.)

Fig. 85: Installing 20 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL TRANSMISSION WIRE
a. Coat a new O-ring of the ATF temperature sensor with ATF.
b. Connect the 9 connectors to the solenoid valves.
c. Install the 2 clamps with the 2 bolts.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
d. Install the ATF temperature sensor and lock plate with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

Fig. 86: Installing ATF Temperature Sensor And Lock Plate With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSTALL VALVE BODY OIL STRAINER ASSY
a. Coat a new O-ring with ATF.
b. Install the O-ring.

Fig. 87: Installing O-ring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the oil strainer with the 4 bolts.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

Fig. 88: Installing Oil Strainer With 4 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY
a. Install the 3 ma
gnets in the oil pan.
