LEXUS LS430 2003 Factory Repair Manual

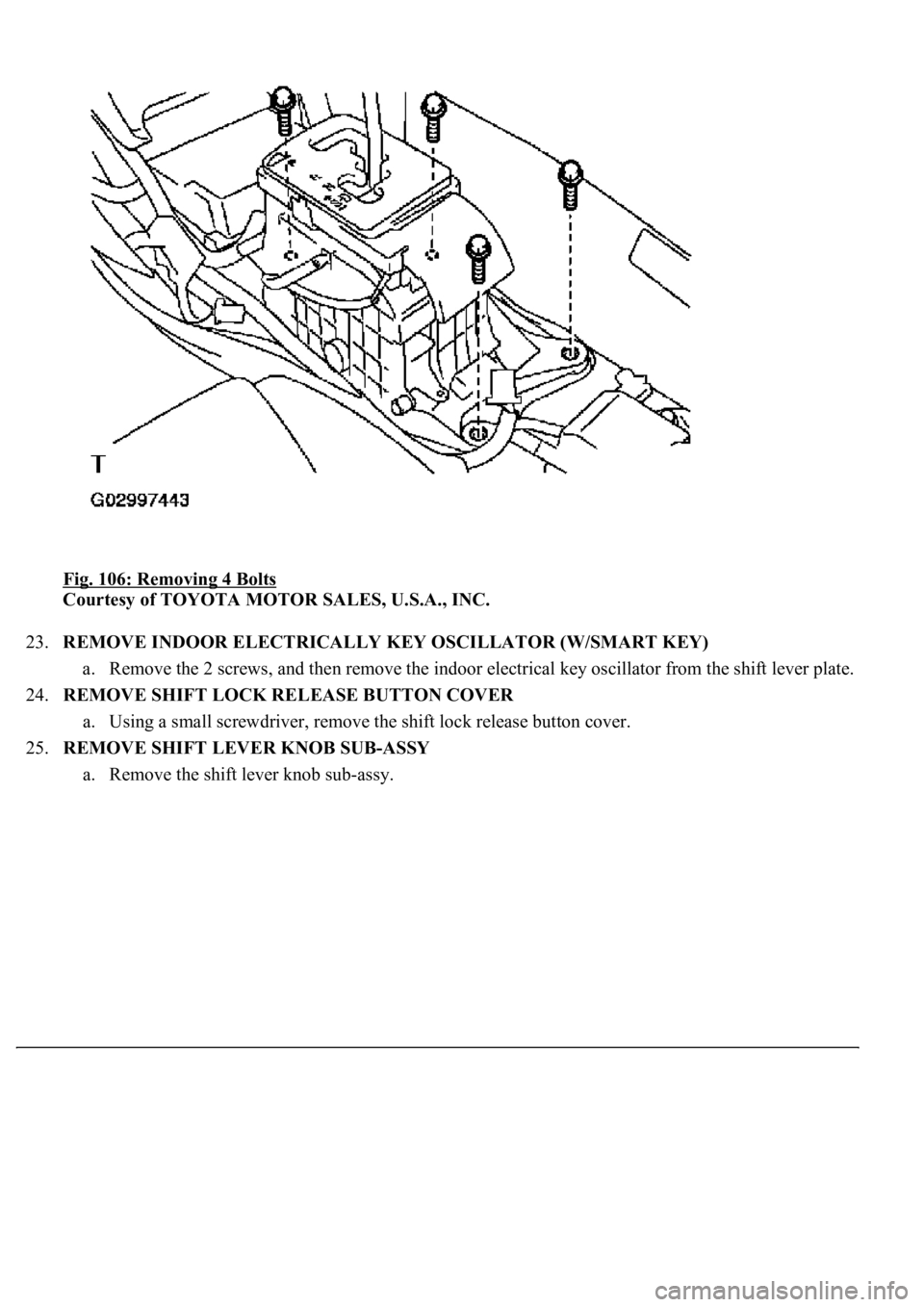

Fig. 106: Removing 4 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23.REMOVE INDOOR ELECTRICALLY KEY OSCILLATOR (W/SMART KEY)
a. Remove the 2 screws, and then remove the indoor electrical key oscillator from the shift lever plate.
24.REMOVE SHIFT LOCK RELEASE BUTTON COVER
a. Using a small screwdriver, remove the shift lock release button cover.
25.REMOVE SHIFT LEVER KNOB SUB-ASSY
a. Remove the shift lever knob sub-assy.

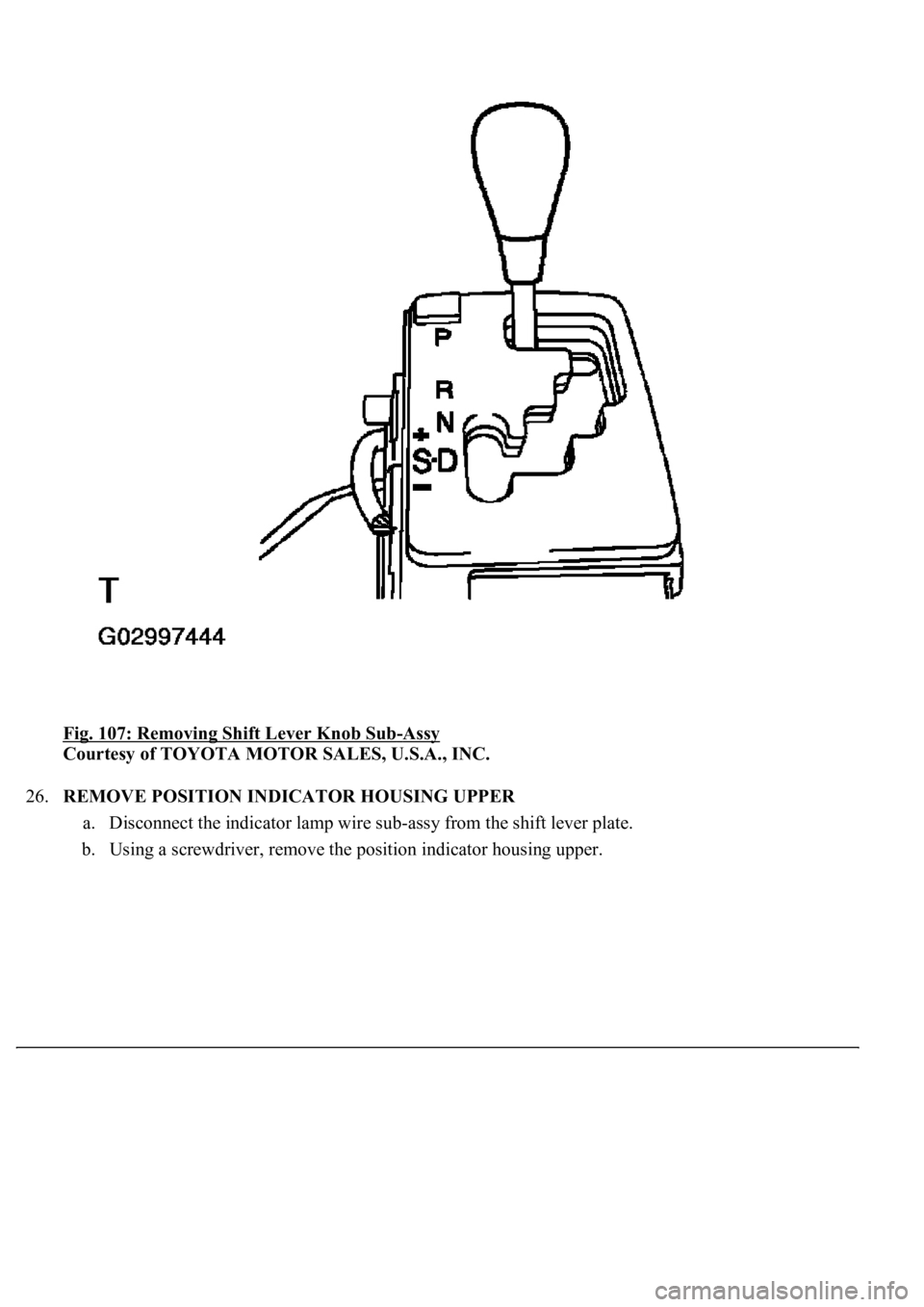

Fig. 107: Removing Shift Lever Knob Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.REMOVE POSITION INDICATOR HOUSING UPPER
a. Disconnect the indicator lamp wire sub-assy from the shift lever plate.
b. Using a screwdriver, remove the position indicator housing upper.

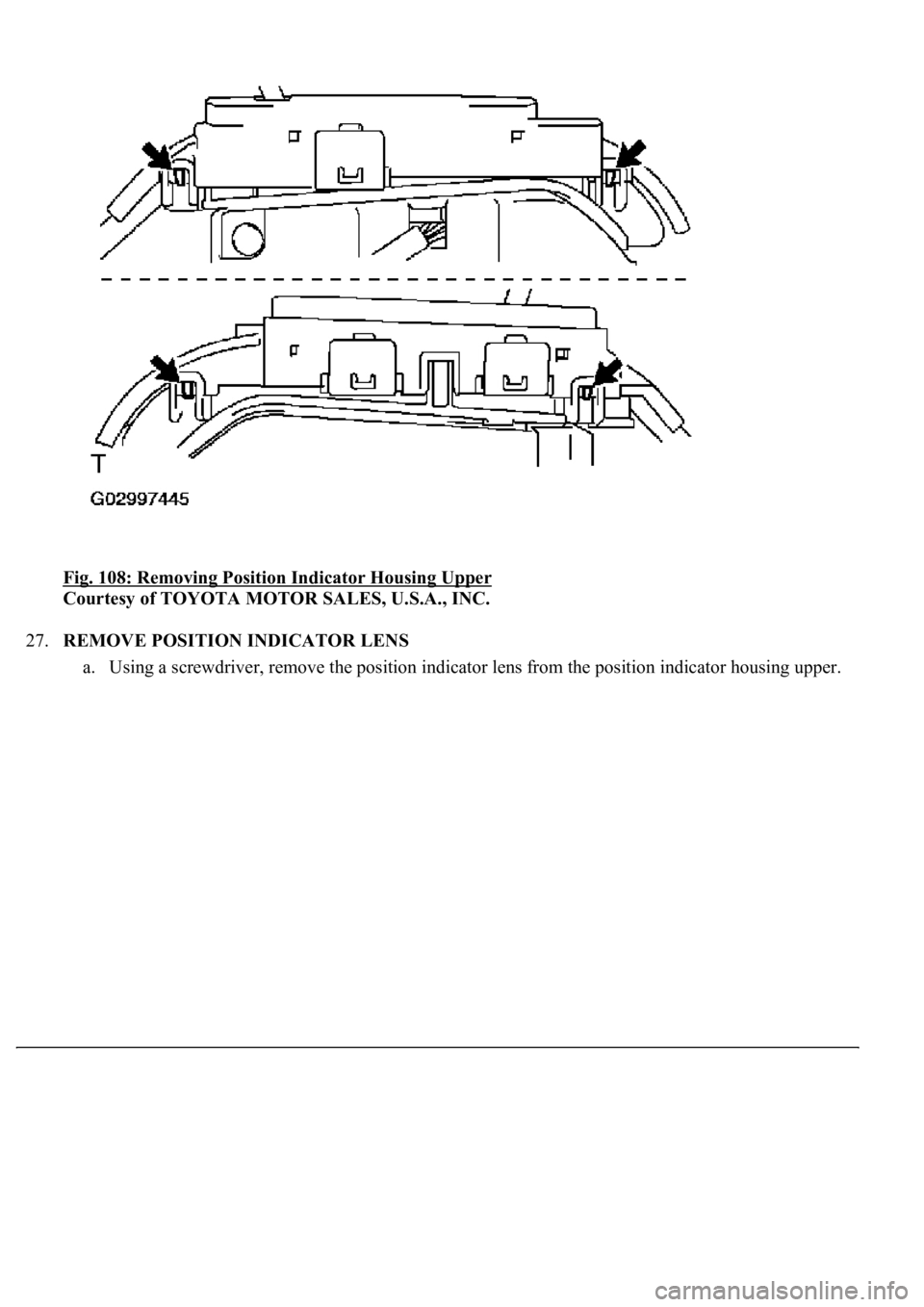

<0029004c004a0011000300140013001b001d000300350048005000520059004c0051004a0003003300520056004c0057004c005200510003002c00510047004c004600440057005200550003002b005200580056004c0051004a0003003800530053004800
55[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.REMOVE POSITION INDICATOR LENS
a. Using a screwdriver, remove the position indicator lens from the position indicator housing upper.

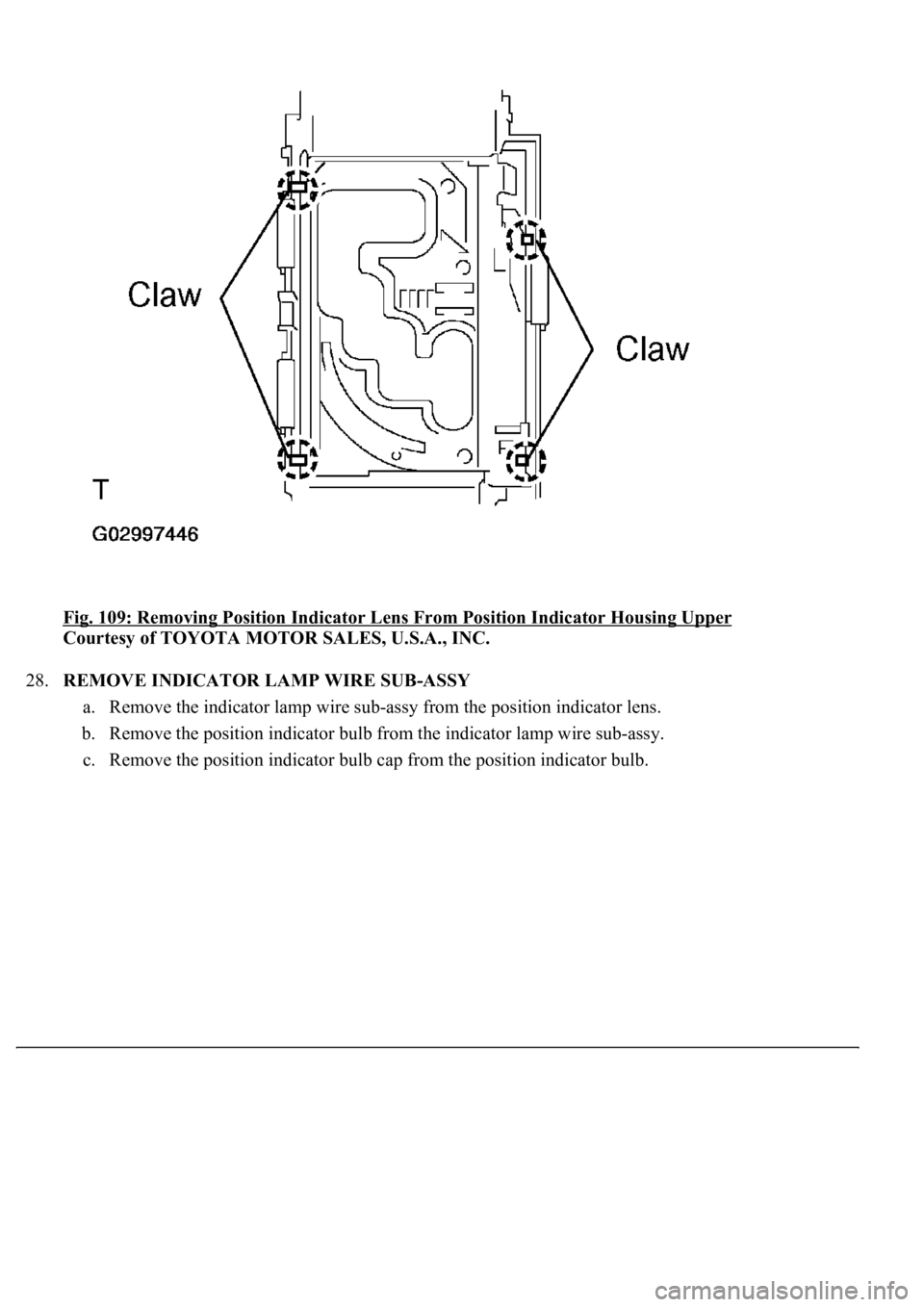

Fig. 109: Removing Position Indicator Lens From Position Indicator Housing Upper
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.REMOVE INDICATOR LAMP WIRE SUB-ASSY
a. Remove the indicator lamp wire sub-assy from the position indicator lens.
b. Remove the position indicator bulb from the indicator lamp wire sub-assy.
c. Remove the position indicator bulb cap from the position indicator bulb.

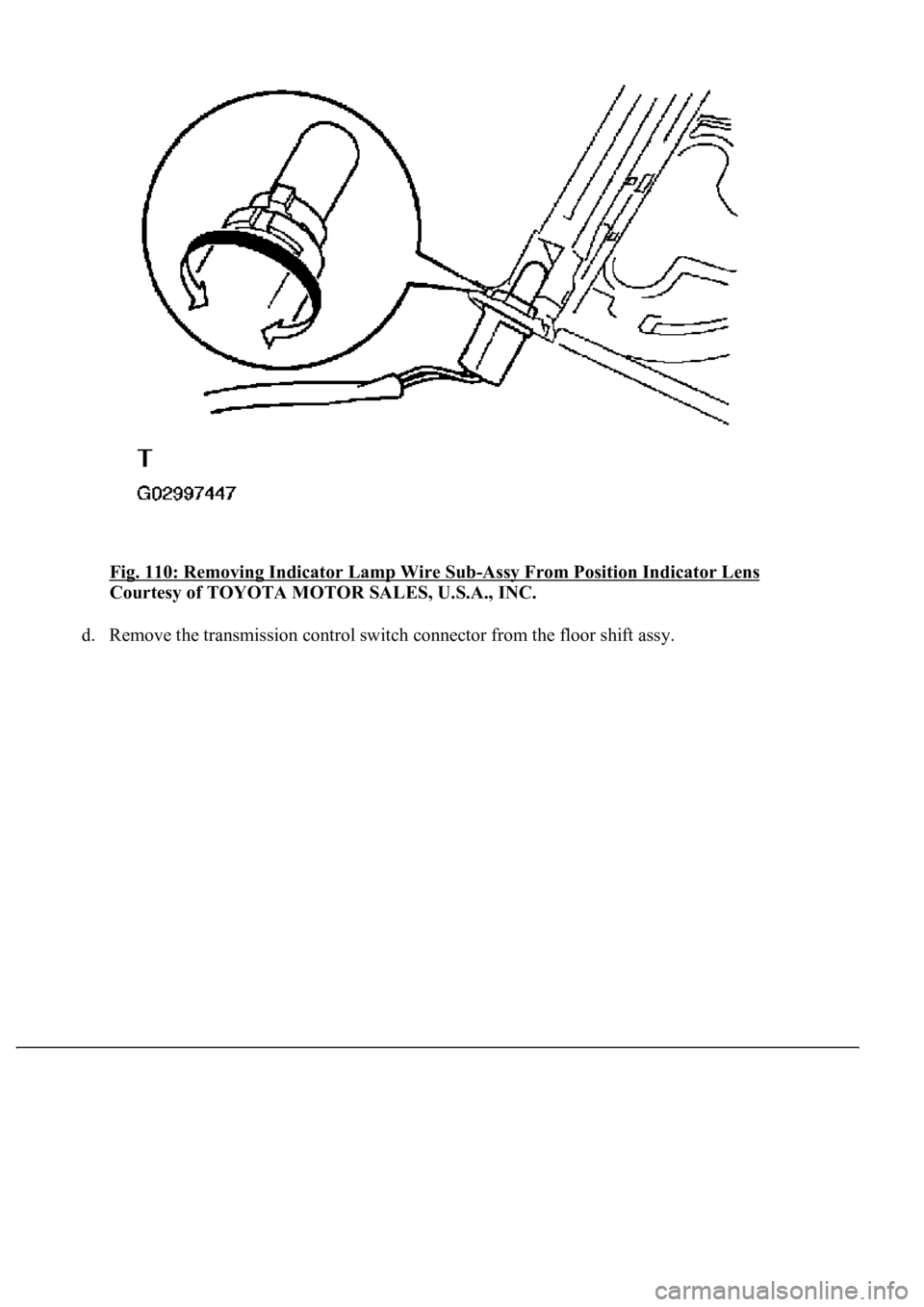

Fig. 110: Removing Indicator Lamp Wire Sub-Assy From Position Indicator Lens
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Remove the transmission control switch connector from the floor shift ass
y.

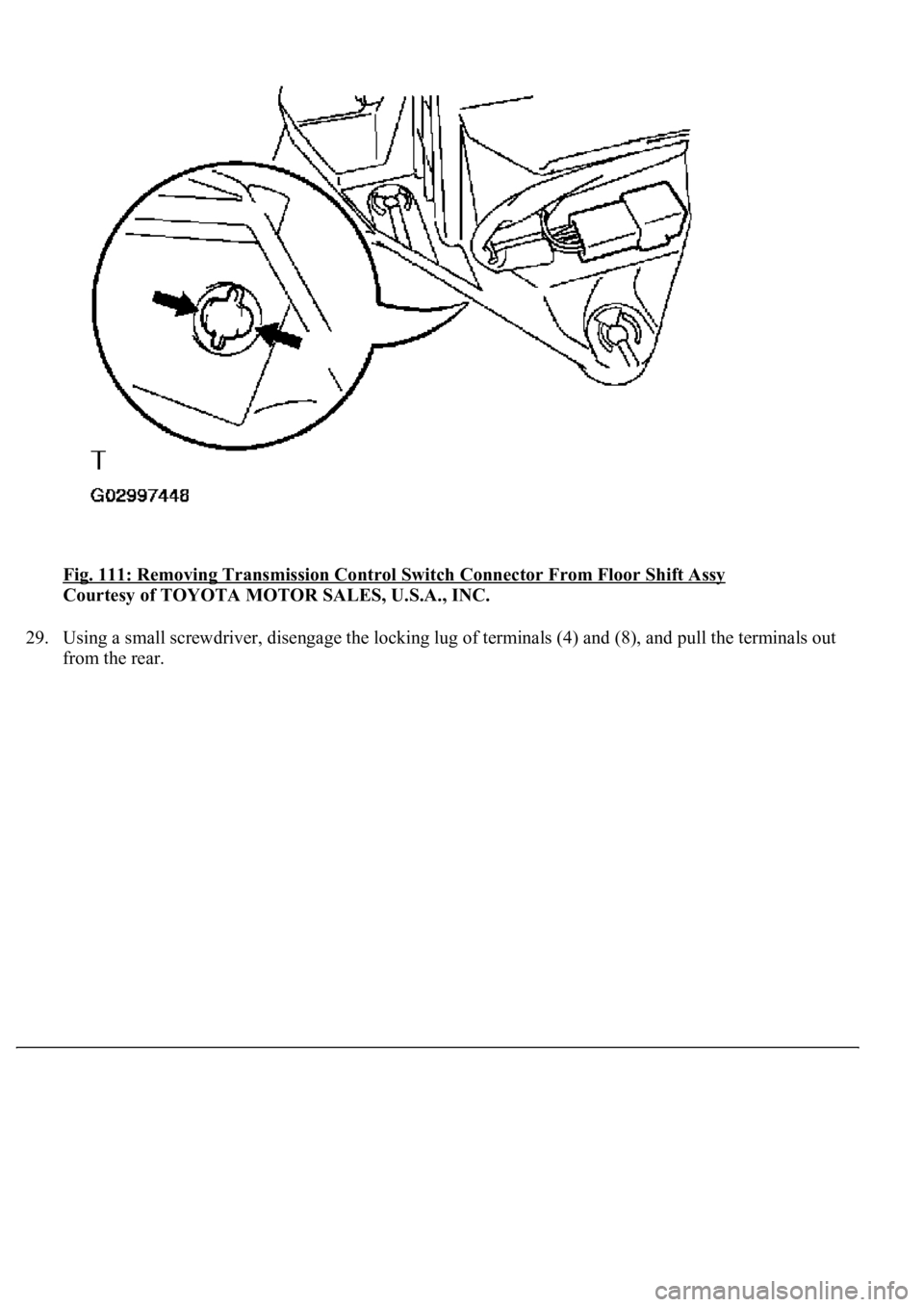

Fig. 111: Removing Transmission Control Switch Connector From Floor Shift Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29. Using a small screwdriver, disengage the locking lug of terminals (4) and (8), and pull the terminals out
from the rear.

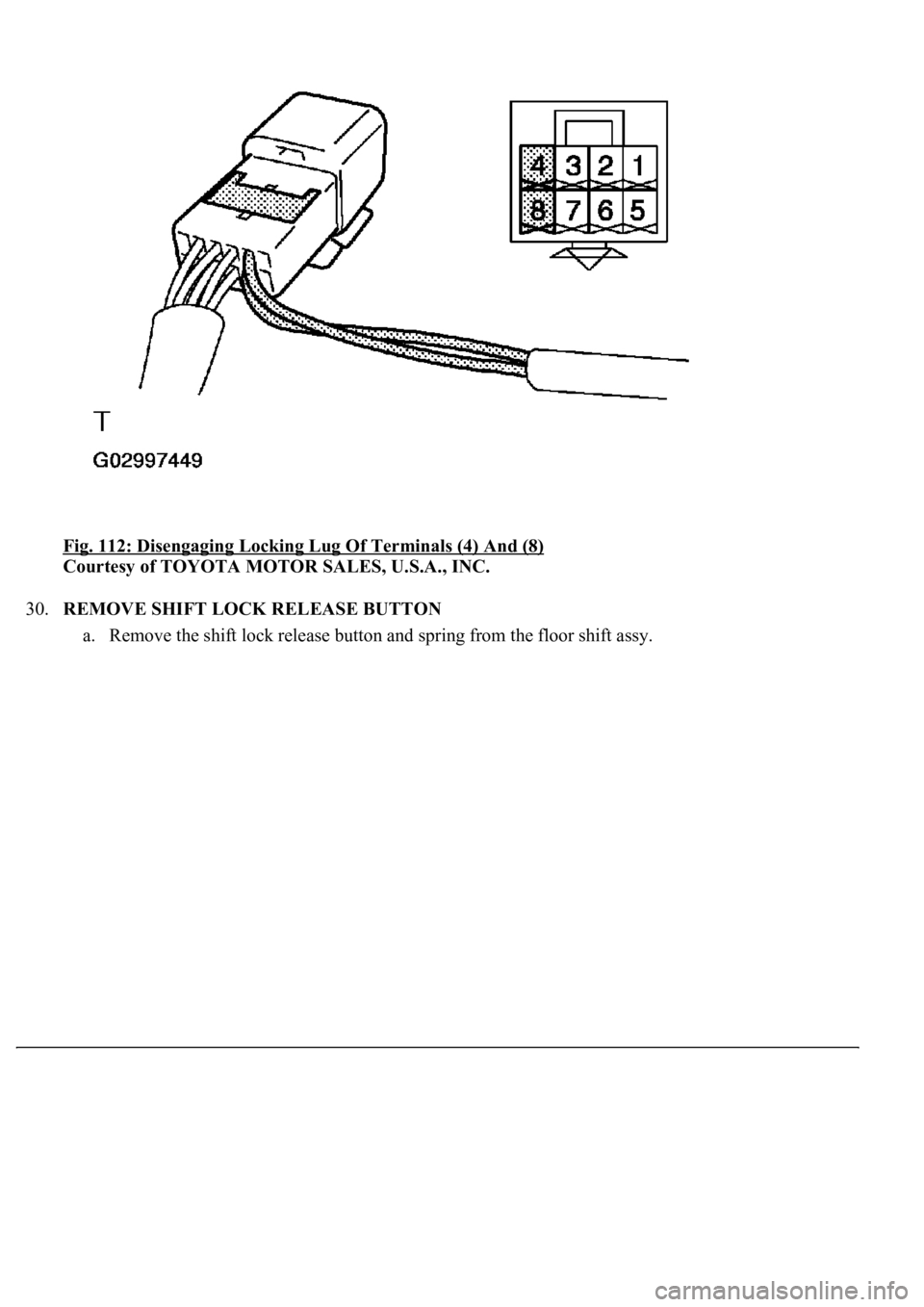

Fig. 112: Disengaging Locking Lug Of Terminals (4) And (8)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.REMOVE SHIFT LOCK RELEASE BUTTON
a. Remove the shift lock release button and sprin
g from the floor shift assy.

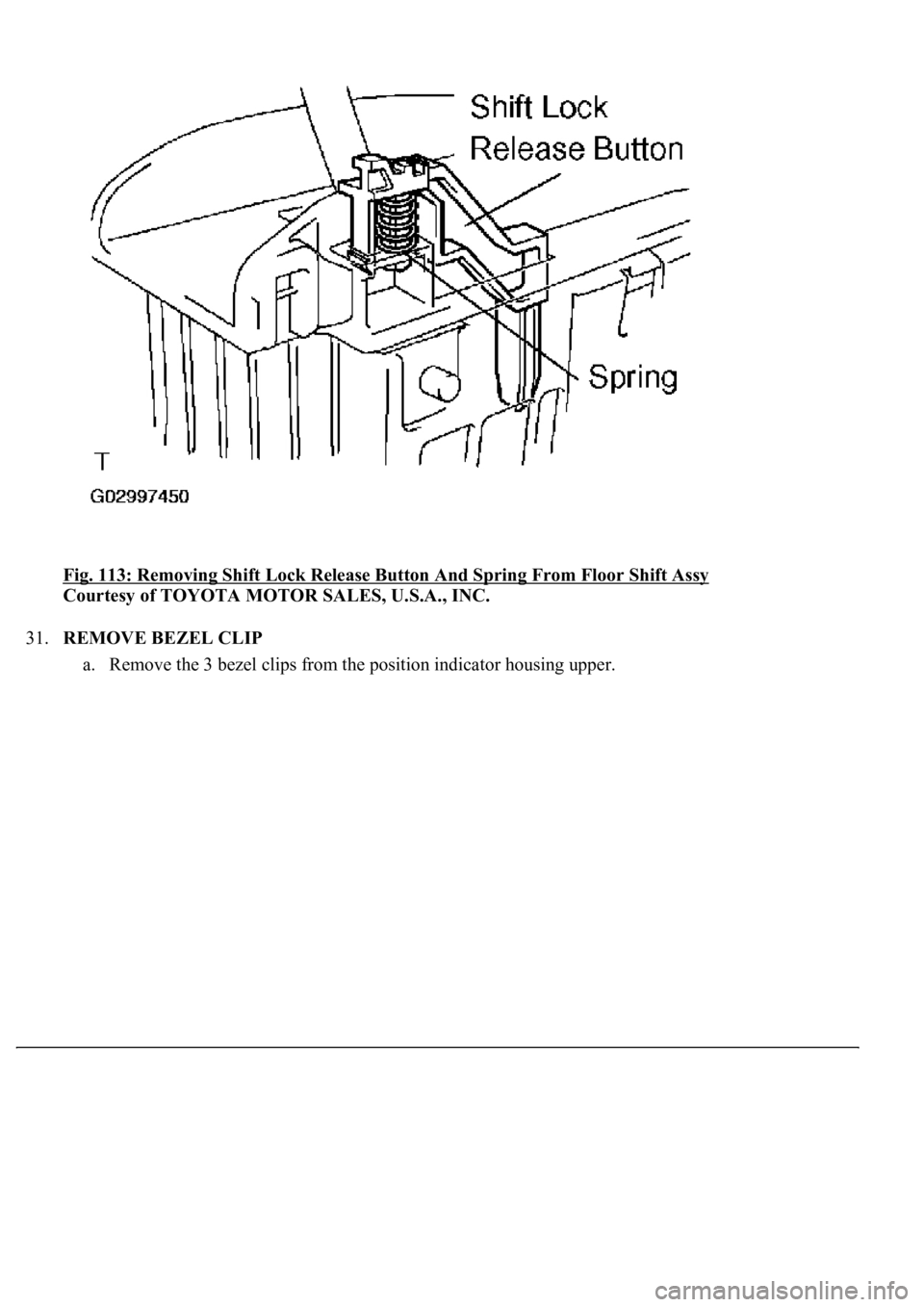

Fig. 113: Removing Shift Lock Release Button And Spring From Floor Shift Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
31.REMOVE BEZEL CLIP
a. Remove the 3 bezel clips from the position indicator housin
g upper.

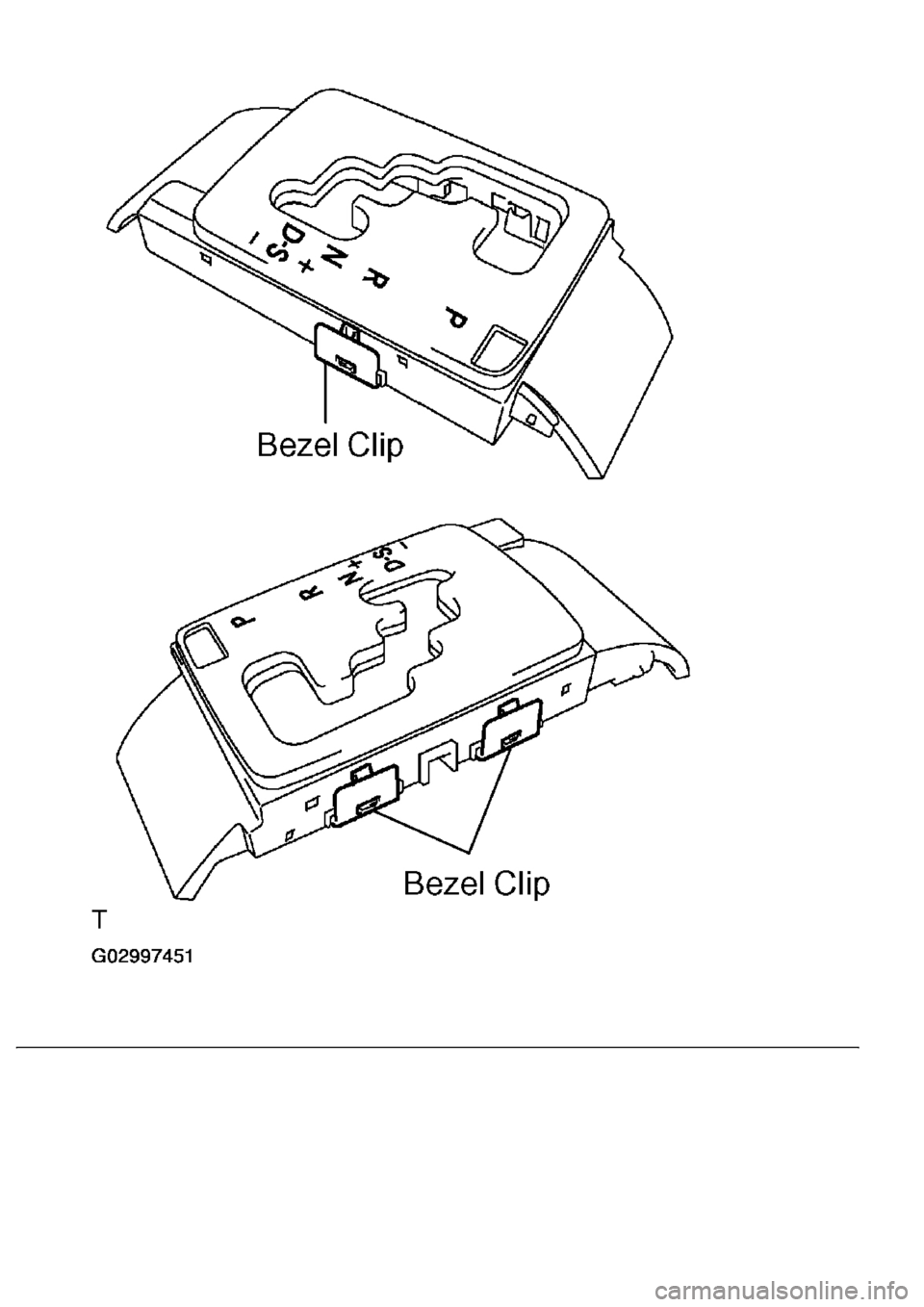

Fig. 114: Removing 3 Bezel Clips From Position Indicator Housing Upper
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.REMOVE POSITION INDICATOR SLIDE COVER
a. Remove the position indicator slide cover from the shift lever guide housing.
b. Remove the position indicator slide cover No.2 from the position indicator slide cover.

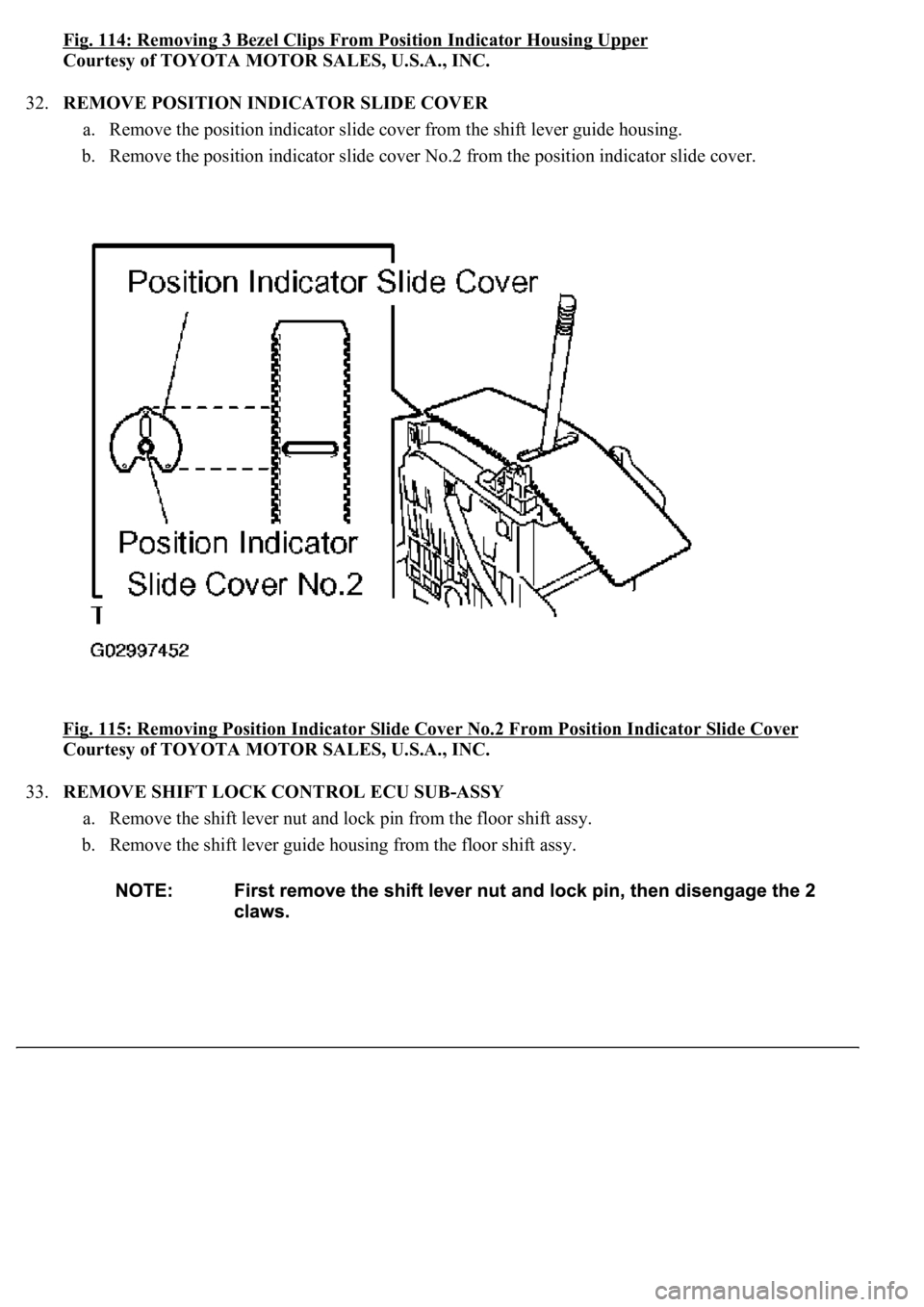

Fig. 115: Removing Position Indicator Slide Cover No.2 From Position Indicator Slide Cover

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.REMOVE SHIFT LOCK CONTROL ECU SUB-ASSY
a. Remove the shift lever nut and lock pin from the floor shift assy.
b. Remove the shift lever guide housing from the floor shift assy.
