MAZDA PROTEGE 1992 Workshop Manual

REAR AXLE M
in)
Installation note
Locknut
1. Install a new locknut and stake it, as shown.
Tightening torque:
177-235 N#m (18-24 m-kg, 130-174 ft-lb)
Disassembly / Assembly
1. Disassemble in the order shown in the figure, referring to Disassembly Note.
2. Assemble in the reverse order of disassembly, referring to Assembly Note.
REPLACE
7RIIllMX.Ill
_ _ _ _ _
1. Hub bolt 2. Hub bearing assembly
Disassembly note . . . . . . . . . . . . . . . . . . . . . . page M-l 5
Assembly note . . . . . . . . . . . . . . . . . . . . . . . . . . . page M-l 6
1
Disassembly note
Hub bolt
Caution
l Do not remove the hub bolts if not necessary.
l Do not reuse the hub bolts if removed.
1. Remove the hub bolts with a press.
I I
03UOMX-026
M-15

REAR AXLE
Assembly note
Hub bolt
1, Press in new hub bolts.
-’
M-16

DRIVE SHAFT M
DRIVE SHAFT
PREPARATION
SST
49 HO34 2A0
Lower arm bush-
ing puller & in-
staller For
support of
bracket 49 HO34 201
49 HO34 2AO)
49 F026 102
Installer, bearing For
removal of
bearing and left
dust seal 49 GPQn
7~16 U”” I “V
Installer, oil seal For
installation of
right dust seal
and bearing
49 MOO5 795
Installer set, oil
seal For
installation of left
dust seal 49 MOO5 796
Body
(Part of
49 MOO5 795) For
installation of left
dust seal
I
23UOMX-01
49 0118 850C
Puller, ball joint For
removal of tie rod
end
M-17

DRIVE SHAFT
JOINT SHAFT (BP DOHC)
Preinspection
Joint shaft
1. Verify that the joint shaft is not twisted or cracked. Replace
it if necessary.
2. Turn the joint shaft by hand and verify that the bearing ro-
tates smoothly and freely. Replace it if necessary. .___,
23UOMX-019
Removal / Installation
Note
l Drain the transaxle oil before removal.
1. Remove in the order shown in the figure, referring to Removal Note.
2. Install in the reverse order of removal, referring to Installation Note.
r
1
vi5
42-62
7.8-11 N.m
(80-l 10 cm-kg,
69-95 in-lb)
4L59
I (9.0-12.0, 66-87)
(4.4-6.0, 3243)
0
N.m (m-kg, ft-lb)
311 Inh.4Y.A’
1. Wheel and tire
2. Splash shield
3. Stabilizer (BP SOHC, BP DOHC)
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . page M-19
4. Tie rod end
Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . page M-19
Installation Note ..,...................... page M-19 5. Lower ball joint
6. Right drive shaft and axle
7. Joint shaft
Removal Note .,.,...,....,,.,.,..,..,..,. page M-19
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . page M-19
Overhaul . . . . . . . . . . . . . . . .,......*...
. . . . . . . . . page M-m .
M-18

DRIVE SHAFT M
r
I
23UOMX-039
03UOMX-030
I
03UOMX-03
ii I I
23UOMX-04
03UOMX-03
Removal note
Tie rod end
Caution
l Do not damage the dust boot.
1. Loosen the nut and disconnect the tie rod end with the SST.
Joint shaft
Caution
l Do not damage the oil seal.
1. Remove the joint shaft.
Installation note
Joint shaft
Caution
l Do not damage the oil seal.
1. Install the joint shaft.
2. Tighten the bolts in the order shown.
Tightening torque:
42-62 N*m (4.3-6.3 m-kg, 31-46 ft-lb)
Tie rod end
Caution
l Do not damage the dust boot.
1. Install the nut and secure it with the new cotter pin.
Tightening torque:
42-57 N-m (4.3-5.8 m-kg, 31-42 ft-lb)
Stabilizer
1. Install the stabilizer bolt.
Dimension A: 17-19mm (0.67-0.75 in)
M-19

M DRIVE SHAFT
Overhaul
1. Disassemble in the order shown in the figure, referring to Disassembly Procedure.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly, referring to
Assembly Procedure.
23UOMX-02
1. Clip
2. Joint shaft
Inspect splines for damage and wear
3. Left dust seal
23UOMX-02:
4. Bearing
5. Right dust seal
6. Bracket
Disassembly procedure
1. Remove the clip.
2. Remove the joint shaft with the SST.
3. Remove the left dust seal and bearing with the SST.
4. Remove the right dust seal.
1

DRIVE SHAFT M
23UOMX-02,
I
23UOMX
Assembly procedure
1. Install the new Right dust seal with the SST.
2. Install the new bearing with the SST.
3. Install the new Left dust seal with the SST.
4. Install the joint shaft with the SST.
5. Install the new clip.
DRIVE SHAFT (TRIPOD JOINT)
Preinspection
Drive shaft
1. Check the dust boot on the drive shaft for cracks, damage,
leaking grease, and a loose boot band.
2. Check the drive shaft for bending, cracks, and wear of joints
or splines.
3. Repair or replace the drive shaft if necessary.
M-21

M
Removal / Installation
DRIVE SHAFT
Note
l Drain the transaxle oil before removal.
1. Remove in the order shown in the figure, referring to Removal Note.
2. Install in the reverse order of removal, referring to Installation Note.
7.8-11 N-m
(80-I 10 cm-kg,
N.m (m-kg, ft-lb]
011 InhdYJwG
1. Wheel and tire
2. Splash shield
3. Locknut
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . page M-24
4. Stabilizer
Installation Note ..,,.....,...,........... page M-24
5. Tie rod end
Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . page M-23
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . page M-23 6. Lower ball joint
7. Drive shaft (Left)
Removal Note ,....,., . . . . . . . . . . . . . . . . . . . . page M-23
Installation Note . .., . . . . . . . . . . . . . . . . . . . . . page M-23
Overhaul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page M-25
8. Drive shaft (Right)
Removal Note .,.. ,., ,.... . . . . . . . . . . . . . . . . page M-23
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . .
page M-23
Overhaul . ,...................... . . . . . . . . . . . . page M-25
M-22

DRIVE SHAFT M
23UOMX-04
23UOMX-02
I
23UOMX-02
/
I
23UOMX-029
23UOMX-04
Removal note
Tie rod end
Caution
l Do not damage the dust boot.
1. Loosen the nut and disconnect the tie rod end with the SST.
Drive shaft
Caution
l Do not damage the dust cover or oil seal.
1. Remove the drive shaft from the transaxle with a pry bar.
Note
l If the drive shaft is stuck in the front wheel hub, in-
stall a miscellaneous nut until it is flush with the end
of the shaft. Tap the nut with a copper hammer to
remove the drive shaft.
Installation note
Drive shaft
Caution
l Do not damage the dust cover or oil seal.
1. install the drive shaft with the end-gap of clip facing upward.
Tie rod end
Caution
l Do not damage the dust boot.
1, Install the nut and secure it with the new cotter pin.
Tightening torque:
42-57 N-m (4.3-5.8 m-kg, 31-42 ft-lb)
M-23

M DRIVE SHAFT
03UOMX-045
\d 03UOMX-04

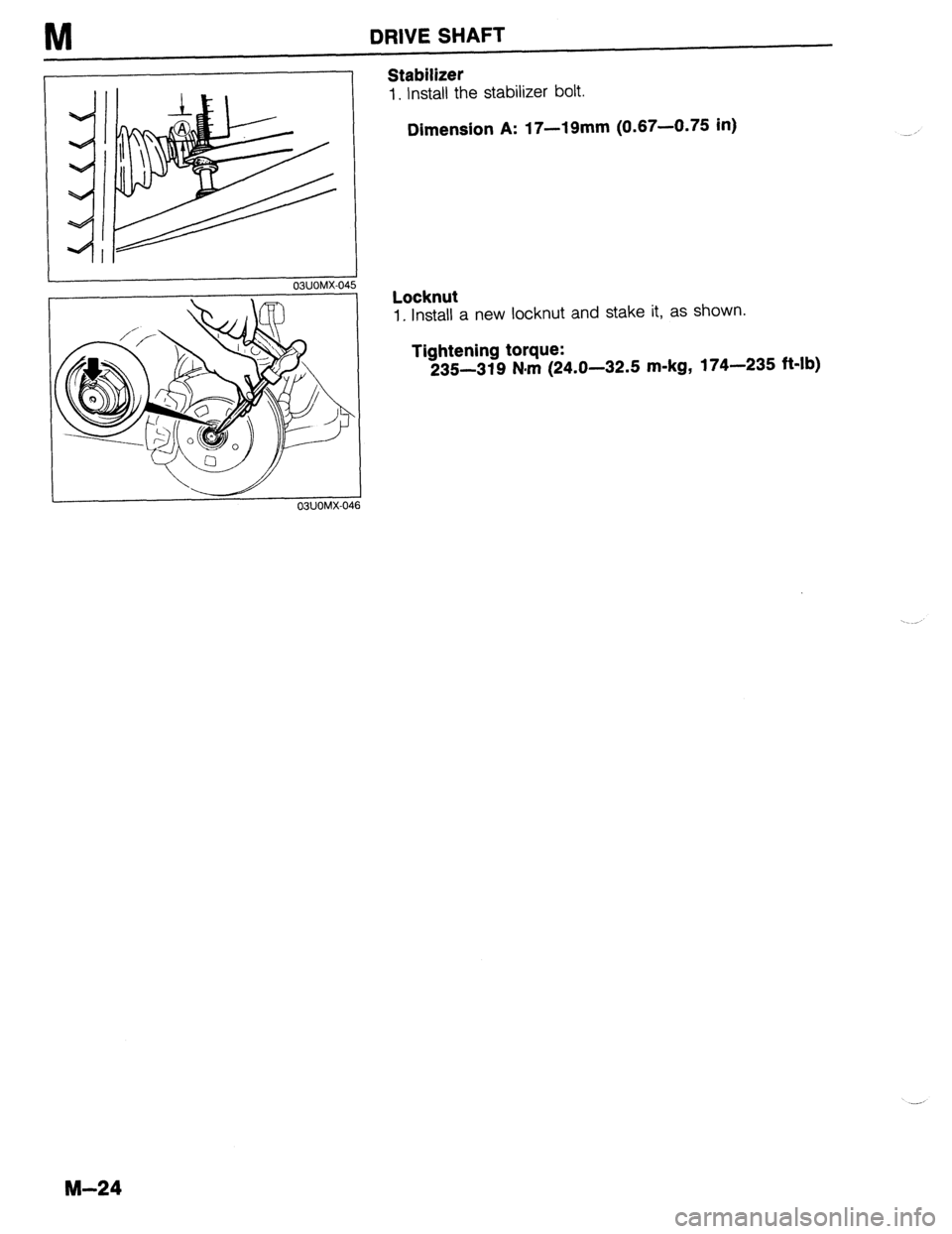

Stabilizer
1. Install the stabilizer bolt.
Dimension A: 17-19mm (0.67-0.75 in)
Locknut
1. Install a new locknut and stake it, as shown.
Tightening torque:
235-319 N-m (24.0-32.5 m-kg, 174-235 ft-lb)
