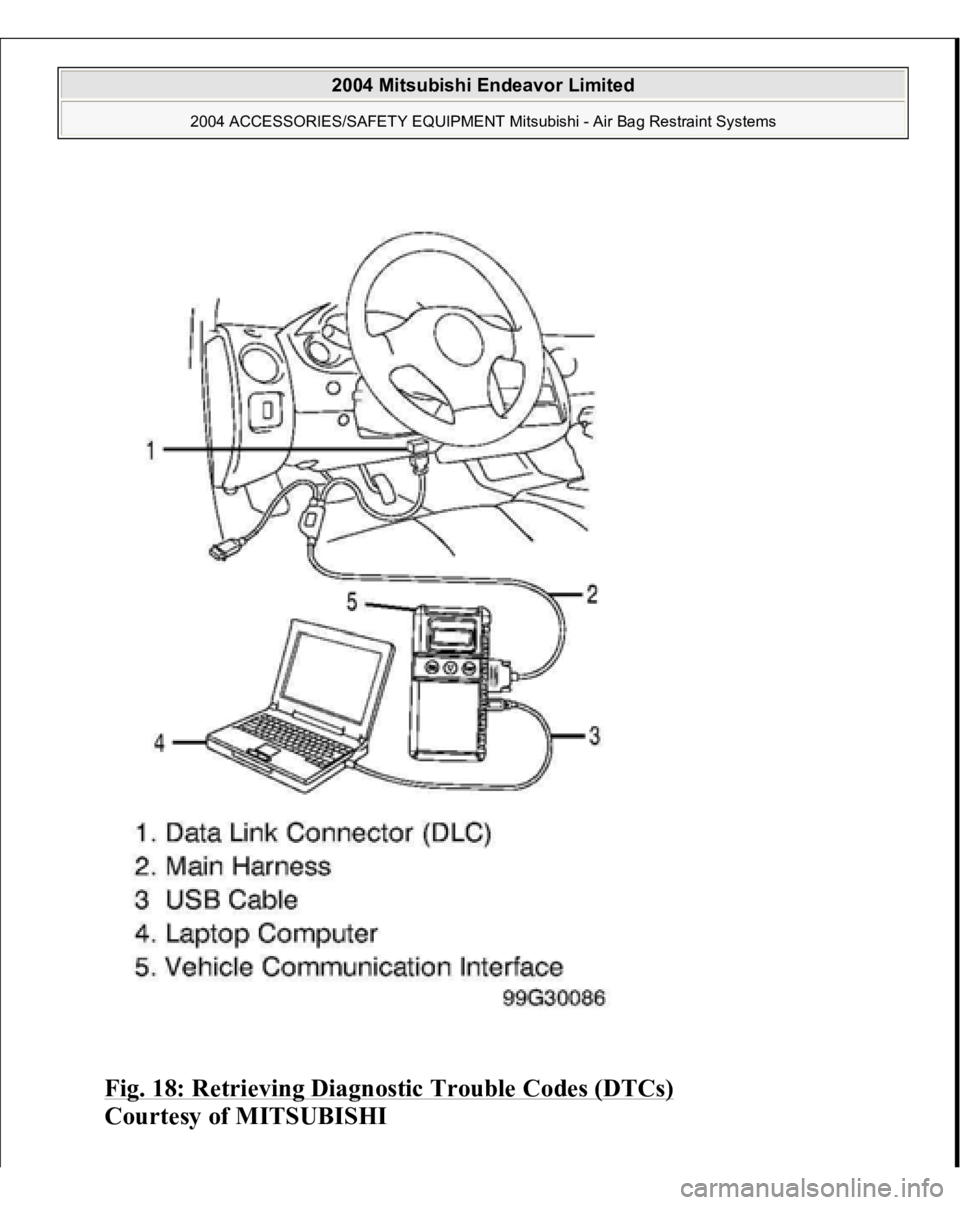

Fig. 18: Retrieving Diagnostic Trouble Codes (DTCs)
Courtesy of MITSUBISHI
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

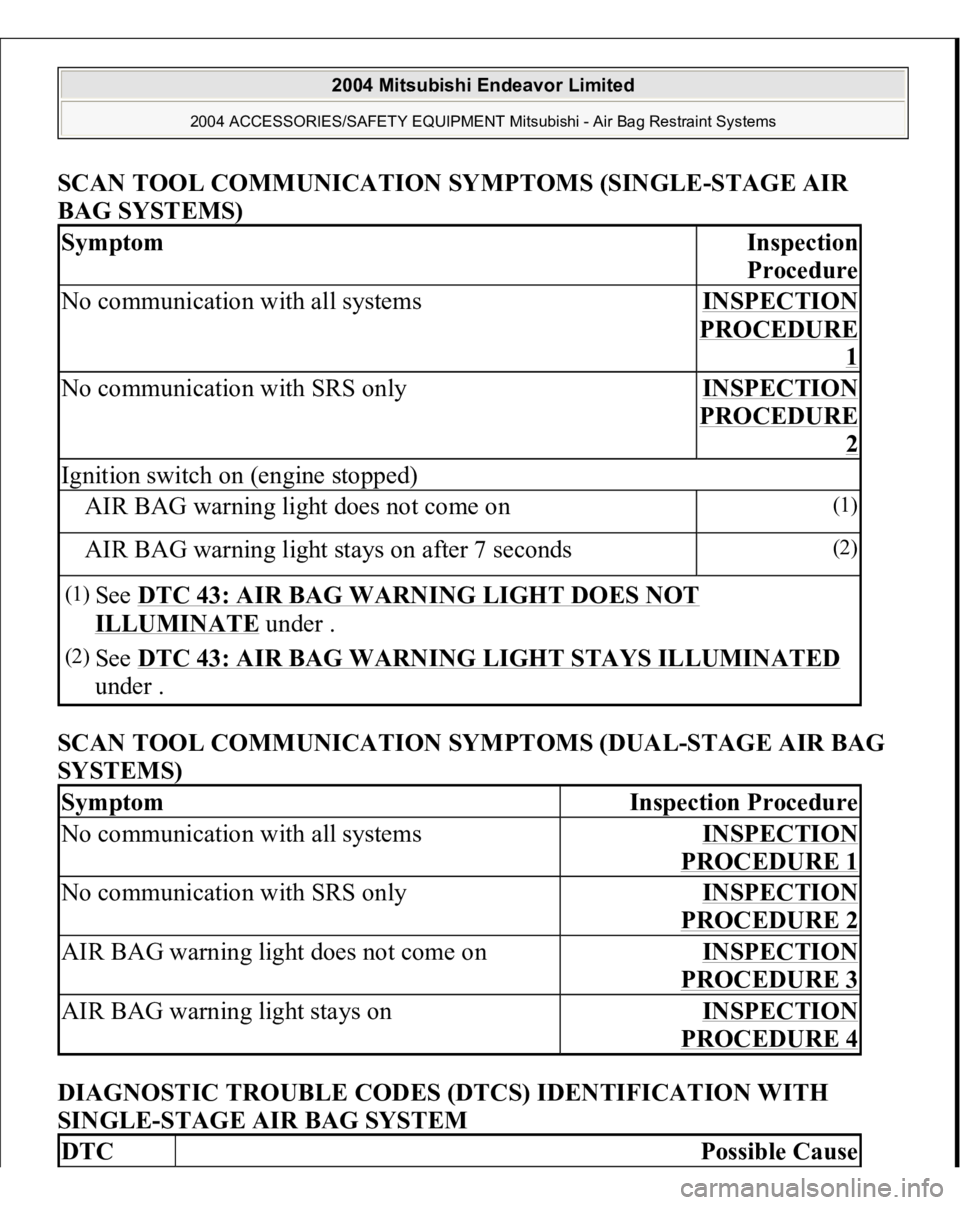

Page 302 of 3870

SCAN TOOL COMMUNICATION SYMPTOMS (SINGLE-STAGE AI
R
BAG SYSTEMS)
SCAN TOOL COMMUNICATION SYMPTOMS (DUAL-STAGE AIR BAG
SYSTEMS)
DIAGNOSTIC TROUBLE CODES (DTCS) IDENTIFICATION WITH
SINGLE-STAGE AIR BAG SYSTEM
Symptom
Ins
pection
Procedure
No communication with all systems
INSPECTION PROCEDURE
1
No communication with SRS only
INSPECTION PROCEDURE
2
Ignition switch on (engine stopped)AIR BAG warning light does not come on
(1)
AIR BAG warning light stays on after 7 seconds
(2)
(1)
See DTC 43: AIR BAG WARNING LIGHT DOES NOT ILLUMINATE
under .
(2)
See DTC 43: AIR BAG WARNING LIGHT STAYS ILLUMINATED
under .
Symptom
Inspection Procedure
No communication with all systems
INSPECTION PROCEDURE 1
No communication with SRS only
INSPECTION PROCEDURE 2
AIR BAG warning light does not come on
INSPECTION PROCEDURE 3
AIR BAG warning light stays on
INSPECTION PROCEDURE 4
DTC
Possible Cause
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 303 of 3870

1A

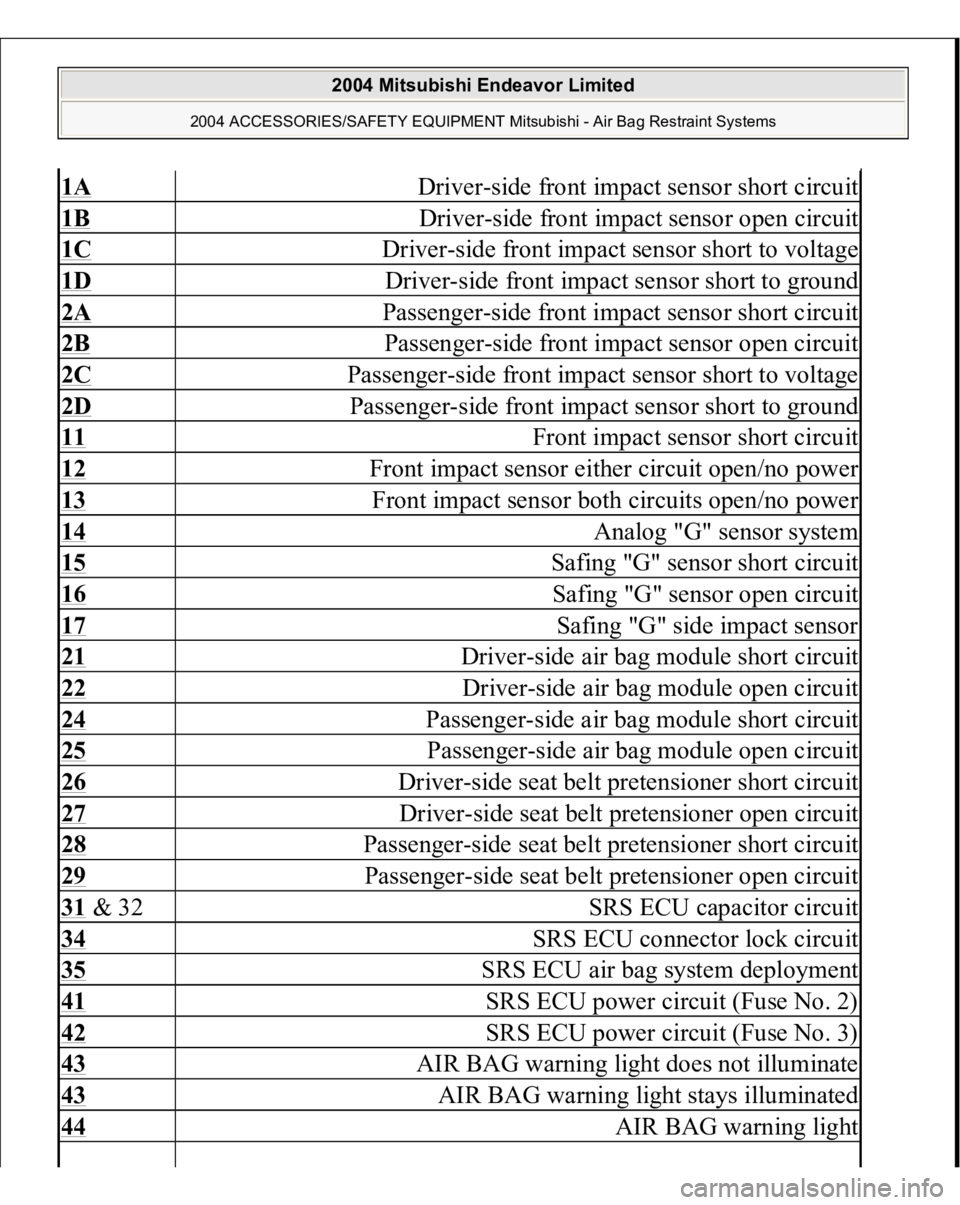

Driver-side front impact sensor short circuit
1B
Driver-side front impact sensor open circuit
1C
Driver-side front impact sensor short to voltage
1D
Driver-side front impact sensor short to ground
2A
Passenger-side front impact sensor short circuit
2B
Passenger-side front impact sensor open circuit
2C
Passenger-side front impact sensor short to voltage
2D
Passenger-side front impact sensor short to ground
11
Front impact sensor short circuit
12
Front impact sensor either circuit open/no power
13
Front impact sensor both circuits open/no power
14
Analog "G" sensor system
15
Safing "G" sensor short circuit
16
Safing "G" sensor open circuit
17
Safing "G" side impact sensor
21
Driver-side air bag module short circuit
22
Driver-side air bag module open circuit
24
Passenger-side air bag module short circuit
25
Passenger-side air bag module open circuit
26
Driver-side seat belt pretensioner short circuit
27
Driver-side seat belt pretensioner open circuit
28
Passenger-side seat belt pretensioner short circuit
29
Passenger-side seat belt pretensioner open circuit
31 & 32
SRS ECU capacitor circuit
34
SRS ECU connector lock circuit
35
SRS ECU air bag system deployment
41
SRS ECU power circuit (Fuse No. 2)
42
SRS ECU power circuit (Fuse No. 3)
43
AIR BAG warning light does not illuminate
43
AIR BAG warning light stays illuminated
44
AIR BAG warning light
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 304 of 3870

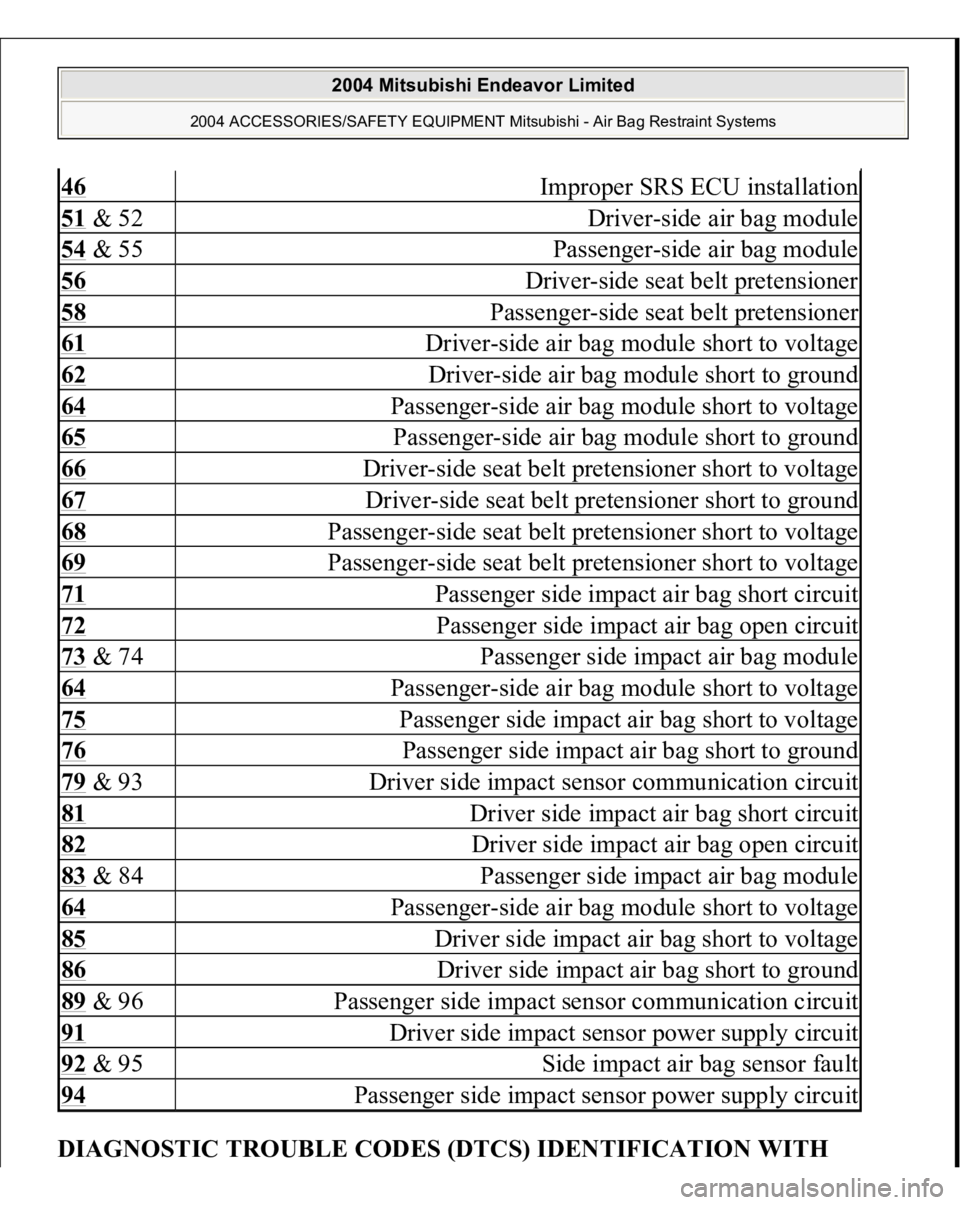

DIAGNOSTIC TROUBLE CODES (DTCS) IDENTIFICATION WITH 46
Improper SRS ECU installation
51 & 52
Driver-side air bag module
54 & 55
Passenger-side air bag module
56
Driver-side seat belt pretensioner
58
Passenger-side seat belt pretensioner
61
Driver-side air bag module short to voltage
62
Driver-side air bag module short to ground
64
Passenger-side air bag module short to voltage
65
Passenger-side air bag module short to ground
66
Driver-side seat belt pretensioner short to voltage
67
Driver-side seat belt pretensioner short to ground
68
Passenger-side seat belt pretensioner short to voltage
69
Passenger-side seat belt pretensioner short to voltage
71
Passenger side impact air bag short circuit
72
Passenger side impact air bag open circuit
73 & 74
Passenger side impact air bag module
64
Passenger-side air bag module short to voltage
75
Passenger side impact air bag short to voltage
76
Passenger side impact air bag short to ground
79 & 93
Driver side impact sensor communication circuit
81
Driver side impact air bag short circuit
82
Driver side impact air bag open circuit
83 & 84
Passenger side impact air bag module
64
Passenger-side air bag module short to voltage
85
Driver side impact air bag short to voltage
86
Driver side impact air bag short to ground
89 & 96
Passenger side impact sensor communication circuit
91
Driver side impact sensor power supply circuit
92 & 95
Side impact air bag sensor fault
94
Passenger side impact sensor power supply circuit
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 305 of 3870

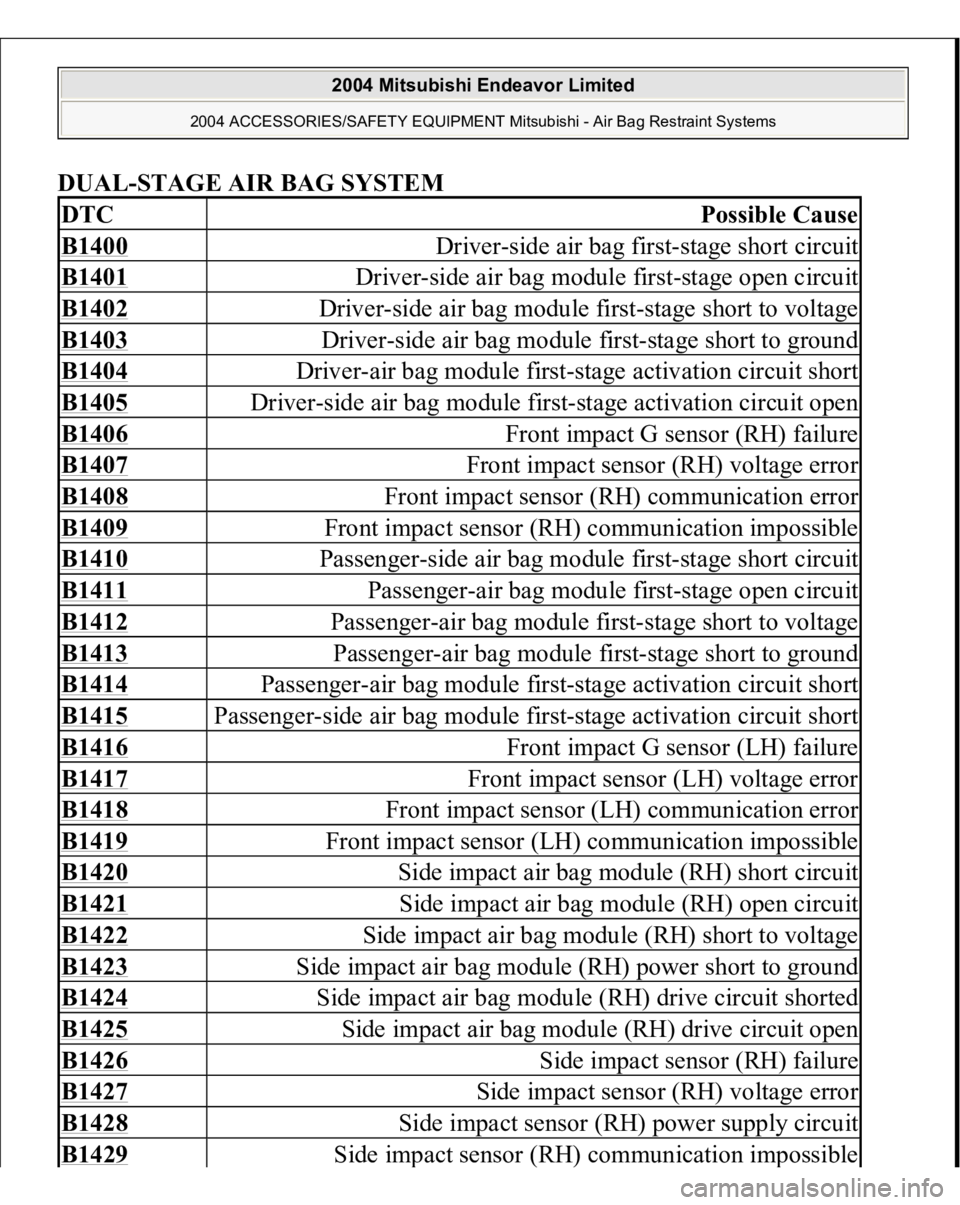

DUAL-STAGE AIR BAG SYSTE
M
DTC
Possible Cause
B1400
Driver-side air bag first-stage short circuit
B1401
Driver-side air bag module first-stage open circuit
B1402
Driver-side air bag module first-stage short to voltage
B1403
Driver-side air bag module first-stage short to ground
B1404
Driver-air bag module first-stage activation circuit short
B1405
Driver-side air bag module first-stage activation circuit open
B1406
Front impact G sensor (RH) failure
B1407
Front impact sensor (RH) voltage error
B1408
Front impact sensor (RH) communication error
B1409
Front impact sensor (RH) communication impossible
B1410
Passenger-side air bag module first-stage short circuit
B1411
Passenger-air bag module first-stage open circuit
B1412
Passenger-air bag module first-stage short to voltage
B1413
Passenger-air bag module first-stage short to ground
B1414
Passenger-air bag module first-stage activation circuit short
B1415
Passenger-side air bag module first-stage activation circuit short
B1416
Front impact G sensor (LH) failure
B1417
Front impact sensor (LH) voltage error
B1418
Front impact sensor (LH) communication error
B1419
Front impact sensor (LH) communication impossible
B1420
Side impact air bag module (RH) short circuit
B1421
Side impact air bag module (RH) open circuit
B1422
Side impact air bag module (RH) short to voltage
B1423
Side impact air bag module (RH) power short to ground
B1424
Side impact air bag module (RH) drive circuit shorted
B1425
Side impact air bag module (RH) drive circuit open
B1426
Side impact sensor (RH) failure
B1427
Side impact sensor (RH) voltage error
B1428
Side impact sensor (RH) power supply circuit
B142
9
Side im
pact sensor
(RH
) communication im
possibl
e
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 306 of 3870

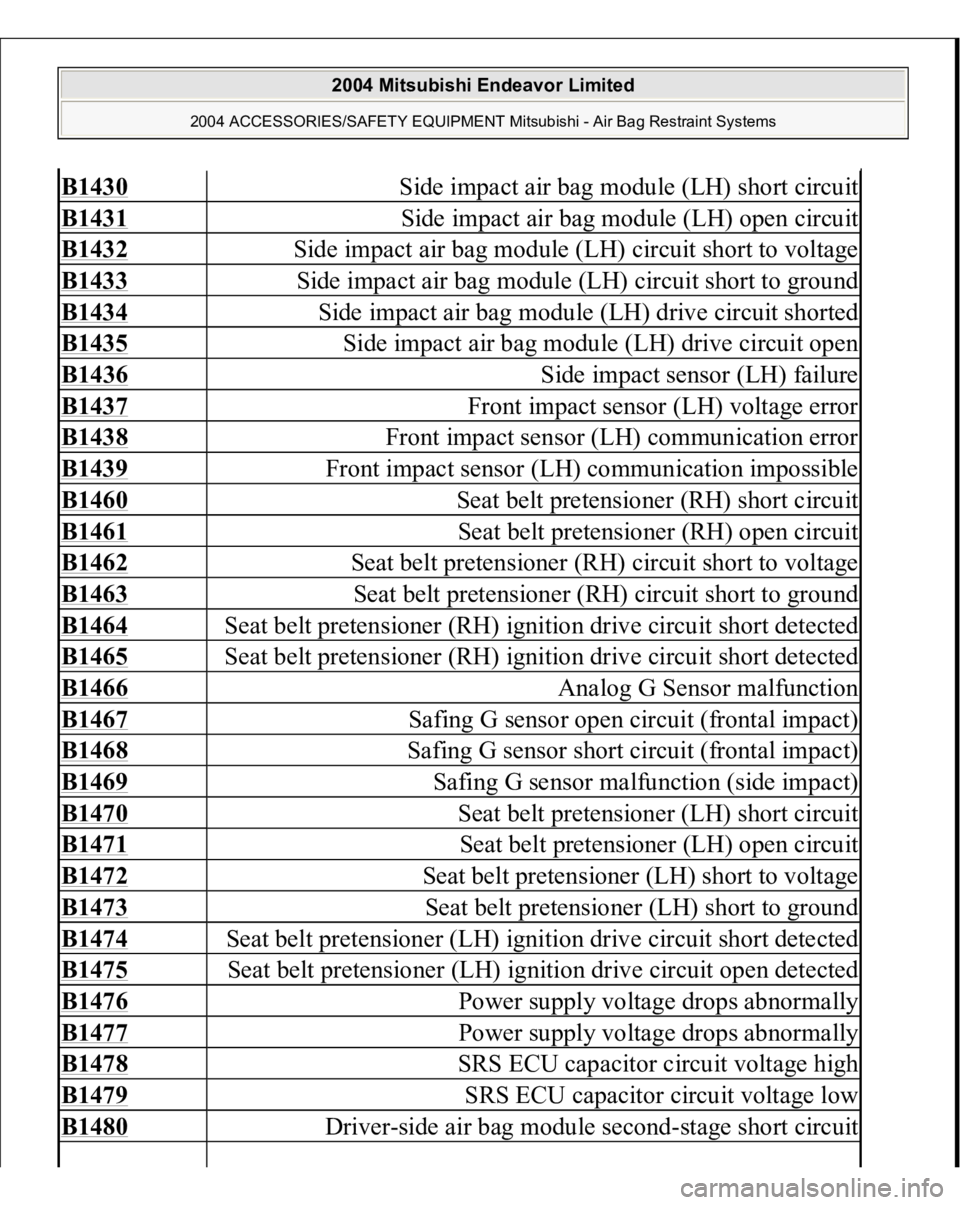

B1430
Side impact air bag module (LH) short circuit
B1431
Side impact air bag module (LH) open circuit
B1432
Side impact air bag module (LH) circuit short to voltage
B1433
Side impact air bag module (LH) circuit short to ground
B1434
Side impact air bag module (LH) drive circuit shorted
B1435
Side impact air bag module (LH) drive circuit open
B1436
Side impact sensor (LH) failure
B1437
Front impact sensor (LH) voltage error
B1438
Front impact sensor (LH) communication error
B1439
Front impact sensor (LH) communication impossible
B1460
Seat belt pretensioner (RH) short circuit
B1461
Seat belt pretensioner (RH) open circuit
B1462
Seat belt pretensioner (RH) circuit short to voltage
B1463
Seat belt pretensioner (RH) circuit short to ground
B1464
Seat belt pretensioner (RH) ignition drive circuit short detected
B1465
Seat belt pretensioner (RH) ignition drive circuit short detected
B1466
Analog G Sensor malfunction
B1467
Safing G sensor open circuit (frontal impact)
B1468
Safing G sensor short circuit (frontal impact)
B1469
Safing G sensor malfunction (side impact)
B1470
Seat belt pretensioner (LH) short circuit
B1471
Seat belt pretensioner (LH) open circuit
B1472
Seat belt pretensioner (LH) short to voltage
B1473
Seat belt pretensioner (LH) short to ground
B1474
Seat belt pretensioner (LH) ignition drive circuit short detected
B1475
Seat belt pretensioner (LH) ignition drive circuit open detected
B1476
Power supply voltage drops abnormally
B1477
Power supply voltage drops abnormally
B1478
SRS ECU capacitor circuit voltage high
B1479
SRS ECU capacitor circuit voltage low
B1480
Driver-side air bag module second-stage short circuit
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 307 of 3870

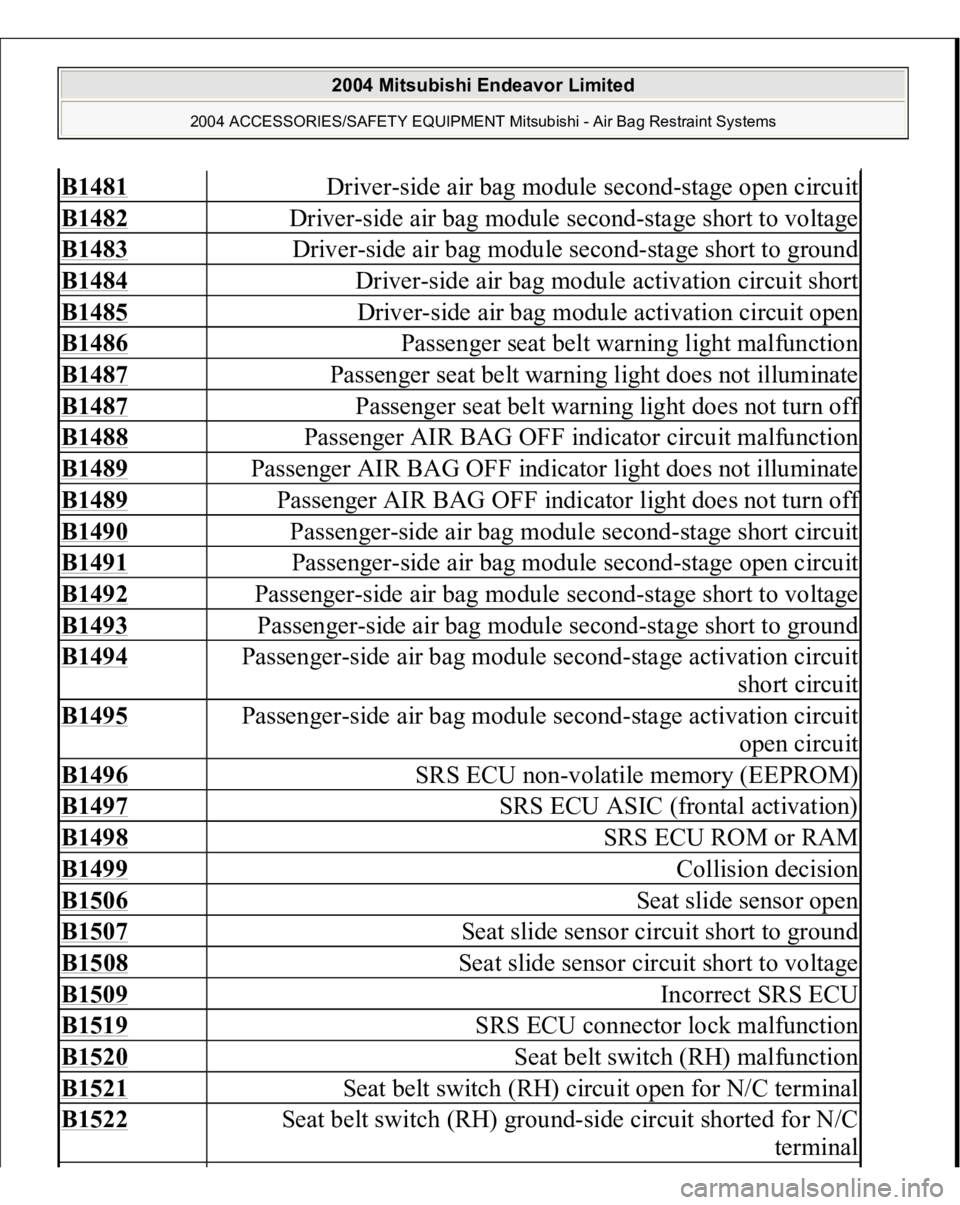

B1481
Driver-side air bag module second-stage open circuit
B1482
Driver-side air bag module second-stage short to voltage
B1483
Driver-side air bag module second-stage short to ground
B1484
Driver-side air bag module activation circuit short
B1485
Driver-side air bag module activation circuit open
B1486
Passenger seat belt warning light malfunction
B1487
Passenger seat belt warning light does not illuminate
B1487
Passenger seat belt warning light does not turn of
f
B1488
Passenger AIR BAG OFF indicator circuit malfunction
B1489
Passenger AIR BAG OFF indicator light does not illuminate
B1489
Passenger AIR BAG OFF indicator light does not turn of
f
B1490
Passenger-side air bag module second-stage short circuit
B1491
Passenger-side air bag module second-stage open circuit
B1492
Passenger-side air bag module second-stage short to voltage
B1493
Passenger-side air bag module second-stage short to ground
B1494
Passenger-side air bag module second-stage activation circuit
short circuit
B1495
Passenger-side air bag module second-stage activation circuit
open circuit
B1496
SRS ECU non-volatile memory (EEPROM)
B1497
SRS ECU ASIC (frontal activation)
B1498
SRS ECU ROM or RAM
B1499
Collision decision
B1506
Seat slide sensor open
B1507
Seat slide sensor circuit short to ground
B1508
Seat slide sensor circuit short to voltage
B1509
Incorrect SRS ECU
B1519
SRS ECU connector lock malfunction
B1520
Seat belt switch (RH) malfunction
B1521
Seat belt switch (RH) circuit open for N/C terminal
B1522
Seat belt switch (RH) ground-side circuit shorted for N/C
terminal
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 308 of 3870

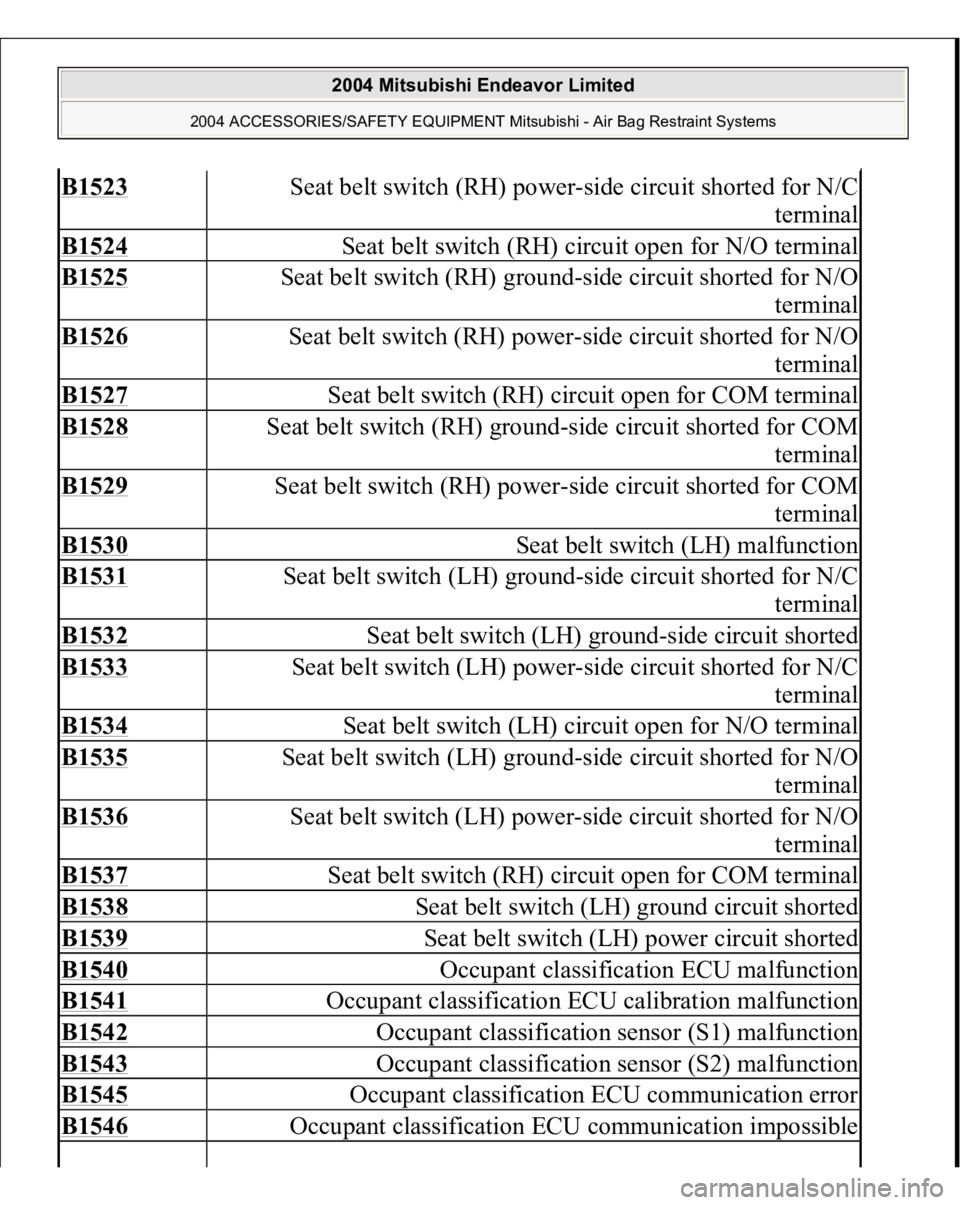

B1523
Seat belt switch (RH) power-side circuit shorted for N/C
terminal
B1524
Seat belt switch (RH) circuit open for N/O terminal
B1525
Seat belt switch (RH) ground-side circuit shorted for N/O
terminal
B1526
Seat belt switch (RH) power-side circuit shorted for N/O
terminal
B1527
Seat belt switch (RH) circuit open for COM terminal
B1528
Seat belt switch (RH) ground-side circuit shorted for COM
terminal
B1529
Seat belt switch (RH) power-side circuit shorted for COM
terminal
B1530
Seat belt switch (LH) malfunction
B1531
Seat belt switch (LH) ground-side circuit shorted for N/C
terminal
B1532
Seat belt switch (LH) ground-side circuit shorted
B1533
Seat belt switch (LH) power-side circuit shorted for N/C
terminal
B1534
Seat belt switch (LH) circuit open for N/O terminal
B1535
Seat belt switch (LH) ground-side circuit shorted for N/O
terminal
B1536
Seat belt switch (LH) power-side circuit shorted for N/O
terminal
B1537
Seat belt switch (RH) circuit open for COM terminal
B1538
Seat belt switch (LH) ground circuit shorted
B1539
Seat belt switch (LH) power circuit shorted
B1540
Occupant classification ECU malfunction
B1541
Occupant classification ECU calibration malfunction
B1542
Occupant classification sensor (S1) malfunction
B1543
Occupant classification sensor (S2) malfunction
B1545
Occupant classification ECU communication error
B1546
Occupant classification ECU communication impossible
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 309 of 3870

DIAGNOSTIC TESTS INSPECTION PROCEDURE 1 No communication between scan tool and all systems is most likely in power
supply or ground circuits to Data Link Connector (DLC). Check wire harness and
connectors for damage and loose connections. See WIRING DIAGRAMS
.
INSPECTION PROCEDURE 2 1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS
. Disconnect
SRS ECU connector C-26. See SRS ELECTRONIC CONTROL UNIT
(SRS ECU)
under REMOVAL & INSTALLATION. See Fig. 19
. Measure
resistance between SRS ECU connector C-26, terminal No. 20 (Orange/Blue
wire) and Data Link Connector (DLC), terminal No. 7 (Orange/Blue wire). See
Fig. 20
& Fig. 21
. If resistance is more than 2 ohms, go to next step. If
resistance is 2 ohms or less, go to step 4 .
2. Measure resistance between SRS ECU connector C-26, terminal No. 15 (Black
wire) and ground. If resistance is less than 2 ohms, go to next step. If resistance
is 2 ohms or more, go to step 5 .
3. Connect negative battery cable. Turn ignition on. Measure voltage between
ground and SRS ECU connector C-26, terminals No. 13 (Black/White wire)
and No. 16 (Black/Yellow wire). If voltage is less than 9 volts at either
terminal, go to step 6 . If voltage at both terminals is 9 volts or more, recheck
trouble s
ymptom. If s
ymptom still exists, re
place SRS ECU. Go to ste
p 7 .
B1547
Cut off for passenger-side air bag module
B1552
Changing circuit short
B1553
Changing circuit open
B1554
SG by-pass circuit malfunction
B1555
SG by-pass circuit (FET) open
B1556
Seat slide sensor malfunction
B1557
SRS ECU ASIC
B1558
Occupant classification ECU ID cord malfunction
U1073
BUS of
f
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
Page 310 of 3870

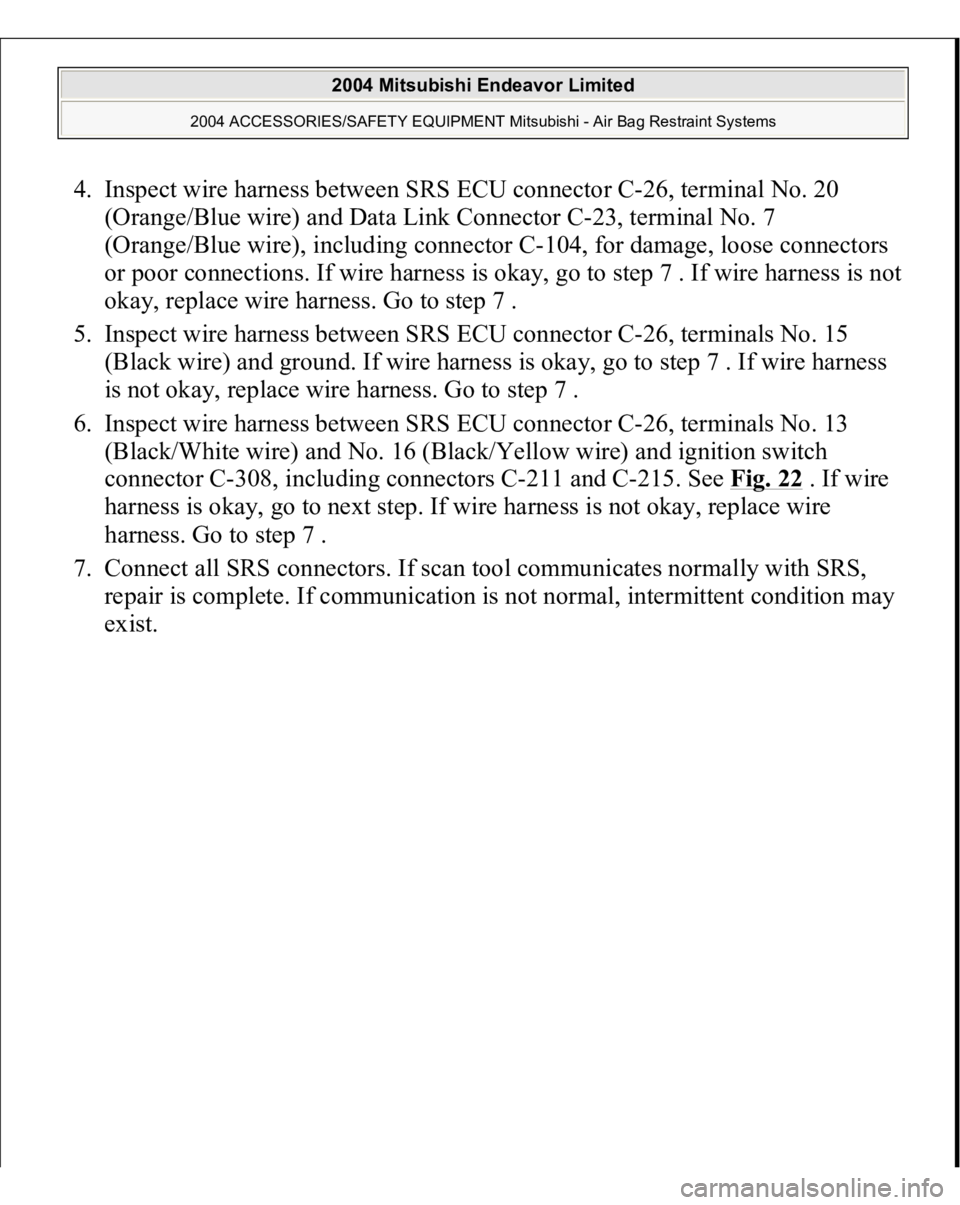

4. Inspect wire harness between SRS ECU connector C-26, terminal No. 20
(Orange/Blue wire) and Data Link Connector C-23, terminal No. 7
(Orange/Blue wire), including connector C-104, for damage, loose connectors
or poor connections. If wire harness is okay, go to step 7 . If wire harness is not
okay, replace wire harness. Go to step 7 .
5. Inspect wire harness between SRS ECU connector C-26, terminals No. 15
(Black wire) and ground. If wire harness is okay, go to step 7 . If wire harness
is not okay, replace wire harness. Go to step 7 .
6. Inspect wire harness between SRS ECU connector C-26, terminals No. 13
(Black/White wire) and No. 16 (Black/Yellow wire) and ignition switch
connector C-308, including connectors C-211 and C-215. See Fig. 22
. If wire
harness is okay, go to next step. If wire harness is not okay, replace wire
harness. Go to step 7 .
7. Connect all SRS connectors. If scan tool communicates normally with SRS,
repair is complete. If communication is not normal, intermittent condition may
exist.
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems
