NISSAN NAVARA 2005 Repair Workshop Manual

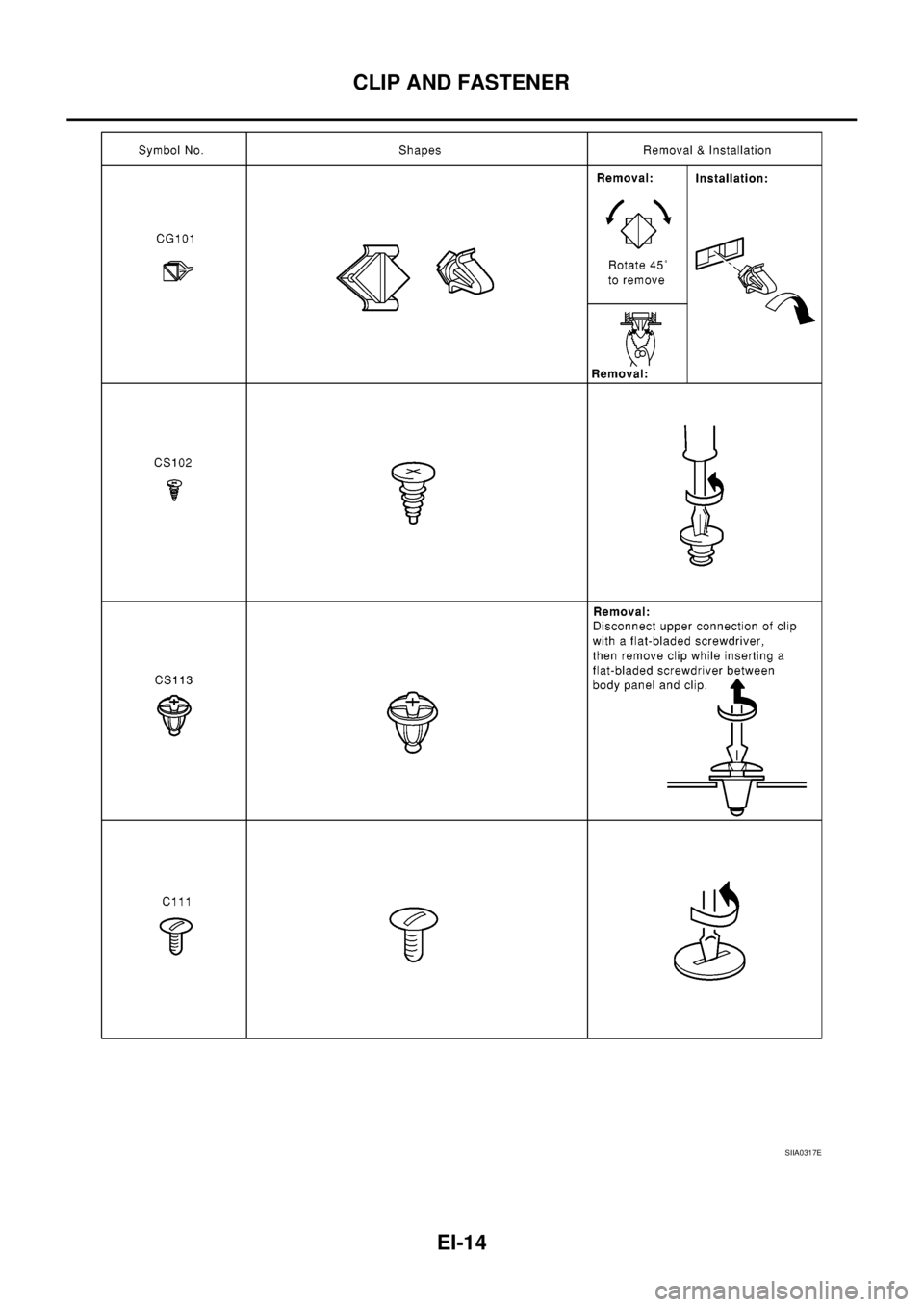

CLIP AND FASTENER
EI-13
C
D
E
F
G
H
J
K
L
MA
B
EI
SIIA0316E

EI-14
CLIP AND FASTENER
SIIA0317E

FRONT BUMPER
EI-15
C
D
E
F
G
H
J
K
L
MA
B
EI
FRONT BUMPERPFP:F2022
Removal and InstallationEIS00DY9
FRONT BUMPER
Removal
1. Remove radiator grille. Refer toEI-19, "FRONT GRILLE".
2. Remove front center spoiler, then LH and RH front side spoiler.
3. Remove front undercover.
4. Remove front LH/RH mudguard. Refer toEI-23, "
MUDGUARD".

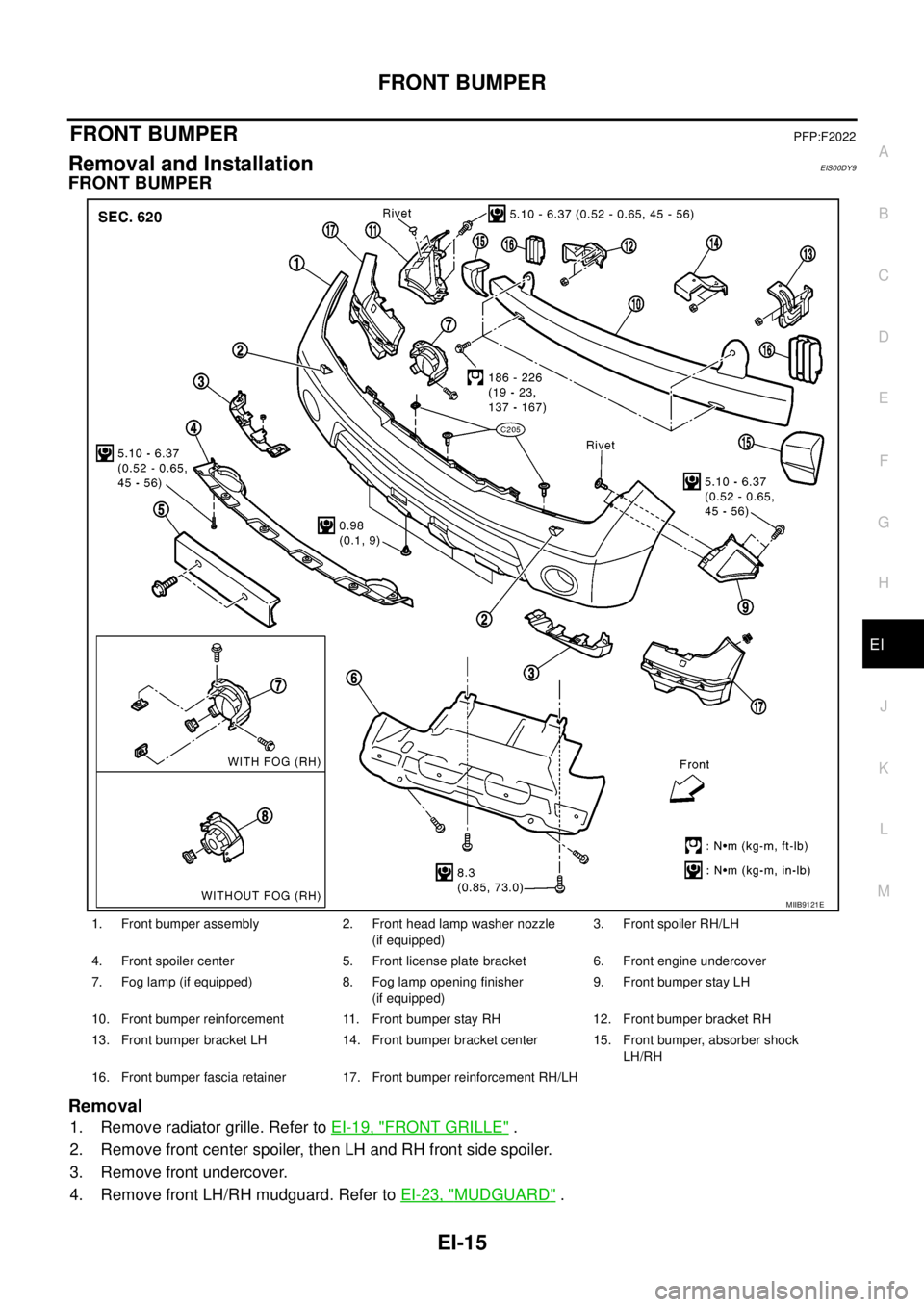

1. Front bumper assembly 2. Front head lamp washer nozzle
(if equipped)3. Front spoiler RH/LH
4. Front spoiler center 5. Front license plate bracket 6. Front engine undercover
7. Fog lamp (if equipped) 8. Fog lamp opening finisher
(if equipped)9. Front bumper stay LH
10. Front bumper reinforcement 11. Front bumper stay RH 12. Front bumper bracket RH
13. Front bumper bracket LH 14. Front bumper bracket center 15. Front bumper, absorber shock
LH/RH
16. Front bumper fascia retainer 17. Front bumper reinforcement RH/LH
MIIB9121E

EI-16
FRONT BUMPER
5. Remove front fender protectors LH and RH. Refer toEI-21, "FENDER PROTECTOR".
6. Remove front bumper stay LH/RH, bolts.
7. Disconnect fog lamp harnesses, if equipped.
8. Release intermediate head lamp washer hose, and put a cap on washer tank hose, if equipped.
9. Remove clips fixing front bumper, then remove front bumper assembly.
Installation
Installation is in the reverse order of removal.

REAR BUMPER
EI-17
C
D
E
F
G
H
J
K
L
MA
B
EI
REAR BUMPERPFP:H5022
Removal and InstallationEIS00DYA
REMOVAL
1. Remove upper and lower step pads, use pliers to release molded pawls retainer.
2. Disconnect license lamp harness RH/LH.
3. Release clips from license lamp RH/LH, then remove lamps from rear bumper.
4. Remove rear bumper.
5. Remove carriage bolt, then remove rear bumper reinforcement, from frame.
6. Remove rear bumper reinforcement from frame.

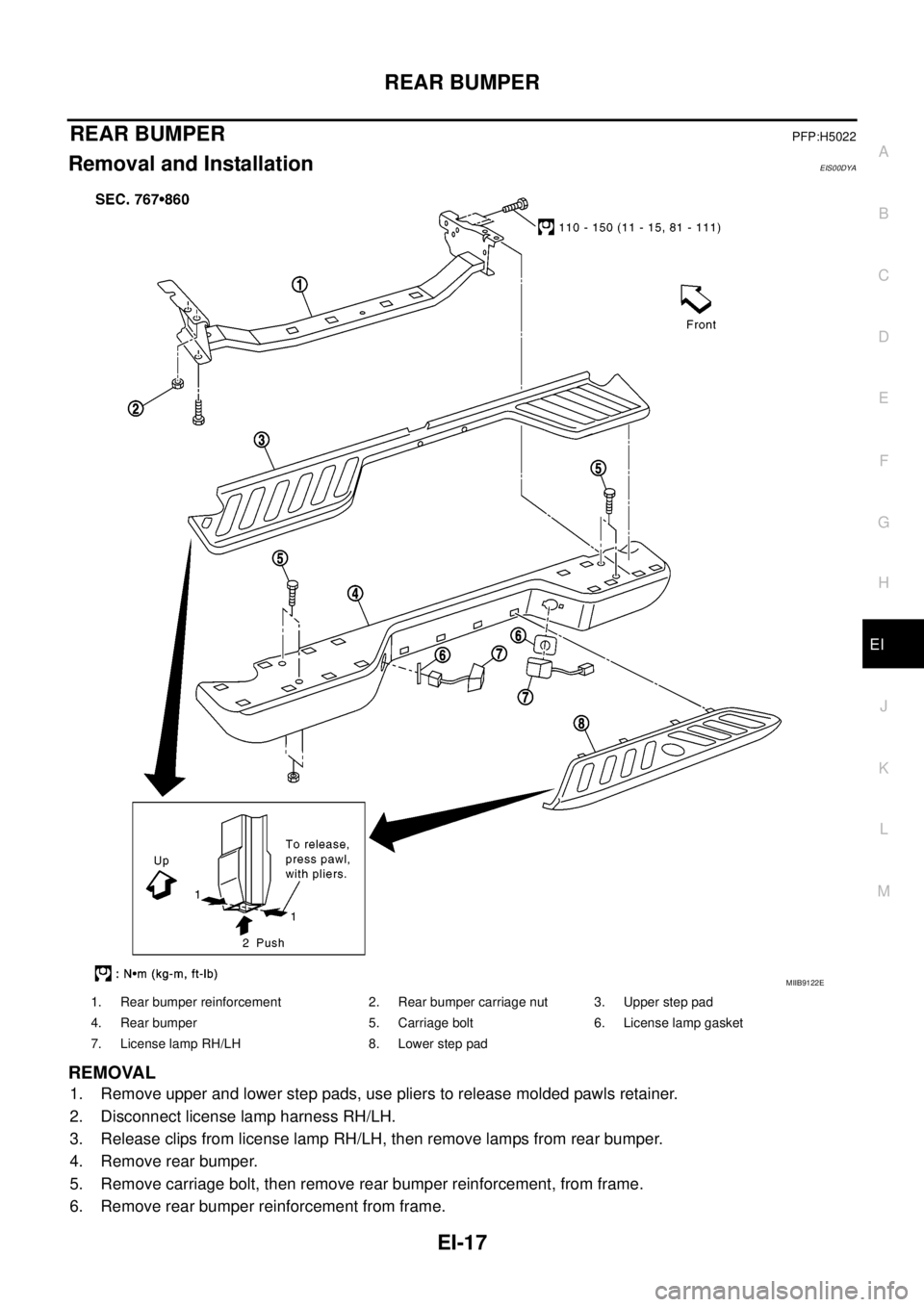

1. Rear bumper reinforcement 2. Rear bumper carriage nut 3. Upper step pad
4. Rear bumper 5. Carriage bolt 6. License lamp gasket
7. License lamp RH/LH 8. Lower step pad
MIIB9122E

EI-18
REAR BUMPER
INSTALLATION
Installation is in the reverse order of removal.

FRONT GRILLE
EI-19
C
D
E
F
G
H
J
K
L
MA
B
EI
FRONT GRILLEPFP:62310
Removal and InstallationEIS00DYB
REMOVAL
1. Release upper and lower clips from front grille.
2. Release lower front grille pawls.
3. Twist and release LH and RH side clips and remove front grille from member.
INSTALLATION
Installation is in the reverse order of removal.

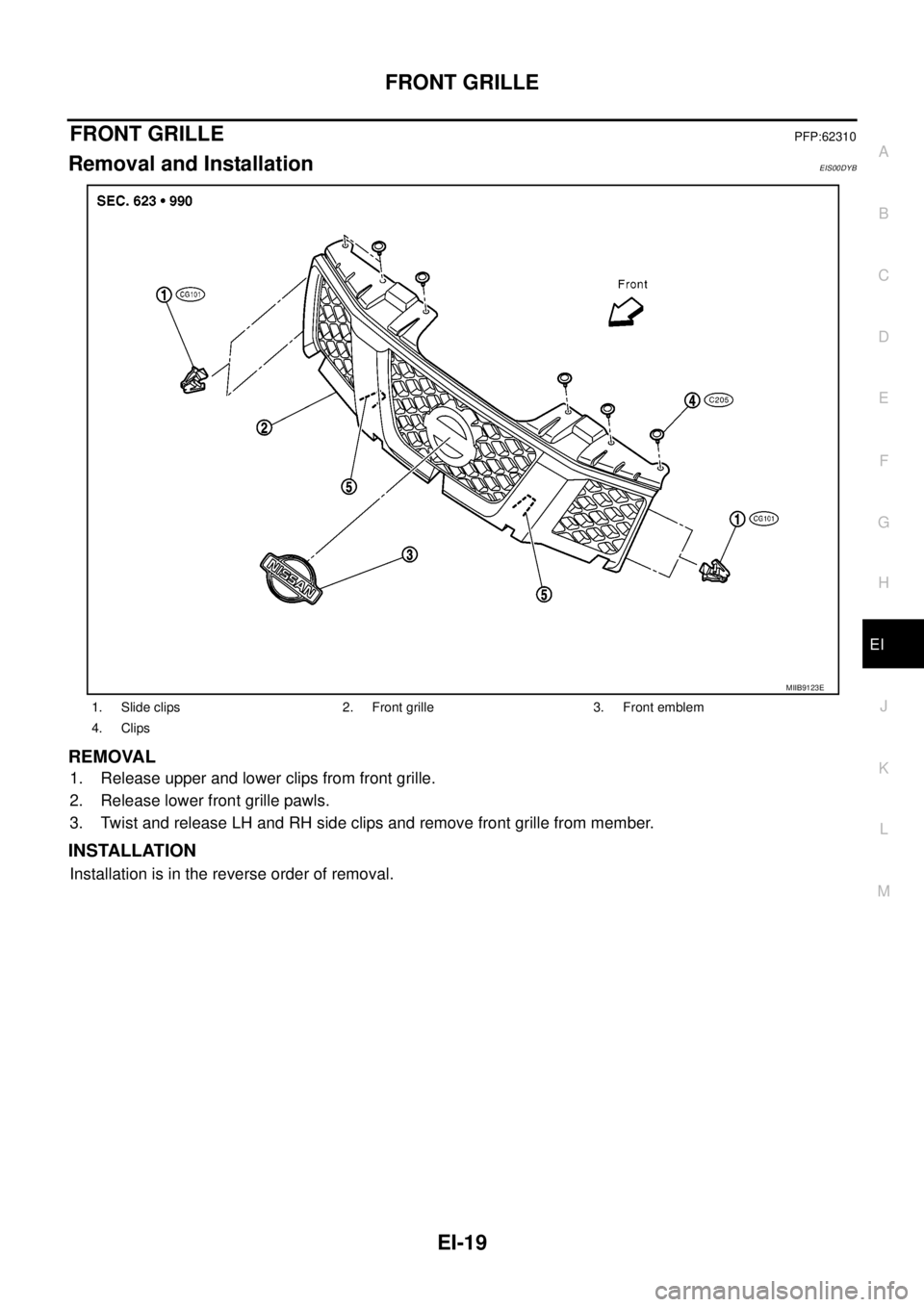

1. Slide clips 2. Front grille 3. Front emblem
4. Clips
MIIB9123E

EI-20
COWL TOP
COWL TOP
PFP:66100
Removal and InstallationEIS00DYC
REMOVAL
1. Remove the front wiper arms. Refer toWW-34, "Removal and Installation of Front Wiper Arms, Adjust-
ment of Wiper Arms Stop Location".
2. Remove cowl top seal.
3. Release clips and remove LH and RH cowl top extensions.
4. Disconnect washer tubes from washer nozzles.
5. Remove cowl top clips and remove cowl top from the cowl.
6. Remove washer nozzles.
INSTALLATION
Installation is in the reverse order of removal.

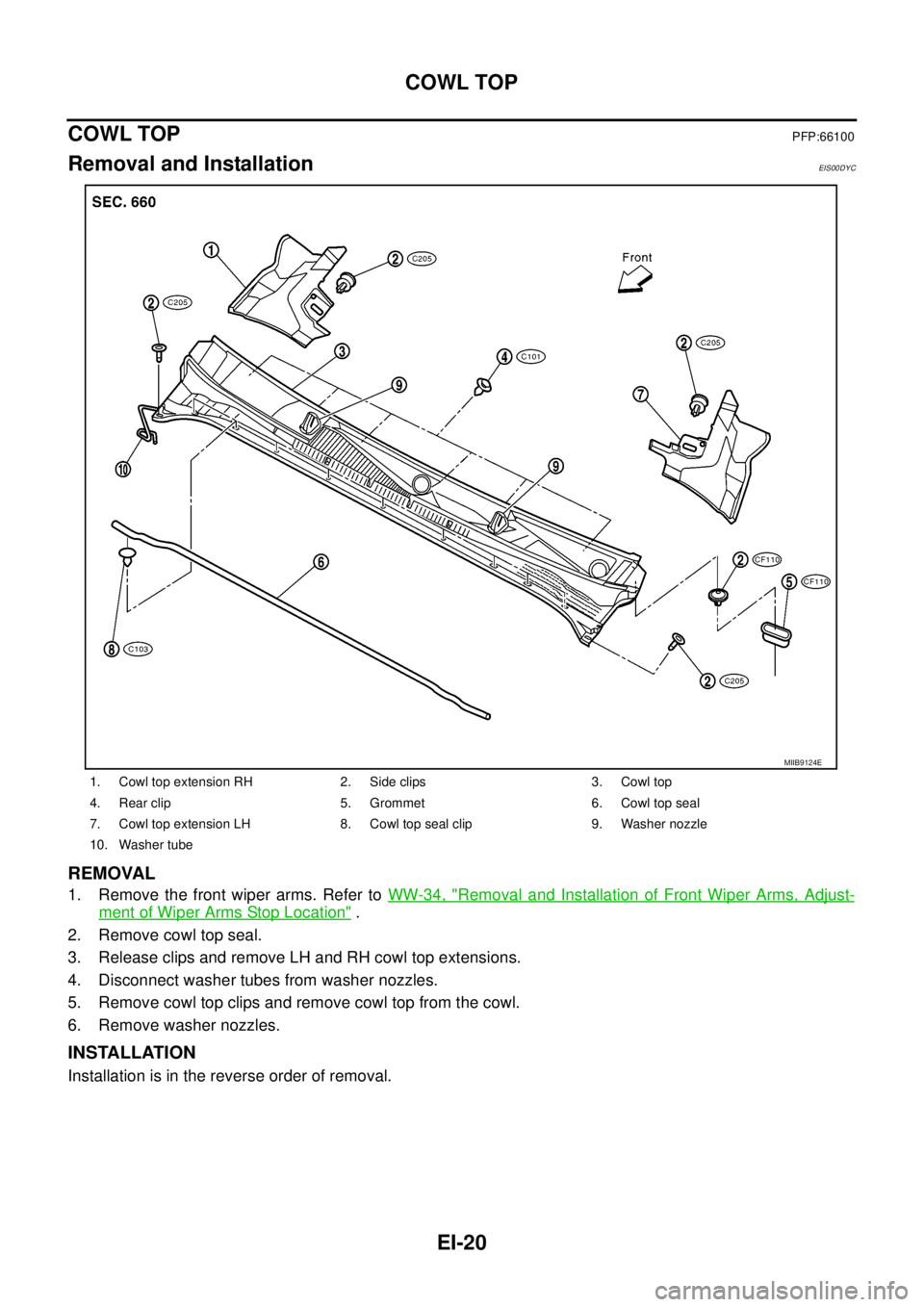

1. Cowl top extension RH 2. Side clips 3. Cowl top
4. Rear clip 5. Grommet 6. Cowl top seal
7. Cowl top extension LH 8. Cowl top seal clip 9. Washer nozzle
10. Washer tube
MIIB9124E

FENDER PROTECTOR
EI-21
C
D
E
F
G
H
J
K
L
MA
B
EI
FENDER PROTECTORPFP:63840
ComponentsEIS00DYE

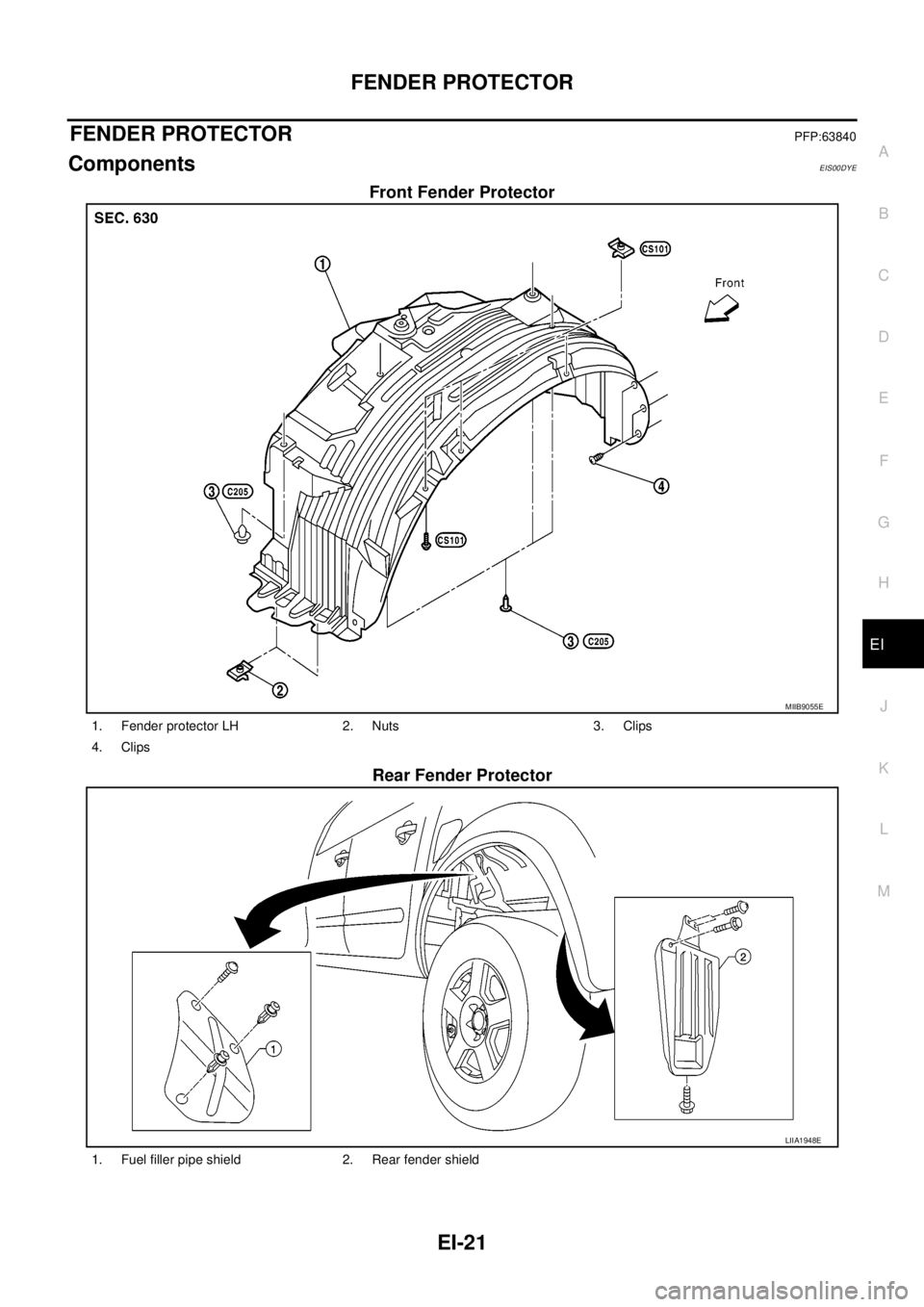

Front Fender Protector
Rear Fender Protector
MIIB9055E
1. Fender protector LH 2. Nuts 3. Clips
4. Clips
LIIA1948E
1. Fuel filler pipe shield 2. Rear fender shield

EI-22
FENDER PROTECTOR
Removal and Installation of Front Fender Protector
EIS00DYF
REMOVAL
1. Remove screws, and front mudguard.
2. Remove plastic clips.
3. Remove pushpin.
4. Remove front fender protector.
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation of Rear Fender ProtectorEIS00DYG
REMOVAL
1. Remove screws.
2. Remove pushpin.
3. Remove fuel filler pipe shield or rear fender shield.
INSTALLATION
Installation is in the reverse order of removal.
