Door Mirror AssemblyEIS00B8Z
REMOVAL
NOTE:
Be careful not to damage the mirror bodies.
1. Remove the clip and front door sash cover.
2. Remove the front door finisher. Refer toEI-30, "
FRONT DOOR".
3. Position the sealing screen aside.
4. Disconnect the door mirror harness connector.
5. Remove the nuts and the door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
Disassembly and AssemblyEIS00C06
DISASSEMBLY
1. Place the mirror body with mirror glass facing upward.
2. Put strip of protective tape B on mirror body.
3. As shown in the figure insert a small slotted screwdriver A into
the recess between mirror base (mirror holder)(1) and mirror
holder (2) bracket and push up two pawls(3) to remove mirror
holder lower half side.
NOTE:
When pushing up pawls do not attempt to use one recess only,
be sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.
4. Remove two terminals of mirror heater attachment.

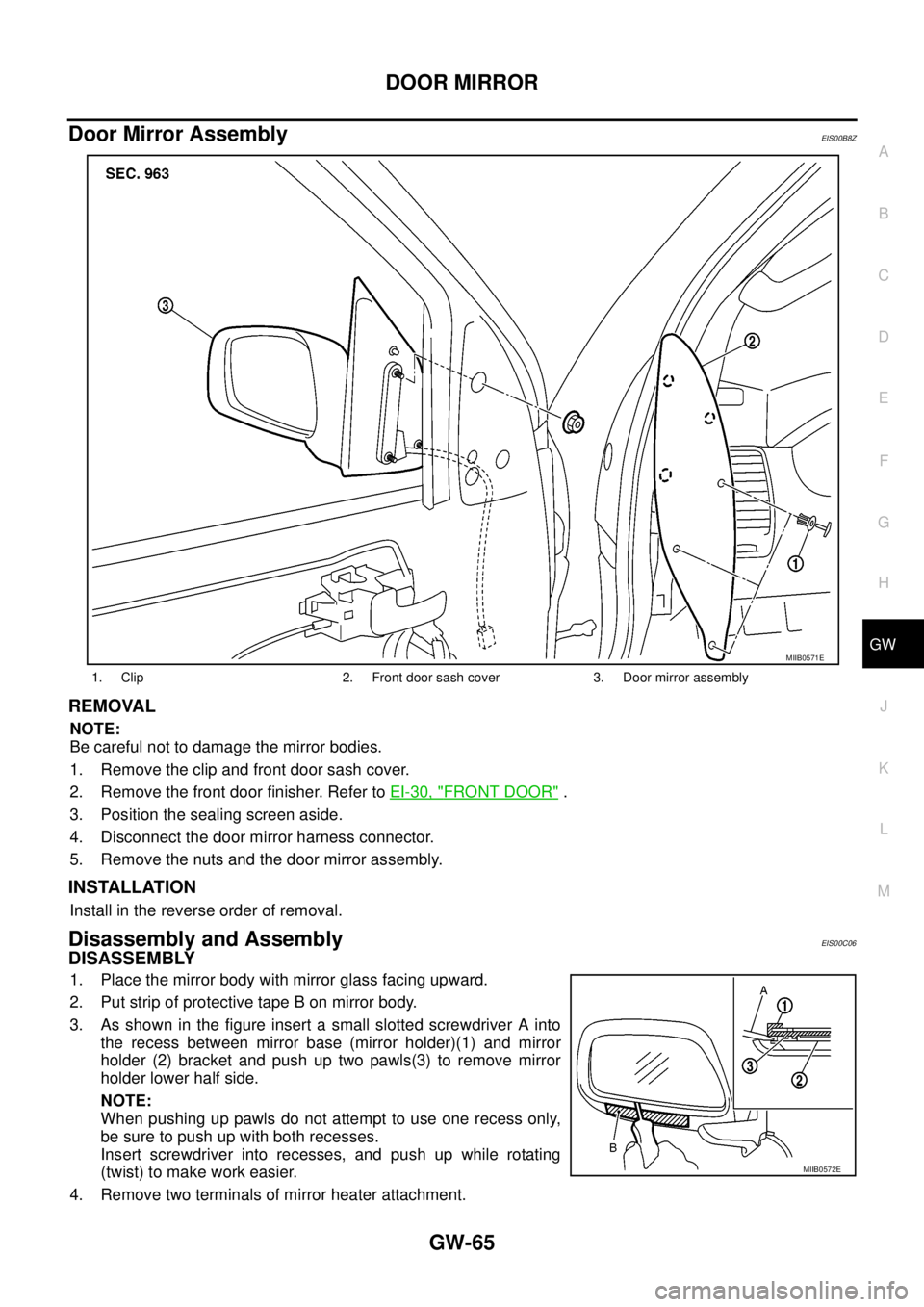

1. Clip 2. Front door sash cover 3. Door mirror assembly
MIIB0571E
MIIB0572E

GW-66
DOOR MIRROR
5. Lightly lift up lower side of mirror surface from mirror surface, and detach two pawls of upper side as if
pulling it out. Remove mirror surface from mirror body.
NOTE:
Be certain not to allow grease on sealing agent in center of mirror body assembly (actuator) or back side of
mirror surface (mirror holder).
ASSEMBLY
1. Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.
2. Connect two terminals of heater installed mirror.
3. Fit the upper two pawls on the mirror face onto the mirror holder
bracket first, then press the lower side of mirror face until a click
sound is heard to engage the lower pawls.
NOTE:
After installation, visually check that lower two pawls are securely
engaged from the bottom of mirror face.
