NISSAN NAVARA 2005 Repair Workshop Manual

LAN-284
[CAN]
CAN SYSTEM (TYPE 17)

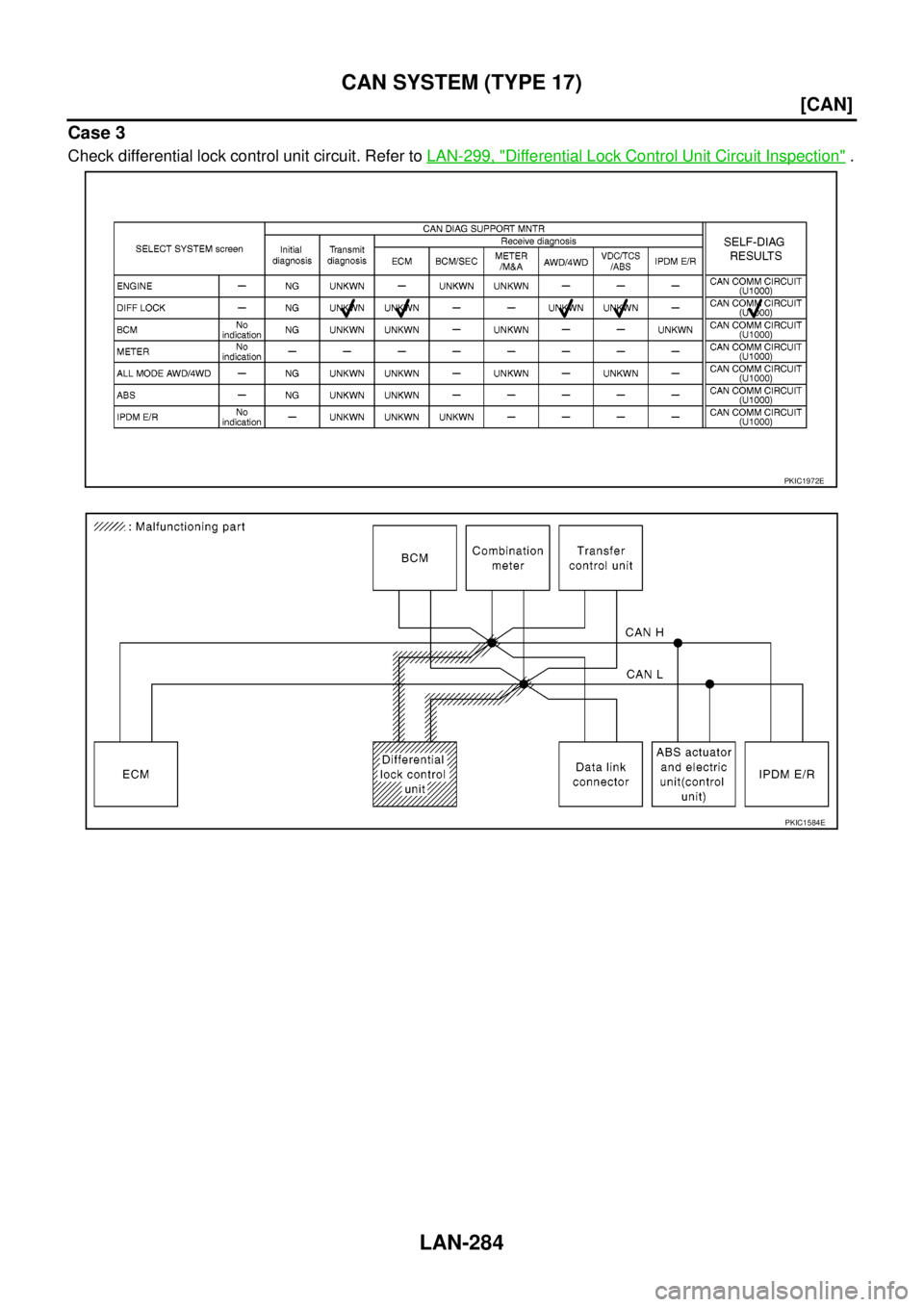

Case 3
Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection".
PKIC1972E
PKIC1584E

CAN SYSTEM (TYPE 17)
LAN-285
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 4
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1973E
PKIC1585E

LAN-286
[CAN]
CAN SYSTEM (TYPE 17)

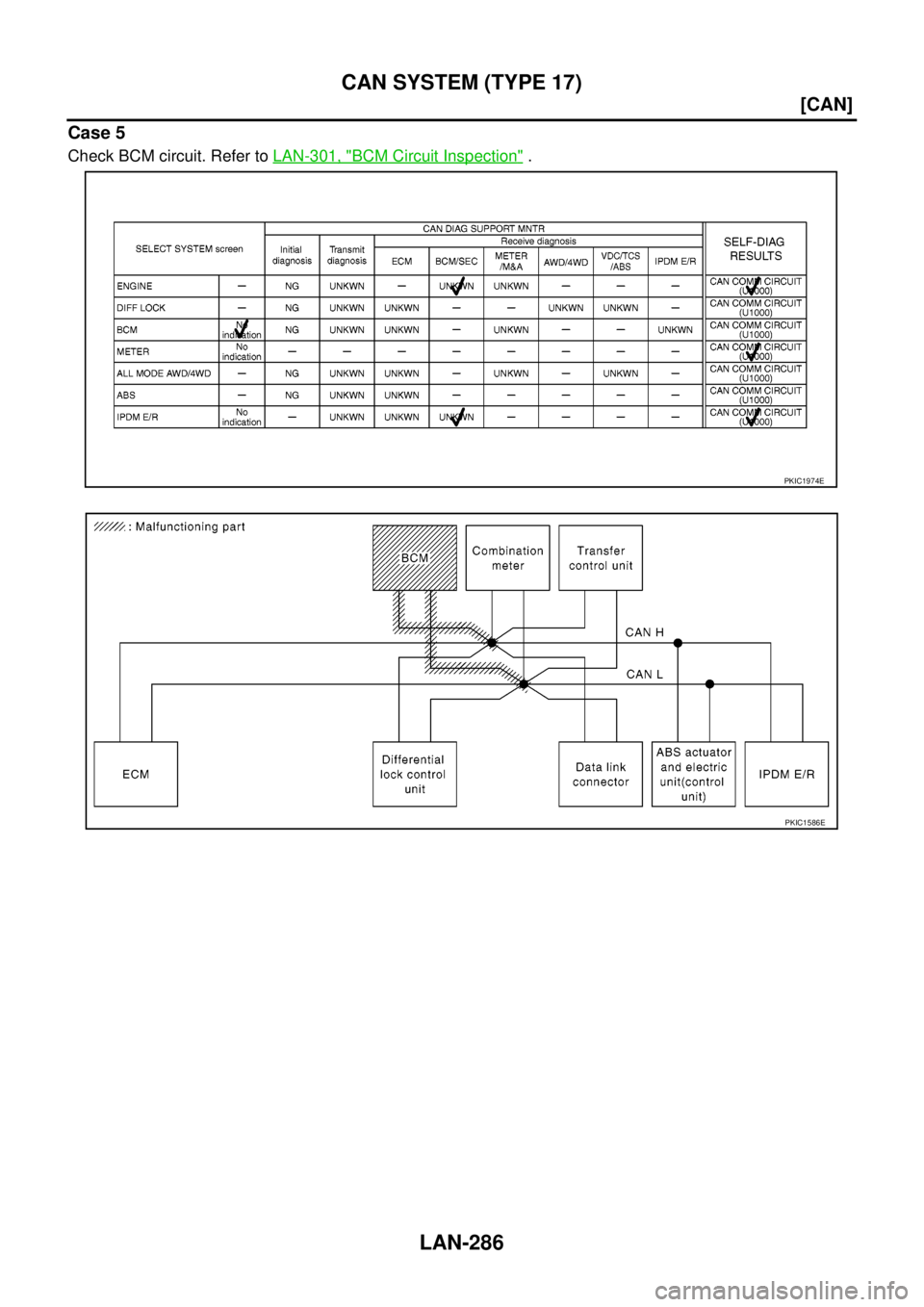

Case 5
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1974E
PKIC1586E

CAN SYSTEM (TYPE 17)
LAN-287
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

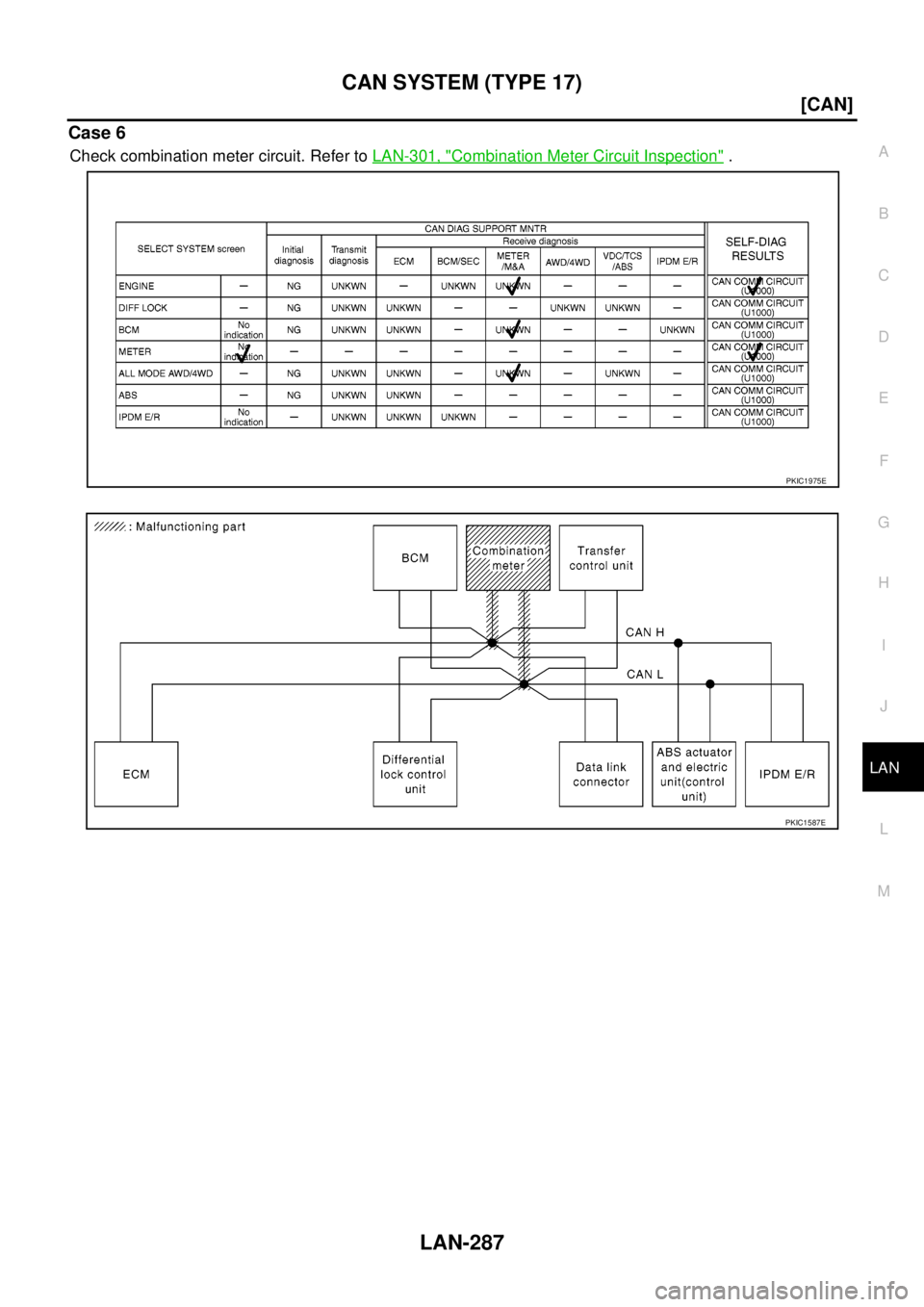

Case 6
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1975E
PKIC1587E

LAN-288
[CAN]
CAN SYSTEM (TYPE 17)

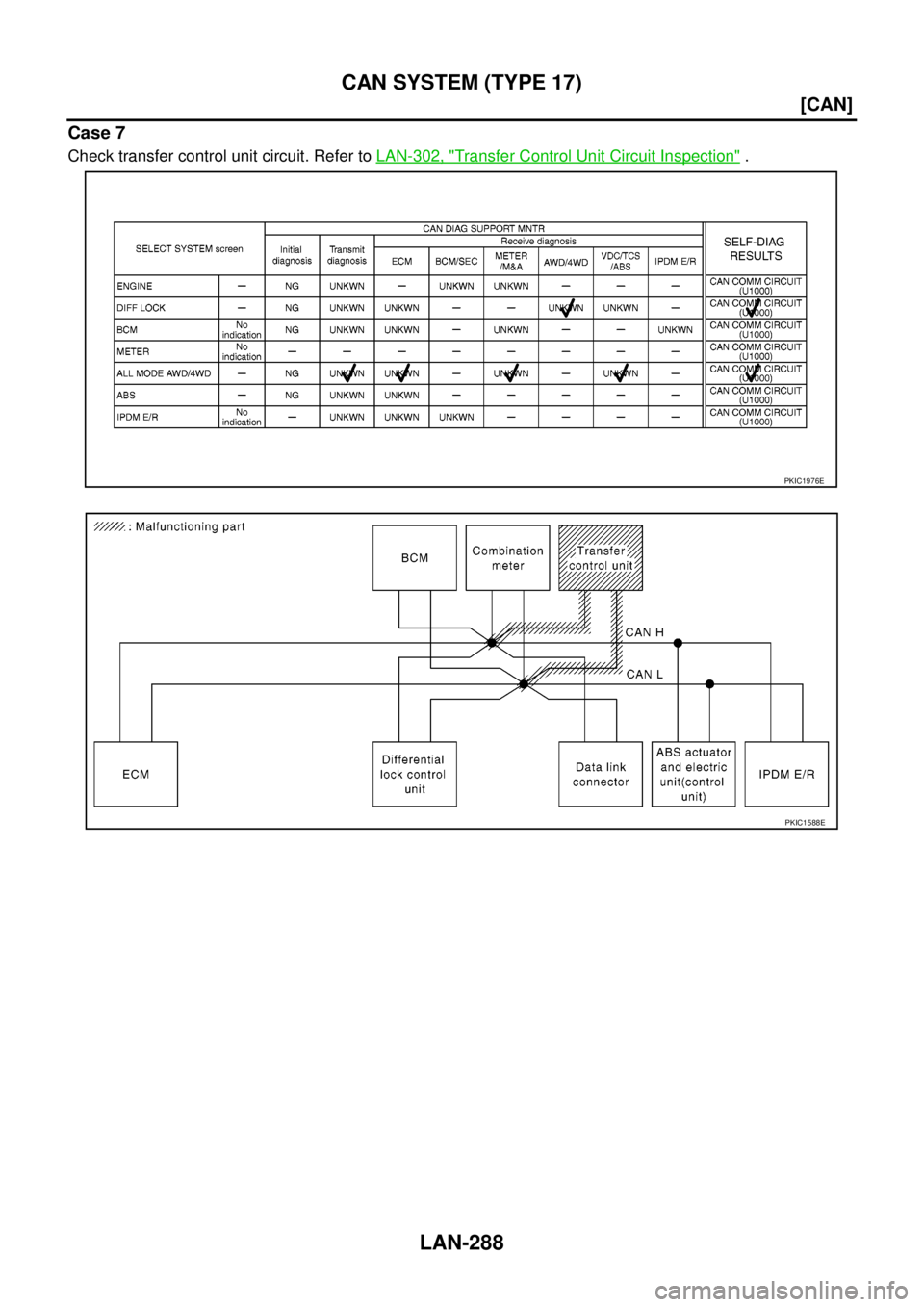

Case 7
Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1976E
PKIC1588E

CAN SYSTEM (TYPE 17)
LAN-289
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

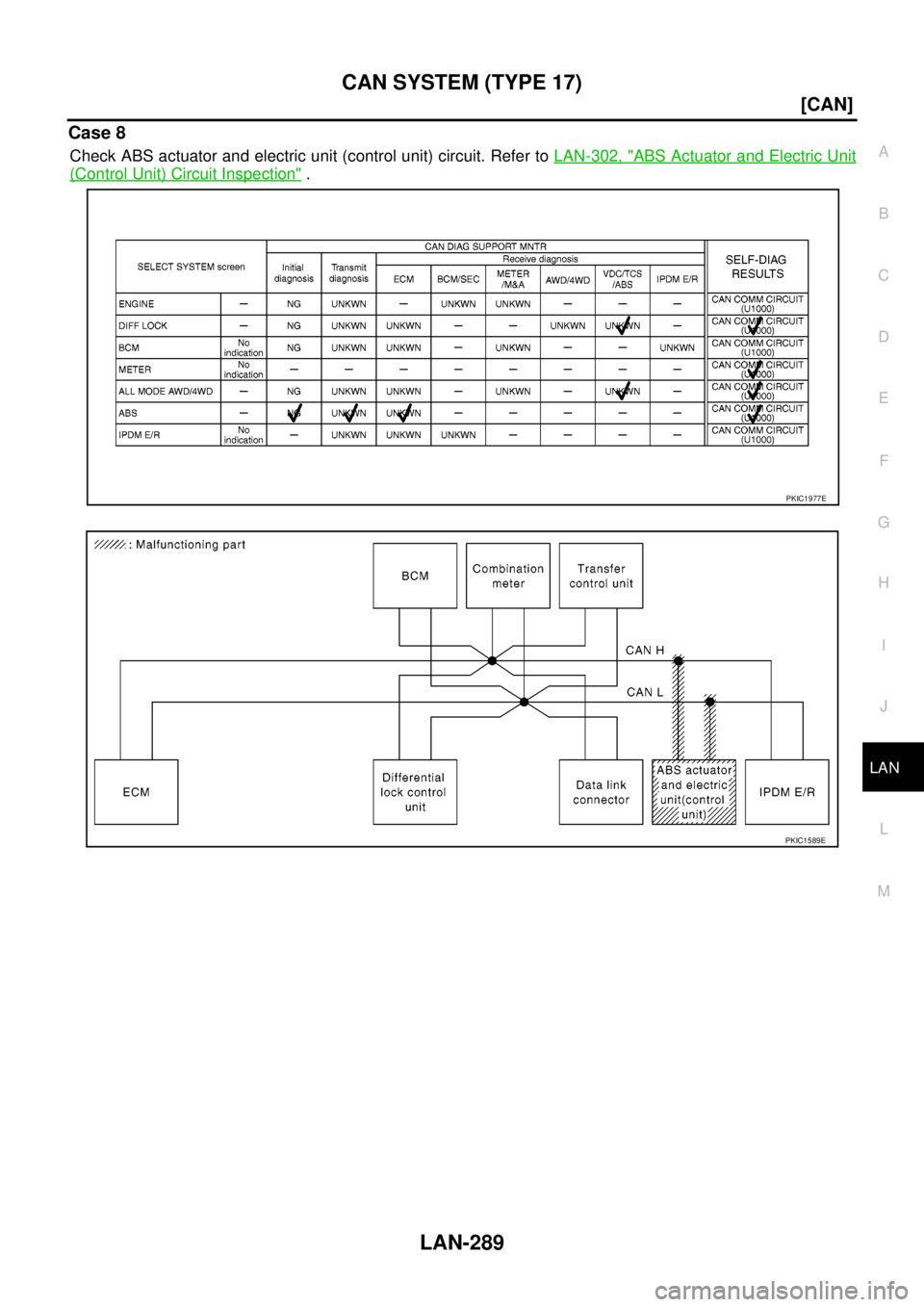

Case 8
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1977E
PKIC1589E

LAN-290
[CAN]
CAN SYSTEM (TYPE 17)

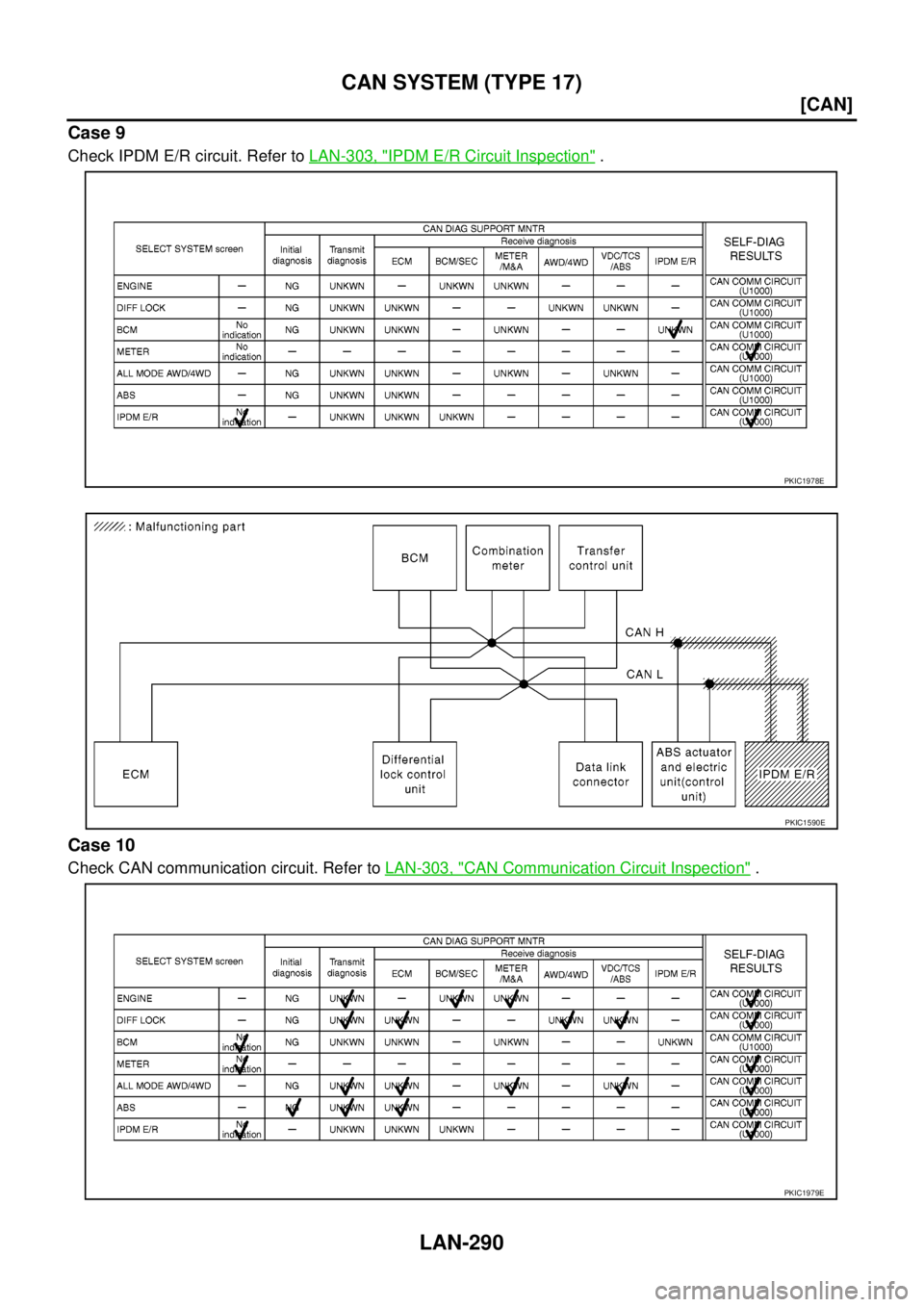

Case 9
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 10
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1978E
PKIC1590E
PKIC1979E

CAN SYSTEM (TYPE 17)
LAN-291
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

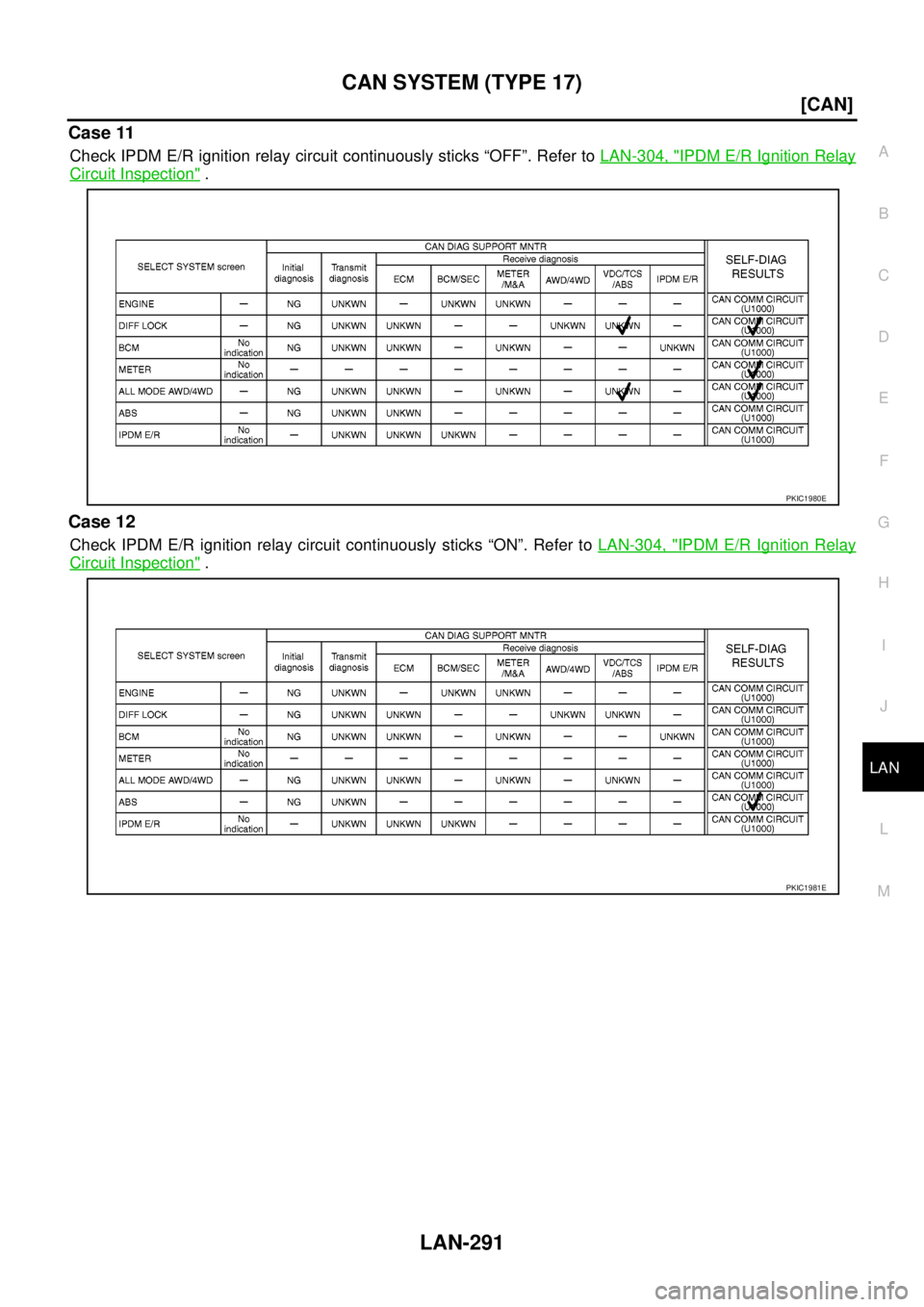

Case 11
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 12
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1980E
PKIC1981E

LAN-292
[CAN]
TROUBLE DIAGNOSIS FOR SYSTEM
TROUBLE DIAGNOSIS FOR SYSTEM
PFP:00000

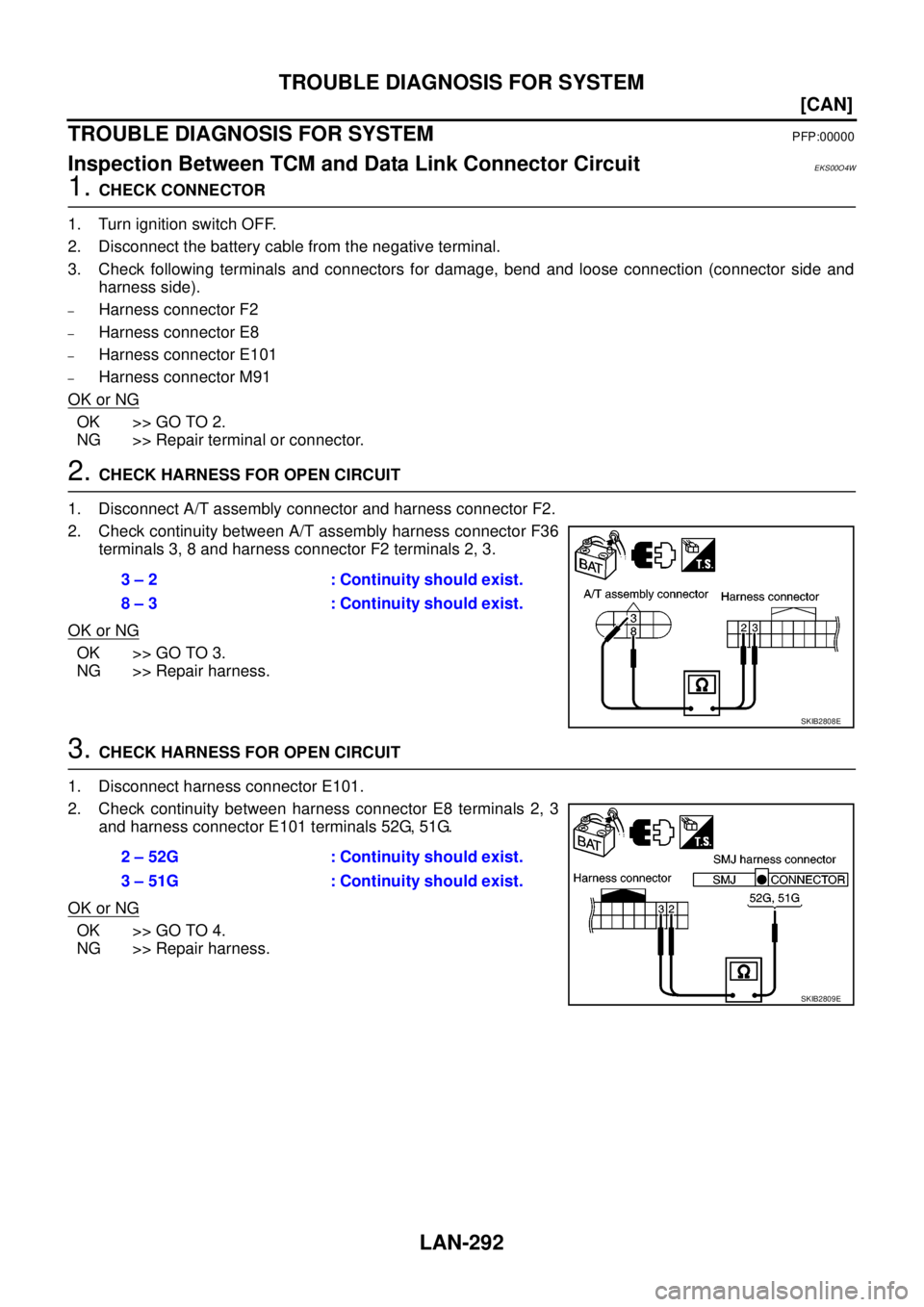

Inspection Between TCM and Data Link Connector CircuitEKS00O4W
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector F2
–Harness connector E8
–Harness connector E101
–Harness connector M91
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector and harness connector F2.
2. Check continuity between A/T assembly harness connector F36
terminals 3, 8 and harness connector F2 terminals 2, 3.
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector E101.
2. Check continuity between harness connector E8 terminals 2, 3
and harness connector E101 terminals 52G, 51G.
OK or NG
OK >> GO TO 4.
NG >> Repair harness.3 – 2 : Continuity should exist.
8 – 3 : Continuity should exist.
SKIB2808E
2 – 52G : Continuity should exist.
3 – 51G : Continuity should exist.
SKIB2809E

TROUBLE DIAGNOSIS FOR SYSTEM
LAN-293
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

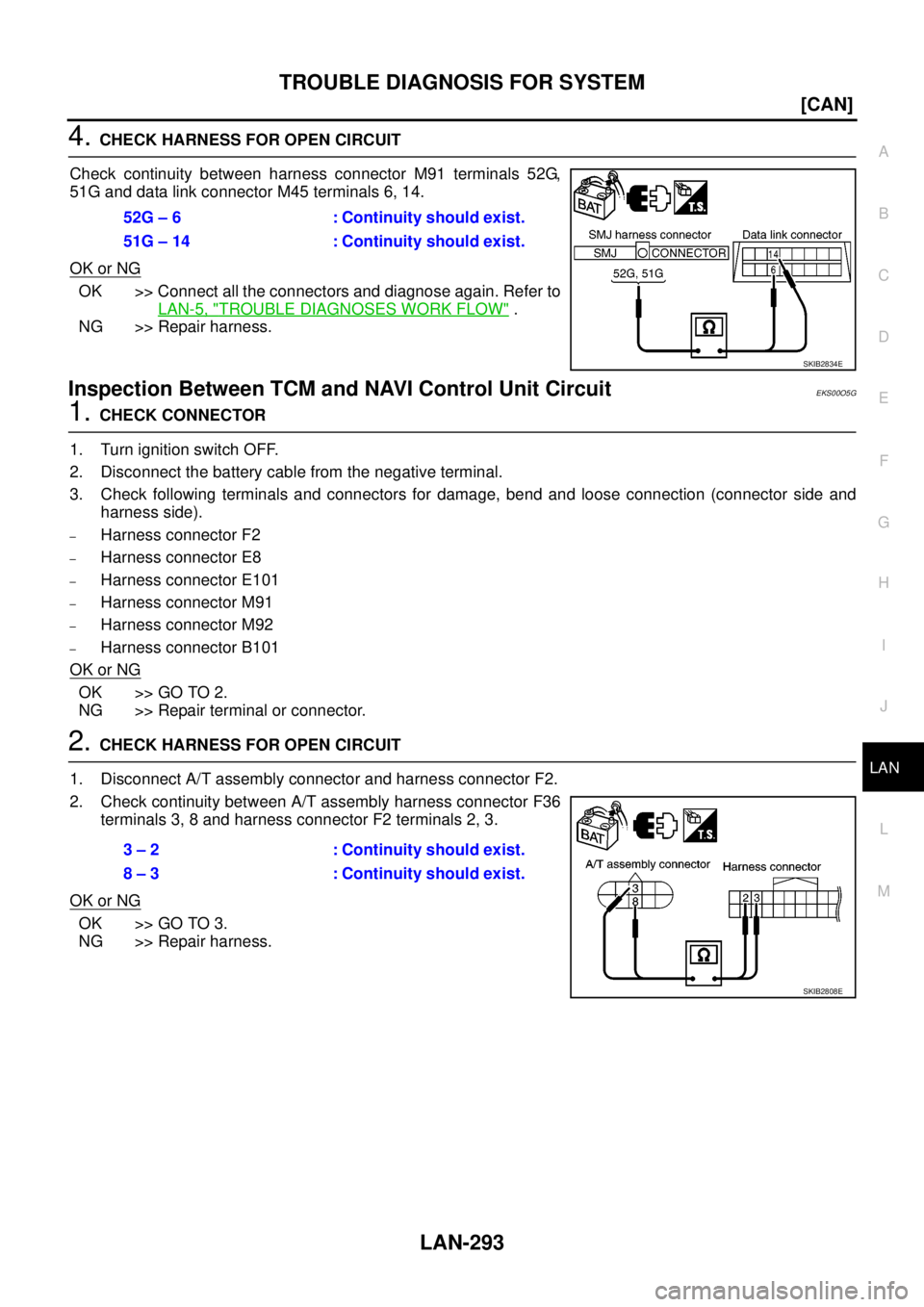

4.CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector M91 terminals 52G,
51G and data link connector M45 terminals 6, 14.
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-5, "
TROUBLE DIAGNOSES WORK FLOW".
NG >> Repair harness.
Inspection Between TCM and NAVI Control Unit CircuitEKS00O5G
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector F2
–Harness connector E8
–Harness connector E101
–Harness connector M91
–Harness connector M92
–Harness connector B101
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector and harness connector F2.
2. Check continuity between A/T assembly harness connector F36
terminals 3, 8 and harness connector F2 terminals 2, 3.
OK or NG
OK >> GO TO 3.
NG >> Repair harness.52G – 6 : Continuity should exist.
51G – 14 : Continuity should exist.
SKIB2834E
3 – 2 : Continuity should exist.
8 – 3 : Continuity should exist.
SKIB2808E
