INSPECTION AND ADJUSTMENT
HAC-113
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
1. Press the intake switch. Indicator is turned ON (REC).
2. Press the intake switch again. Indicator is turned OFF (FRE).
3. Listen for the intake door position change. (Slight change of blower sound can be heard.)
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and the intake door position is at
the FRE when the DEF is selected.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Intake door system malfunction: HAC-189, "
Diagnosis Procedure".
5.CHECK A/C SWITCH
1. Press the A/C switch.
2. The A/C switch indicator is turned ON.
Confirm that the compressor clutch engages (sound or visual inspection).
Is the inspection result normal?
YES >> GO TO 6.
NO >> Magnet clutch system malfunction: HAC-197, "
Diagnosis Procedure".
6.CHECK WITH TEMPERATURE SETTING LOWERED
1. Operate the compressor.
2. Operate the temperature control dial (driver side) and lower the temperature setting to 18°C (60°F).
3. Check that the cool air blows from the outlets.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Insufficient cooling: HAC-228, "
Inspection procedure".
7.CHECK WITH TEMPERATURE SETTING RAISED
1. Operate the temperature control dial (driver side) and raise the temperature setting to 32°C (90°F) after
warming up the engine.
2. Check that the warm air blows from the outlets.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Insufficient heating: HAC-231, "
Inspection procedure".
8.CHECK LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM FUNC-
TION
1. Press the DUAL switch, and then check that “DUAL” is shown on the display.
2. Operate the temperature control dial (driver side). Check that the discharge air temperature (driver side)
changes.
3. Operate the temperature control dial (passenger side). Check that the discharge air temperature (passen-
ger side) changes.
4. Press the DUAL switch, and then check that the temperature setting (LH/RH) is unified to the driver side
temperature setting.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Refer to HAC-226, "
Diagnosis Chart By Symptom" and perform the appropriate diagnosis.
9.CHECK AUTO MODE
1. Press the AUTO switch, and then check that “AUTO” is shown on the display.
2. Operate the temperature control dial (driver side). Check that the fan speed or outlet changes (the dis-
charge air temperature or fan speed varies depending on the ambient temperature, in-vehicle tempera-
ture, and temperature setting).
Is the inspection result normal?
YES >> GO TO 10.
NO >> Refer to HAC-226, "
Diagnosis Chart By Symptom" and perform the appropriate diagnosis.
10.CHECK PLASMACLUSTER ION CONTROL FUNCTION
1. Turn ignition switch OFF and restart the engine.
Page 2742 of 5121
![NISSAN TEANA 2008 Service Manual HAC-114
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
INSPECTION AND ADJUSTMENT
2. Ion indicator is shown on the display.
3. Press OFF switch.
4. Ion indicator is turned OFF.
Is the inspection result norm NISSAN TEANA 2008 Service Manual HAC-114
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
INSPECTION AND ADJUSTMENT
2. Ion indicator is shown on the display.
3. Press OFF switch.
4. Ion indicator is turned OFF.
Is the inspection result norm](/img/5/57391/w960_57391-2741.png)
HAC-114
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
INSPECTION AND ADJUSTMENT
2. Ion indicator is shown on the display.
3. Press OFF switch.
4. Ion indicator is turned OFF.
Is the inspection result normal?
YES >> GO TO 11.
NO >> Refer to HAC-227, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Inspection procedure".
11 .CHECK ION CONTROL MODE
1. Turn ignition switch OFF and restart the engine.
2. Turn fan control dial clockwise.
3. Ion indicator (blue) is turned ON.
4. Ion indicator (blue) changes to ion indicator (green) after approximately 15 minutes.
5. Ion indicator (green) changes to ion indicator (blue) after approximately 15 minutes.
6. Press CLEAN switch.
7. Ion indicator (blue) changes to ion indicator (green) after approximately 30 minutes.
8. Ion indicator (green) changes to ion indicator (blue) after approximately 15 minutes.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace unified meter and A/C amp.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Temperature Setting Trimmer
INFOID:0000000003888718
DESCRIPTION
If the temperature felt by the customer is different than the air flow temperature controlled by the temperature
setting, the A/C auto amp. control temperature can be adjusted to compensate for the temperature setting.
HOW TO SET
Using CONSULT-III, perform “TEMP SET CORRECT” on “WORK SUPPORT” of HVAC.
NOTE:
When the temperature setting is set to 25.0°C (77°F) and −3.0°C (−6°F), the temperature controlled by A/C
auto amp. is 25.0°C (77°F) −3.0°C (6°F) = 22.0°C (71°F) and the temperature becomes lower than the tem-
perature setting.
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10
V or less, trimmer operation is canceled. Temperature set becomes that of initial condition.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Foot Position Setting Trimmer
INFOID:0000000003888719
DESCRIPTION
Work support items Display (°F) Display (°C)
TEMP SET CORRECT63.0
52.5
42.0
31.5
21.0
10.5
0 (initial status) 0 (initial status)
−1−0.5
−2−1.0
−3−1.5
−4−2.0
−5−2.5
−6−3.0
Page 2743 of 5121
![NISSAN TEANA 2008 Service Manual INSPECTION AND ADJUSTMENT
HAC-115
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
In the FOOT mode, the air blowing to the DEF can be turned ON/OFF.
HOW TO SET
Using CONSUL NISSAN TEANA 2008 Service Manual INSPECTION AND ADJUSTMENT
HAC-115
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
In the FOOT mode, the air blowing to the DEF can be turned ON/OFF.
HOW TO SET
Using CONSUL](/img/5/57391/w960_57391-2742.png)
INSPECTION AND ADJUSTMENT
HAC-115
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
In the FOOT mode, the air blowing to the DEF can be turned ON/OFF.
HOW TO SET
Using CONSULT-III, perform “BLOW SET” on “WORK SUPPORT” of HVAC.
NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, trimmer operation is cancelled. Wind distribution rate set becomes that of initial condition.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Inlet Port Memory Function
(FRE)
INFOID:0000000003888720
DESCRIPTION
If the ignition switch is turned to the OFF position while the intake switch is set to OFF (fresh air intake), “Per-
form the memory” or “Do not perform the memory” of the intake switch OFF (fresh air intake) condition can
be selected.
If “Perform the memory” was set, the intake switch will be OFF (fresh air intake) when turning the ignition
switch to the ON position again.
If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the igni-
tion switch to the ON position again.
HOW TO SET
Using CONSULT-III, perform “FRE MEMORY SET” on “WORK SUPPORT” of HVAC.
NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the setting of the intake switch memory function may be cancelled.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Inlet Port Memory Function
(REC)
INFOID:0000000003888721
DESCRIPTION
If the ignition switch is turned to the OFF position while the intake switch is set to ON (recirculation), “Per-
form the memory” or “Do not perform the memory” of the intake switch ON (recirculation) condition can be
selected.
If “Perform the memory” was set, the intake switch will be ON (recirculation) when turning the ignition switch
to the ON position again.
If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the igni-
tion switch to the ON position again.
HOW TO SET
Using CONSULT-III, perform “REC MEMORY SET” on “WORK SUPPORT” of HVAC.
NOTE:
Work support items DisplayDEF door position
Auto control Manual control
BLOW SETMode 1 OPEN CLOSE
Mode 2 (initial status) OPEN OPEN
Mode 3 CLOSE OPEN
Mode 4 CLOSE CLOSE
Work support items Display Setting
FRE MEMORY SETWITHOUT (initial status) Perform the memory of manual FRE
WITH Do not perform the memory of manual FRE (auto control)
Work support items Display Setting
REC MEMORY SETWITHOUT Perform the memory of manual REC
WITH (initial status) Do not perform the memory of manual REC (auto control)
Page 2744 of 5121
![NISSAN TEANA 2008 Service Manual HAC-116
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
INSPECTION AND ADJUSTMENT
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the sett NISSAN TEANA 2008 Service Manual HAC-116
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
INSPECTION AND ADJUSTMENT
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the sett](/img/5/57391/w960_57391-2743.png)
HAC-116
< BASIC INSPECTION >[WITH 7 INCH DISPLAY]
INSPECTION AND ADJUSTMENT
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the setting of the intake switch memory function may be cancelled.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Gas Sensor Sensitivity Adjust-
ment Function (With Intelligent Air Conditioner System)
INFOID:0000000003884691
DESCRIPTION
According to customer’s sense of smell, gas sensor sensitivity can be changed.
HOW TO SET
Using CONSULT-III, perform “GAS SENSOR ADJUSTMENT” on “WORK SUPPORT” of HVAC.
NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the setting of the intake switch memory function may be cancelled.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Clean Switch Interlocking Move-
ment Change Function (With Intelligent Air Conditioner System)
INFOID:0000000003884692
DESCRIPTION
Condition for interlocking movement of clean switch and A/C switch can be changed. In addition operation of
the clean switch, which activates the automatic re-circulation control system, can be set to become available
when the A/C switch is ON.
HOW TO SET
Using CONSULT-III, perform “CLEAN SW SET” on “WORK SUPPORT” of HVAC.
NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the setting of the intake switch memory function may be cancelled.
Work support items Display Setting
GAS SENSOR ADJUSTMENT2 Less sensitive setting than display 1 (REC later than display 1.)
1 Less sensitive setting than normal setting (REC later than normal operation.)
0 (initial status) Normal
−1 More sensitive setting than normal setting (REC earlier than normal operation.)
−2 More sensitive setting than display −1 (REC earlier than display −1.)
Work support items Display setting
CLEAN SW SETMODE 1 Initial setting
MODE 2 Setting 1
MODE 3 Setting 2
MODE 4 Setting 3
Initial settingWhen the clean switch is ON, the A/C switch is also turned ON in synchronization with the clean switch.
Control of the clean switch is functional even when the A/C switch is turned OFF.
Setting 1When the clean switch is ON, the A/C switch is not turned ON in synchronization with the clean switch.
Control of the clean switch is functional even when the A/C switch is turned OFF.
Setting 2When the clean switch is ON, the A/C switch is also turned ON in synchronization with the clean switch.
When the A/C switch is turned OFF, the clean switch is turned OFF in synchronization with the A/C switch.
Setting 3Clean switch can be turned ON only when A/C switch is ON.
When the A/C switch is turned OFF, the clean switch is turned OFF in synchronization with the A/C switch.
Page 2745 of 5121
![NISSAN TEANA 2008 Service Manual COMPRESSOR CONTROL FUNCTION
HAC-117
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
FUNCTION DIAGNOSIS
COMPRESSOR CONTROL FUNCTION
DescriptionINFOID:0000000003943704
PRINC NISSAN TEANA 2008 Service Manual COMPRESSOR CONTROL FUNCTION
HAC-117
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
FUNCTION DIAGNOSIS
COMPRESSOR CONTROL FUNCTION
DescriptionINFOID:0000000003943704
PRINC](/img/5/57391/w960_57391-2744.png)
COMPRESSOR CONTROL FUNCTION
HAC-117
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
FUNCTION DIAGNOSIS
COMPRESSOR CONTROL FUNCTION
DescriptionINFOID:0000000003943704
PRINCIPLE OF OPERATION
Compressor is not activated.

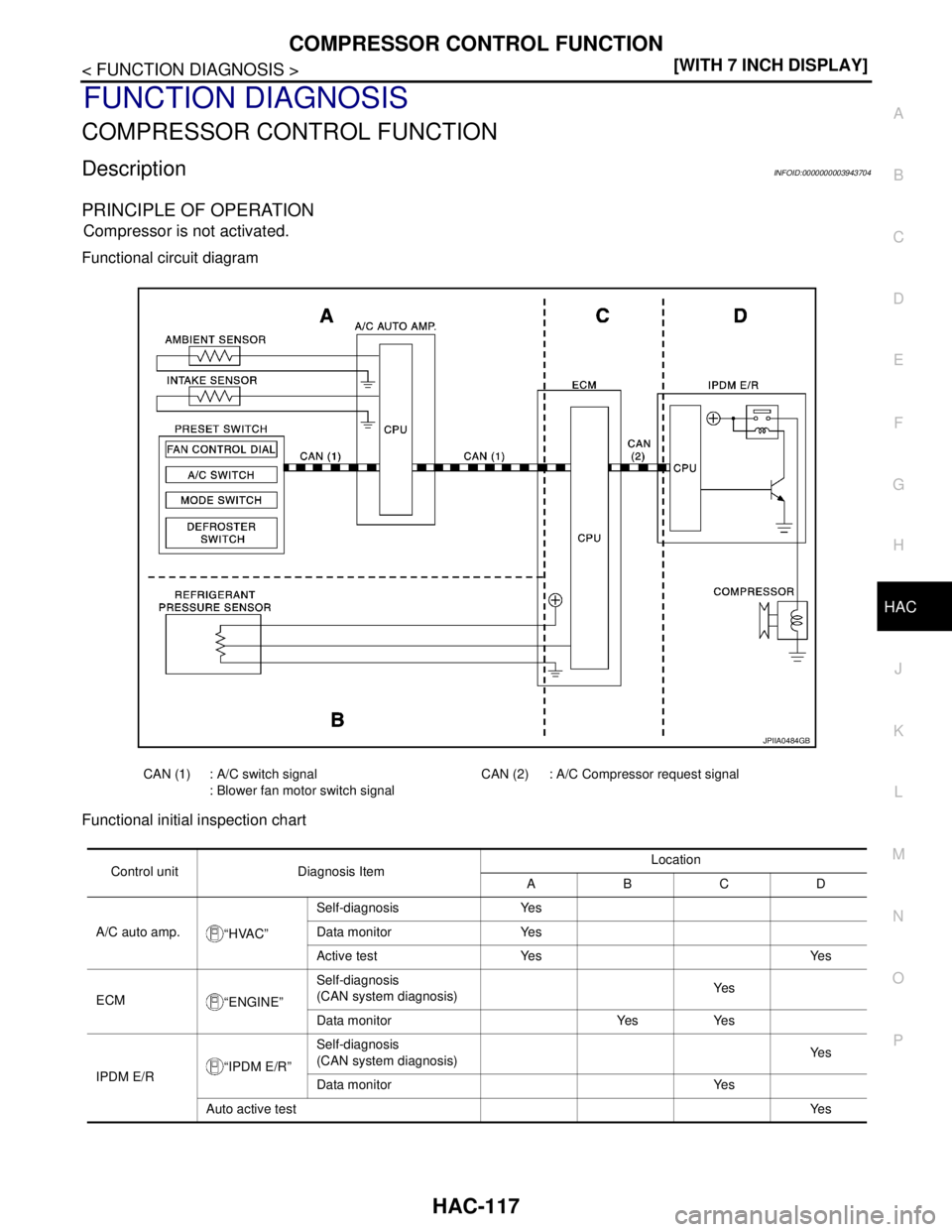

Functional circuit diagram
Functional initial inspection chart
CAN (1) : A/C switch signal
: Blower fan motor switch signalCAN (2) : A/C Compressor request signal
JPIIA0484GB
Control unit Diagnosis ItemLocation
ABCD
A/C auto amp.
“HVAC”Self-diagnosis Yes
Data monitor Yes
Active test Yes Yes
ECM
“ENGINE”Self-diagnosis
(CAN system diagnosis)Ye s
Data monitor Yes Yes
IPDM E/R“IPDM E/R”Self-diagnosis
(CAN system diagnosis)Ye s
Data monitor Yes
Auto active testYe s
Page 2746 of 5121
![NISSAN TEANA 2008 Service Manual HAC-118
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
COMPRESSOR CONTROL FUNCTION
Fail-Safe
INFOID:0000000003926398
FAIL-SAFE FUNCTION
If a communication error exists between the A/C auto amp., and the NISSAN TEANA 2008 Service Manual HAC-118
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
COMPRESSOR CONTROL FUNCTION
Fail-Safe
INFOID:0000000003926398
FAIL-SAFE FUNCTION
If a communication error exists between the A/C auto amp., and the](/img/5/57391/w960_57391-2745.png)
HAC-118
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
COMPRESSOR CONTROL FUNCTION
Fail-Safe
INFOID:0000000003926398
FAIL-SAFE FUNCTION
If a communication error exists between the A/C auto amp., and the AV control unit and preset switch for 30
seconds or longer, air conditioner is controlled under the following conditions:
Component Part LocationINFOID:0000000003884694
ENGINE COMPARTMENT
Compressor : ON
Air outlet : AUTO
Air inlet : FRE (Fresh)
Blower fan speed : AUTO
Set temperature : Setting before communication error occurs
Page 2747 of 5121
![NISSAN TEANA 2008 Service Manual COMPRESSOR CONTROL FUNCTION
HAC-119
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
PASSENGER COMPARTMENT
1. Refrigerant pressure sensor 2. Compressor (magnet clutch) 3. A NISSAN TEANA 2008 Service Manual COMPRESSOR CONTROL FUNCTION
HAC-119
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
PASSENGER COMPARTMENT
1. Refrigerant pressure sensor 2. Compressor (magnet clutch) 3. A](/img/5/57391/w960_57391-2746.png)
COMPRESSOR CONTROL FUNCTION
HAC-119
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

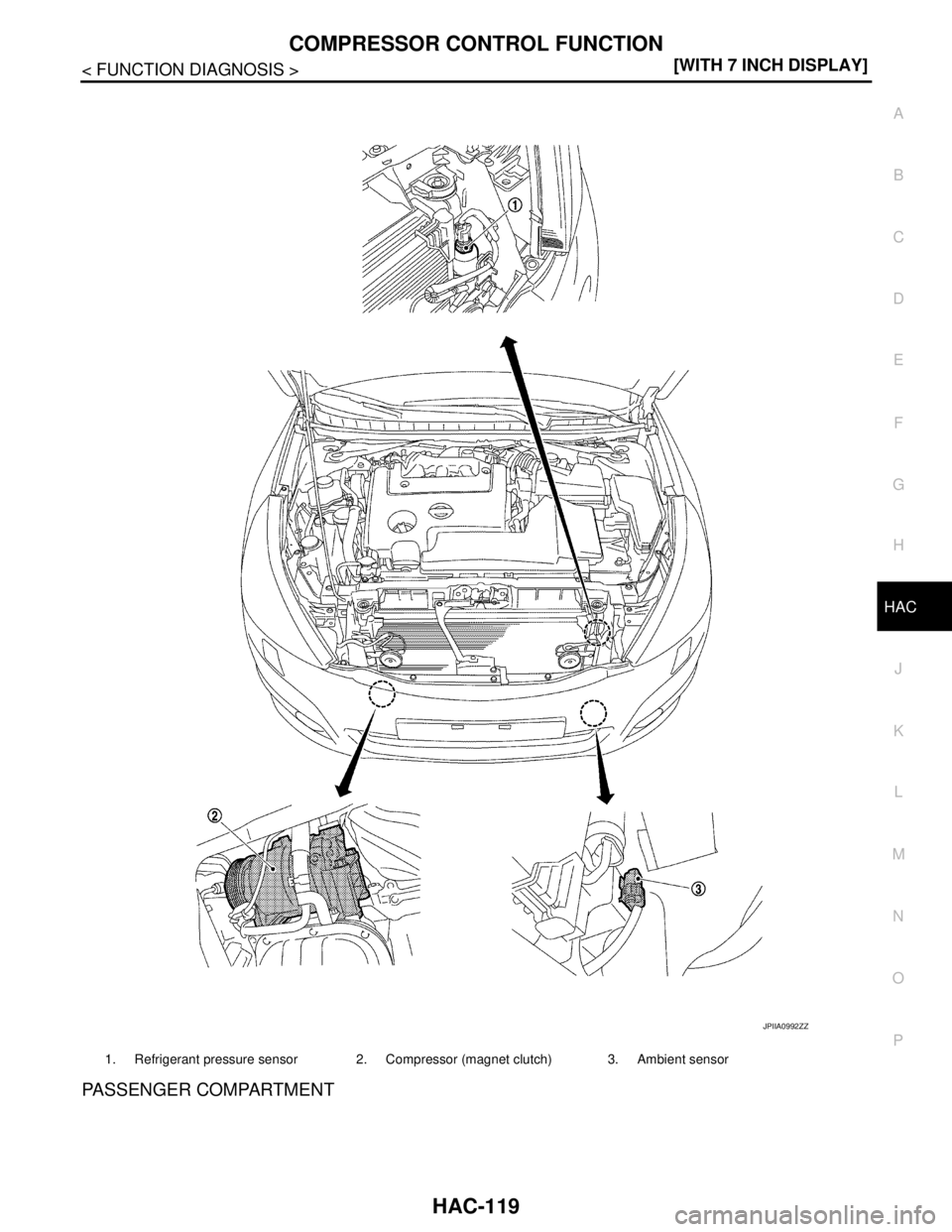

PASSENGER COMPARTMENT
1. Refrigerant pressure sensor 2. Compressor (magnet clutch) 3. Ambient sensor
JPIIA0992ZZ
Page 2748 of 5121
![NISSAN TEANA 2008 Service Manual HAC-120
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
COMPRESSOR CONTROL FUNCTION
Component’s Role
INFOID:0000000003884695
1. Intake door motor 2. Air mix door motor (passenger side) 3. Air mix door m NISSAN TEANA 2008 Service Manual HAC-120
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
COMPRESSOR CONTROL FUNCTION
Component’s Role
INFOID:0000000003884695
1. Intake door motor 2. Air mix door motor (passenger side) 3. Air mix door m](/img/5/57391/w960_57391-2747.png)
HAC-120
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
COMPRESSOR CONTROL FUNCTION
Component’s Role
INFOID:0000000003884695

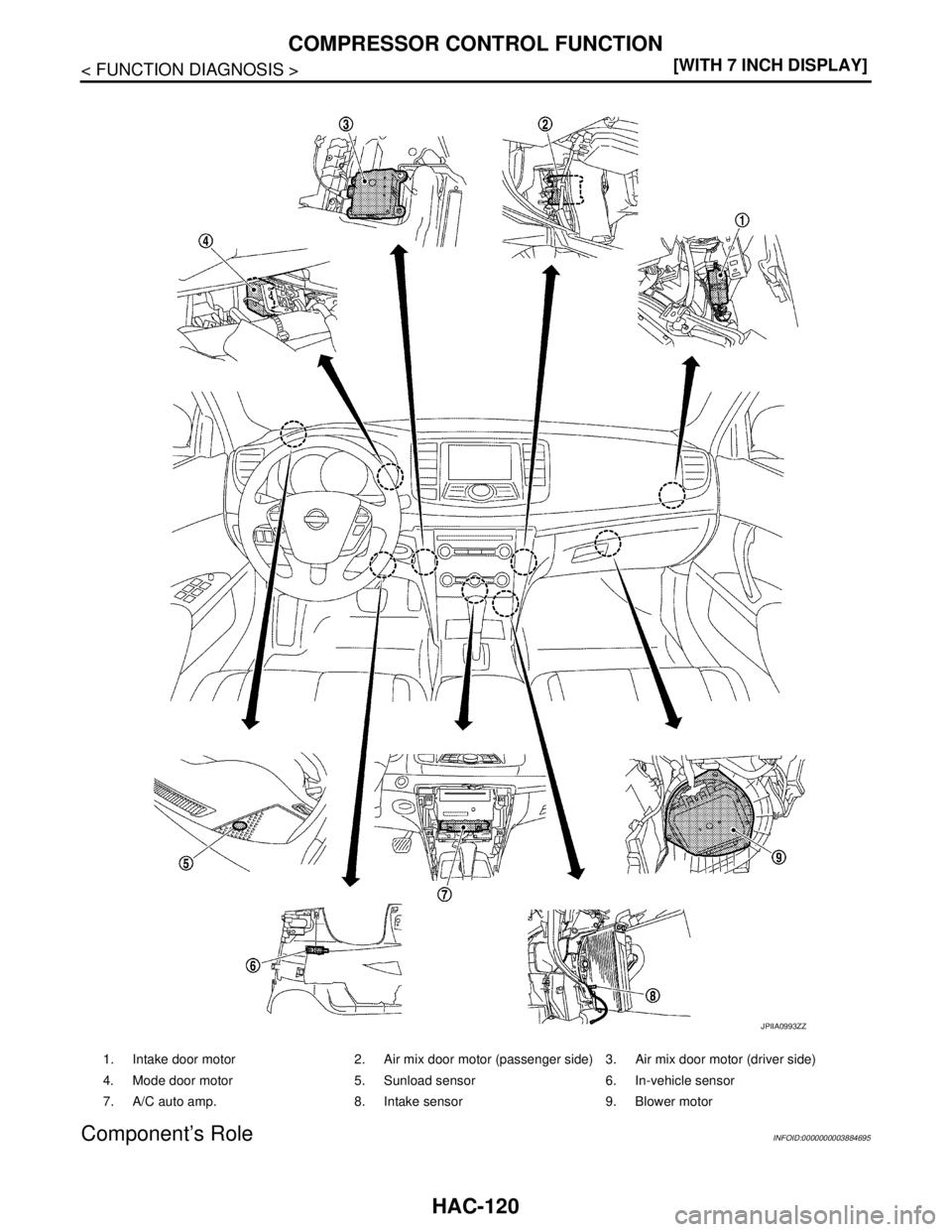

1. Intake door motor 2. Air mix door motor (passenger side) 3. Air mix door motor (driver side)
4. Mode door motor 5. Sunload sensor 6. In-vehicle sensor
7. A/C auto amp. 8. Intake sensor 9. Blower motor
JPIIA0993ZZ
Page 2749 of 5121
![NISSAN TEANA 2008 Service Manual COMPRESSOR CONTROL FUNCTION
HAC-121
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Component Description
Refrigerant pressure sensorEC-348, "
Description"
CompressorHAC-1 NISSAN TEANA 2008 Service Manual COMPRESSOR CONTROL FUNCTION
HAC-121
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Component Description
Refrigerant pressure sensorEC-348, "
Description"
CompressorHAC-1](/img/5/57391/w960_57391-2748.png)
COMPRESSOR CONTROL FUNCTION
HAC-121
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Component Description
Refrigerant pressure sensorEC-348, "
Description"
CompressorHAC-197, "Description"
Ambient sensorHAC-166, "Description"
Intake door motorHAC-188, "Description"
Air mix door motor (driver side)HAC-181, "Description"
Air mix door motor (passenger side)HAC-183, "Description"
Mode door motorHAC-185, "Description"
Sunload sensorHAC-178, "Description"
In-vehicle sensorHAC-169, "Description"
A/C auto amp. HAC-192, "Description"
Intake sensorHAC-172, "Description"
Blower motorHAC-193, "Description"
Page 2750 of 5121
![NISSAN TEANA 2008 Service Manual HAC-122
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
AUTOMATIC AIR CONDITIONER SYSTEM
AUTOMATIC AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYS NISSAN TEANA 2008 Service Manual HAC-122
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
AUTOMATIC AIR CONDITIONER SYSTEM
AUTOMATIC AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYS](/img/5/57391/w960_57391-2749.png)
HAC-122
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
AUTOMATIC AIR CONDITIONER SYSTEM
AUTOMATIC AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : System Diagram
INFOID:0000000003884702
CONTROL SYSTEM
The control system consists of input sensors, switches, the A/C auto amp. (microcomputer) and outputs. The
relationship of these components is as shown in the figure below:
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : System Description
INFOID:0000000003884704
CONTROL OPERATION
Display
The operation status of the system is displayed on the screen.
JPIIA1020GB
JSIIA0058GB
