NISSAN TERRANO 2004 Service Repair Manual

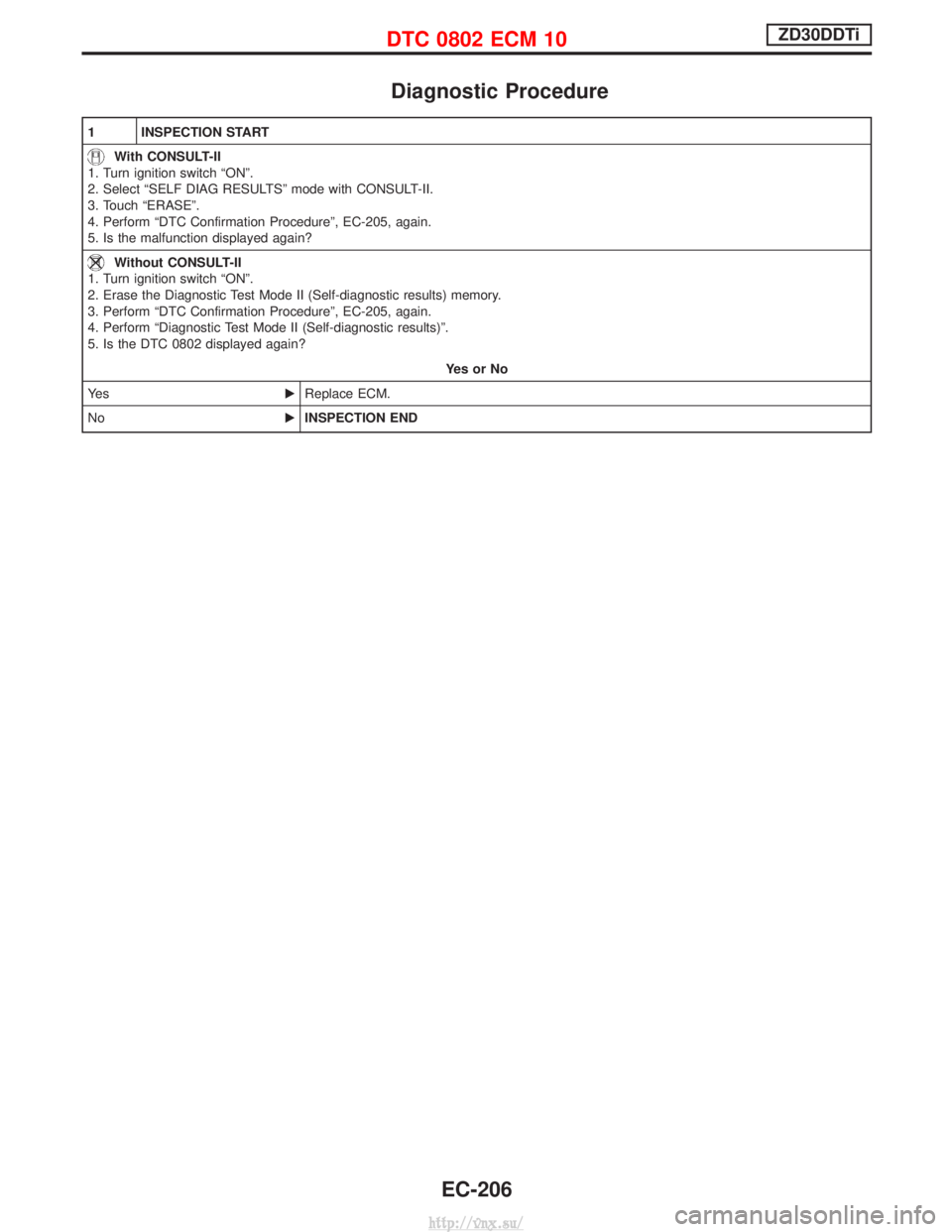

Diagnostic Procedure
1 INSPECTION START
With CONSULT-II
1. Turn ignition switch ªONº.
2. Select ªSELF DIAG RESULTSº mode with CONSULT-II.
3. Touch ªERASEº.
4. Perform ªDTC Confirmation Procedureº, EC-205, again.
5. Is the malfunction displayed again?
Without CONSULT-II
1. Turn ignition switch ªONº.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory.
3. Perform ªDTC Confirmation Procedureº, EC-205, again.
4. Perform ªDiagnostic Test Mode II (Self-diagnostic results)º.
5. Is the DTC 0802 displayed again?
YesorNo
Ye s EReplace ECM.
No EINSPECTION END
DTC 0802 ECM 10ZD30DDTi
EC-206
http://vnx.su/

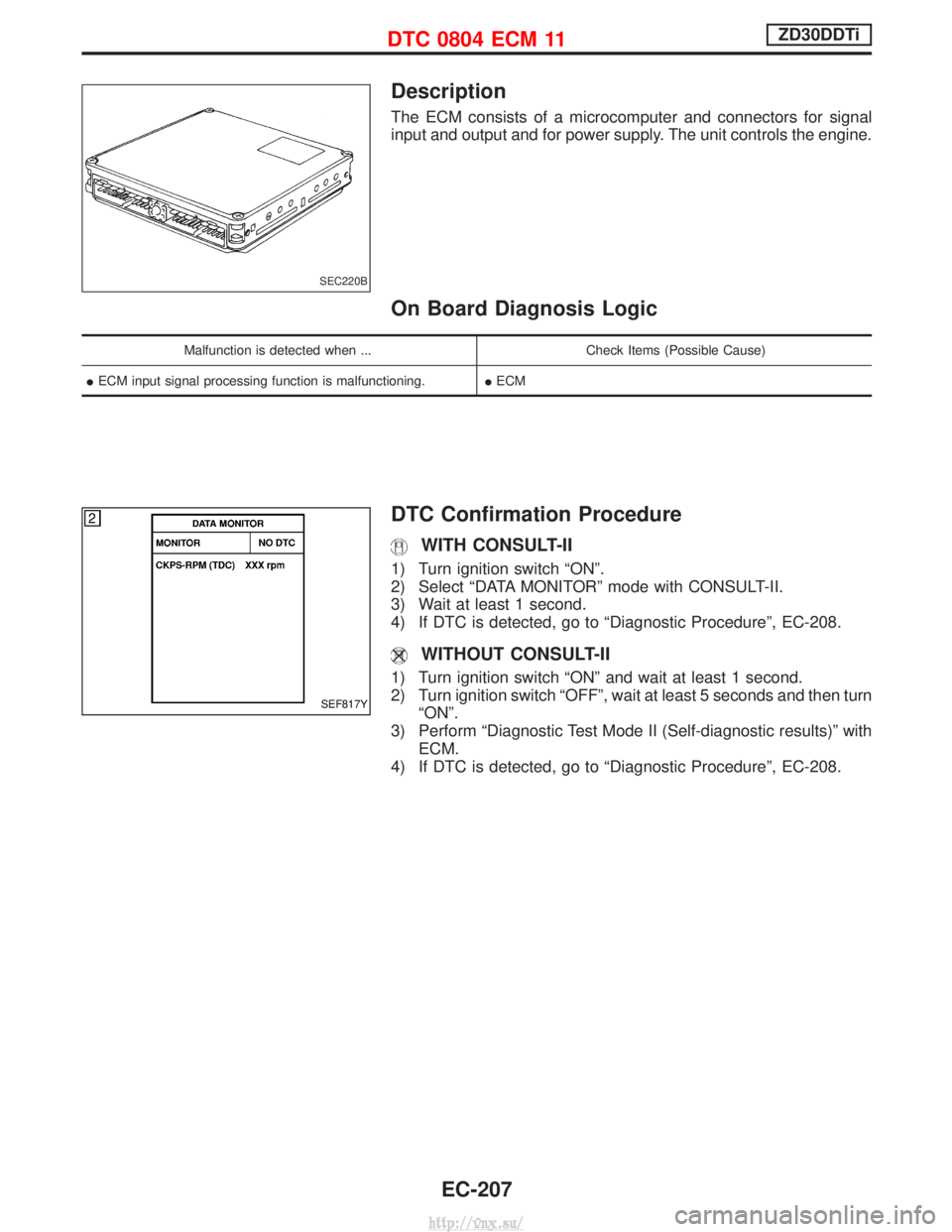

Description
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The unit controls the engine.
On Board Diagnosis Logic
Malfunction is detected when ...Check Items (Possible Cause)
I ECM input signal processing function is malfunctioning. IECM
DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Wait at least 1 second.
4) If DTC is detected, go to ªDiagnostic Procedureº, EC-208.
WITHOUT CONSULT-II
1) Turn ignition switch ªONº and wait at least 1 second.
2) Turn ignition switch ªOFFº, wait at least 5 seconds and then turn
ªONº.
3) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
4) If DTC is detected, go to ªDiagnostic Procedureº, EC-208.
SEC220B
SEF817Y
DTC 0804 ECM 11ZD30DDTi
EC-207
http://vnx.su/

Diagnostic Procedure
1 INSPECTION START
With CONSULT-II
1. Turn ignition switch ªONº.
2. Select ªSELF DIAG RESULTSº mode with CONSULT-II.
3. Touch ªERASEº.
4. Perform ªDTC Confirmation Procedureº, EC-207, again.
5. Is the malfunction displayed again?
Without CONSULT-II
1. Turn ignition switch ªONº.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory.
3. Perform ªDTC Confirmation Procedureº, EC-207, again.
4. Perform ªDiagnostic Test Mode II (Self-diagnostic results)º.
5. Is the DTC 0802 displayed again?
YesorNo
Ye s EReplace ECM.
No EINSPECTION END
DTC 0804 ECM 11ZD30DDTi
EC-208
http://vnx.su/

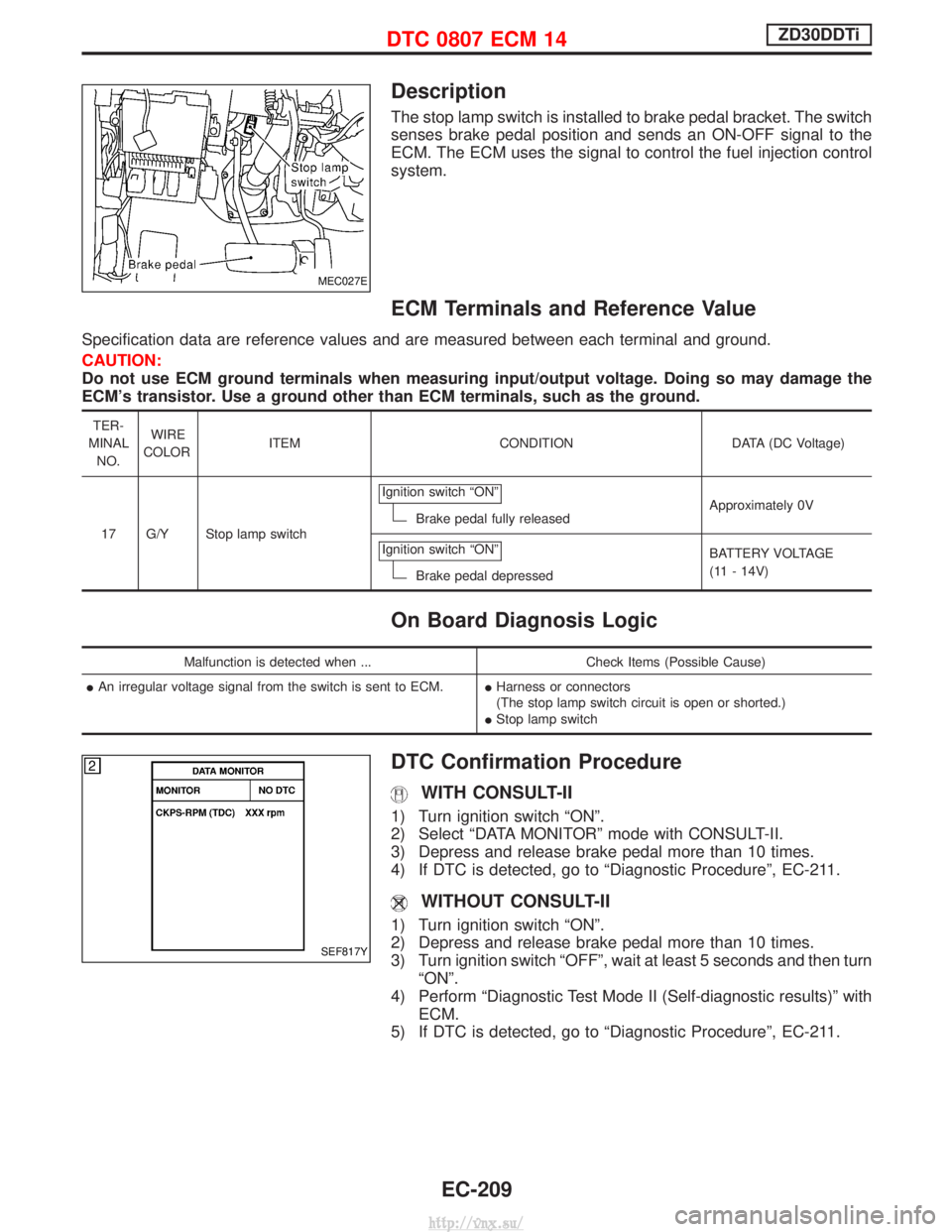

Description
The stop lamp switch is installed to brake pedal bracket. The switch
senses brake pedal position and sends an ON-OFF signal to the
ECM. The ECM uses the signal to control the fuel injection control
system.
ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
17 G/Y Stop lamp switch Ignition switch ªONº
Brake pedal fully released
Approximately 0V
Ignition switch ªONº
Brake pedal depressed BATTERY VOLTAGE
(11 - 14V)
On Board Diagnosis Logic
Malfunction is detected when ...
Check Items (Possible Cause)
I An irregular voltage signal from the switch is sent to ECM. IHarness or connectors
(The stop lamp switch circuit is open or shorted.)
I Stop lamp switch
DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Depress and release brake pedal more than 10 times.
4) If DTC is detected, go to ªDiagnostic Procedureº, EC-211.
WITHOUT CONSULT-II
1) Turn ignition switch ªONº.
2) Depress and release brake pedal more than 10 times.
3) Turn ignition switch ªOFFº, wait at least 5 seconds and then turn
ªONº.
4) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
5) If DTC is detected, go to ªDiagnostic Procedureº, EC-211.
MEC027E
SEF817Y
DTC 0807 ECM 14ZD30DDTi
EC-209
http://vnx.su/

Wiring Diagram
YEC189A
DTC 0807 ECM 14ZD30DDTi
EC-210
http://vnx.su/

Diagnostic Procedure
1 CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch ªONº.
2. Check the stop lamp when depressing and releasing the stop lamp switch.
MTBL0443
OK or NG
OK EGO TO 4.
NG EGO TO 2.
2 CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect stop lamp switch harness connector.
MEC027E
3. Turn ignition switch ªONº.
4. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
SEF435Y
OK or NG
OK EGO TO 4.
NG EGO TO 3.
DTC 0807 ECM 14ZD30DDTi
EC-211
http://vnx.su/

3 DETECT MALFUNCTIONING PART
Check the following.
IFuse block (J/B) connector F114 (LHD models), M835 (RHD models)
I 15A fuse
I Harness for open and short between stop lamp switch and fuse
ERepair open circuit or short to ground or short to power in harness or connectors.
4 CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector.
3. Disconnect stop lamp switch harness connector.
MEC027E
4. Check harness continuity between ECM terminal 17 and stop lamp switch terminal 2. Refer to Wiring Diagram.
Continuity should exist.
5. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 5.
NG ERepair open circuit or short to ground or short to power in harness or connectors.
DTC 0807 ECM 14ZD30DDTi
Diagnostic Procedure (Cont'd)
EC-212
http://vnx.su/

5 CHECK STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connectors.
2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
MEC028E
MTBL1324
OK or NG
OK EGO TO 6.
NG EReplace stop lamp switch.
6 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-78.
EINSPECTION END
DTC 0807 ECM 14ZD30DDTi
Diagnostic Procedure (Cont'd)
EC-213
http://vnx.su/

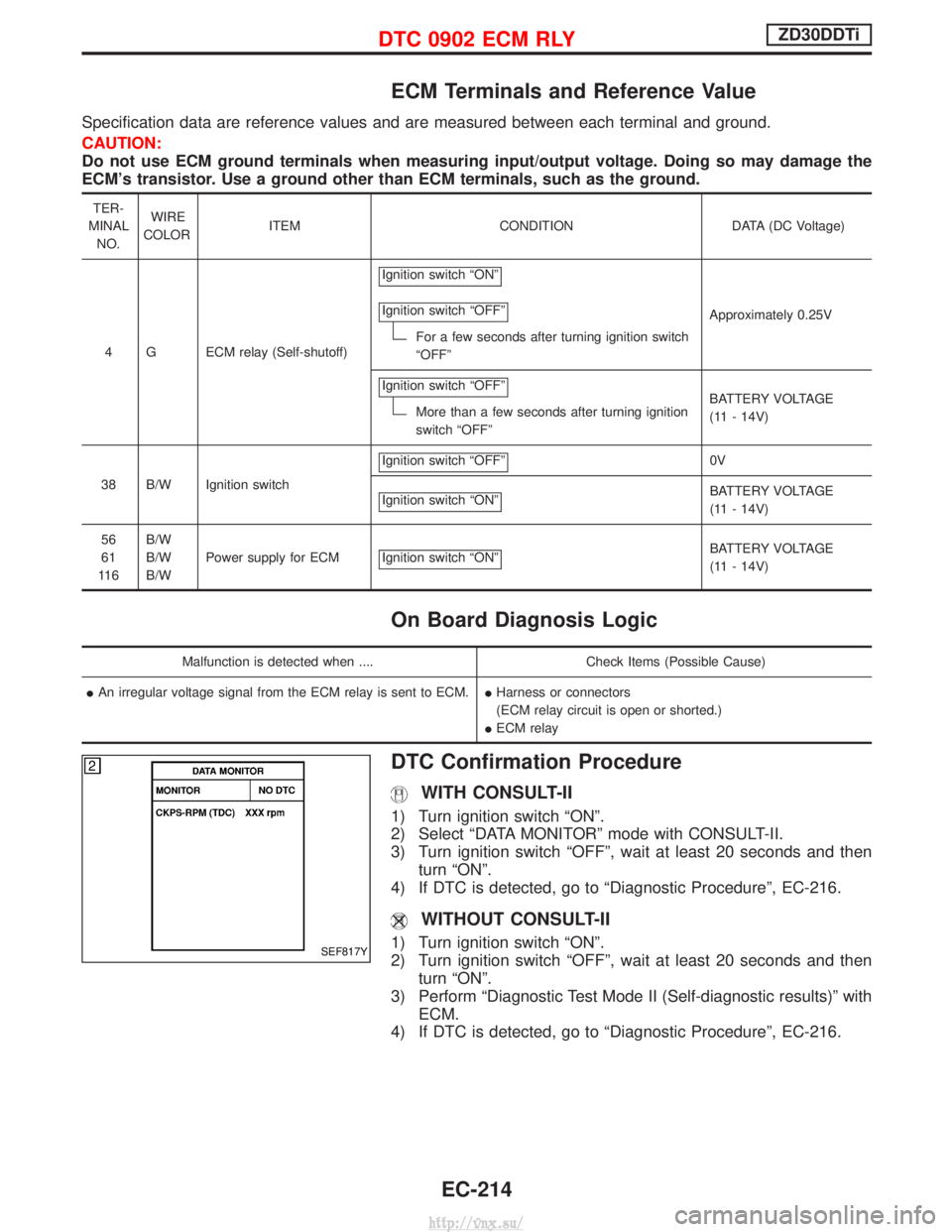

ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
4 G ECM relay (Self-shutoff) Ignition switch ªONº
Ignition switch ªOFFº
For a few seconds after turning ignition switch
ªOFFº
Approximately 0.25V
Ignition switch ªOFFº
More than a few seconds after turning ignition
switch ªOFFº BATTERY VOLTAGE
(11 - 14V)
38 B/W Ignition switch Ignition switch ªOFFº
0V
Ignition switch ªONº
BATTERY VOLTAGE
(11 - 14V)
56
61
11 6 B/W
B/W
B/W
Power supply for ECM Ignition switch ªONº
BATTERY VOLTAGE
(11 - 14V)
On Board Diagnosis Logic
Malfunction is detected when ....
Check Items (Possible Cause)
I An irregular voltage signal from the ECM relay is sent to ECM. IHarness or connectors
(ECM relay circuit is open or shorted.)
I ECM relay
DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Turn ignition switch ªOFFº, wait at least 20 seconds and then
turn ªONº.
4) If DTC is detected, go to ªDiagnostic Procedureº, EC-216.
WITHOUT CONSULT-II
1) Turn ignition switch ªONº.
2) Turn ignition switch ªOFFº, wait at least 20 seconds and then turn ªONº.
3) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
4) If DTC is detected, go to ªDiagnostic Procedureº, EC-216.SEF817Y
DTC 0902 ECM RLYZD30DDTi
EC-214
http://vnx.su/

Wiring Diagram
YEC190A
DTC 0902 ECM RLYZD30DDTi
EC-215
