NISSAN TIIDA 2007 Service Repair Manual

EXL-60
< COMPONENT DIAGNOSIS >

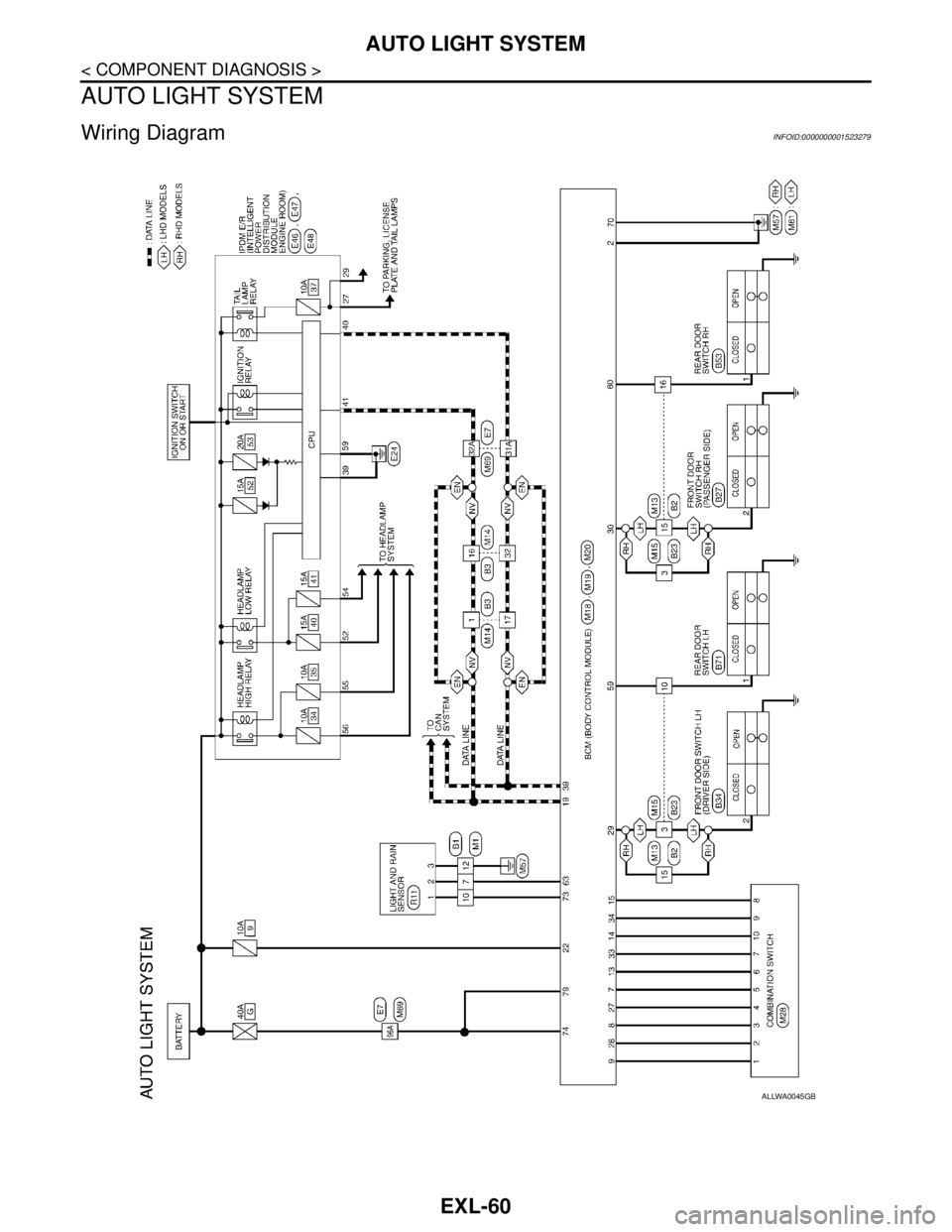

AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM
Wiring DiagramINFOID:0000000001523279
ALLWA0045GB

HEADLAMP AIMING SYSTEM (MANUAL)
EXL-61
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

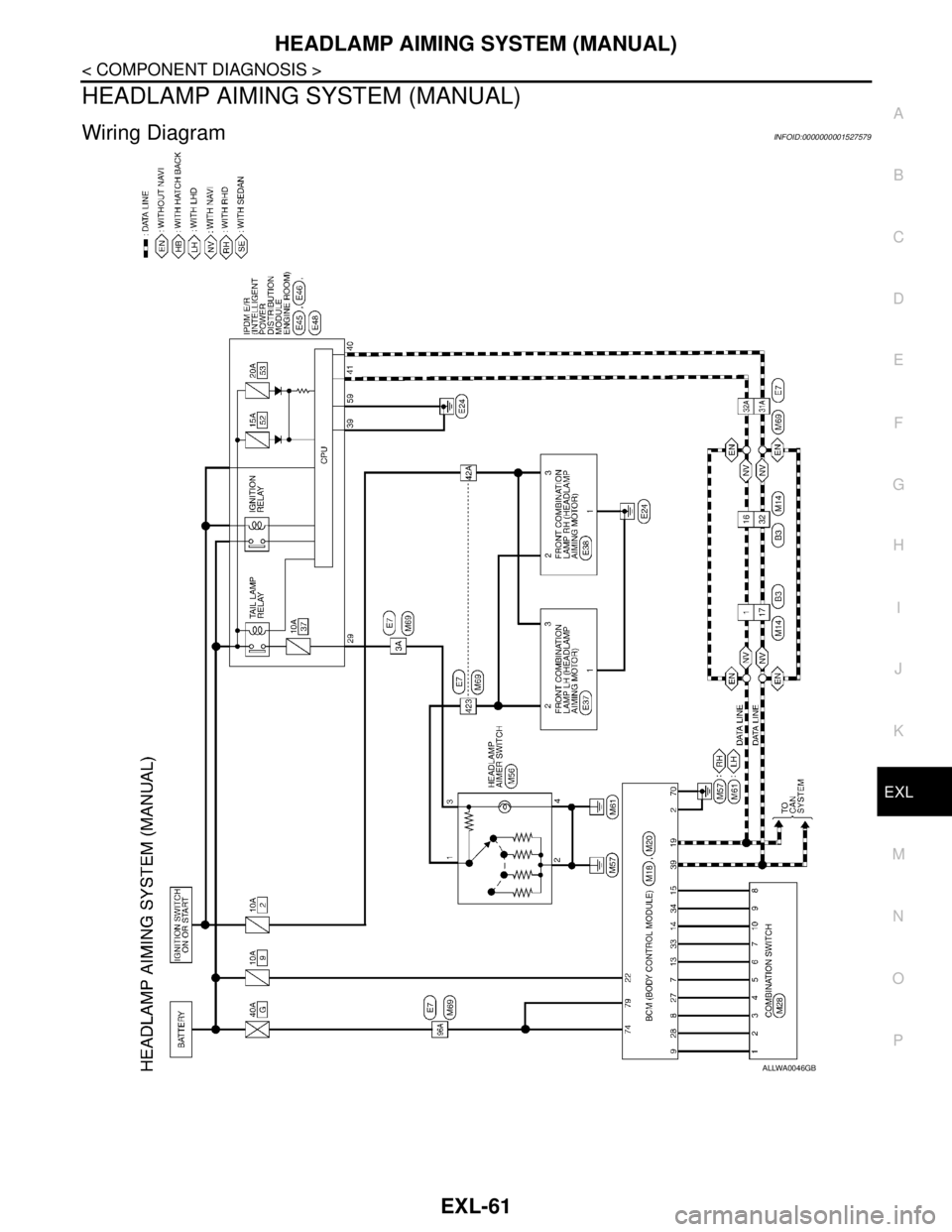

HEADLAMP AIMING SYSTEM (MANUAL)
Wiring DiagramINFOID:0000000001527579
ALLWA0046GB

EXL-62
< COMPONENT DIAGNOSIS >

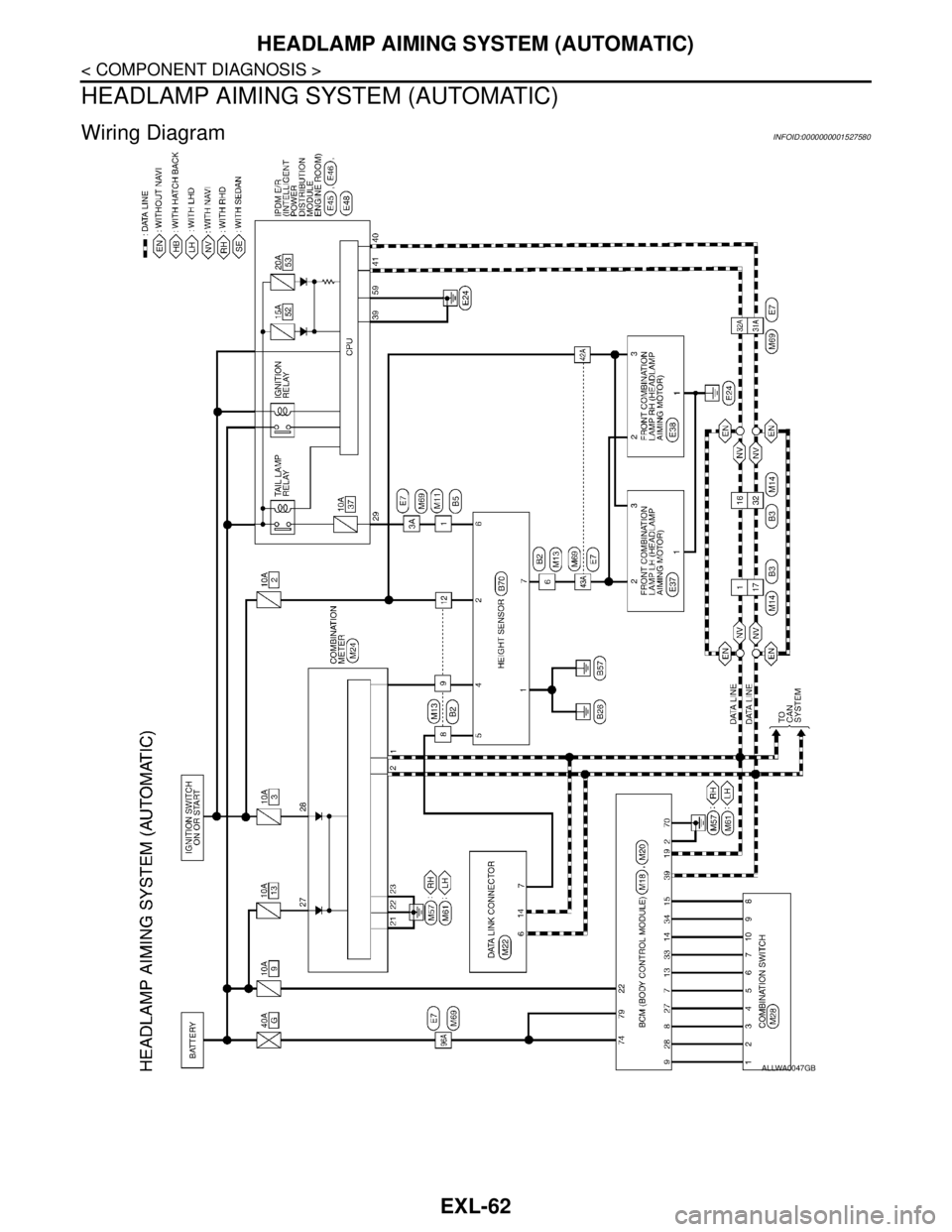

HEADLAMP AIMING SYSTEM (AUTOMATIC)
HEADLAMP AIMING SYSTEM (AUTOMATIC)
Wiring DiagramINFOID:0000000001527580
ALLWA0047GB

DAYTIME LIGHT SYSTEM
EXL-63
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

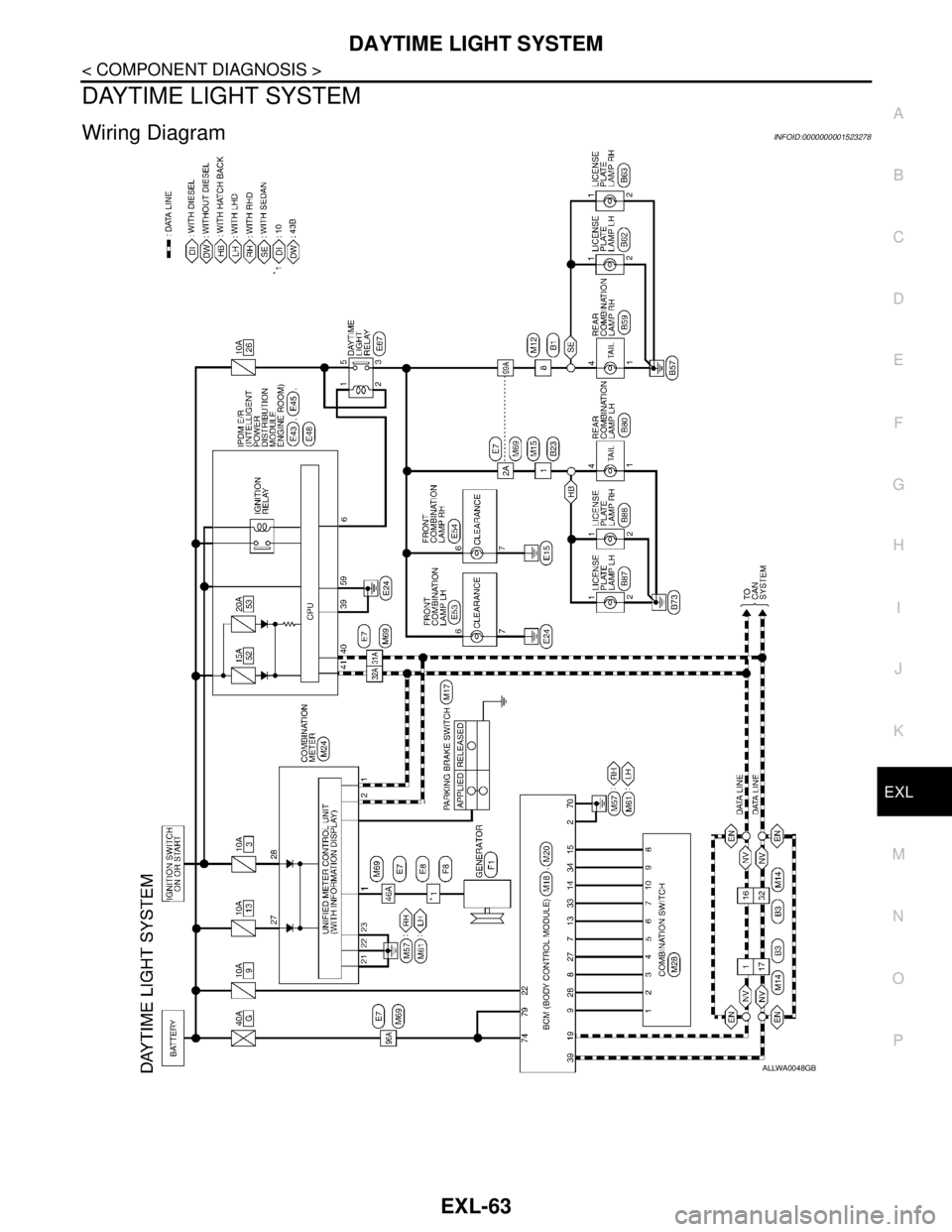

DAYTIME LIGHT SYSTEM
Wiring DiagramINFOID:0000000001523278
ALLWA0048GB

EXL-64
< COMPONENT DIAGNOSIS >

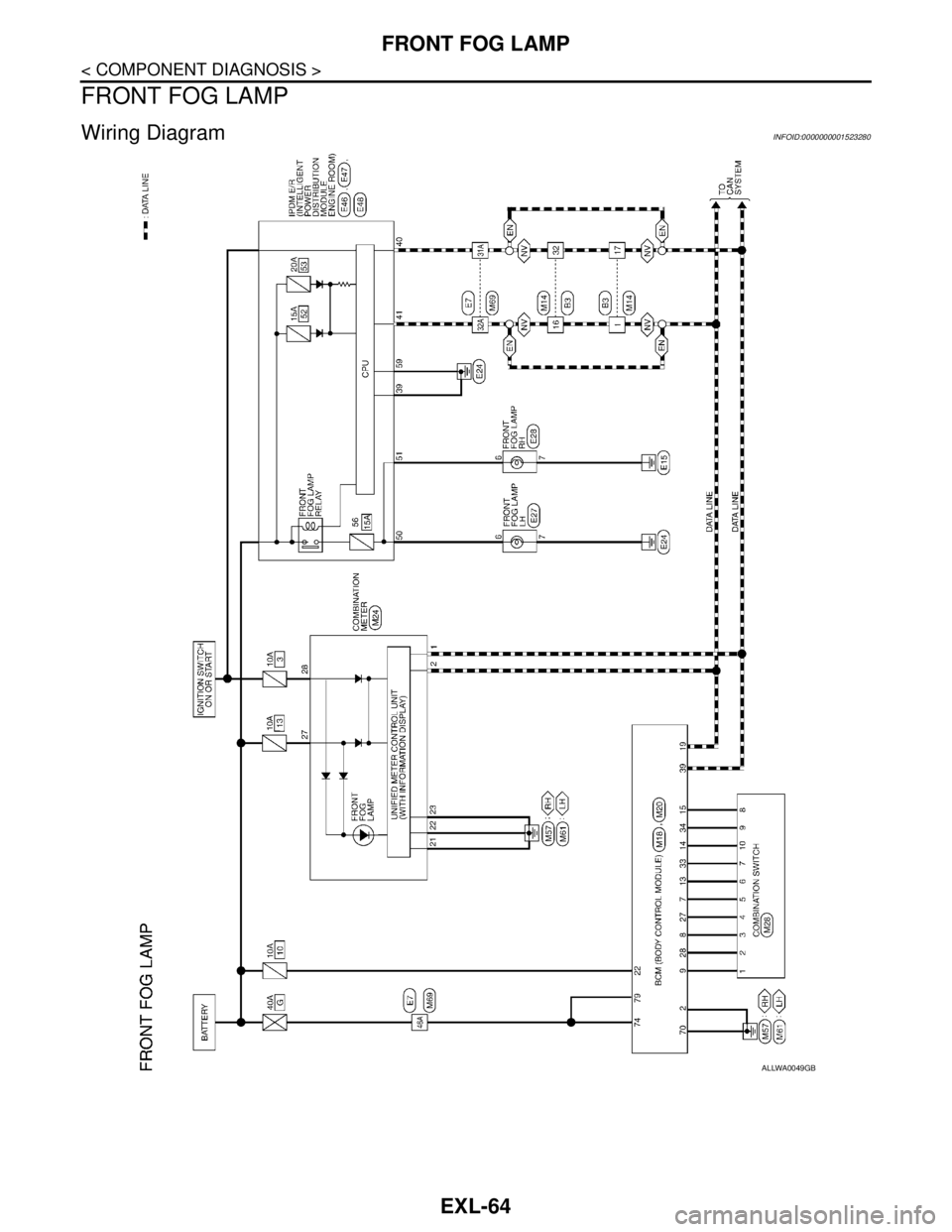

FRONT FOG LAMP
FRONT FOG LAMP
Wiring DiagramINFOID:0000000001523280
ALLWA0049GB

REAR FOG LAMP
EXL-65
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

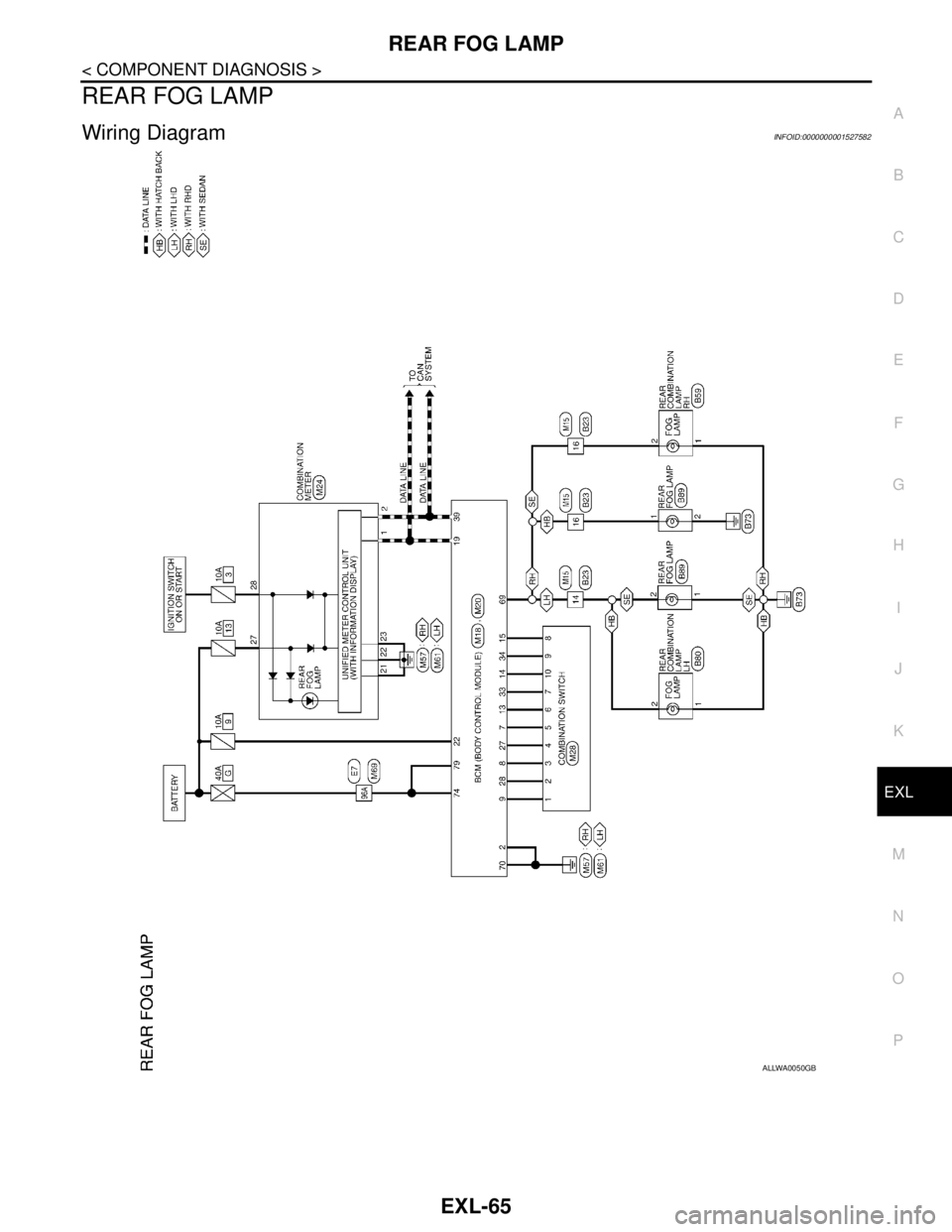

REAR FOG LAMP
Wiring DiagramINFOID:0000000001527582
ALLWA0050GB

EXL-66
< COMPONENT DIAGNOSIS >

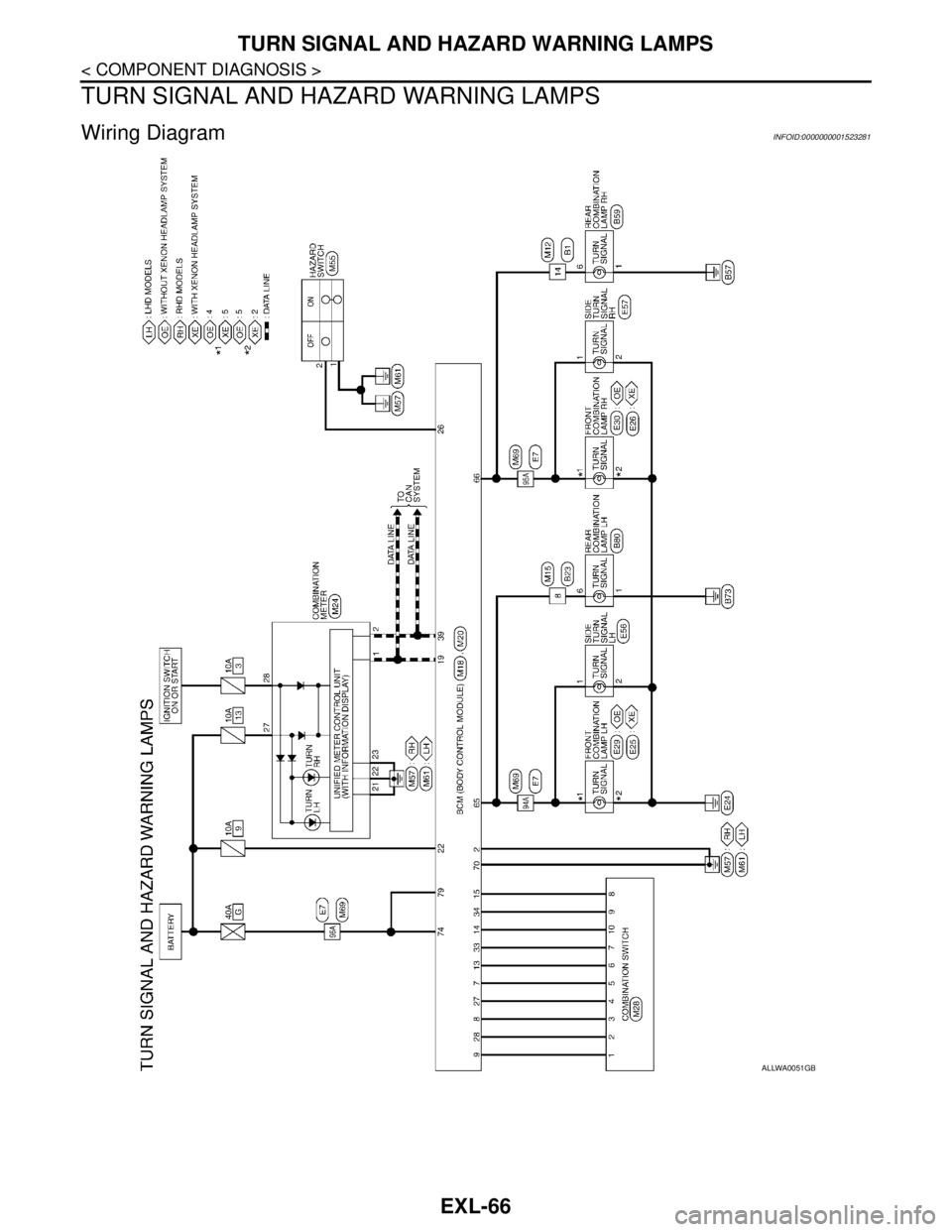

TURN SIGNAL AND HAZARD WARNING LAMPS
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring DiagramINFOID:0000000001523281
ALLWA0051GB

PARKING, LICENSE PLATE AND TAIL LAMPS
EXL-67
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

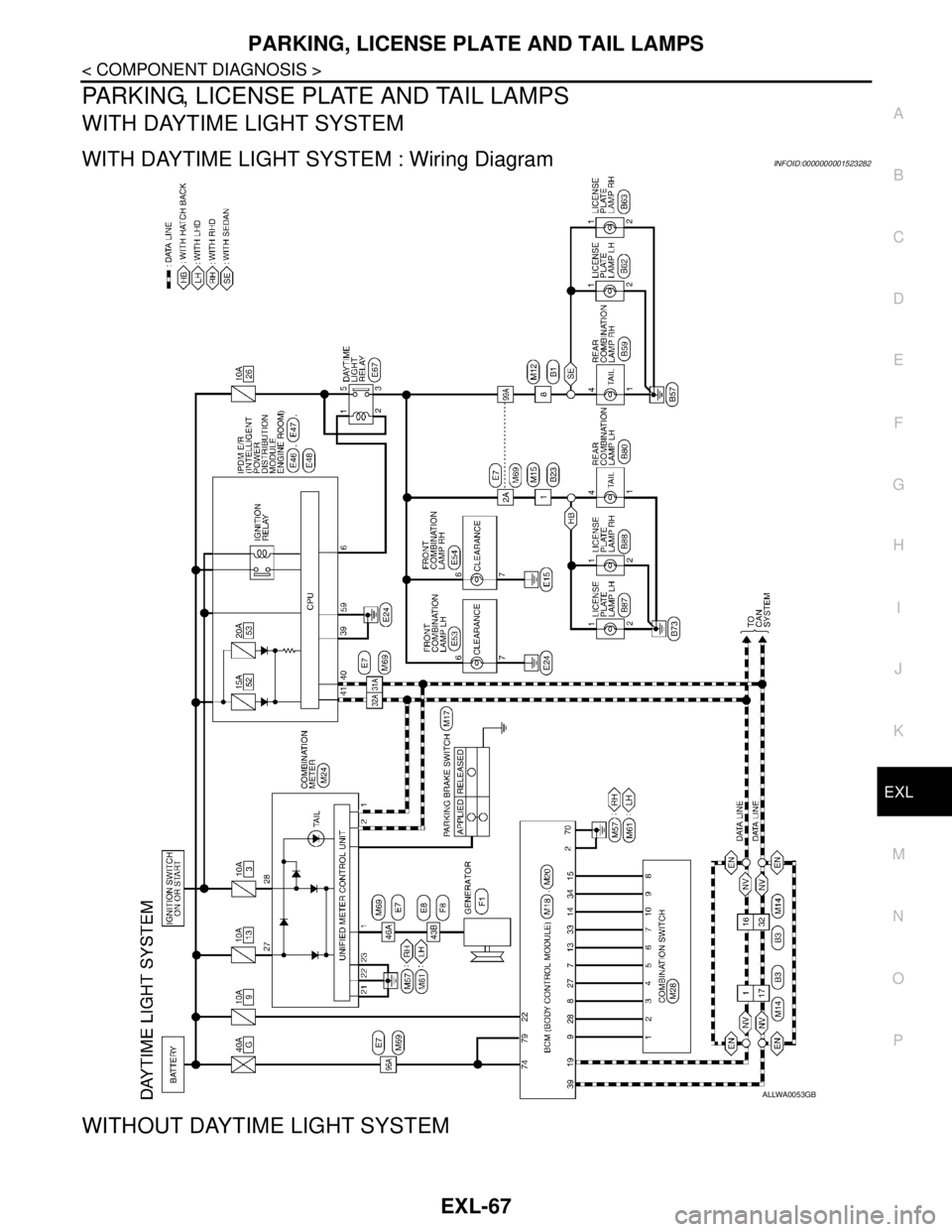

PARKING, LICENSE PLATE AND TAIL LAMPS
WITH DAYTIME LIGHT SYSTEM
WITH DAYTIME LIGHT SYSTEM : Wiring DiagramINFOID:0000000001523282
WITHOUT DAYTIME LIGHT SYSTEM
ALLWA0053GB

EXL-68
< COMPONENT DIAGNOSIS >

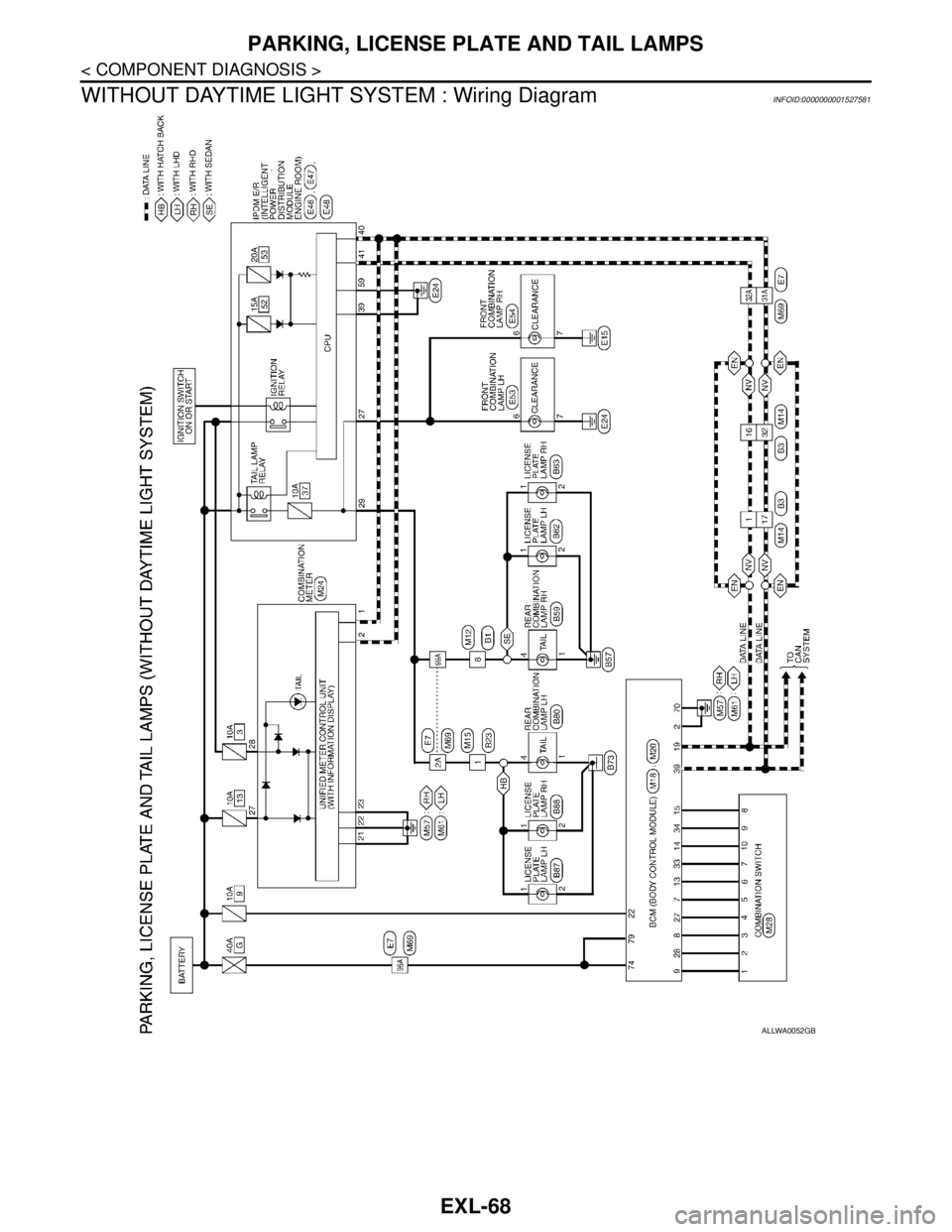

PARKING, LICENSE PLATE AND TAIL LAMPS
WITHOUT DAYTIME LIGHT SYSTEM : Wiring Diagram
INFOID:0000000001527581
ALLWA0052GB

STOP LAMP
EXL-69
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

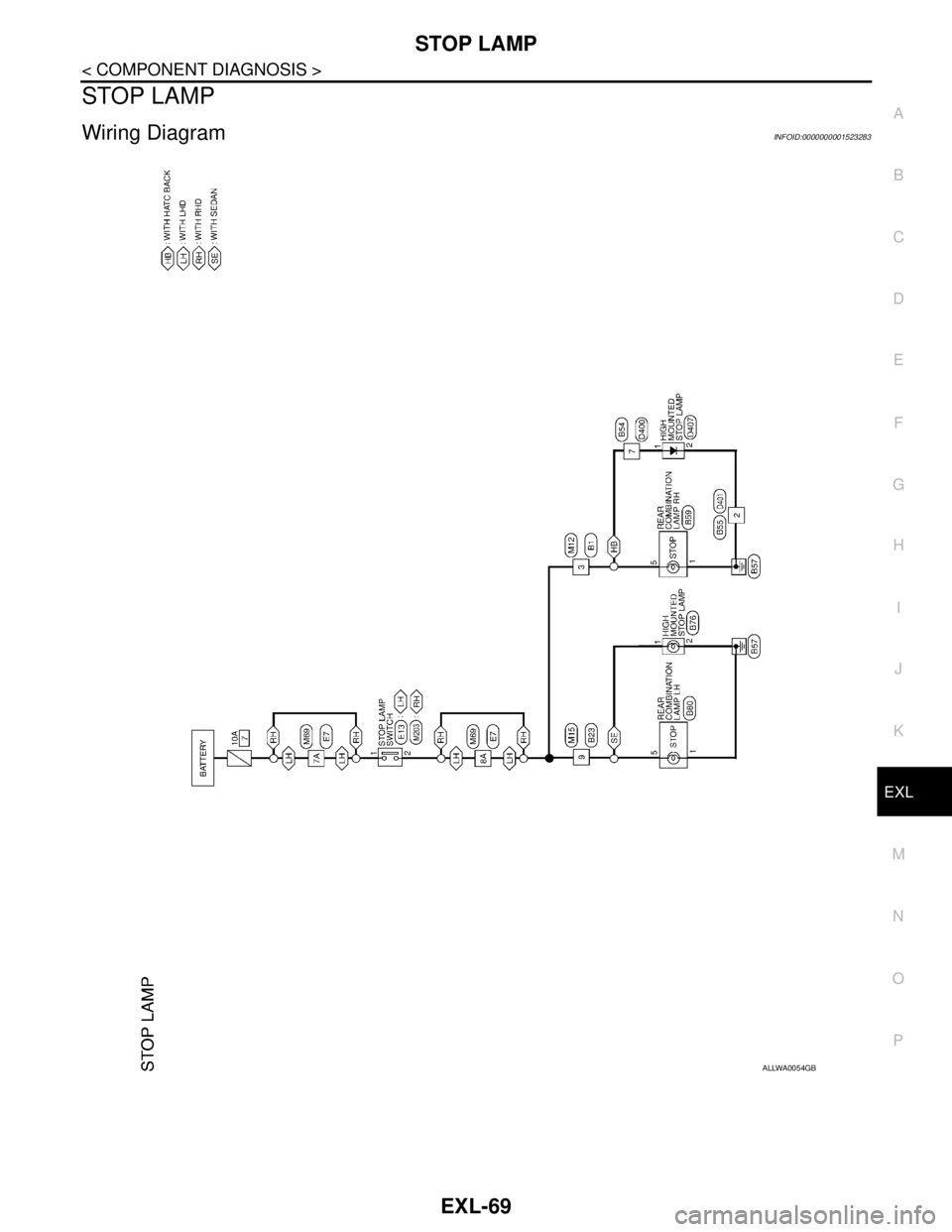

STOP LAMP
Wiring DiagramINFOID:0000000001523283
ALLWA0054GB
