NISSAN TIIDA 2007 Service Repair Manual

WCS-46
< ECU DIAGNOSIS >
COMBINATION METER
ALNIA0854GB

WCS
COMBINATION METER
WCS-47
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

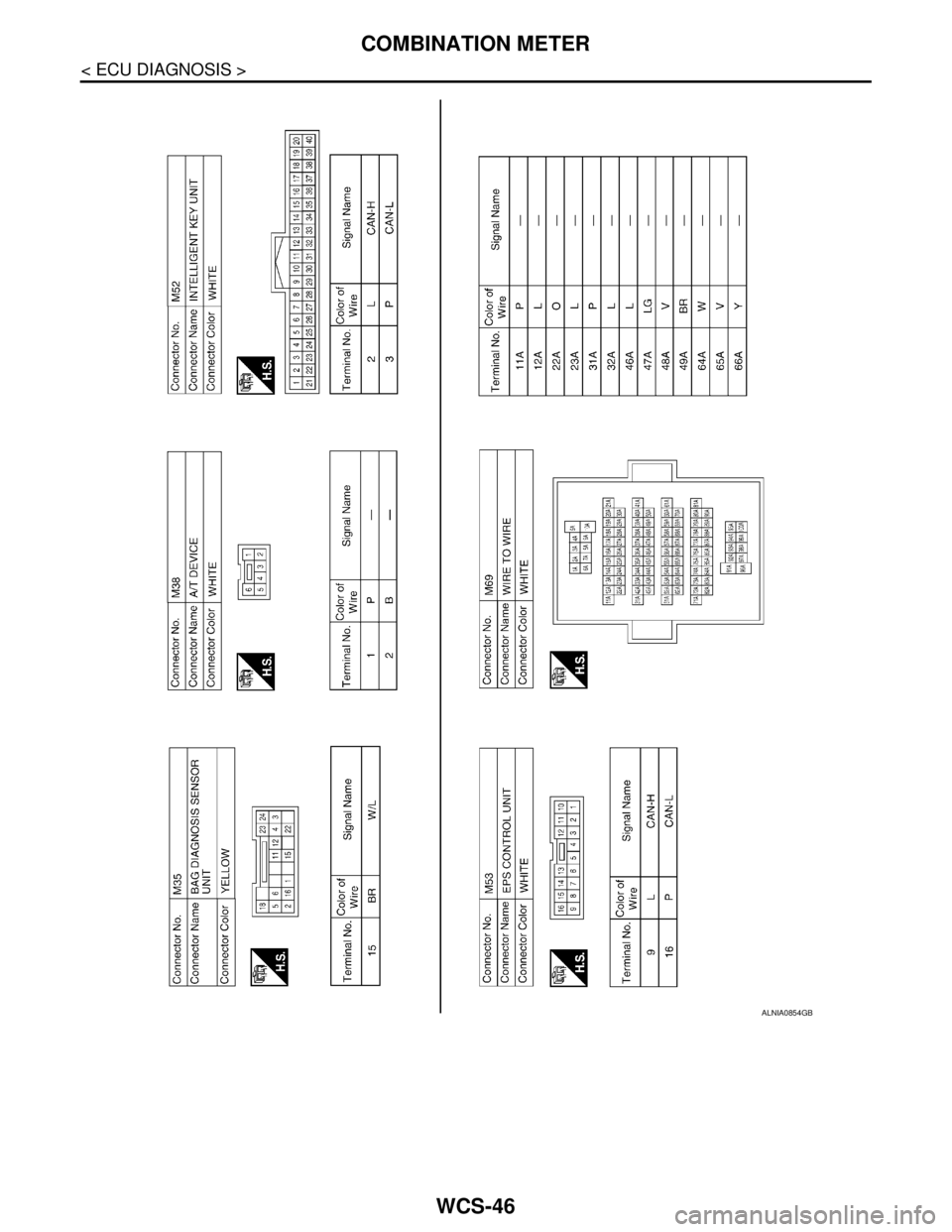

ALNIA0855GB

WCS-48
< ECU DIAGNOSIS >
COMBINATION METER

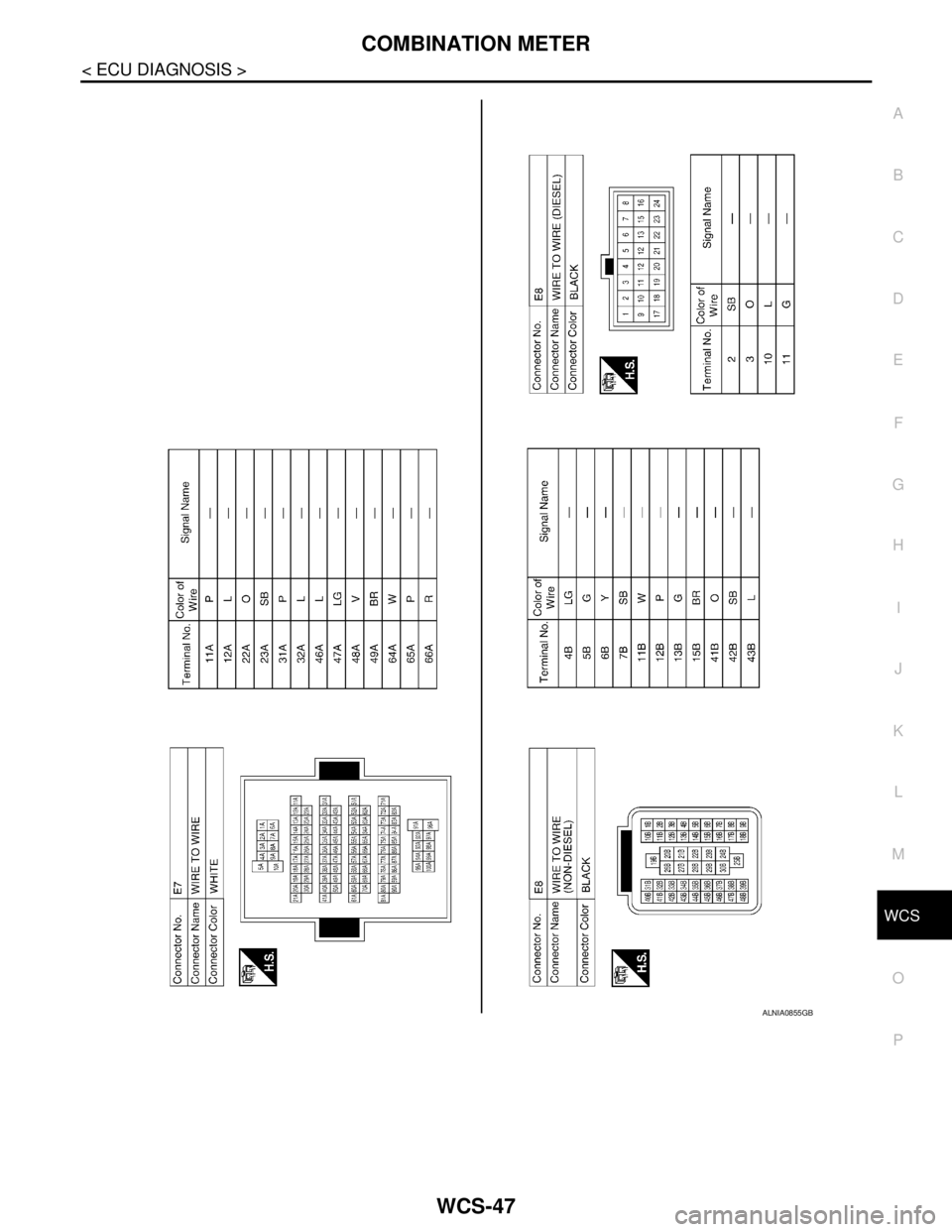

ALNIA0856GB

WCS
COMBINATION METER
WCS-49
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

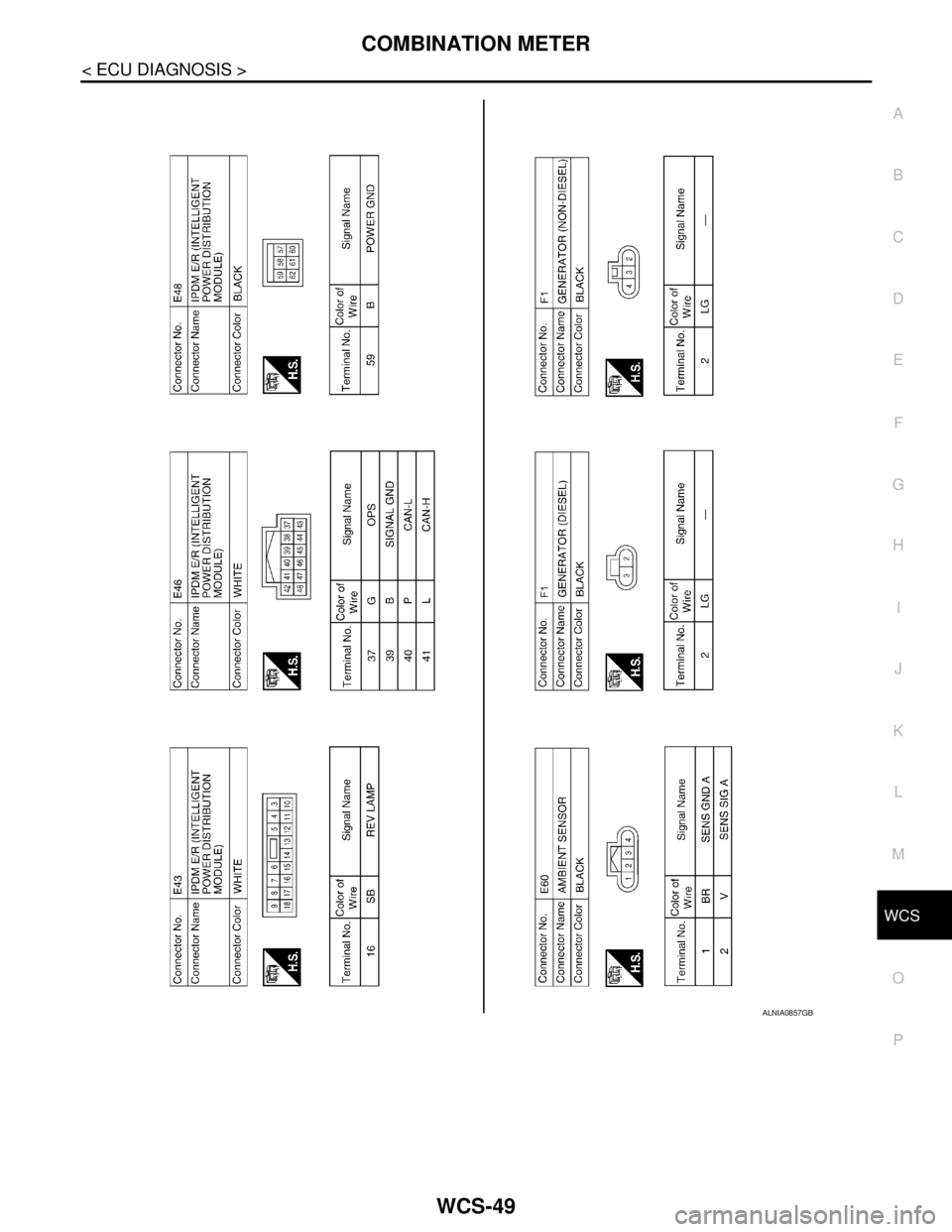

ALNIA0857GB

WCS-50
< ECU DIAGNOSIS >
COMBINATION METER

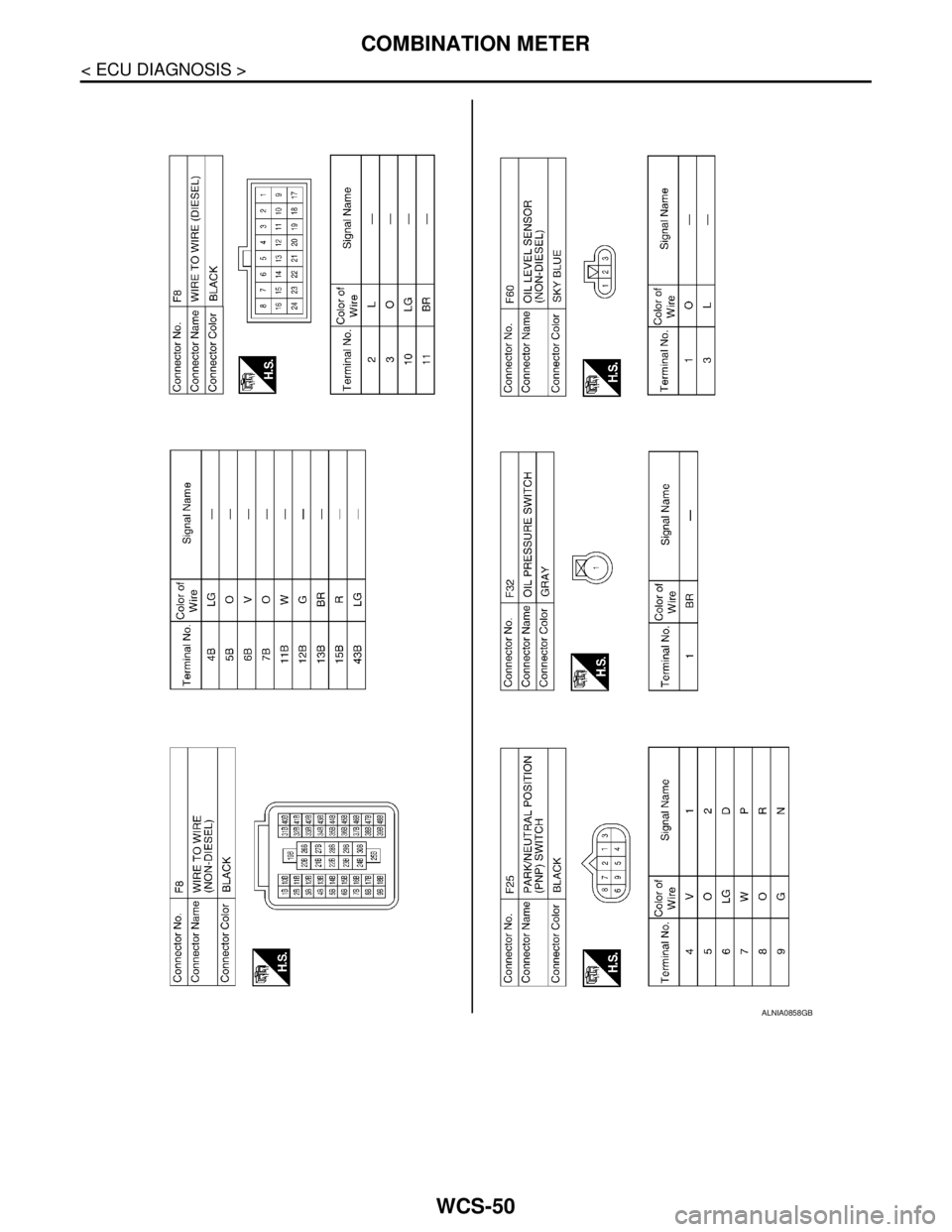

ALNIA0858GB

WCS
COMBINATION METER
WCS-51
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

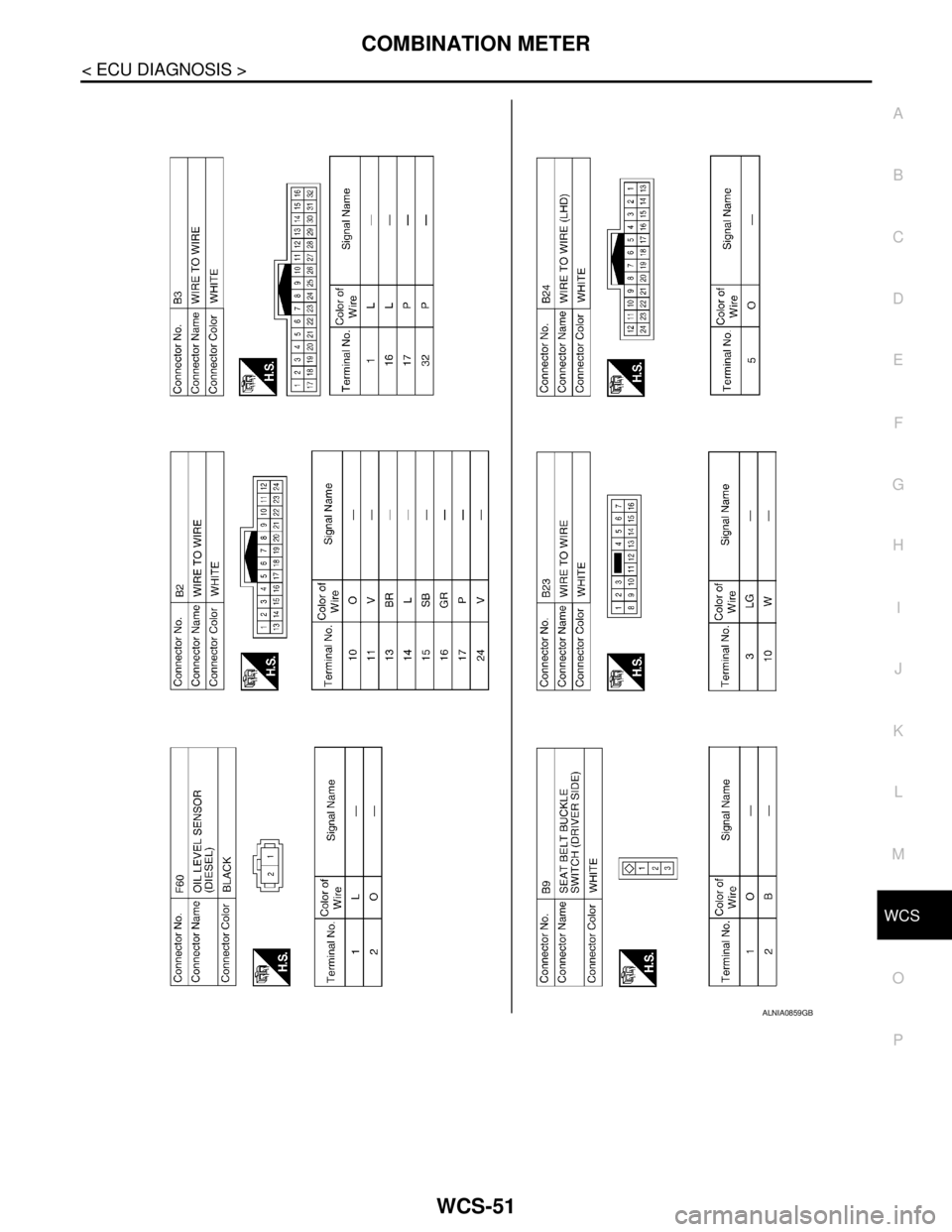

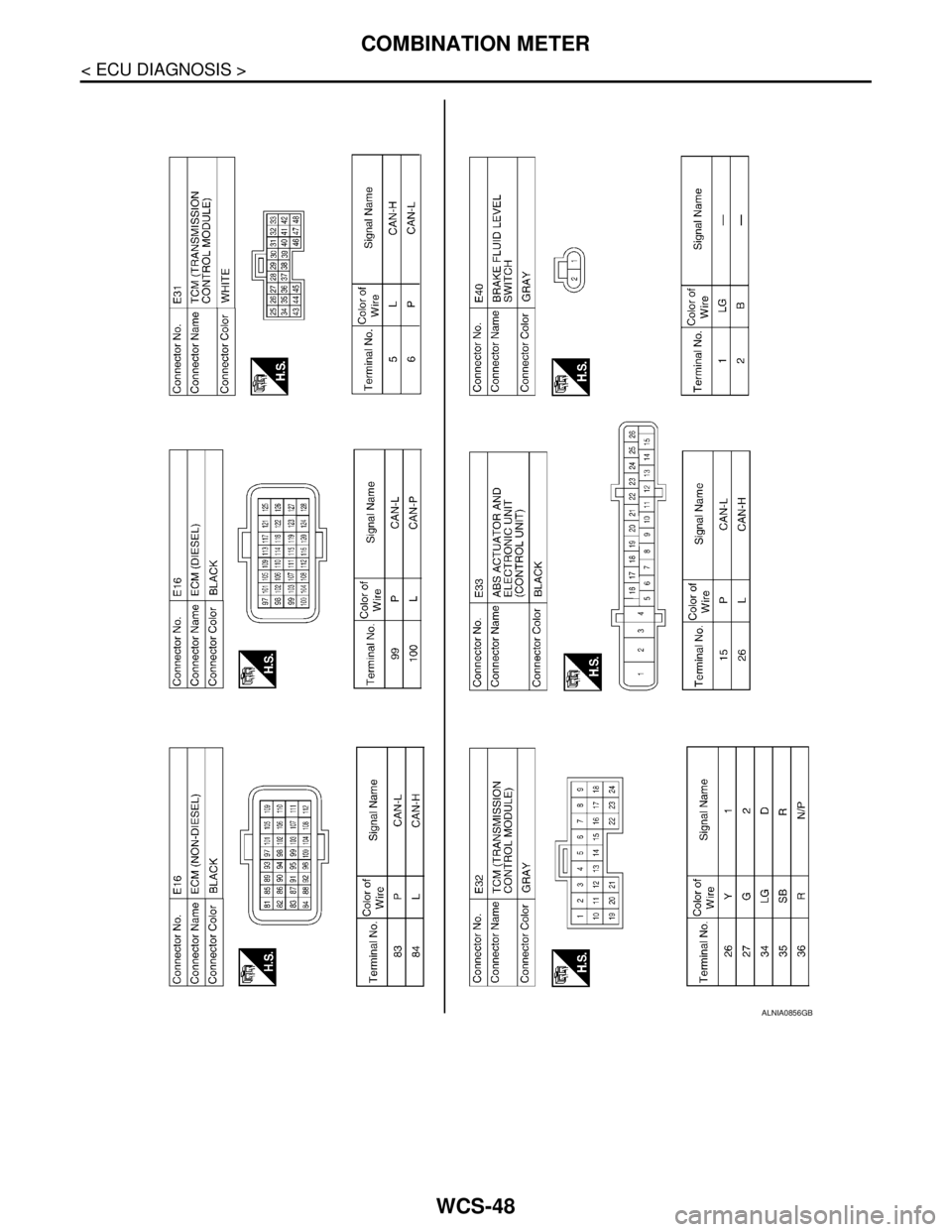

ALNIA0859GB

WCS-52
< ECU DIAGNOSIS >
COMBINATION METER

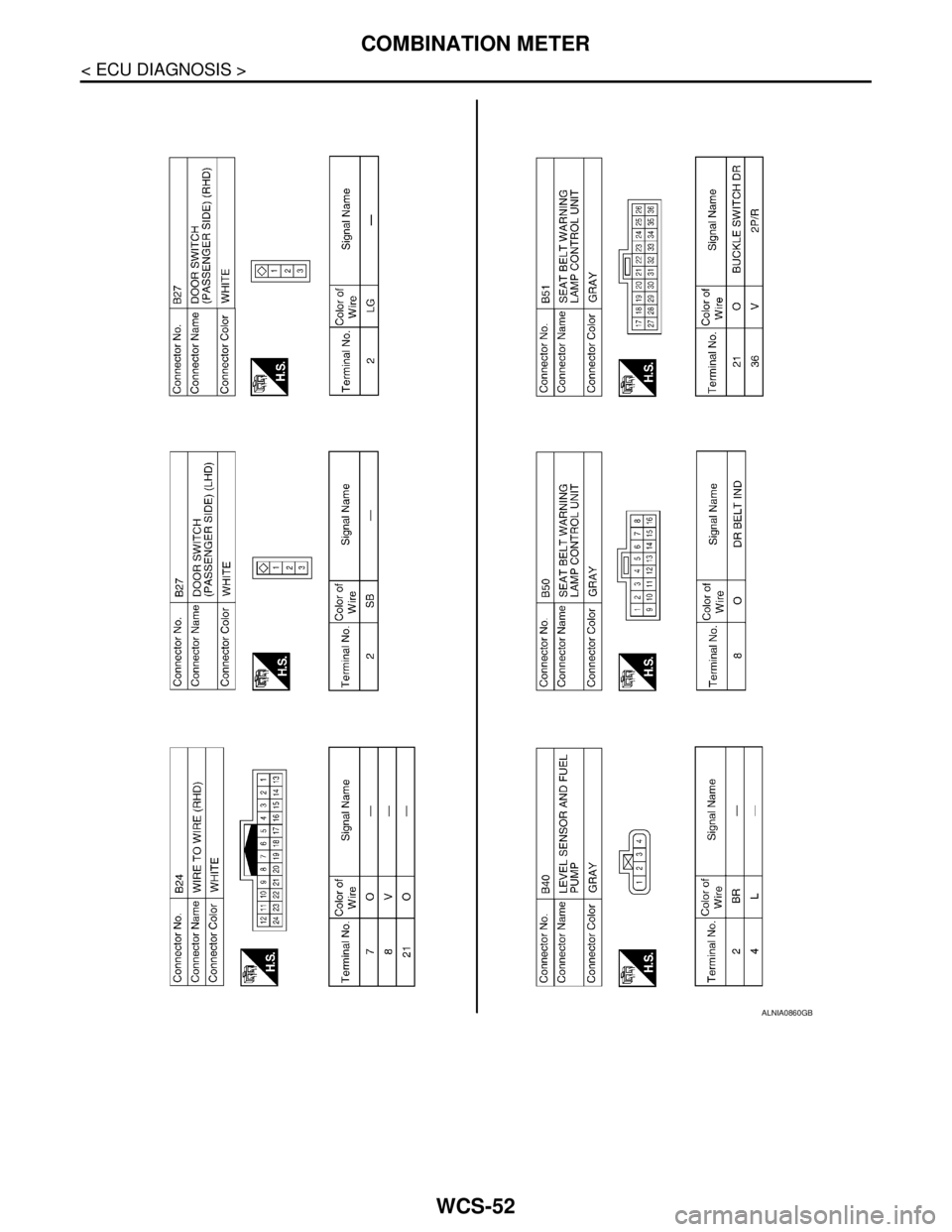

ALNIA0860GB

WCS
COMBINATION METER
WCS-53
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

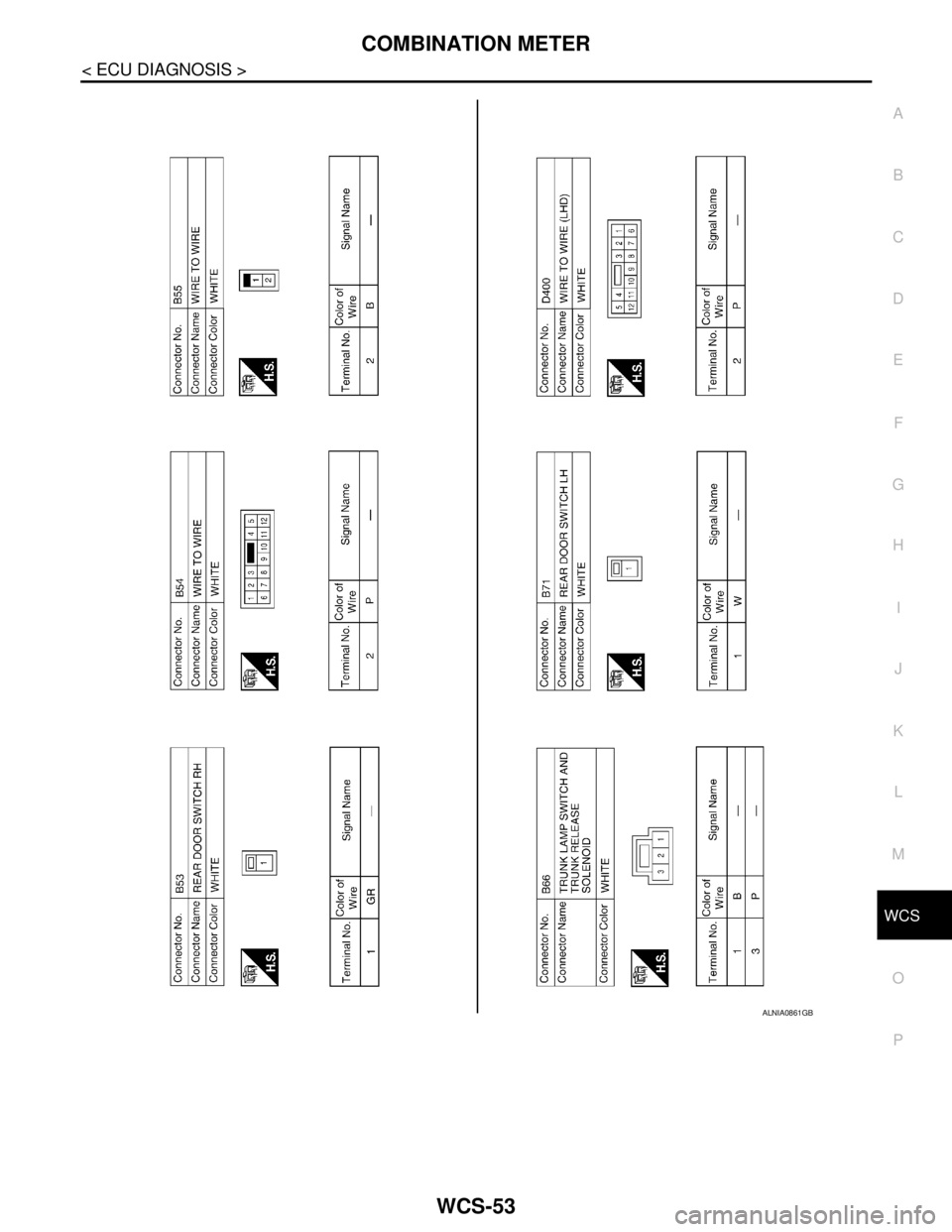

ALNIA0861GB

WCS-54
< ECU DIAGNOSIS >
COMBINATION METER
Fail Safe
INFOID:0000000001728310
The combination meter performs a fail-safe operation for the functions listed below when communication is
lost.

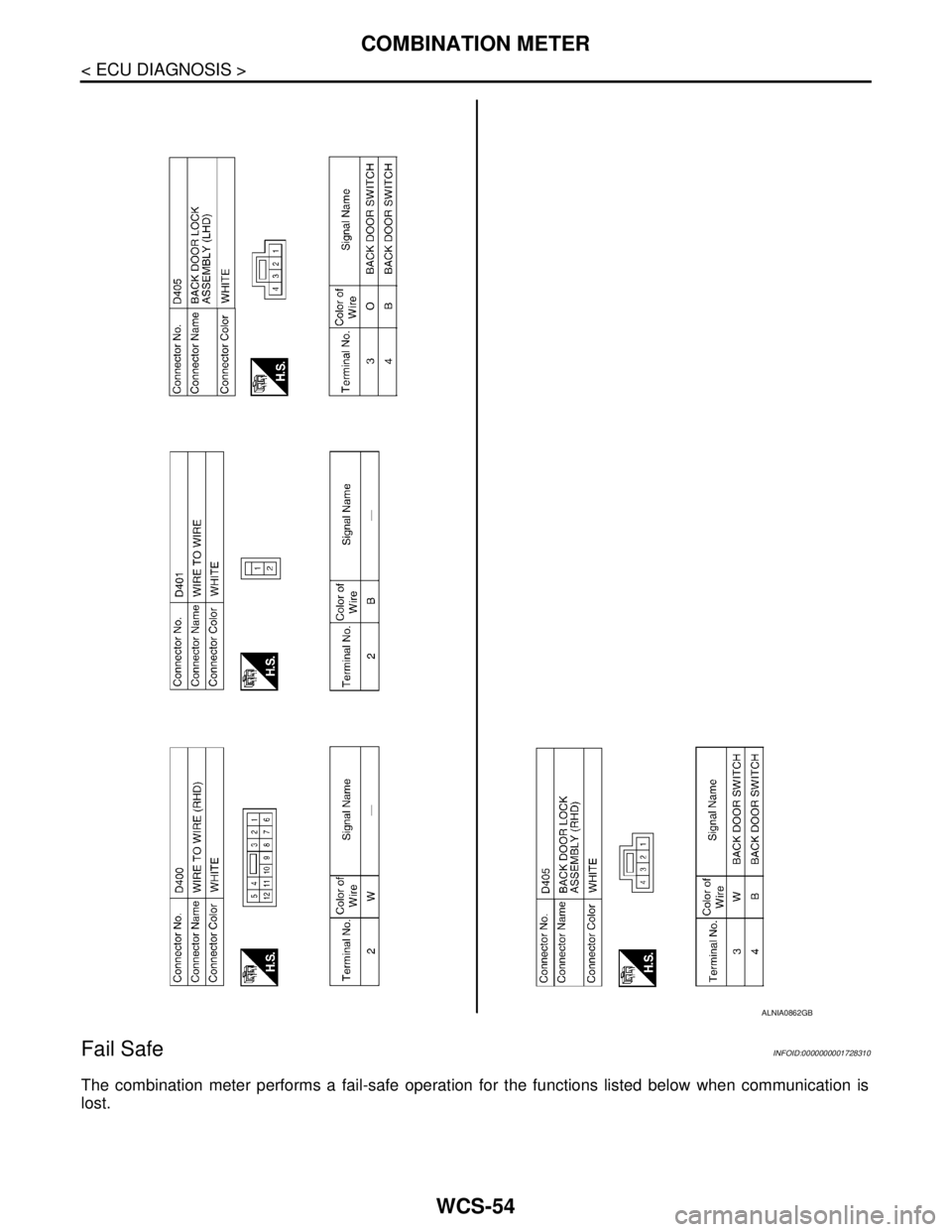

ALNIA0862GB

WCS
COMBINATION METER
WCS-55
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
DTC IndexINFOID:0000000001728311
NOTE:
“TIME” indicates the following.
 0: Indicates that a malfunction is detected at present.
 1-63: Indicates that a malfunction was detected in the past. (Displays number of ignition switch OFF → ON
cycles after malfunction is detected. Self-diagnosis result is erased when “63” is exceeded.)
Function Specifications
Speedometer
Zero indication. Tachometer
Fuel gauge
Illumination control Meter illumination Change to nighttime mode when communication is lost.
Segment LCD Odometer Freeze current indication.
Buzzer Buzzer turns off.
Warning lamp/indicator lampABS warning lamp
Lamp turns on when communication is lost. Brake warning lamp
ESP OFF indicator lamp
SLIP indicator lamp
Side and headlight indicator
Lamp turns off when communication is lost. Low water temperature indicator lamp
High water temperature warning lamp
Malfunction indicator
Power steering warning lamp
Air bag warning lamp
High beam indicator
Turn signal indicator lamp
Intelligent Key system warning lamp
CRUISE indicator lamp
Oil pressure warning lamp
Door warning lamp
Front fog lamp indicator
Rear fog lamp indicator
O/D OFF indicator lamp
Lamp turns off when disconnected. Charge warning lamp
Driver and passenger seat belt warn-
ing lamp
CONSULT-III display MalfunctionReference
page
CAN COMM CIRC
[U1000]Malfunction is detected in CAN communication.
CAUTION:
Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 sec-
onds) or 10A fuse [No. 19, located in the fuse block (J/B)] is disconnected.MWI-24
VEHICLE SPEED
CIRC
[B2205]Malfunction is detected when an erroneous speed signal is input.
CAUTION:
Even when there is no malfunction on speed signal system, malfunction may be misin-
terpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 seconds). MWI-25
