NISSAN X-TRAIL 2001 Service Repair Manual

REFRIGERANT LINES
ATC-135
C
D
E
F
G
H
I
K
L
MA
B
AT C

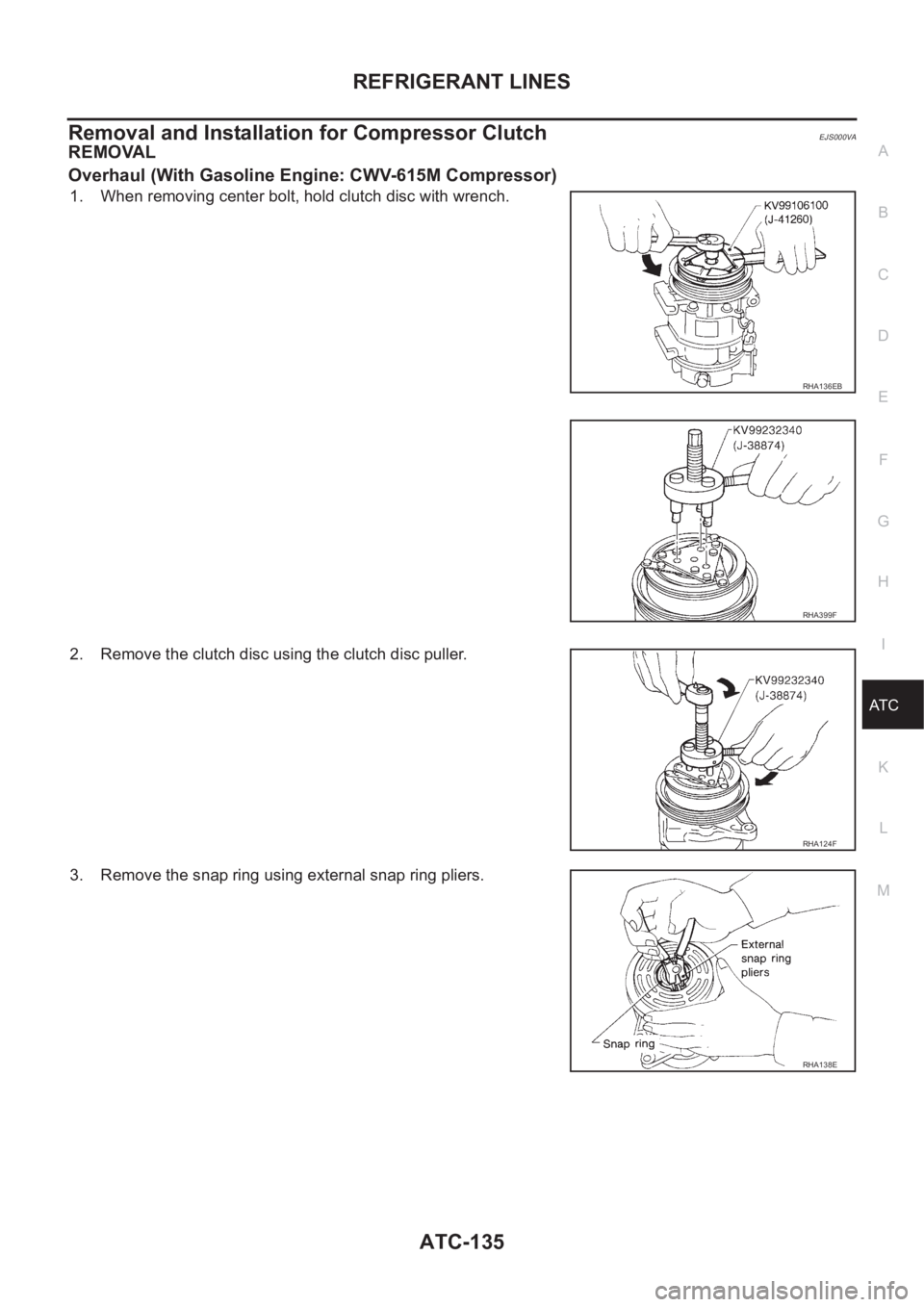

Removal and Installation for Compressor ClutchEJS000VA
REMOVAL
Overhaul (With Gasoline Engine: CWV-615M Compressor)
1. When removing center bolt, hold clutch disc with wrench.
2. Remove the clutch disc using the clutch disc puller.
3. Remove the snap ring using external snap ring pliers.
RHA136EB
RHA399F
RHA124F
RHA138E

ATC-136
REFRIGERANT LINES

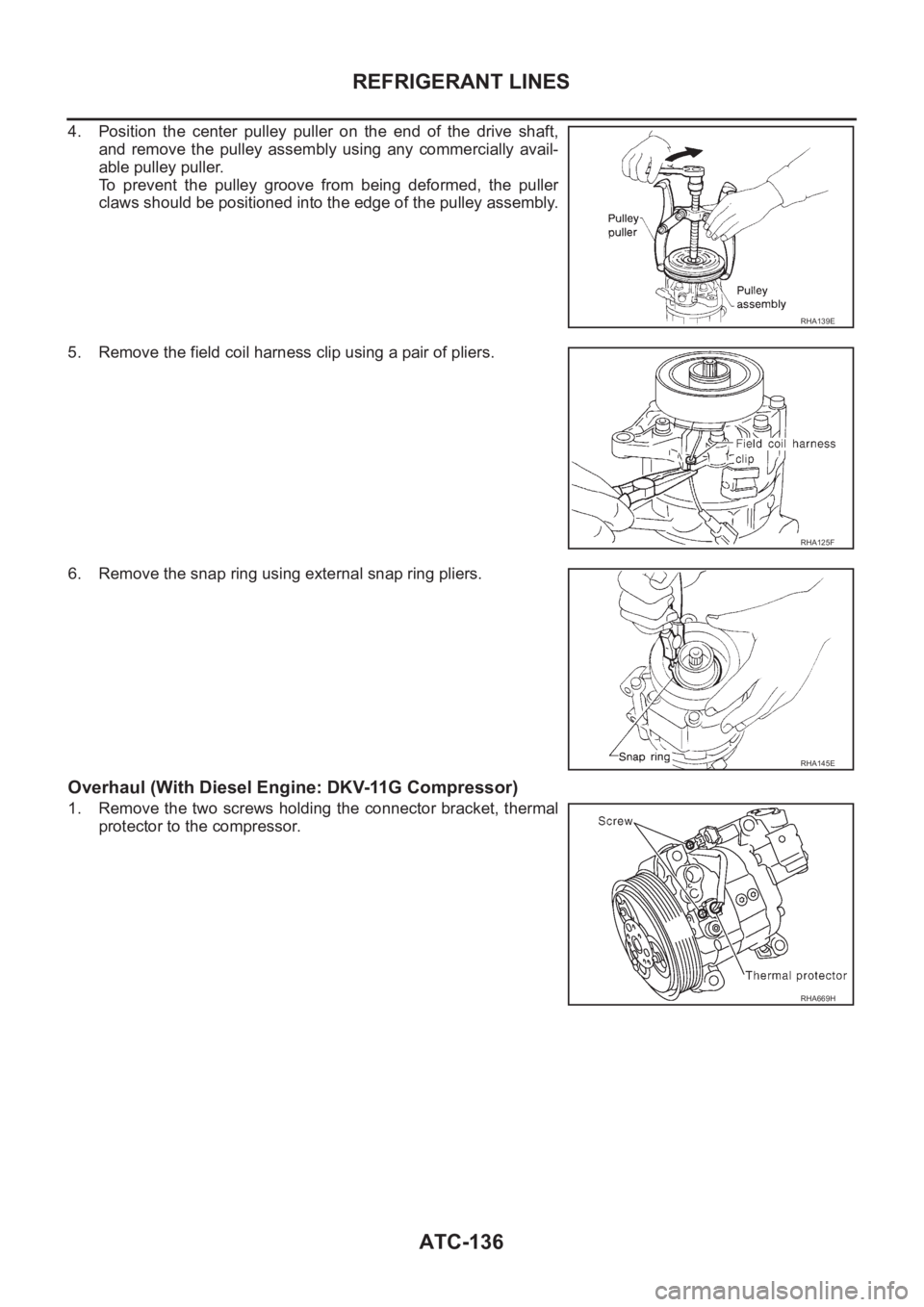

4. Position the center pulley puller on the end of the drive shaft,
and remove the pulley assembly using any commercially avail-
able pulley puller.
To prevent the pulley groove from being deformed, the puller
claws should be positioned into the edge of the pulley assembly.
5. Remove the field coil harness clip using a pair of pliers.
6. Remove the snap ring using external snap ring pliers.
Overhaul (With Diesel Engine: DKV-11G Compressor)
1. Remove the two screws holding the connector bracket, thermal
protector to the compressor.
RHA139E
RHA125F
RHA145E
RHA669H

REFRIGERANT LINES
ATC-137
C
D
E
F
G
H
I
K
L
MA
B
AT C

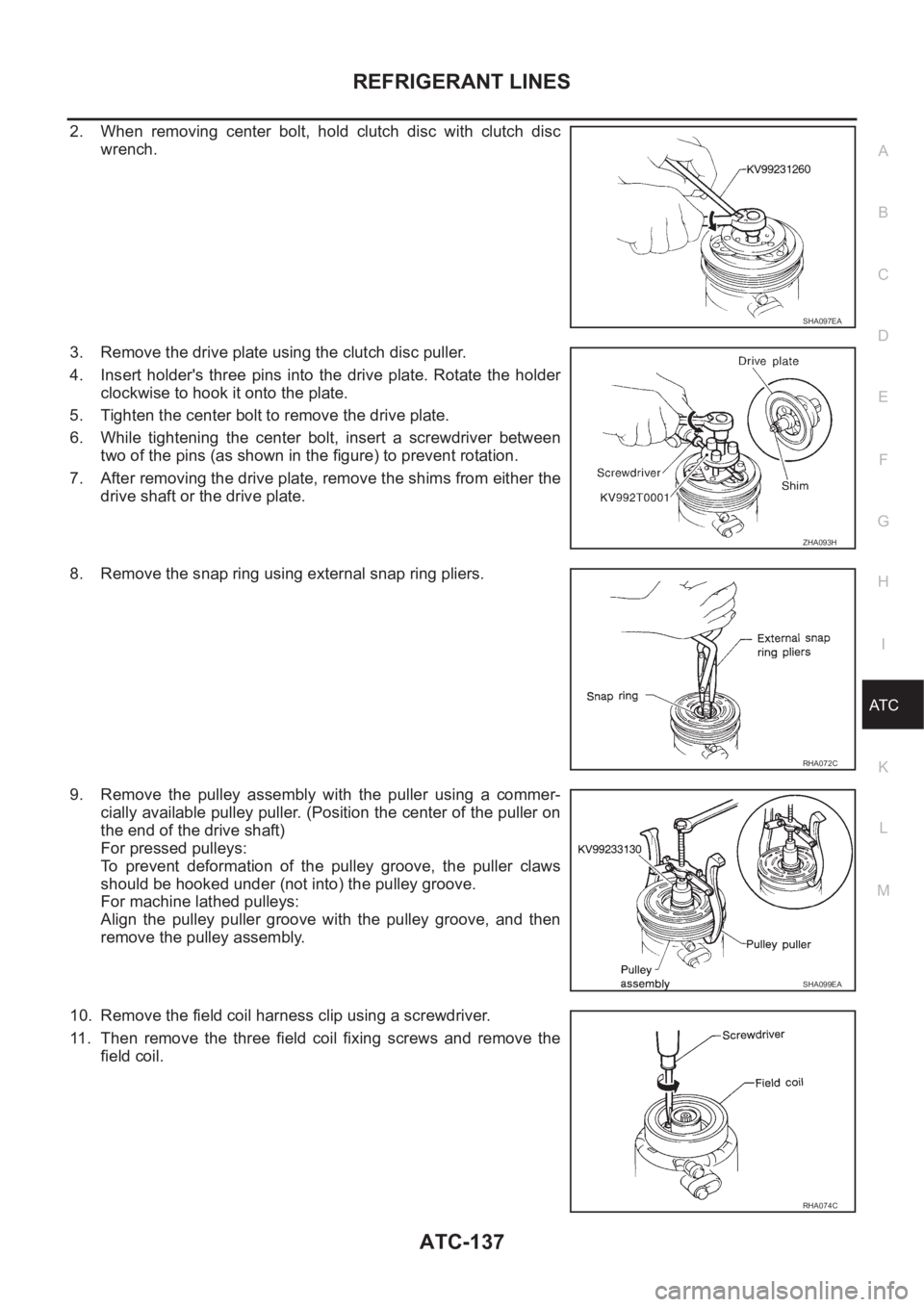

2. When removing center bolt, hold clutch disc with clutch disc
wrench.
3. Remove the drive plate using the clutch disc puller.
4. Insert holder's three pins into the drive plate. Rotate the holder
clockwise to hook it onto the plate.
5. Tighten the center bolt to remove the drive plate.
6. While tightening the center bolt, insert a screwdriver between
two of the pins (as shown in the figure) to prevent rotation.
7. After removing the drive plate, remove the shims from either the
drive shaft or the drive plate.
8. Remove the snap ring using external snap ring pliers.
9. Remove the pulley assembly with the puller using a commer-
cially available pulley puller. (Position the center of the puller on
the end of the drive shaft)
For pressed pulleys:
To prevent deformation of the pulley groove, the puller claws
should be hooked under (not into) the pulley groove.
For machine lathed pulleys:
Align the pulley puller groove with the pulley groove, and then
remove the pulley assembly.
10. Remove the field coil harness clip using a screwdriver.
11. Then remove the three field coil fixing screws and remove the
field coil.
SHA097EA
ZHA093H
RHA072C
SHA099EA
RHA074C

ATC-138
REFRIGERANT LINES

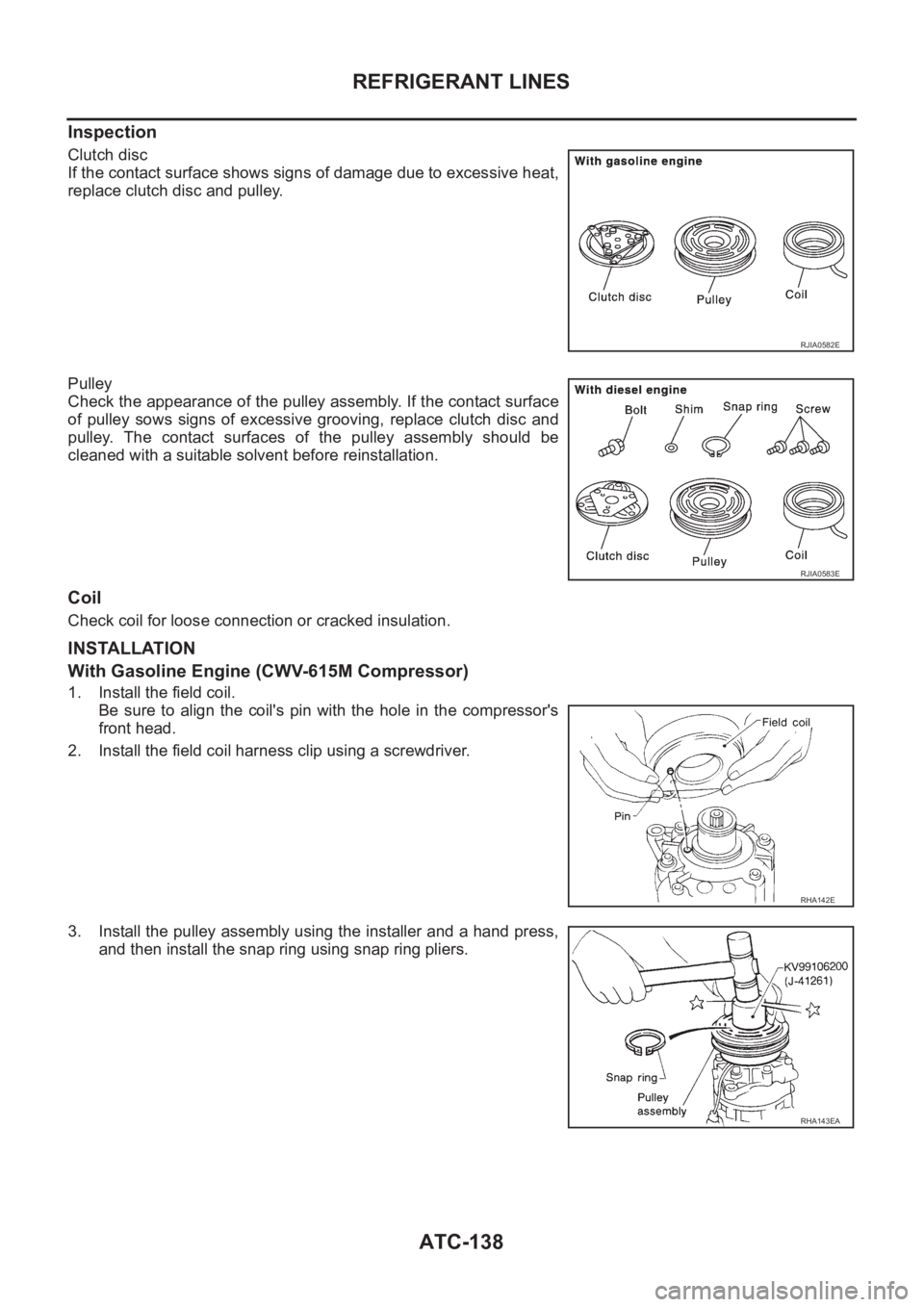

Inspection
Clutch disc
If the contact surface shows signs of damage due to excessive heat,
replace clutch disc and pulley.
Pulley
Check the appearance of the pulley assembly. If the contact surface
of pulley sows signs of excessive grooving, replace clutch disc and
pulley. The contact surfaces of the pulley assembly should be
cleaned with a suitable solvent before reinstallation.
Coil
Check coil for loose connection or cracked insulation.
INSTALLATION
With Gasoline Engine (CWV-615M Compressor)
1. Install the field coil.
Be sure to align the coil's pin with the hole in the compressor's
front head.
2. Install the field coil harness clip using a screwdriver.
3. Install the pulley assembly using the installer and a hand press,
and then install the snap ring using snap ring pliers.
RJIA0582E
RJIA0583E
RHA142E
RHA143EA

REFRIGERANT LINES
ATC-139
C
D
E
F
G
H
I
K
L
MA
B
AT C

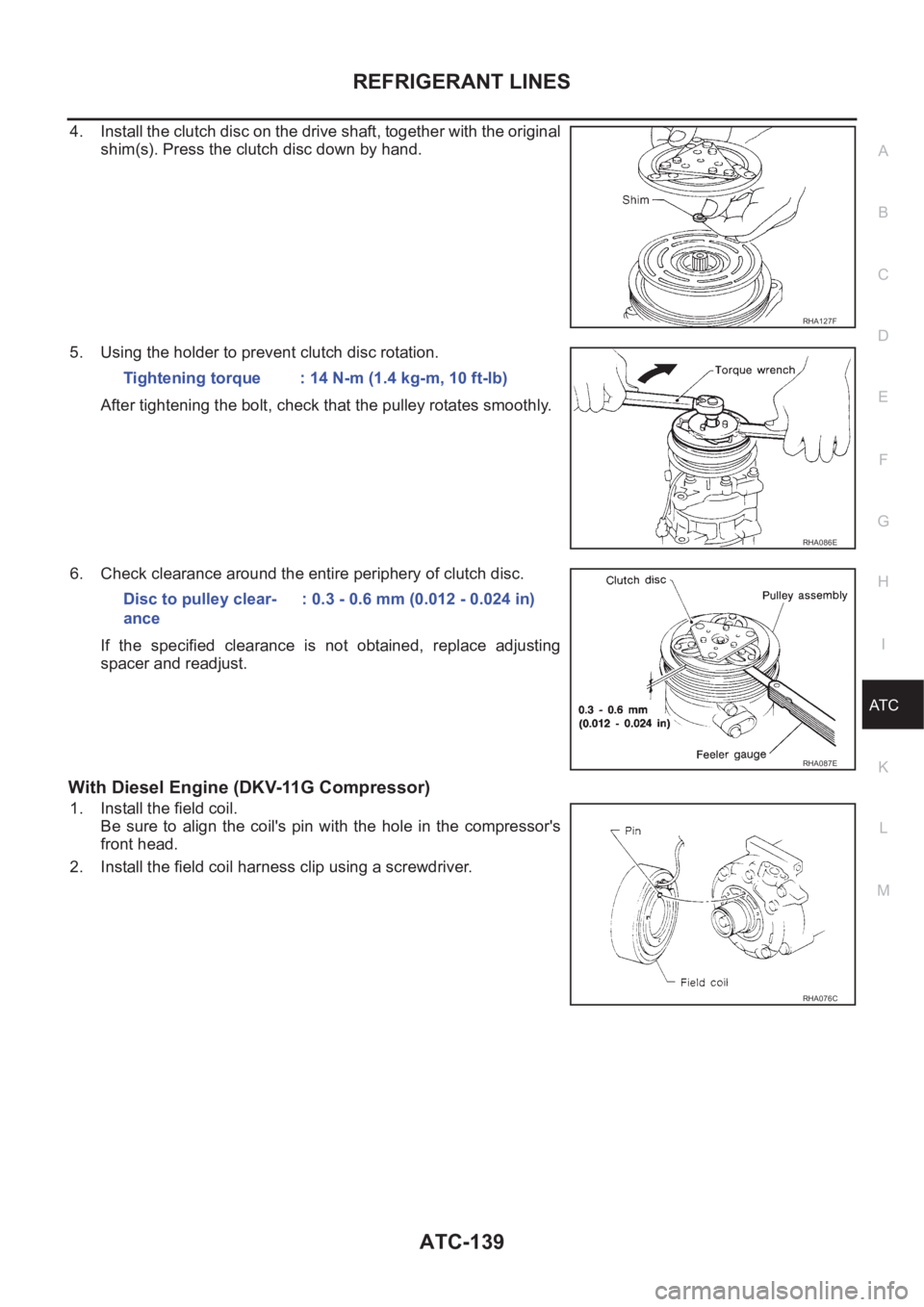

4. Install the clutch disc on the drive shaft, together with the original
shim(s). Press the clutch disc down by hand.
5. Using the holder to prevent clutch disc rotation.
After tightening the bolt, check that the pulley rotates smoothly.
6. Check clearance around the entire periphery of clutch disc.
If the specified clearance is not obtained, replace adjusting
spacer and readjust.
With Diesel Engine (DKV-11G Compressor)
1. Install the field coil.
Be sure to align the coil's pin with the hole in the compressor's
front head.
2. Install the field coil harness clip using a screwdriver.
RHA127F
Tightening torque : 14 N-m (1.4 kg-m, 10 ft-lb)
RHA086E
Disc to pulley clear-
ance: 0.3 - 0.6 mm (0.012 - 0.024 in)
RHA087E
RHA076C

ATC-140
REFRIGERANT LINES

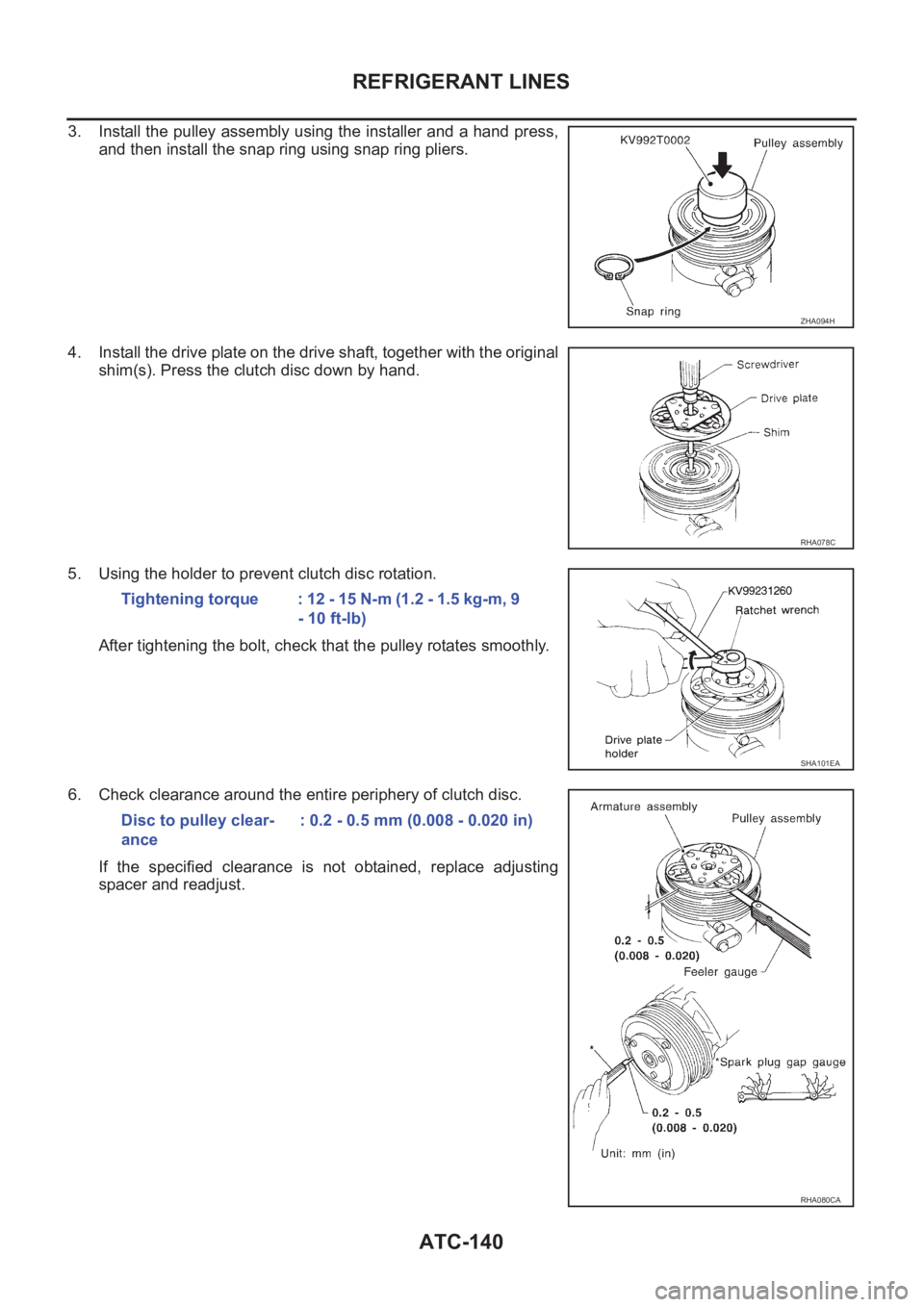

3. Install the pulley assembly using the installer and a hand press,
and then install the snap ring using snap ring pliers.
4. Install the drive plate on the drive shaft, together with the original
shim(s). Press the clutch disc down by hand.
5. Using the holder to prevent clutch disc rotation.
After tightening the bolt, check that the pulley rotates smoothly.
6. Check clearance around the entire periphery of clutch disc.
If the specified clearance is not obtained, replace adjusting
spacer and readjust.
ZHA094H
RHA078C
Tightening torque : 12 - 15 N-m (1.2 - 1.5 kg-m, 9
- 10 ft-lb)
SHA101EA
Disc to pulley clear-
ance: 0.2 - 0.5 mm (0.008 - 0.020 in)
RHA080CA

REFRIGERANT LINES
ATC-141
C
D
E
F
G
H
I
K
L
MA
B
AT C

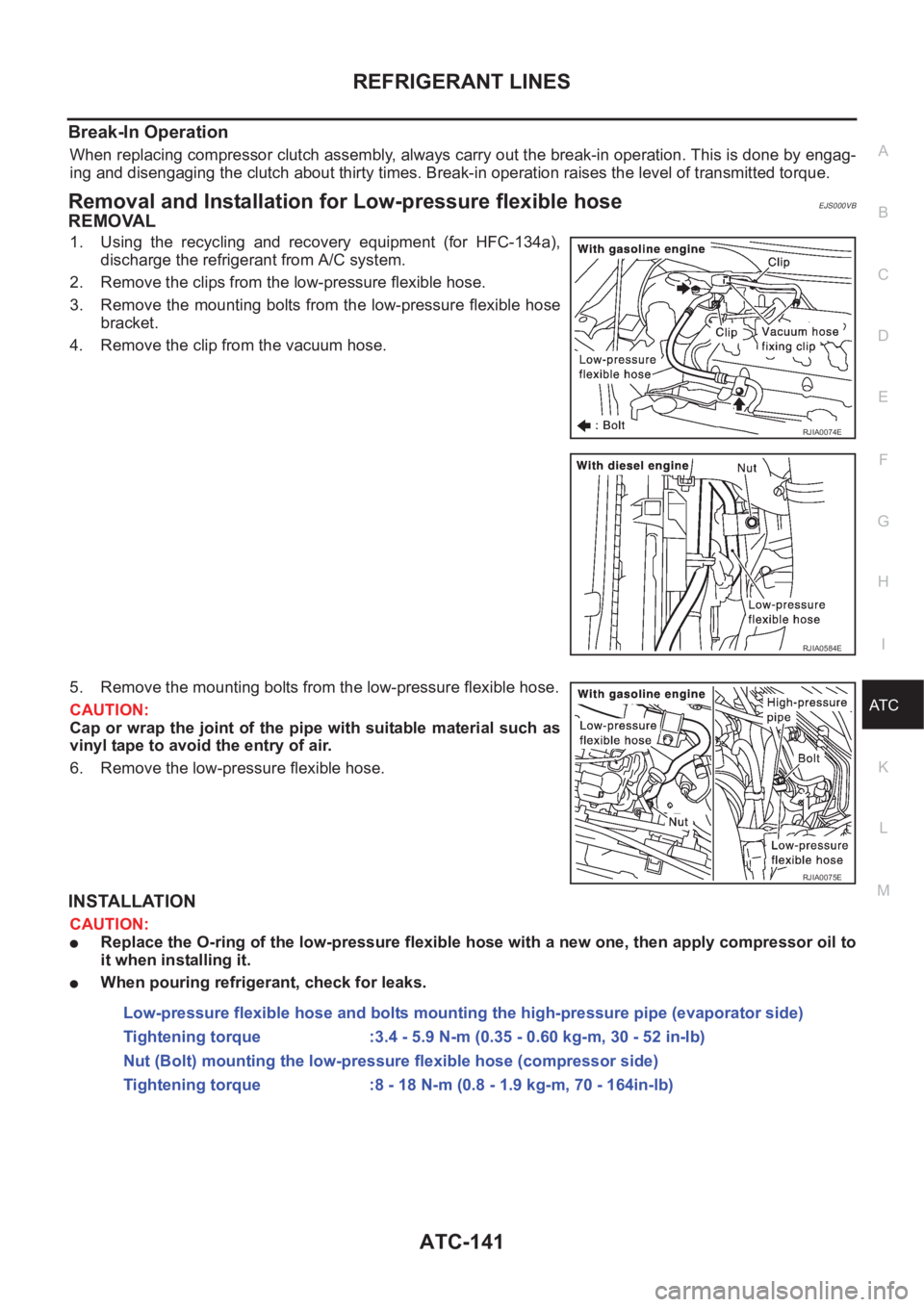

Break-In Operation
When replacing compressor clutch assembly, always carry out the break-in operation. This is done by engag-
ing and disengaging the clutch about thirty times. Break-in operation raises the level of transmitted torque.
Removal and Installation for Low-pressure flexible hoseEJS000VB
REMOVAL
1. Using the recycling and recovery equipment (for HFC-134a),
discharge the refrigerant from A/C system.
2. Remove the clips from the low-pressure flexible hose.
3. Remove the mounting bolts from the low-pressure flexible hose
bracket.
4. Remove the clip from the vacuum hose.
5. Remove the mounting bolts from the low-pressure flexible hose.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as
vinyl tape to avoid the entry of air.
6. Remove the low-pressure flexible hose.
INSTALLATION
CAUTION:
●Replace the O-ring of the low-pressure flexible hose with a new one, then apply compressor oil to
it when installing it.
●When pouring refrigerant, check for leaks.
RJIA0074E
RJIA0584E
RJIA0075E
Low-pressure flexible hose and bolts mounting the high-pressure pipe (evaporator side)
Tightening torque :3.4 - 5.9 N-m (0.35 - 0.60 kg-m, 30 - 52 in-lb)
Nut (Bolt) mounting the low-pressure flexible hose (compressor side)
Tightening torque :8 - 18 N-m (0.8 - 1.9 kg-m, 70 - 164in-lb)

ATC-142
REFRIGERANT LINES
Removal and Installation for High-pressure flexible hose
EJS000VC
REMOVAL
1. Using the recycling and recovery equipment (for HFC-134a),
discharge the refrigerant from A/C system.
2. Remove the mounting bolt and nut from the high-pressure flexi-
ble hose, then remove it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as
vinyl tape to avoid the entry of air.
INSTALLATION
CAUTION:
●Replace the O-ring of the high-pressure flexible hose with a new one, then apply compressor oil to
it when installing it.
●When pouring refrigerant, check for leaks.
Removal and Installation for High-pressure pipeEJS000VD
REMOVAL
1. Using the recycling and recovery equipment (for HFC-134a),
discharge the refrigerant from A/C system.
2. Remove the low-pressure flexible hose.
3. Remove the high-pressure pipe from the clip.
4. Remove the mounting bolt from the high-pressure pipe.
5. Remove the high-pressure pipe.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as
vinyl tape to avoid the entry of air.
INSTALLATION
CAUTION:
●Replace the O-ring of the high-pressure pipe with a new one, then apply compressor oil to it when
installing it.
●When pouring refrigerant, check for leaks.
RJIA0076E
Bolt and nut mounting the high-pressure flexible hose
Tightening torque :8 - 18 N-m (0.8 - 1.9 kg-m, 70 - 164in-lb)
RJIA0077E
RJIA0078E
Bolts mounting the high-pressure pipe (condenser side, evaporator side)
Tightening torque :3.4 - 5.9 N-m (0.35 - 0.60 kg-m, 30 - 52 in-lb)

REFRIGERANT LINES
ATC-143
C
D
E
F
G
H
I
K
L
MA
B
AT C
Removal and Installation for Refrigerant Pressure SensorEJS00288
1. Use refrigerant collecting equipment (for HFC-134a) to discharge refrigerant.
2. Remove the condenser, then remove the liquid tank. Refer to
ATC-143, "
Removal and Installation for Condenser" .
3. Using a vise, secure liquid tank, and remove pressure switch.
CAUTION:
● When working, be careful not to damage the compressor
fan.
●Apply compressor oil to the O-ring of the refrigerant pres-
sure sensor when installing it.
Removal and Installation for Dual-pressure SwitchEJS00289
1. Use refrigerant collecting equipment (for HFC-134a) to dis-
charge refrigerant.
2. Remove the condenser, then remove the liquid tank. Refer to
ATC-143, "
Removal and Installation for Condenser" .
3. Using a vise, secure liquid tank, and remove pressure switch.
CAUTION:
● When working, be careful not to damage the compressor
fan.
●Apply compressor oil to the O-ring of the refrigerant pres-
sure sensor when installing it.
Removal and Installation for CondenserEJS0028A
REMOVAL
1. Use the refrigerant collecting equipment (for HFC-134a) to dis-
charge the refrigerant from A/C system.
2. Disconnect the high-pressure flexible hose and the high-pres-
sure pipe from the condenser.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
3. Remove the battery and battery tray.Tightening torque :9.8 - 11.0 N·m (1.0 - 1.2kg·m, 7.3 -
8.6 ft-lb)
RJIA0698E
Tightening torque :9.8 - 11.0 N·m (1.0 - 1.2kg·m, 7.3 - 8.6 ft-lb)
RJIA0699E
RJIA0080E

ATC-144
REFRIGERANT LINES

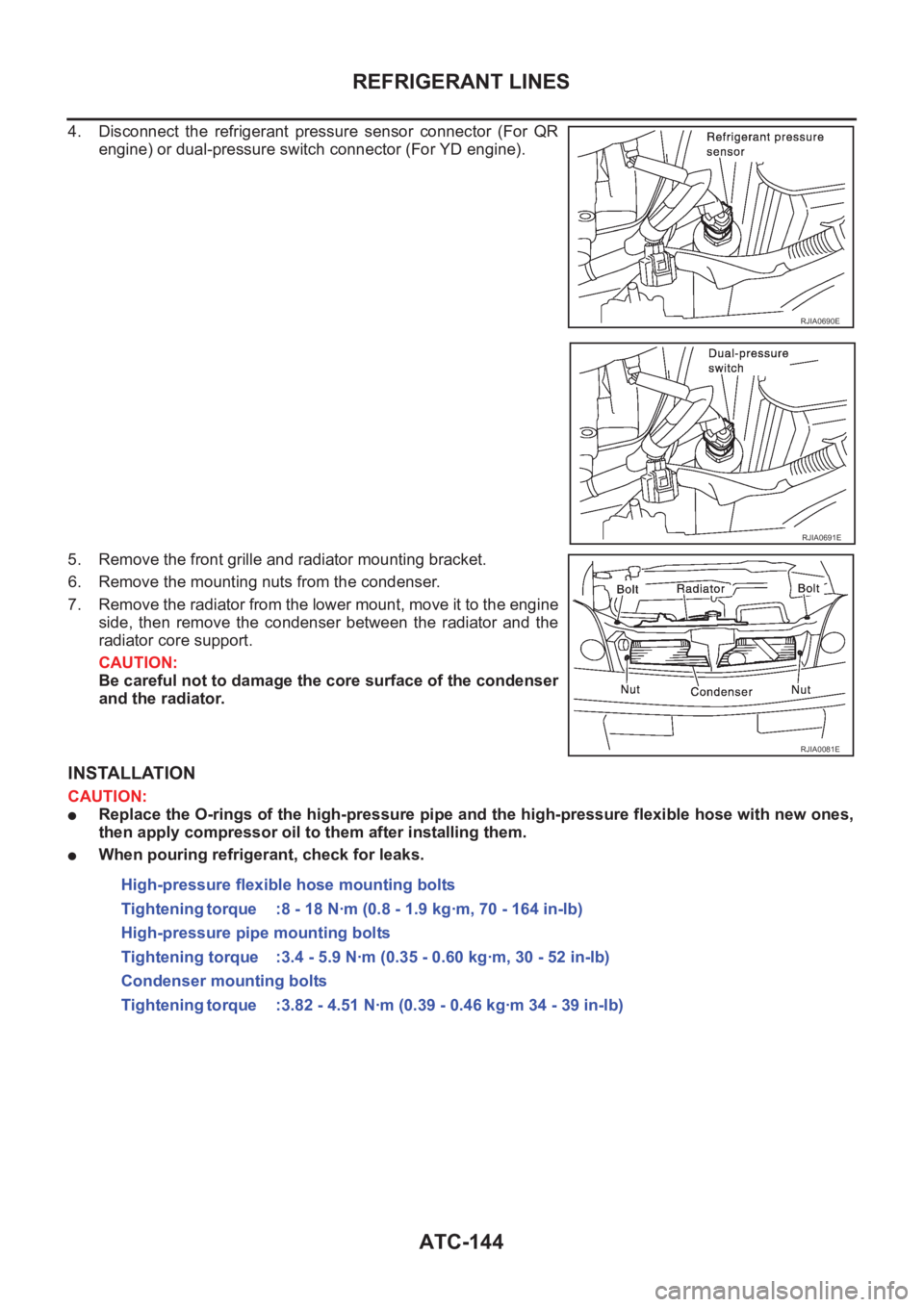

4. Disconnect the refrigerant pressure sensor connector (For QR
engine) or dual-pressure switch connector (For YD engine).
5. Remove the front grille and radiator mounting bracket.
6. Remove the mounting nuts from the condenser.
7. Remove the radiator from the lower mount, move it to the engine
side, then remove the condenser between the radiator and the
radiator core support.
CAUTION:
Be careful not to damage the core surface of the condenser
and the radiator.
INSTALLATION
CAUTION:
●Replace the O-rings of the high-pressure pipe and the high-pressure flexible hose with new ones,
then apply compressor oil to them after installing them.
●When pouring refrigerant, check for leaks.
RJIA0690E
RJIA0691E
RJIA0081E
High-pressure flexible hose mounting bolts
Tightening torque :8 - 18 N·m (0.8 - 1.9 kg·m, 70 - 164 in-lb)
High-pressure pipe mounting bolts
Tightening torque :3.4 - 5.9 N·m (0.35 - 0.60 kg·m, 30 - 52 in-lb)
Condenser mounting bolts
Tightening torque :3.82 - 4.51 N·m (0.39 - 0.46 kg·m 34 - 39 in-lb)
