Page 3601 of 3833

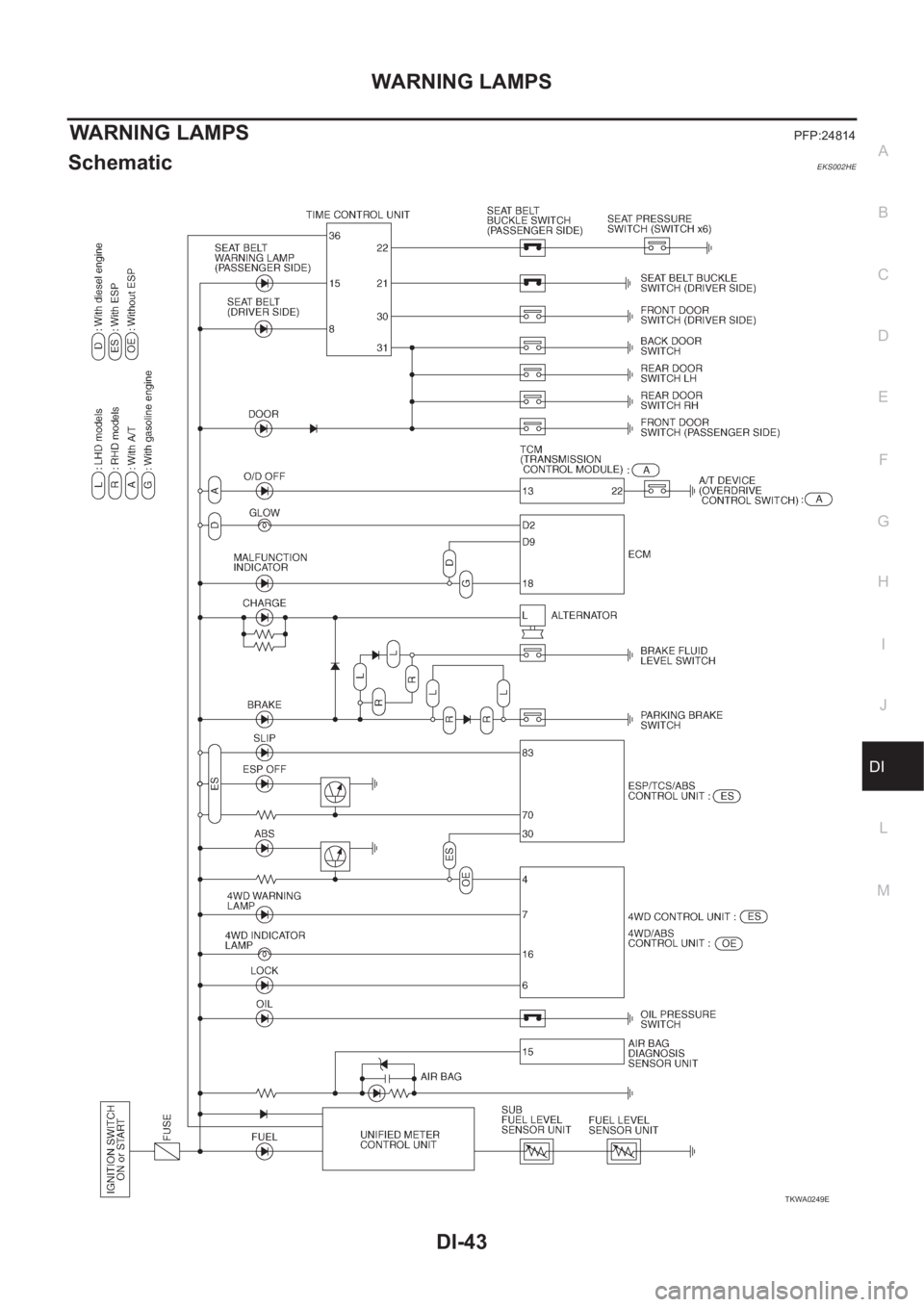

NISSAN X-TRAIL 2001 Service Repair Manual WARNING LAMPS DI-43 C D E F G H I J L MA B DI WARNING LAMPSPFP:24814 SchematicEKS002HE TKWA0249E

Page 3602 of 3833

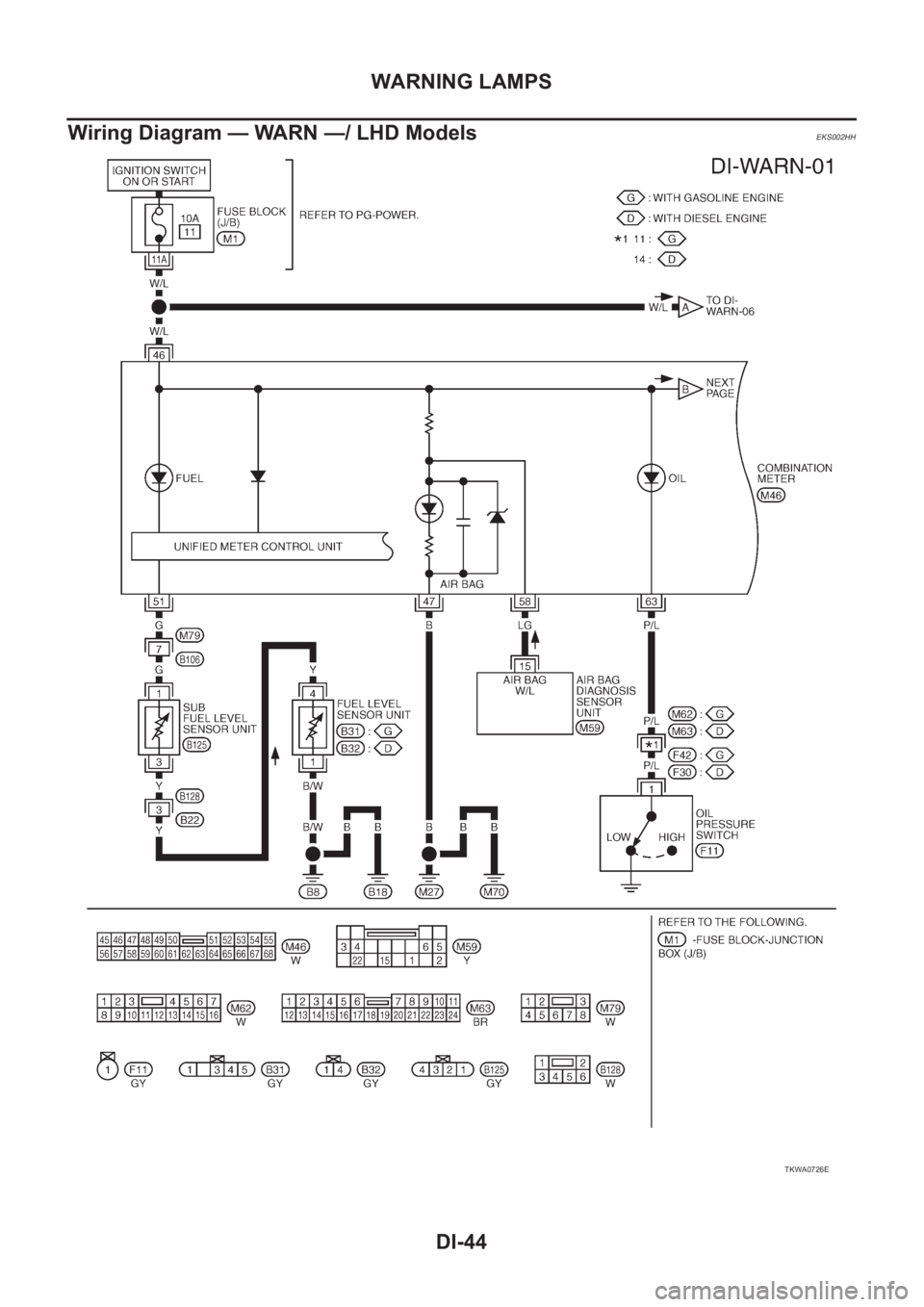

NISSAN X-TRAIL 2001 Service Repair Manual DI-44 WARNING LAMPS Wiring Diagram — WARN —/ LHD Models EKS002HH TKWA0726E

Page 3603 of 3833

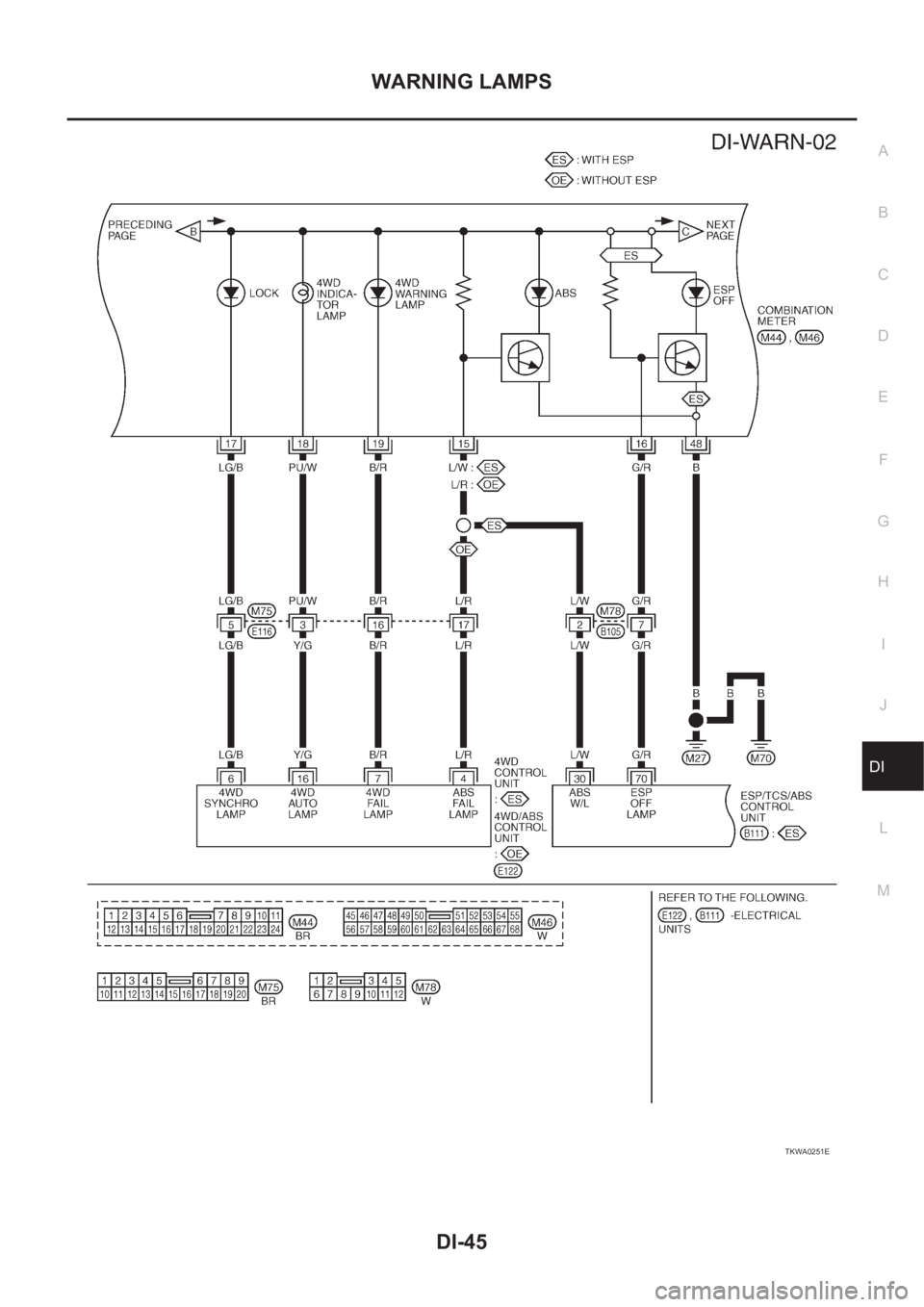

NISSAN X-TRAIL 2001 Service Repair Manual WARNING LAMPS DI-45 C D E F G H I J L MA B DI TKWA0251E

Page 3604 of 3833

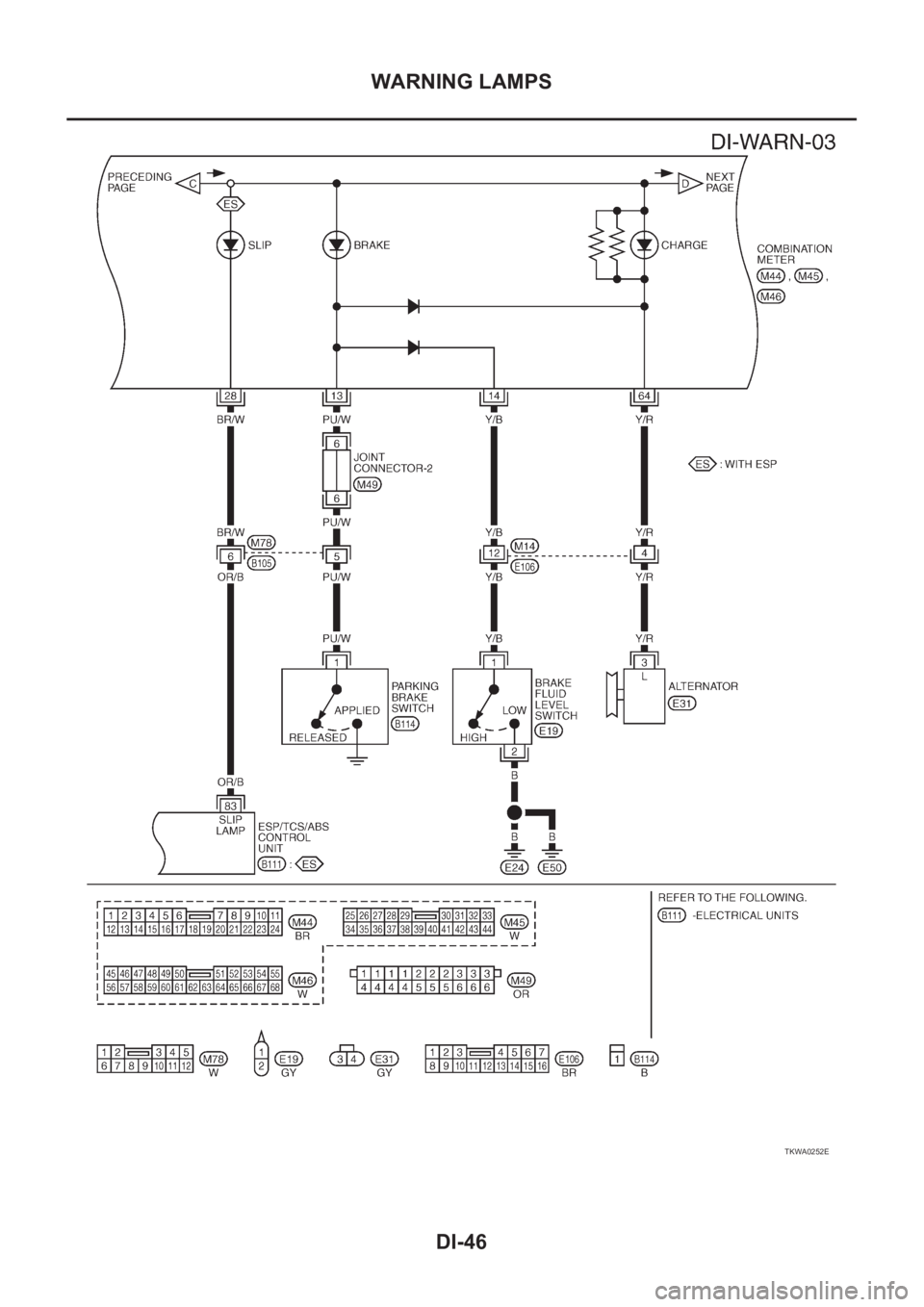

NISSAN X-TRAIL 2001 Service Repair Manual DI-46 WARNING LAMPS TKWA0252E

Page 3605 of 3833

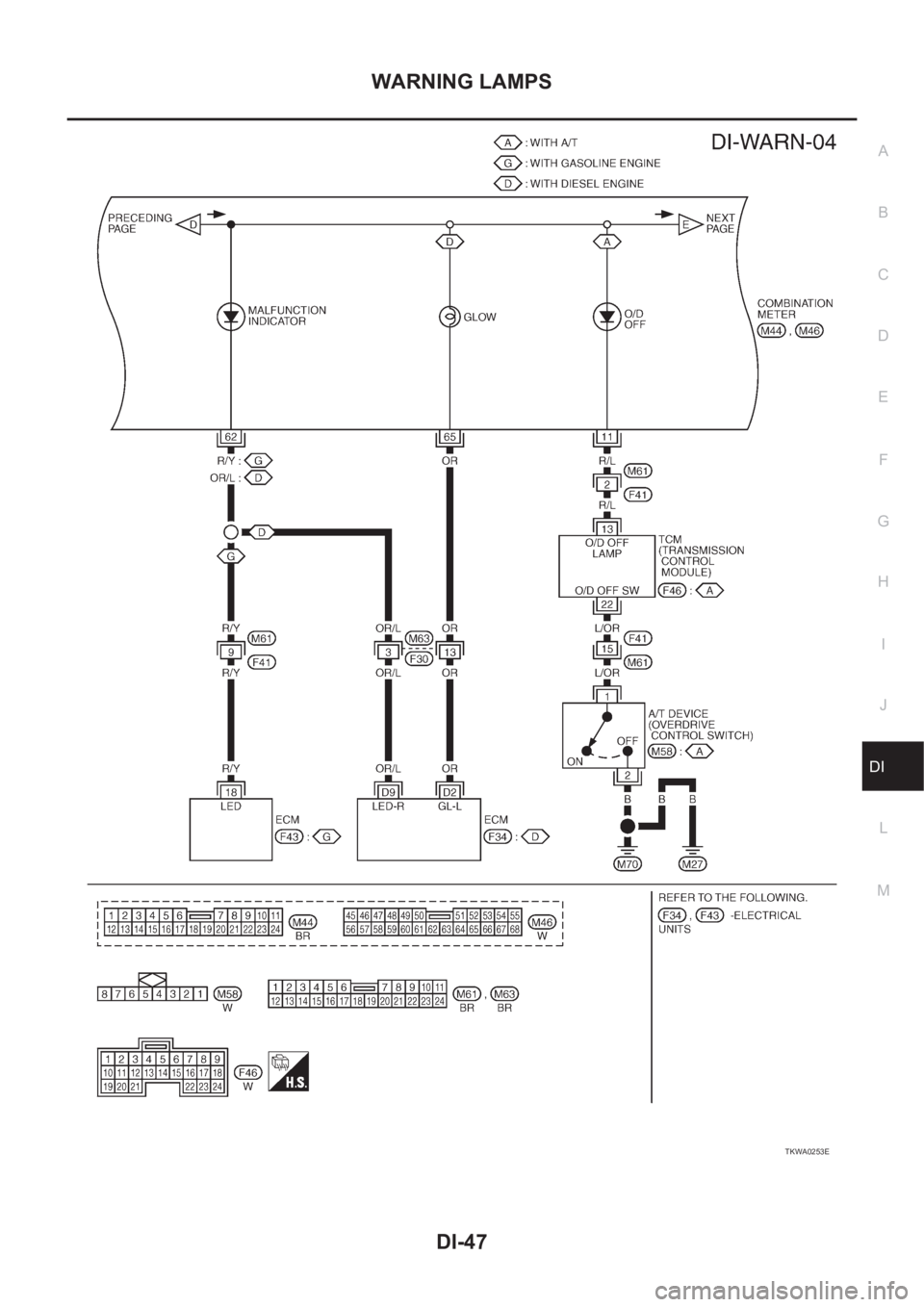

NISSAN X-TRAIL 2001 Service Repair Manual WARNING LAMPS DI-47 C D E F G H I J L MA B DI TKWA0253E

Page 3606 of 3833

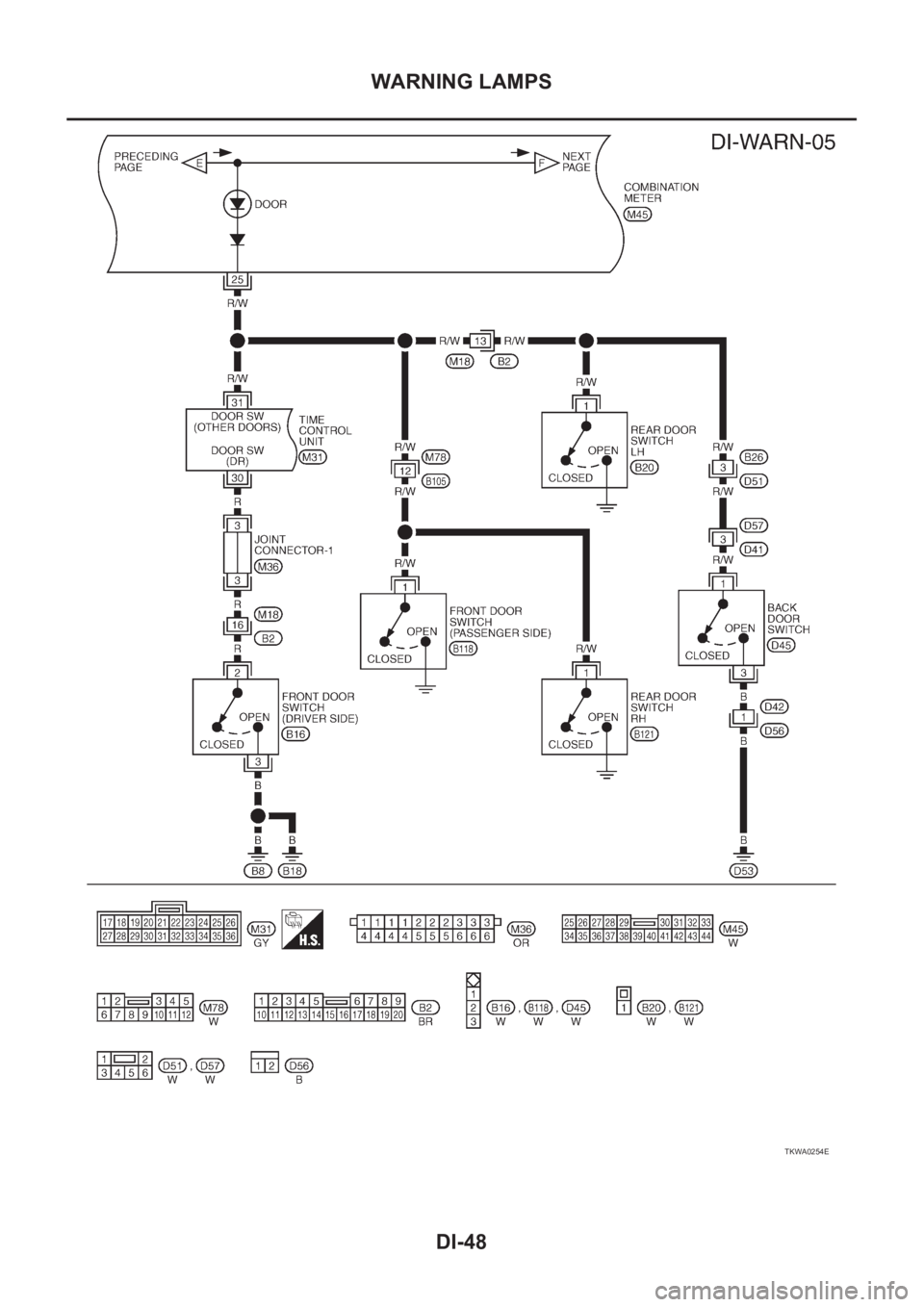

NISSAN X-TRAIL 2001 Service Repair Manual DI-48 WARNING LAMPS TKWA0254E

Page 3607 of 3833

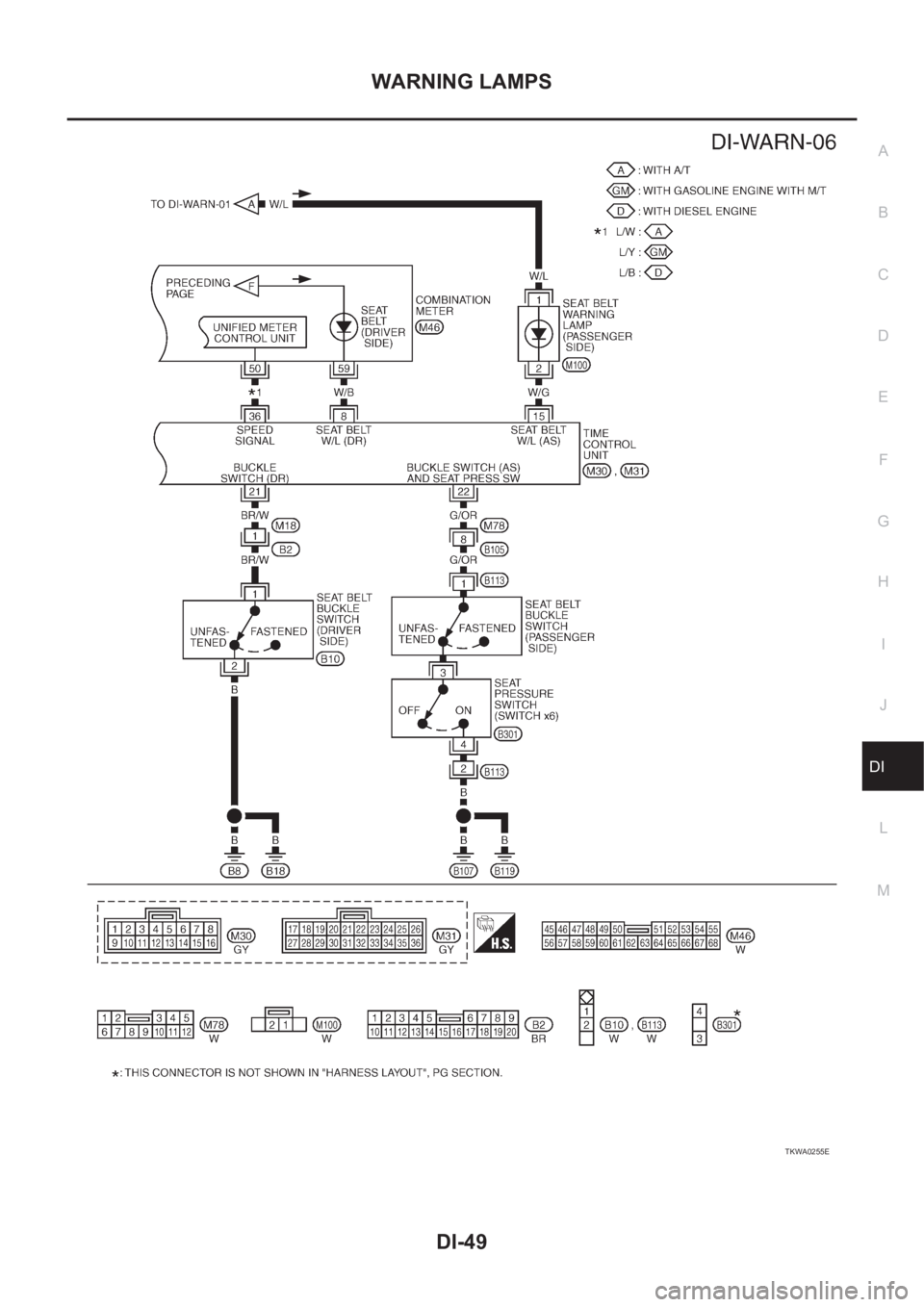

NISSAN X-TRAIL 2001 Service Repair Manual WARNING LAMPS DI-49 C D E F G H I J L MA B DI TKWA0255E

Page 3608 of 3833

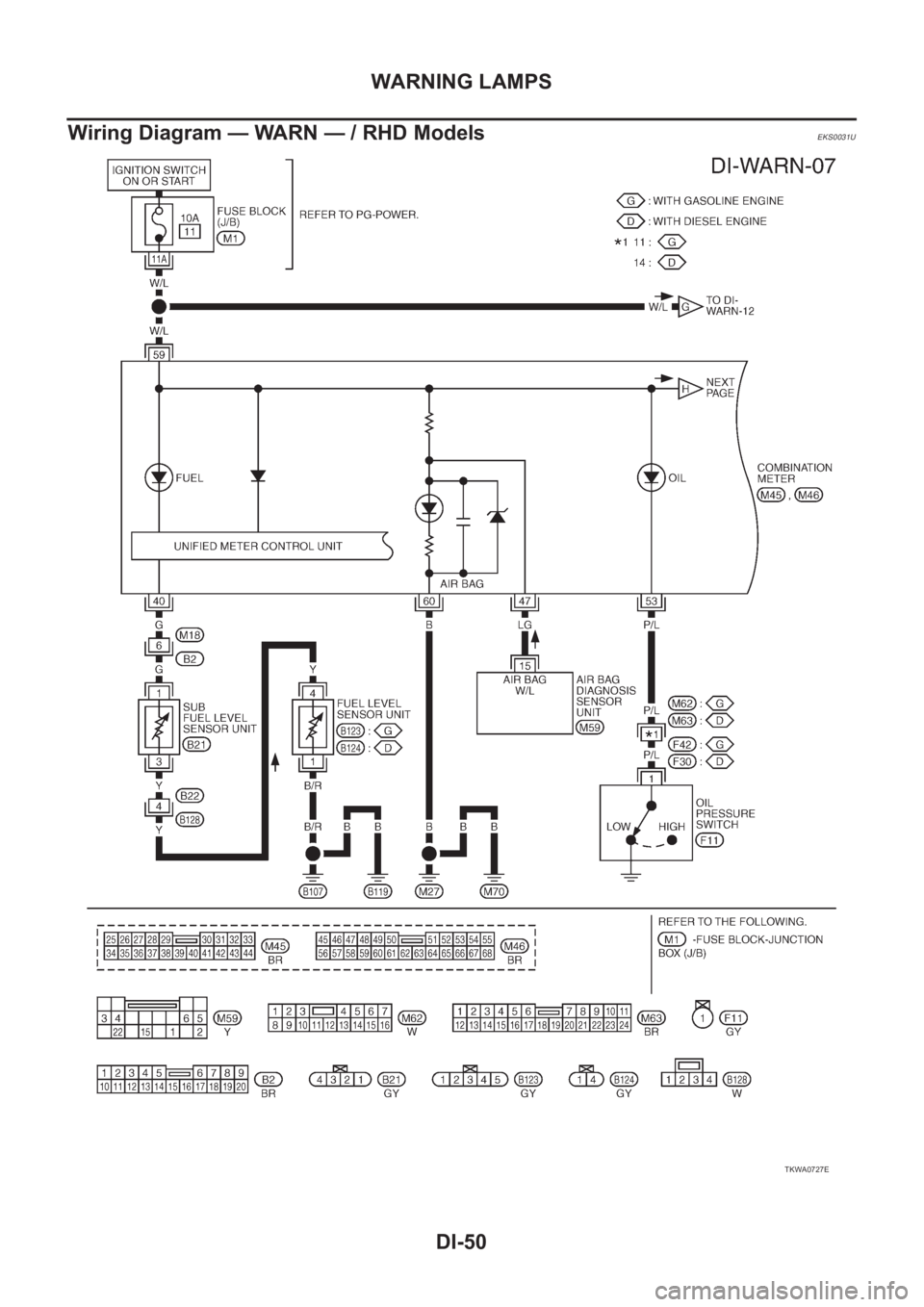

NISSAN X-TRAIL 2001 Service Repair Manual DI-50 WARNING LAMPS Wiring Diagram — WARN — / RHD Models EKS0031U TKWA0727E

Page 3609 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual WARNING LAMPS DI-51 C D E F G H I J L MA B DI TKWA0257E

Page 3610 of 3833

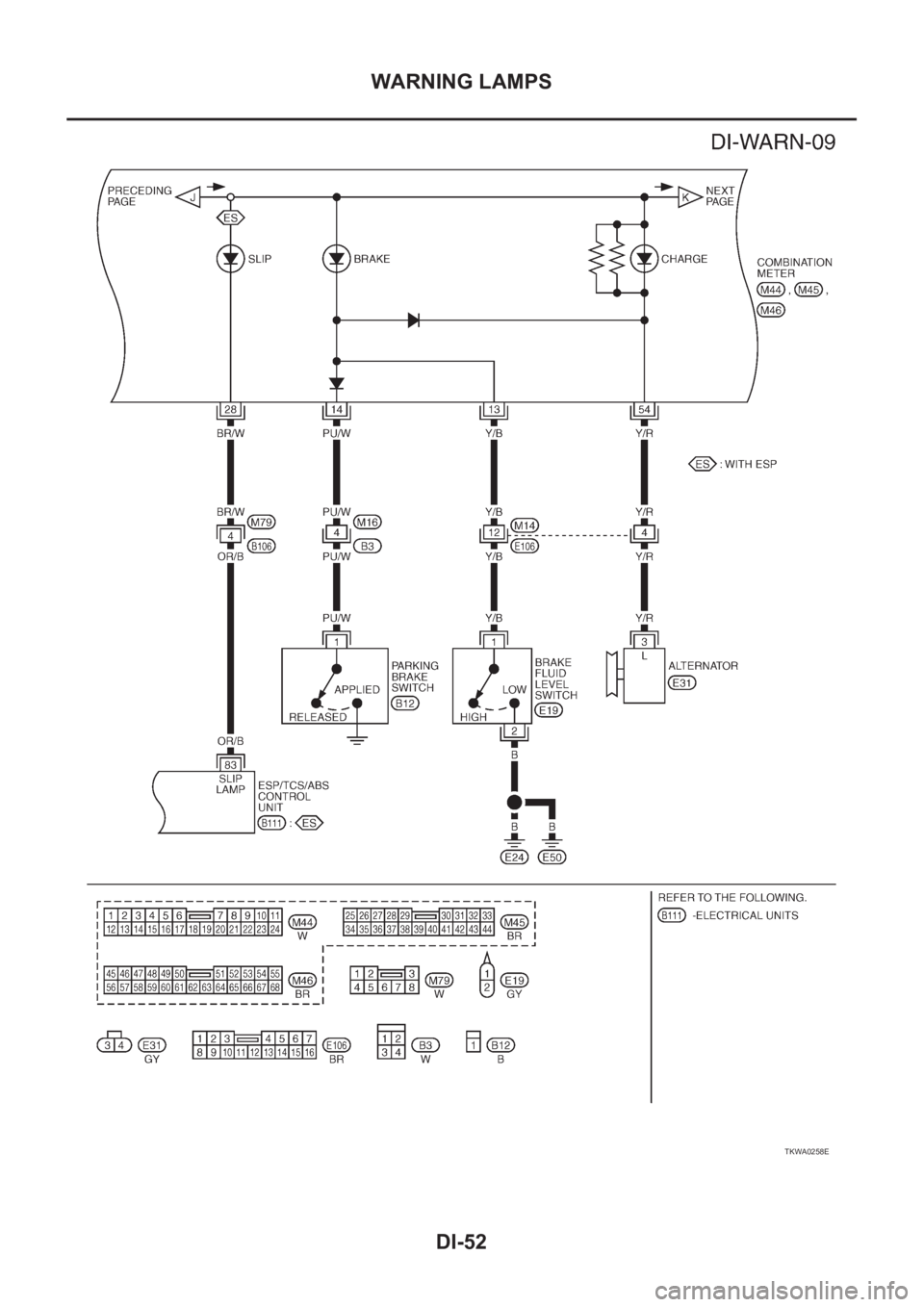

NISSAN X-TRAIL 2001 Service Repair Manual DI-52 WARNING LAMPS TKWA0258E
