REAR WIPER AND WASHER SYSTEMPFP:28710

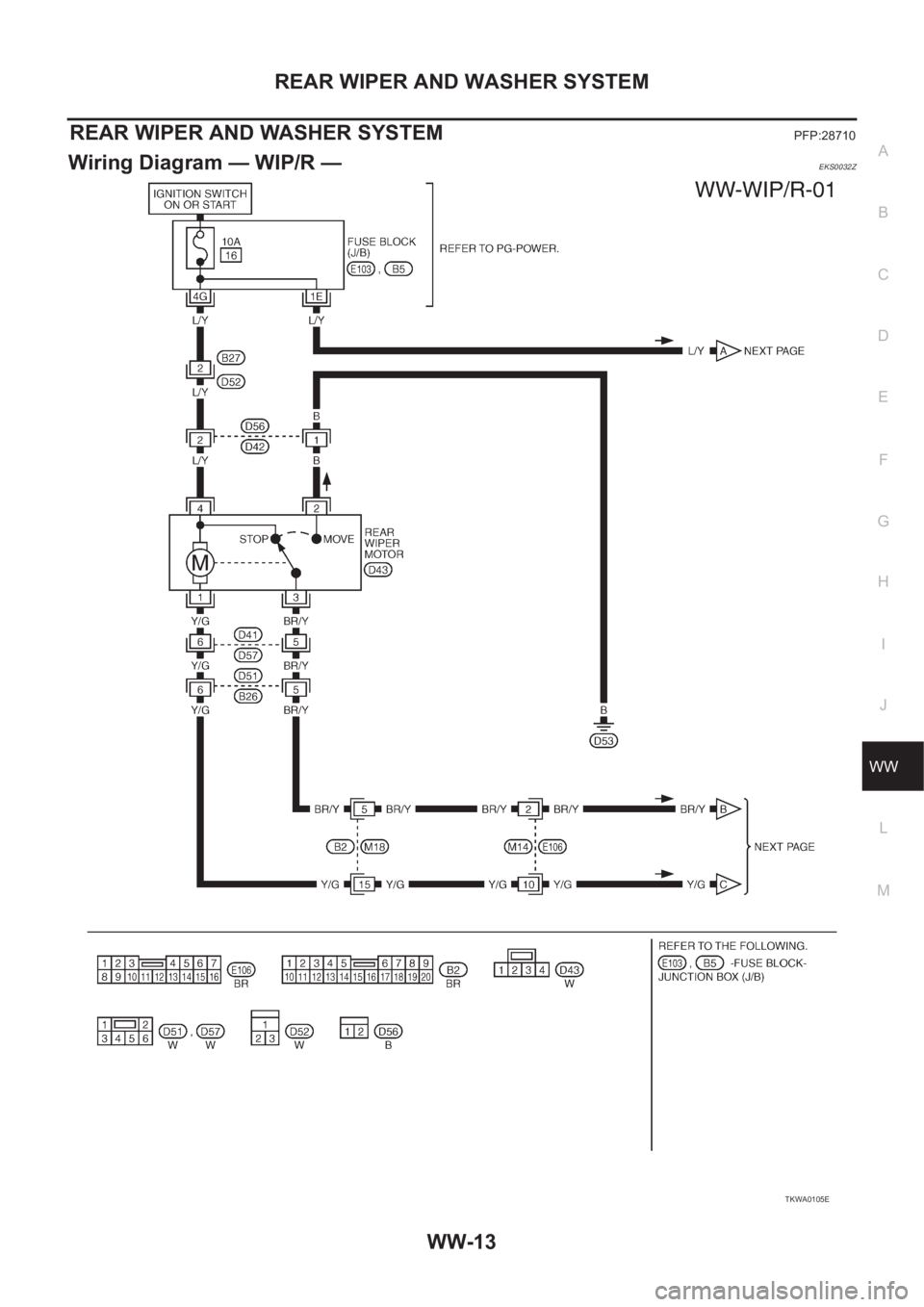

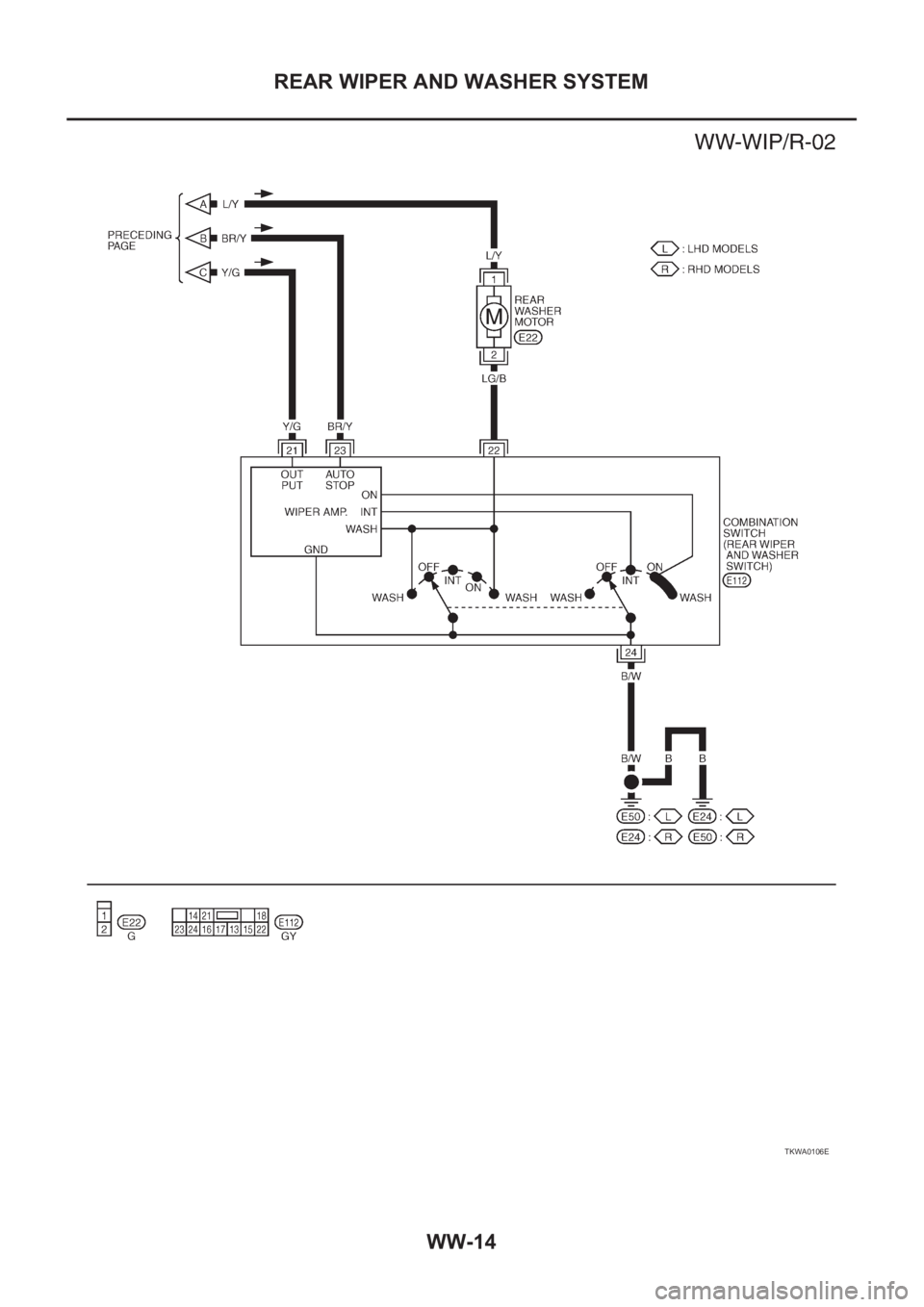

Wiring Diagram — WIP/R —EKS0032Z
TKWA0105E

WW-14
REAR WIPER AND WASHER SYSTEM
TKWA0106E

REAR WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW

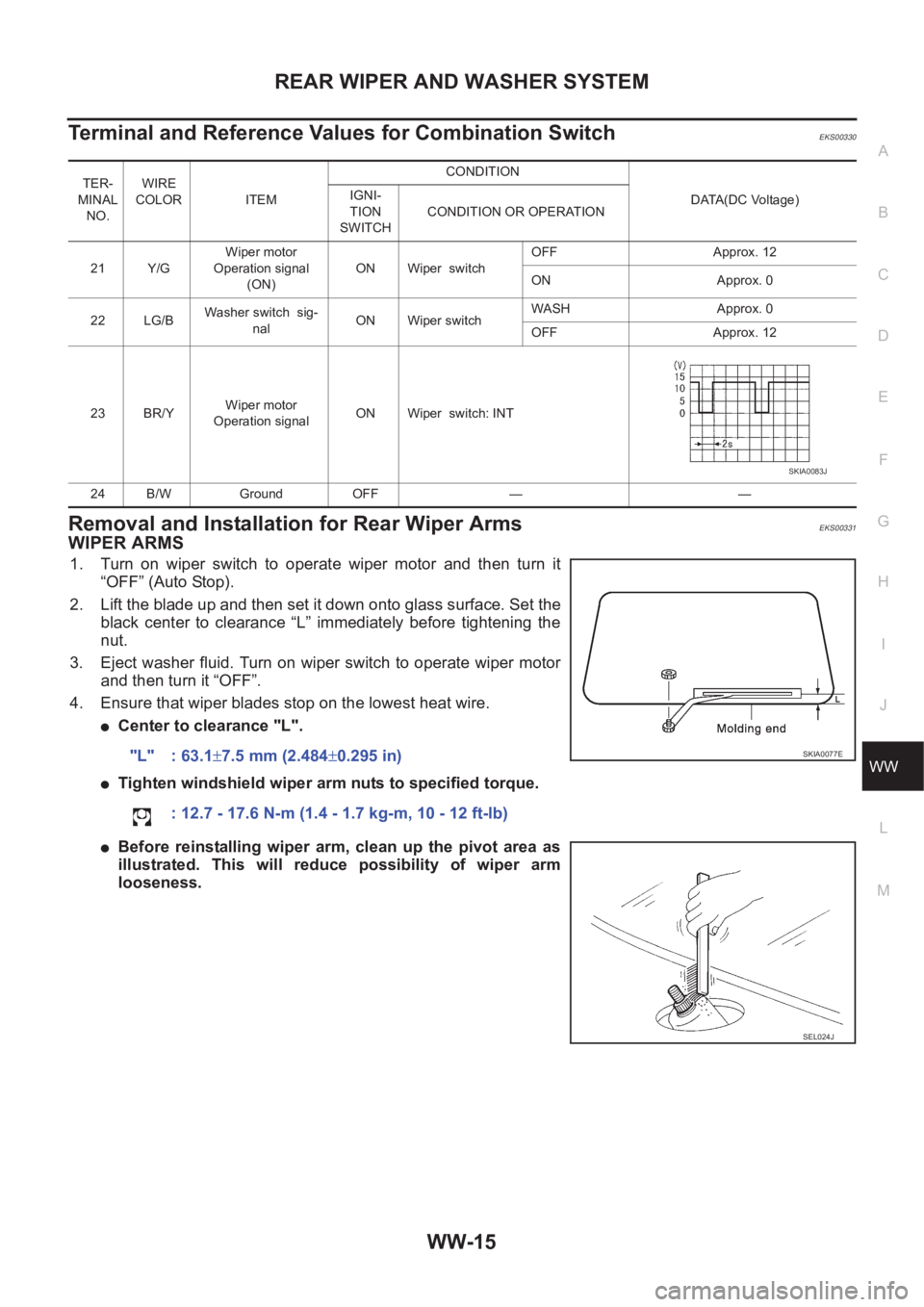

Terminal and Reference Values for Combination SwitchEKS00330
Removal and Installation for Rear Wiper Arms EKS00331
WIPER ARMS
1. Turn on wiper switch to operate wiper motor and then turn it
“OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface. Set the
black center to clearance “L” immediately before tightening the
nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop on the lowest heat wire.
●Center to clearance "L".
●Tighten windshield wiper arm nuts to specified torque.
●Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm
looseness.
TER-
MINAL
NO.WIRE
COLOR ITEM CONDITION
DATA(DC Voltage) IGNI-
TION
SWITCHCONDITION OR OPERATION
21 Y/GWiper motor
Operation signal
(ON)ON Wiper switchOFF Approx. 12
ON Approx. 0
22 LG/BWasher switch sig-
nalON Wiper switchWASH Approx. 0
OFF Approx. 12
23 BR/YWiper motor
Operation signalON Wiper switch: INT
24 B/W Ground OFF — —
SKIA0083J
"L" : 63.1±7.5 mm (2.484±0.295 in)
: 12.7 - 17.6 N-m (1.4 - 1.7 kg-m, 10 - 12 ft-lb)SKIA0077E
SEL024J

WW-16
REAR WIPER AND WASHER SYSTEM

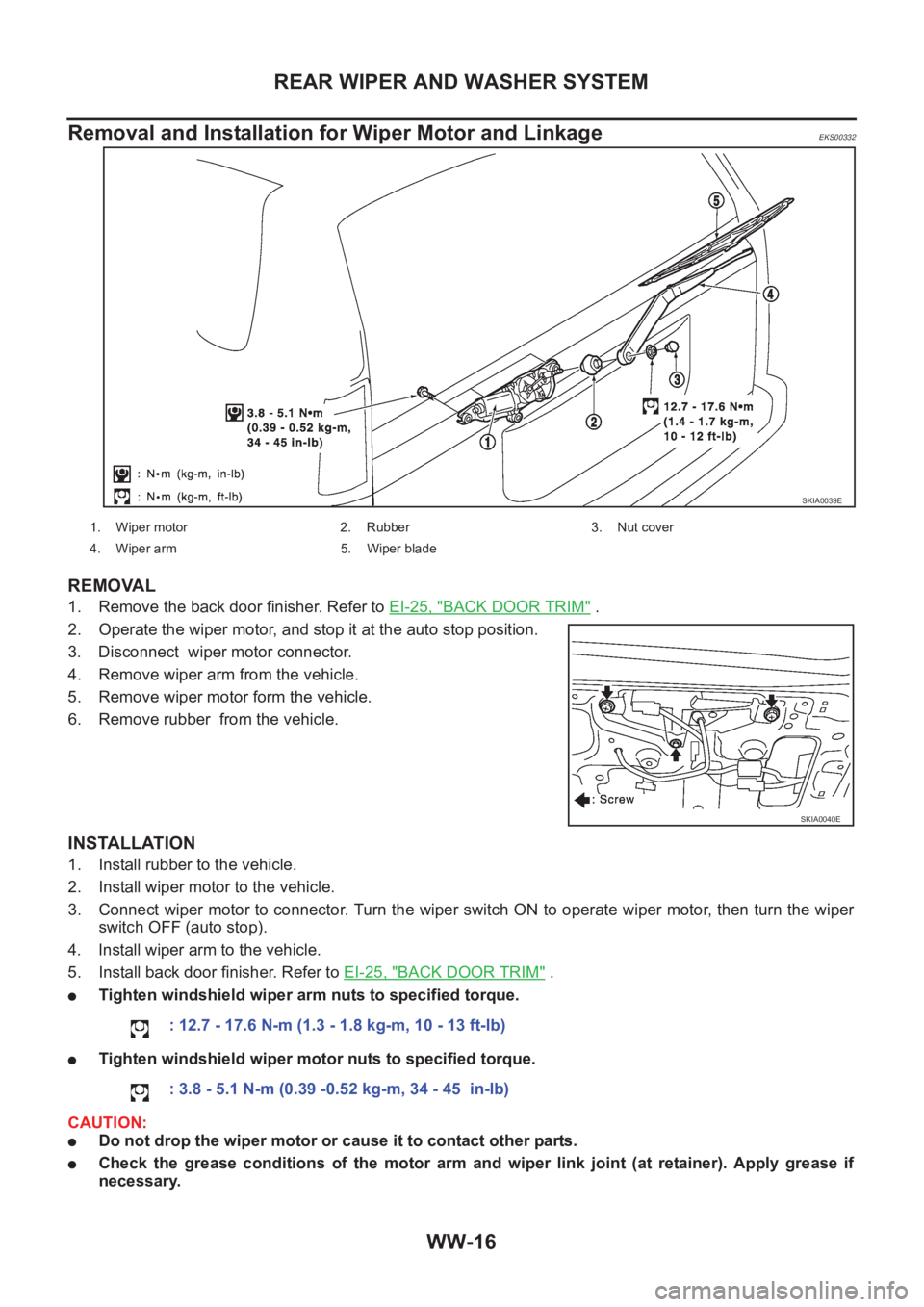

Removal and Installation for Wiper Motor and Linkage
EKS00332
REMOVAL
1. Remove the back door finisher. Refer to EI-25, "BACK DOOR TRIM" .
2. Operate the wiper motor, and stop it at the auto stop position.
3. Disconnect wiper motor connector.
4. Remove wiper arm from the vehicle.
5. Remove wiper motor form the vehicle.
6. Remove rubber from the vehicle.
INSTALLATION
1. Install rubber to the vehicle.
2. Install wiper motor to the vehicle.
3. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper
switch OFF (auto stop).
4. Install wiper arm to the vehicle.
5. Install back door finisher. Refer to EI-25, "
BACK DOOR TRIM" .
●Tighten windshield wiper arm nuts to specified torque.
●Tighten windshield wiper motor nuts to specified torque.
CAUTION:
●Do not drop the wiper motor or cause it to contact other parts.
●Check the grease conditions of the motor arm and wiper link joint (at retainer). Apply grease if
necessary.
SKIA0039E
1. Wiper motor 2. Rubber 3. Nut cover
4. Wiper arm 5. Wiper blade
SKIA0040E
: 12.7 - 17.6 N-m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)
: 3.8 - 5.1 N-m (0.39 -0.52 kg-m, 34 - 45 in-lb)

REAR WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW
Washer Nozzle AdjustmentEKS00333
●Adjust washer nozzle with suitable tool as shown in the figure at left.
Unit: mm (in)
*: The diameter of this circle is less than 40 mm ( 1.57in).
Removal and Installation for Rear Washer Nozzle EKS00334
REMOVAL
1. Remove washer hose from washer nozzle.
2. Remove washer nozzle installation screw and remove washer
nozzle.
INSTALLATION
1. After connecting washer hose, press nozzle from cowl top cover surface.
2. Assemble nozzle and socket.
3. Adjust nozzle injection position.
Inspection for Washer Nozzle EKS00335
CHECK VALVE
●Blow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction (inhale) is not
possible. Adjustable range : ±10° (In any direction)
PKIA0487E
*H 90 (3.54)
* L 150 (5.91)
SKIA0091E
SKIA0085E
SKIA0042E

WW-18
REAR WIPER AND WASHER SYSTEM
Removal and Installation for Wiper and Washer Switch
EKS00336
Refer to WW-11, "Removal and Installation for Wiper and Washer Switch" .
Removal and Installation for Washer Tank EKS00337
Refer to WW-12, "Removal and Installation for Washer Tank" .
Removal and Installation for Washer Pump EKS00338
Refer to WW-12, "Removal and Installation for Washer Pump" .
Washer Tube LayoutEKS00339
PKIA0540E

HEADLAMP WASHER
WW-19
C
D
E
F
G
H
I
J
L
MA
B
WW
HEADLAMP WASHERPFP:28620

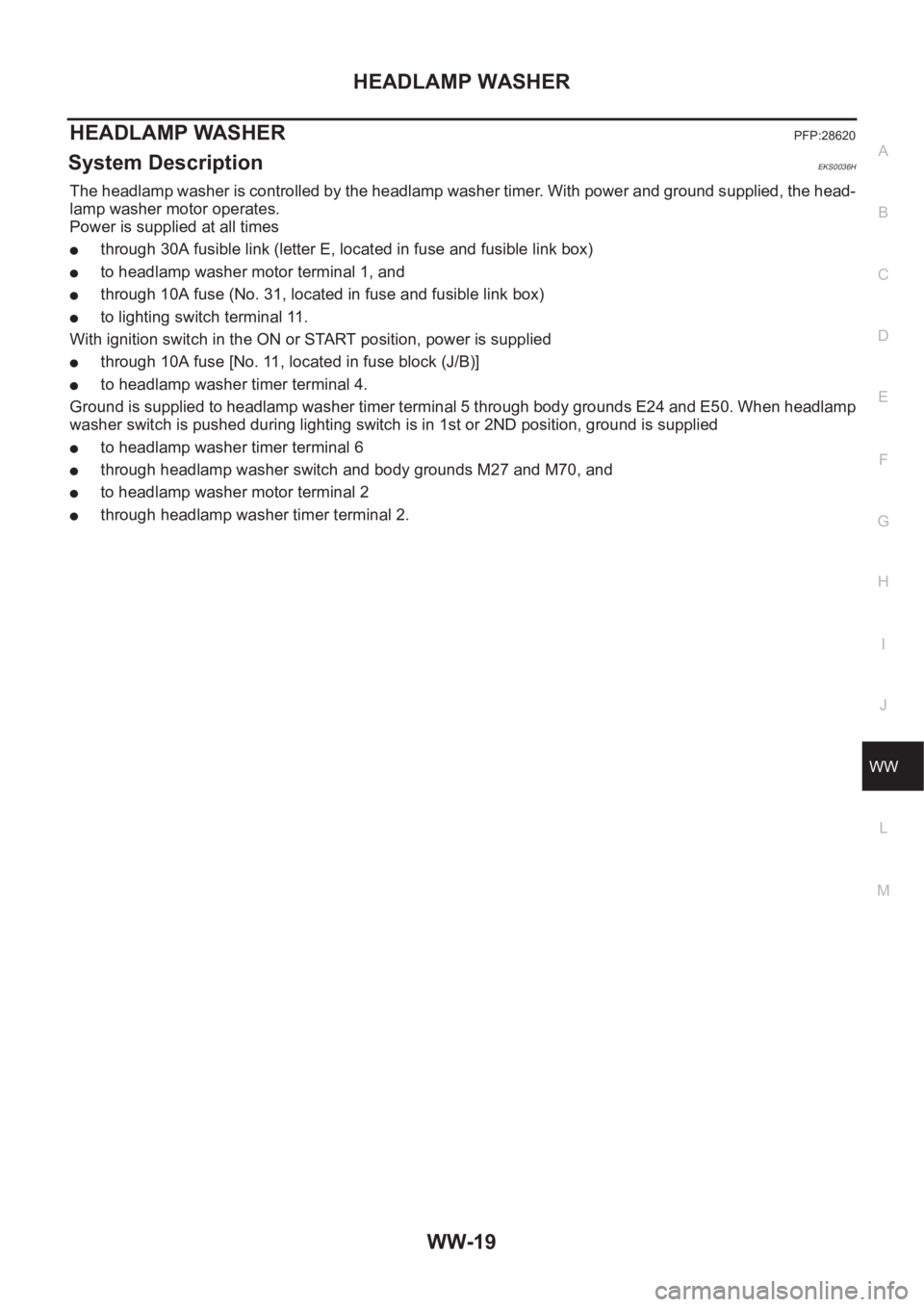

System DescriptionEKS0036H
The headlamp washer is controlled by the headlamp washer timer. With power and ground supplied, the head-
lamp washer motor operates.
Power is supplied at all times
●through 30A fusible link (letter E, located in fuse and fusible link box)
●to headlamp washer motor terminal 1, and
●through 10A fuse (No. 31, located in fuse and fusible link box)
●to lighting switch terminal 11.
With ignition switch in the ON or START position, power is supplied
●through 10A fuse [No. 11, located in fuse block (J/B)]
●to headlamp washer timer terminal 4.
Ground is supplied to headlamp washer timer terminal 5 through body grounds E24 and E50. When headlamp
washer switch is pushed during lighting switch is in 1st or 2ND position, ground is supplied
●to headlamp washer timer terminal 6
●through headlamp washer switch and body grounds M27 and M70, and
●to headlamp washer motor terminal 2
●through headlamp washer timer terminal 2.

WW-20
HEADLAMP WASHER
Wiring Diagram –HLC–
EKS0036I
TKWA0107E

HEADLAMP WASHER
WW-21
C
D
E
F
G
H
I
J
L
MA
B
WW

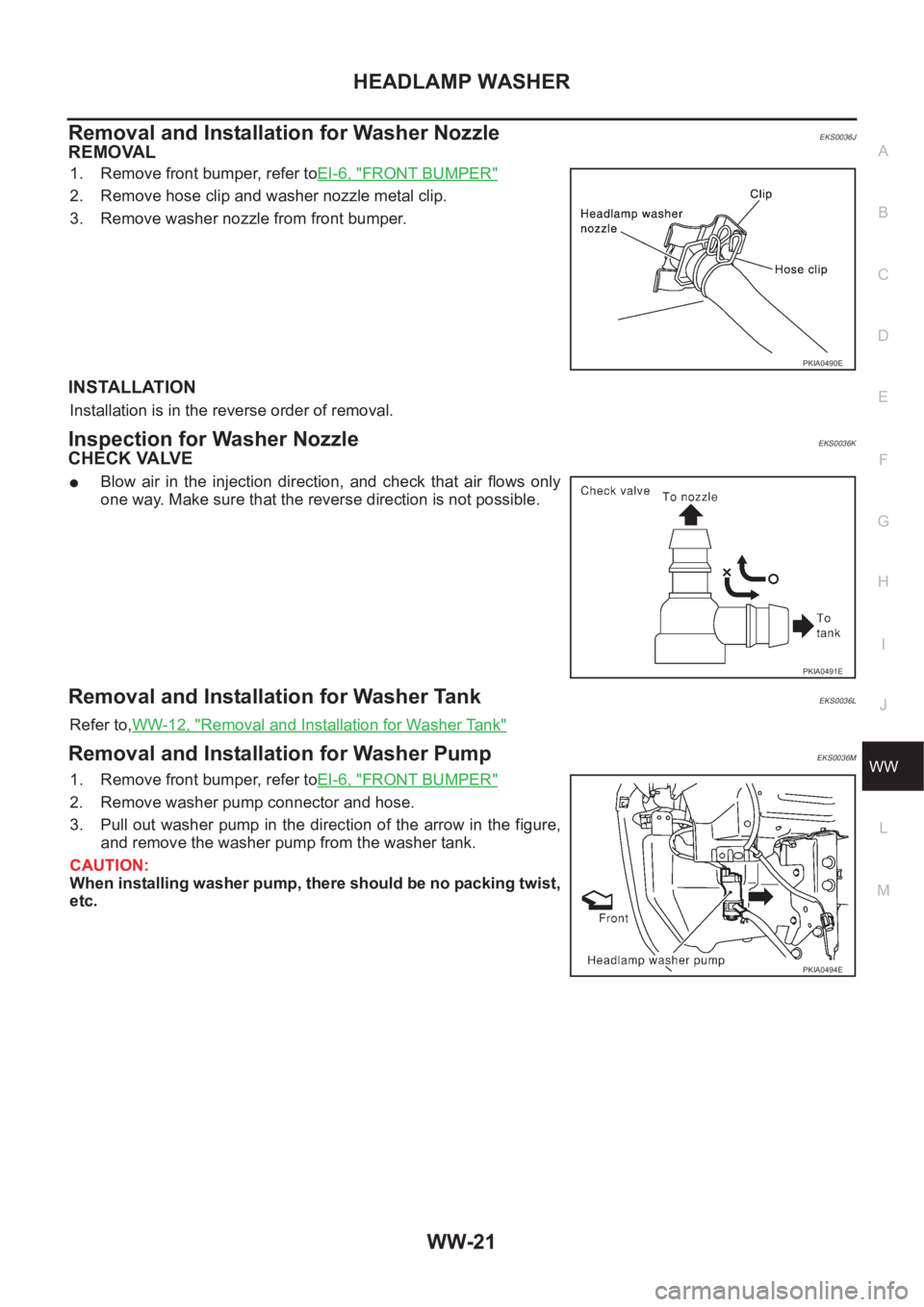

Removal and Installation for Washer NozzleEKS0036J
REMOVAL
1. Remove front bumper, refer toEI-6, "FRONT BUMPER"
2. Remove hose clip and washer nozzle metal clip.
3. Remove washer nozzle from front bumper.
INSTALLATION
Installation is in the reverse order of removal.
Inspection for Washer NozzleEKS0036K
CHECK VALVE
●Blow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction is not possible.
Removal and Installation for Washer TankEKS0036L
Refer to,WW-12, "Removal and Installation for Washer Tank"
Removal and Installation for Washer PumpEKS0036M
1. Remove front bumper, refer toEI-6, "FRONT BUMPER"
2. Remove washer pump connector and hose.
3. Pull out washer pump in the direction of the arrow in the figure,
and remove the washer pump from the washer tank.
CAUTION:
When installing washer pump, there should be no packing twist,
etc.
PKIA0490E
PKIA0491E
PKIA0494E

WW-22
HEADLAMP WASHER

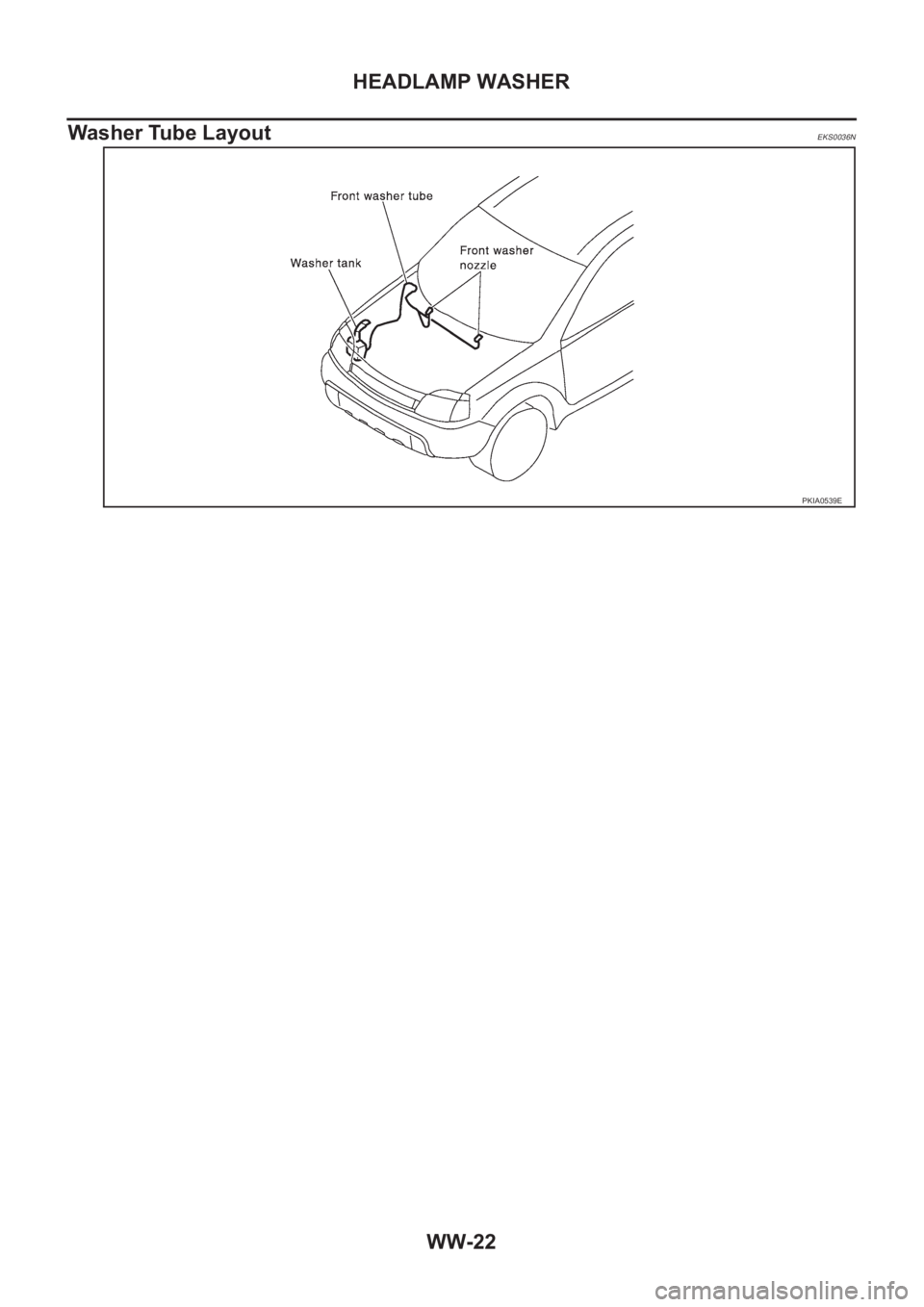

Washer Tube Layout
EKS0036N
PKIA0539E
