NISSAN X-TRAIL 2003 Electronic Repair Manual

DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-737
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS004RW
1.CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
3. Disconnect crankshaft position sensor (TDC) harness connector
and ECM harness connector.
4. Check harness continuity between ECM terminal B20 and
crankshaft position sensor (TDC) terminal 1. Refer to Wiring
Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2.CHECK CRANKSHAFT POSITION SENSOR (TDC) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between crankshaft position sensor (TDC) terminal 2 and ECM terminal B21.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK CRANKSHAFT POSITION SENSOR (TDC)
Refer toEC-737, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace crankshaft position sensor (TDC).
4.CHECK INTERMITTENT INCIDENT
Refer toEC-699, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS008YW
CRANKSHAFT POSITION SENSOR(TDC)
1. Loosen the fixing bolt of the sensor.
PBIB0385E
Continuity should exist.
PBIB0416E
Continuity should exist.

EC-738
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)

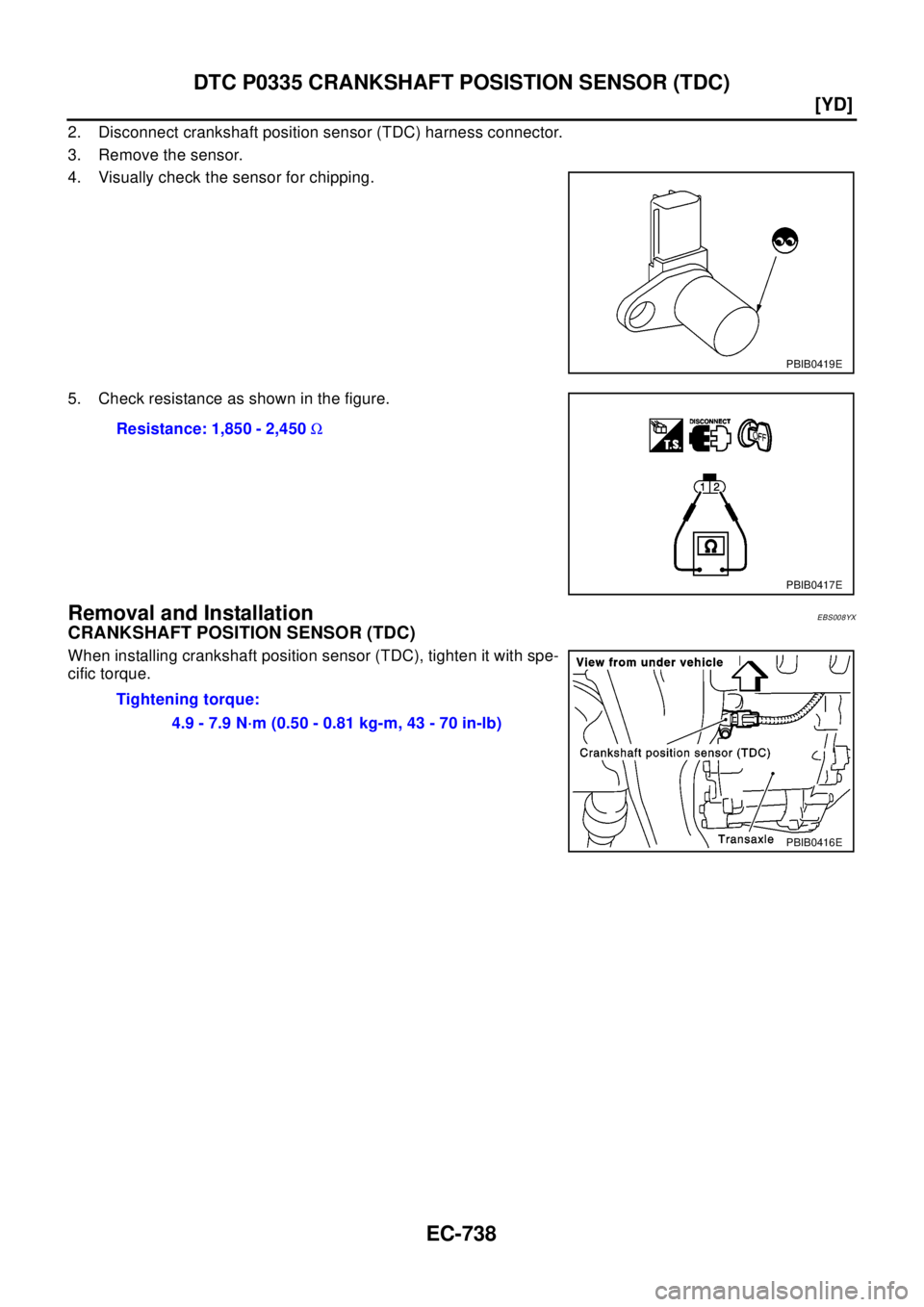

2. Disconnect crankshaft position sensor (TDC) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationEBS008YX
CRANKSHAFT POSITION SENSOR (TDC)
When installing crankshaft position sensor (TDC), tighten it with spe-
cific torque.
PBIB0419E
Resistance: 1,850 - 2,450W
PBIB0417E
Tightening torque:
4.9 - 7.9 N·m (0.50 - 0.81 kg-m, 43 - 70 in-lb)
PBIB0416E

DTC P0340 CAMSHAFT POSITION SENSOR
EC-739
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

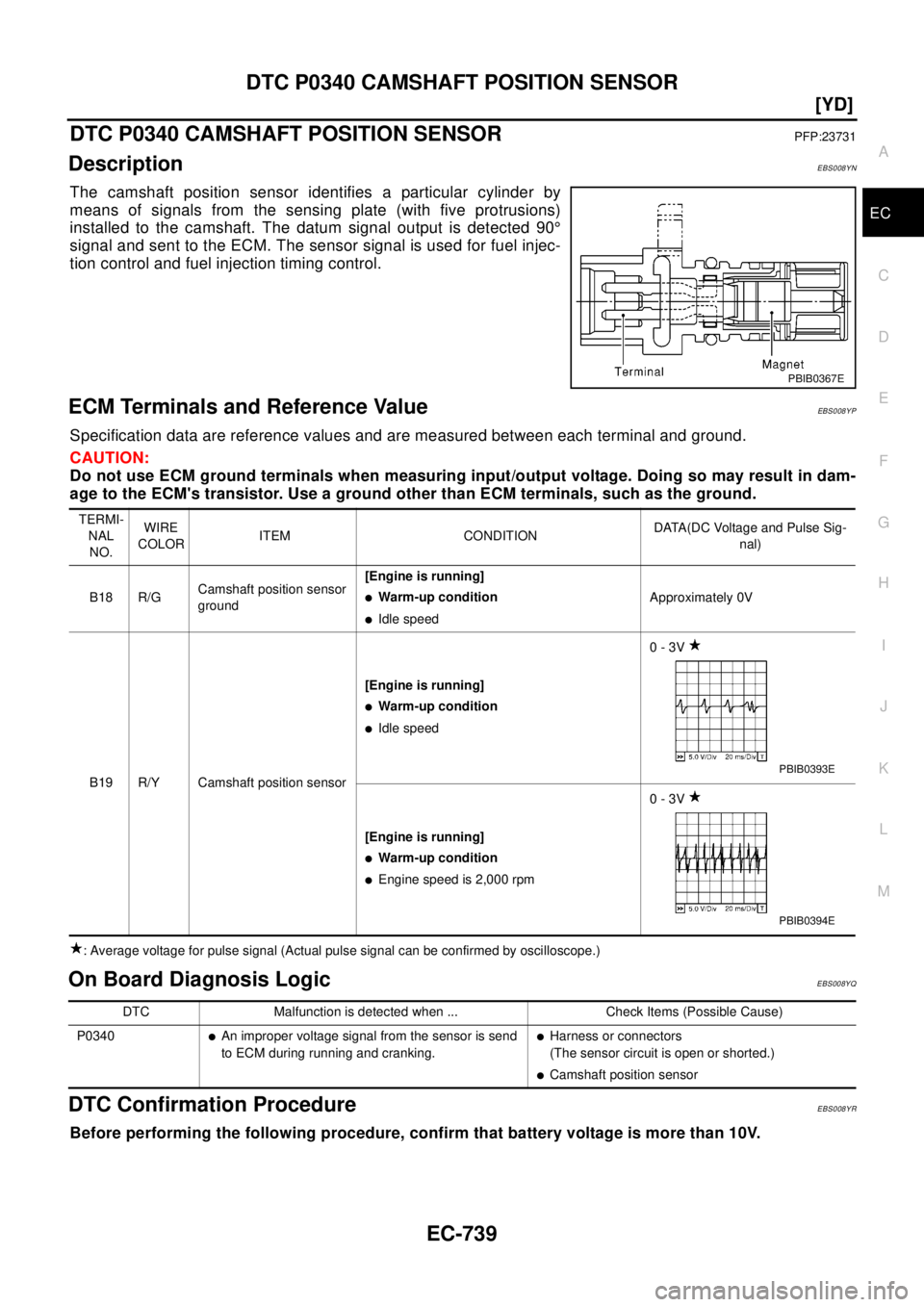

DTC P0340 CAMSHAFT POSITION SENSORPFP:23731
DescriptionEBS008YN
The camshaft position sensor identifies a particular cylinder by
means of signals from the sensing plate (with five protrusions)
installed to the camshaft. The datum signal output is detected 90°
signal and sent to the ECM. The sensor signal is used for fuel injec-
tion control and fuel injection timing control.
ECM Terminals and Reference ValueEBS008YP
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS008YQ
DTC Confirmation ProcedureEBS008YR
Before performing the following procedure, confirm that battery voltage is more than 10V.
PBIB0367E
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA(DC Voltage and Pulse Sig-
nal)
B18 R/GCamshaft position sensor
ground[Engine is running]
lWarm-up condition
lIdle speedApproximately 0V
B19 R/Y Camshaft position sensor[Engine is running]
lWarm-up condition
lIdle speed0-3V
[Engine is running]
lWarm-up condition
lEngine speed is 2,000 rpm0-3V
PBIB0393E
PBIB0394E
DTC Malfunction is detected when ... Check Items (Possible Cause)
P0340
lAn improper voltage signal from the sensor is send
to ECM during running and cranking.lHarness or connectors
(The sensor circuit is open or shorted.)
lCamshaft position sensor

EC-740
[YD]
DTC P0340 CAMSHAFT POSITION SENSOR
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.
2. Crank engine for at least 1 second.
3. Start engine and run it for at least 2 seconds at idle speed.
4. If DTC is detected, go toEC-742, "
Diagnostic Procedure".
SEF817Y

DTC P0340 CAMSHAFT POSITION SENSOR
EC-741
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

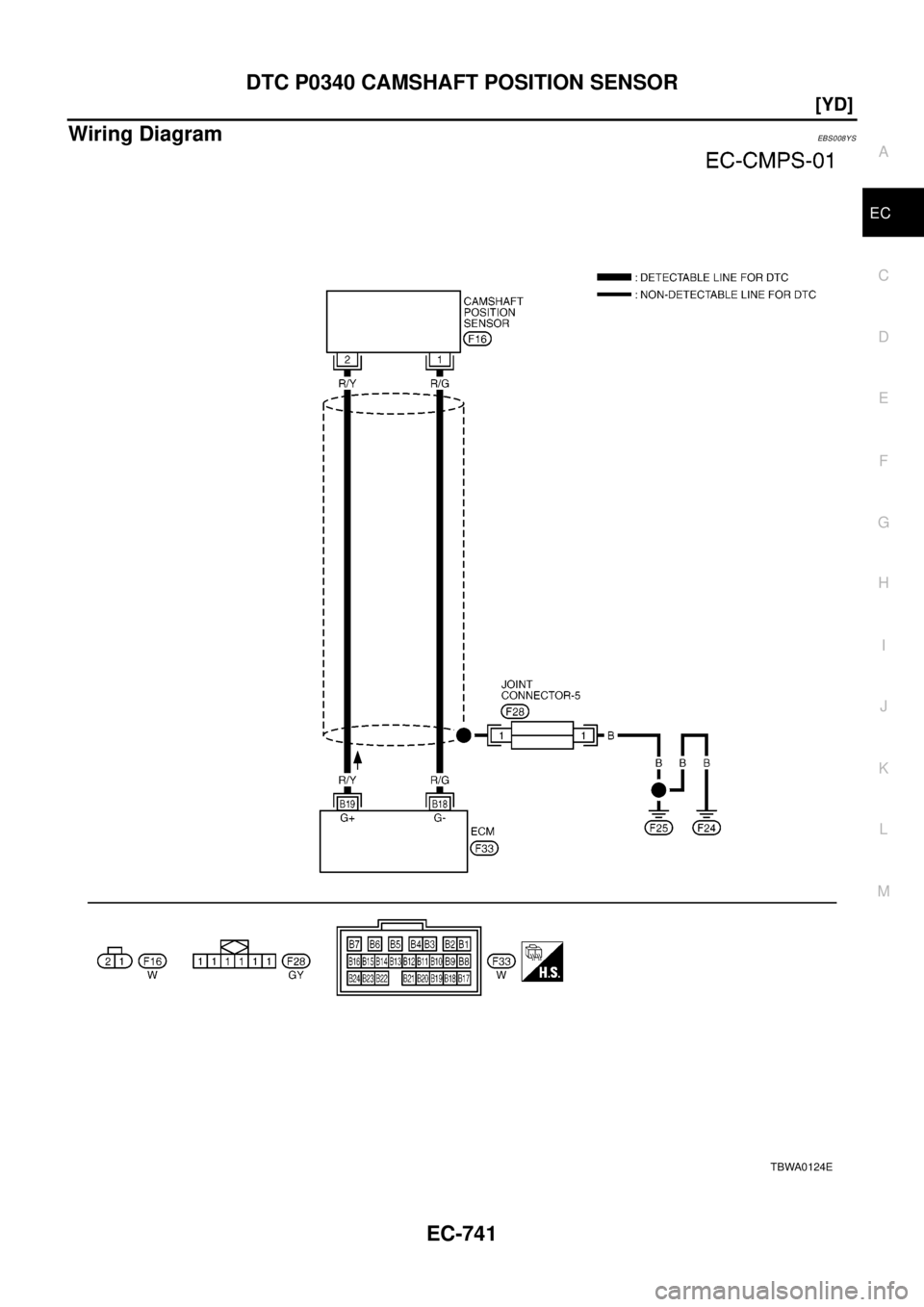

Wiring DiagramEBS008YS
TBWA0124E

EC-742
[YD]
DTC P0340 CAMSHAFT POSITION SENSOR

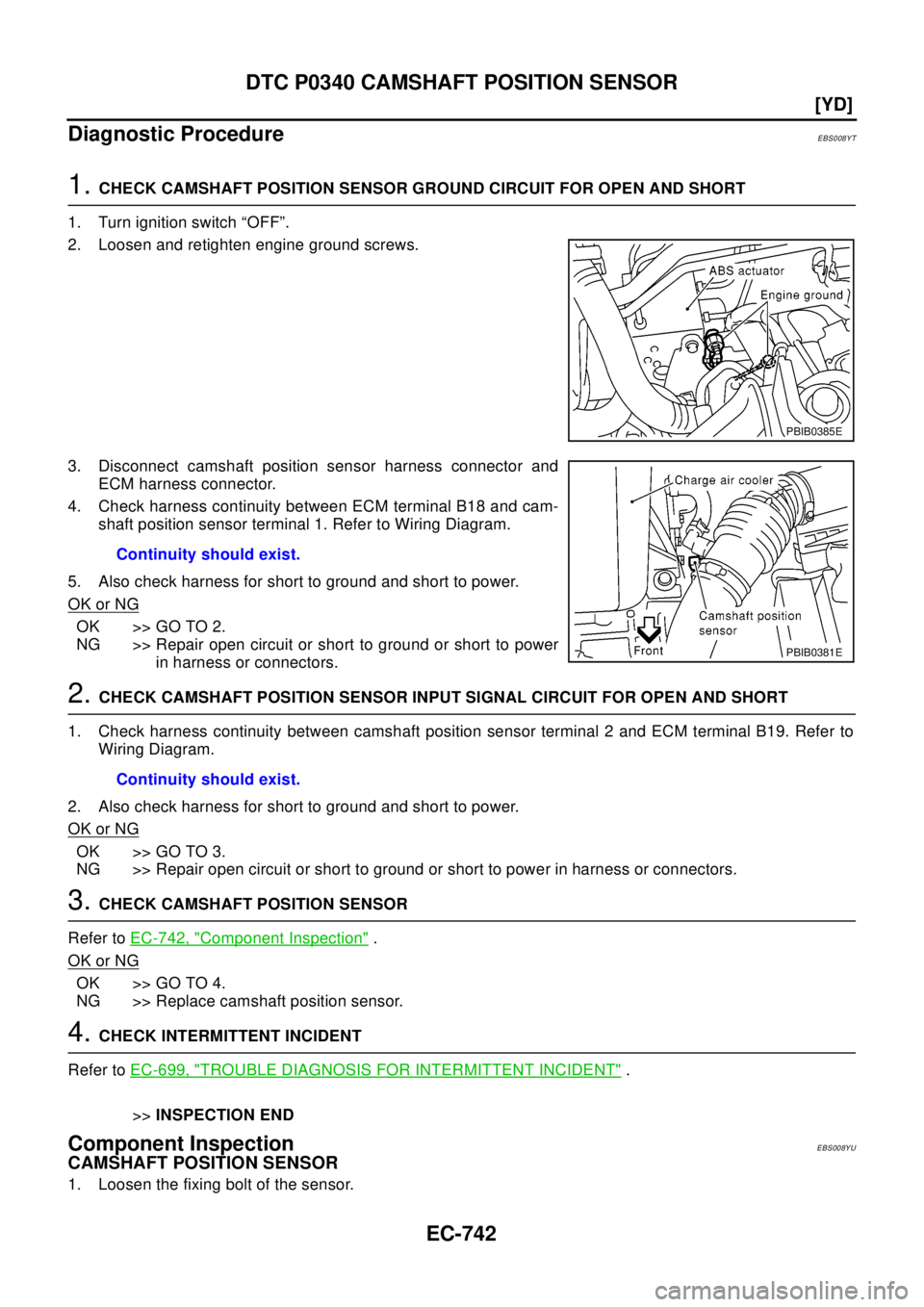

Diagnostic Procedure
EBS008YT
1.CHECK CAMSHAFT POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
3. Disconnect camshaft position sensor harness connector and
ECM harness connector.
4. Check harness continuity between ECM terminal B18 and cam-
shaft position sensor terminal 1. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2.CHECK CAMSHAFT POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between camshaft position sensor terminal 2 and ECM terminal B19. Refer to
Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK CAMSHAFT POSITION SENSOR
Refer toEC-742, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace camshaft position sensor.
4.CHECK INTERMITTENT INCIDENT
Refer toEC-699, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS008YU
CAMSHAFT POSITION SENSOR
1. Loosen the fixing bolt of the sensor.
PBIB0385E
Continuity should exist.
PBIB0381E
Continuity should exist.

DTC P0340 CAMSHAFT POSITION SENSOR
EC-743
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

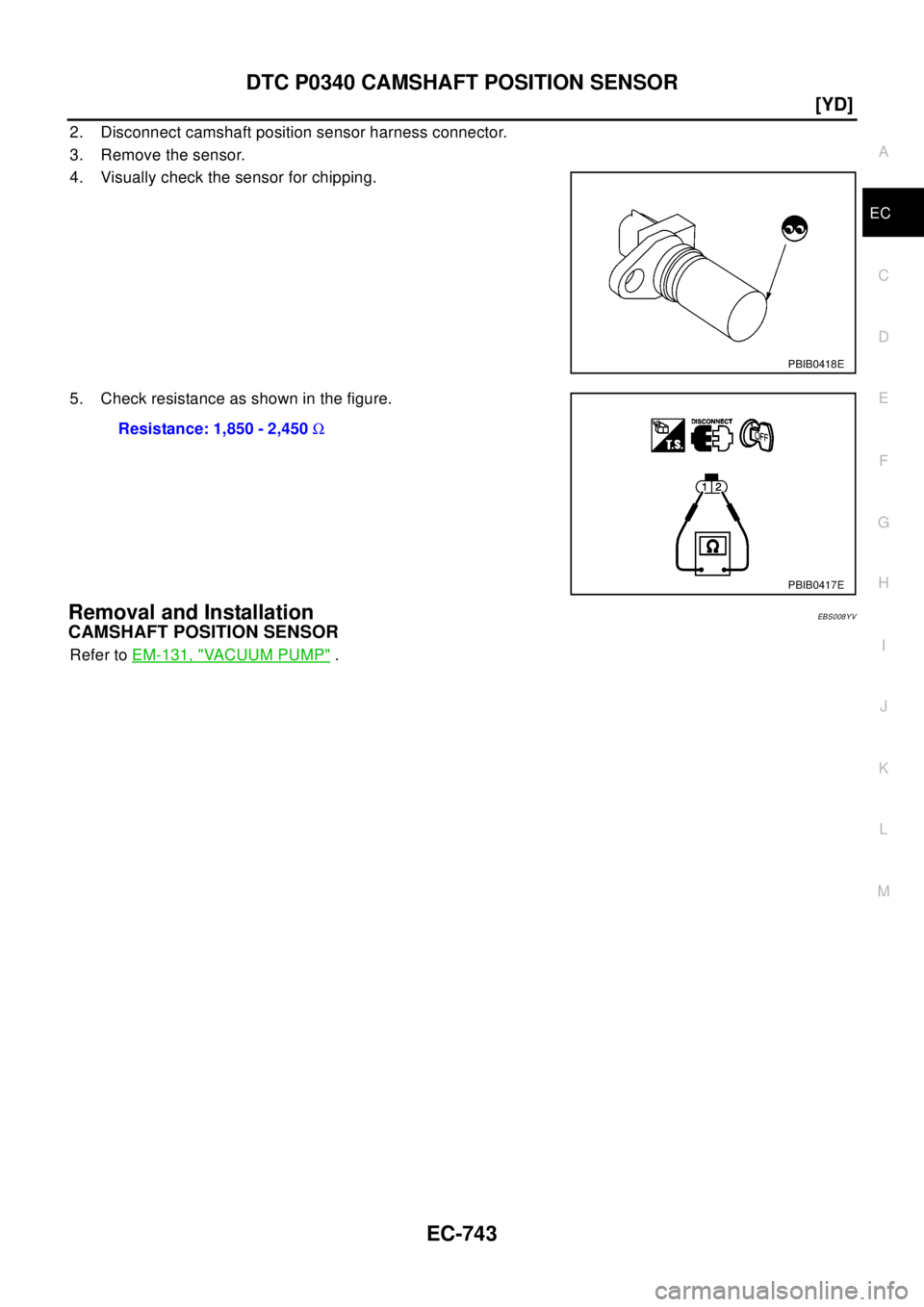

2. Disconnect camshaft position sensor harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationEBS008YV
CAMSHAFT POSITION SENSOR
Refer toEM-131, "VACUUM PUMP".
PBIB0418E
Resistance: 1,850 - 2,450W
PBIB0417E

EC-744
[YD]
DTC P0500 VEHICLE SPEED SENSOR (VSS)

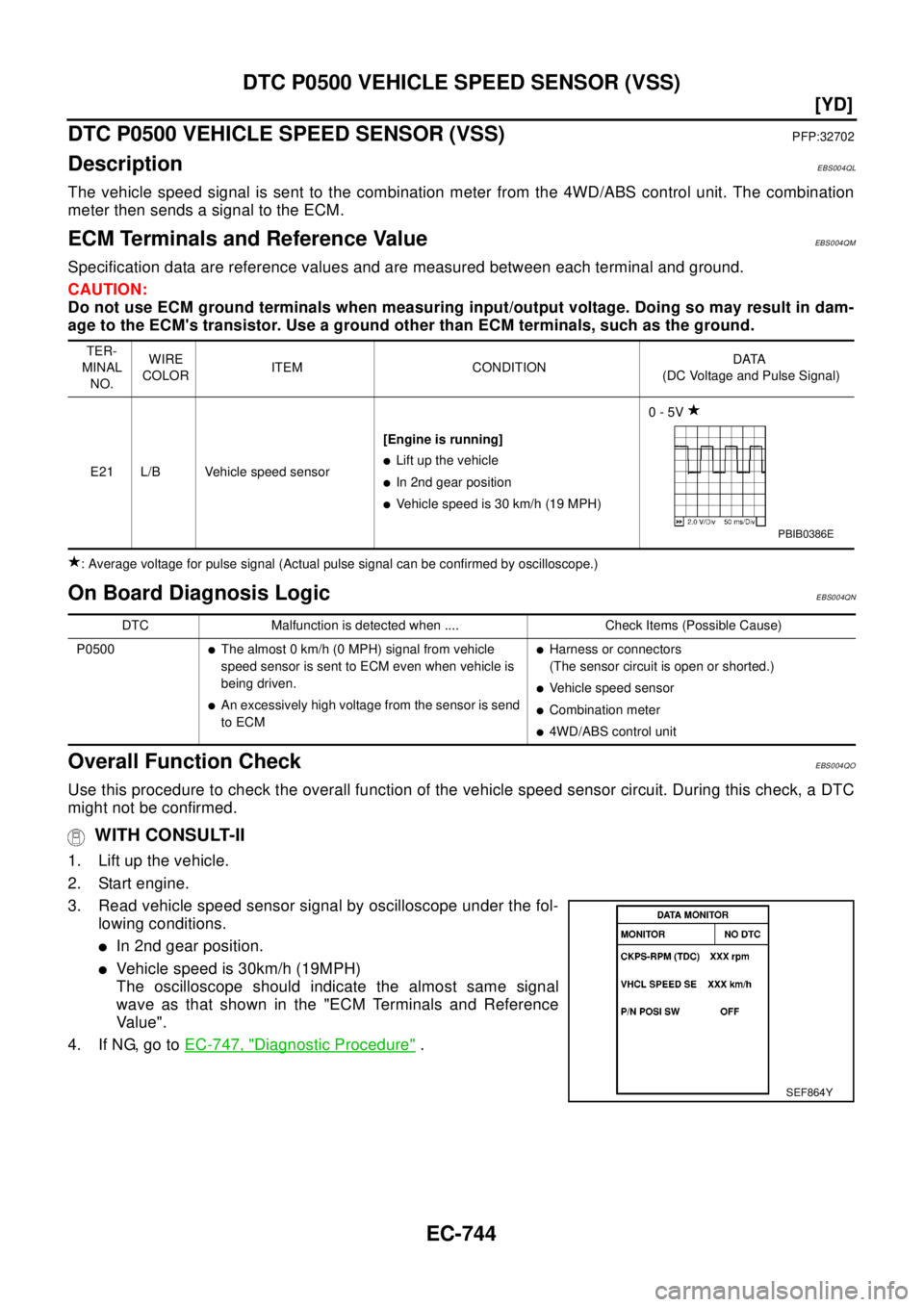

DTC P0500 VEHICLE SPEED SENSOR (VSS)
PFP:32702
DescriptionEBS004QL
The vehicle speed signal is sent to the combination meter from the 4WD/ABS control unit. The combination
meter then sends a signal to the ECM.
ECM Terminals and Reference ValueEBS004QM
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS004QN
Overall Function CheckEBS004QO
Use this procedure to check the overall function of the vehicle speed sensor circuit. During this check, a DTC
might not be confirmed.
WITH CONSULT-II
1. Lift up the vehicle.
2. Start engine.
3. Read vehicle speed sensor signal by oscilloscope under the fol-
lowing conditions.
lIn 2nd gear position.
lVehicle speed is 30km/h (19MPH)
The oscilloscope should indicate the almost same signal
wave as that shown in the "ECM Terminals and Reference
Value".
4. If NG, go toEC-747, "
Diagnostic Procedure".
TER-
MINAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
E21 L/B Vehicle speed sensor[Engine is running]
lLift up the vehicle
lIn 2nd gear position
lVehicle speed is 30 km/h (19 MPH)0-5V
PBIB0386E
DTC Malfunction is detected when .... Check Items (Possible Cause)
P0500
lThe almost 0 km/h (0 MPH) signal from vehicle
speed sensor is sent to ECM even when vehicle is
being driven.
lAn excessively high voltage from the sensor is send
to ECM
lHarness or connectors
(The sensor circuit is open or shorted.)
lVehicle speed sensor
lCombination meter
l4WD/ABS control unit
SEF864Y

DTC P0500 VEHICLE SPEED SENSOR (VSS)
EC-745
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

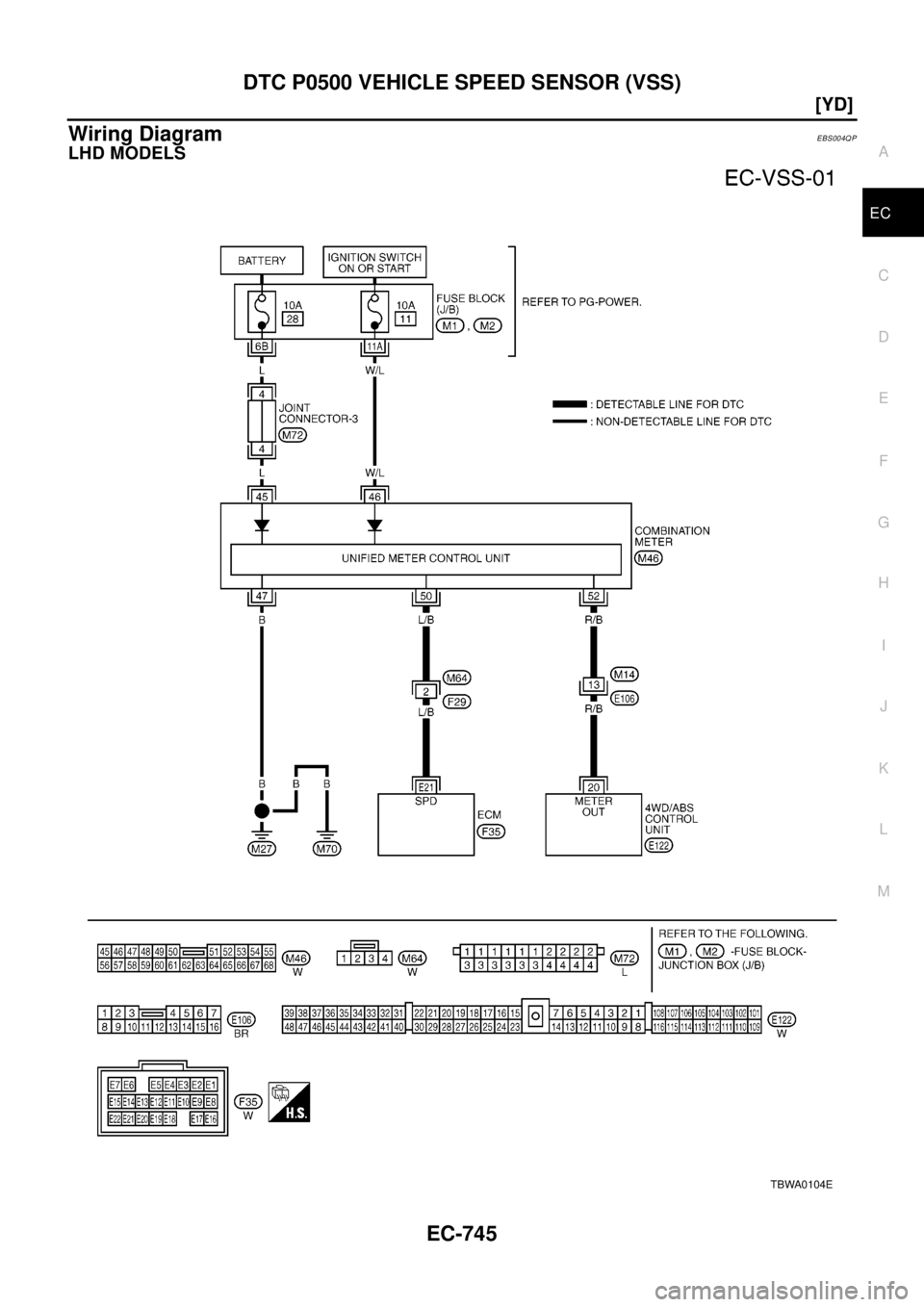

Wiring DiagramEBS004QP
LHD MODELS
TBWA0104E

EC-746
[YD]
DTC P0500 VEHICLE SPEED SENSOR (VSS)

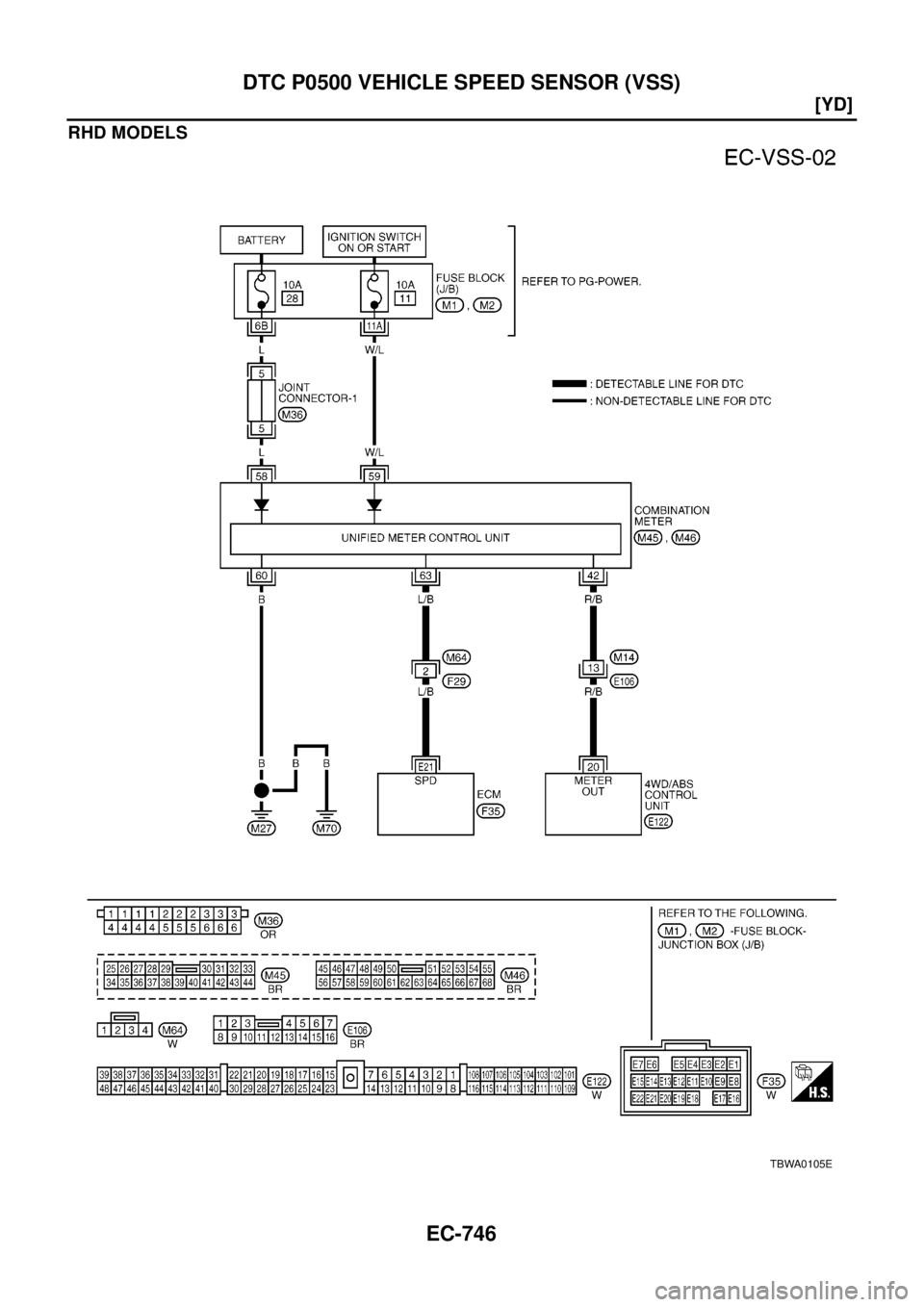

RHD MODELS
TBWA0105E
