NISSAN X-TRAIL 2003 Electronic Repair Manual

FUEL SUPPLY PUMP
EM-141
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
17. Hold fuel supply pump sprocket and remove bolt.
a. Insert positioning stopper pin (SST) into the hole 6 mm (0.24 in)
in the diameter on the fuel supply pump sprocket.
b. Using a TORX wrench (SST), turn pump shaft little by little to
adjust the position of fuel supply pump sprocket so that the
holes align.
c. Push positioning stopper pin (SST) through pump sprocket to
fuel supply pump body to hold pump sprocket.
lInsert the positioning stopper pin until its flange contacts the fuel
supply pump sprocket.
lRemove the TORX wrench (SST).
18. Using a hexagon-head wrench [face to face 6 mm (0.24 in) SST]
remove bolts to fuel supply pump sprocket.
SBIA0208E
SBIA0215E
SBIA0209E
SBIA0216E

EM-142
[YD22DDTi]
FUEL SUPPLY PUMP
19. Using the sprocket holder (SST), hold the fuel supply pump
sprocket to prevent falling.
lAs for the sprocket holder, install fuel supply pump mounting
bolt through hole of KV11106060 as shown in figure.
lWhen the sprocket holder is installed, if the positioning stop-
per pin interferes, pull out the stopper pin approximately 10
mm (0.39 in), then install it.
lAfter the sprocket holder is installed temporarily, insert the
extension bar (SST) and TORX socket in the three holes A.
After positioning the holes, tighten the holder mounting bolts.
lThe length of the sprocket holder mounting bolts should be
approximately 15 mm (0.59 in) (M6 thread length).
lMake sure that the a- and b-faces of the sprocket holder con-
tact the bottom side of the sprocket (small diameter side).
CAUTION:
Do not remove the sprocket holder until the fuel supply
pump is installed.
lAfter the sprocket holder is installed, pull out the positioning
stopper pin (SST) from the fuel supply pump sprocket.
20. Using the extension bar [SST: whole length 43 mm (1.69 in)] and
the TORX socket (Q6-E12: commercially available), remove the
mounting bolts, them remove the fuel supply pump toward the
rear of the engine
CAUTION:
Do not disassemble or adjust the fuel supply pump.
SBIA0217E
SBIA0218E
SBIA0219E
SBIA0220E

FUEL SUPPLY PUMP
EM-143
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

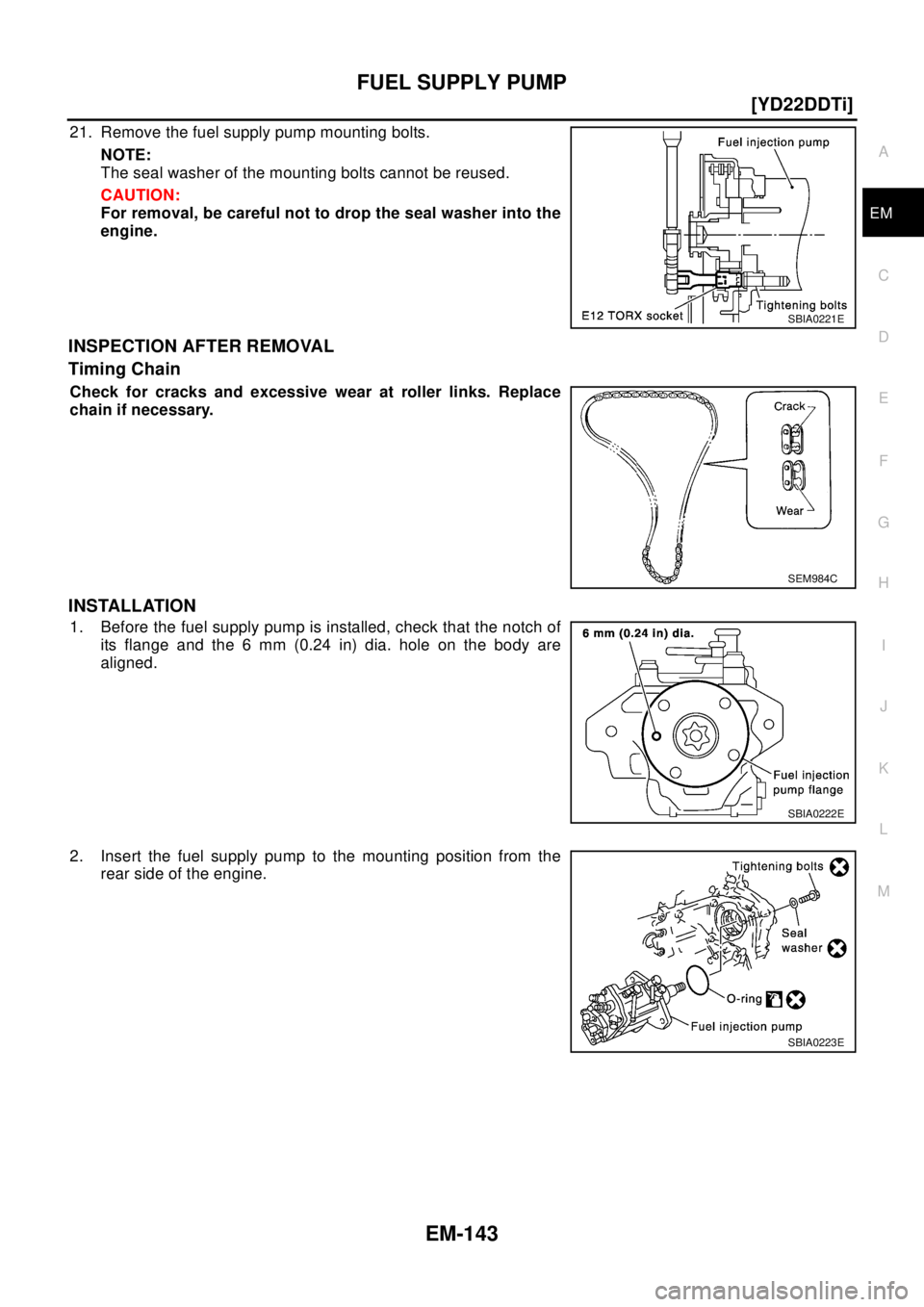

21. Remove the fuel supply pump mounting bolts.
NOTE:
The seal washer of the mounting bolts cannot be reused.
CAUTION:
For removal, be careful not to drop the seal washer into the
engine.
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and excessive wear at roller links. Replace
chain if necessary.
INSTALLATION
1. Before the fuel supply pump is installed, check that the notch of
its flange and the 6 mm (0.24 in) dia. hole on the body are
aligned.
2. Insert the fuel supply pump to the mounting position from the
rear side of the engine.
SBIA0221E
SEM984C
SBIA0222E
SBIA0223E

EM-144
[YD22DDTi]
FUEL SUPPLY PUMP

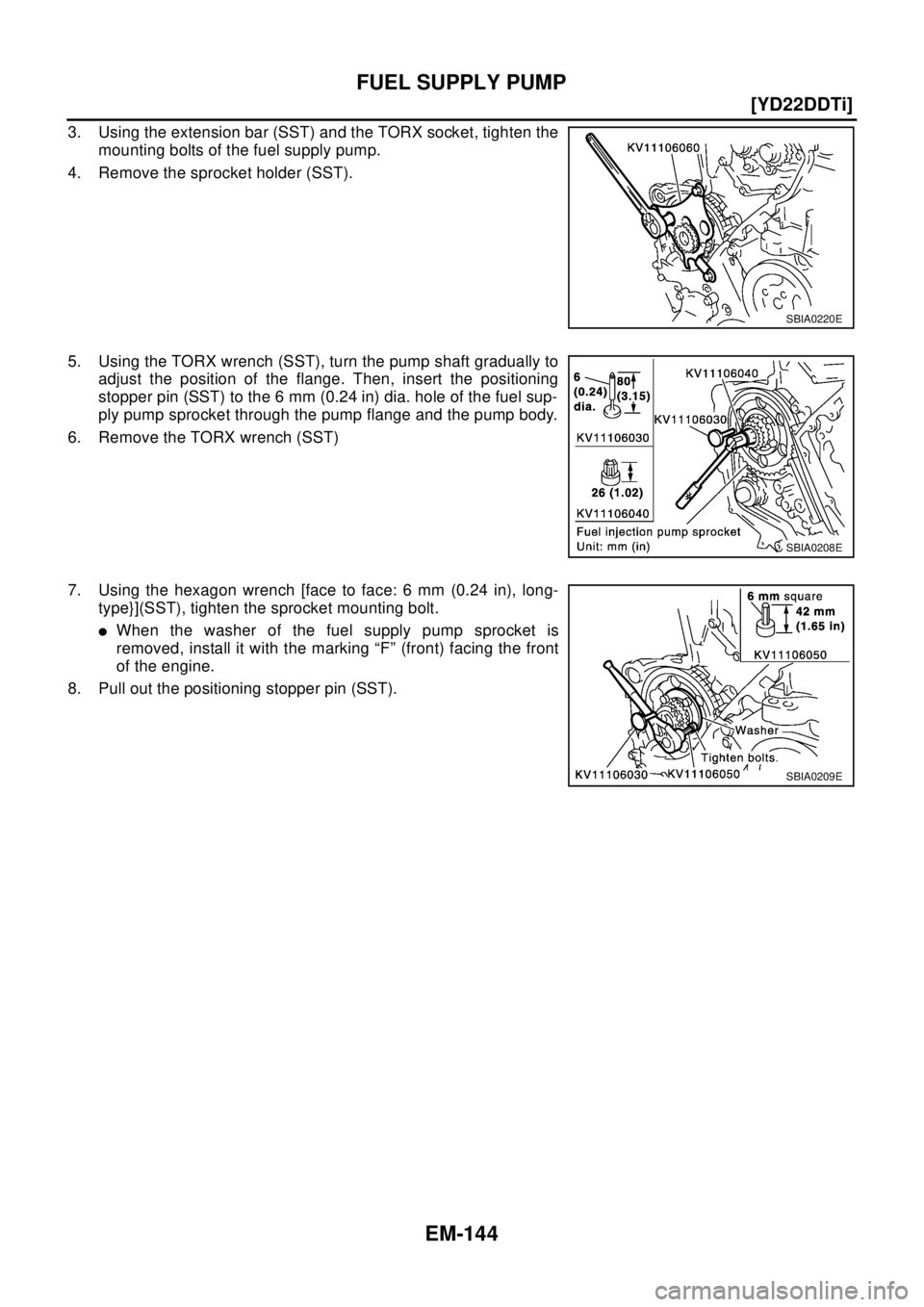

3. Using the extension bar (SST) and the TORX socket, tighten the
mounting bolts of the fuel supply pump.
4. Remove the sprocket holder (SST).
5. Using the TORX wrench (SST), turn the pump shaft gradually to
adjust the position of the flange. Then, insert the positioning
stopper pin (SST) to the 6 mm (0.24 in) dia. hole of the fuel sup-
ply pump sprocket through the pump flange and the pump body.
6. Remove the TORX wrench (SST)
7. Using the hexagon wrench [face to face: 6 mm (0.24 in), long-
type}](SST), tighten the sprocket mounting bolt.
lWhen the washer of the fuel supply pump sprocket is
removed, install it with the marking “F” (front) facing the front
of the engine.
8. Pull out the positioning stopper pin (SST).
SBIA0220E
SBIA0208E
SBIA0209E

FUEL SUPPLY PUMP
EM-145
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

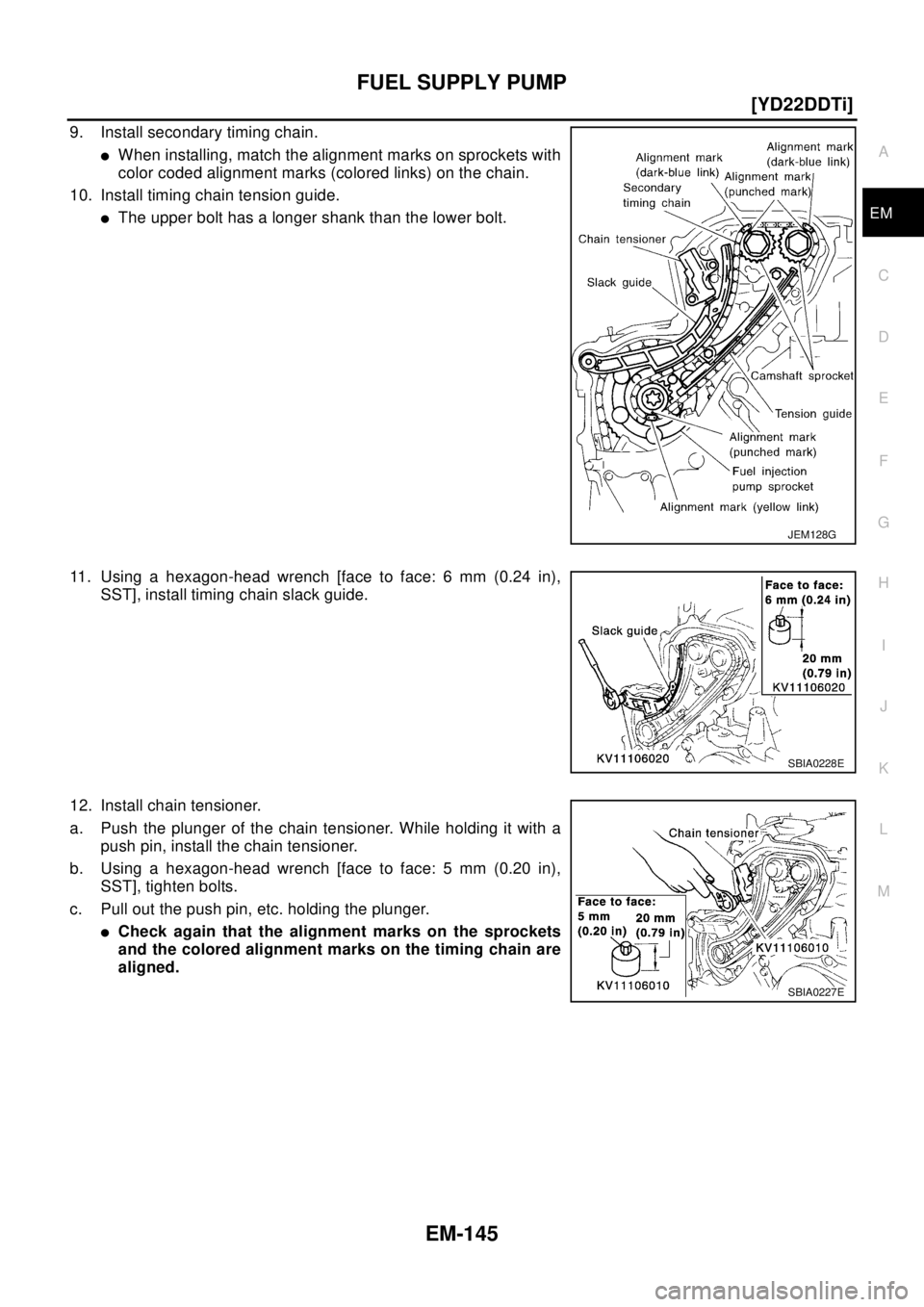

9. Install secondary timing chain.
lWhen installing, match the alignment marks on sprockets with
color coded alignment marks (colored links) on the chain.
10. Install timing chain tension guide.
lThe upper bolt has a longer shank than the lower bolt.
11. Using a hexagon-head wrench [face to face: 6 mm (0.24 in),
SST], install timing chain slack guide.
12. Install chain tensioner.
a. Push the plunger of the chain tensioner. While holding it with a
push pin, install the chain tensioner.
b. Using a hexagon-head wrench [face to face: 5 mm (0.20 in),
SST], tighten bolts.
c. Pull out the push pin, etc. holding the plunger.
lCheck again that the alignment marks on the sprockets
and the colored alignment marks on the timing chain are
aligned.
JEM128G
SBIA0228E
SBIA0227E

EM-146
[YD22DDTi]
FUEL SUPPLY PUMP
13. Install front chain case.
a. Install tension guide on the back surface of front chain case.
lHold front chain case vertically when installing. Tension guide
may come off if front chain case is tilted.
b. Apply Genuine Liquid Gasket or equivalent (Refer toEM-103,
"Precautions for Liquid Gasket".) on both ends of arched area
(locations where rear chain case is adjoined) as shown in the
figure.
c. Install front chain case.
lWhen installing, align dowel pin on oil pump case with the pin
hole.
lInstall No. 6, 10 and 11 bolts with the rubber washer to the
front chain case.
d. Tighten fixing bolts in the numerical order shown in the figure.
e. After tightening all the bolts, re-tighten in the same order.
14. Install the fuel supply pump rear bracket.
lTighten fixing bolts in the numerical order shown in the figure.
15. Install the harness connector from fuel supply pump.
16. Install fuel hoses.
17. Hereafter, install in the reverse order of removal.
SBIA0189E
JEF370Y
JEM121G
SBIA0214E

ROCKER COVER
EM-147
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

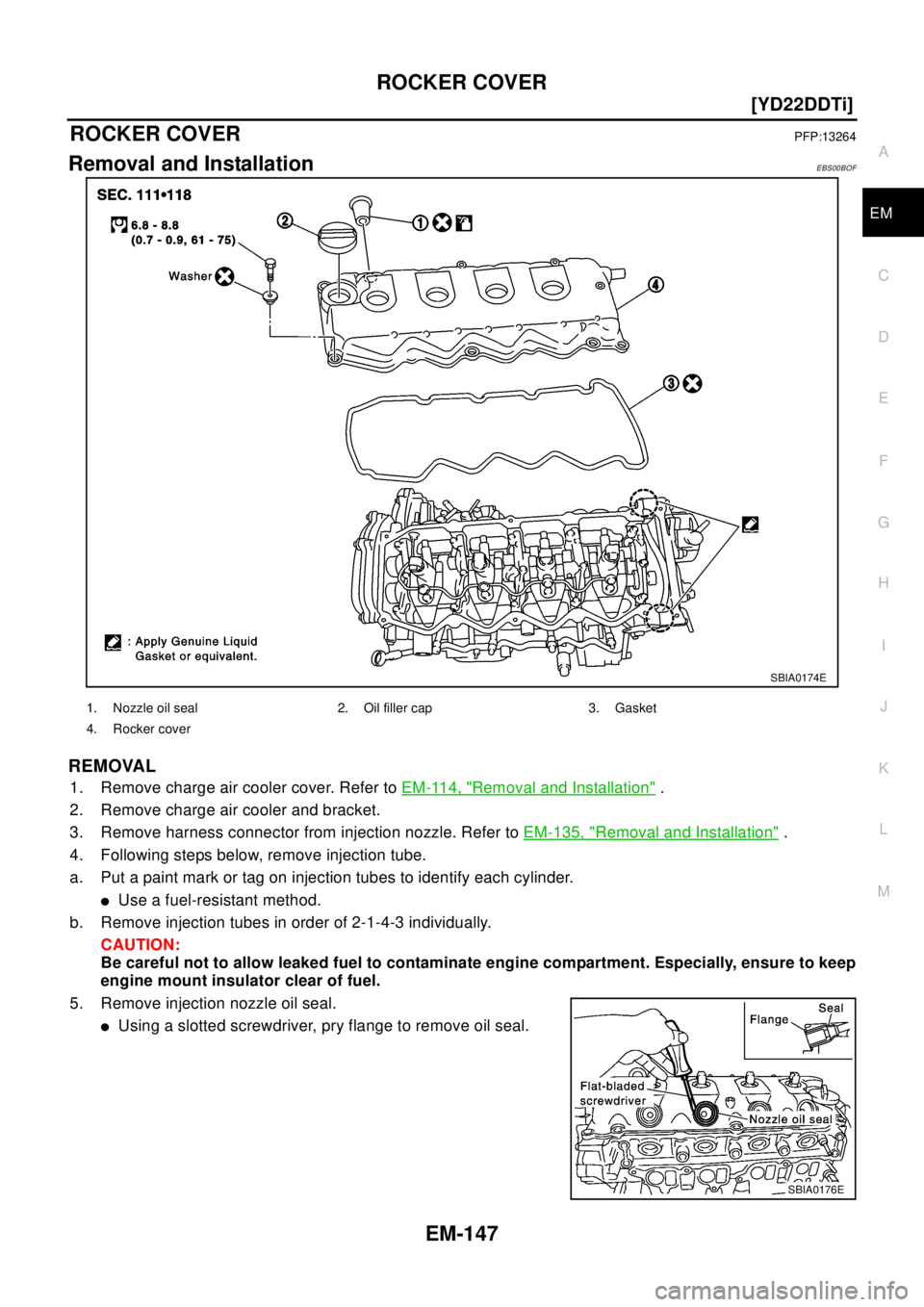

ROCKER COVERPFP:13264
Removal and InstallationEBS00BOF
REMOVAL
1. Remove charge air cooler cover. Refer toEM-114, "Removal and Installation".
2. Remove charge air cooler and bracket.
3. Remove harness connector from injection nozzle. Refer toEM-135, "
Removal and Installation".
4. Following steps below, remove injection tube.
a. Put a paint mark or tag on injection tubes to identify each cylinder.
lUse a fuel-resistant method.
b. Remove injection tubes in order of 2-1-4-3 individually.
CAUTION:
Be careful not to allow leaked fuel to contaminate engine compartment. Especially, ensure to keep
engine mount insulator clear of fuel.
5. Remove injection nozzle oil seal.
lUsing a slotted screwdriver, pry flange to remove oil seal.
SBIA0174E
1. Nozzle oil seal 2. Oil filler cap 3. Gasket
4. Rocker cover
SBIA0176E

EM-148
[YD22DDTi]
ROCKER COVER

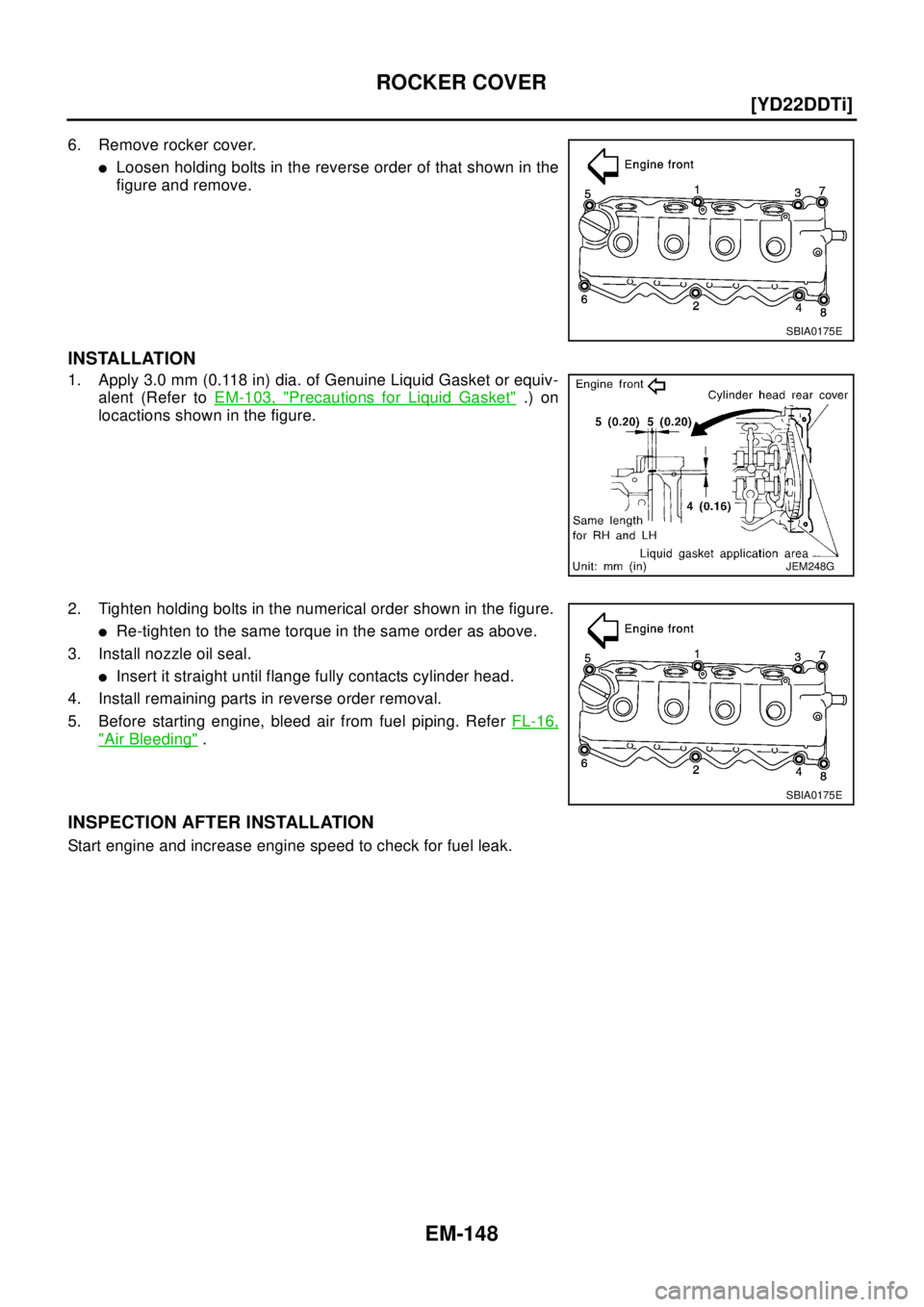

6. Remove rocker cover.
lLoosen holding bolts in the reverse order of that shown in the
figure and remove.
INSTALLATION
1. Apply 3.0 mm (0.118 in) dia. of Genuine Liquid Gasket or equiv-
alent (Refer toEM-103, "
Precautions for Liquid Gasket".) on
locactions shown in the figure.
2. Tighten holding bolts in the numerical order shown in the figure.
lRe-tighten to the same torque in the same order as above.
3. Install nozzle oil seal.
lInsert it straight until flange fully contacts cylinder head.
4. Install remaining parts in reverse order removal.
5. Before starting engine, bleed air from fuel piping. ReferFL-16,
"Air Bleeding".
INSPECTION AFTER INSTALLATION
Start engine and increase engine speed to check for fuel leak.
SBIA0175E
JEM248G
SBIA0175E

CAMSHAFT
EM-149
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

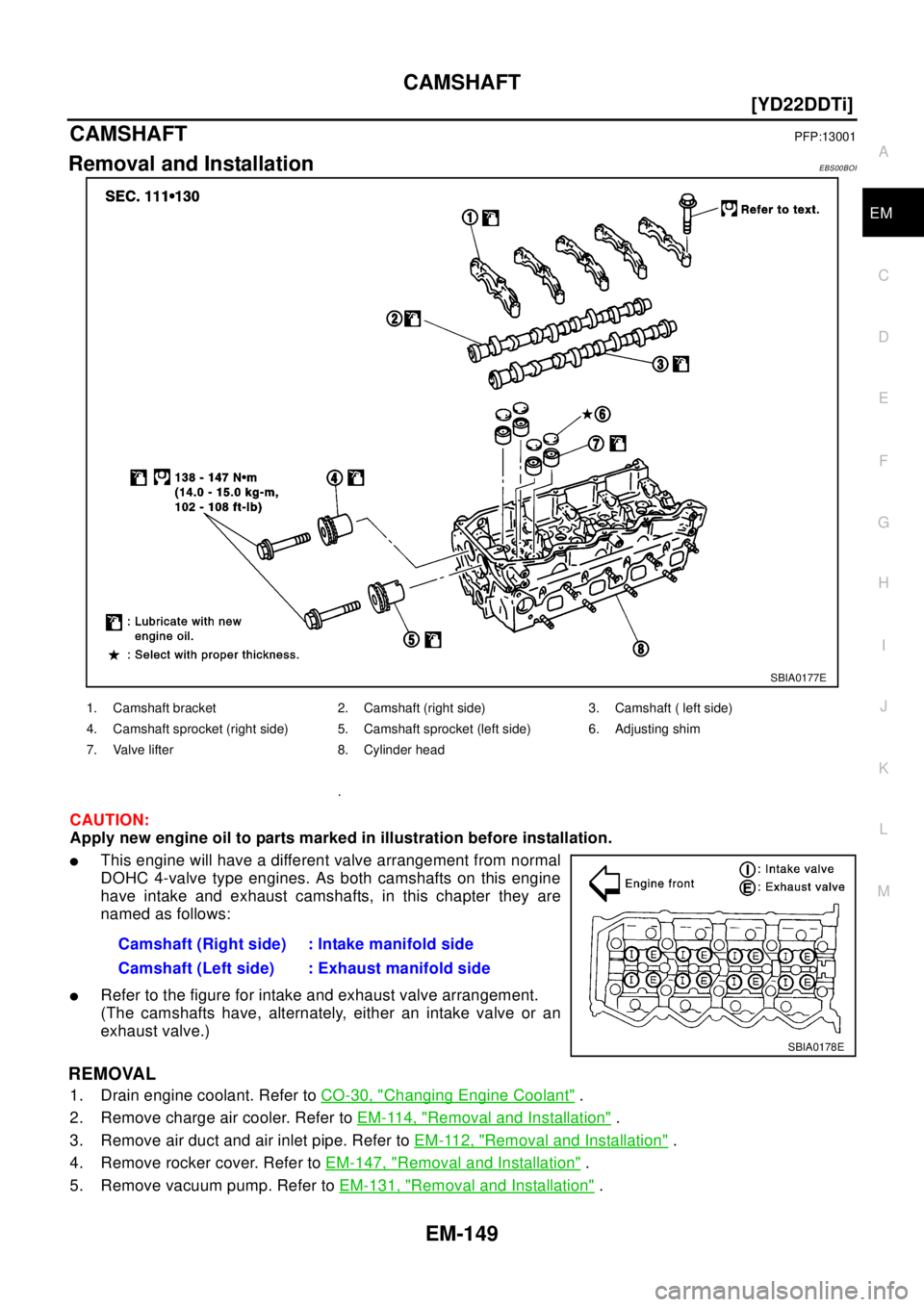

CAMSHAFTPFP:13001
Removal and InstallationEBS00BOI
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
lThis engine will have a different valve arrangement from normal
DOHC 4-valve type engines. As both camshafts on this engine
have intake and exhaust camshafts, in this chapter they are
named as follows:
lRefer to the figure for intake and exhaust valve arrangement.
(The camshafts have, alternately, either an intake valve or an
exhaust valve.)
REMOVAL
1. Drain engine coolant. Refer toCO-30, "Changing Engine Coolant".
2. Remove charge air cooler. Refer toEM-114, "
Removal and Installation".
3. Remove air duct and air inlet pipe. Refer toEM-112, "
Removal and Installation".
4. Remove rocker cover. Refer toEM-147, "
Removal and Installation".
5. Remove vacuum pump. Refer toEM-131, "
Removal and Installation".
SBIA0177E
1. Camshaft bracket 2. Camshaft (right side) 3. Camshaft ( left side)
4. Camshaft sprocket (right side) 5. Camshaft sprocket (left side) 6. Adjusting shim
7. Valve lifter 8. Cylinder head
.
Camshaft (Right side) : Intake manifold side
Camshaft (Left side) : Exhaust manifold side
SBIA0178E

EM-150
[YD22DDTi]
CAMSHAFT
6. Remove injection tube and fuel injector. Refer toEM-135, "Removal and Installation".
7. Remove secondary timing chain. Refer toEM-158, "
Removal and Installation".
8. Set the No. 1 cylinder at TDC on its compression stroke.
9. Remove the camshaft stroke.
lLoosen the camshaft gear installation bolt by fixing the hexag-
onal portion of the camshaft.
10. Remove the camshaft.
lPlace distinguishing marks on the right and left sides with
paint.
lLoosen and remove the installation bolt in reverse order
shown in the figure.
11. Remove the adjusting shim and valve lifter.
lRemove by taking notice of the installation position, and place
outside engine in order to prevent confusion.
INSPECTION AFTER REMOVAL
Visual Check of Camshaft
lCheck the camshaft for one sided wear or scratches.
lReplace the camshaft if there are abnormalities.
Camshaft Runout
lPrepare V-block on a flat surface and secure camshaft journals
No. 1 and No. 5.
lSet the dial gauge vertically on journal No. 3.
lRotate camshaft in one direction by hand, then read needle
movement on dial indicator. (Total indicator reading)
Height of Cam Nose
Measure by using a micrometer.
JEM159G
JEM160G
Limit : 0.04 mm (0.0016 in)
JEM161G
Standard:
Intake : 39.505 - 39.695 mm (1.5553 - 1.5628 in
Exhaust : 39.905 - 40.095 mm (1.5711 - 1.5785 in)
SEM549A
