NISSAN X-TRAIL 2003 Electronic Repair Manual

ELECTRICAL UNITS LOCATION
PG-65
C
D
E
F
G
H
I
J
L
MA
B
PG

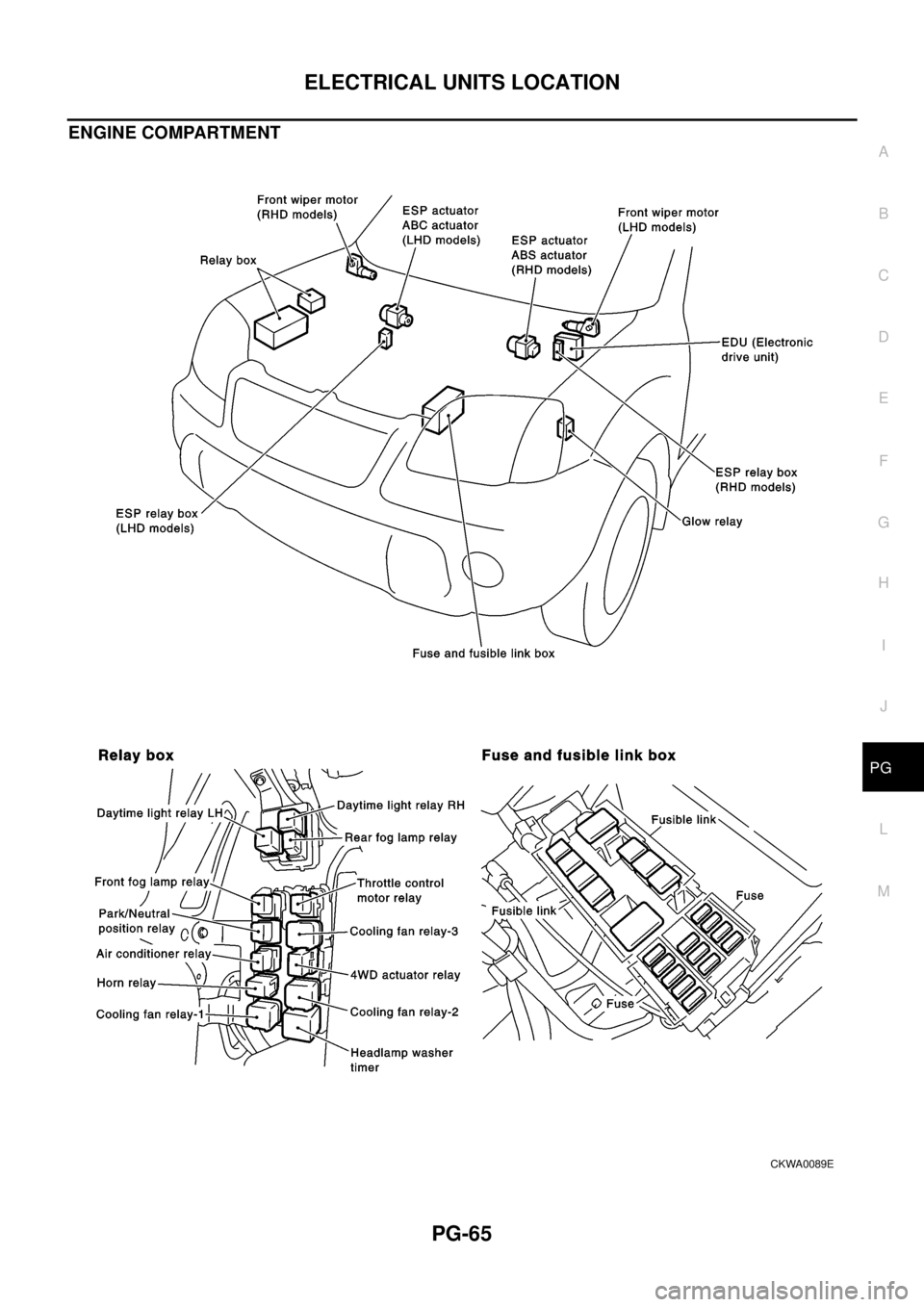

ENGINE COMPARTMENT
CKWA0089E

PG-66
ELECTRICAL UNITS LOCATION

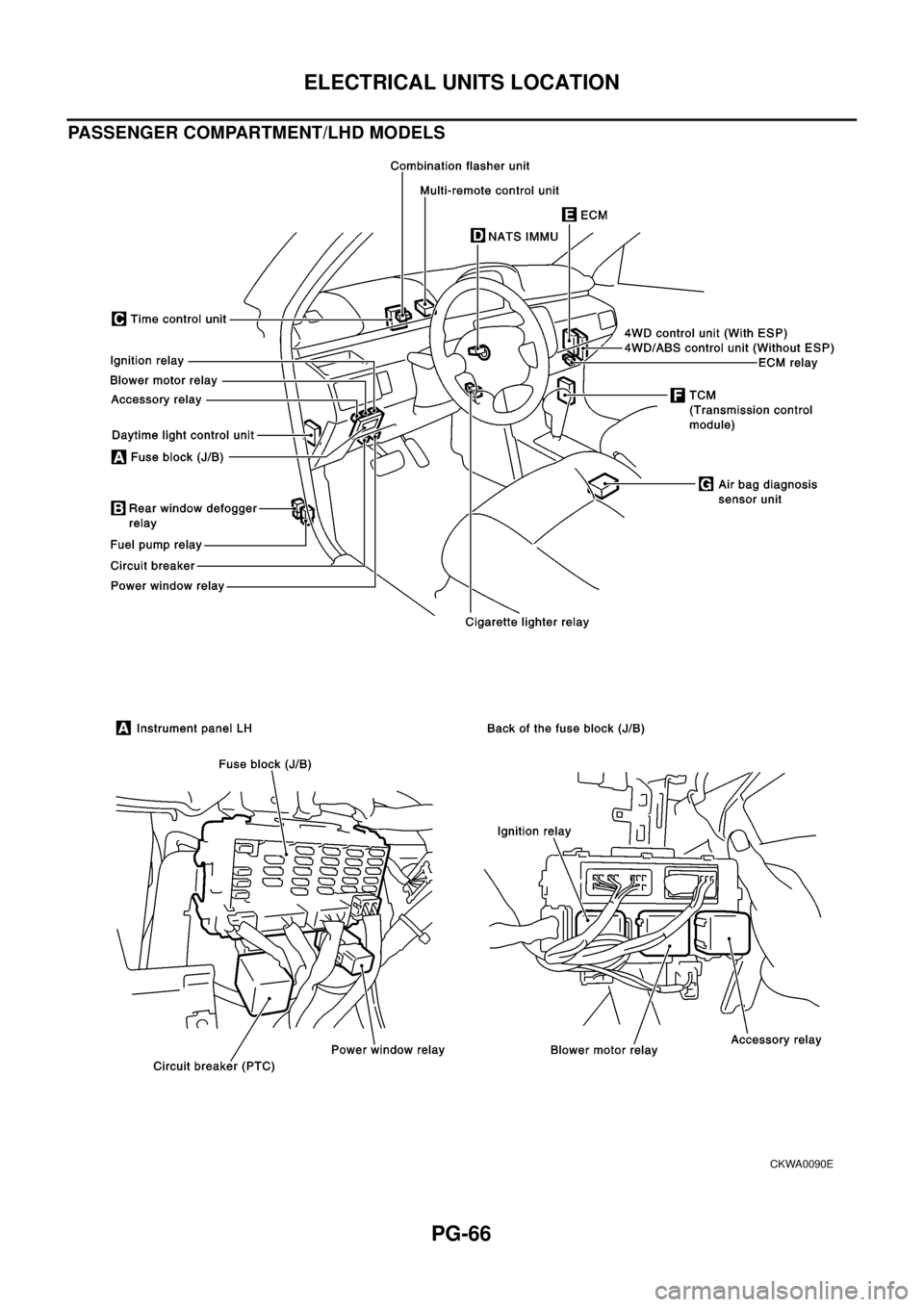

PASSENGER COMPARTMENT/LHD MODELS
CKWA0090E

ELECTRICAL UNITS LOCATION
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG

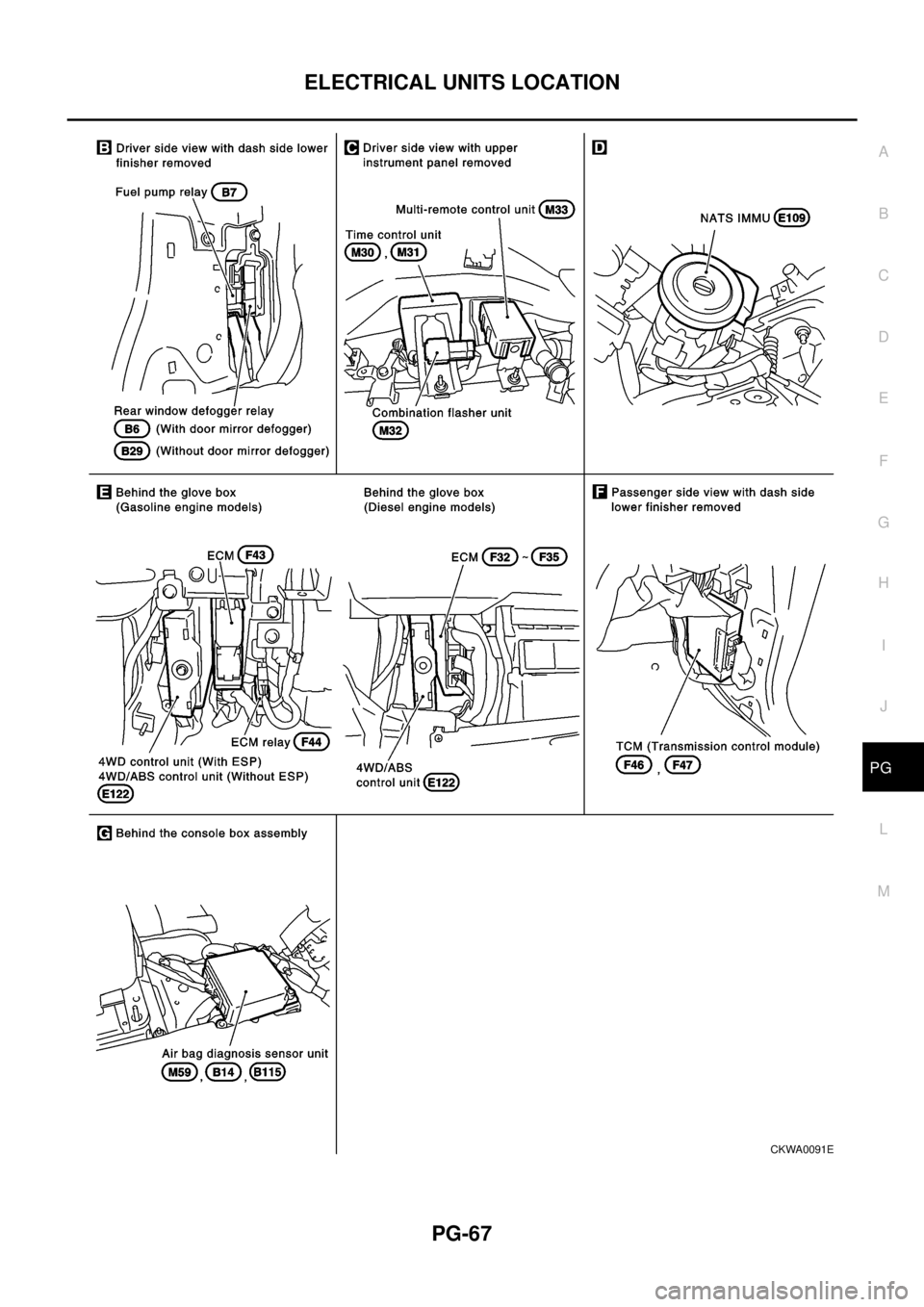

CKWA0091E

PG-68
ELECTRICAL UNITS LOCATION
PASSENGER COMPARTMENT/RHD MODELS
CKWA0092E

ELECTRICAL UNITS LOCATION
PG-69
C
D
E
F
G
H
I
J
L
MA
B
PG

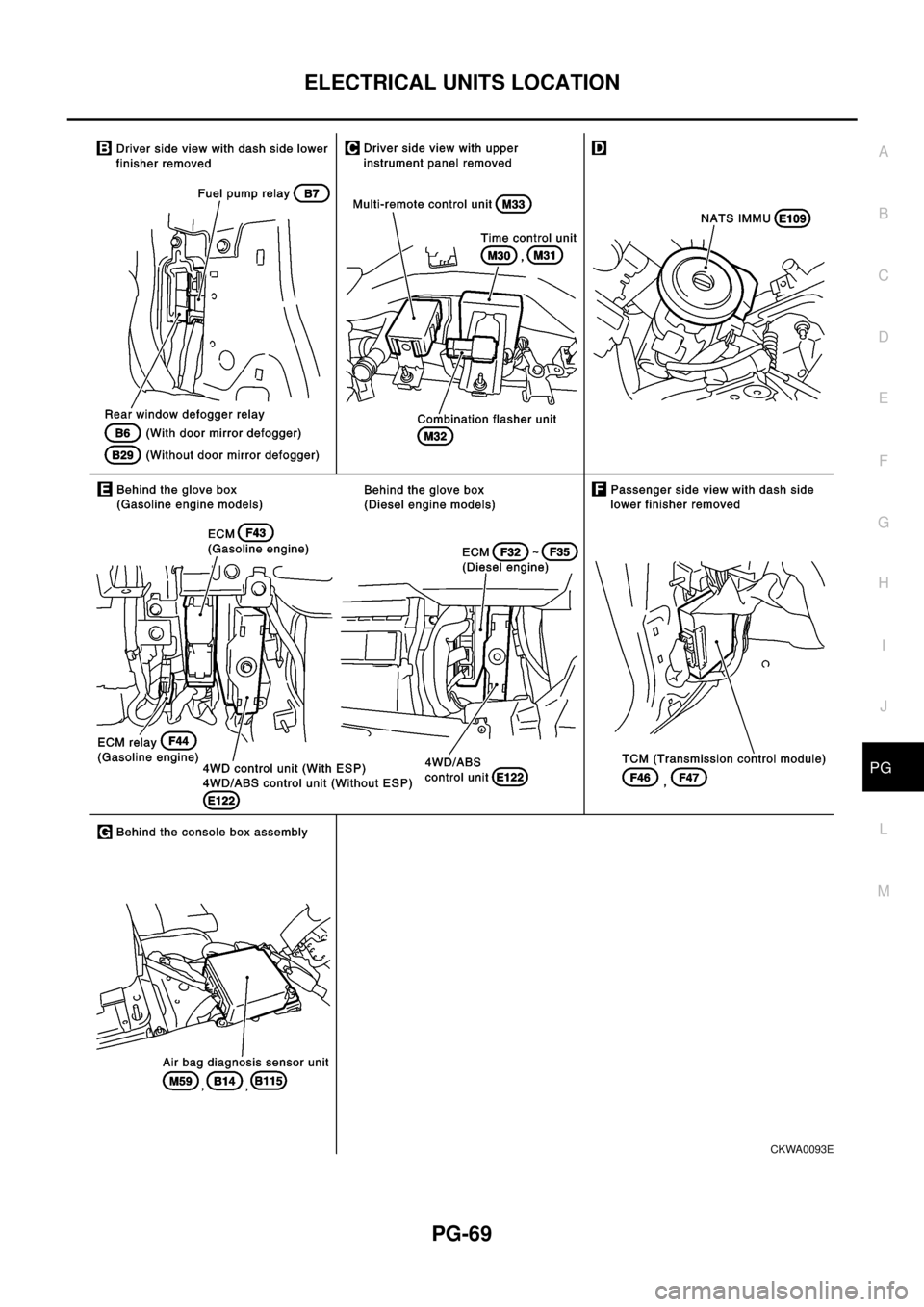

CKWA0093E

PG-70
HARNESS CONNECTOR
HARNESS CONNECTOR
PFP:00011
DescriptionEKS0032B

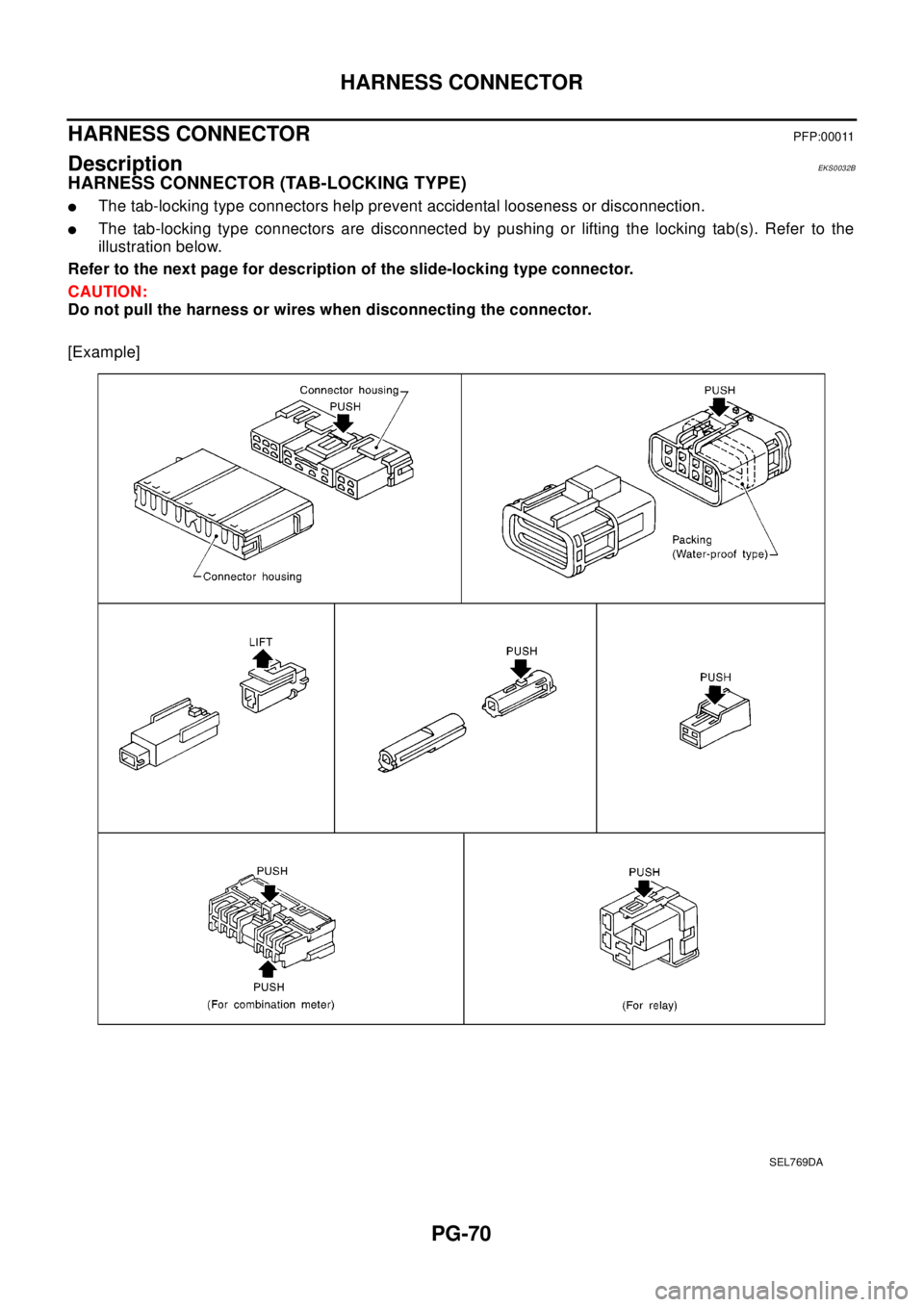

HARNESS CONNECTOR (TAB-LOCKING TYPE)
lThe tab-locking type connectors help prevent accidental looseness or disconnection.
lThe tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
SEL769DA

HARNESS CONNECTOR
PG-71
C
D
E
F
G
H
I
J
L
MA
B
PG
HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
lA new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
lThe slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.
lThe slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.
CAUTION:
lDo not pull the harness or wires when disconnecting the connector.
lBe careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V

PG-72

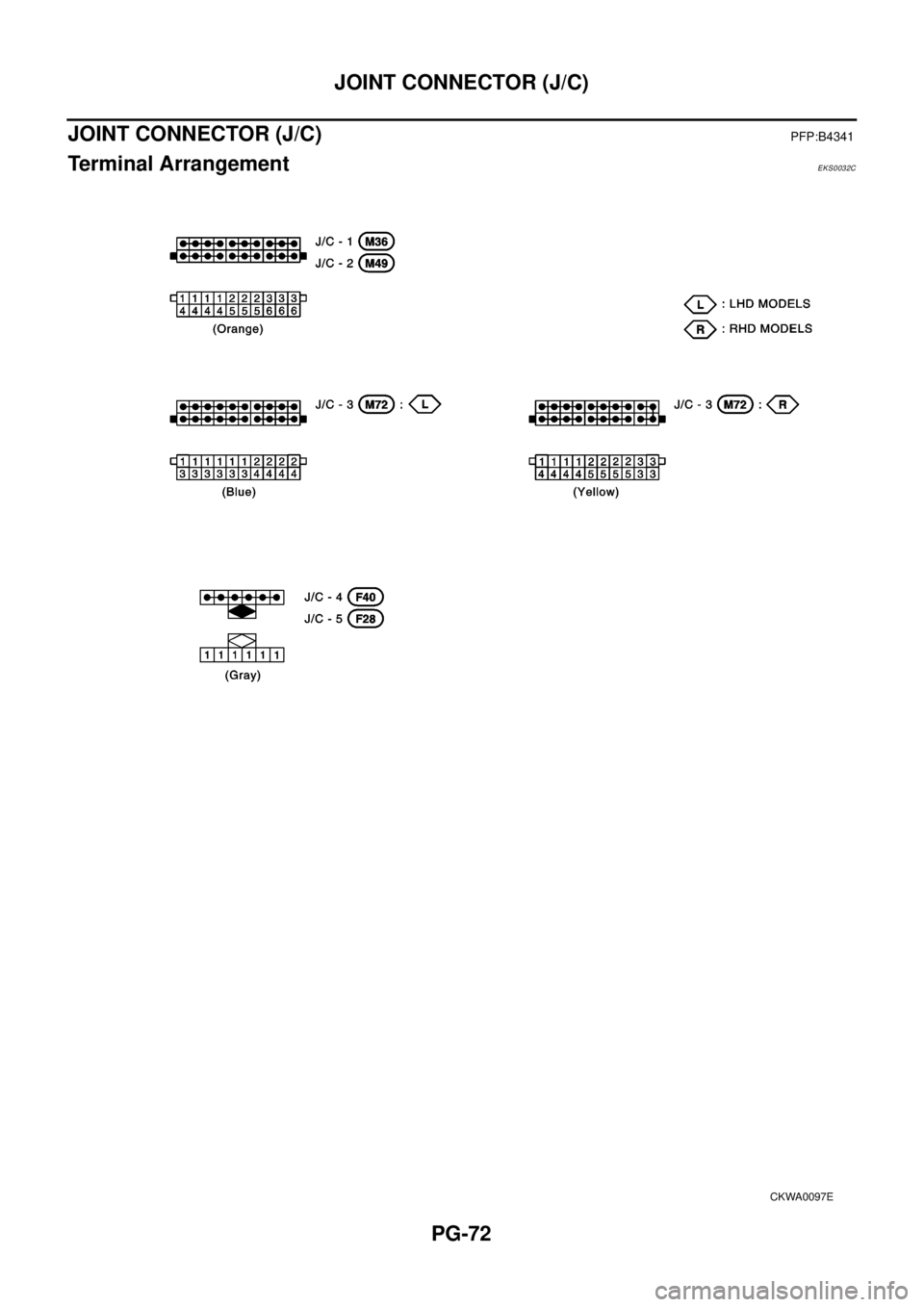

JOINT CONNECTOR (J/C)
JOINT CONNECTOR (J/C)
PFP:B4341
Terminal ArrangementEKS0032C
CKWA0097E

ELECTRICAL UNITS
PG-73
C
D
E
F
G
H
I
J
L
MA
B
PG

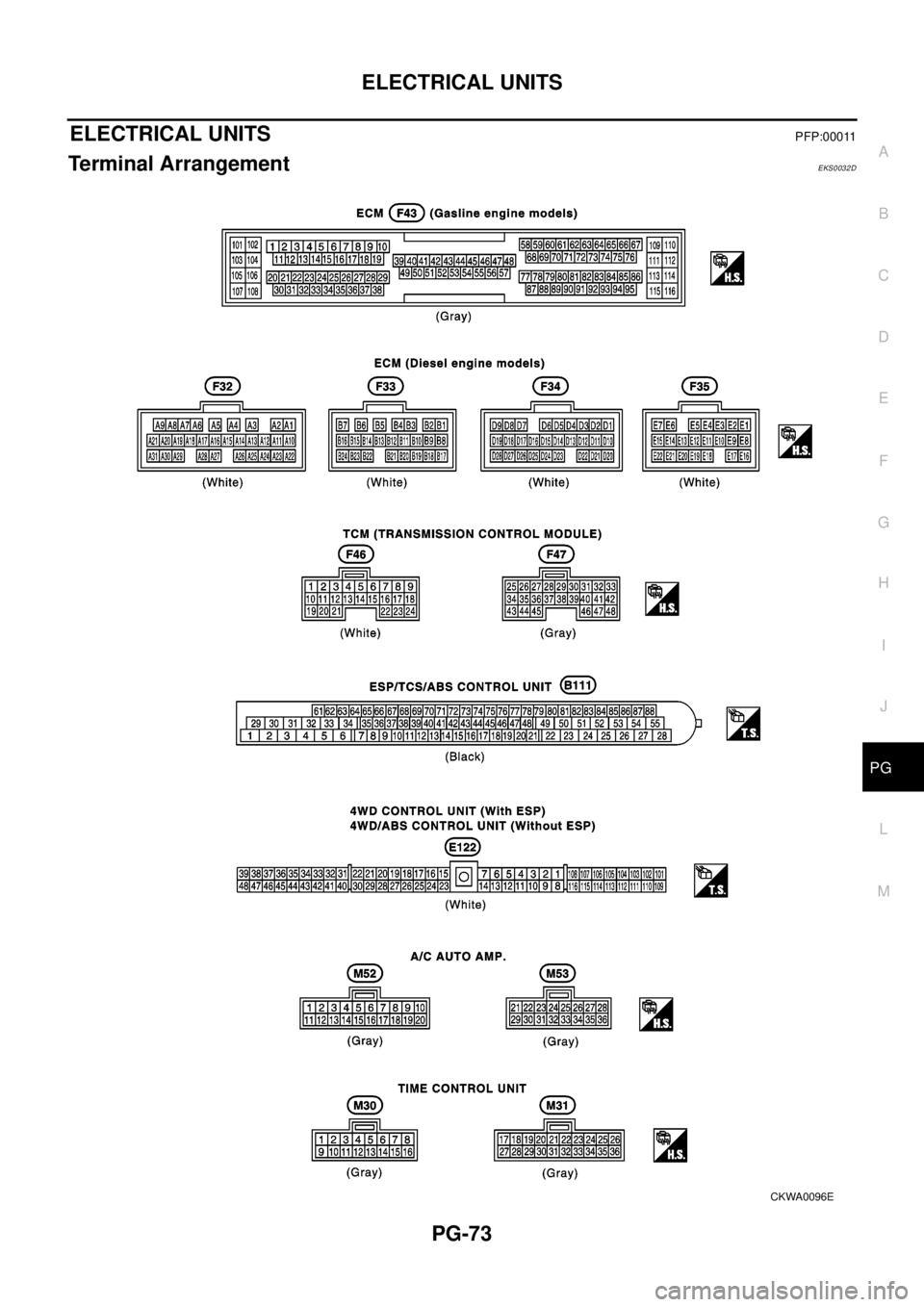

ELECTRICAL UNITSPFP:00011
Terminal ArrangementEKS0032D
CKWA0096E

PG-74
STANDARDIZED RELAY
STANDARDIZED RELAY
PFP:00011
DescriptionEKS0032E

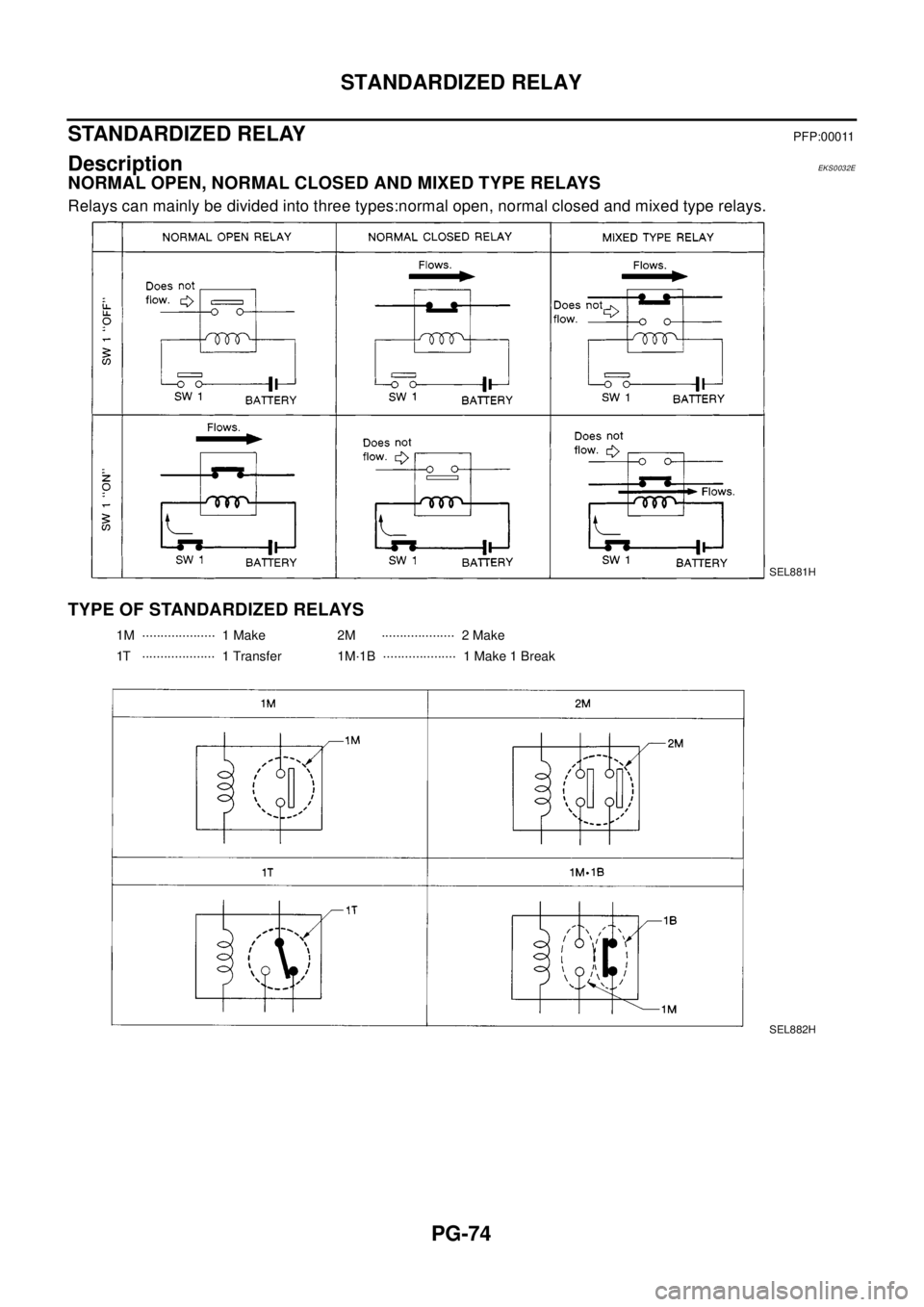

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types:normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H
