PRACTICAL INFORMATION
179
Changing dipped / main beam
headlamp bulbs
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder.
)
Pull out the bulb and change it.
To r efi t, carry out these operations in re-
verse order.

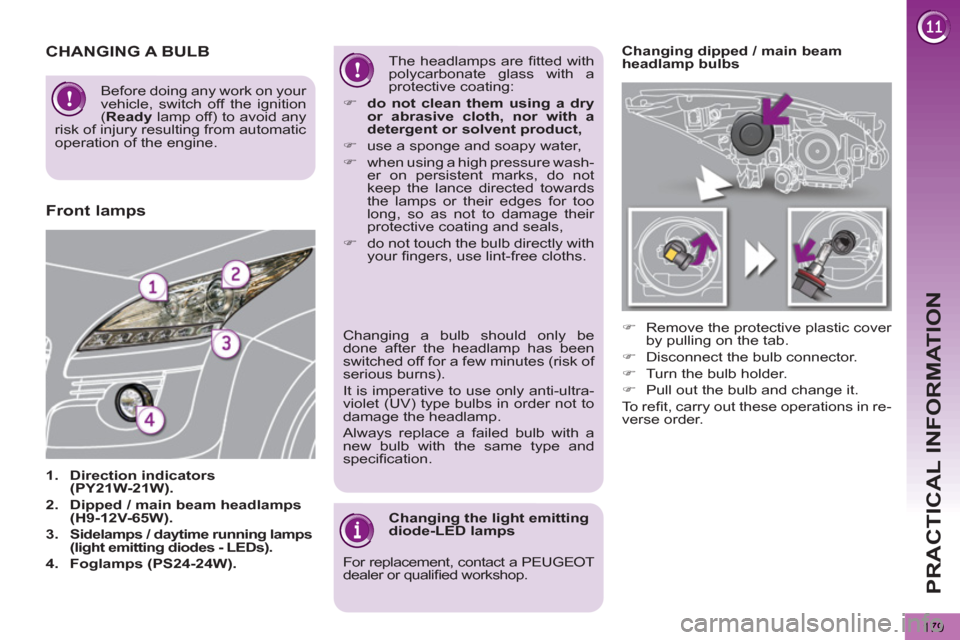

CHANGING A BULB
1.
Direction indicators
(PY21W-21W).
2.
Dipped / main beam headlamps
(H9-12V-65W).
3.
Sidelamps / daytime running lamps
(light emitting diodes - LEDs).
4.
Foglamps (PS24-24W).
The headlamps are fi tted with
polycarbonate glass with a
protective coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals,
)
do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Front lamps
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
Changing the light emitting
diode-LED lamps
For replacement, contact a PEUGEOT
dealer or qualifi ed workshop.
Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.
Page 182 of 284
PRACTICAL INFORMATION
180

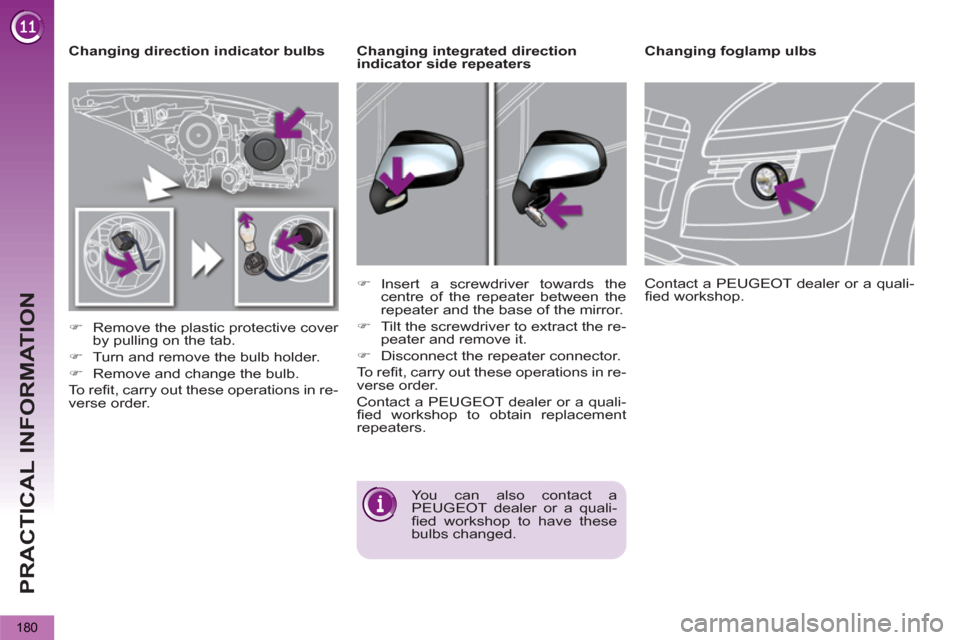

Changing direction indicator bulbs
)
Remove the plastic protective cover
by pulling on the tab.
)
Turn and remove the bulb holder.
)
Remove and change the bulb.
To r efi t, carry out these operations in re-
verse order.
Changing foglamp ulbs
You can also contact a
PEUGEOT dealer or a quali-
fi ed workshop to have these
bulbs changed.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement
repeaters.
Changing integrated direction
indicator side repeaters
Page 183 of 284
PRACTICAL INFORMATION

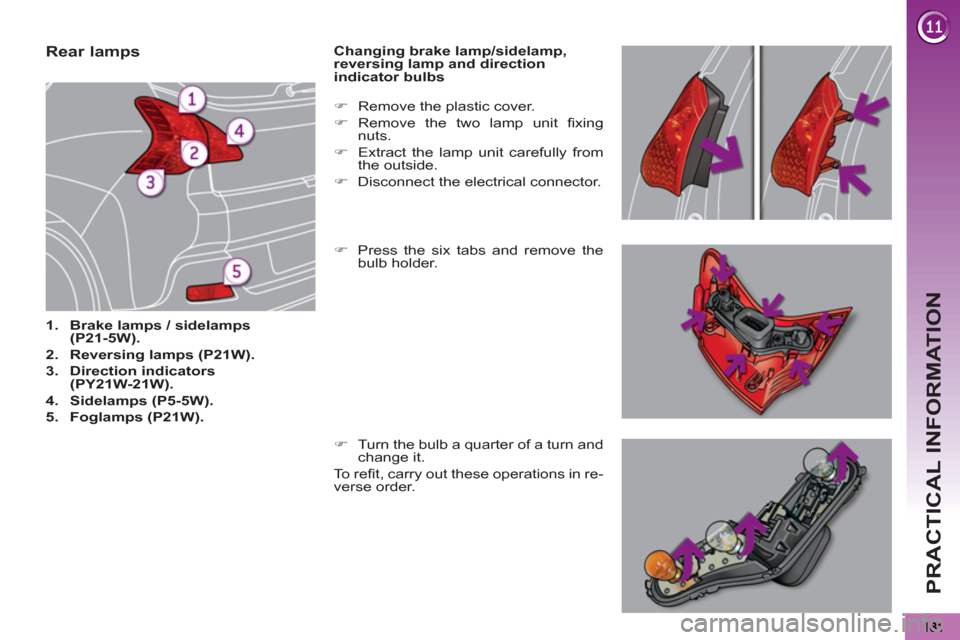

Rear lamps
1.
Brake lamps / sidelamps
(P21-5W).
2.
Reversing lamps (P21W).
3.
Direction indicators
(PY21W-21W).
4.
Sidelamps (P5-5W).
5.
Foglamps (P21W).
Changing brake lamp/sidelamp,
reversing lamp and direction
indicator bulbs
)
Press the six tabs and remove the
bulb holder.
)
Remove the plastic cover.
)
Remove the two lamp unit fi xing
nuts.
)
Extract the lamp unit carefully from
the outside.
)
Disconnect the electrical connector.
)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
Page 184 of 284
PRACTICAL INFORMATION
182

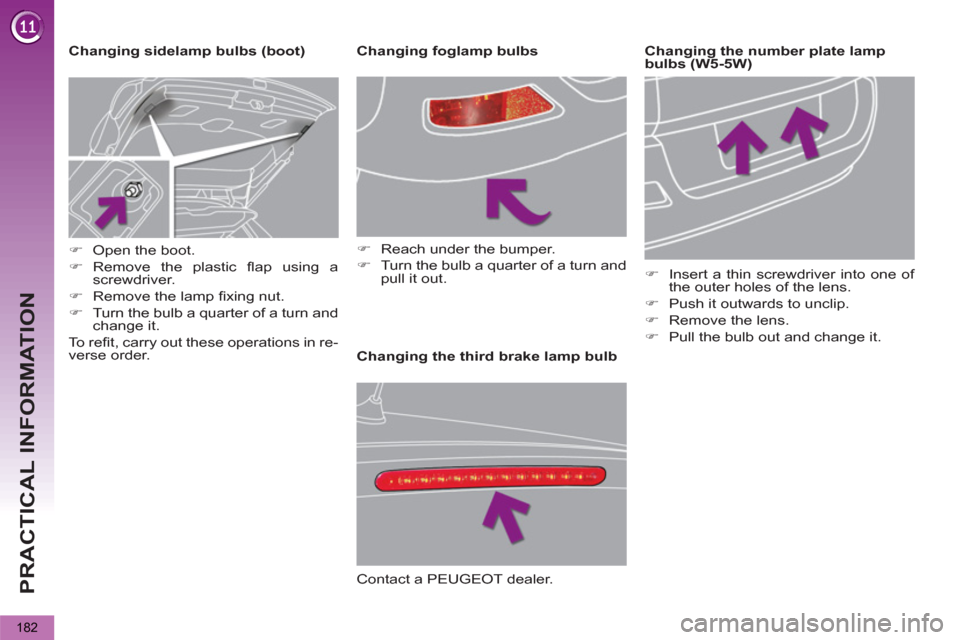

Changing the third brake lamp bulb
Changing sidelamp bulbs (boot)
Changing foglamp bulbs
)
Open the boot.
)
Remove the plastic fl ap using a
screwdriver.
)
Remove the lamp fi xing nut.
)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
)
Reach under the bumper.
)
Turn the bulb a quarter of a turn and
pull it out.
Contact a PEUGEOT dealer.
Changing the number plate lamp
bulbs (W5-5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb out and change it.
Page 185 of 284
PRACTICAL INFORMATION
183

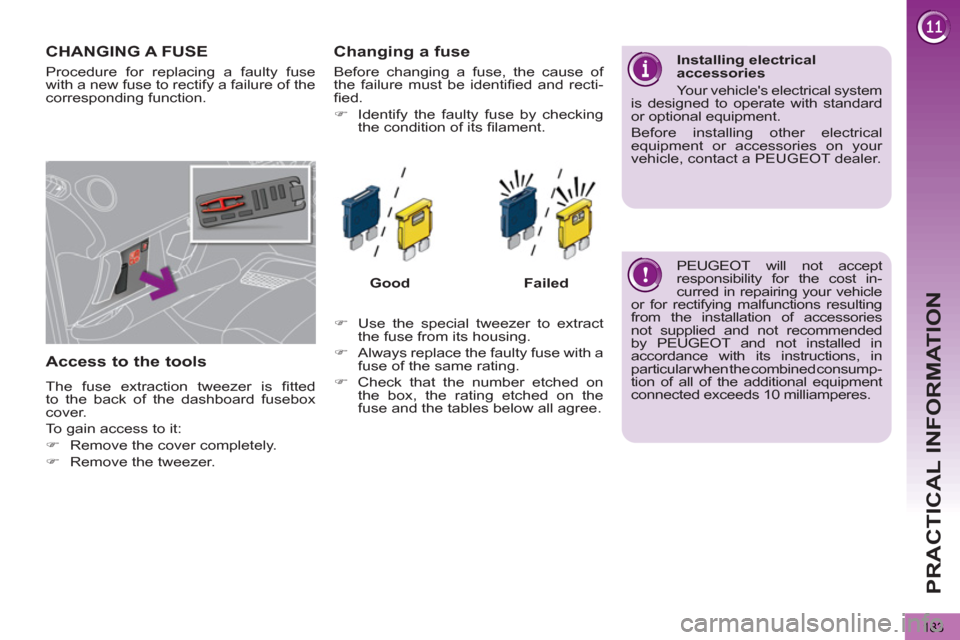

CHANGING A FUSE
Access to the tools
The fuse extraction tweezer is fi tted
to the back of the dashboard fusebox
cover.
To gain access to it:
)
Remove the cover completely.
)
Remove the tweezer.
Changing a fuse
Good
Failed
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)
Check that the number etched on
the box, the rating etched on the
fuse and the tables below all agree.
Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept
responsibility for the cost in-
curred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions, in
particular when the combined consump-
tion of all of the additional equipment
connected exceeds 10 milliamperes.
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Page 186 of 284
PRACTICAL INFORMATION
184

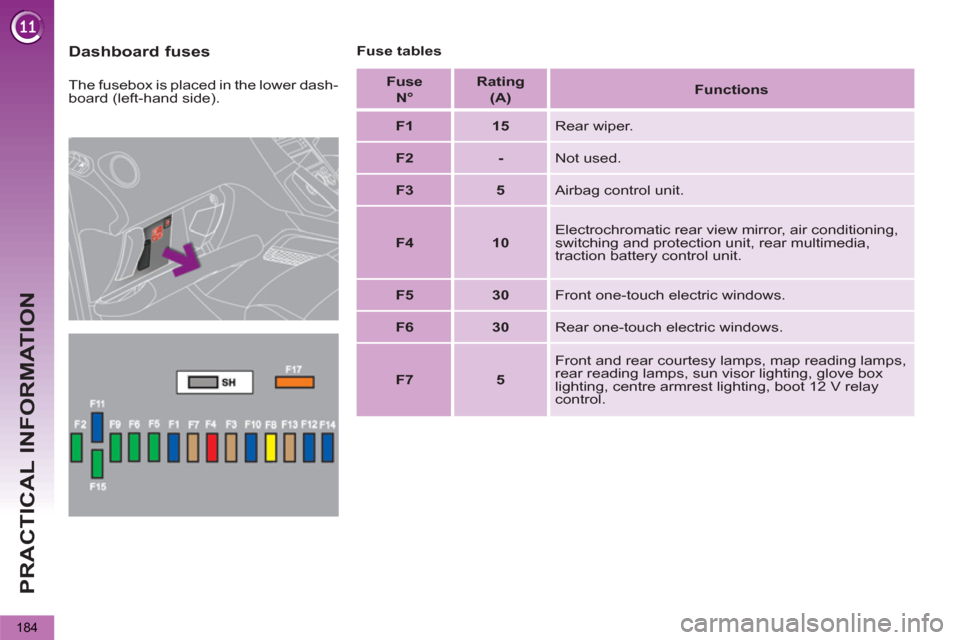

Dashboard fuses
Fuse tables
The fusebox is placed in the lower dash-
board (left-hand side).
Fuse
N°
Rating
(A)
Functions
F1
15
Rear wiper.
F2
-
Not used.
F3
5
Airbag control unit.
F4
10
Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia,
traction battery control unit.
F5
30
Front one-touch electric windows.
F6
30
Rear one-touch electric windows.
F7
5
Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.
Page 187 of 284
PRACTICAL INFORMATION
185
Access to the fuses
)
See "Access to the tools".
Fuse
N°
Rating
(A)
Functions
F8
20
Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection, alarm
siren, alarm control unit, telematic unit, service module
(with Peugeot Connect Media Navigation (NG4 3D)).
F9
30
Front 12 V socket, cigarette lighter, rear 12 V
socket.
F10
15
Steering mounted controls.
F11
15
Low current ignition switch.
F12
15
Trailer presence, rain / sunshine sensor, supply for
fuses F32, F34, F35.
F13
5
Engine fusebox, airbag control unit.
F14
15
Instrument panel, instrument panel screen, supply
for fuse F33.
F15
30
Locking and deadlocking.
F17
40
Heated rear screen, supply for fuse F30.
SH
-
PARC shunt.
Page 188 of 284
PRACTICAL INFORMATION
186
Fuse
N°
Rating
(A)
Functions
F29
-
Not used.
F30
5
Heated door mirrors.
F31
30
Boot 12 V socket.
F32
5
Electronic gear control gearbox gear lever.
F33
10
Head-up display, Bluetooth system, air
conditioning, retractable screen.
F34
5
Seat belt warning lamps display.
F35
10
Parking sensors.
F36
30
Front heated seats.
F37
5
Hi-Fi amplifi er.
F38
30
Traction battery control unit
F39
20
Panoramic sunroof blind.
F40
10
Trailer interface, driver's door control panel.
Page 189 of 284
PRACTICAL INFORMATION
187

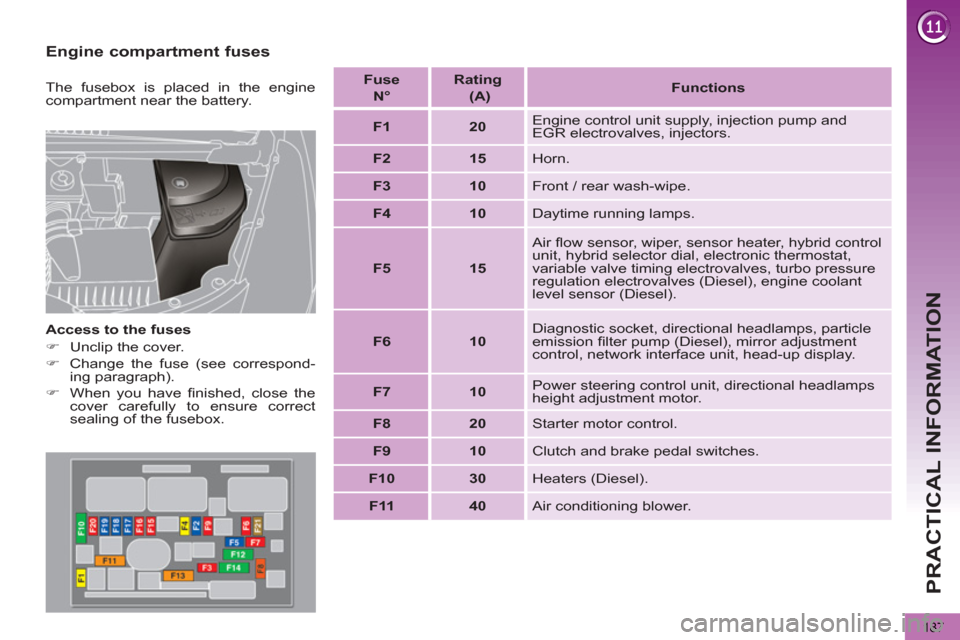

Engine compartment fuses
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see correspond-
ing paragraph).
)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.
The fusebox is placed in the engine
compartment near the battery.
Fuse
N°
Rating
(A)
Functions
F1
20
Engine control unit supply, injection pump and
EGR electrovalves, injectors.
F2
15
Horn.
F3
10
Front / rear wash-wipe.
F4
10
Daytime running lamps.
F5
15
Air fl ow sensor, wiper, sensor heater, hybrid control
unit, hybrid selector dial, electronic thermostat,
variable valve timing electrovalves, turbo pressure
regulation electrovalves (Diesel), engine coolant
level sensor (Diesel).
F6
10
Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), mirror adjustment
control, network interface unit, head-up display.
F7
10
Power steering control unit, directional headlamps
height adjustment motor.
F8
20
Starter motor control.
F9
10
Clutch and brake pedal switches.
F10
30
Heaters (Diesel).
F11
40
Air conditioning blower.
Page 190 of 284
PRACTICAL INFORMATION
188
Fuse
N°
Rating
(A)
Functions

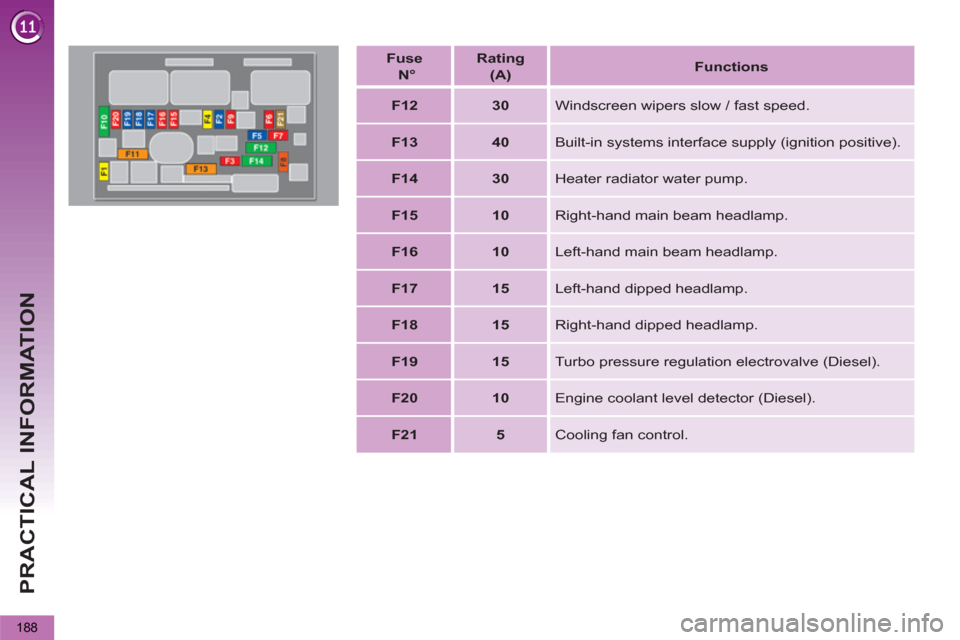

F12
30
Windscreen wipers slow / fast speed.
F13
40
Built-in systems interface supply (ignition positive).
F14
30
Heater radiator water pump.
F15
10
Right-hand main beam headlamp.
F16
10
Left-hand main beam headlamp.
F17
15
Left-hand dipped headlamp.
F18
15
Right-hand dipped headlamp.
F19
15
Turbo pressure regulation electrovalve (Diesel).
F20
10
Engine coolant level detector (Diesel).
F21
5
Cooling fan control.
