Peugeot 307 CC 2003 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2003, Model line: 307 CC, Model: Peugeot 307 CC 2003Pages: 173, PDF Size: 2.12 MB
Page 91 of 173
22-09-2003
YOUR 307 CC IN DETAIL89
Groups 2 and 3: from 15 to 36 kg L4 - "Recaro Start'': installed using a three-point seat belt.
The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5 - "Klippan Optima": installed using a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on itsown.
Refer to the "Summary table for the installation of child seats".
Never leave one or more children alone and unsu-pervised in a vehicle. Never leave a child or an
animal in a vehicle which is exposed to the sun and has thewindows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach of children inside the vehicle. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in thechild seat instructions.
To prevent the doors from
opening accidentally, use thechild lock*. Also, do not open the rear win- dows more than a third*.
* According to model.
Disarm the passenger air bag when installing a "rearwards facing" child seat on the front passenger seat. Otherwise, the child would risk beingkilled or seriously injured were the air bag to inflate.
Page 92 of 173
22-09-2003
YOUR 307 CC IN DETAIL
90
SUMMARY TABLE FOR FITTING CHILD SEATS In accordance with the European regulation (Directive 2000/3), the table below indicates the extent to which each seat in your vehicle may be fitted with a child seat secured using the seat belt and universally approved (child seat which can beinstalled in all vehicles using the seat belt) for one or more weight groups:
U : seat suited to the installation of a universal "rearwards facing" child seat and a universal "forwards facing" child seat.
U (R) : seat suited to the installation of a universal "rearwards facing" and "forwards facing" child seat. The vehicle's seat must be adjusted to the highest position.
According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 29 lbs or 13 kg).
L2 : R…MER Prince E1 03301058 Universal (20 to 40 lbs or 9 to 18 kg).
L3 : R…MER Vario E1 03301120 Universal (33 to 55 lbs or 15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (33 to 80 lbs or 15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (33 to 80 lbs or 15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing (c) E1 03301123 and Universal (birth to 29 lbs or 13 kg).
L7 : KIDDY Isofix Forwards facing (c) E2 030011 Universal (20 to 40 lbs or 9 to 18 kg).
L8 : R…MER Duo Isofix (c) E1 03301133 Universal (20 to 40 lbs or 9 to 18 kg).(a) Group 0: from birth to 10 kg.
(b) The rules for transporting children in the front passenger seat are specific to each country. Consult the current legisla- tion in your country.
(c) Child seat secured using the seat belt if Isofix mountings are not available. See section "Seats - ¤ IsofIx mountings" for use of the child seat on the vehicle's Isofix mountings.
(d) Vehicle's seat adjusted to the intermediate position.
(e) Booster only.
Statutory weight group
Seat Group 0 (a) and 0+ Group 1 Group 2 Group 3< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger seat (b) U (R) U (R) U (R) U (R)
Height adjustable seat L1, L6 L2, L7, L8 L3, L4 (d), L5 L4 (d), L5
Rear side UU UU
seat L1, L6 L7, L8 L3 L5 (e)
Page 93 of 173
22-09-2003
YOUR 307 CC IN DETAIL91
SEAT BELTS
To lock the seat belts
Pull the strap, then insert the buckle into the stalk. Pre-tensioning and force-limiting front seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limit-ing front seat belts. Depending onthe seriousness of the impact, thepre-tensioning system instantly tight-ens the seat belt firmly against thebody of the occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against thebody of the occupant in the event ofan accident.
Rear seat belts The two rear seats are both fitted with three-point inertia reel seat beltswith force-limiting devices. Slide the straps in the guides
1to
prevent fluttering of the rear seat belts in cabriolet mode.
To be effective, a seat belt must be tightened as close to the body as possible. Depending on the nature and the seriousness of the impact, the pre- tensioners may be triggered before and independently of the air bags.
In all cases of triggering, the air bag warning light on the instrument panelcomes on.
After an impact, have the system checked by a PEUGEOT dealer.
Page 94 of 173
22-09-2003
YOUR 307 CC IN DETAIL
92
THE KEYS
You have two identical keys. They allow you to switch on the ignitionand operate the passenger air bagdisarming switch and the boot open-ing button disarming switch as wellas to
independently operate the
lock on the driver's door, the fuel fillercap and the glove box. Central locking/Unlocking
From the driver's door, the keys allow you to:
Ð lock the doors and boot simultane- ously, as well as fold back the exterior mirrors,
Ð unlock the driver's door. Opening this door unlocks the passenger
door.
The boot can only be unlocked bypressing the locking/unlocking but-ton from inside the vehicle, with thekey in the switch (refer to the corre-sponding section). The remote control This permits remote locking, dead- locking and unlocking of the vehicle,locating of the vehicle, folding of theexterior mirrors and partial openingof the boot. Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds.
Vehicles fitted with deadlocking
Warning: deadlocking renders the
internal and external door locking controls inoperative. Pressing button Adeadlocks the
vehicle. This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. A second press
on button Awithin
five seconds of deadlocking changesthis to normal locking. This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button Bto unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: if the vehicle is locked and
unlocking is activated inadvertently, unless one of the doors or the boot isopened within 30 seconds, the vehi-
cle will lock automatically. Partial opening of the boot Press and hold button Bto partially
open the boot, in addition to unlock- ing the vehicle. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park: press button A, the courtesy
lights come on and the direction indicators flash for a few sec-onds.
Page 95 of 173
22-09-2003
YOUR 307 CC IN DETAIL93
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only
if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote con-
trol battery low'' on the multifunc-
tion display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt bat-tery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Press button Aimmediately.
Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function correctly , the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal and the message ''Anti-theft
device faulty'' on the multi-function
display. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Page 96 of 173
22-09-2003
YOUR 307 CC IN DETAIL
94

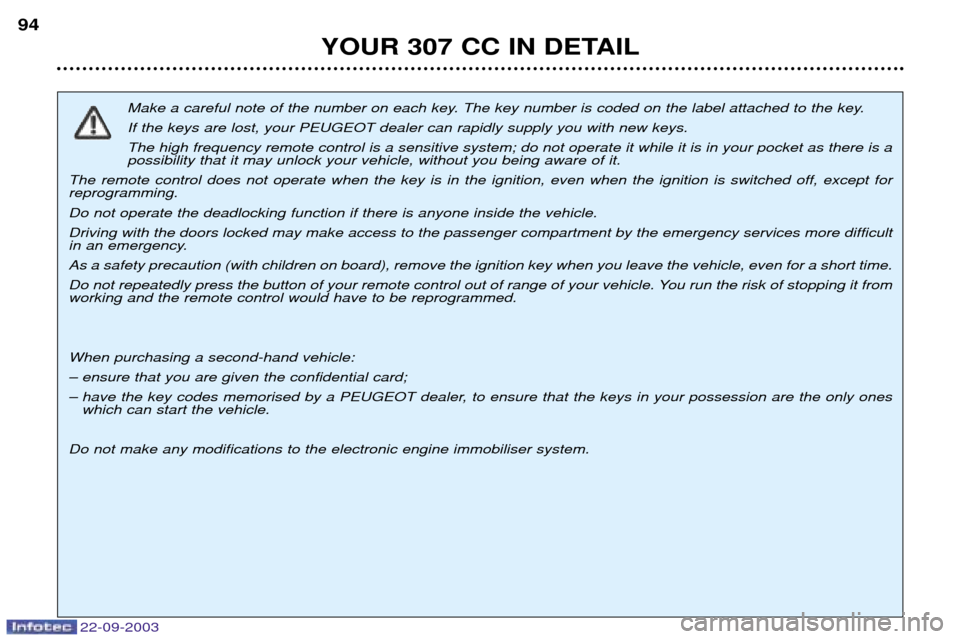

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Do not operate the deadlocking function if there is anyone inside the vehicle.Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the button of your remote control out of range of your vehicle. You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle: Ð ensure that you are given the confidential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Page 97 of 173
22-09-2003
YOUR 307 CC IN DETAIL93
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only
if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote con-
trol battery low'' on the multifunc-
tion display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt bat-tery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Press button Aimmediately.
Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function correctly , the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal and the message ''Anti-theft
device faulty'' on the multi-function
display. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Page 98 of 173
22-09-2003
YOUR 307 CC IN DETAIL
94
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Do not operate the deadlocking function if there is anyone inside the vehicle.Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the button of your remote control out of range of your vehicle. You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle: Ð ensure that you are given the confidential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Page 99 of 173
22-09-2003
YOUR 307 CC IN DETAIL95
THE ALARM This provides two types of protec- tion: Ð
exterior protection: it sounds if a
door, the boot or the bonnet is opened.
Ð interior protection: it sounds if
the volume inside the passengercompartment changes (breaking ofa window or a movement insidethe vehicle).
Note: the interior protection alarm
does not function if the vehicle's roofis open (cabriolet position). Setting the alarm Switch off the ignition and get out of the vehicle.
Set the alarm by locking or dead-locking using the remote control(button Aindicator light flashes
once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, thesiren sounds and the direction indi-cator lights flash for thirty seconds. After triggering, the alarm remains set.
Warning:
if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inac-tive. Note: if button Aindicator light flash-
es rapidly, the alarm has been trig- gered while you were away fromyour vehicle. Disarming Unlock the vehicle with the remote control key (button Aindicator light
goes out). Note: if the alarm has been triggered
while you were away from your vehi- cle, the rapid flashing of the indicatorlight will stop when you switch on theignition.
To set the alarm with exterior protection only If, while you are away from the vehi- cle, you wish to leave a window par-tially open or a pet inside the vehicle,you should choose exterior protec-
tion only. Switch off the ignition,
In the next ten seconds, press button Auntil the indicator light is
on continuously,
Get out of the vehicle,
Set the alarm by locking or dead-locking using the remote control(button Aindicator light flashes
once a second).
Note: when the alarm is set but the
remote control does not operate: Unlock the door with the key and
open it. The alarm is triggered.
Switch on the ignition. The alarmis disarmed.
Incorrect operation When the ignition is switched on, if button Alights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked. Automatic activation* The alarm is activated automatically two minutes after the last closure ofa door or the boot. In order to avoid accidental triggering of the alarm when a door or the bootis opened, it is essential to first pressthe unlocking button on the remotecontrol.
* According to destination.
Page 100 of 173
22-09-2003
YOUR 307 CC IN DETAIL
96
THE DOORS Opening the doors from outside When you place your hand behind the handle, the window automatical-ly lowers by a few millimetres. It risesagain after a few seconds andadjusts automatically on closing toprovide perfect sealing. Notes:
when the vehicle is unlocked,
if you leave your hand on the handle for more than 5 seconds, the windowrises again. Remove your hand toreactivate the system. When washing your vehicle, do not forget to lock it to avoid any risk ofautomatic partial opening of the win-dows. Opening the doors from inside The door opening controls do not function when the vehicle is dead-locked.
Before carrying out any work which requires
cutting off of the bat-
tery, lower the windows
to make it easier to open andclose the doors. In the event of a battery cut-off, it is still possible to open the doors.
However, it is imperative that thedoor is not slammed on closing. It will be necessary to reinitialise the windows. Contact a PEUGEOT dealer as soon as possible.
