PONTIAC FIERO 1988 Service Repair Manual

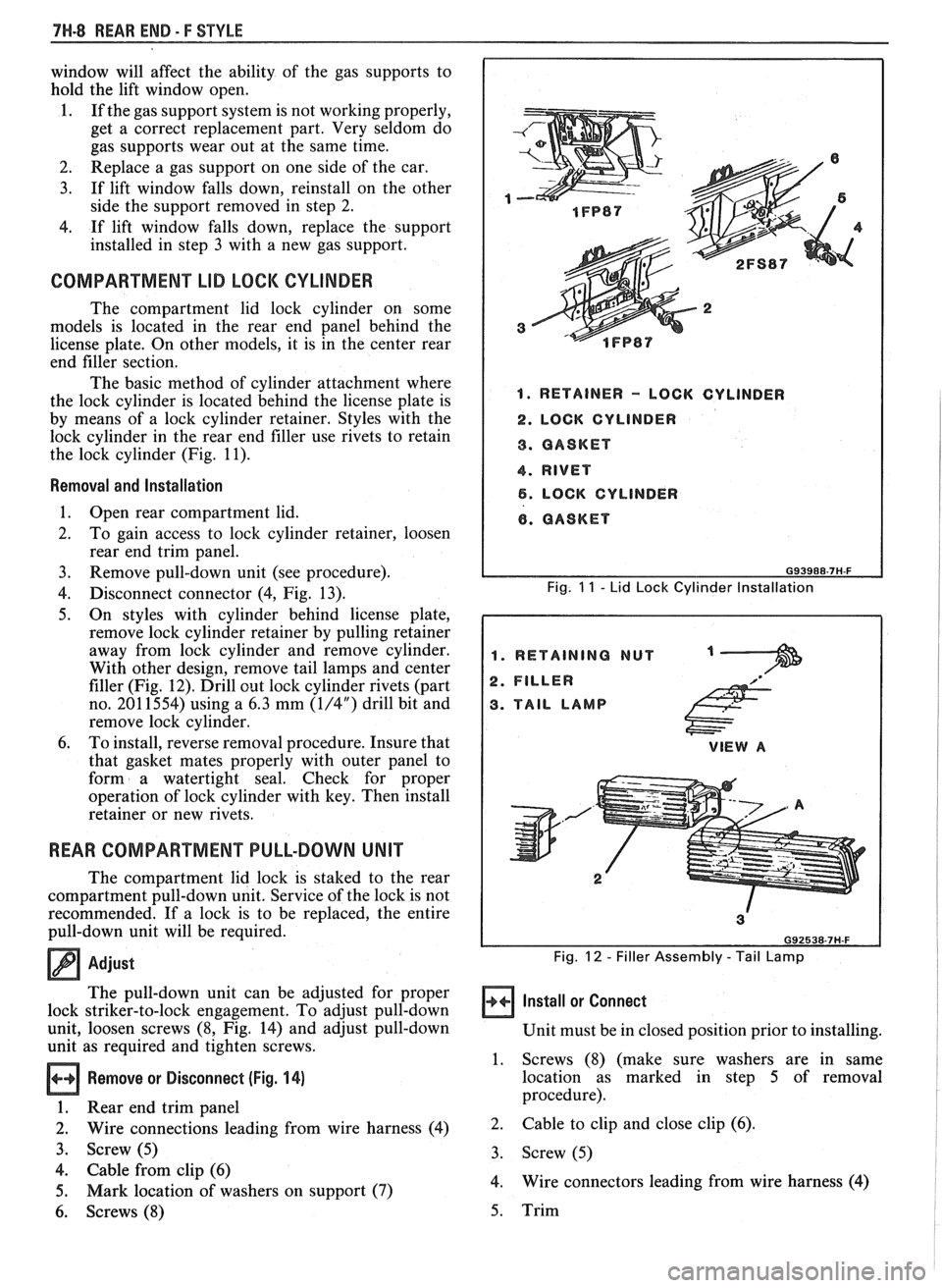

7H-8 REAR END - F STYLE
window will affect the ability of the gas supports to
hold the lift window open.
1. If the gas support system is not working properly,
get a correct replacement part. Very seldom do
gas supports wear out at the same time.
2. Replace a gas support on one side of the car.
3. If lift window falls down, reinstall on the other
side the support removed in step 2.
4. If lift window falls down, replace the support
installed in step 3 with a new gas support.
COMPARTMENT LIB LOCK CYLINDER
The compartment lid lock cylinder on some
models is located in the rear end panel behind the
license plate. On other models, it is in the center rear
end filler section.
The basic method of cylinder attachment where
the lock cylinder is located behind the license plate is
by means of a lock cylinder retainer. Styles with the
lock cylinder in the rear end filler use rivets to retain
the lock cylinder (Fig. 11).
Removal and lnstallation
1. Open rear compartment lid.
2. To
gain access to lock cylinder retainer, loosen
rear end trim panel.
3. Remove pull-down unit (see procedure).
4. Disconnect connector (4, Fig. 13).
5. On
styles with cylinder behind license plate,
remove lock cylinder retainer by pulling retainer
away from lock cylinder and remove cylinder.
With other design, remove tail lamps and center
filler (Fig. 12). Drill out lock cylinder rivets (part
no. 201 1554) using a 6.3 mm
(1/4") drill bit and
remove lock cylinder.
6. To install, reverse removal procedure. Insure that
that gasket mates properly with outer panel to
form a watertight seal. Check for proper
operation of lock cylinder with key. Then install
retainer or new rivets.
REAR COMPARTMENT PULL-DOWN UNIT
The compartment lid lock is staked to the rear
compartment pull-down unit. Service of the lock is not
recommended. If a lock is to be replaced, the entire
pull-down unit will be required.
Adjust
The pull-down unit can be adjusted for proper
lock striker-to-lock engagement. To adjust pull-down
unit, loosen screws (8, Fig. 14) and adjust pull-down
unit as required and tighten screws.
Remove or Disconnect (Fig. 14)
1. Rear end trim panel
2. Wire connections leading from wire harness (4)
3. Screw (5)
4. Cable from clip (6)
5. Mark location of washers on support
(7)
6. Screws (8)
1. RETAINER - LOCK CYLINDER
2. LOCK CYLINDER
8. GASKET
4. RIVET
6. LOCK CYLINDER
6. GASKET
G93988-7H-F
Fig. 11 - Lid Lock Cylinder lnstallation
1. RETAINING NUT
2. FILLER
3. TAIL LAMP
VIEW A
Fig. 12 - Filler Assembly - Tail Lamp
Install or Connect
Unit must be in closed position prior to installing.
1. Screws (8) (make sure washers are in same
location as marked in step 5 of removal
procedure).
2. Cable
to clip and close clip (6).
3. Screw (5)
4. Wire connectors
leading from wire harness (4)
5. Trim

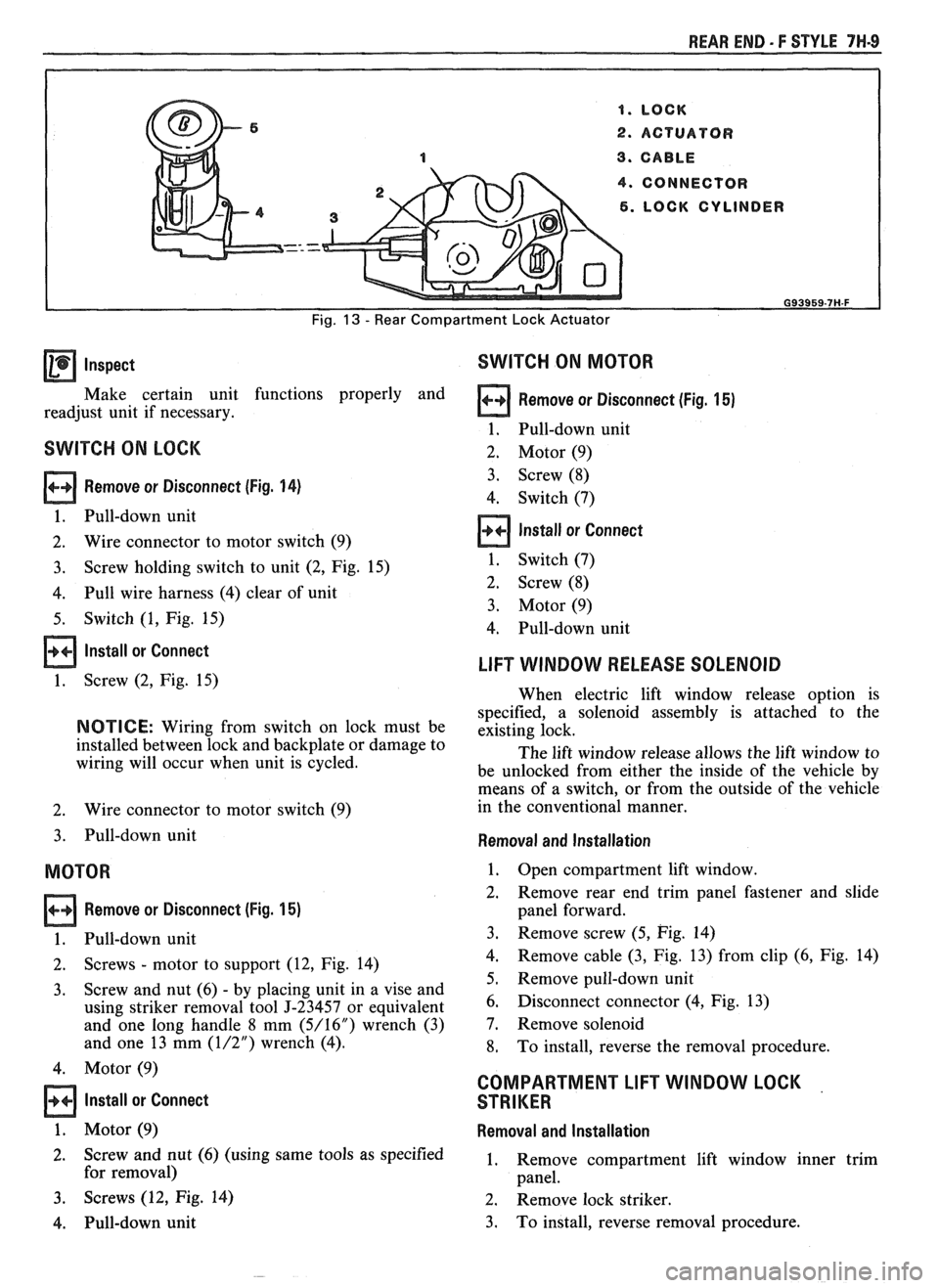

REAR END - F STYLE 7H-9
4. CONNECTOR
1. LOCK CYLINDER
Fig. 13 - Rear Compartment Lock Actuator
Inspect SWITCH ON MOTOR
Make certain unit functions properly and Remove or Disconnect (Fig. 15)
readjust unit if necessary.
1. Pull-down unit
SWITCH ON LOCK 2. Motor (9)
Remove or Disconnect (Fig. 14)
1. Pull-down unit
2. Wire connector
to motor switch (9) 3.
Screw (8)
4. Switch (7) Install or Connect . .
3. Screw
holding switch to unit (2, Fig. 15) 1.
Switch (7)
4. Pull wire harness (4) clear of unit 2.
Screw (8)
3. Motor (9)
5. Switch
(1, Fig. 15)
4. Pull-down unit
lnstall or Connect
1. Screw (2, Fig. 15)
NOTICE: Wiring from switch on lock must be
installed between lock and backplate or damage to
wiring will occur when unit is cycled.
2. Wire connector
to motor switch (9)
3. Pull-down unit
MOTOR
Remove or Disconnect (Fig. 15)
1. Pull-down unit
2. Screws
- motor
to support (12, Fig. 14)
3. Screw
and nut (6)
- by placing unit in a vise and
using striker removal tool
5-23457 or equivalent
and one long handle 8 mm
(5/16") wrench (3)
and one 13 mm
(1/2") wrench (4).
4. Motor (9)
Install or Connect
1. Motor (9)
2. Screw and nut (6) (using same tools as specified
for removal)
3. Screws (12, Fig. 14)
4. Pull-down unit
LlFT WINDOW RELEASE SOLENOID
When electric lift window release option is
specified, a solenoid assembly is attached to the
existing lock.
The lift window release allows the lift window to
be unlocked from either the inside of the vehicle by
means of a switch, or from the outside of the vehicle
in the conventional manner.
Removal and Installation
1. Open compartment lift window.
2. Remove
rear end trim panel fastener and slide
panel forward.
3. Remove screw
(5, Fig. 14)
4. Remove
cable (3, Fig. 13) from clip (6, Fig. 14)
5. Remove pull-down unit
6. Disconnect connector (4, Fig. 13)
7. Remove solenoid
8. To install, reverse the removal procedure.
COMPARTMENT LlFT WINDOW LOCK
STRIKER
Removal and Installation
1. Remove
compartment lift window inner trim
panel.
2. Remove lock striker.
3. To install, reverse removal procedure.

7H.10 REAR END - F STYLE
PULL-DOWN ASSEMBLY
LOCK
MOTOR
WIRE HARNESS
SCREW
CLIP
WASHERS
SCREWS
CONNECT
QR
SWITCH AT MOTOR
SWITCH AT LOCK
SCREW

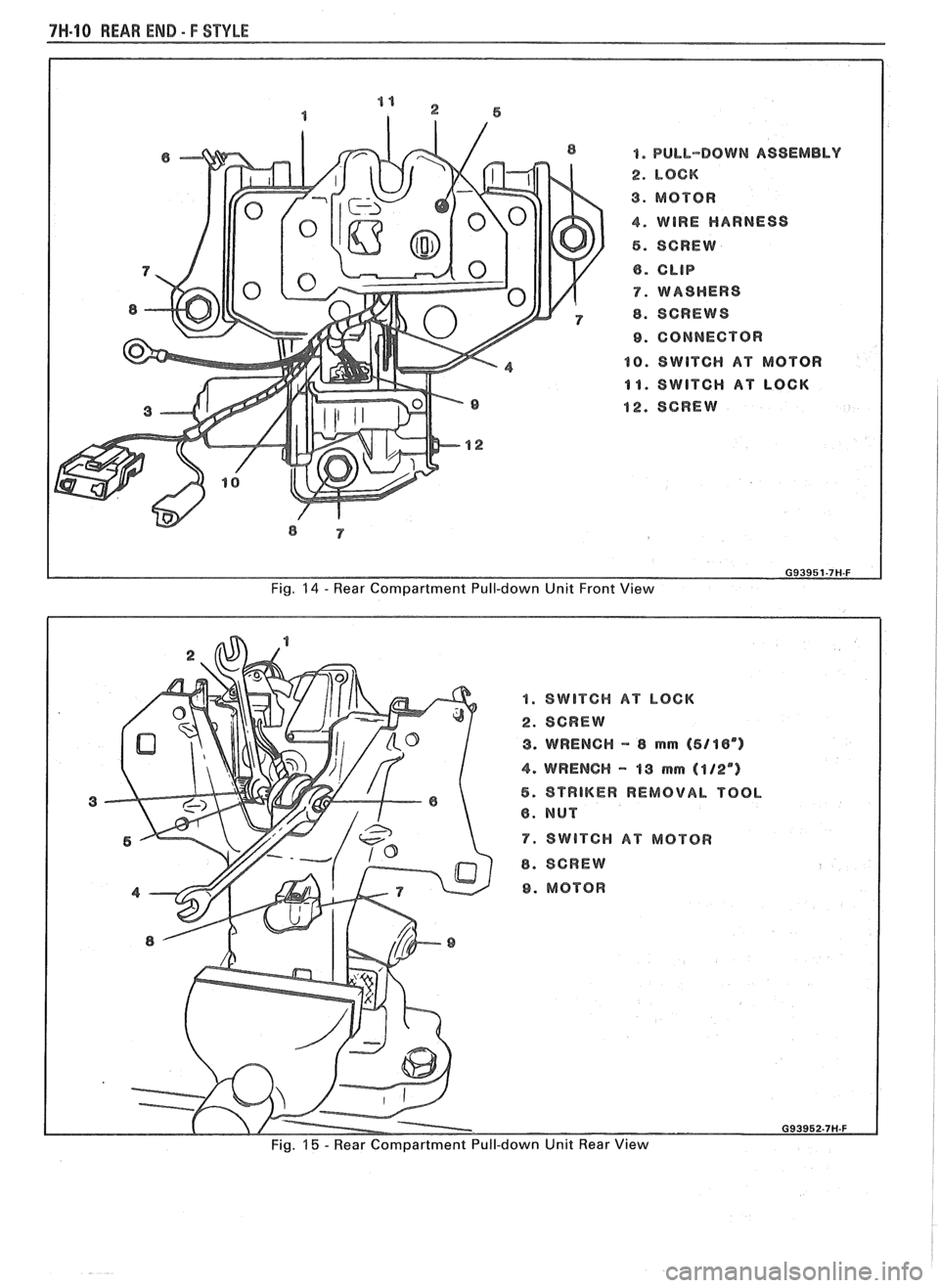

Fig. 14 - Wear Compartment Pull-down Unit Front View
1. SWITCH AT LOCK
2. SCREW
3. WRENCH - 8 mm g6IIB")
4, WRENCH - 13 mrn (1/2@)
5. STRIKER REMOVAL TOOL
7. SWITCH AT MOTOR
8. SCREW
Fig. 15 - Rear Compartment Pull-down Unit Rear View

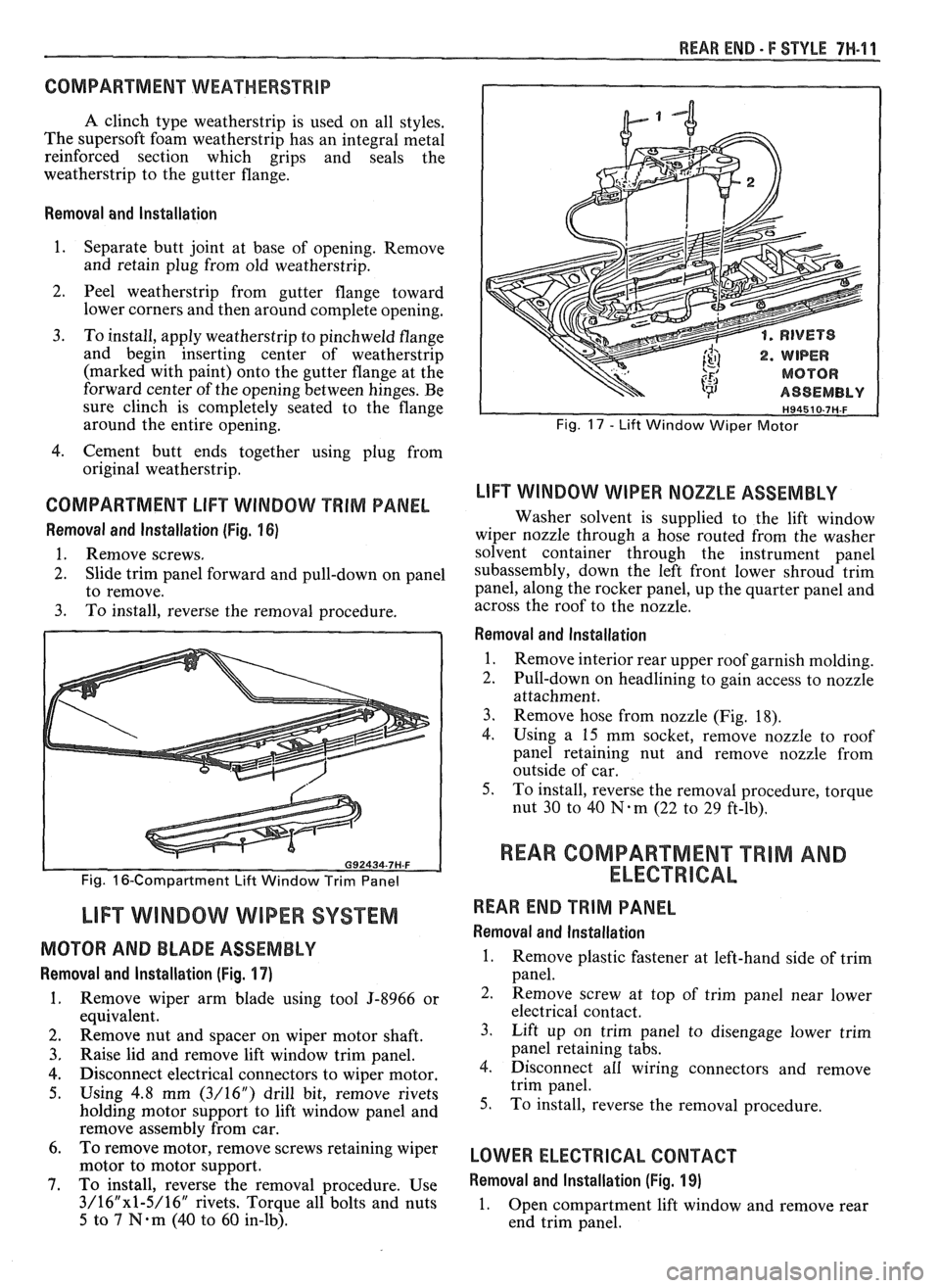

REAR END - I: STYLE 7H-11
COMPARTMENT WEATHERSTRIP
A clinch type weatherstrip is used on all styles.
The supersoft foam weatherstrip has an integral metal
reinforced section which grips and seals the
weatherstrip to the gutter flange.
Removal and lnstallation
1.
Separate butt joint at base of opening. Remove
and retain plug from old weatherstrip.
2. Peel weatherstrip from gutter flange toward
lower corners and then around complete opening.
3. To install, apply weatherstrip to pinchweld flange
and begin inserting center of weatherstrip
(marked with paint) onto the gutter flange at the
forward center of the opening between hinges. Be
sure clinch is completely seated to the flange
around the entire opening.
4. Cement butt ends together using plug from
original weatherstrip.
COMPARTMENT LlFT WINDOW PRIM PANEL
Removal and lnstallation (Fig. 16)
1. Remove screws.
2. Slide trim panel forward and pull-down on panel
to remove.
3. To install, reverse the removal procedure.
Fig. 16-Compartment Lift Window Trim Panel
LIFT WINDOW WIPER SYSTEM
MOTOR AND BLADE ASSEMBLY
Removal and lnstallation (Fig. 17)
1. Remove wiper arm blade using tool 5-8966 or
equivalent.
2. Remove nut and spacer on wiper motor shaft.
3. Raise lid and remove lift window trim panel.
4. Disconnect electrical connectors to wiper motor.
5. Using 4.8 mm (3/16") drill bit, remove rivets
holding motor support to lift window panel and
remove assembly from car.
6. To
remove motor, remove screws retaining wiper
motor to motor support.
7. To install, reverse the removal procedure. Use
3/16"x1-5/16" rivets. Torque all bolts and nuts
5 to 7 N.m (40 to 60 in-lb).
. RIVETS
. WIPER
MOTOR
ASSEMBLY
Fig. 17 - Lift Window Wiper Motor
LlFT WINDOW WIPER NOZZLE ASSEMBLY
Washer solvent is supplied to the lift window
wiper nozzle through a hose routed from the washer
solvent container through the instrument panel
subassembly, down the left front lower shroud trim
panel, along the rocker panel, up the quarter panel and
across the roof to the nozzle.
Removal and lnstallation
1.
Remove interior rear upper roof garnish molding.
2. Pull-down on headlining to gain access to nozzle
attachment.
3. Remove hose from nozzle (Fig. 18).
4.
Using a 15 mm socket, remove nozzle to roof
panel retaining nut and remove nozzle from
outside of car.
5. To install, reverse the removal procedure, torque
nut
30 to 40 N-m (22 to 29 ft-lb).
REAR COMPARTMENT "TRIM AND
ELECTRICAL
REAR END TRIM PANEL
Removal and lnstallation
1. Remove plastic fastener at left-hand side of trim
panel.
2. Remove screw at top of trim panel near lower
electrical contact.
3. Lift up on trim panel to disengage lower trim
panel retaining tabs.
4. Disconnect all wiring connectors and remove
trim panel.
5. To install, reverse the removal procedure.
LOWER ELECTRICAL CONTACT
Removal and lnstallation (Fig. 19)
1.
Open compartment lift window and remove rear
end trim panel.

7H-42 REAR END- F STYLE

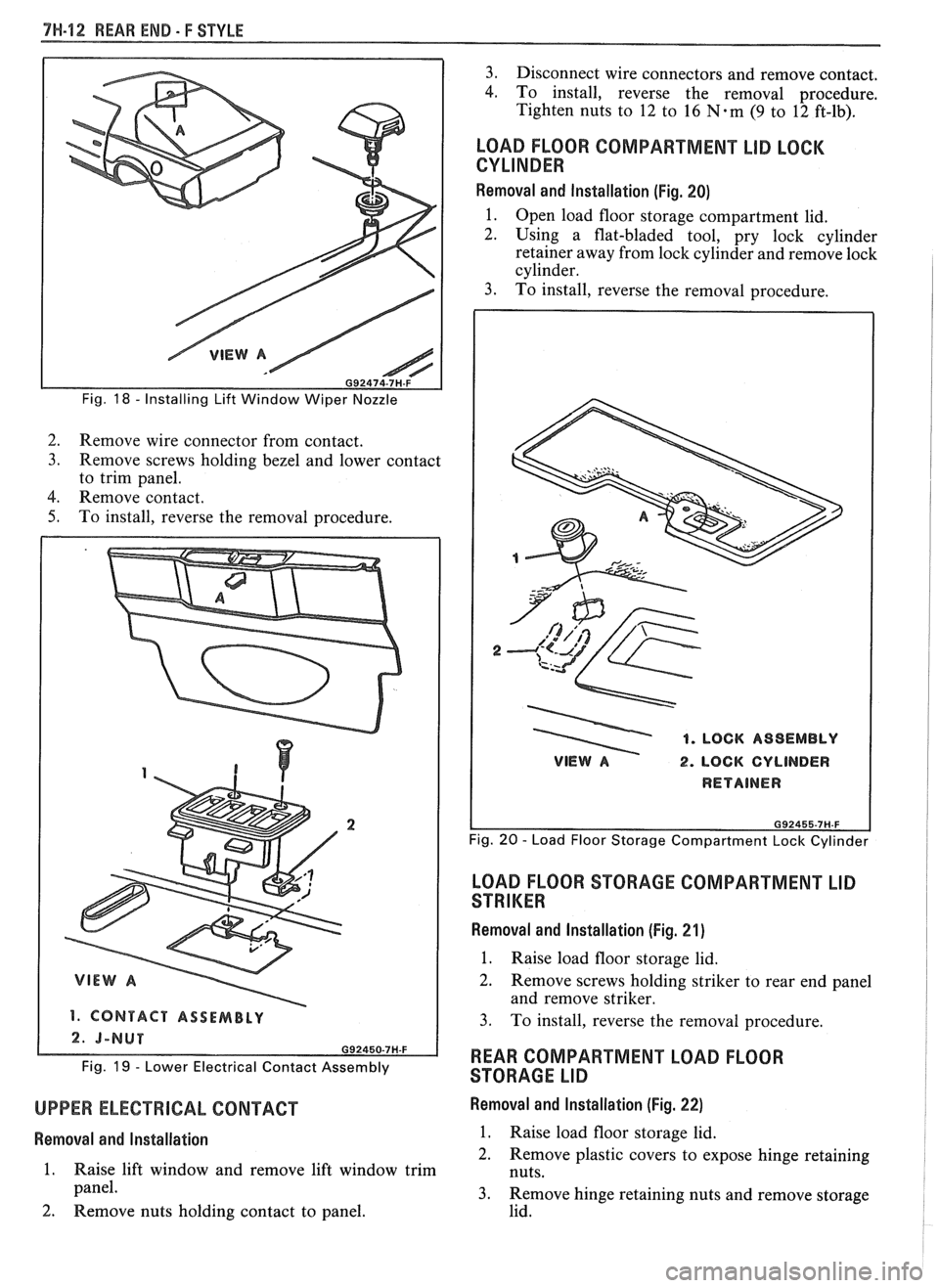

Fig. 18 - Installing Lift Window Wiper Nozzle
2.
Remove wire connector from contact.
3. Remove screws holding bezel and lower contact
to trim panel.
4. Remove contact.
5. To install, reverse the removal procedure.
1. CONTACT ASSEMBLY
Fig. 19 - Lower Electrical Contact Assembly
UPPER ELECTRICAL CONTACT
Removal and lnstallation
1.
Raise lift window and remove lift window trim
panel.
2. Remove nuts holding contact to panel.
3. Disconnect wire connectors and remove contact.
4. To install, reverse the removal procedure.
Tighten nuts to 12 to
16 N-m (9 to 12 ft-lb).
LOAD FLOOR COMPARTMENT LID LOCK
CYLINDER
Removal and lnstallation (Fig. 20)
1.
Open load floor storage compartment lid.
2. Using a flat-bladed tool, pry lock cylinder
retainer away from lock cylinder and remove lock
cylinder.
3. To install, reverse the removal procedure.
1. LOCK ASSEMBLY
VIEW A 2. LOCK CYLINDER
Fig. 20 - Load Floor Storage Compartment Lock Cylinder
LOAD FLOOR STORAGE COMPARTMENT LID
STRIKER
Removal and lnstallation (Fig. 21)
1.
Raise load floor storage lid.
2. Remove screws holding striker to rear end panel
and remove striker.
3. To install, reverse the removal procedure.
REAR COMPARTMENT LOAD FLOOR
STORAGE LID
Removal and lnstallation (Fig. 22)
1. Raise load floor storage lid.
2. Remove plastic covers to expose hinge retaining
nuts.
3. Remove hinge retaining nuts and remove storage
lid.

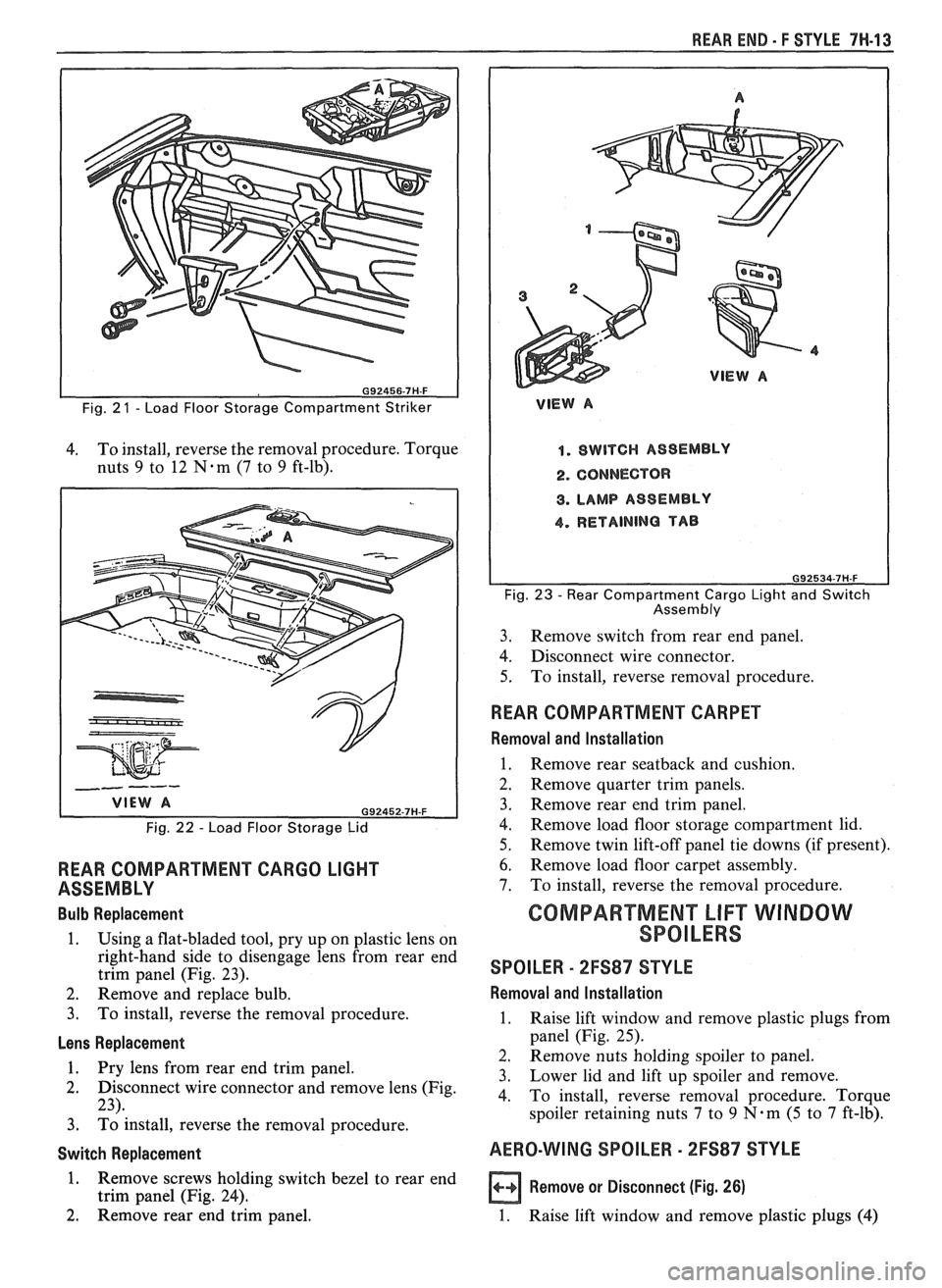

REAR END - F STYLE 7W-13
Fig. 2 1 - Load Floor Storage Compartment Striker
4. To
install, reverse the removal procedure. Torque
nuts
9 to 12 N-m (7 to 9 ft-lb).
Fig. 22 - Load Floor Storage Lid
REAR COMPARTMENT CARGO LIGHT
ASSEMBLY
Bulb Replacement
1. Using a flat-bladed tool, pry up on plastic lens on
right-hand side to disengage lens from rear end
trim panel (Fig. 23).
2. Remove and replace bulb.
3. To install, reverse the removal procedure.
Lens Replacement
1. Pry lens from rear end trim vanel.
2. Disconnect wire connector and remove lens (Fig.
23).
3. ~d install, reverse the removal procedure.

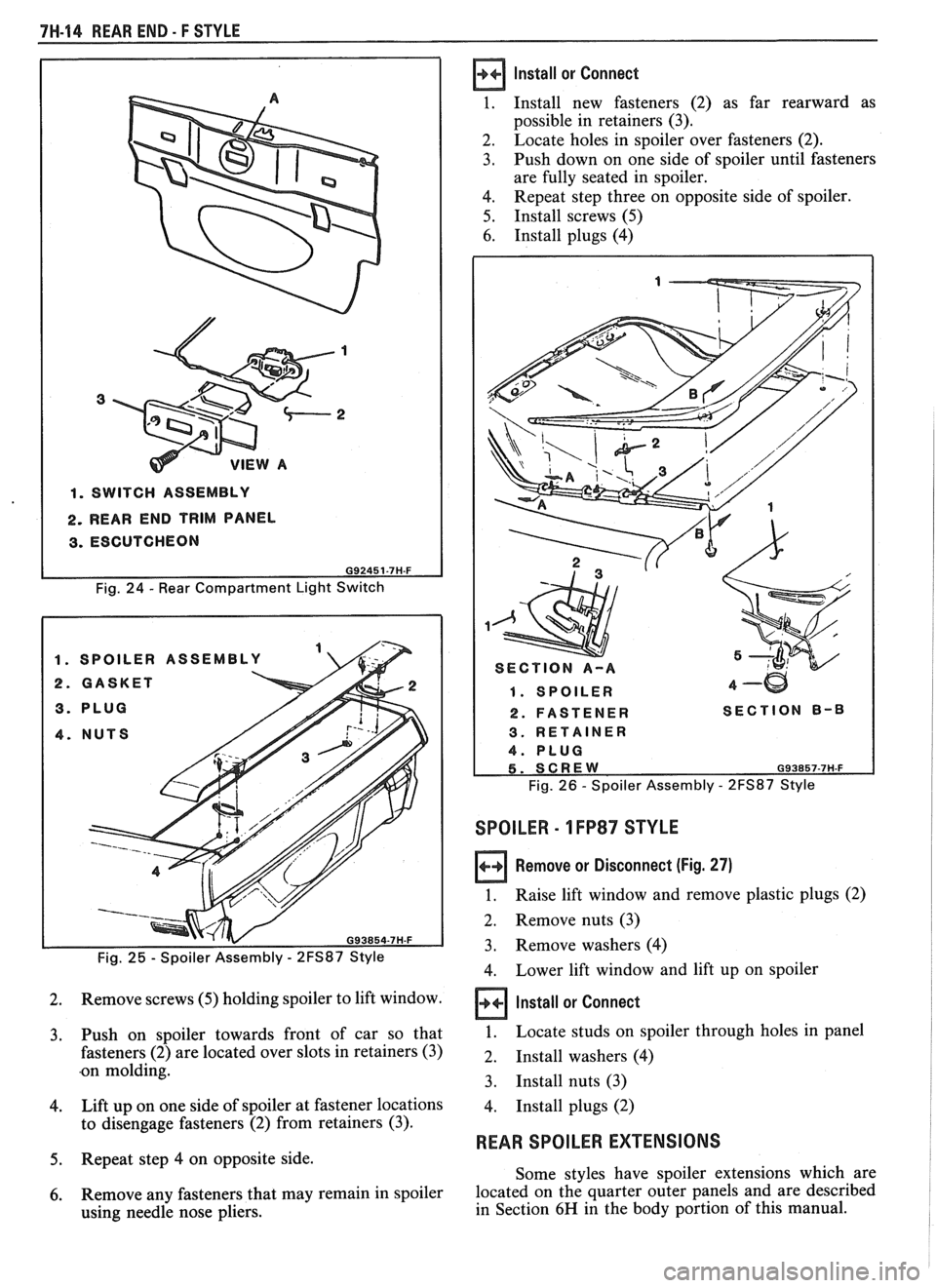

Switch Replacement
1. Remove screws holding switch bezel to rear end
trim panel (Fig. 24).
2. Remove rear end trim panel.
VlEW A
1. SWITCH ASSEMBLY
2. CONNECTOR
8. LAMP ASSEMBLY
4. RETAINING TAB
Fig. 23 - Rear Compartment Cargo Light and Switch
Assembly
3. Remove
switch from rear end panel.
4. Disconnect wire connector.
5. To
install, reverse removal procedure.
WEAR COMPARTMENT CARPET
Removal and Installation
1. Remove rear seatback and cushion.
2. Remove quarter trim panels.
3. Remove rear end trim panel.
4. Remove load floor storage compartment lid.
5. Remove twin lift-off panel tie downs (if present).
6. Remove load floor carpet assembly.
7. To install, reverse the removal procedure.
GOMPARTMEN"FLlFT WINDOW
SPOILERS
SPOILER - 2FS87 STYLE
Removal and lnstallation
1. Raise lift window and remove plastic plugs from
panel (Fig. 25).
2. Remove nuts holding spoiler to panel.
3. Lower lid
and lift up spoiler and remove.
4. To install, reverse removal procedure. Torque
spoiler retaining nuts
7 to 9 N.m (5 to 7 ft-lb).
AERO-WING SPOILER - 2FS87 STYLE
a Remove or Disconnect (Fig. 26)
1. Raise lift window and remove plastic plugs (4)

7H-14 REAR END - F STYLE
1. SWITCH ASSEMBLY
2. REAR END TRIM PANEL
3. ESCUTCHEON
Fig. 24 - Rear Compartment Light Switch
Fig.
25 - Spoiler Assembly - 2FS87 Style
2. Remove screws (5) holding spoiler to lift window.
3. Push on spoiler towards front of car so that
fasteners
(2) are located over slots in retainers (3)
.on molding.
4. Lift up on one side of spoiler at fastener locations
to disengage fasteners
(2) from retainers (3).
5. Repeat step 4 on opposite side.
6. Remove any fasteners that may remain in spoiler
using needle nose pliers.
Install or Connect
1. Install new fasteners (2) as far rearward as
possible in retainers
(3).
2.
Locate holes in spoiler over fasteners (2).
3. Push down on one side of spoiler until fasteners
are fully seated in spoiler.
4. Repeat step three on opposite side of spoiler.
5. Install screws (5)
6. Install plugs (4)
1. SPOILER 4-w
2. FASTENER SECTION B-8
Fig. 26 - Spoiler Assembly - 2FS87 Style
SPOILER - 1 FP87 STYLE
Remove or Disconnect (Fig. 27)
1. Raise lift window and remove plastic plugs (2)
2.
Remove nuts (3)
3. Remove washers (4)
4. Lower lift window and lift up on spoiler
Install or Connect
1. Locate studs on spoiler through holes in panel
2. Install washers (4)
3.
Install nuts (3)
4.
Install plugs (2)
REAR SPOILER EXTENSIONS
Some styles have spoiler extensions which are
located on the quarter outer panels and are described
in Section
6H in the body portion of this manual.

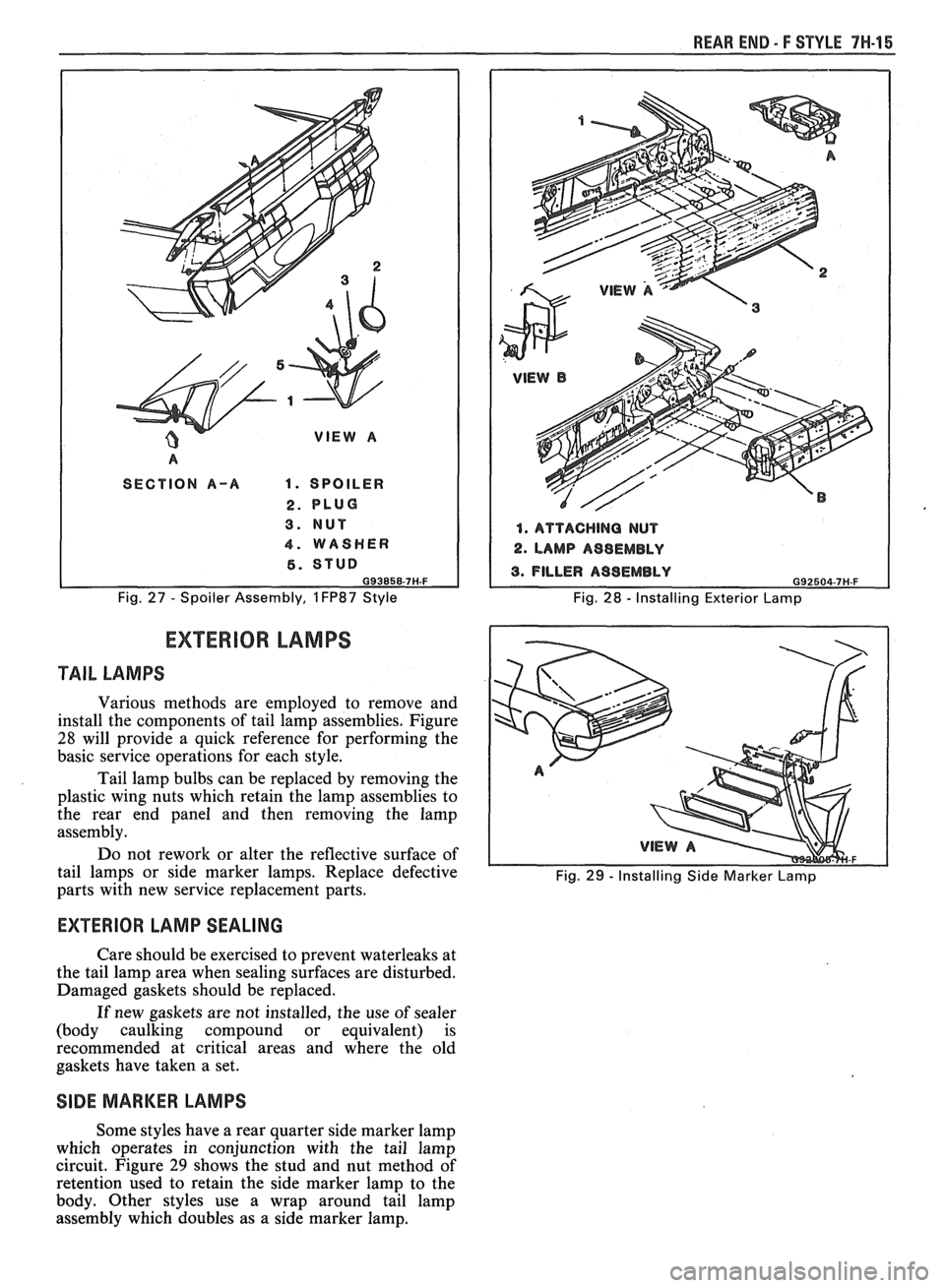

WEAR END - F STYLE 7H-15
A
SECTION A-A 1. SPOILER
2. PLUG
3. NUT
4. WASHER
6. STUD 093858-7H.F
Fig. 27 - Spoiler Assembly, 1 FP87 Style
1. ATTACHING NUT
2. LAMP A98EMBLY
Fig. 28 - Installing Exterior Lamp
EXTERIOR LAMPS
TAIL LAMPS
Various methods are employed to remove and
install the components of tail lamp assemblies. Figure
28 will provide a quick reference for performing the
basic service operations for each style.
Tail lamp bulbs can be replaced by removing the
plastic wing nuts which retain the lamp assemblies to
the rear end panel and then removing the lamp
assembly.
Do not rework or alter the reflective surface of
tail lamps or side marker lamps. Replace defective
Fig. 29 - Installing Side Marker Lamp parts with new service replacement parts.
EXTERIOR LAMP SEALING
Care should be exercised to prevent waterleaks at
the tail lamp area when sealing surfaces are disturbed.
Damaged gaskets should be replaced.
If new gaskets are not installed, the use
of sealer
(body caulking compound or equivalent) is
recommended at critical areas and where the old
gaskets have taken a set.
SIDE MARKER LAMPS
Some styles have a rear quarter side marker lamp
which operates in conjunction with the tail lamp
circuit. Figure
29 shows the stud and nut method of
retention used to retain the side marker lamp to the
body. Other styles use a wrap around tail lamp
assembly which doubles as a side marker lamp.

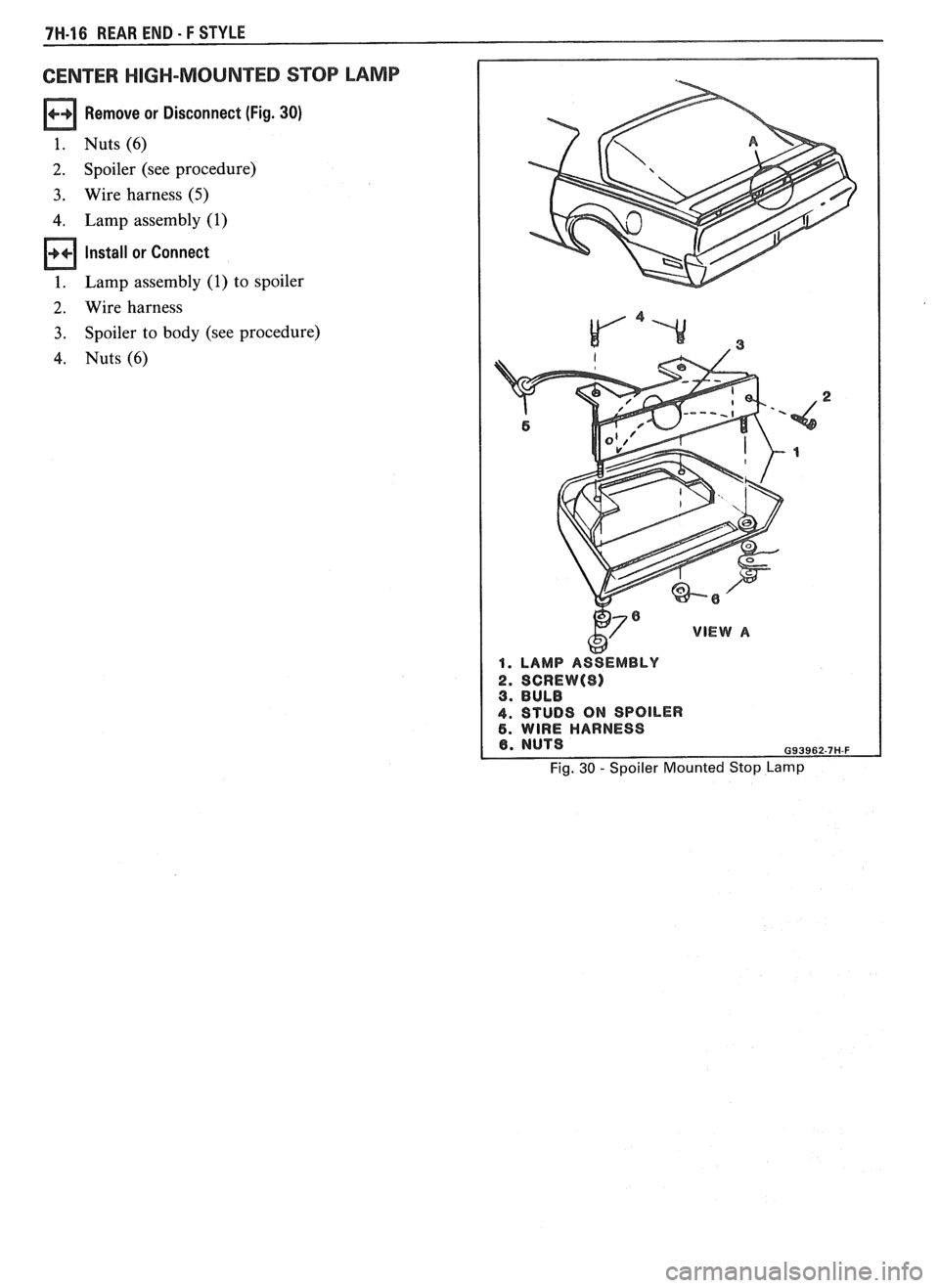

7H-16 REAR END - F STYLE
CENTER HIGH-MOUNTED STOP LAMP
Remove or Disconnect (Fig. 30)
1. Nuts(6)
2. Spoiler (see procedure)
3. Wire harness (5)
4. Lamp assembly (1)
Install or Connect
1. Lamp assembly (1) to spoiler
2. Wire harness
3. Spoiler to body (see procedure)
4. Nuts(6)
w 1. LAMP ASSEMBLY
4. STUBS ON SPOILER 6. WIRE HARNESS
Fig. 30 - Spoiler Mounted Stop Lamp

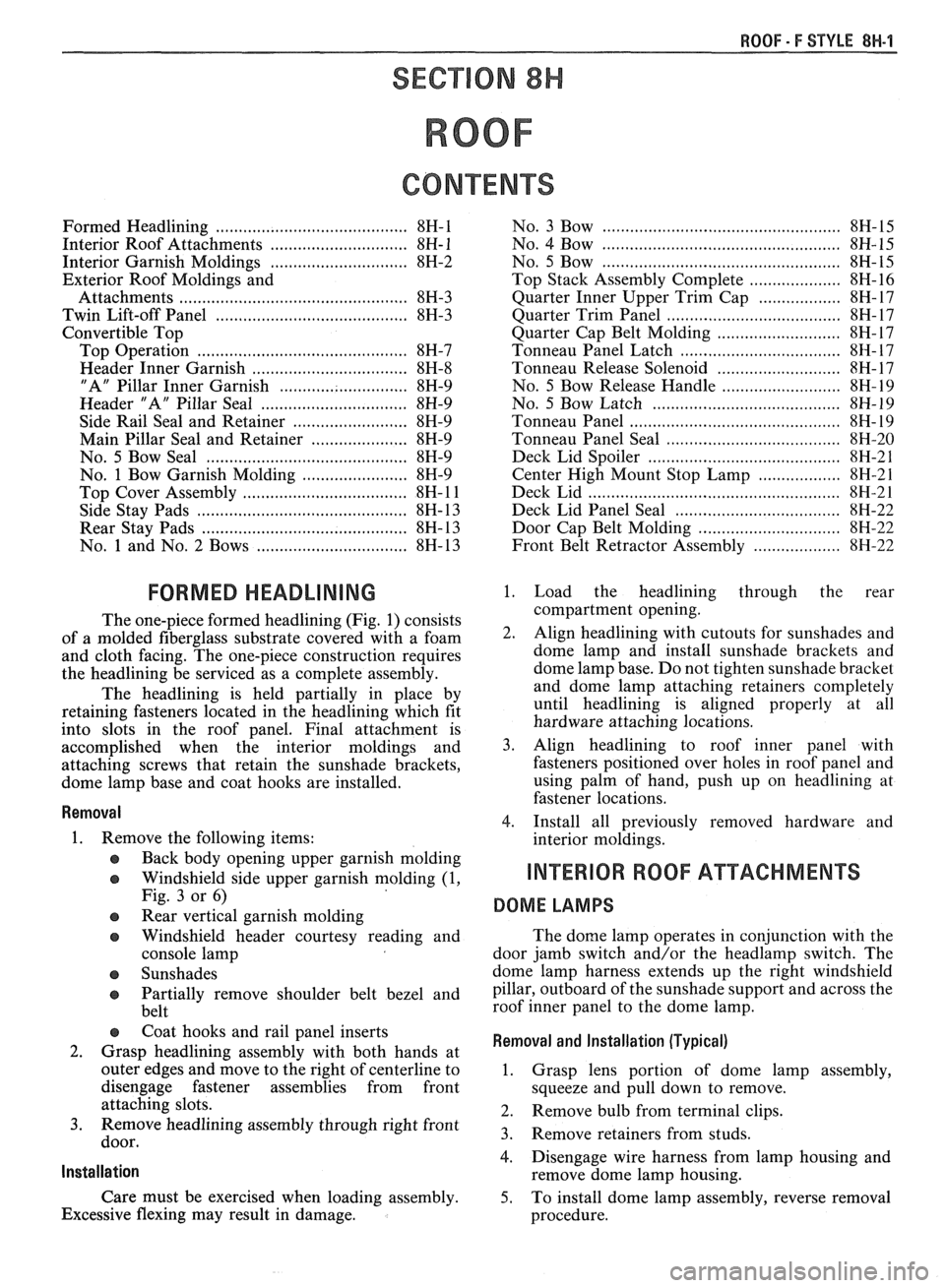

ROOF - F STYLE 8H-1
SECTION 8H
ROOF
CONTENTS
Formed Headlining .......................................... 8H- 1
Interior Roof Attachments
.............................. 8H- 1
Interior Garnish Moldings .............................. 8H-2
Exterior Roof Moldings and
Attachments
.................................... .... ... 8H-3
Twin Lift-off Panel
......................................... 8H-3
Convertible Top
Top Operation
............................................ 8H-7
Header Inner Garnish
................................. 8H-8
"A" Pillar Inner Garnish
........... .;. .............. 8H-9
Header
"A" Pillar Seal ................................ 8H-9
Side Rail Seal and Retainer
......................... 8H-9
Main Pillar Seal and Retainer
..................... 8H-9
No.
5 Bow Seal .......................................... 8H-9
No. 1 Bow Garnish Molding
....................... 8H-9
Top Cover Assembly
.................................... 8H- 1 1
Side Stay Pads ............................................. 8H-13
Rear Stay Pads ............................................ 8H- 13
No.
1 and No. 2 Bows ................................. 8H- 13 NO. 3
BOW
.................................................... 8H-15
NO. 4 BOW ................................................ 8H-15
NO. 5 BOW ................................................. 8H-15
Top Stack Assembly Complete .................... 8H- 16
Quarter Inner Upper Trim Cap
.................. 8H- 17
Quarter Trim Panel
.................................... 8H- 17
Quarter Cap Belt Molding
........................... 8H- 17
Tonneau Panel Latch
................................. 8H- 17
Tonneau Release Solenoid
........................... 8H- 17
No. 5 Bow Release Handle
.......................... 8H- 19
No.
5 Bow Latch ....................................... 8H-19
Tonneau Panel
.......................................... 8H- 19
Tonneau Panel Seal
............................. ......... 8H-20
Deck Lid Spoiler ........................................ 8H-2 1
Center High Mount Stop Lamp .................. 8H-21
Deck Lid .................................................... 8H-21
Deck Lid Panel Seal
................................. 8H-22
Door Cap Belt Molding ............................... 8H-22
Front Belt Retractor Assembly ................... 8H-22
FORMED HEADLINING 1. Load the headlining through the rear
The one-piece formed headlining (Fig. 1) consists
of a molded fiberglass substrate covered with a foam
and cloth facing. The one-piece construction requires
the headlining be serviced as a complete assembly.
The headlining is held partially in place by
retaining fasteners located in the headlining which fit
into slots in the roof panel. Final attachment is
accomplished when the interior moldings and
attaching screws that retain the sunshade brackets,
dome lamp base and coat hooks are installed.
Removal
1. Remove the following items:
e Back body opening upper garnish molding
r Windshield side upper garnish molding (1,
Fig. 3 or
6)
e Rear vertical garnish molding
a Windshield header courtesy reading and
console lamp
e Sunshades
e Partially remove shoulder belt bezel and
belt
a Coat hooks and rail panel inserts
2. Grasp headlining assembly with both hands at
outer edges and move to the right of centerline to
disengage fastener assemblies from front
attaching slots.
3. Remove headlining assembly through right front
door.
lnstallation
Care must be exercised when loading assembly.
Excessive flexing may result in damage. compartment
opening.
2. Align headlining with cutouts for sunshades and
dome lamp and install sunshade brackets and
dome lamp base. Do not tighten sunshade bracket
and dome lamp attaching retainers completely
until headlining is aligned properly at all
hardware attaching locations.
3. Align headlining to roof inner panel with
fasteners positioned over holes in roof panel and
using palm of hand, push up on headlining at
fastener locations.
4. Install all previously removed hardware and
interior moldings.
INTERIOR ROOF ATTACHMENTS
DOME LAMPS
The dome lamp operates in conjunction with the
door jamb switch and/or the
headlamp switch. The
dome lamp harness extends up the right windshield
pillar, outboard of the sunshade support and across the
roof inner panel to the dome lamp.
Removal and Installation (Typical)
1. Grasp lens portion of dome lamp assembly,
squeeze and pull down to remove.
2. Remove bulb from terminal clips.
3. Remove retainers from studs.
4. Disengage wire harness from lamp housing and
remove dome lamp housing.
5. To install dome lamp assembly, reverse removal
procedure.
