4F-28 ABS AND TCS
Check the wiring harnesses and connectors in circuit
from the I/P cluster terminal D6 to terminal 30 of the
EBCM connector.
Is the voltage equal to the specified value?
Repair the open or high resistance.
Is the repair complete?
Check for continuity between terminal 19 of the ABS
connector and ground G205.
Is the continuity equal to the specified value?
Replace the ABS unit.
Is the repair complete?
Repair the continuity between terminal 19 of the EBCM
connector and ground G205.
Is the repair complete?
1. Turn the ignition to LOCK.
2. Check fuse F30 in the I/P fuse block.
Is fuse F30 blown?
Replace fuse F30.
Is the repair complete?
1. Turn the ignition ON.
2. Check the voltage at fuse F30.
Is the voltage equal to the specifies value?
Repair the power supply to fuse F30.
Is the repair complete?
1. Remove the I/P cluster.
2. Check circuit LR from fuse F30 to terminal A1 of
the I/P cluster connector.
3. Repair any open or high resistance found in a wiring
harness, a splice pack, or a connector.
Is the repair complete? Step
14
15
16
17
18
19
20
21
22
23
Electronic Brake-Force Distribution System (EBD) Indicator Lamp Inoperative
Action
Go to Step 15
System OK
Go to Step 17
System OK
System OK
Go to Step 20
System OK
Go to Step 22
System OK
System OKGo to Step 16
-
Go to Step 18
-
-
Go to Step 21
-
Go to Step 23
-
- ∞
-
≈ 0 Ω
-
-
-
-
11 - 14v
-
-Value(s) Yes No

ABS AND TCS 4F-29
SSANGYONG MY2002
BLANK

SSANGYONG MY2002
4F-30 ABS AND TCS

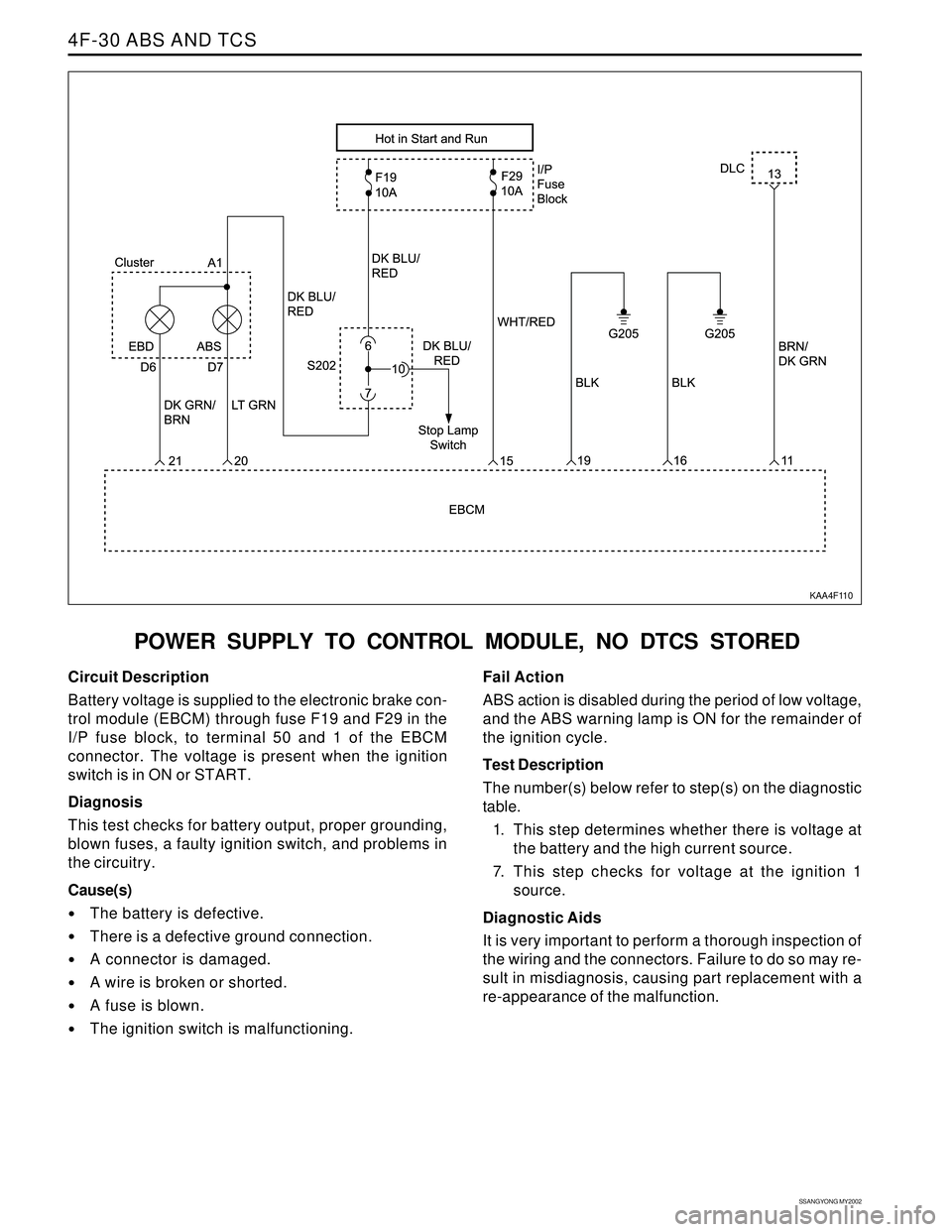

POWER SUPPLY TO CONTROL MODULE, NO DTCS STORED
KAA4F110
Circuit Description
Battery voltage is supplied to the electronic brake con-
trol module (EBCM) through fuse F19 and F29 in the
I/P fuse block, to terminal 50 and 1 of the EBCM
connector. The voltage is present when the ignition
switch is in ON or START.
Diagnosis
This test checks for battery output, proper grounding,
blown fuses, a faulty ignition switch, and problems in
the circuitry.
Cause(s)
The battery is defective.
There is a defective ground connection.
A connector is damaged.
A wire is broken or shorted.
A fuse is blown.
The ignition switch is malfunctioning.Fail Action
ABS action is disabled during the period of low voltage,
and the ABS warning lamp is ON for the remainder of
the ignition cycle.
Test Description
The number(s) below refer to step(s) on the diagnostic
table.
1. This step determines whether there is voltage at
the battery and the high current source.
7. This step checks for voltage at the ignition 1
source.
Diagnostic Aids
It is very important to perform a thorough inspection of
the wiring and the connectors. Failure to do so may re-
sult in misdiagnosis, causing part replacement with a
re-appearance of the malfunction.

ABS AND TCS 4F-31
SSANGYONG MY2002
Step
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Power Supply to Control Module, No DTCs Stored
Action
Go to Step 3
System OK
Go to Step 4
Go to Step 6
System OK
Go to Step 7
System OK
Go to Step 10
System OK
Go to Step 14
Go to Step 13
System OK
Go to Step 22
System OKGo to Step 2
-
Go to Step 8
Go to Step 5
-
Go to Step 25
-
Go to Step 9
-
Go to Step 18
Go to Step 12
-
Go to Step 14
- 11 - 14v
-
-
-
-
≈ 0 Ω
-
11 - 14v
-
-
-
-
≈ 0 Ω
-
Check the voltage at the battery.
Is the voltage equal to the specified value?
Charge or replace the battery, as required.
Is the repair complete?
Check fuse F30 in the I/P fuse block.
Is the fuse blown?
1. Replace fuse F30.
2. Turn the ignition to ON.
Does the fuse blow again?
Check the ABS function.
Is the repair complete?
1. Turn the ignition to OFF.
2. Remove fuse F30.
3. Disconnect the ABS connector from the EBCM.
4. Measure the resistance to ground at terminals 20
and 21.
Does the ohmmeter show the specified value?
Repair the short to ground in circuit WR between F19
and the ABS harness EBCM connector.
Is the repair complete?
1. Turn the ignition to ON.
2. Check the voltage at fuse F29.
Is the voltage equal to the specified value?
Repair the power supply to fuse F29.
Is the repair complete?
Check fuse F29 in the I/P fuse block.
Is the fuse F29 blown?
1. Replace fuse F29.
2. Turn the ignition to ON.
Does the fuse blow again?
Check the ABS function.
Is the repair complete?
1. Turn the ignition to OFF.
2. Remove fuse F29.
3. Disconnect the ABS connector from the EBCM.
4. Measure the resistance between ground and
terminal 1.
Is the resistance equal to the specified value?
Repair the short to ground in circuit WR fuse F29 of
the I/P fuse block and terminal 1 of the ABS garness
EBCM connector.
Is the repair complete?
Value(s) Yes No

SSANGYONG MY2002
4F-32 ABS AND TCS
Step
15
16
17
18
19
20
21
22
23
Power Supply to Control Module, No DTCs Stored (Cont’d)
Action
Go to Step 17
System OK
Go to Step 19
System OK
Go to Step 20
Go to Step 21
System OK
System OK
System OKGo to Step 16
-
Go to Step 18
-
Go to Step 23
Go to Step 22
-
-
- 11 - 14v
-
11 - 14v
-
≈ 0 Ω
-
-
-
-
1. Disconnect the EBCM connector from the EBCM.
2. Turn the ignition to ON.
3. Check for the presence of battery voltage between
ground and terminal 20 and 21.
Is the voltage equal to the specified value?
1. Turn the ignition switch to OFF.
2. Trace the RW wires between terminal 20 and 21 of
the EBCM connector to fuse F30 of the I/P fuse
block.
3. Repair the open in this circuit.
Is the repair complete?
Check the voltage between ground and terminal 1 of
the EBCM connector.
Is the voltage equal to the specified value?
1. Turn the ignition switch to OFF.
2. Repair the circuit RW between terminal 1 of the
ABS harness EBCM connector to fuse F29 in the I/
P fuse block.
Is the repair complete?
1. Turn the ignition to OFF.
2. Check the resistance between ground and terminals
16 and 19 of the EBCM connector.
Is the resistance equal to the specified value?
Examine terminals 20, 21, 1, 19 and 16 of the EBCM
connector.
Is there a defective terminal?
Repair the defective terminal or replace the connector
or wiring harness, as required.
Is the repair complete?
Replace the ABS unit.
Is the repair complete?
Repair the defective ground connection.
Is the repair complete?
Value(s) Yes No

ABS AND TCS 4F-33
SSANGYONG MY2002
BLANK

SSANGYONG MY2002
4F-34 ABS AND TCS
ABS INDICATOR LAMP ILLUMINATED CONTINUOUSLY,
NO DTCS STORED
KAA4F120
Circuit Description
Battery voltage is supplied to the ABS warning lamp
with the ignition in ON or START. The warning lamp
should be activated only by the ABS control module
internally supplying ground to terminal 31.
Diagnosis
This procedure checks for a short to ground in the
wiring or a defective electronic brake control module
(EBCM).Cause(s)
There is a short to ground in the circuit between the
cluster terminal D7 and the EBCM terminal 31.
The EBCM is faulty.

ABS AND TCS 4F-35
SSANGYONG MY2002
Check the EBCM connector.
Is it connected properly?
Connect the EBCM connector.
Is the repair complete?
1. Disconnect the EBCM connector.
2. Turn the ignition to ON.
3. Use an insulated tool to push the shorting bar in
the connector away from terminal 31.
Does the ABS indicator lamp go out?
Replace the ABS unit.
Is the repair complete?
Repair the short to ground in circuit Lg between I/P
cluster connector D7 and terminal 31 EBCM.
Is the repair complete? Step
1
2
3
4
5

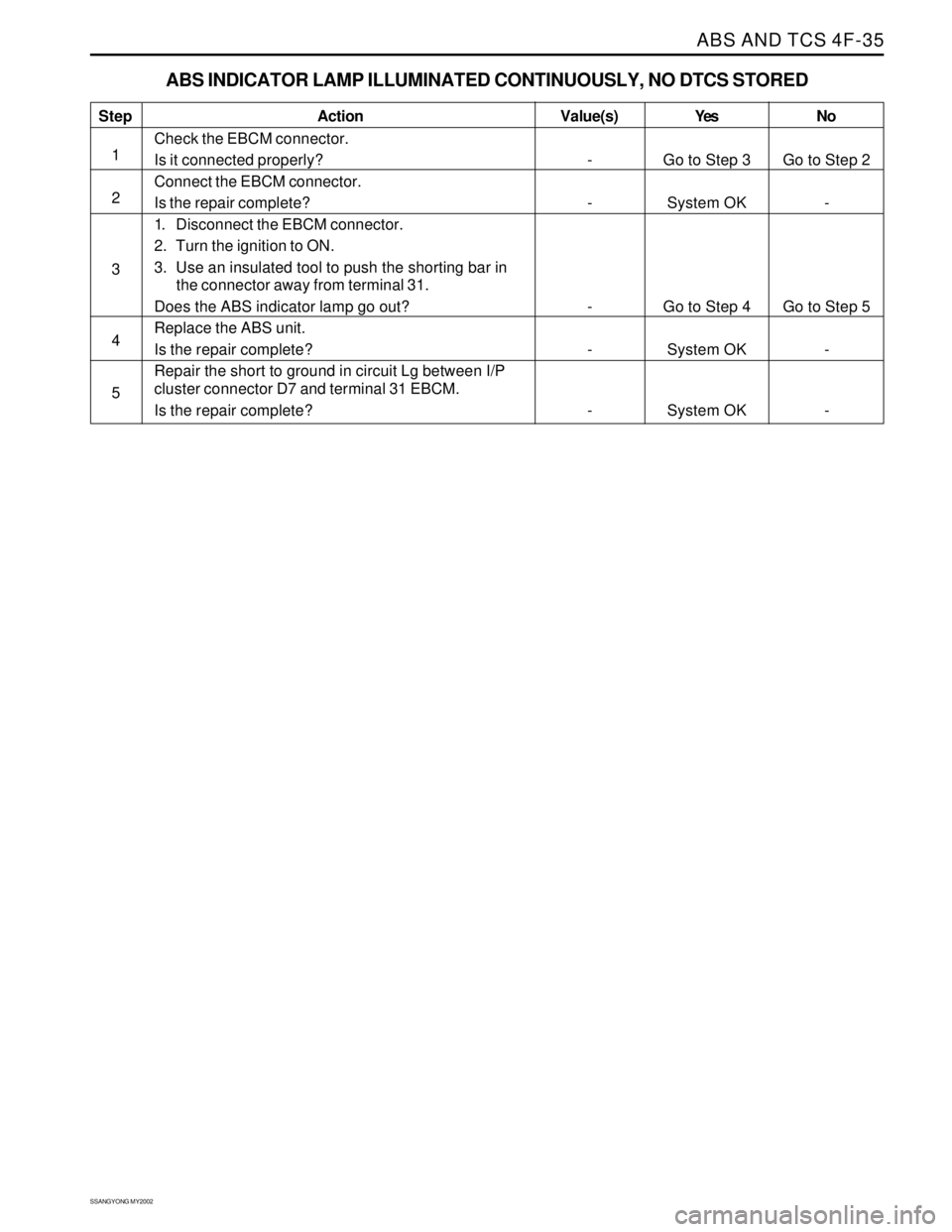

ABS INDICATOR LAMP ILLUMINATED CONTINUOUSLY, NO DTCS STORED
Action
Go to Step 3
System OK
Go to Step 4
System OK
System OKGo to Step 2
-
Go to Step 5
-
- -
-
-
-
-Value(s) Yes No

SSANGYONG MY2002
4F-36 ABS AND TCS
SELF-DIAGNOSTICS
Important: The electronic brake control module (EBCM)
turns the valve relay off when a diagnostic trouble code
(DTC) is set. The scan tool will indicate that the valve
relay is off when it is used to monitor the data list. This
is normal and should not be considered a mal-function.
The EBCM performs system self-diagnostics and can
detect and often isolate system malfunctions. When it
detects a malfunction, the EBCM sets a DTC that repre
sents the malfunction, turns on the ABS and/or the
TCS indicators in most instances, and may disable the
ABS and/or the TCS functions, as necessary, for the
duration of the ignition cycle.
Once each ignition cycle, the EBCM performs an auto-
matic test when the vehicle reaches 2.75 km/h (1.7
mph). In the course of this test, the system cycles
each valve solenoid and the pump motor, along with
the necessary relays, to check component operation.
If the EBCM detects any malfunctions, it will set a
DTC as described above.
DISPLAYING DTCs
Tools Required
Scan Tool
DTCs can be read through the use of the scan tool.
CLEARING DTCs
Tools Required
Scan Tool
The diagnostic trouble codes (DTCs) in the electronic
brake control module (EBCM) memory are erased in
one of two ways:
Use the scan tool “Clear DTCs” selection.
 After 249 DTC-free ignition cycles.
These two methods are detailed below. Be sure to verify
the proper system operation and, the absence of DTCs
when the clearing procedure is completed.The EBCM will not permit DTC clearing until all DTCs
have been displayed. Also, DTCs cannot be cleared
by disconnecting the EBCM, disconnecting the battery
cables, or turning the ignition switch to LOCK.
Scan Tool Method
The scan tool can clear ABS/TCS system DTCs using
the mass storage cartridge.
1. Install the scan tool and the mass storage
cartridge.
2. Select “Fault Memory”.
3. Select “Clear Fault Memory”.
Clearing the fault memory cannot reset a valve relay
which was shut down when the fault was recognized.
Changes are possible only after the fault has been elimi-
nated and the next ignition cycle has begun.
Ignition Cycle Default
A DTC is erased from memory after 249 ignition cycles
without any reappearance of that malfunction.
INTERMITTENTS AND POOR
CONNECTIONS
As with most electronic systems, intermittent malfunc
tions may be difficult to diagnose accurately. The follow-
ing is a method to try to isolate an intermittent
malfunction, especially in wheel speed circuitry.
If an ABS malfunction occurs, the ABS indicator will
illuminate during the ignition cycle in which the
malfunction was detected. If it is an intermittent problem
which seems to have corrected itself (ABS indicator
OFF), a history DTC will be stored. Also stored will be
the history data of the DTC at the time the malfunction
occurred. Use the scan tool modular diagnostic system
to read ABS history data.
Most intermittents are caused by faulty electrical con
nections or wiring, although a sticking relay or solenoid
can occasionally be at fault.

ABS AND TCS 4F-37
