SUBARU FORESTER 2004 Service Repair Manual

FUJI HEAVY INDUSTRIES LTD. G8080GE3
2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX
ENGINE SECTION 2
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.FUEL INJECTION (FUEL SYSTEM) FU(H4DOTC)
EMISSION CONTROL
(AUX. EMISSION CONTROL DEVICE)EC(H4DOTC)
INTAKE (INDUCTION) IN(H4DOTC)
MECHANICAL ME(H4DOTC)
EXHAUST EX(H4DOTC)
COOLING CO(H4DOTC)
LUBRICATION LU(H4DOTC)
SPEED CONTROL SYSTEM SP(H4DOTC)
IGNITION IG(H4DOTC)
STARTING/CHARGING SYSTEM SC(H4DOTC)
ENGINE (DIAGNOSTIC) EN(H4DOTC)

SPEED CONTROL SYSTEM
SP(H4DOTC)
Page
1. General Description ....................................................................................2

SP(H4DOTC)-2
SPEED CONTROL SYSTEM
General Description
1. General Description
A: SPECIFICATION
Specifications for 2.0 L model are included in
SP(H4SO) section. Description.>

FUJI HEAVY INDUSTRIES LTD. G8080GE3
2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX
ENGINE SECTION 2
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.FUEL INJECTION (FUEL SYSTEM) FU(H4DOTC)
EMISSION CONTROL
(AUX. EMISSION CONTROL DEVICE)EC(H4DOTC)
INTAKE (INDUCTION) IN(H4DOTC)
MECHANICAL ME(H4DOTC)
EXHAUST EX(H4DOTC)
COOLING CO(H4DOTC)
LUBRICATION LU(H4DOTC)
SPEED CONTROL SYSTEM SP(H4DOTC)
IGNITION IG(H4DOTC)
STARTING/CHARGING SYSTEM SC(H4DOTC)
ENGINE (DIAGNOSTIC) EN(H4DOTC)

IGNITION
IG(H4DOTC)
Page
1. General Description ....................................................................................2
2. Spark Plug...................................................................................................5
3. Ignition Coil & Ignitor ASSY ........................................................................8

IG(H4DOTC)-2
IGNITION
General Description
1. General Description
A: SPECIFICATION
Item Designation
Ignition coil and ignitor
ASSYModel FK0186
Ignition type Direct ignition
Manufacturer DIAMOND
Spark plugType and manufacturer2.0 L model NGK: PFR6G
2.5 L model NGK: ILFR6B
Thread diameter, pitch, length mm 14, 1.25, 26.5
Spark gap mm (in) 0.7 — 0.8 (0.028 — 0.031)
Electrode2.0 L model Platinum
2.5 L model Irigium

IG(H4DOTC)-3
IGNITION
General Description

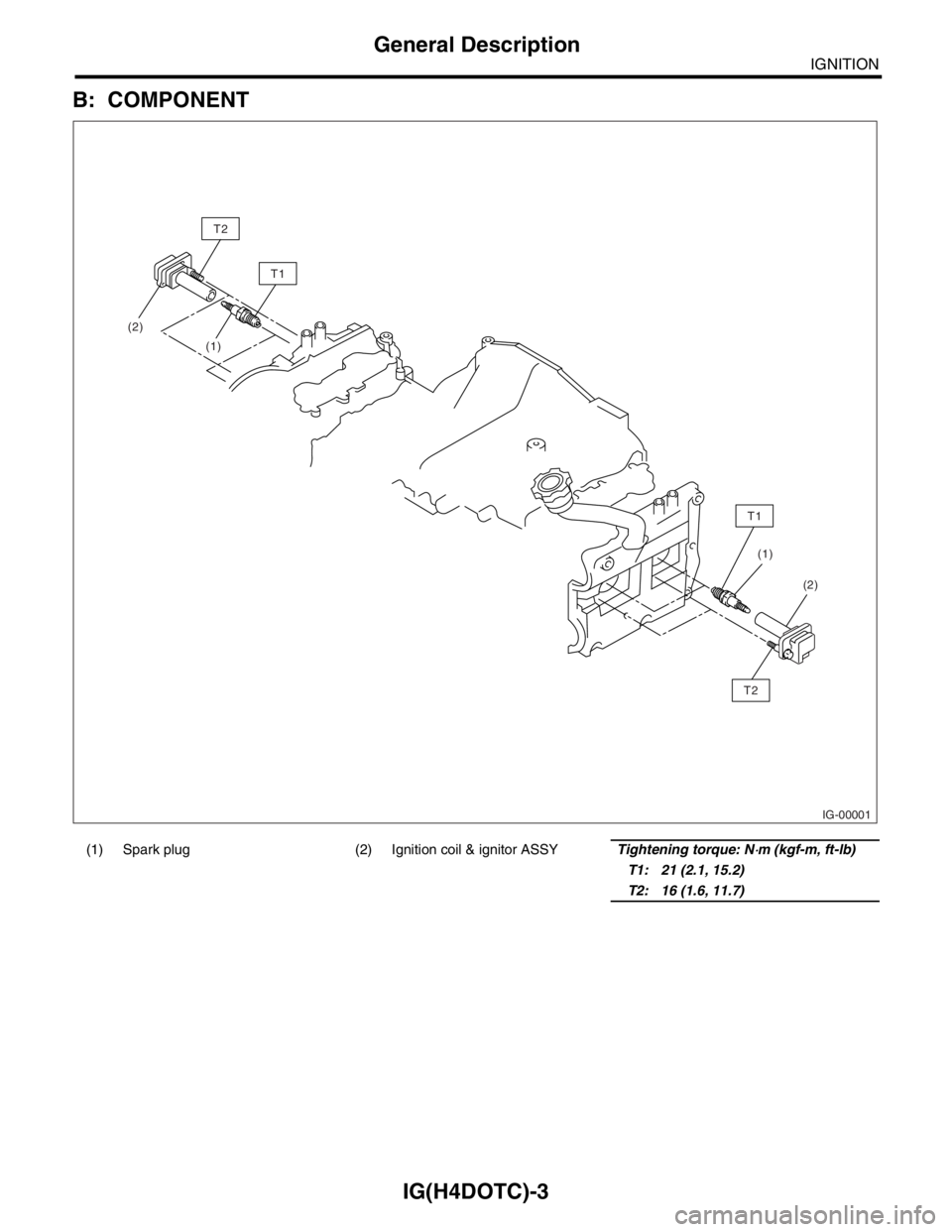

B: COMPONENT
(1) Spark plug (2) Ignition coil & ignitor ASSYTightening torque: N⋅m (kgf-m, ft-lb)
T1: 21 (2.1, 15.2)
T2: 16 (1.6, 11.7)
IG-00001
(1)T1
T2
T1
(1)
(2)
(2)T2

IG(H4DOTC)-4
IGNITION
General Description
C: CAUTION
 Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
 Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
 Keep the disassembled parts in order and pro-
tect them from dust or dirt.
 Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.
 Be careful not to burn yourself, because each
part on the vehicle is hot after running.
 Be sure to tighten fasteners including bolts and
nuts to the specified torque.
 Place shop jacks or rigid racks at the specified
points.
 Before disconnecting electrical connectors of
sensors or units, be sure to disconnect the ground
cable from battery.
